| Encapsulation | Single port OSFP (flat top) |
| Wavelength | 850nm |
| Joggle/interface | MPO-12/APC |
| Emitter type | VCSEL |
| Transmit power | -4.6~4dBm |
| Power budget | 1.7dB |
| Power consumption | 8.5W |
| Modulation (electric port) | 4x100G-PAM4 |
| Core size | 50/125µm |
| Technical protocol | 400G InfiniBand NDR, OSFP MSA Rev 5.0, IEEE 802.3ck, IEEE 802.3-2022 |
| Maximum transmission rate | 425Gbps (4x106.25Gb/s) |
| Maximum transmission distance | 30m@OM3 / 50m@OM4 or OM5 |
| Optical fiber type | Multimode |
| Receiver type | PIN |
| Minimum received power | -6.3dBm |
| Receiving overload | 4.0dBm |
| Extinction ratio | 2.5dB |
| Packaging technology | 4x100G-PAM4 |
| Built in FEC | No |

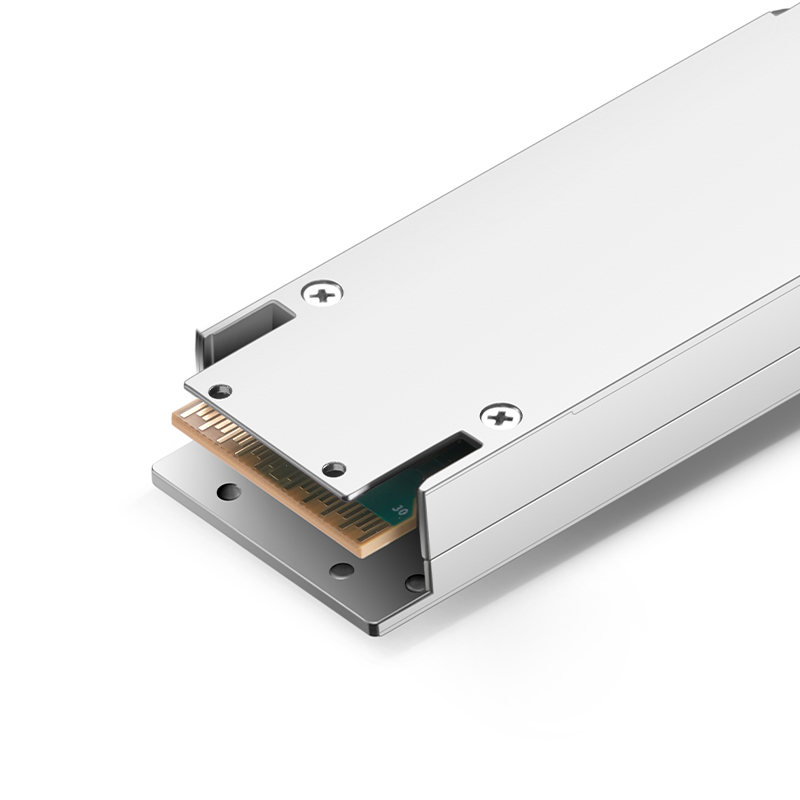

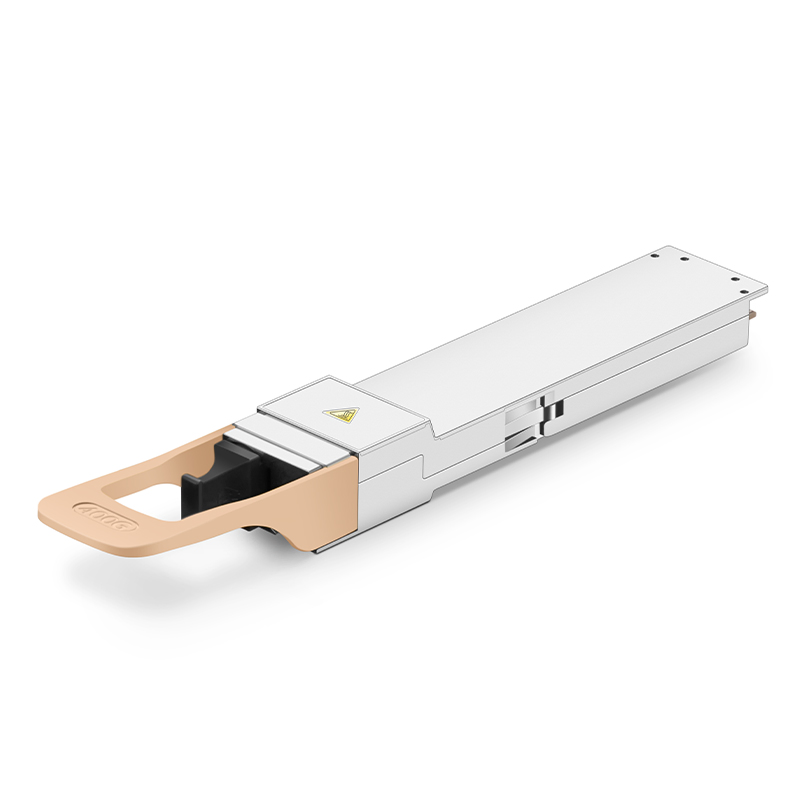

The single-port OSFP112 optical module supports the 400Gb/s InfiniBand NDR rate. Equipped with 4-channel SR4 multimode parallel transmission technology and based on the 100G-PAM4 modulation mode, it ensures fast and stable data transfer.

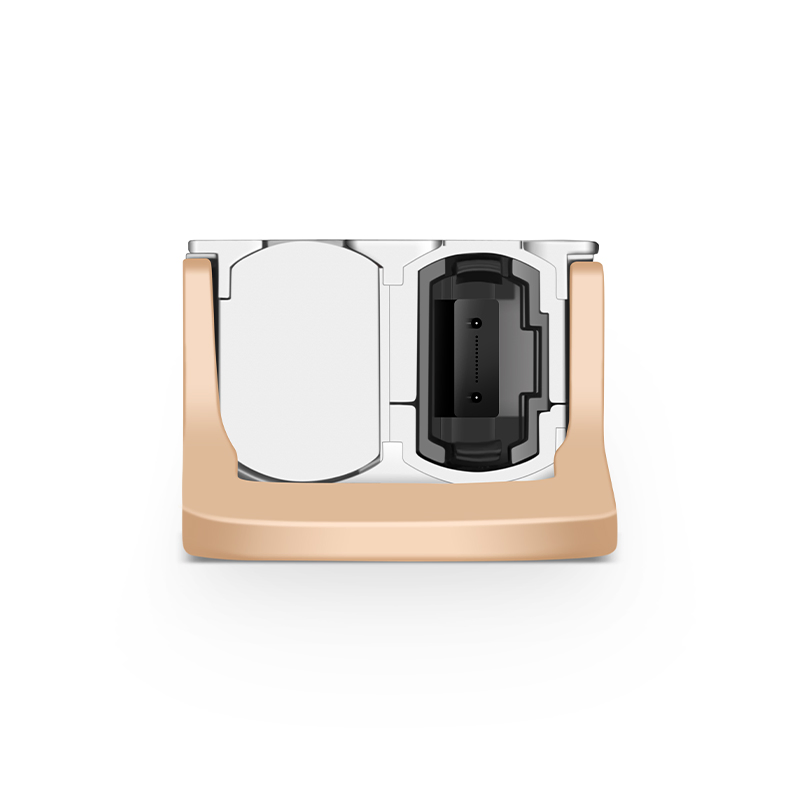

Fitted with a single 4-channel MPO-12/APC optical connector and featuring a unique flat-top design, it is highly compatible with ConnectX-7 OSFP network cards and dual-port optical modules.
Ideal solution for supercomputing, seamlessly integrated into computing and storage infrastructures, providing efficient and high-performance interconnection. Excellent choice for InfiniBand NDR end-to-end systems.
