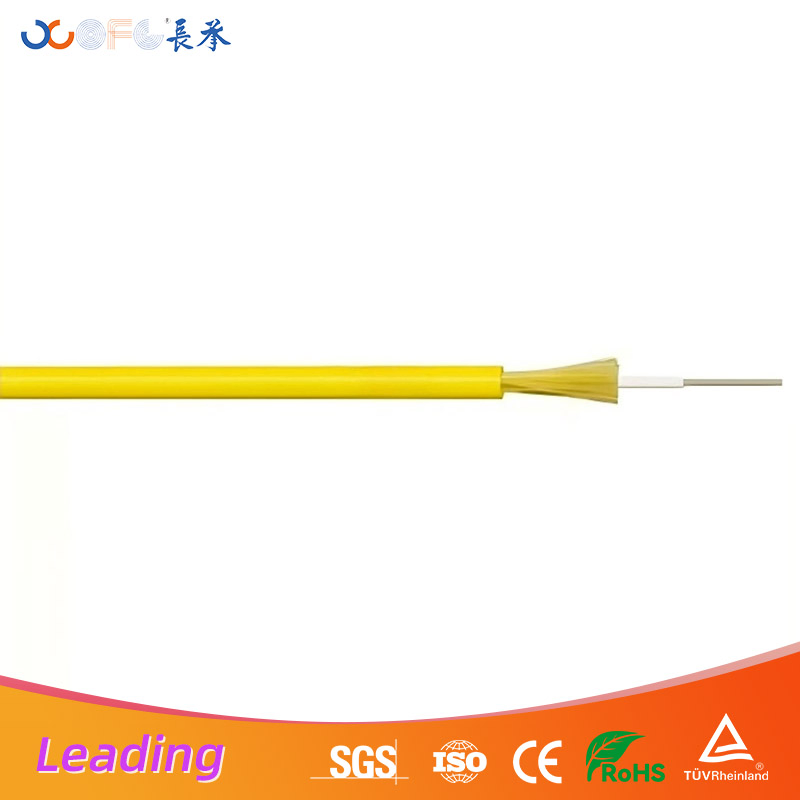

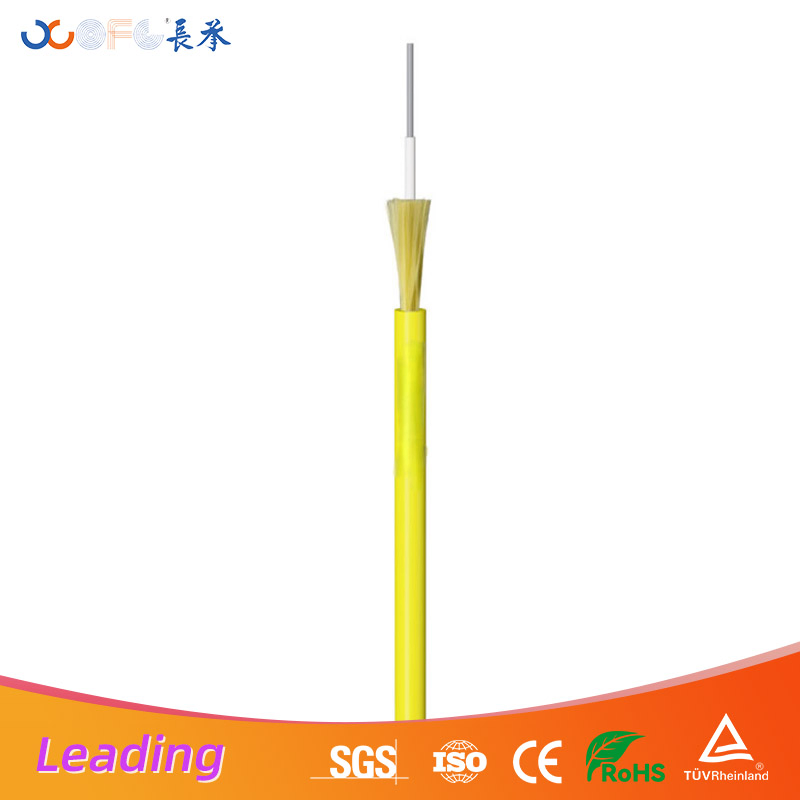

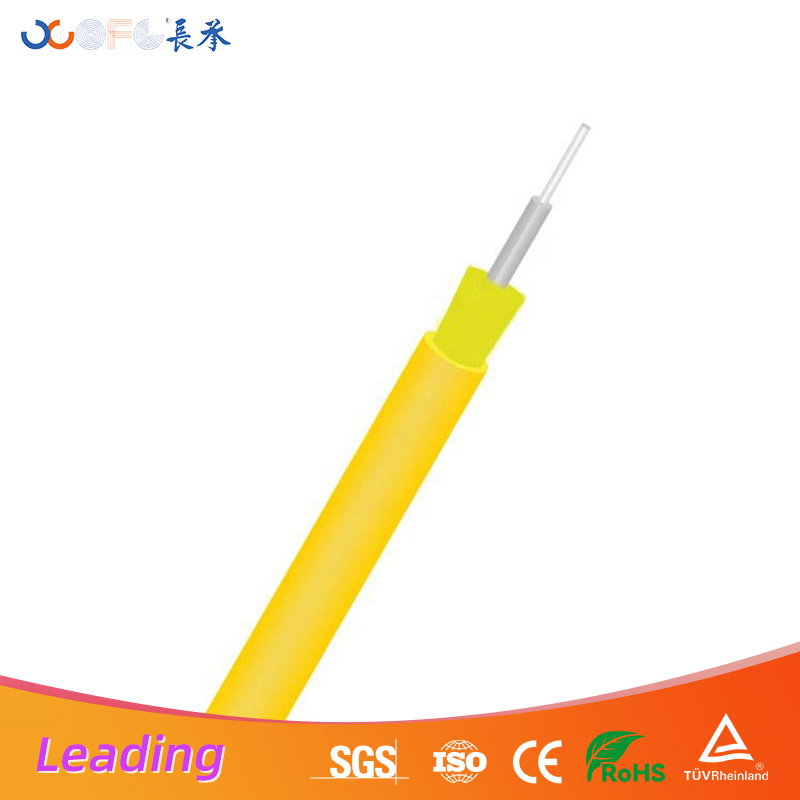

High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
1 / 5
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers
High-Performance Single-Core Fiber Optic Cable for Data Centers

High-Performance Single-Core Fiber Optic Cable for Data Centers

Customization: Available
Application: Communication
Type: Single/Multi-Mode Fiber
Send Inquiry

Product Description

Basic Information

Model NO.
GJFJV
Material Shape
Round Wire
Tensile Strength
100N < 1000N
Core
Single Core
Certification
RoHS, CE, ISO9001
Sheath Material
LSZH / PVC
Product Type
Indoor Simplex Tight-Buffered
Color
Yellow
HS Code
8544700000
Capacity
500,000,000 meters/Year

Product Description

SINGLE-CORE INDOOR OPTICAL CABLE

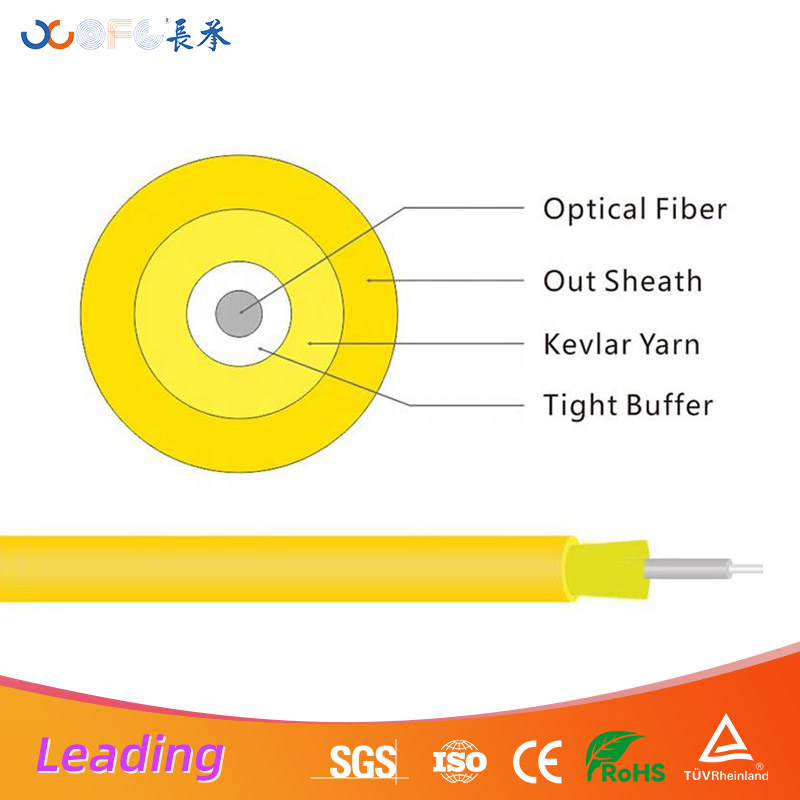

GJFJV single-core optical fiber cable uses a single Φ900μm or Φ600μm tightly sheathed optical fiber as the optical transmission medium. It is reinforced with a layer of high-strength aramid yarn and protected by an outer sheath of polyvinyl chloride (PVC) or low smoke zero halogen (LSZH) flame-retardant material.

  • Fibre optic movable connection patch cords or pigtails
  • Indoor shaft level and forced ventilation level cabling
  • Interconnection of instruments and communication equipment
  • High-speed data transmission for indoor network installations
Single-Core Fiber Optic Cable

Technical Parameters

CABLE MECHANICAL CHARACTERISTICS
Cable Outer Dia (MM)2.0 / 2.5 / 2.8 / 3.0
Cable Weight (KG/KM)3.2 - 10.0
Min. Bending Radius (Static/Dynamic)20mm / 40mm (for 2.0mm cable)
Max. Tensile Strength (Short/Long Term)100N / 60N
Crush Load Resistance (N/100M)500 (Short) / 100 (Long)
Flame ResistanceInternational Fire Safety Standards; LSZH Version

Product Highlights

Fiber Detail 1
Tight-Buffered Construction
Fiber Detail 2
Aramid Yarn Reinforcement
Fiber Detail 3
Flexible Design
Fiber Detail 4
Flame-Retardant Sheath

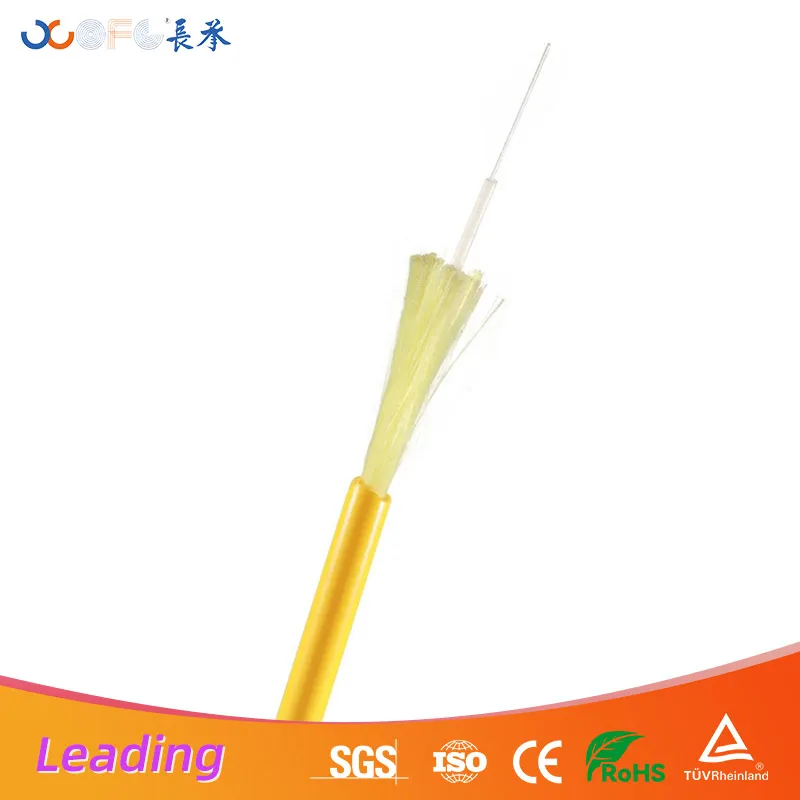

Fiber Detail 5
Indoor Networking

Key Characteristics

  • Tightly sheathed fibres for easy stripping and termination
  • Excellent flame retardant properties for indoor safety
  • High tensile strength provided by aramid reinforcing elements
  • Corrosion, water, and UV resistant outer materials
  • Environmentally friendly LSZH options available
Product Manufacturing

Frequently Asked Questions

1 What types of optical fiber cables are available?
We specialize in a wide range, including Outdoor/Indoor Optical Fiber Cables, FTTH Drop Cables, and Optical Fiber Composite Overhead Ground Wires (OPGW).
2 What standards do your cables comply with?
Our products comply with international standards such as ISO, IEC, CE, UL, and RoHS, ensuring high quality and safety for global projects.
3 Can you customize cables to specific project requirements?
Yes, as an OEM/ODM manufacturer, we can customize cable diameters, fiber counts, colors, sheath materials (PVC/LSZH), and lengths.
4 What is the typical production lead time?
For standard products, it is usually 15-30 days after confirmation. Large or specialized orders will be confirmed based on the specific requirements.
5 What is your warranty policy?
We offer a comprehensive 15-year warranty on our optical fiber cables, covering any manufacturing defects under normal usage.
6 Do you provide samples for quality testing?
Yes, we can provide samples for quality verification. Please contact us to discuss shipping via express couriers like DHL or FedEx.
