XT Cabled
1 / 5
Structural Parameters
| Fiber Count | Cable dimension (mm) | Cable weight (kg/km) | Tensile Strength Long/short (N) | Crush resistance (N/100mm) | Bending Radius Dynamic/static (mm) |
|---|---|---|---|---|---|
| 1 | (2.0±0.1)x(5.0±0.1) | 21 | 300/600 | 1000/2200 | 15/30 |
| 2 | (2.0±0.1)x(5.0±0.1) | 21 | 300/600 | 1000/2200 | 15/30 |
Optical Characteristics
| Fiber type | Attenuation 1310/1550nm (dB/km) | 850/1300nm (dB/km) | Bandwidth 850/1300nm | 10G Ethernet Length | Min Bend Radius (mm) |
|---|---|---|---|---|---|
| G657A1 | 0.36/0.22 | - | - | - | 10 |
| G657A2 | 0.36/0.22 | - | - | - | 7.5 |
| OM3 | - | 3.0/1.0 | ≥1500/500 | ≤300 | 30 |
| OM4 | - | 3.0/1.0 | ≥3500/500 | ≤550 | 30 |
Operating temperature: -20°C~+60°C
| Fiber count | 1-2 |
| Fiber type | G657A1, G657A2, 50/125, 62.5/125, OM3, OM4, OM5 |
| Strength unit type | FRP, Steel wire |
| Outer jacket | LSZH (Black or customized) |
| Package | Per customer's request or factory standard |

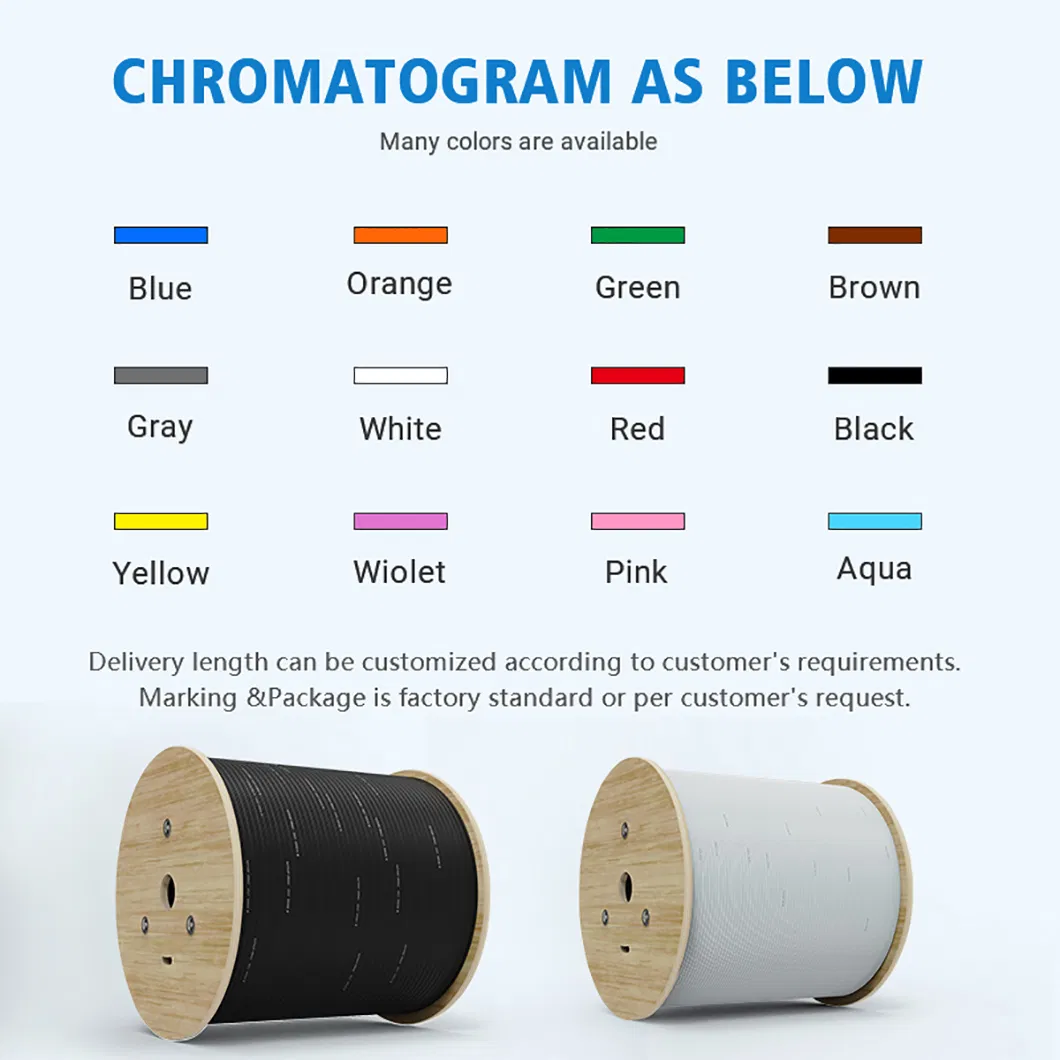

Chromatogram Chart
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |
Product Profile

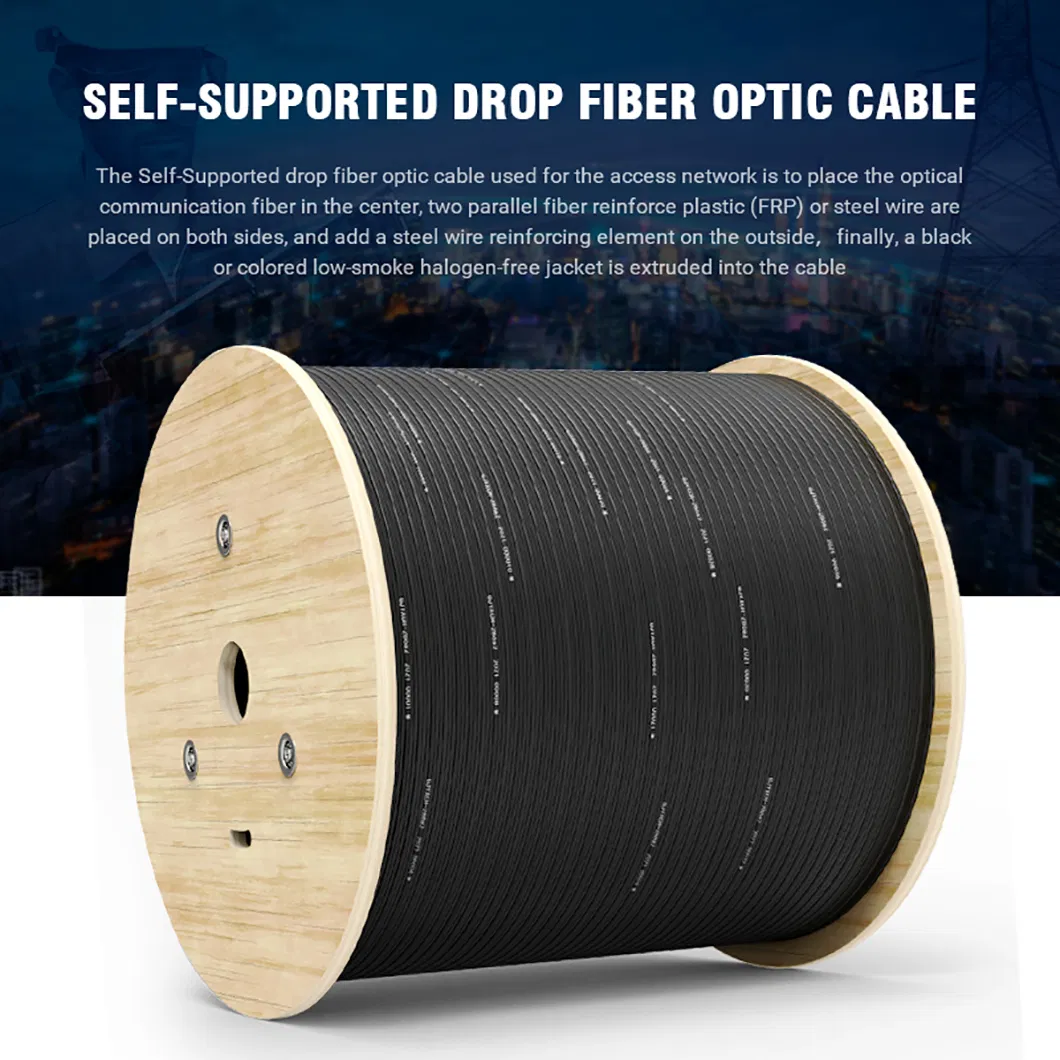

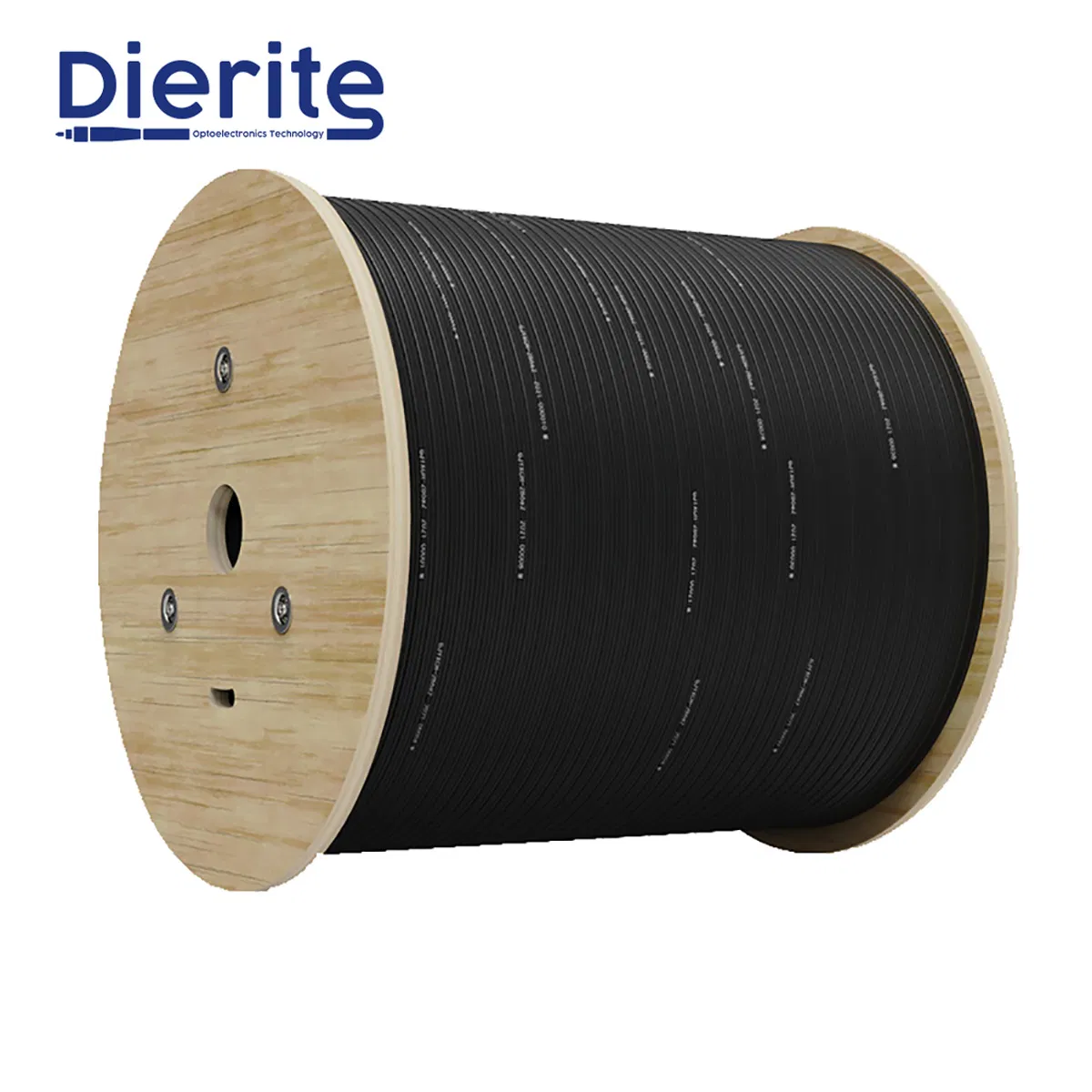

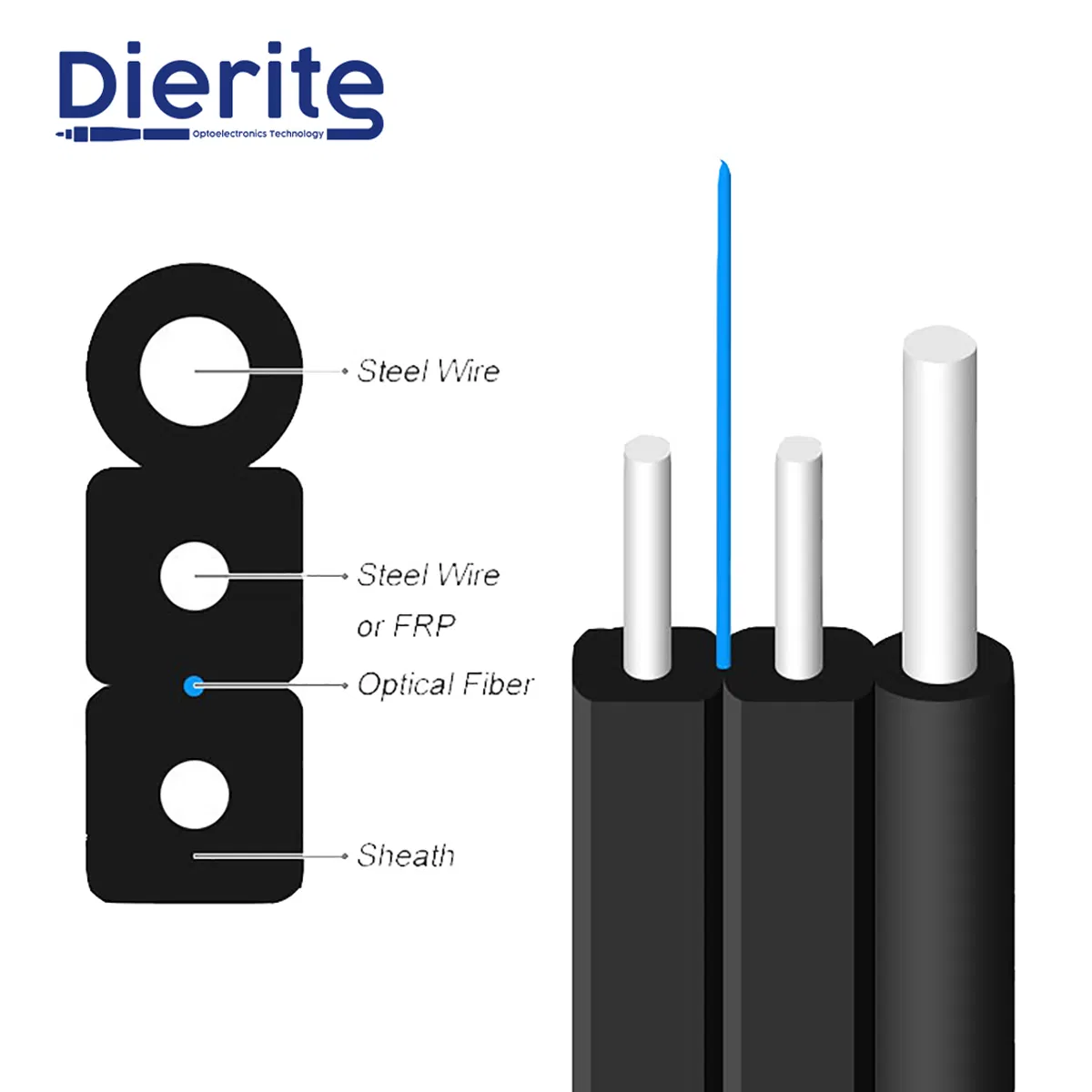

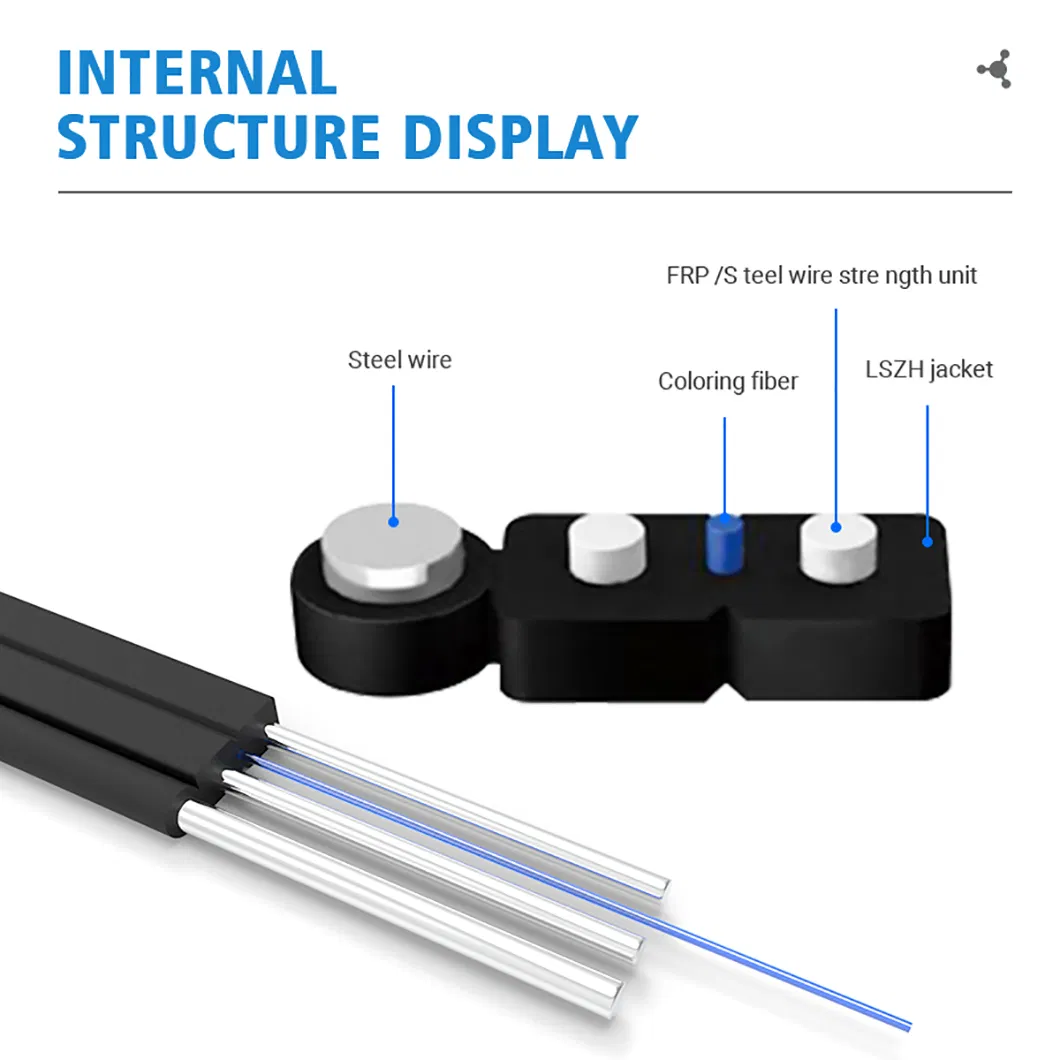

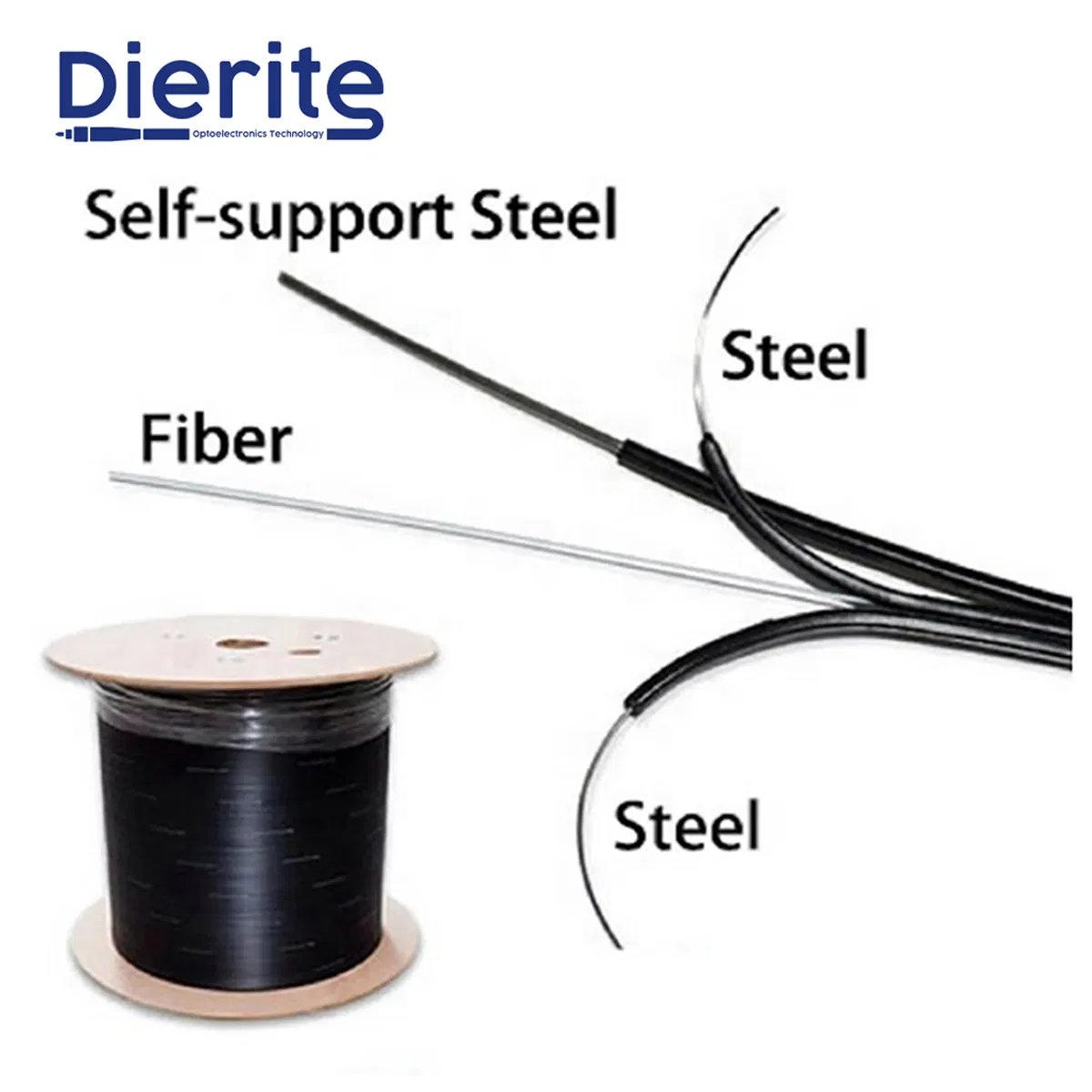

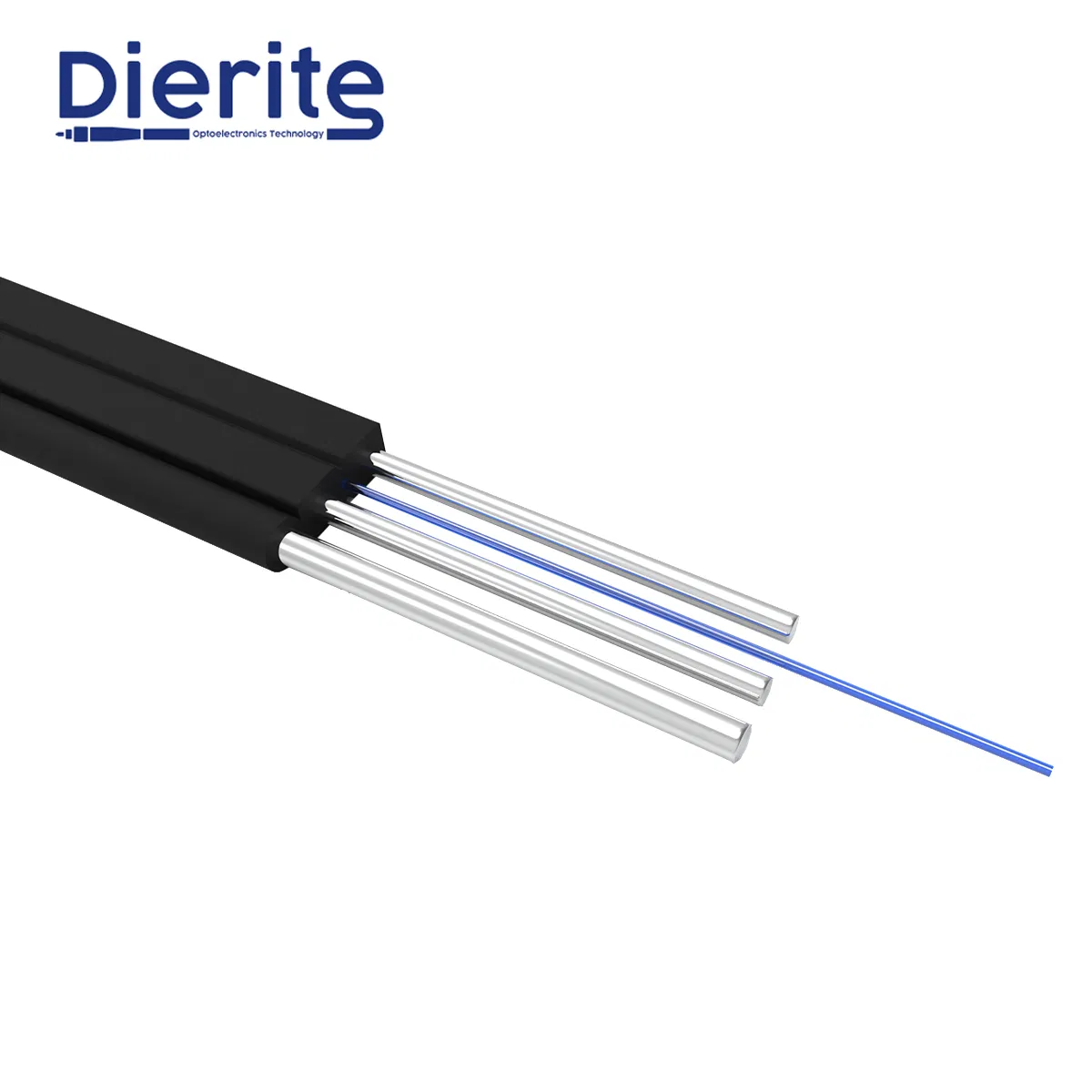

The Self-Supported drop fiber optic cable is designed for access networks. It places the optical communication fiber in the center with two parallel fiber reinforced plastic (FRP) or steel wires on both sides for strength. An additional steel wire reinforcing element is added on the outside, and the entire structure is protected by a black or colored low-smoke zero-halogen (LSZH) jacket.
Key Features

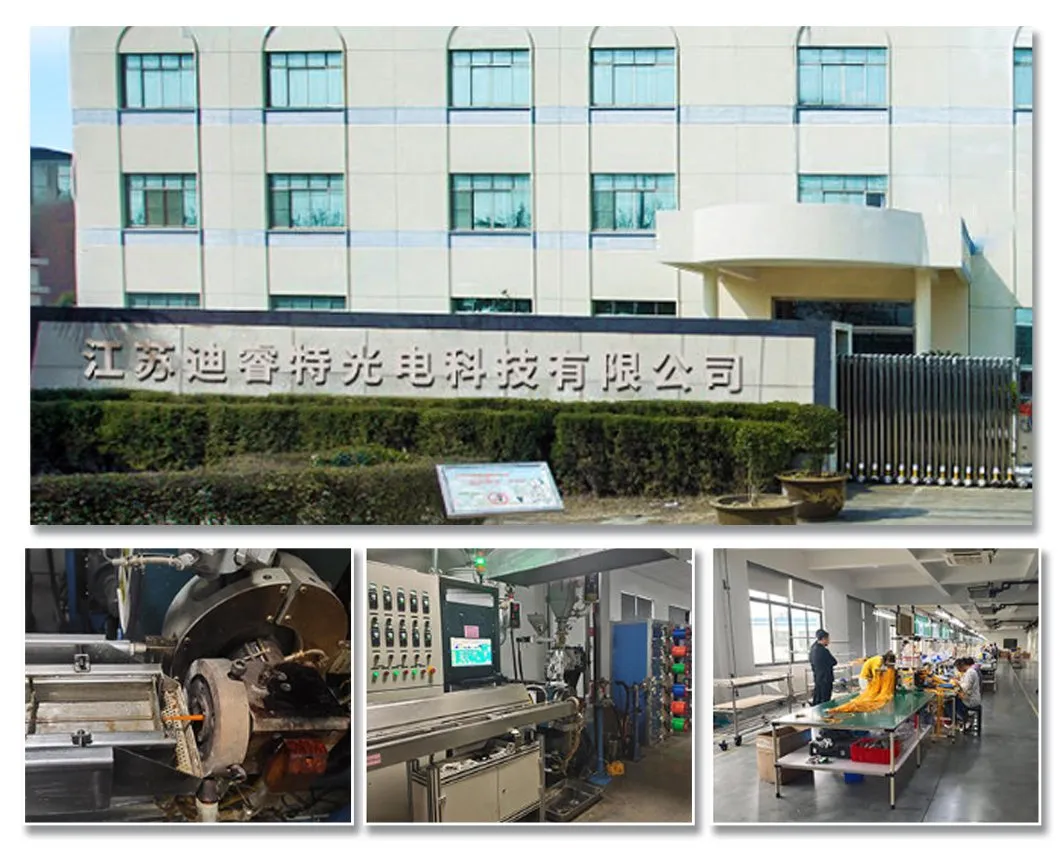

A professional optical fiber cable manufacturer with dedicated R&D and production bases. The facility covers approximately 5,000 square meters and is committed to providing first-class solutions and OEM services for system integrators and integrated wiring providers. Products include indoor/outdoor fiber optic cables, patch cords, PLC splitters, and more.
Operating under strict quality control standards, the production processes comply with international requirements to ensure high-performance products for global telecommunications and broadband industries.
