Composite Hybrid Optical Fiber Cable GYXTW Armoured 12 Cores

1 / 5

Composite Hybrid Optical Fiber Cable GYXTW Armoured 12 Cores

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Composite Hybrid Optical Fiber Cable GYXTW Armoured

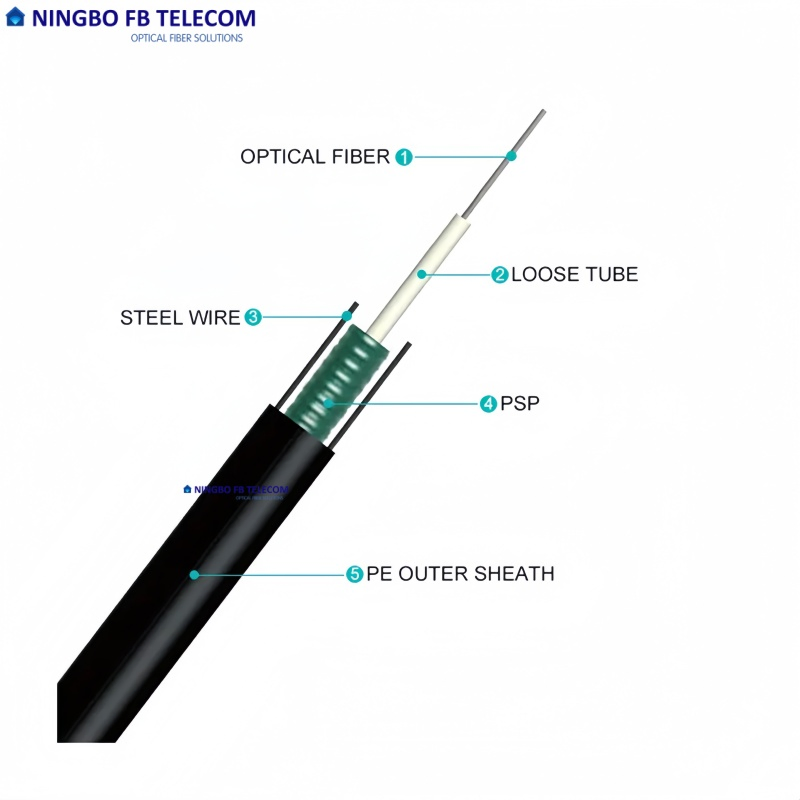

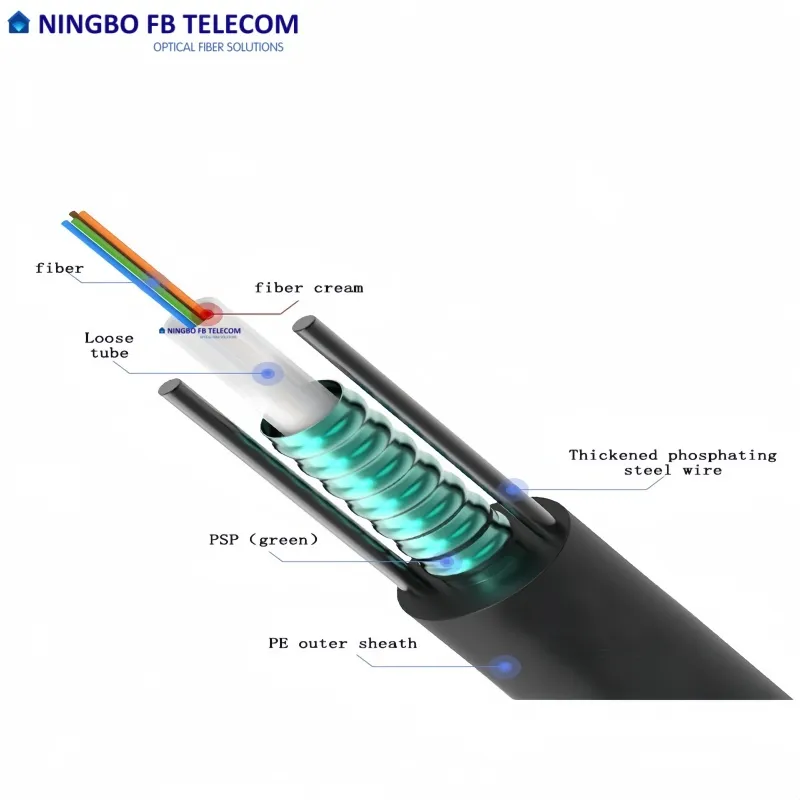

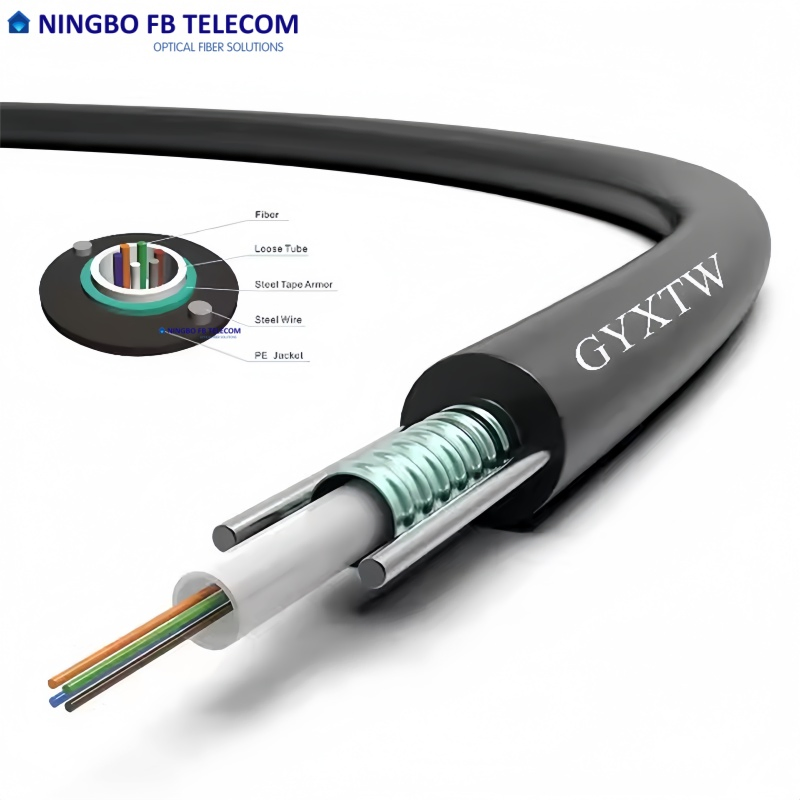

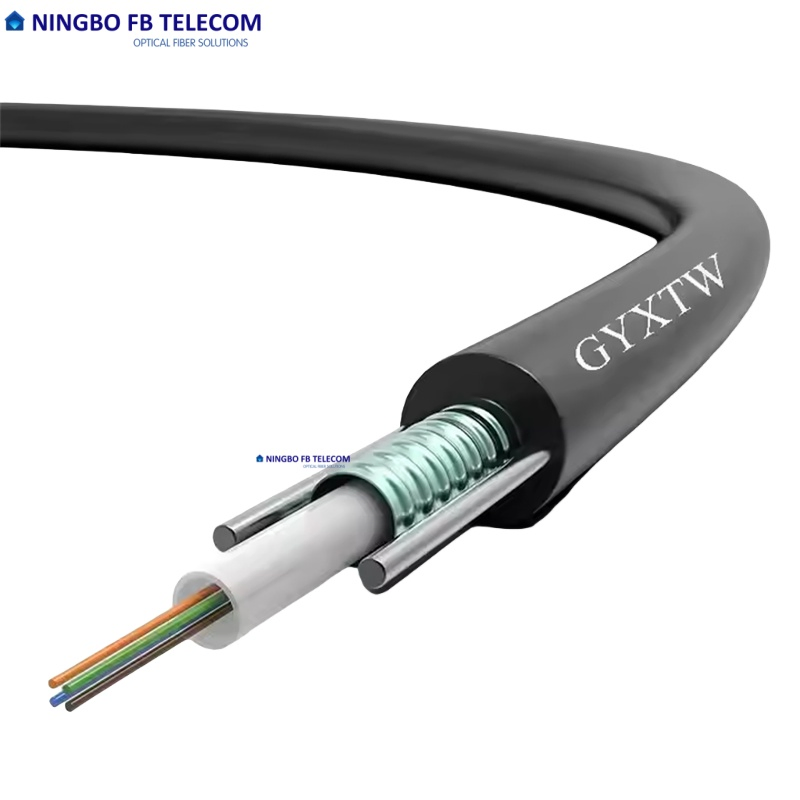

The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. Then the cable is completed with a polyethylene (PE) sheath.

Model NO.	GYXTW	Core	2-24 Fibers
Material Shape	Round Wire	Certification	ISO9001
Lateral Pressure	300/1000(N/100mm)	Sheath Material	Single PE Sheath
Tensile Strength	100n < 1000n < 10000n	System	FTTX System
Material	PE, FRP or Customization	Color	Black, White or Customization

Technical Parameters

Cable Type	GYXTW
Optical Fiber Counts	2-24
Fiber Color	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber Types	Single-mode and Multimode
Cable Constructions	Central tube
Strength Member	Parallel Steel wire
Armor	Corrugated steel tape
Operating Temperature	-40ºC to +70ºC
Tensile Strength	Short term 1500N / Long term 600N
Crush Resistance	Short term 1000N/100mm / Long term 300N/100mm
Min. Bend Radius	Dynamic 20D / Static 10D

Note: Typical values provided. Custom specifications available upon request.

Detailed Photos

Manufacturing & Quality Control

Packaging & Shipping

Package Size	45.00cm * 50.00cm * 60.00cm
Gross Weight	45.500kg
Transport Package	Wooden Drum

Frequently Asked Questions

How do you guarantee the quality of the fiber cables?

Quality is ensured through a rigorous process including a pre-production sample before mass production and a final comprehensive inspection before shipment.

What are the core components of the GYXTW cable structure?

The GYXTW cable consists of 250um bare fibers in a loose tube with water-resistant compound, a PSP armor layer, two parallel steel wires for strength, and a durable PE outer sheath.

What is the operating temperature range for this cable?

The cable is designed for extreme environments, with an operating temperature range of -40ºC to +70ºC.

What products can be sourced for an FTTX system?

Beyond fiber optic cables, we provide Fiber Splicing Boxes, PLC Splitters, and Fiber Distribution Boxes to complete your FTTX network.

What are the available fiber counts and types?

This model supports 2 to 24 cores and is available in both Single-mode and Multimode fiber types depending on your application needs.

What payment and delivery terms are accepted?

We support a wide range of delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payments include T/T, L/C, Credit Card, and PayPal across multiple global currencies.
