FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
1 / 5
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification
FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification

FTTH Hybrid 24/36/48 Core All Dielectric ADSS Fiber Optic Cable Specification

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Adss Fiber Optic Cable
Material Shape
Round Wire
Lateral Pressure
100(N/100mm) < 1000(N/100mm)
Tensile Strength
100N < 1000N
Core
Double Core
Certification
RoHS, CE, ISO9001, SGS
Sheath Material
PVC or LSZH
Fiber Count
2-48 Cores
Cable Structure
Bow Type Tight Buffer
Operating Temp.
-50 ~ +60 C
Reinforcer
FRP, Steel
HS Code
8536700000
Product Description

FTTH Hybrid All Dielectric ADSS Fiber Optic Cable

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is an alternative to OPGW and OPAC with lower installation cost, designed for overhead transmission lines sharing support structures with electrical conductors.

✓ High tensile strength meet requirements of self-supporting.
✓ Good mechanical and temperature performance.
✓ High strength loose tube that is hydrolysis resistant.
✓ Filling compound in the loose tube ensures critical protection.
✓ Excellent crush resistance and flexibility.
✓ PSP enhancing moisture-proof properties.
Structure & Capability

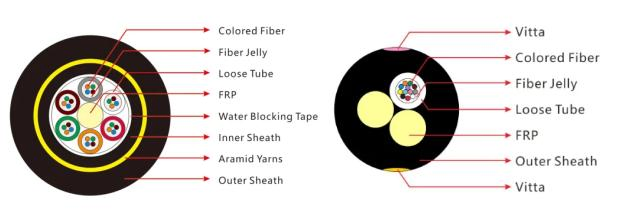

ADSS Cable Structure

Key Features:

  • Can be installed without shutting off the power.
  • Excellent AT performance (maximum inductive at operating point reach 25kV).
  • Light weight and small diameter reducing load caused by ice and wind.
  • Large span lengths, with maximum span over 200m.
  • Design life span is over 30 years.

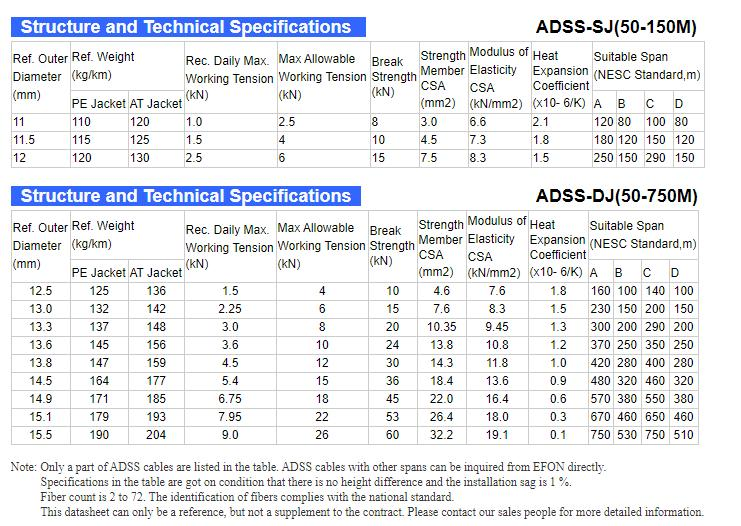

Technical Specifications
Specification Sheet
Fiber Count Outer Diameter (mm) Tension (N) Max. Crush (N) Min. Bending (mm)
Long Term Short Term Long Term Short Term Dynamic Static
2-3610.26001500300100015D30D
38-72116001500300100015D30D
74-96126001500300100015D30D
98-120146001500300100015D30D
122-144166001500300100015D30D

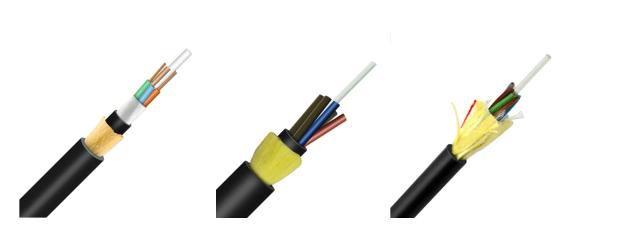

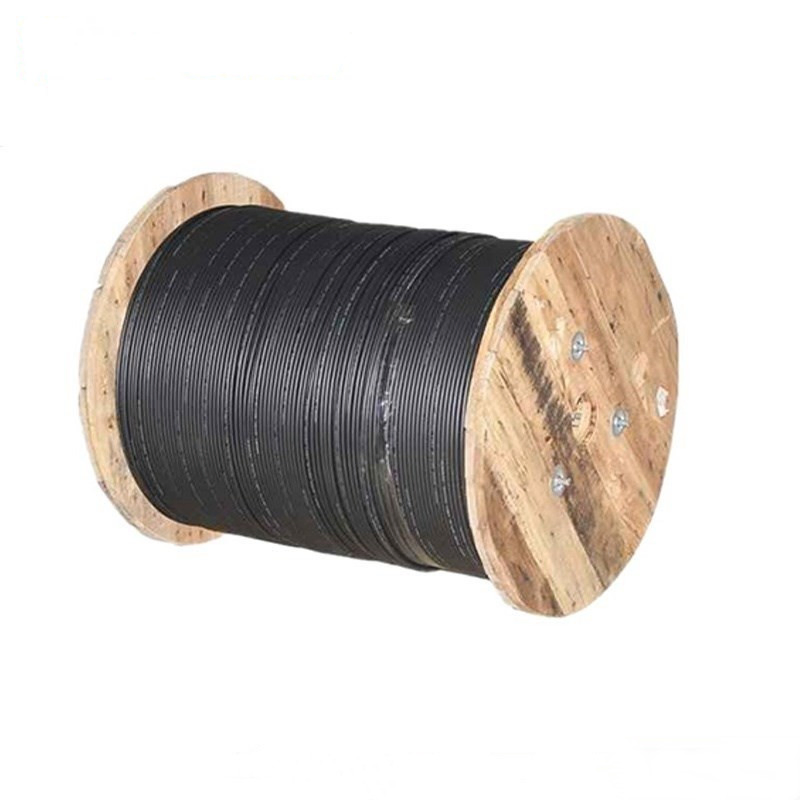

Detailed Product Photos
ADSS Fiber Optic Cable Detail 1 ADSS Fiber Optic Cable Detail 2 ADSS Fiber Optic Cable Detail 3
Fiber Production Process
Testing and Packing
Frequently Asked Questions
What is ADSS fiber optic cable?
All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable strong enough to support itself between structures without conductive metal elements, often installed along overhead transmission lines.
Can ADSS cable be installed while the power is on?
Yes, one of the major features of ADSS cable is that it can be installed without shutting off the power supply.
What is the typical design life of this cable?
The design life span for the ADSS fiber optic cable is over 30 years under standard operating conditions.
What brands of fiber do you use?
We use premium fiber brands including YOFC, Corning, Fiber Home, J-fiber, and POFC.
How is the quality of your fiber optic products controlled?
Quality is controlled through a Source Guarantee (ROHS certified materials), comprehensive Quality Tests (physical and optical), and strict adherence to IEC and ITU standards.
What is the maximum span length for installation?
The cables are designed for large span lengths, with the largest span capability exceeding 200 meters.
