24 Core Outdoor Armored Submarine Fiber Optic Cables
24 Core Outdoor Armored Submarine Fiber Optic Cables
1 / 2
24 Core Outdoor Armored Submarine Fiber Optic Cables
24 Core Outdoor Armored Submarine Fiber Optic Cables

24 Core Outdoor Armored Submarine Fiber Optic Cables

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
Outdoor cable
Connection Structure
SC
Material Shape
Round Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N < 10000N
Core
Multicore
Certification
RoHS, ISO9001, CPR
Sheath Material
HDPE
Product Name
24 Core Outdoor Armored Submarine Fiber Optic Cable
Transport Package
Fumigated Wooden Drum
Specification
7.6*15.8mm
Origin
China
HS Code
8544700000
Production Capacity
8000km Per Month

Product Description

24 core outdoor armored submarine fiber optic cables

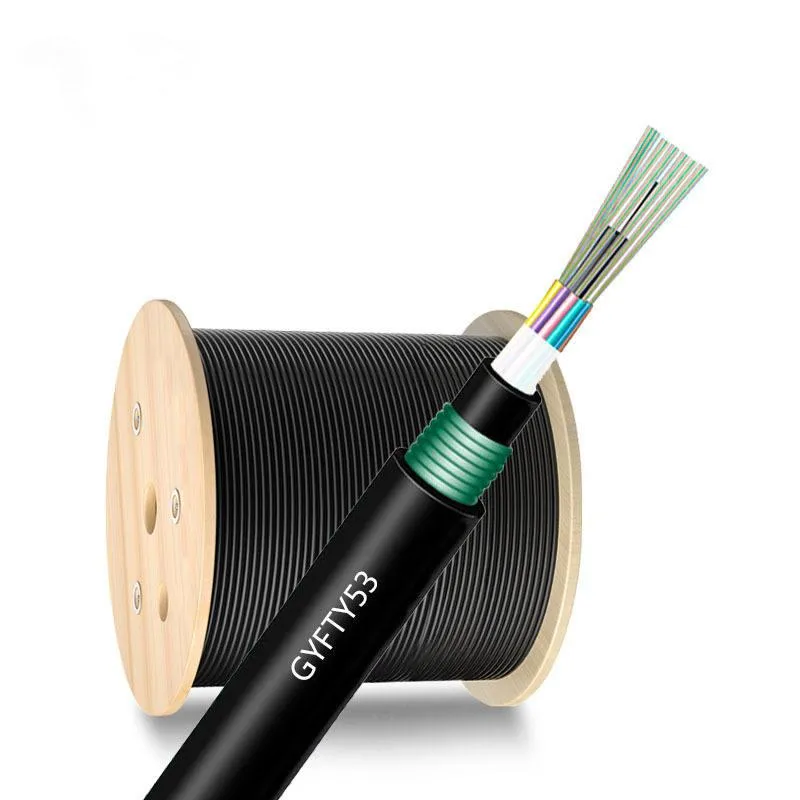

Fiber Optic Cable

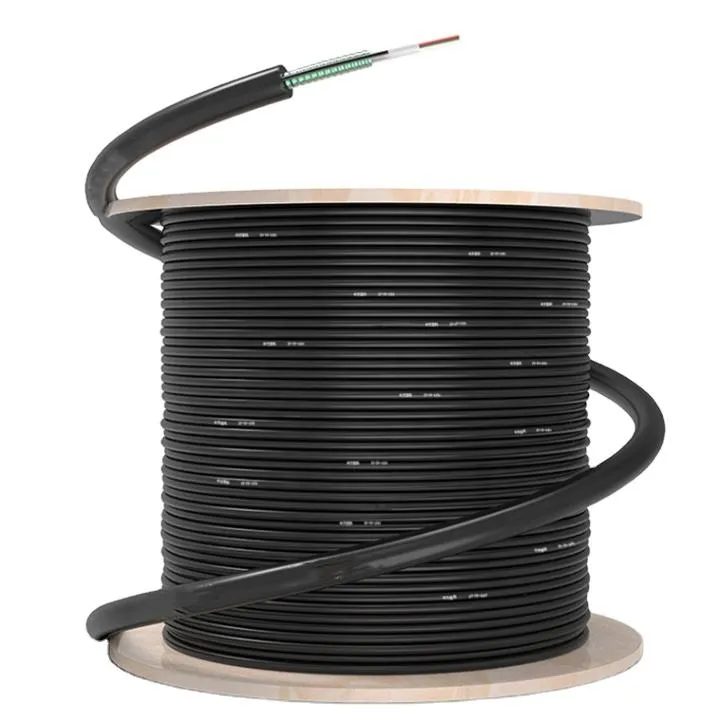

Fiber Optic Cable Detail
  • Good mechanical and temperature performance
  • Low attenuation and dispersion
  • Designed compact structure is good at preventing loose tube from shrinking
  • Special tube filling compound ensure a critical protection of fiber
  • The loose tube material itself has good hydrolysis resistance and high strength.
  • Double coated steel strip (PSP) improves the moisture resistance of the cable
  • The steel wire strand has a very high tensile strength for self-supporting overhead laying

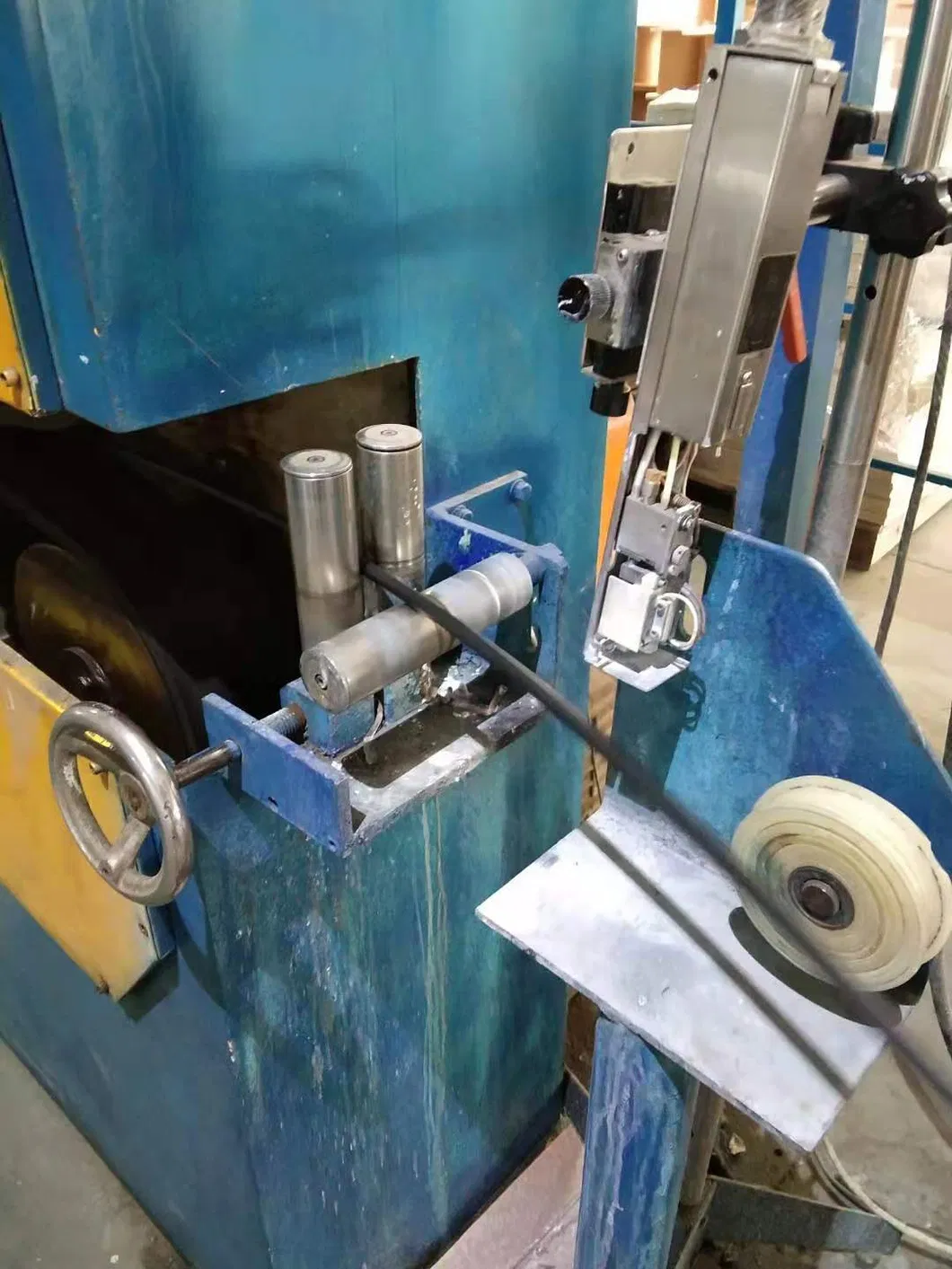

Submarine Cable 1

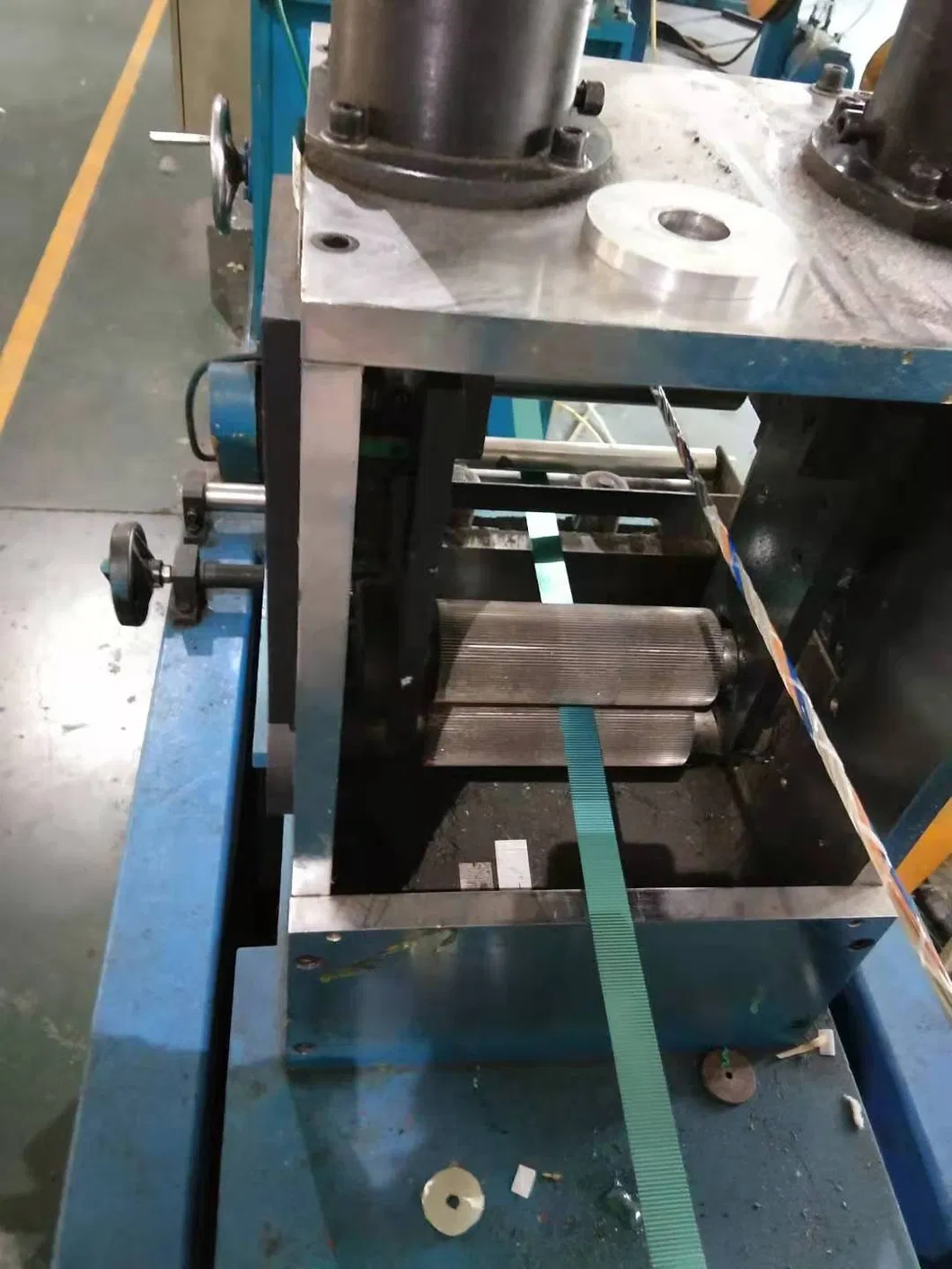

Submarine Cable 2

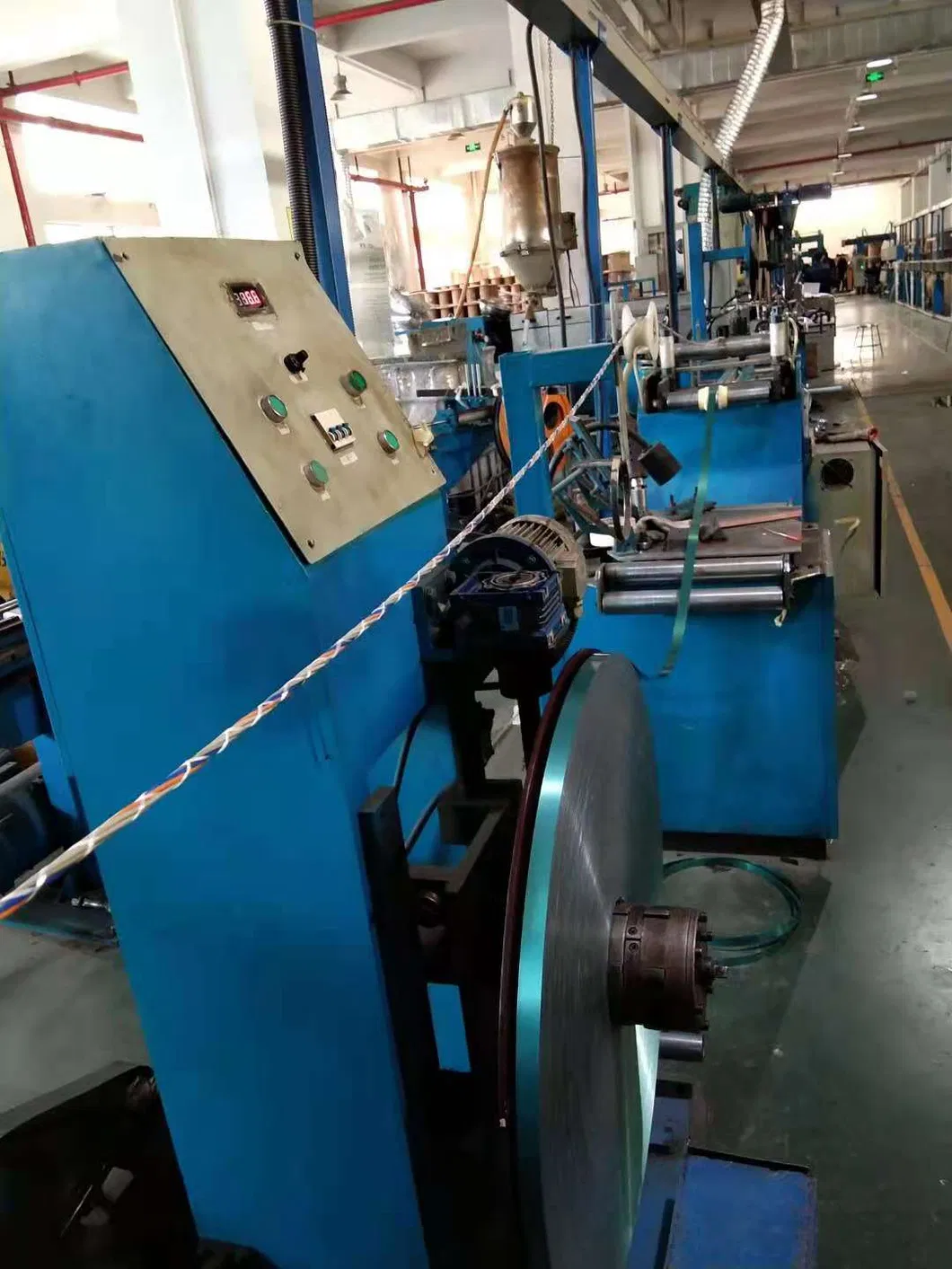

Submarine Cable 3

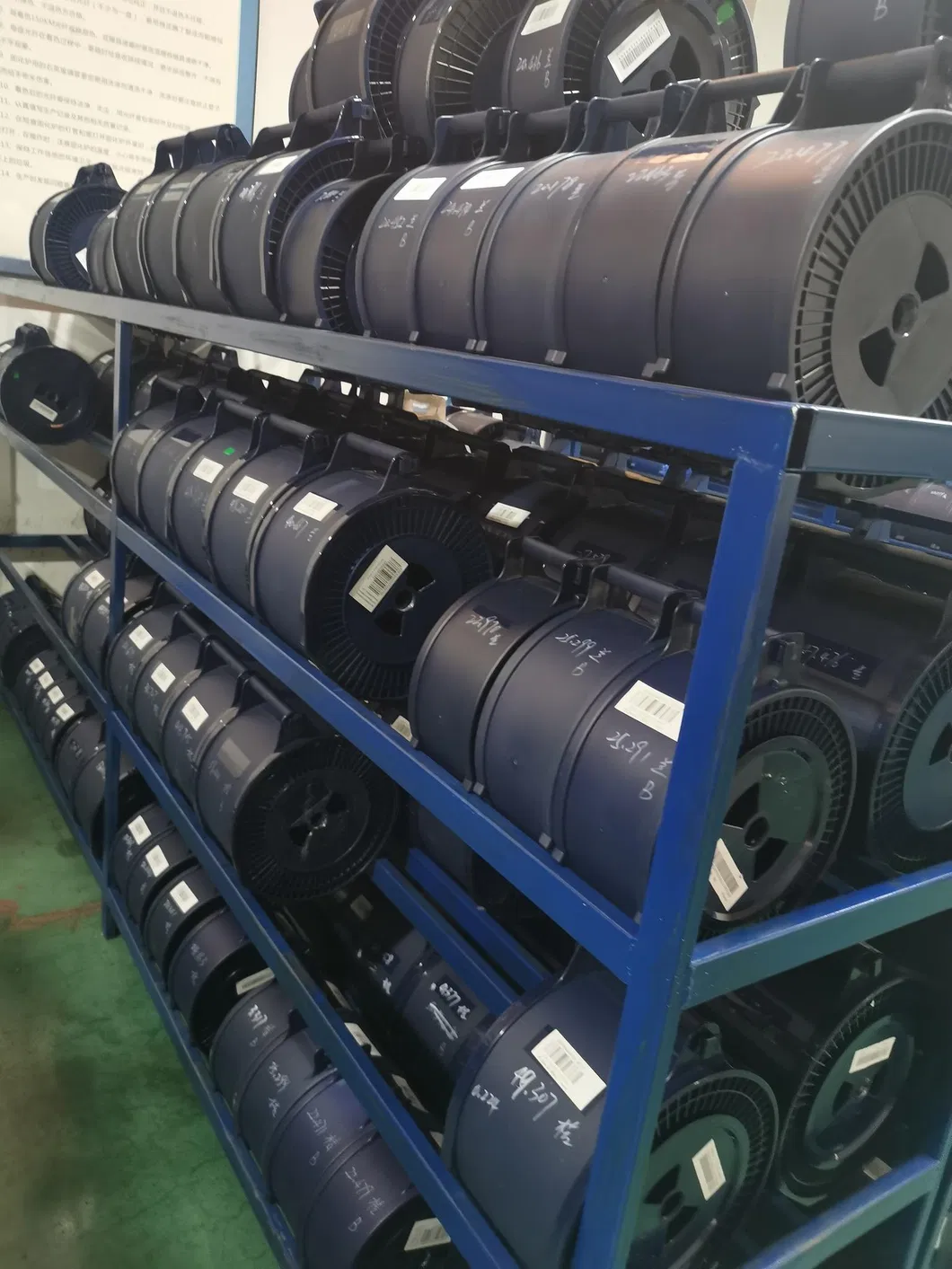

Submarine Cable 4

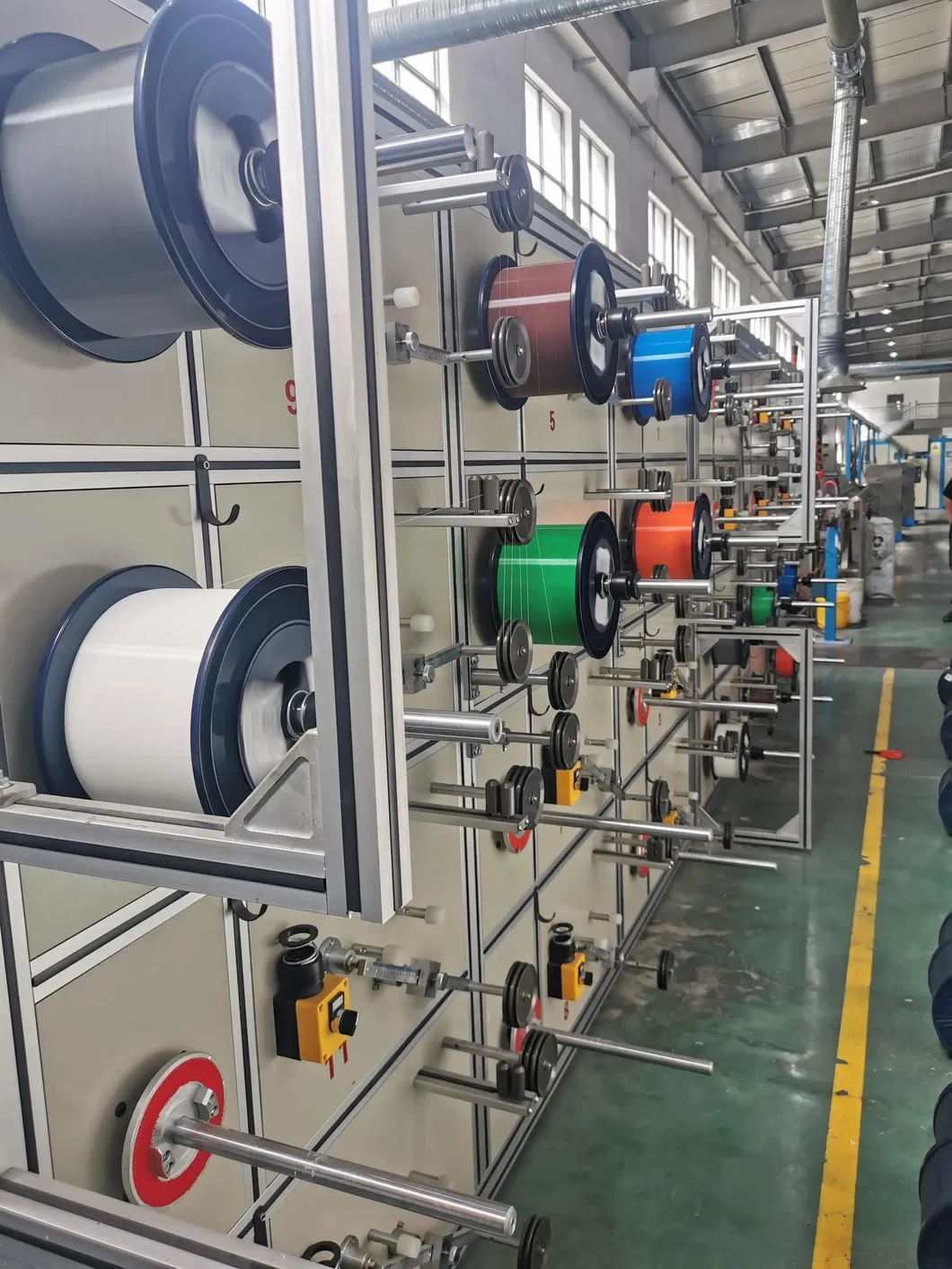

Submarine Cable 5

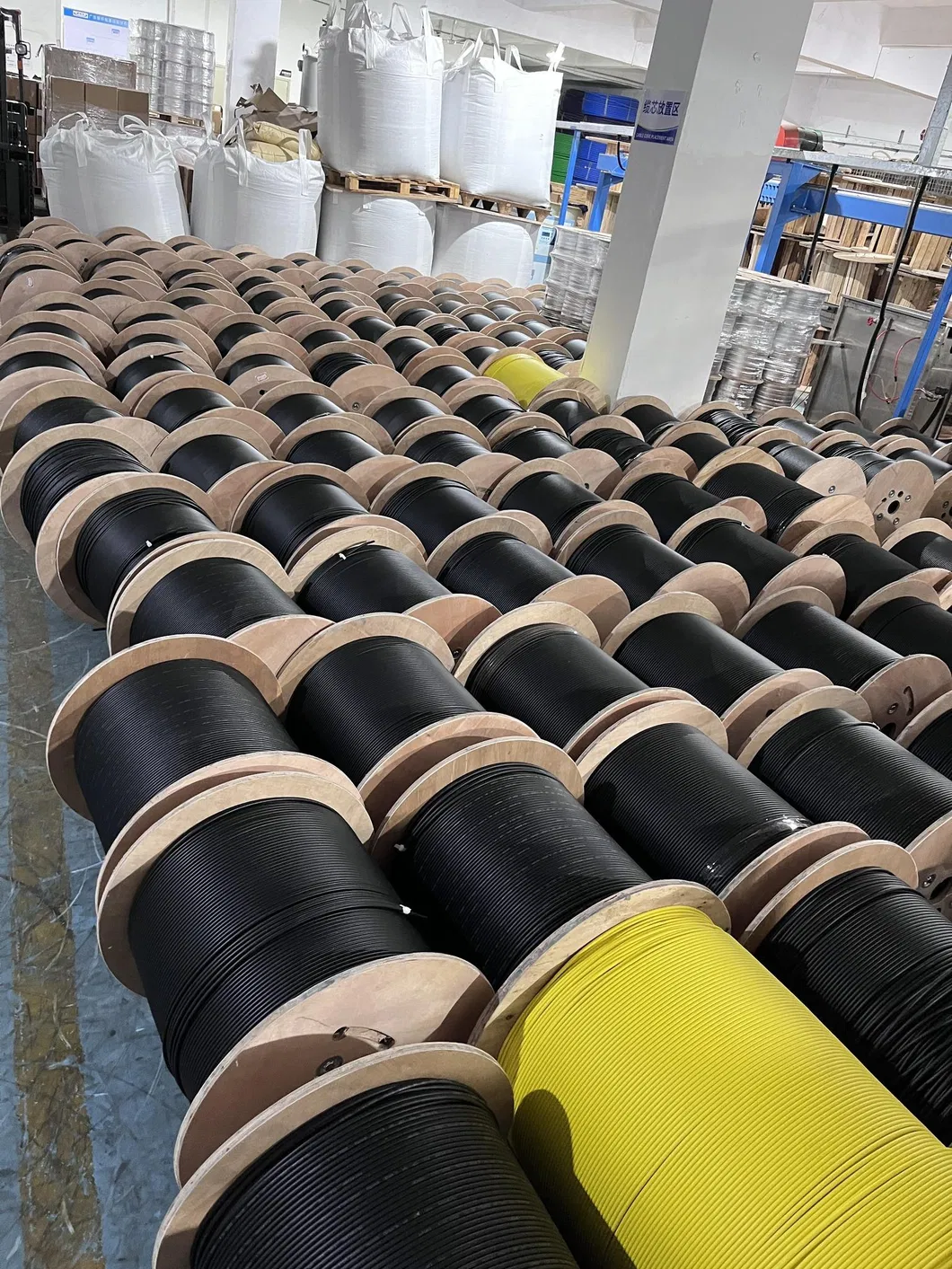

Submarine Cable 6

Technical Specifications

No. of fibers 61224487296144
No. of tubes11246812
Fibers per tube66612121212
Filler Rod4311000
Tube diameter(±0.1mm)2222222
Outer diameter(±0.5mm)5.4X8.65.4X8.65.4X8.65.4X9.85.4X10.85.4X12.25.4X14.9
Loose tube MaterialPBTColorStandard spectrum
Armor MaterialCorrugated steel tape

Requirement for Order

  • Fiber sort: Single mode (G652, G657), Multi mode (OM1, OM2, OM3, OM4).
  • Fiber brand: YOFC, Corning, Fiberhome, OFS etc.
  • Jacket material: PE, LSZH (Customizable).
  • Color coding: According to standard spectrum or requirements.
  • Cable Length: Standard 2KM/drum or customized.

Optical Characteristics

Fiber type Attenuation (1310/1550nm) 850/1300nm Effective Modal Bandwidth
G652D0.5/0.4 dB/km0.6/0.5 dB/km//
G657A1/A20.4/0.3 dB/km0.5/0.4 dB/km//
OM3-300//2.5/0.8 dB/km≥2000 MHz.km
OM4-550//2.5/0.8 dB/km≥4700 MHz.km

Package

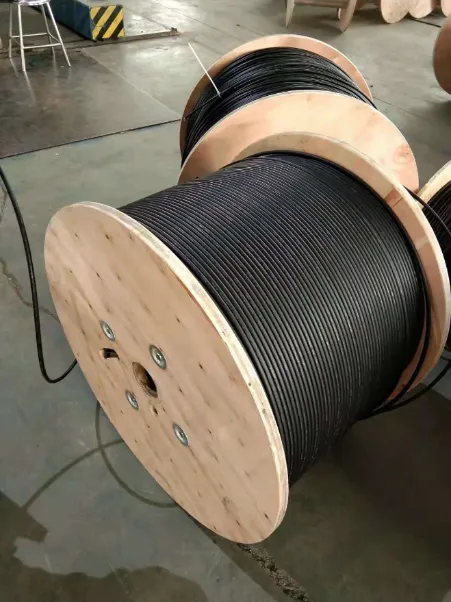

Package Drum 1

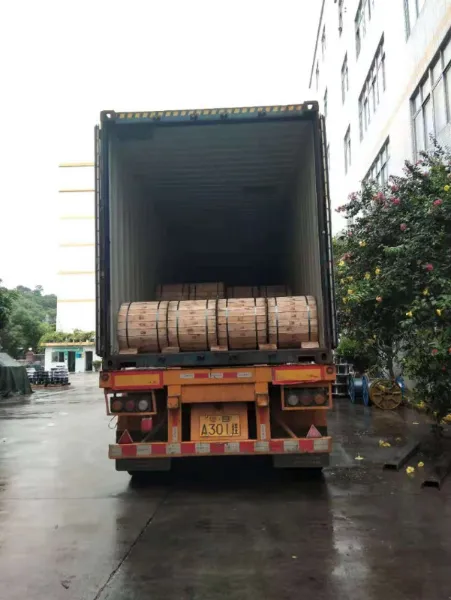

Package Drum 2

Frequently Asked Questions

1. How long is the typical delivery time?
Generally it is 5-10 days if the goods are in stock. If the goods are not in stock, it takes 15-20 days depending on the order quantity.
2. What are the payment terms for orders?
For orders under 3000 USD, 100% in advance. For orders over 3000 USD, 30% T/T in advance and the balance before shipment.
3. What kind of warranty do you provide for the cables?
We provide a 12-month warranty. Please note the warranty does not cover damage caused by violence or unauthorized modifications.
4. Can products be produced according to specific samples?
Yes, we can produce based on your samples or technical drawings to meet specific project requirements.
5. Are customized branding and packaging available?
Yes, if you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.
6. What fiber brands are available for the cables?
We use high-quality fibers from reputable brands such as YOFC, Corning, Fiberhome, and OFS to ensure optimal performance.
