Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
1 / 5
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33
Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33

Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core Armored Optic Fiber Cable GYTA33

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋
Product Overview
Connection Structure
SC
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
PE
Material
Doped Silica
Fiber Type
G652D
Fiber Mode
Single Mode
🛰️

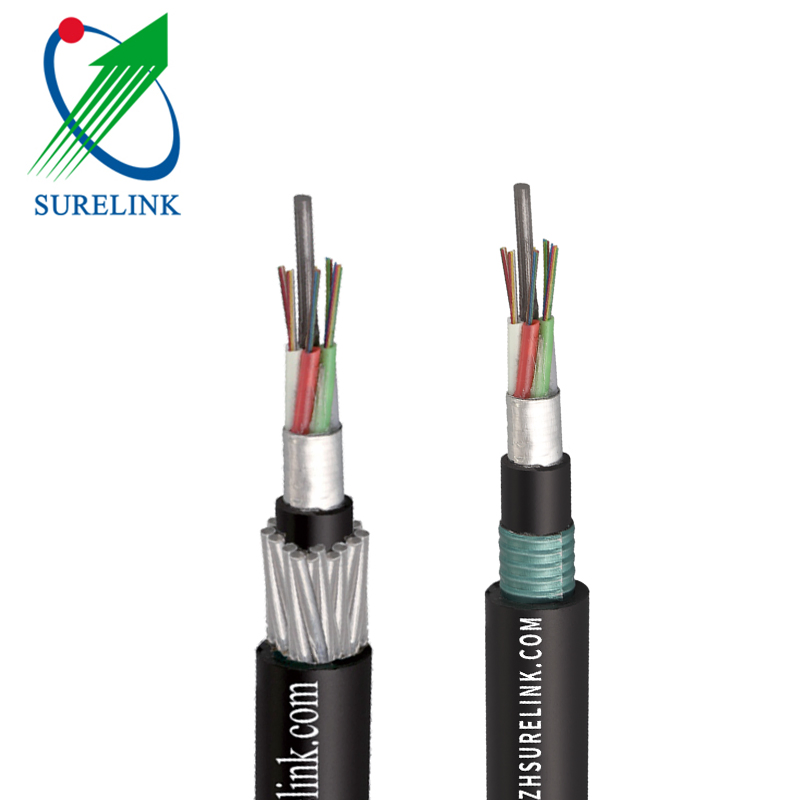

Underwater Armored Optic Fiber Cable GYTA33

Underwater Submarine Cable Steel Wire 24 48 72 96 144 Core

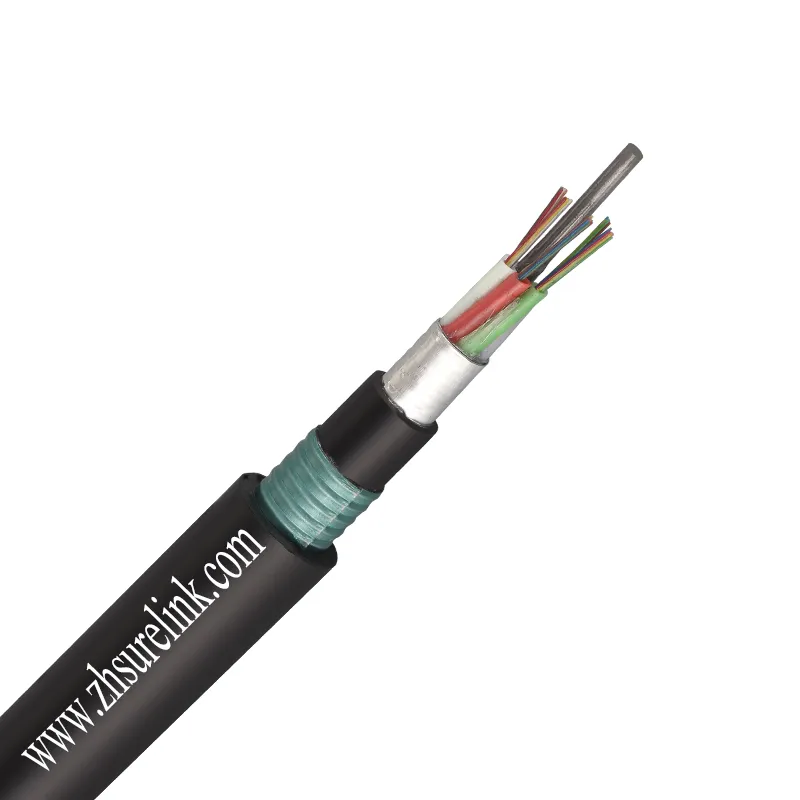

Fiber Optic Cable View 1

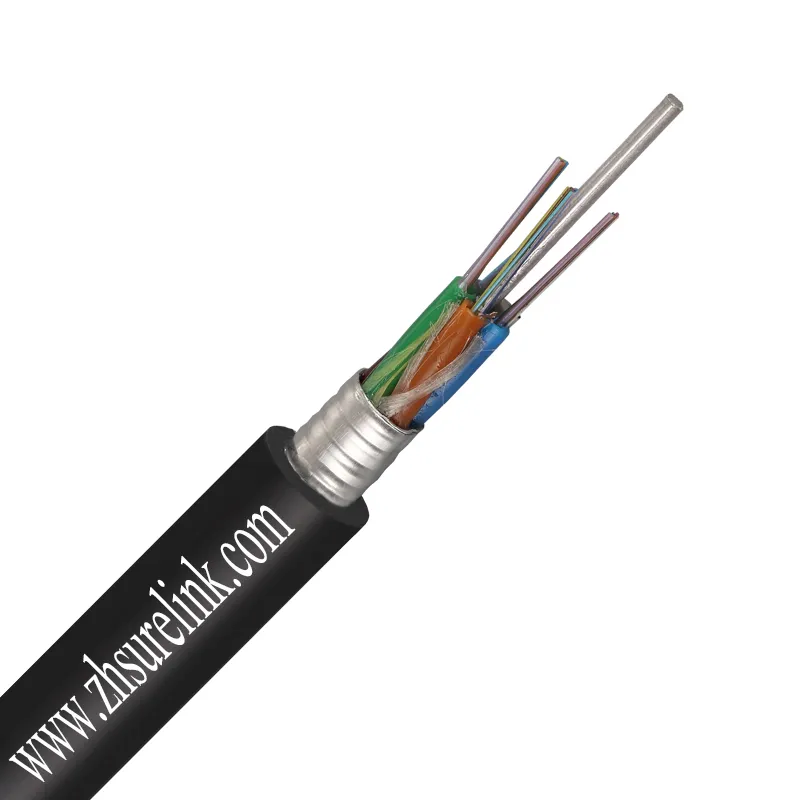

Fiber Optic Cable View 2

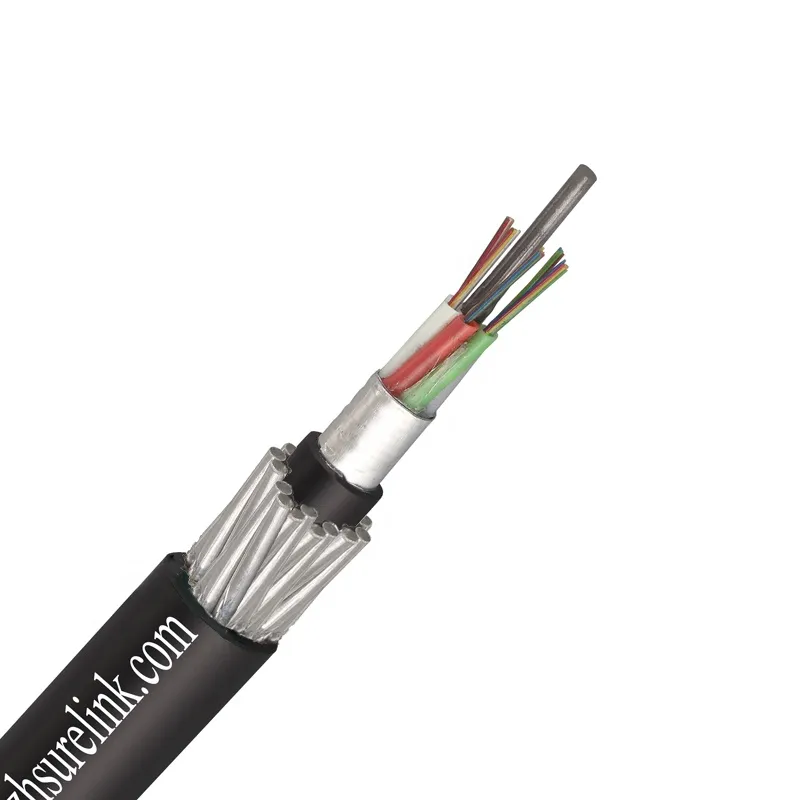

Fiber Optic Cable View 3

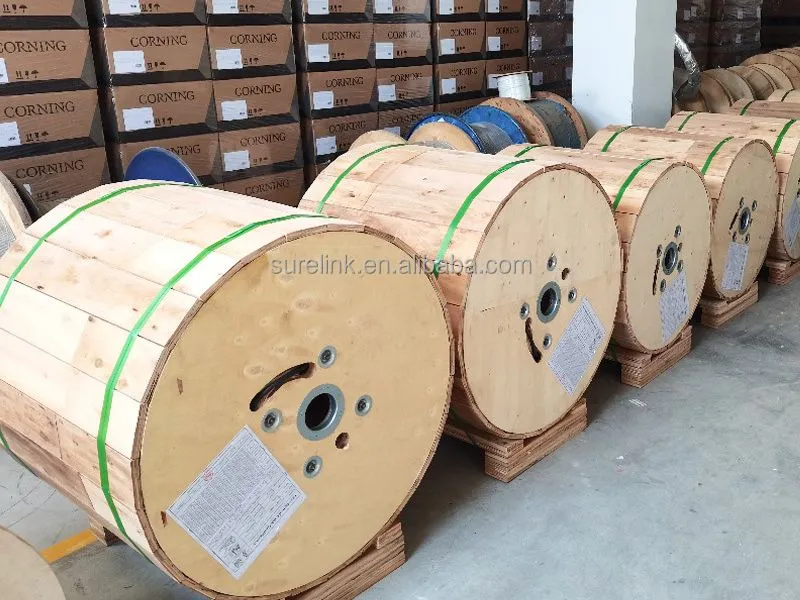

Fiber Optic Cable Cross Section
Fiber Optic Cable Internal Structure
📏
Product Specifications

1. Product Structure

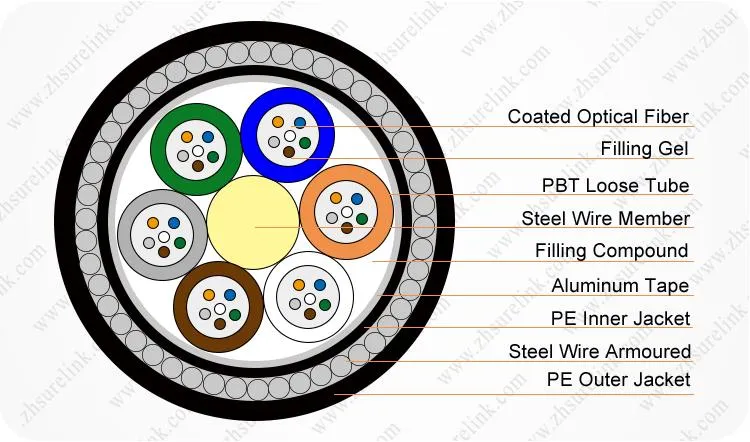

Technical Drawing

2. Technical Specification Table

Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~3013.21623000100030001000
32~4813.81753000100030001000
50~7214.62053000100030001000
74~9616.02303000100030001000
98~14417.62853000100030001000
⭐
Features & Applications
  • Steel wire armored offer high tension and crush resistance for harsh environments.
  • Special gel in the tube offers critical moisture protection for the fibers.
  • Equipped with a steel central strength member for enhanced stability.
  • PE jacket provides excellent UV protection and anti-aging performance.
  • Operates effectively across wide temperature ranges (-40°C to +70°C).
  • Applications: Specifically designed for river crossing or submarine installations.
🏭
Manufacturing & Quality
Certifications
Certificates
Workshop & Manufacture

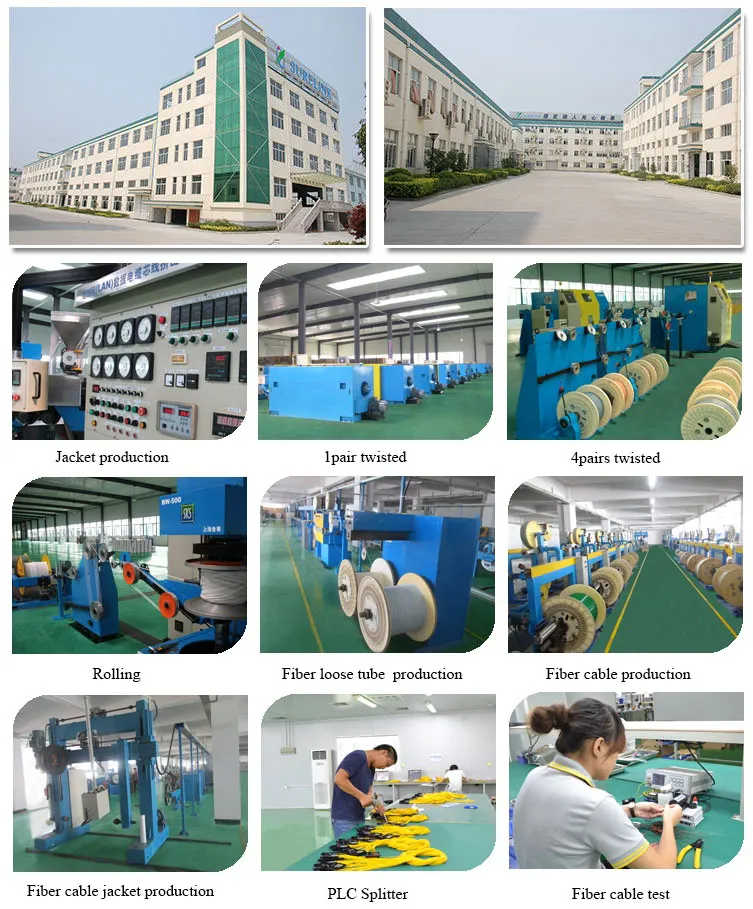

Workshop Show
📦
Packaging & Shipping

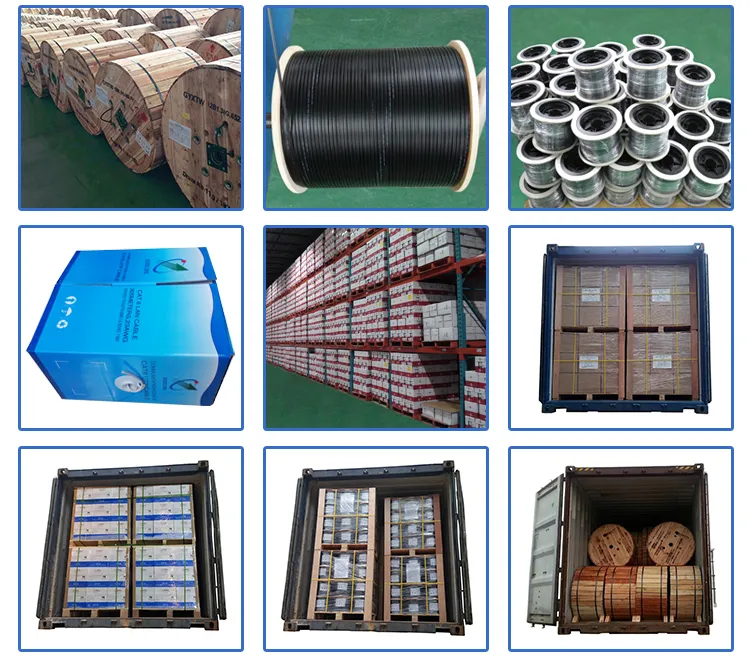

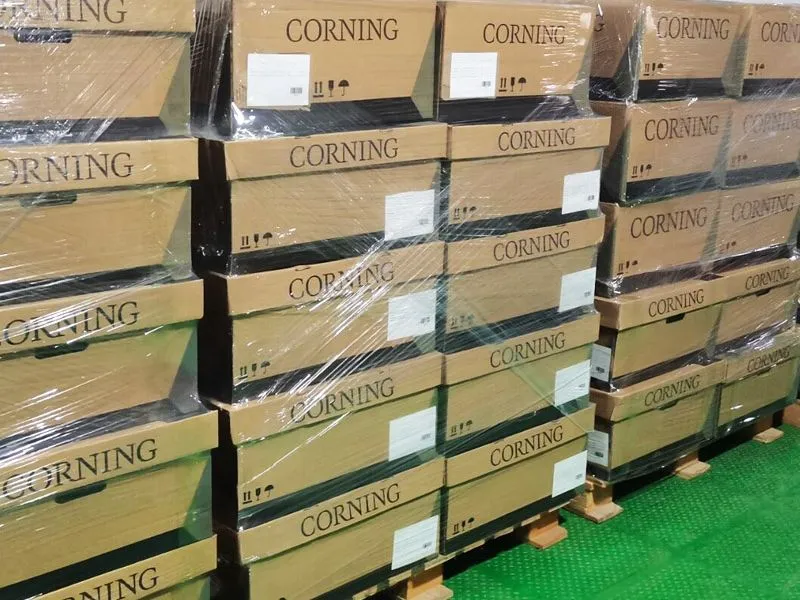

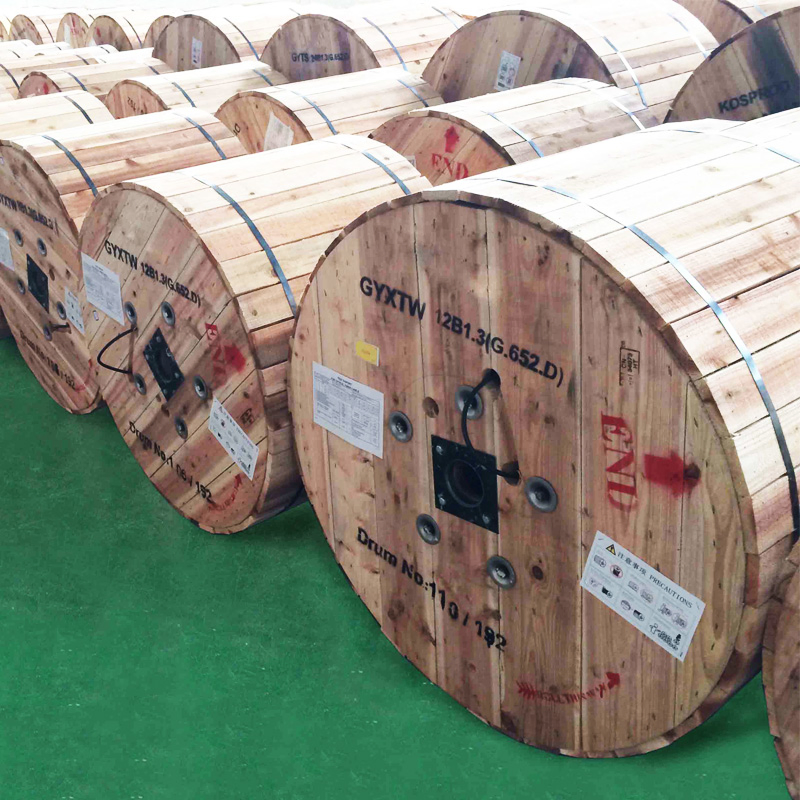

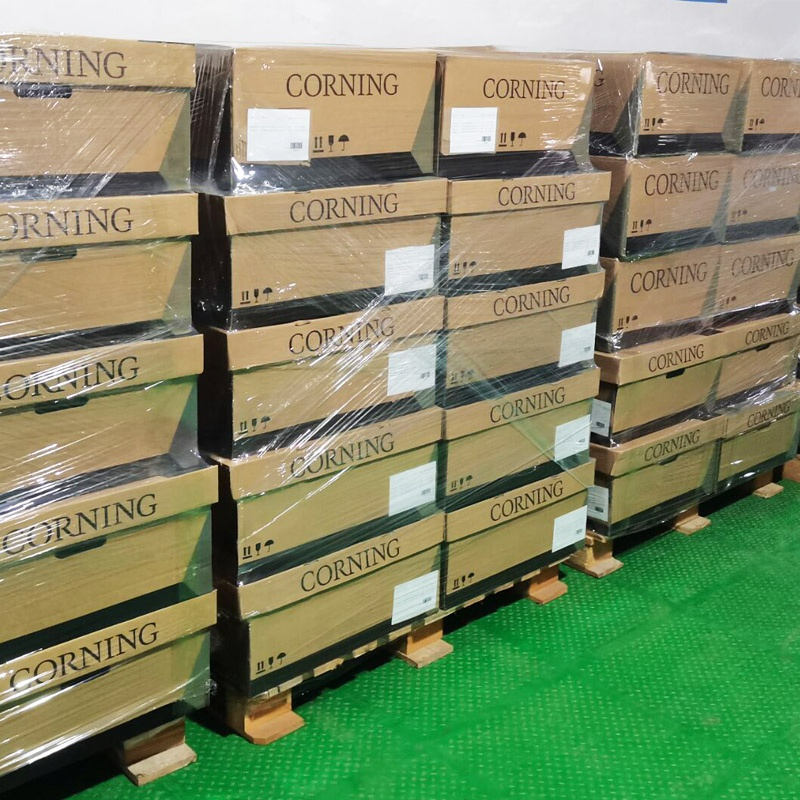

Packaging Detail
Payment Terms
T/T, Western Union, Escrow, Paypal, L/C
Shipping Methods
Express (TNT, DHL, UPS, FEDEX), Air, or Sea
Frequently Asked Questions
❓ What is the primary use of GYTA33 fiber cable?
GYTA33 is primarily designed for underwater applications, such as river crossings or submarine installations, where high tensile strength and crush resistance are required.
❓ What type of armor does this cable use?
It uses a robust steel wire armoring (SWA) layer, which provides exceptional protection against mechanical stress and lateral pressure.
❓ What is the operating temperature range?
The cable is designed to perform reliably in a wide range of temperatures, typically from -40°C to +70°C for transport and operation.
❓ Which fiber type is used in this cable?
Standard configurations use G.652D Single Mode (9/125) fiber, but other fiber types can be designed upon request.
❓ Is the cable moisture-resistant?
Yes, it features PBT loose tubes filled with a special water-resistant gel and a protective PE jacket to ensure long-term moisture protection.
❓ What certifications does this product carry?
The production process complies with ISO9001, and the cables are certified by CE, RoHS, and other international standards.
