📦 Basic Information
Model NO.:ASU/MINI ADSS
Connection Structure:SC
Material Shape:Round Wire
Allowed Lateral Pressure:>1000(N/100mm)
Allowed Tensile Strength:1000N<10000N
Core:Multicore
Certification:RoHS, CE, ISO9001
Sheath Material:HDPE
Standard:Dl/T788-2016

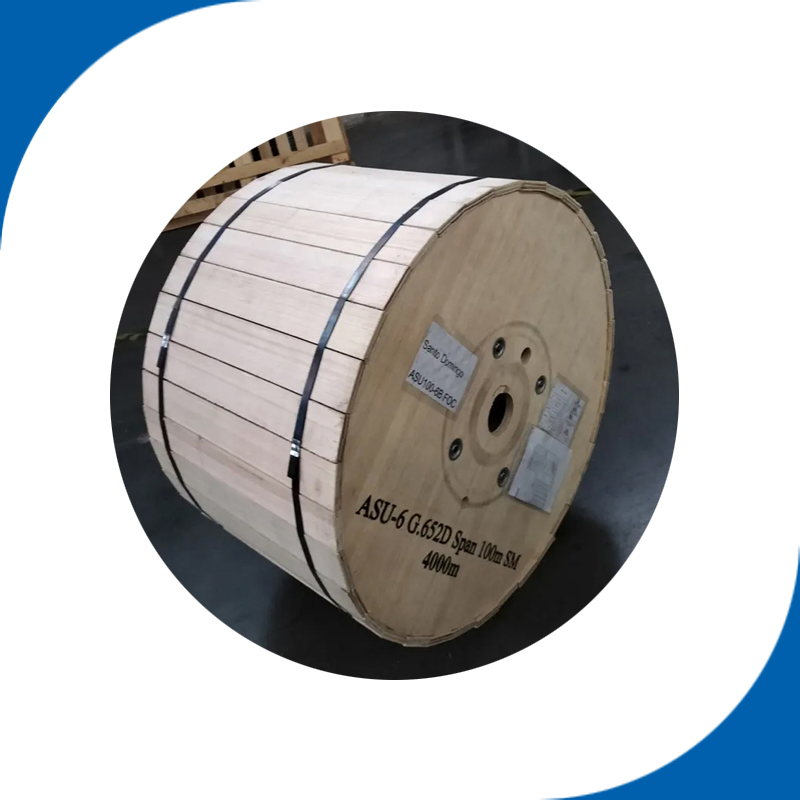

Packing Length:2000m/Box or Optional
Leading Time:3-15 Days
Fiber Type:G652/G655/62.5/50/Om3
HS Code:8544700000
Production Capacity:500000km/Year
🔍 Product Overview

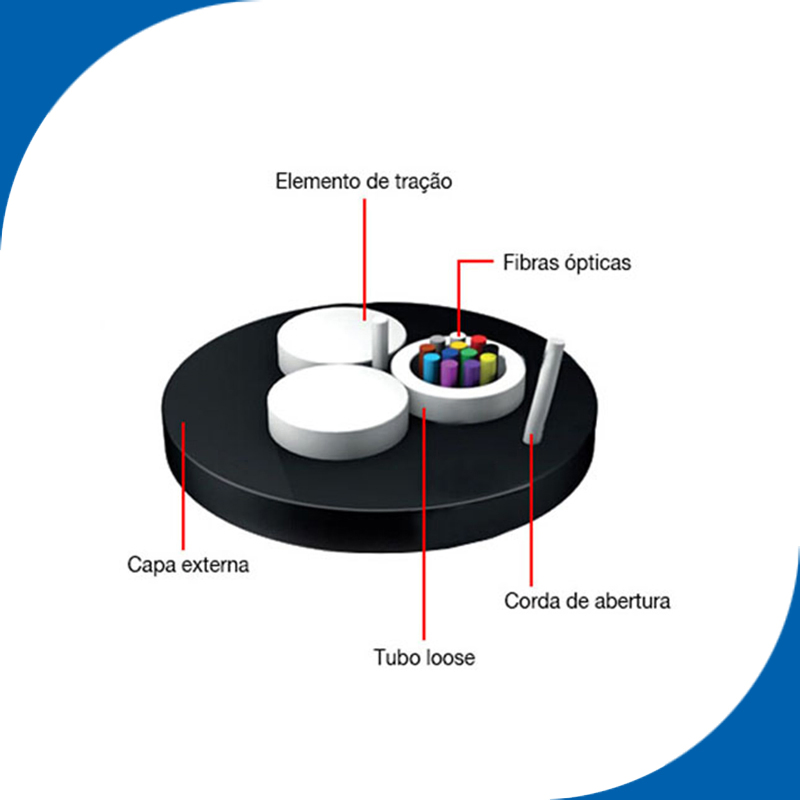

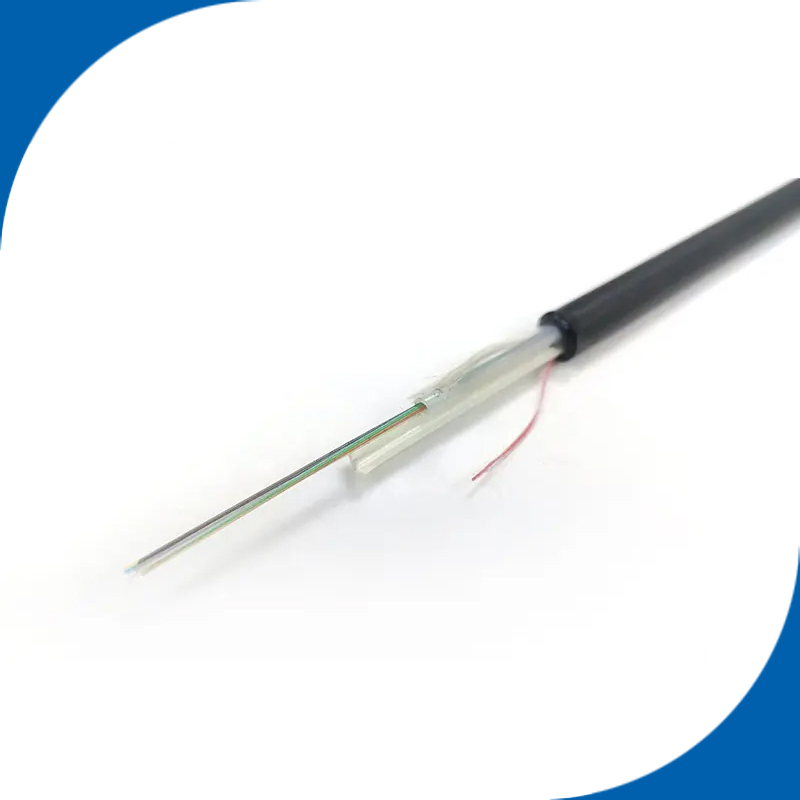

Mini Span ADSS 80m span RA ASU80 uni-tube fiber optic cable with 2 FRP
All Dielectric Self-Supporting (ADSS) Cable Double Sheath is a type of fiber optic cable designed for aerial installations, typically used for telecommunication and data transmission applications.

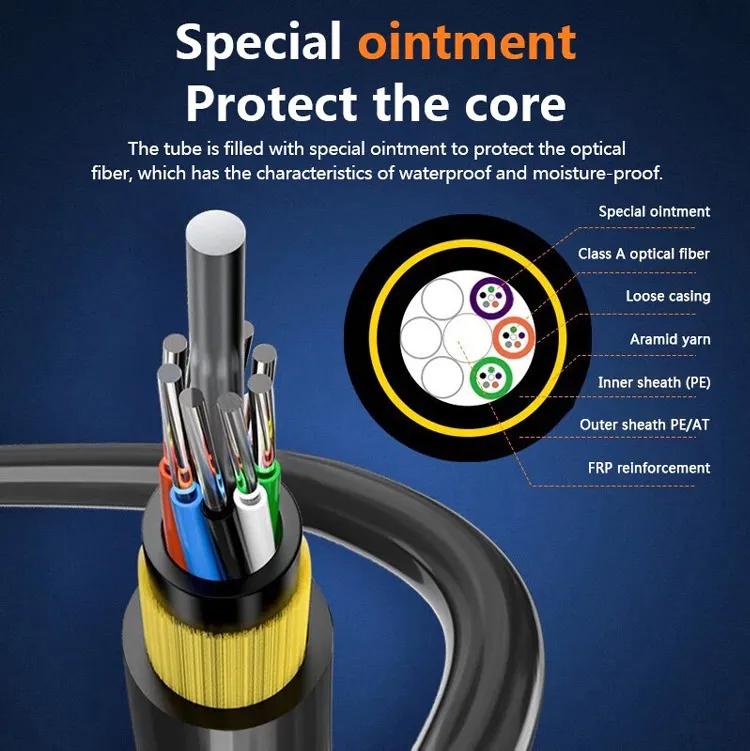

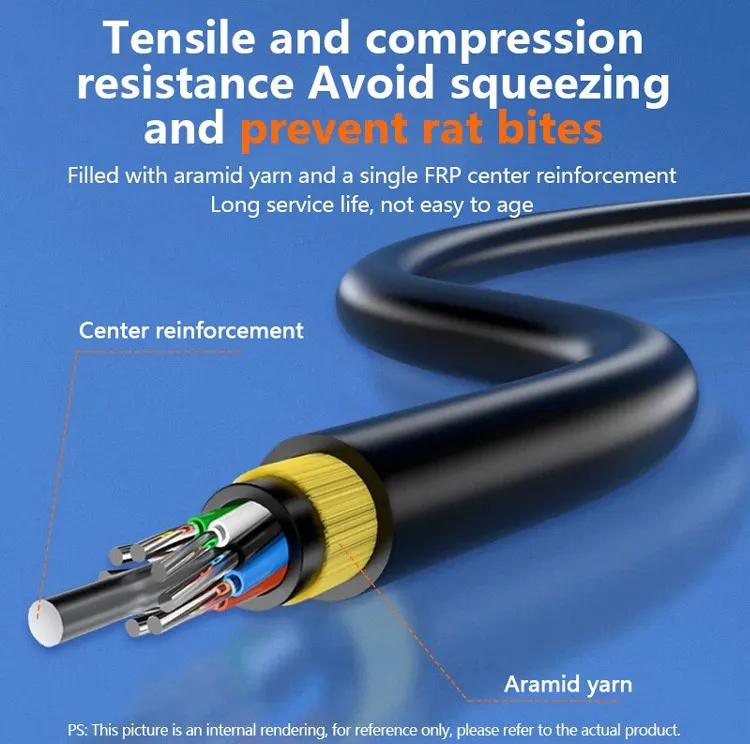

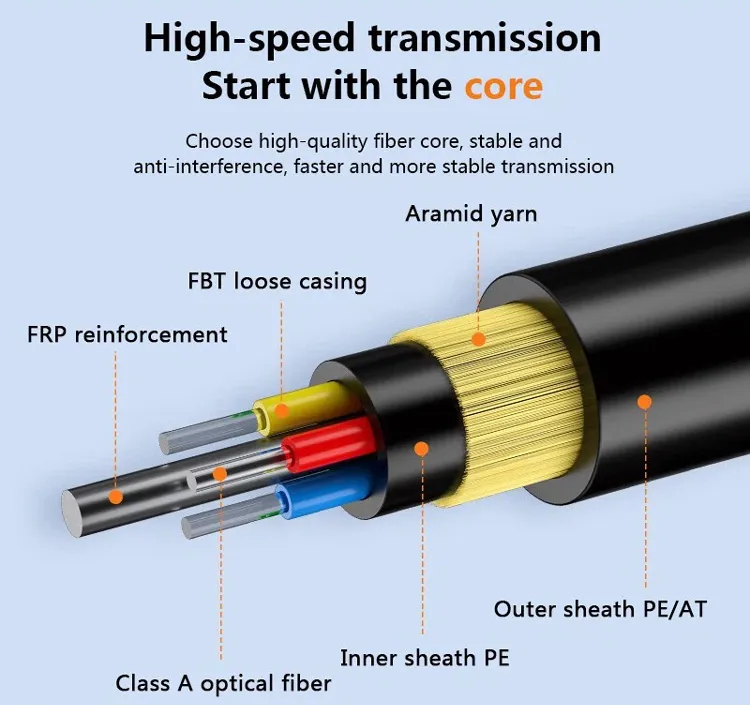

The ADSS cable is constructed using a central core made of optical fibers surrounded by layers of protective materials. The cable is designed to be self-supporting, meaning that it does not require an external support structure such as a messenger wire or a metallic cable. The double sheath design provides an extra layer of protection against environmental factors such as UV radiation, moisture, and temperature variations.
⭐ Features & Advantages
- Self-supporting design reduces installation hardware and costs.
- High strength-to-weight ratio with lightweight materials.
- Excellent resistance to weathering, UV, and mechanical damage.
- Non-metallic structure provides good insulation and lightning protection.
- High bandwidth capacity for long-distance data transmission.
- Aramid yarn ensures uniform force and anti-electric corrosion performance.

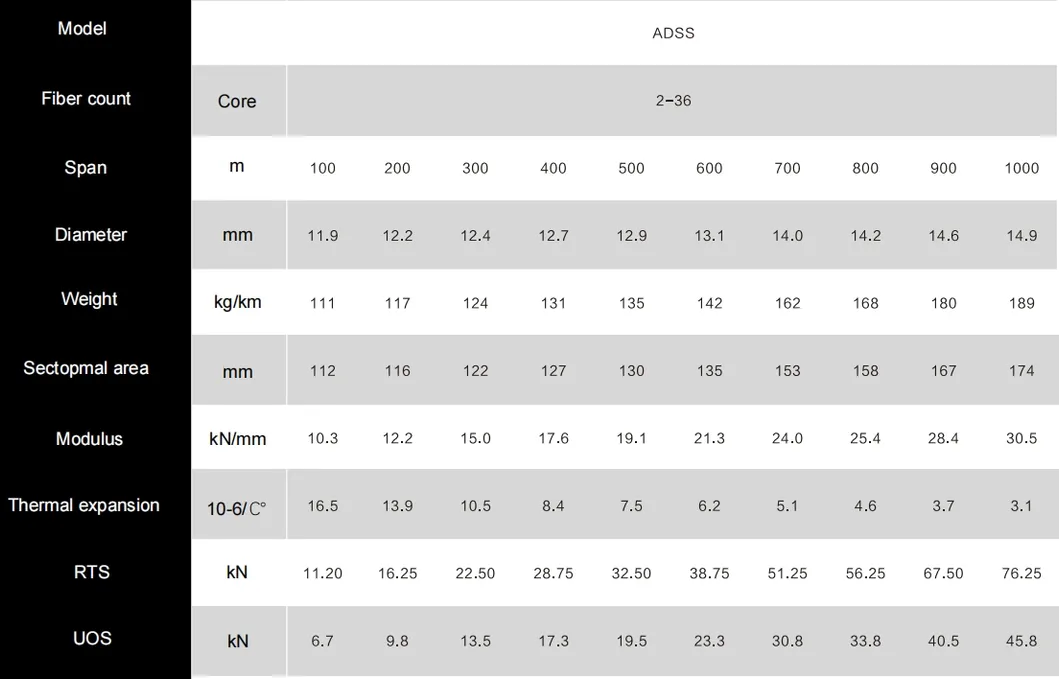

📊 Technical Specifications
| Fiber Type | G657A1/G652D |
| Application | Outdoor Aerial |
| Wavelength | G.652 ≤1260nm; G.657 ≤1450nm |
| Properties | Anti-thunder and Anti-static |
| Storage/Operating Temp | -40 to +70 ℃ |
| Jacket | HDPE PE Jacket |
| Fiber Count | 4-144 Fibers |
| Loose Tube Diameter | PBT: 2.0 mm |
| FRP Diameter | 2.0 mm |
📸 Product Gallery
❓ Frequently Asked Questions
What is an ADSS fiber optic cable?
ADSS (All-Dielectric Self-Supporting) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is designed for aerial outdoor applications.
What is the advantage of the Double Sheath design?
The double sheath provides enhanced protection against harsh environmental conditions, including better moisture resistance, UV protection, and improved mechanical durability for long-term outdoor use.
Can this cable be installed near high-voltage power lines?
Yes, because it is "All-Dielectric" (contains no metal), it is immune to electromagnetic interference and can be safely installed on power distribution lines.
What is the maximum span distance for this ASU cable?
This specific ASU80 model is optimized for an 80-meter span, though larger ADSS structures can reach spans up to 1500 meters depending on the design.
Is the cable resistant to lightning strikes?
Yes, its non-metallic construction provides excellent lightning protection and electrical insulation, making it ideal for areas prone to thunderstorms.
