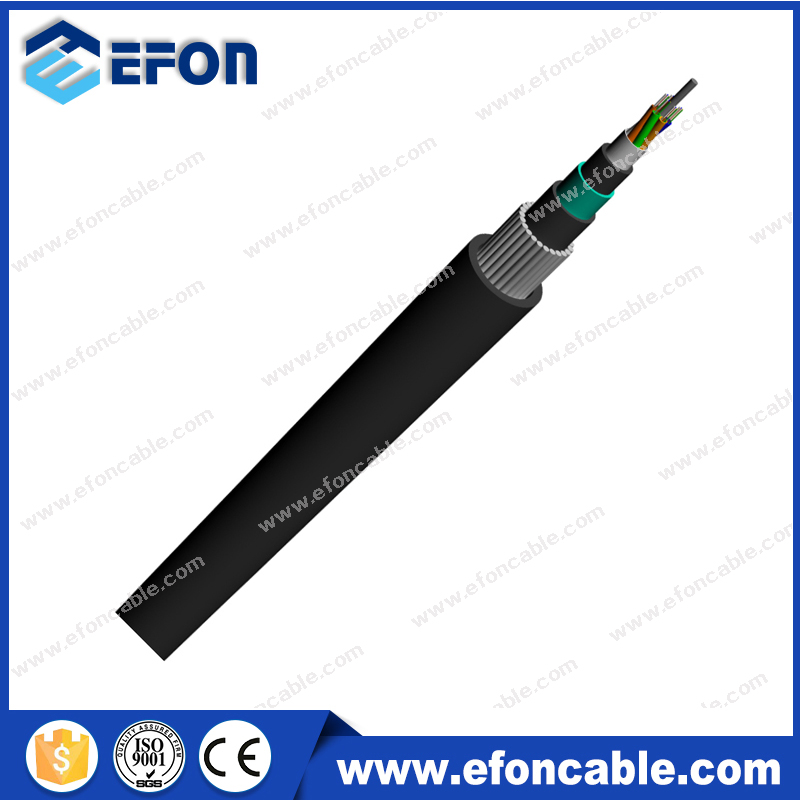

GYTA53+33 Strong Protection Submarine Direct Burial Fiber Optic Cable

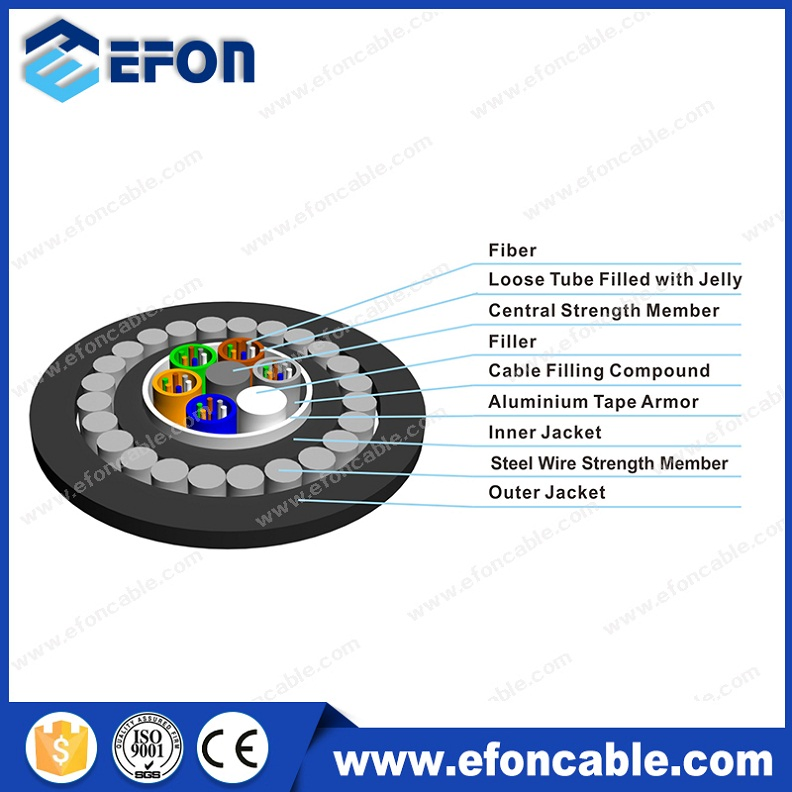

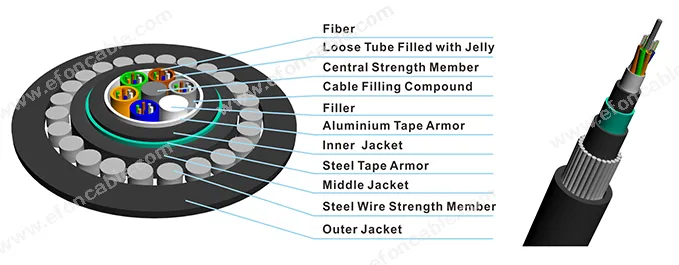

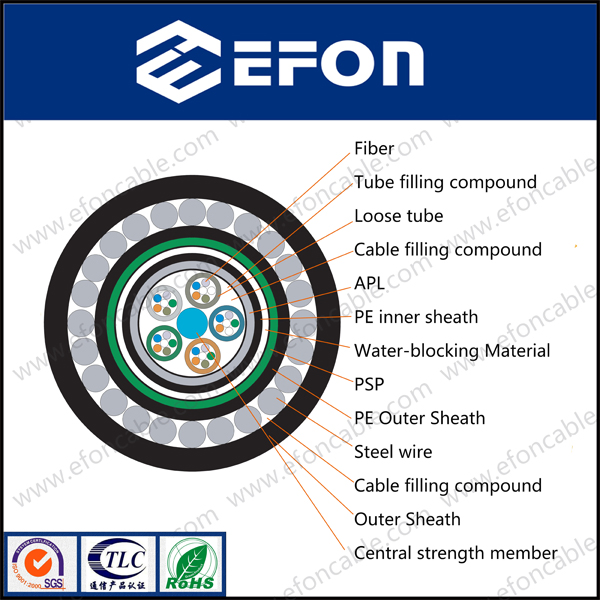

The fibers (250um) are positioned in a loose tube made of high modulus plastic, filled with a water-resistant filling compound. A central steel wire serves as a metallic strength member. An Aluminium Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound for water ingress protection. The core is then covered with a PE outer sheath, single steel armoring, and a final outer sheath.
| Cable Type | Fiber Count | Tubes | Fillers | Cable Weight (Kg/km) | Tensile Strength (L/S Term) N | Crush Resistance (L/S Term) N | Bending Radius (S/D) |
| GYTA53+33-2~36 | 2 ~ 36 | 1 ~ 6 | 5 ~ 0 | 819 | 4000/10000 | 3000/5000 | 12.5D/25D |
| GYTA53+33-2~36 (Heavy) | 2 ~ 36 | 1 ~ 6 | 5 ~ 0 | 1002 | 10000/20000 | 3000/5000 | 12.5D/25D |
Applications: Long-distance communication and outdoor backbone networks.
Laying Method: Direct burial, submarine, or pipeline installation.
Operating Temperature: -40°C ~ +70°C
Bending Radius: Static 12.5*Cable-Diameter; Dynamic 25*Cable-Diameter
