XT Cabled
1 / 5

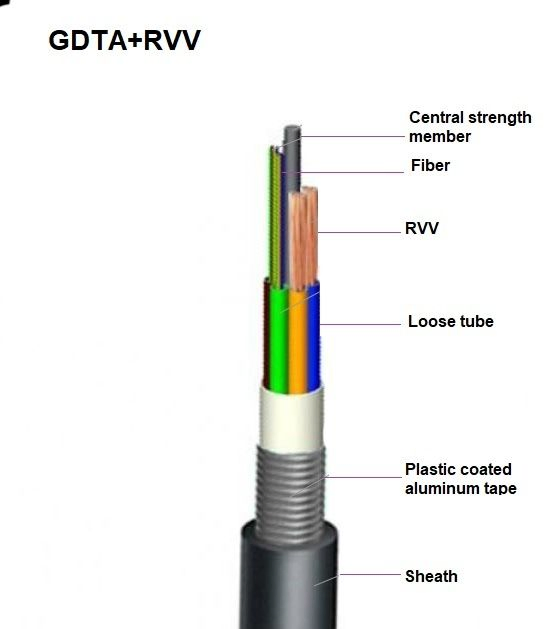

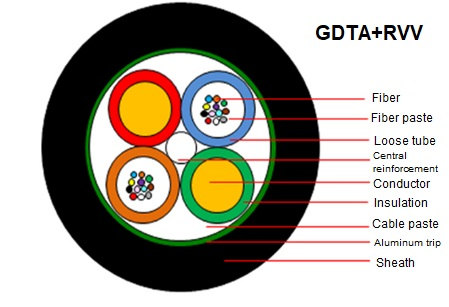

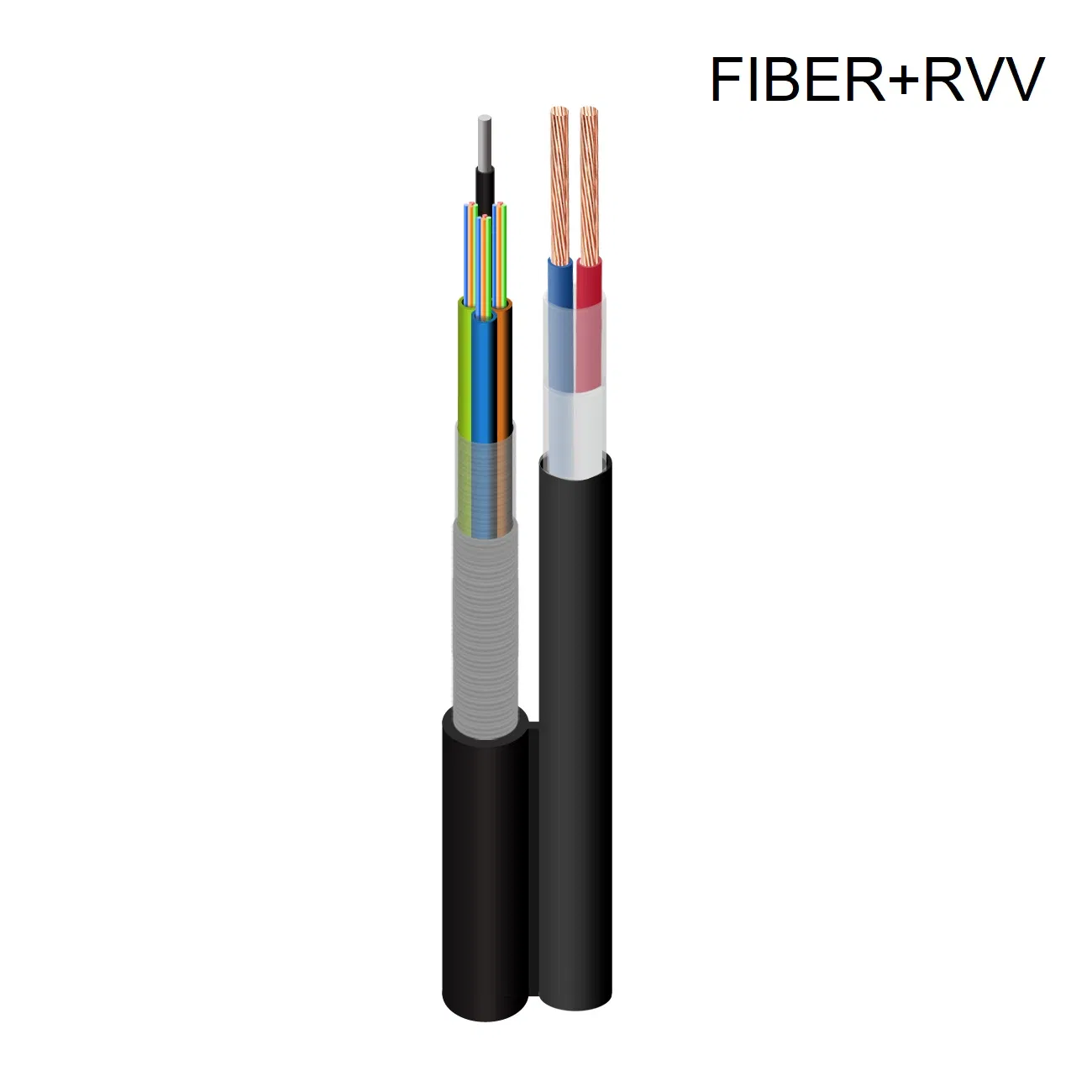

This product consists of a 250μm optical fiber sheathed in a loose tube made of high modulus material, which is filled with a waterproof compound. The center of the cable core is a metal reinforcement. The wire and loose tube (and filler rope) are twisted around the central reinforcing core to form a compact and round cable core, and the gap in the cable core is filled with a water-blocking filler. The double-sided plastic coated aluminum tape is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.
FEATURES
APPLICATIONS
| Optic Cable Characteristics | Power Wire Specifications |
|---|---|
| 1310nm max. attenuation: 0.35dB/km | Specification for Single Core Soft Type Cable Implementation |
| 1550nm max. attenuation: 0.25dB/km | |
| Min. thickness of Sheath: 1.8mm | |
| Water seepage meets standard requirements |
Conductor Data Sheet:
| Cross-sectional Area (mm²) | Insulation Thickness (mm) | Ext. Diameter Lower Limit (mm) | Ext. Diameter Upper Limit (mm) | Min. Resistance at 70°C (MΩ.km) |
|---|---|---|---|---|
| 0.5 | 0.6 | 1.7 | 2.2 | 0.013 |
| 0.75 | 0.6 | 2.0 | 2.5 | 0.012 |
| 1.0 | 0.6 | 2.3 | 2.8 | 0.011 |
| 1.5 | 0.7 | 2.8 | 3.4 | 0.010 |
| 2.5 | 0.8 | 3.4 | 4.1 | 0.009 |
| 4.0 | 0.8 | 3.9 | 4.8 | 0.007 |
| 6.0 | 0.8 | 4.4 | 5.3 | 0.006 |
