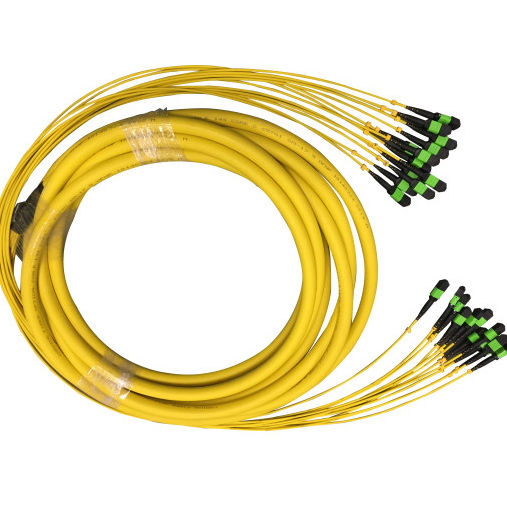

Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
1 / 5
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable
Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable

Kexint Data Center Cabling Sm MTP MPO 40g/100g Fiber Optical Patch Cord 72 / 144 Core Cable

Customization: Available
Application: Communication
Type: Fiber Optic Cable
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
MPO/MTP SM 144 Cores
Connection Structure
MPO
Material Shape
Round Wire
Tensile Strength
1000N < 10000N
Fiber Core
144 Cores (Multicore)
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
LSZH / PVC
Application
FTTH / Data Center
Fiber Type
G657A2 Single-Mode
Connector Mfg
Usconec
Warranty
2 Years
Package Size
30.00cm * 30.00cm * 5.00cm
🚀

Product Description

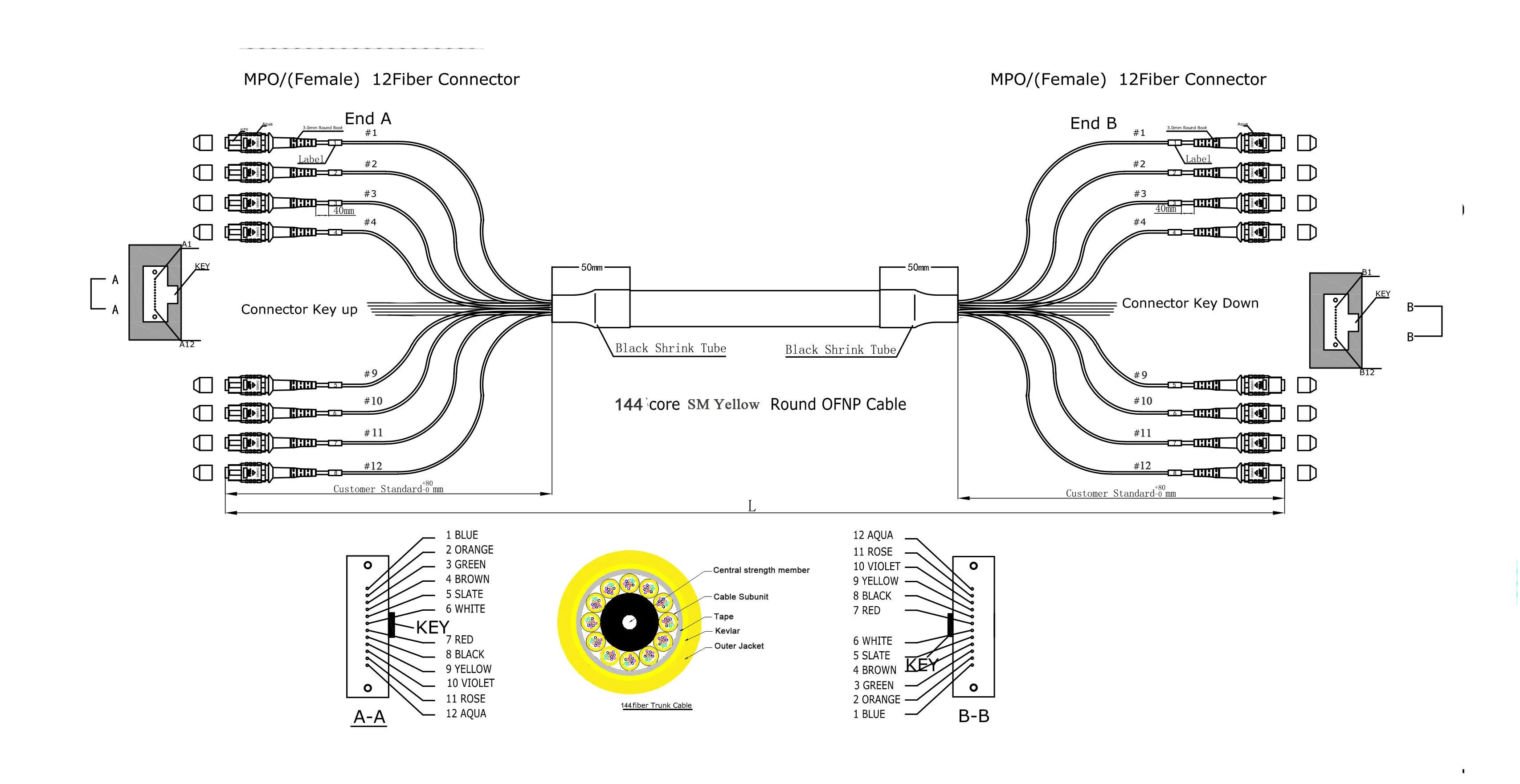

Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord

MPO / MTP multi-core optical cable jumper assembly products are composed of multi-core optical cables and corresponding 4/8/12/24/48/72/144 core high density MPO / MTP connectors. These assemblies can be configured as male or female models and support various single-mode and multi-mode optical fiber specifications.

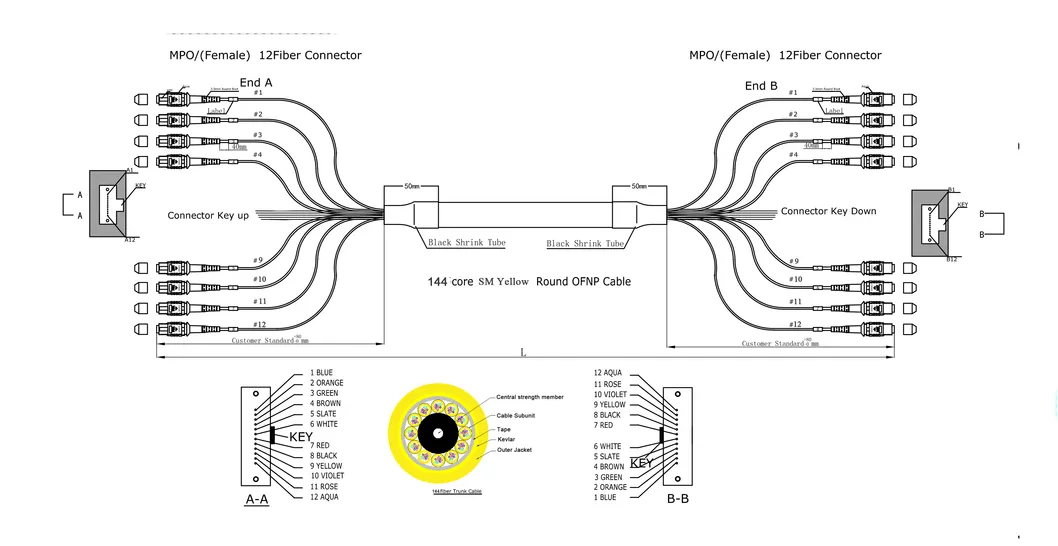

Fiber Optical Patch Cord

Key Features

  • Low insertion loss and high return loss for superior signal integrity.
  • MT based Multi-fiber Connector (8 to 144 fiber terminations).
  • Economical solution for rapid mass-termination of fiber.
  • Designed for both standard and low-loss SM and MM applications.
  • Ruggedized round cable and oval cable options available.
  • Color-coded housings to easily differentiate fiber and polish types.

Main Applications

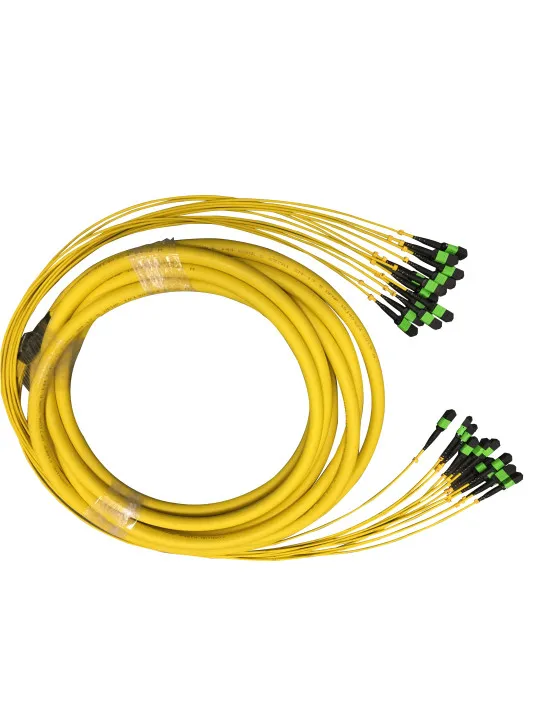

Application 1

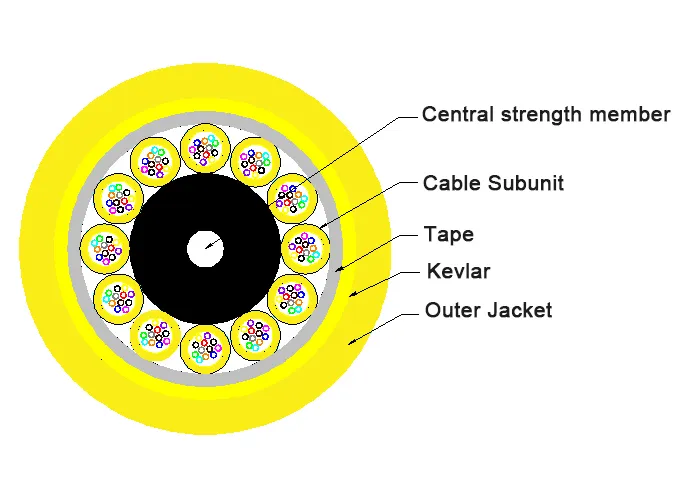

Application 2

• Backbone installation
• Data center cabling
• Support for 40G and 100G networks
• Telecommunication & Industrial networks

📊

Connector Performance

Parameter Single Mode (SM) Multi Mode (MM)
Connector Fiber Count 8, 12, 24, 72, 144 core
Polish PC, APC PC
Housing Color Standard (Green), Elite (Yellow) Standard (Beige), Elite (Aqua)
Insertion Loss (Standard) ≤ 0.7dB ≤ 0.5dB
Insertion Loss (Elite) ≤ 0.35dB ≤ 0.3dB
Return Loss PC >50dB, APC >60dB >30dB
Test Wavelength 1310 / 1550nm 850 / 1300nm
🏭

Production & Facilities

Profile

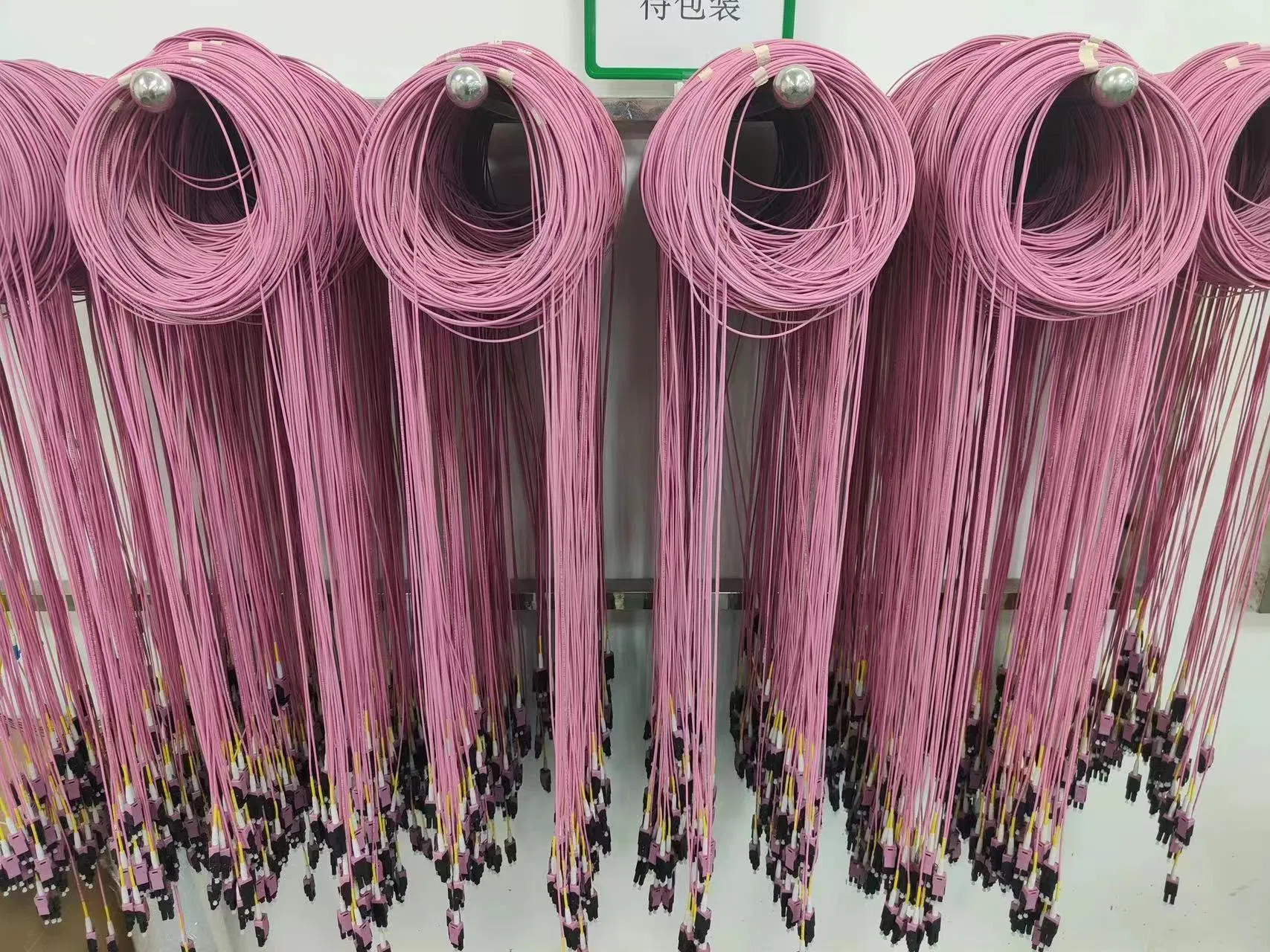

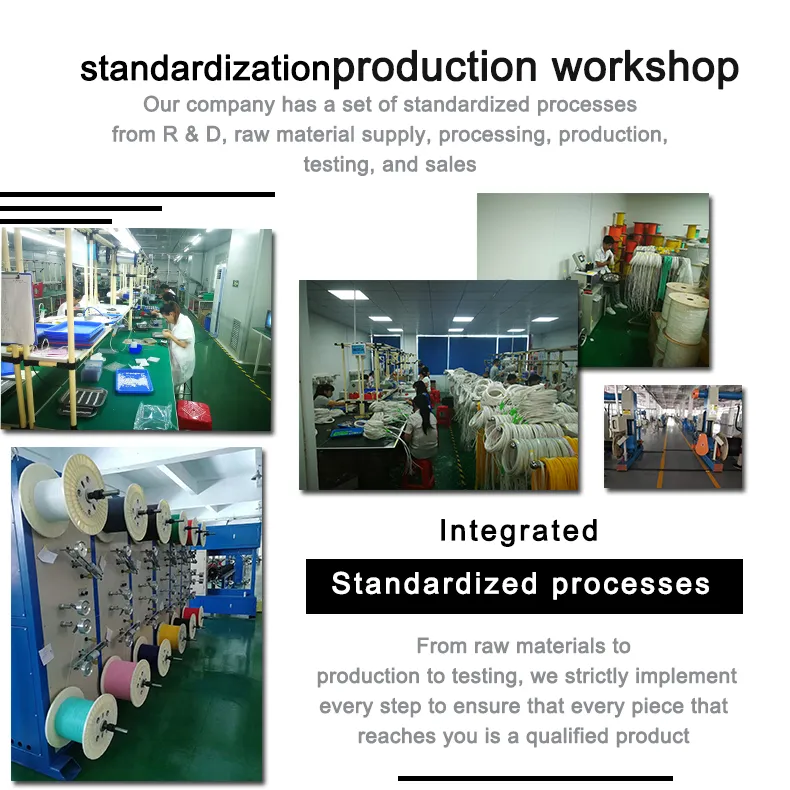

Workshop
Team
Certifications
🔗

Recommended Products

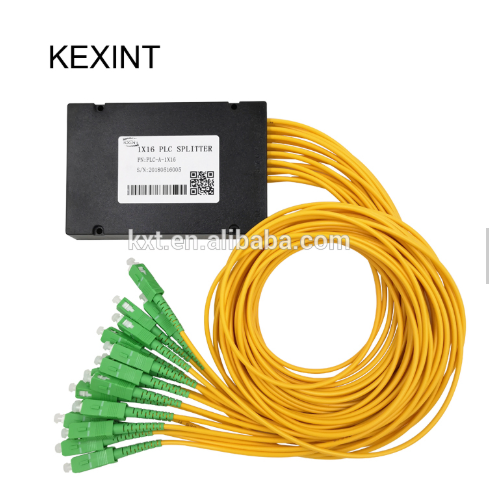

Product 1

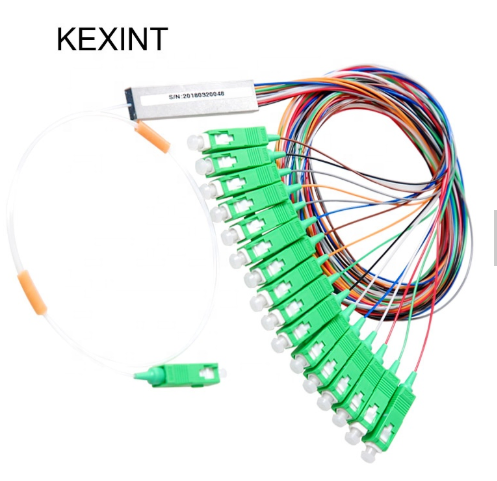

Product 2

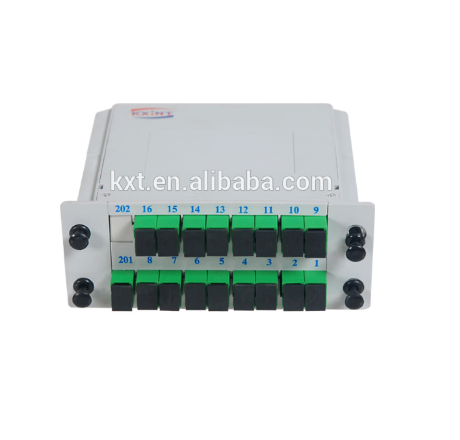

Product 3
❓

Frequently Asked Questions

What is the typical lead time for orders?
Generally, it takes 5-10 days if the goods are in stock. For larger orders or non-stock items, the lead time is approximately 15-20 days depending on the quantity.
Do you offer product samples?
Yes, we can provide samples for quality evaluation. While samples may be provided, the cost of freight is typically covered by the customer.
What are your standard payment terms?
For orders under 1000 USD, 100% advance payment is required. For orders over 1000 USD, we accept 30% T/T in advance with the balance due before shipment.
Can we negotiate pricing for large bulk orders?
Yes, we offer flexible pricing and discounts for large-scale orders or multiple container loads of mixed goods. Please reach out with your requirements.
How are shipping charges calculated?
Shipping costs depend on the total volume/weight of the shipment and the chosen delivery method (sea, air, or express). We will provide a detailed quote based on your request.
Are these cables suitable for 100G networks?
Absolutely. Our high-density MPO/MTP patch cords are specifically designed to support backbone installations for 40G and 100G data center environments.
