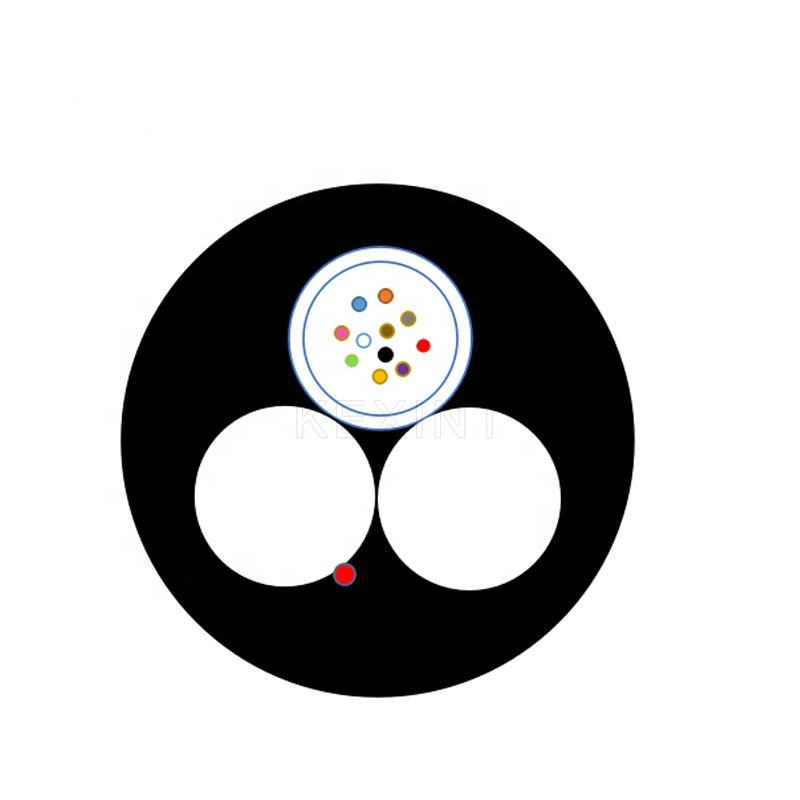

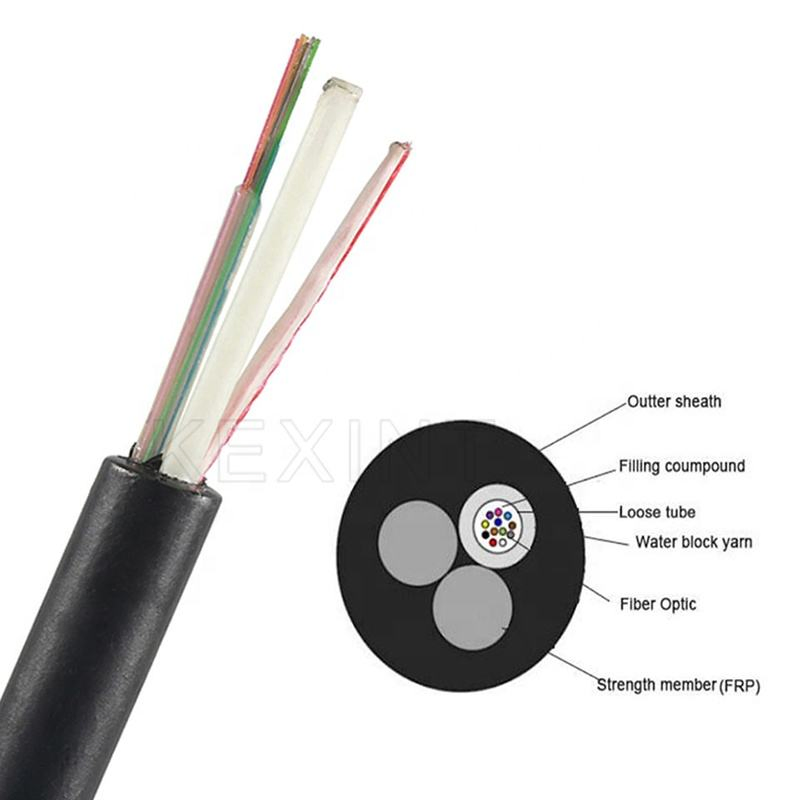

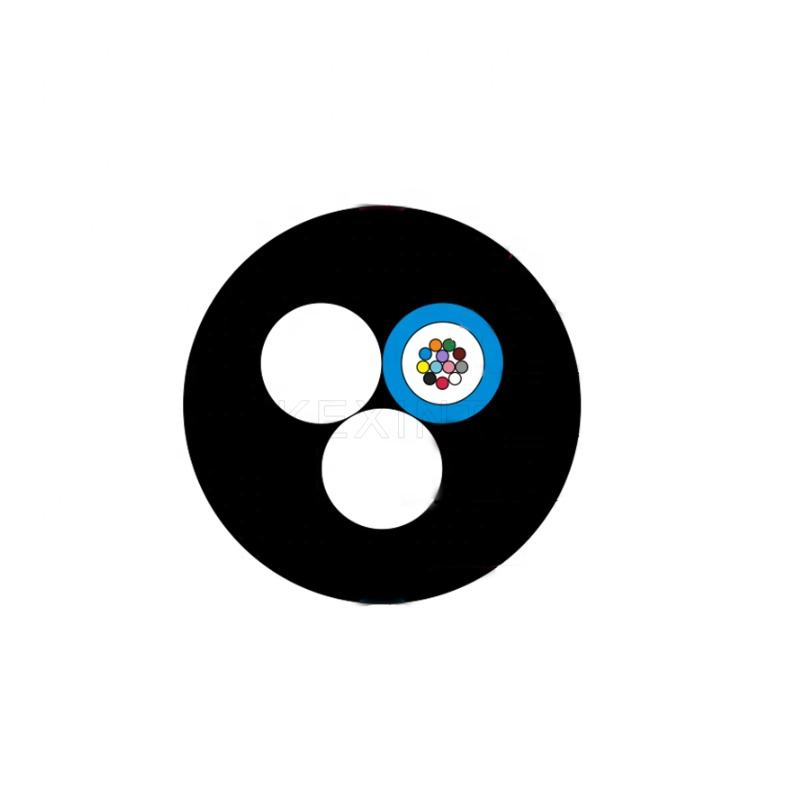

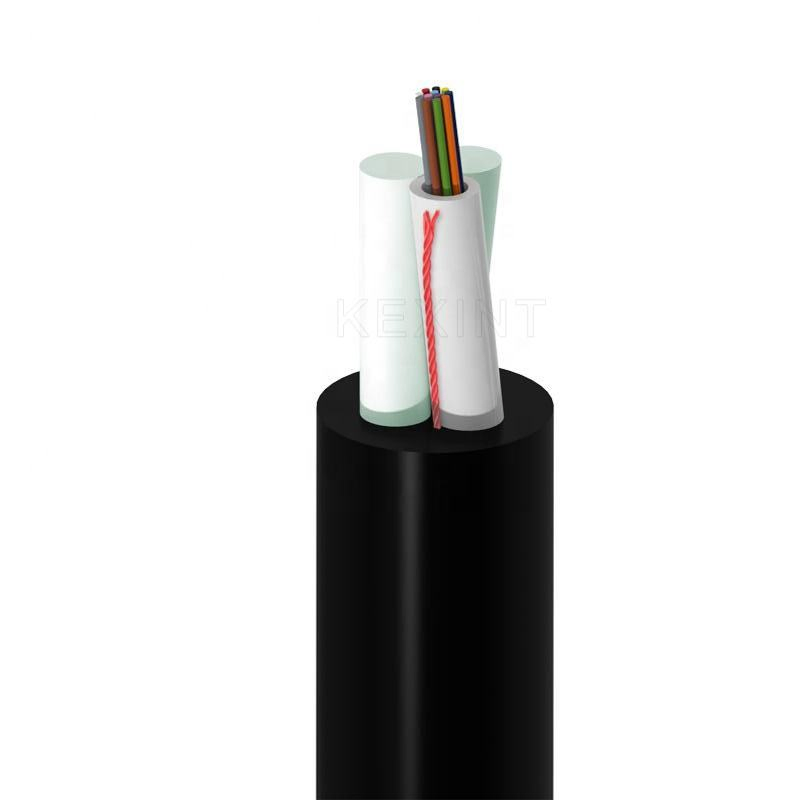

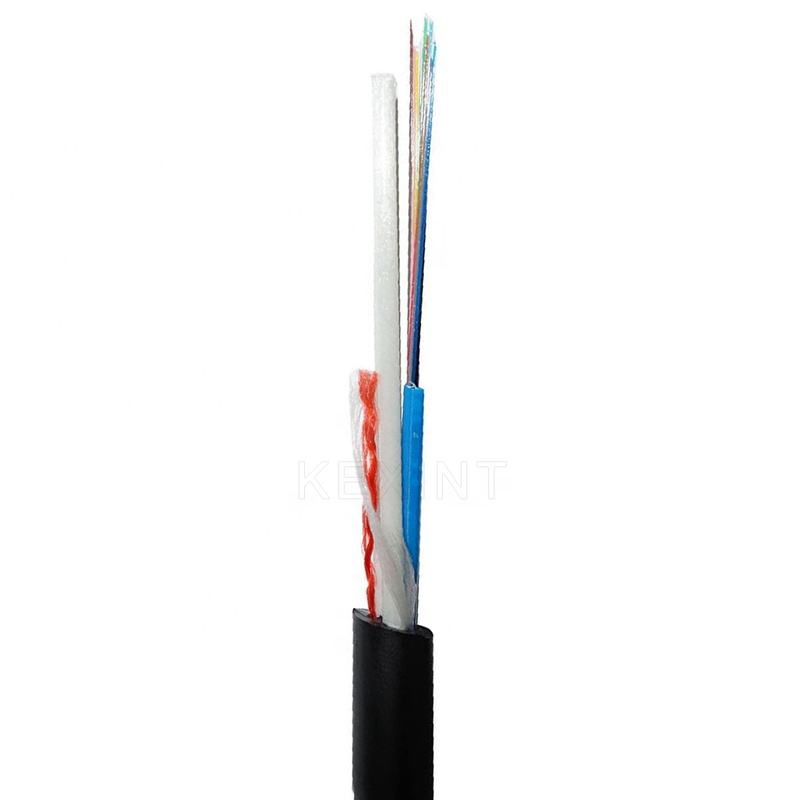

The GYFFY fiber optic cable features 250μm colored fibers housed in a PBT loose tube. Two FRP (Fiber Reinforced Plastic) elements serve as strength members, and the cable surface is extruded with a high-quality PE outer sheath.
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
|---|---|---|---|---|---|---|---|
| No. Of Tubes | - | 1 | 1 | 1 | 1 | 1 | 1 |
| No. Of Fibers | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Fiber Counts in Tube | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Cable Diameter | mm | 6.8±0.5 | 7.2±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Tensile Strength | N | Span=801.5*P | |||||
| Crush Resistance | N | 1000N | |||||
| Operation Temp. | ℃ | -20 to +65 | |||||
