Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
1 / 5
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable
Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable

Lw Lwp SA Da Steel Wire Armored Underwater Fiber Optic Cable Repeatered Submarine Cable

Customization: Available
Application: Communication
Type: Multi-mode Fiber
Send Inquiry

Product Description

Basic Information

Model NO.
G652D or G654
Connection Structure
FC-SC
Material Shape
Flat Wire
Lateral Pressure
100-1000 N/100mm
Tensile Strength
100N - 1000N
Core
Multicore (1-24)
Certification
RoHS, CE
Sheath Material
LSZH / HDPE
Inner Armor
Phosphated Steel Wire
Temp Range
-10°C to +40°C

Product Description

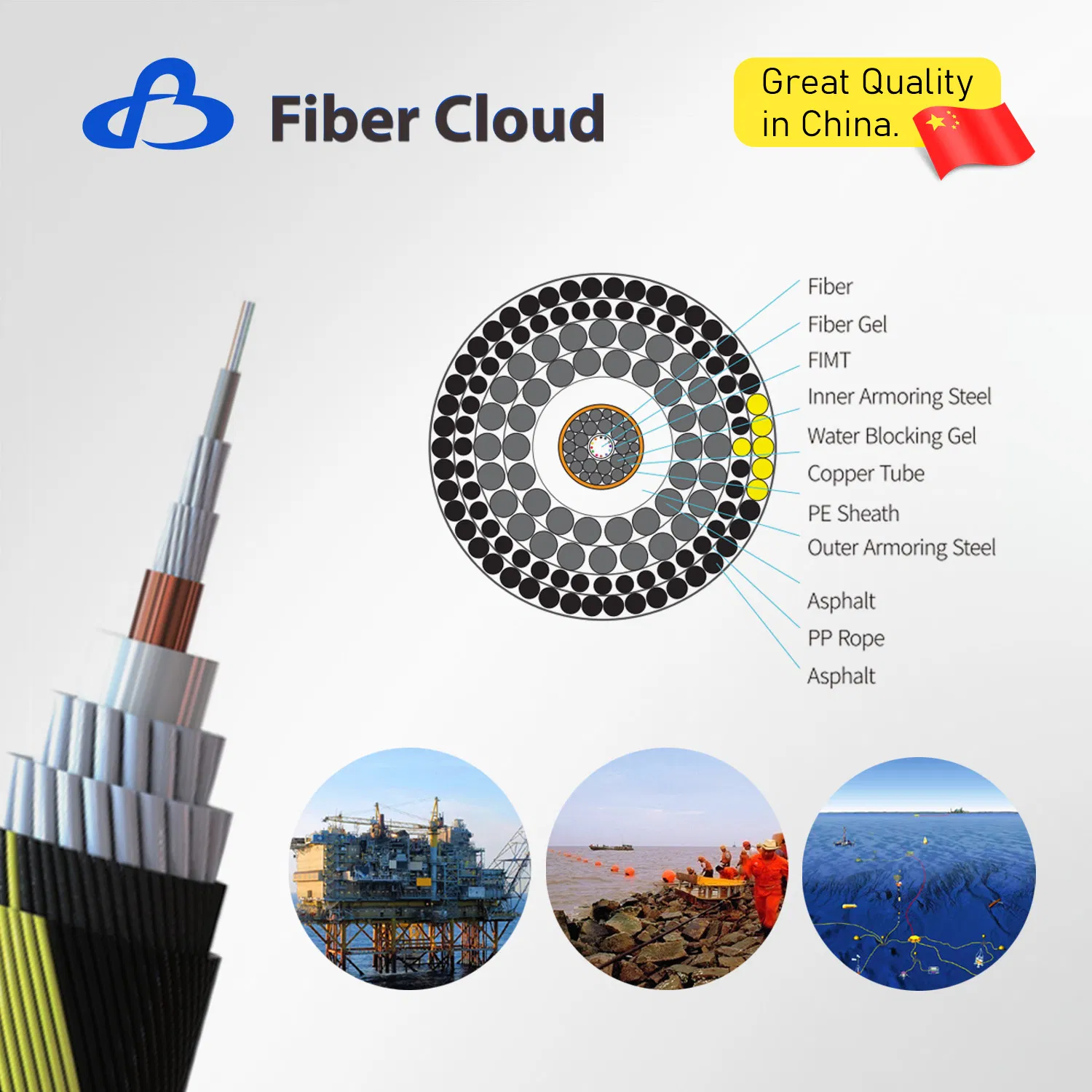

Submarine Fiber Optic Cable Structure

LW LWP SA DA Steel Wire Armored Underwater Fiber Optic Cable

  • Stainless steel tube with fiber resists water/hydrogen, boosts strength; inner gel protects fiber and maintains slack.
  • Inner armor consists of two layers of high-strength steel wires with water-blocking compound.
  • Integrated copper conductor enables electrical signaling for tracking and fault location.
  • Wholesale Availability for large-scale maritime infrastructure projects.

Product Parameters

Cable Parameters Overview

Submarine Cables with Repeaters Series 2

Specification HORC-2 LW HORC-2 LWP HORC-2 SA HORC-2 DA
Fiber ModelG652D / G654G652D / G654G652D / G654G652D / G654
Core Count1-32 cores1-32 cores1-32 cores1-32 cores
Outer DiameterΦ18.0mmΦ23.0mmΦ33.0mmΦ40.0mm
Water Depth8000m7000m2000m600m
Breaking Load95kN95kN300kN575kN

Submarine Cables with Repeaters Series 3

Specification HORC-3 LW HORC-3 LWP HORC-3 SA HORC-3 DA
Fiber ModelG652D / G654G652D / G654G652D / G654G652D / G654
Core Count1-64 cores1-64 cores1-64 cores1-64 cores
Outer DiameterΦ21.0mmΦ26.0mmΦ35.8mmΦ44.2mm
Water Depth8000m7000m2000m600m
Breaking Load130kN130kN380kN720kN

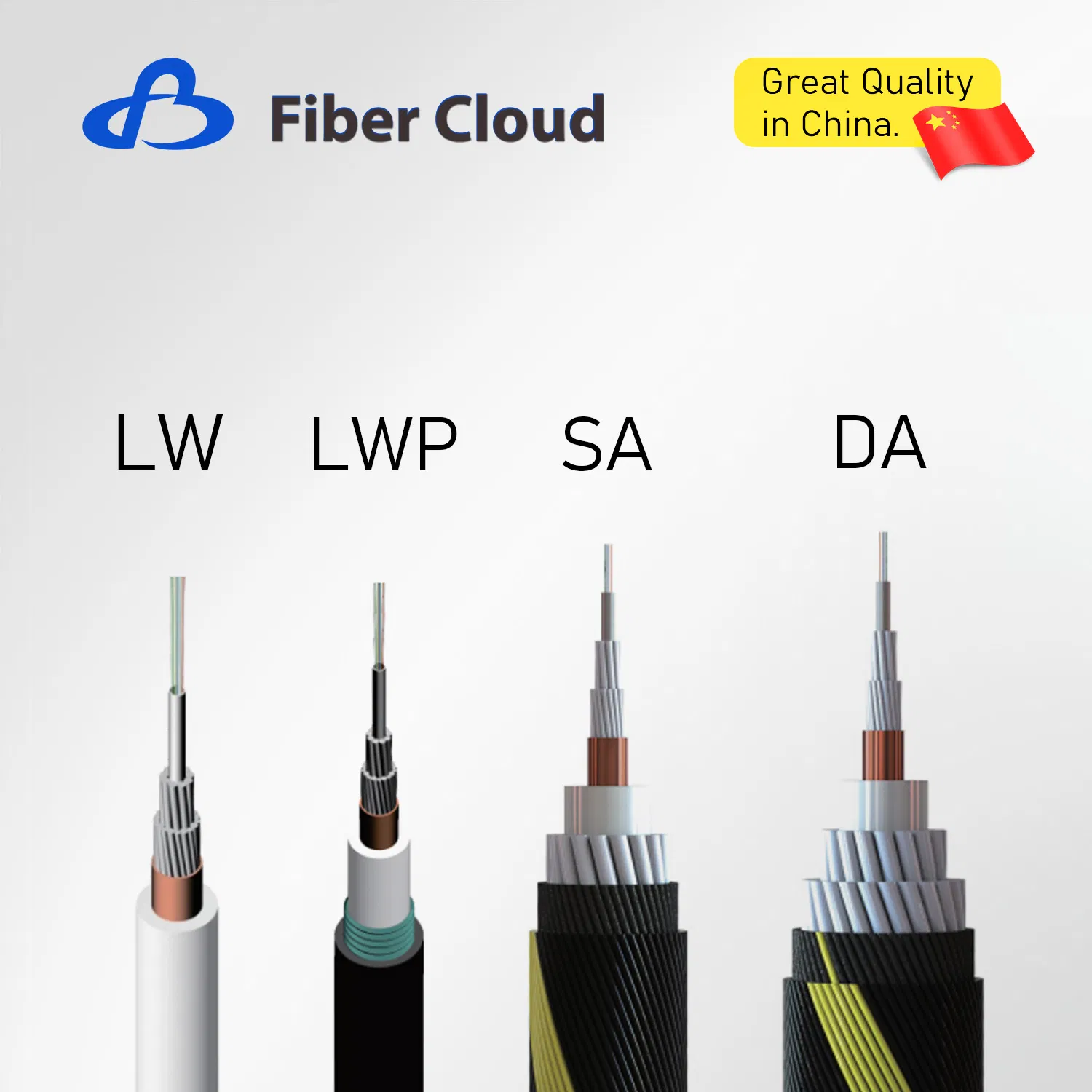

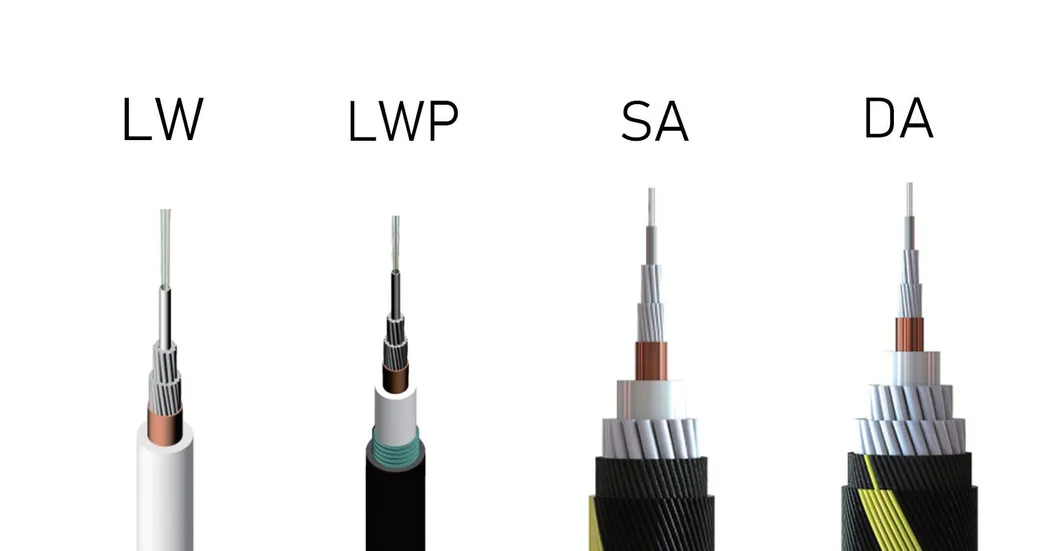

Cable Type Comparison

Applications

Application Header
  • Telecom Industry: Long-distance international data transmission.
  • Ocean Observation: Real-time monitoring of seismic and maritime data.
  • Energy Sector: Connectivity for offshore oil, gas, and renewable energy platforms.

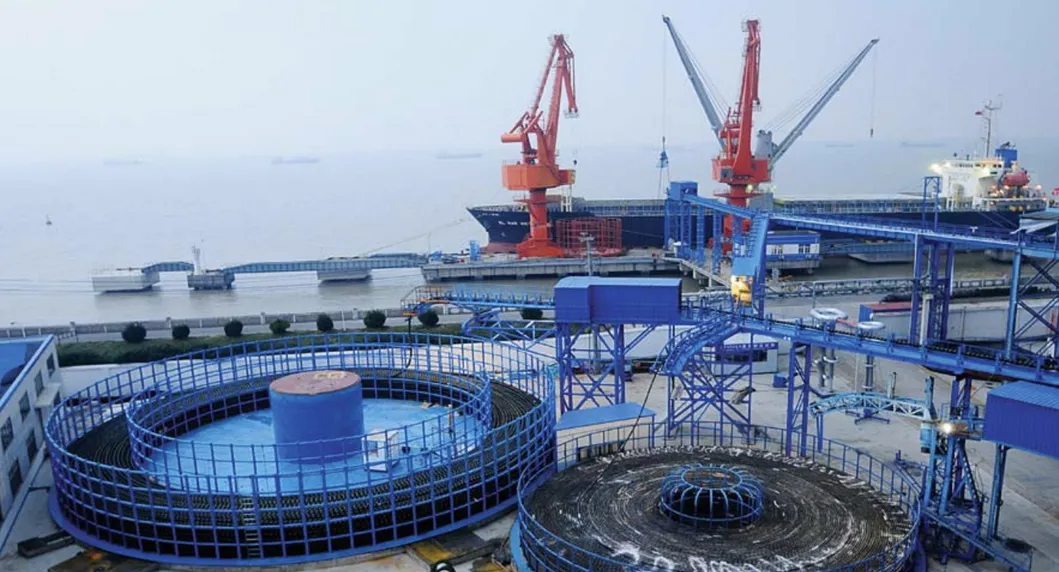

Submarine Deployment

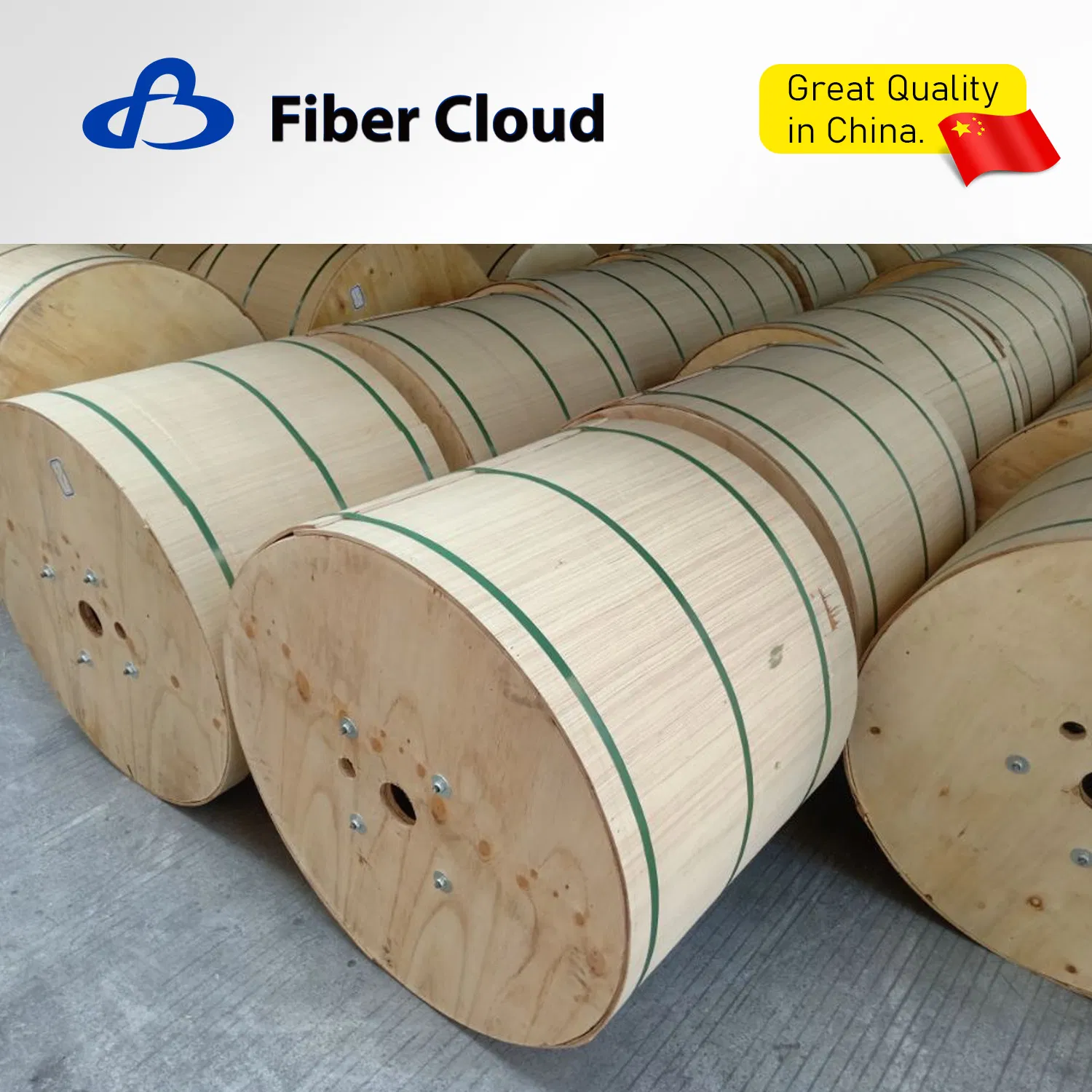

Packaging & Shipping

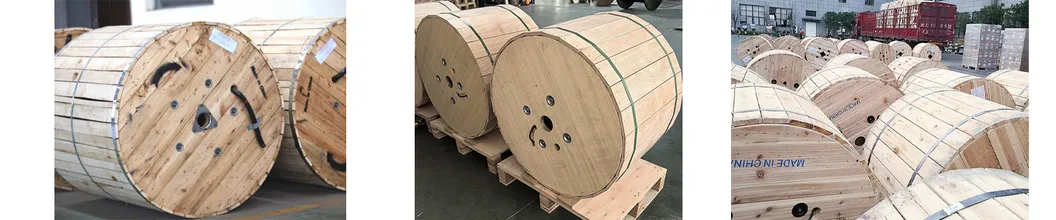

Packing Process 1 Packing Process 2 Shipping 1 Shipping 2

Our Services

  • Professional custom solutions provided in days, not weeks.
  • Comprehensive inquiry responses within 24 hours.
  • Over 10 years of professional industry experience.
  • Strict quality management and first-class production lines.
  • Cost-efficient manufacturing to help expand your business.

Frequently Asked Questions

How do you guarantee the quality of submarine cables?
Our products are produced under a strict quality control system with a defective rate of less than 0.2%. We conduct rigorous inspections and issue test reports before every shipment.
What is the difference between LW and DA cable types?
LW (Lightweight) is used for deep sea (up to 8000m) on stable sandy seabeds without armor. DA (Double Armor) is used in shallow waters (below 600m) with complex rocky terrain to protect against high abrasion and tugboat hazards.
Can these cables be used for electrical signaling?
Yes, the cables include a copper conductor that enables electrical signaling for both tracking and precise fault location.
Do you provide OEM or ODM services?
Yes, we provide full OEM and ODM services. We can customize fiber counts, armor types, and print your specific logos on the product.
What is the typical lead time for an order?
We have built a professional procedure system to avoid delays. Lead times vary by order volume, but we guarantee fast delivery and can include penalty clauses in contracts for peace of mind.
Are the cables resistant to marine life damage?
Yes, specifically the LWP (Lightweight Protected) and armored versions (SA/DA) are designed to resist moderate abrasion and potential bites from marine animals.
