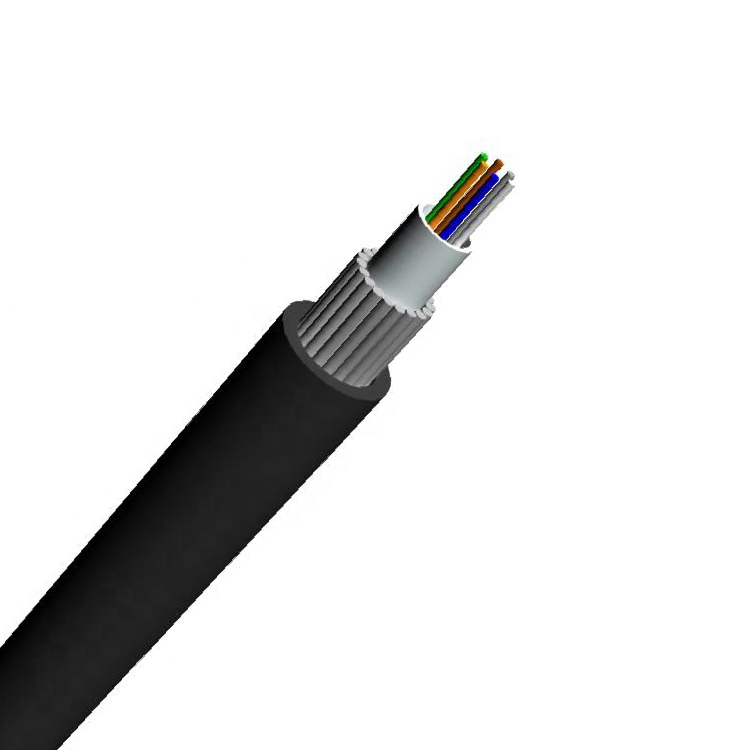

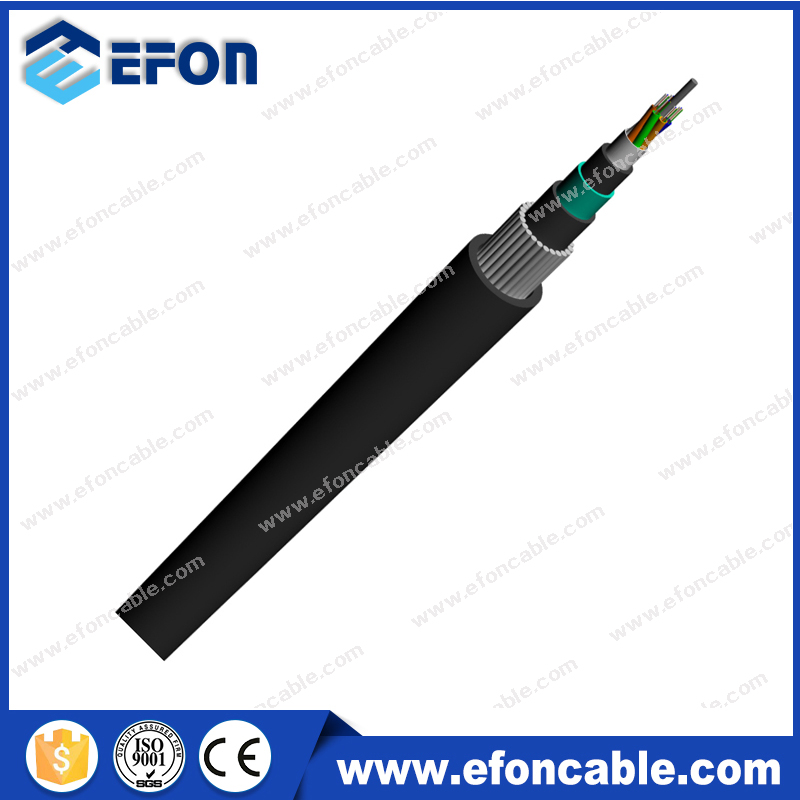

Submarine 2-288 Core Armored Fiber Optic Cable

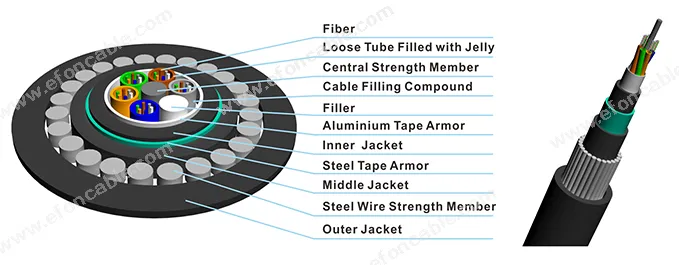

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire located in the center of the core acts as a metallic strength member into a compact and circular cable core. An Aluminium Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a PE outer sheath. After the single steel armored, the cable is finally completed with an outer sheath.

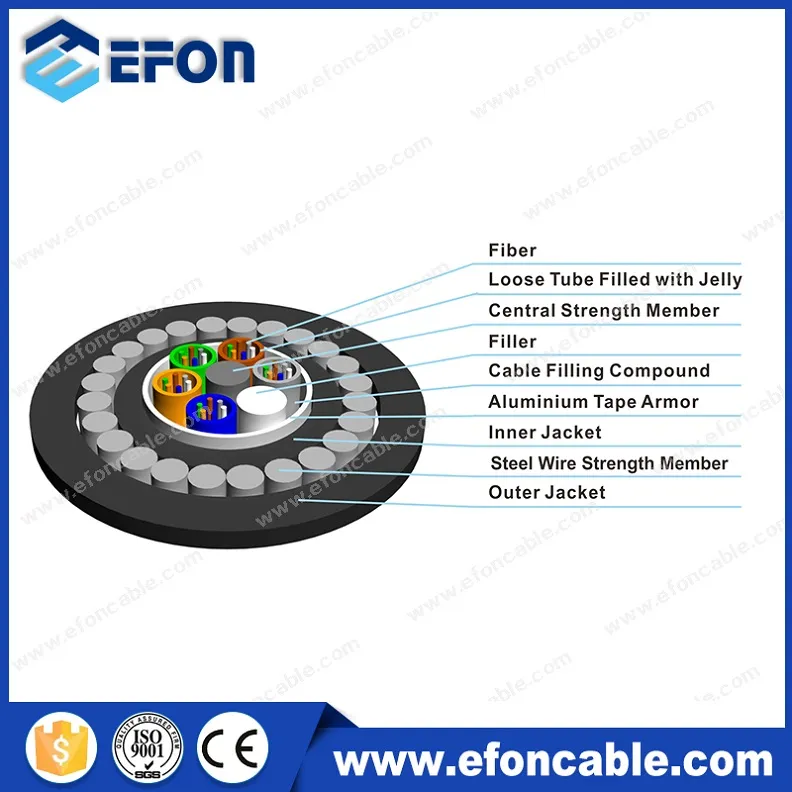

🏗️Product Construction
Fiber: 24-288 fibers, Multi-loose tube gel-filled
Central Strength Member: Fiberglass reinforced Plastic (FRP) or steel wire.
Strength Member: Aluminum Tape Armor, Steel Wire
Outer Jacket: Black UV polyethylene (PE).
Structure & Technical Specifications
| Fiber Count |
Diameter (mm) |
Weight (kg/km) |
Max Fiber Per Tube |
Tensile Load (N) |
Crush Resistance (N/100mm) |
| 2~36 |
14.1 |
193 |
6 |
3000 (Short) / 1000 (Long) |
3000 (Short) / 1000 (Long) |
| 38~72 |
15.1 |
212 |
12 |
3000 (Short) / 1000 (Long) |
3000 (Short) / 1000 (Long) |
| 74~96 |
16.3 |
246 |
12 |
3000 (Short) / 1000 (Long) |
3000 (Short) / 1000 (Long) |
| 98~120 |
17.8 |
288 |
12 |
3000 (Short) / 1000 (Long) |
3000 (Short) / 1000 (Long) |
| 122~144 |
19.4 |
336 |
12 |
3000 (Short) / 1000 (Long) |
3000 (Short) / 1000 (Long) |
* Note: Datasheet for reference. Available upon customer request for >144 fibers.

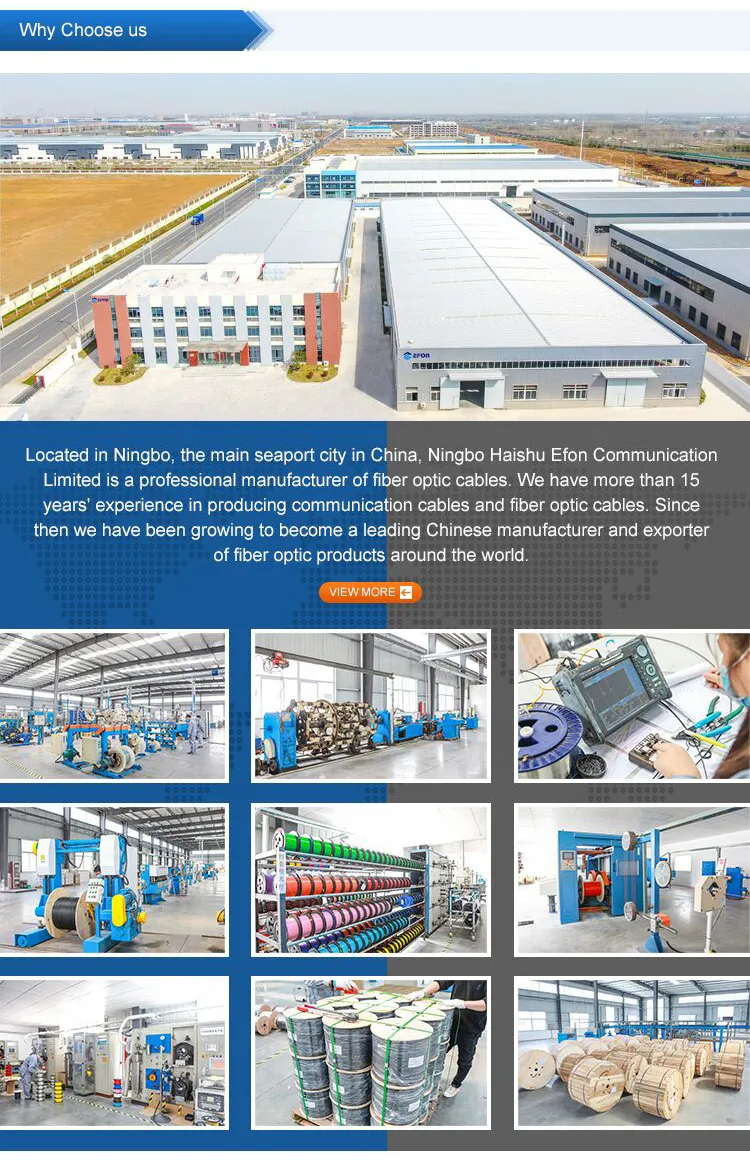

Main Products & Production
About Our Quality
As a professional manufacturer with over 15 years' experience, we have grown to become a leading exporter of fiber optic products. We have implemented a strict quality control system, ensuring each product meets customer requirements. Our products have passed RoHS, ISO9001, and TLC certifications.
Frequently Asked Questions
Q1: What is the warranty for the submarine fiber optic cable?
All products come with a 5-year warranty. If there is no man-made problem, we provide free replacement or repair services.
Q2: What payment methods are accepted?
For large orders, we offer T/T, L/C, and E-credit lines. For small orders, credit cards are accepted.
Q3: How long is the delivery time?
We typically send the products within 10 days of order confirmation.

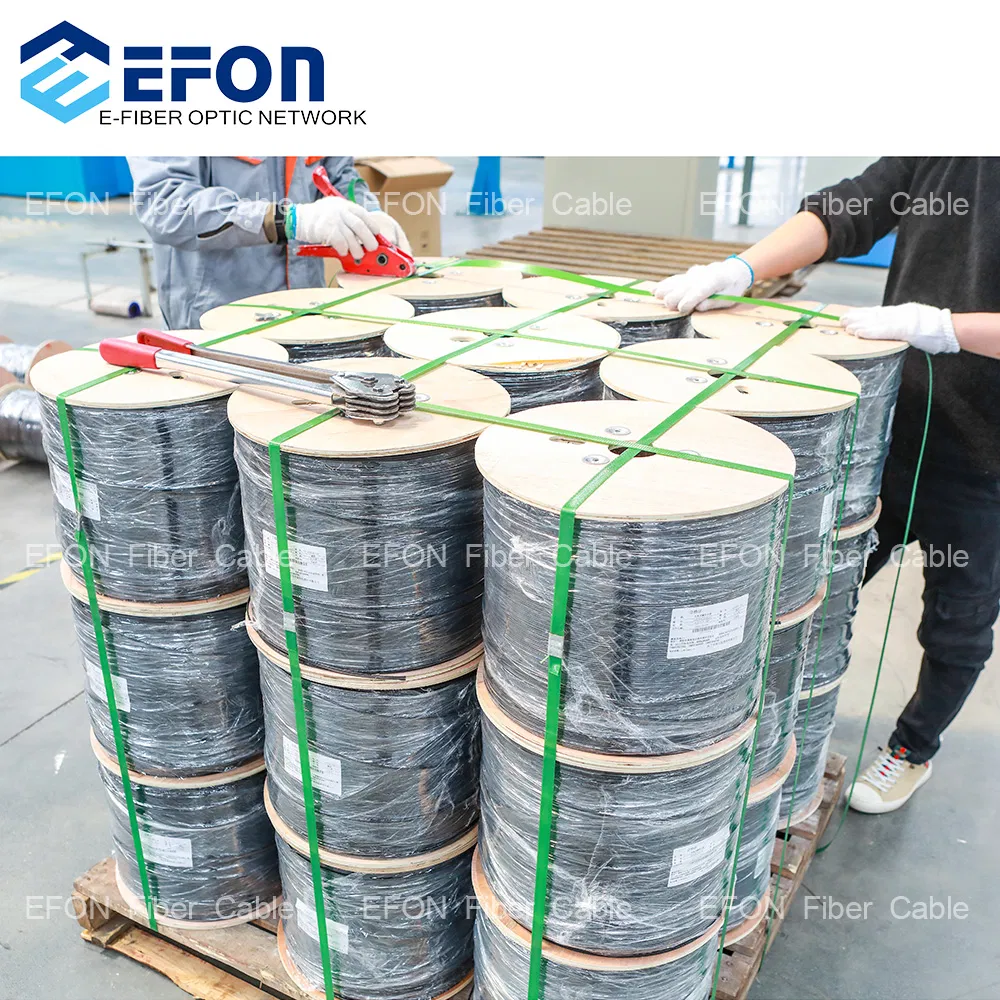

Q4: What shipping options do you provide?
Small batches are shipped by air for speed, while large orders are transported via container for cost-efficiency.
Q5: Does the cable comply with international standards?
Yes, our cables are tested and comply with IEC 60794, ITU-T G.652, and various other mechanical and environmental performance standards.
Q6: Can the fiber count be customized?
We offer standard fiber counts from 2 to 288. Counts exceeding 144 are available upon specific customer request.
