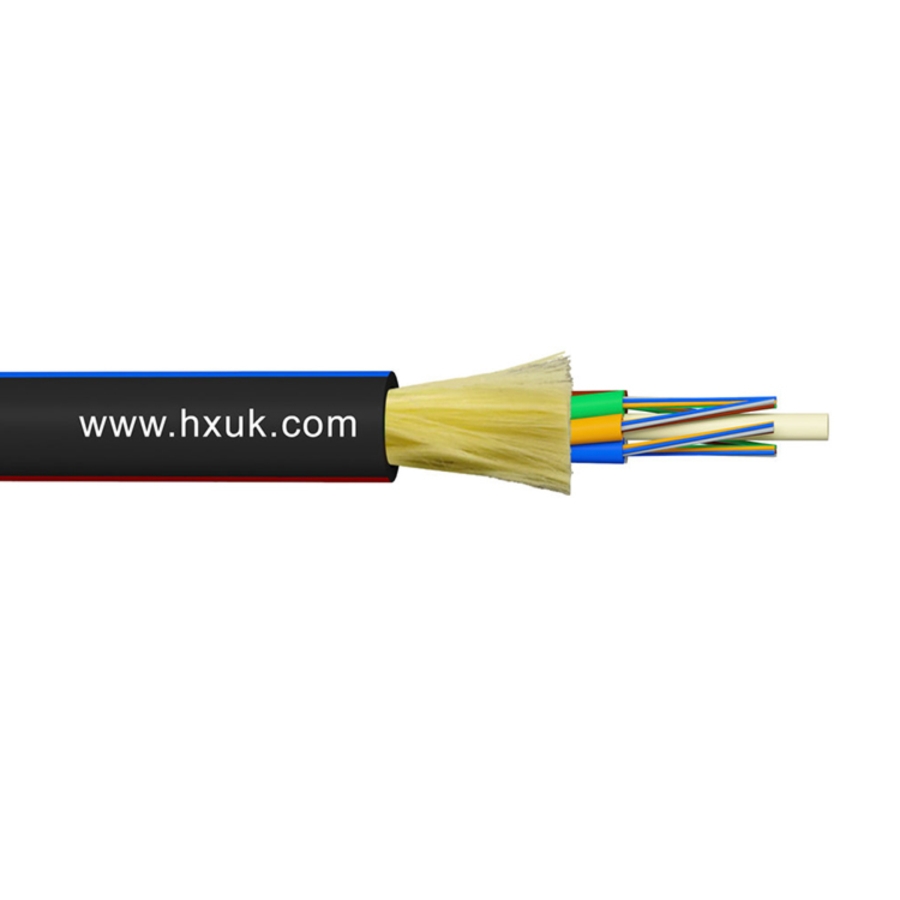

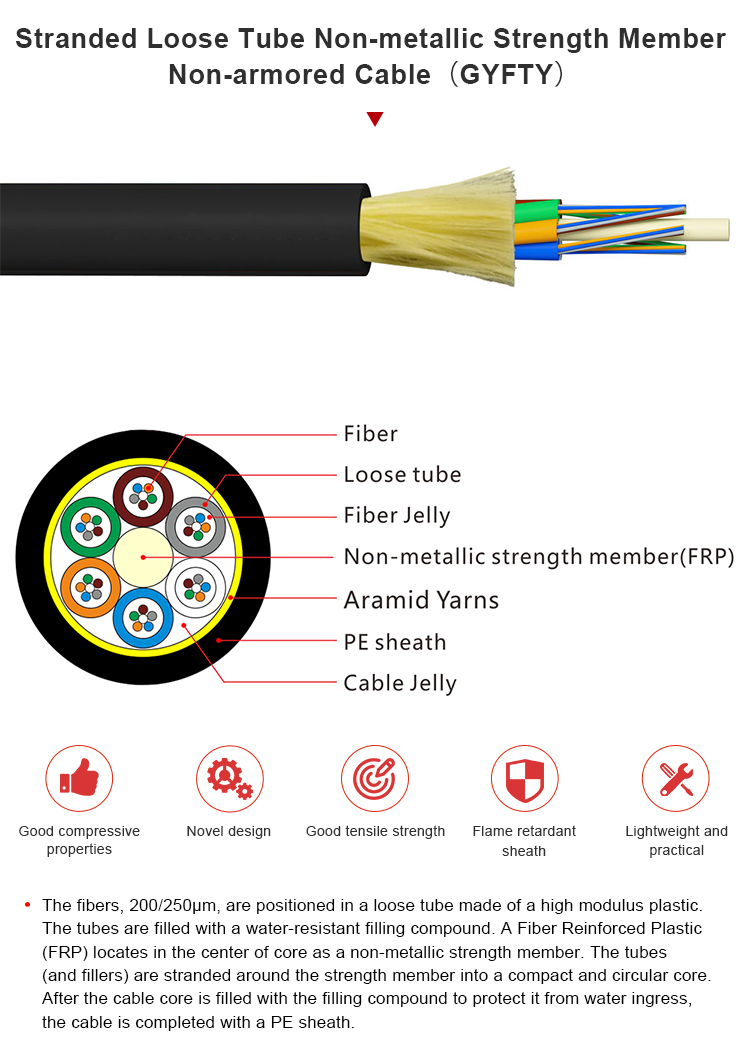

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Features:
| Item | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|---|
| Attenuation (+20℃) | @850nm | - | - | ≤3.0dB/km | ≤3.0dB/km |
| @1300nm | - | - | ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | - | - | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | - | - | |
| Bandwidth (Class A) | @850 | - | - | ≥500MHZ·km | ≥200MHZ·km |
| @1300 | - | - | ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture | - | - | 0.200±0.015NA | 0.275±0.015NA | |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | - | - | |
| Cable Type | Fiber Count | Tube/Filler | Diameter (mm) | Weight (Kg/km) | Tensile (N) L/S | Crush (N/100mm) |
| GYFTY-2~6 | 2~6 | 1/4 | 9 | 88 | 800/1500 | 500/1000 |
| GYFTY-8~12 | 8~12 | 2/3 | 9 | 88 | 800/1500 | 500/1000 |
| GYFTY-24 | 20~24 | 4/1 | 9 | 88 | 800/1500 | 500/1000 |
| GYFTY-48 | 38~48 | 5/0 | 9 | 88 | 800/1500 | 500/1000 |
| GYFTY-96 | 86~96 | 8/0 | 10.5 | 120 | 1500/2500 | 500/1000 |
| GYFTY-144 | 122~144 | 12/0 | 13 | 150 | 1500/2500 | 500/1000 |
| Transport Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Installation Temperature | -5℃ ~ +50℃ |
| Operating Temperature | -20℃ ~ +60℃ |
