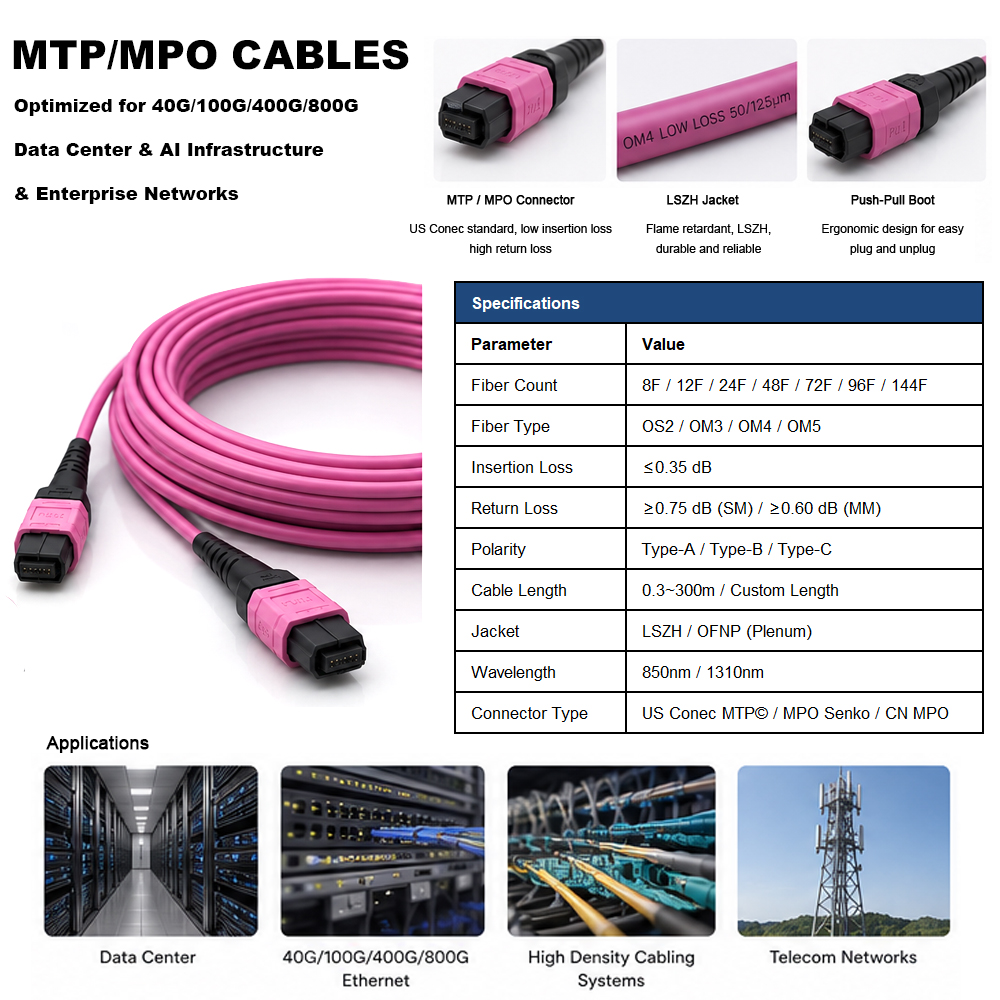

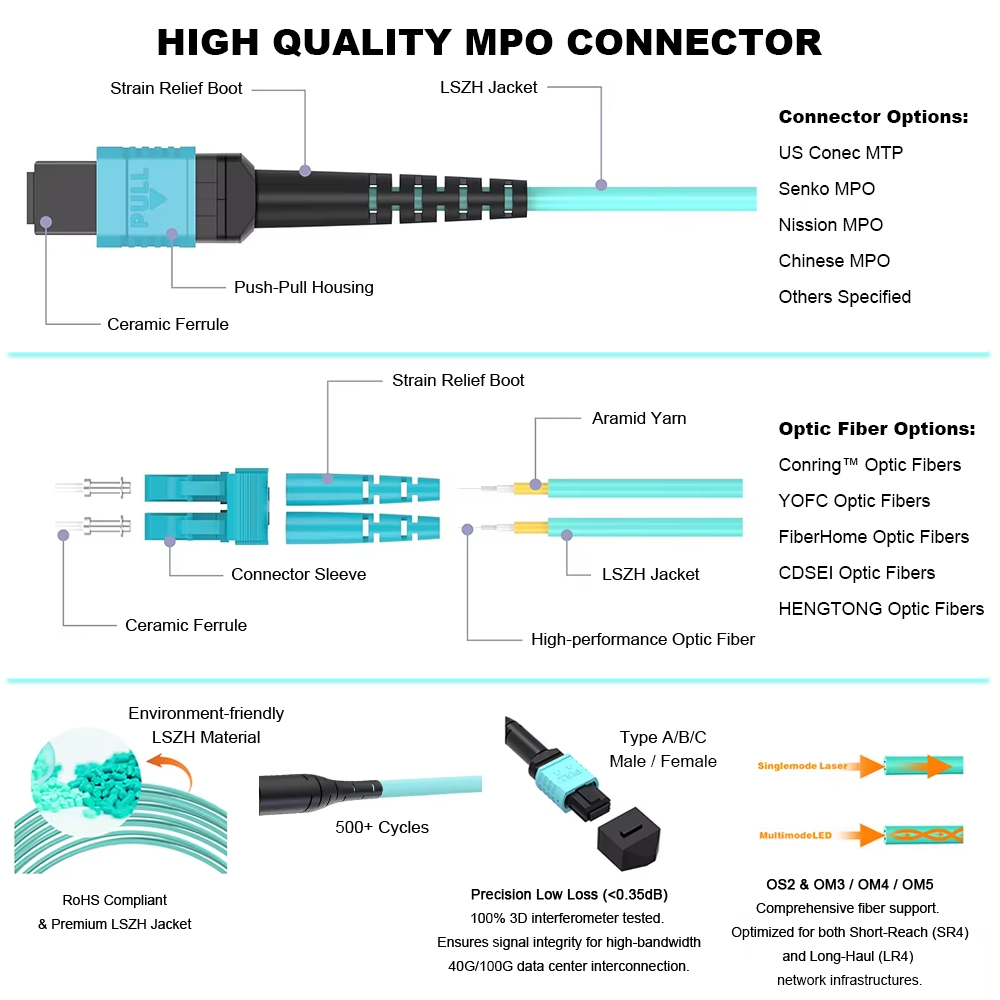

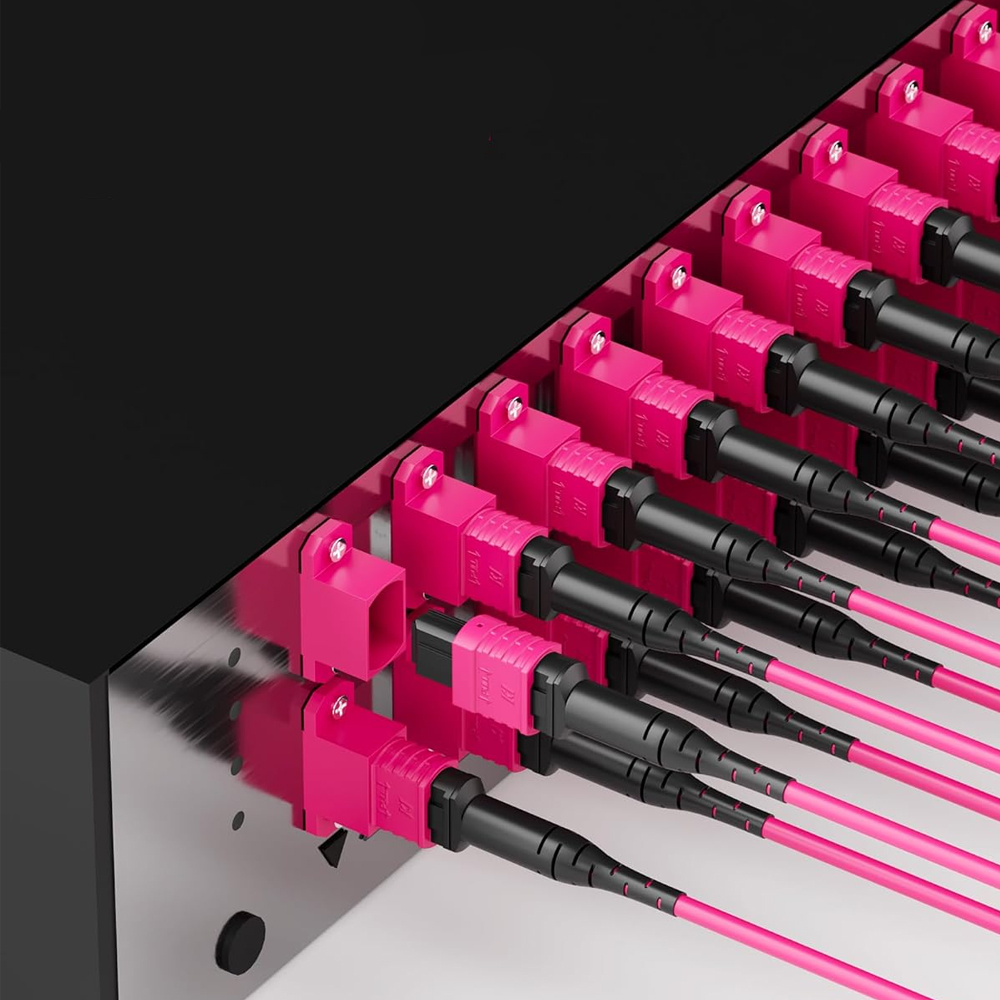

OM4 MPO/MTP Fiber Patch Cable 12 Core Strand 40G/100G/200G UPC Type B Female LSZH 50/125 Multimode Fiber for QSFP28 Transceivers.
| Feature | MTP/MPO Trunk Cable | MTP/MPO to LC Cable |
|---|---|---|
| Connector A | MTP/MPO | MTP/MPO |
| Connector B | MTP/MPO | LC/SC/Custom |
| Gender | Male (with PIN) | Female (no PIN) |
| Polarity | Type A / Type B / Type C | |
| Jacket Color | Aqua, Violet, Lime Green, Yellow, Black, Custom | |
| Jacket Material | LSZH, OFNP (Plenum), Armored, PVC, Custom | |
| Fiber Type | SM G652D/G657, OM1, OM2, OM3, OM4, OM5 | |
Carrier-grade Patch Cord
Tri-Ring brand ferrules with 5-step telecom-grade polishing and LSZH/Plenum jacket.

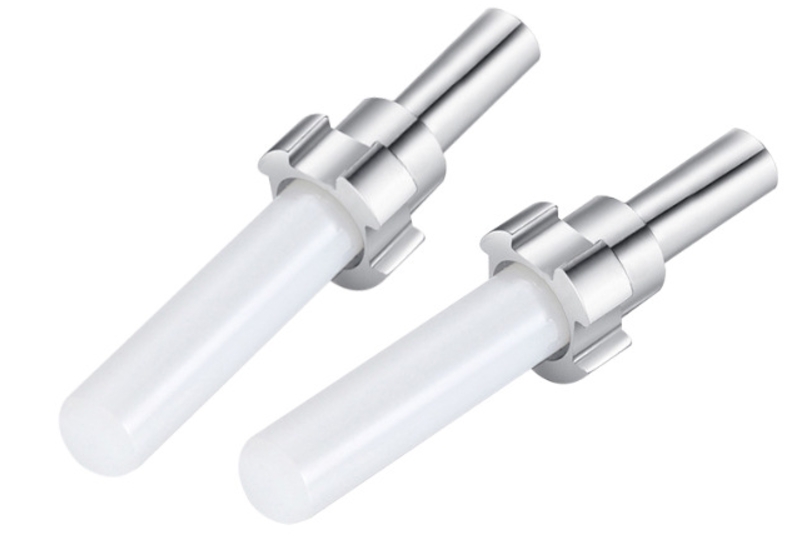

Premium Ceramic Ferrules
High precision, low insertion loss, and excellent durability for stable performance.

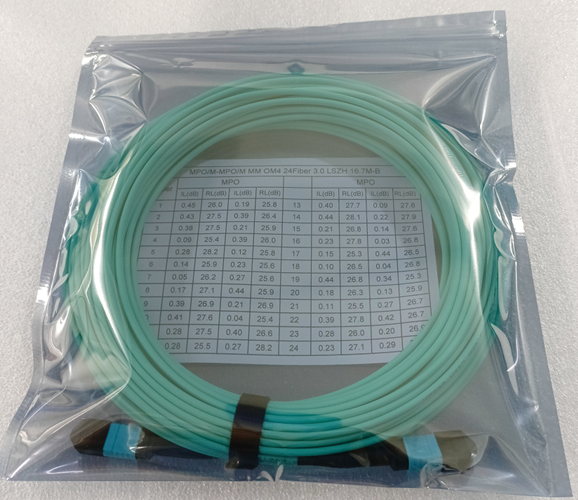

Professional RL/IL Test
A-grade standard interface; standard loss 0.7dB; low loss 0.3dB.
| Connector Type | MTP, MPO, MPO Elite - LC, SC |
| Insertion Loss | Typical: 0.35dB / Max: 0.75dB |
| Operating Temp | -40 to +85 ℃ |
| Compatibility | Cisco, Juniper, Arista, H3C, Huawei, etc. |
Stable High-Speed Links: Ultra-low-loss MT ferrules and 100% factory IL/RL testing per cable.
Clear Polarity Mapping: Pre-set polarity (A/B/C) and clear labeling for plug-and-play installation.

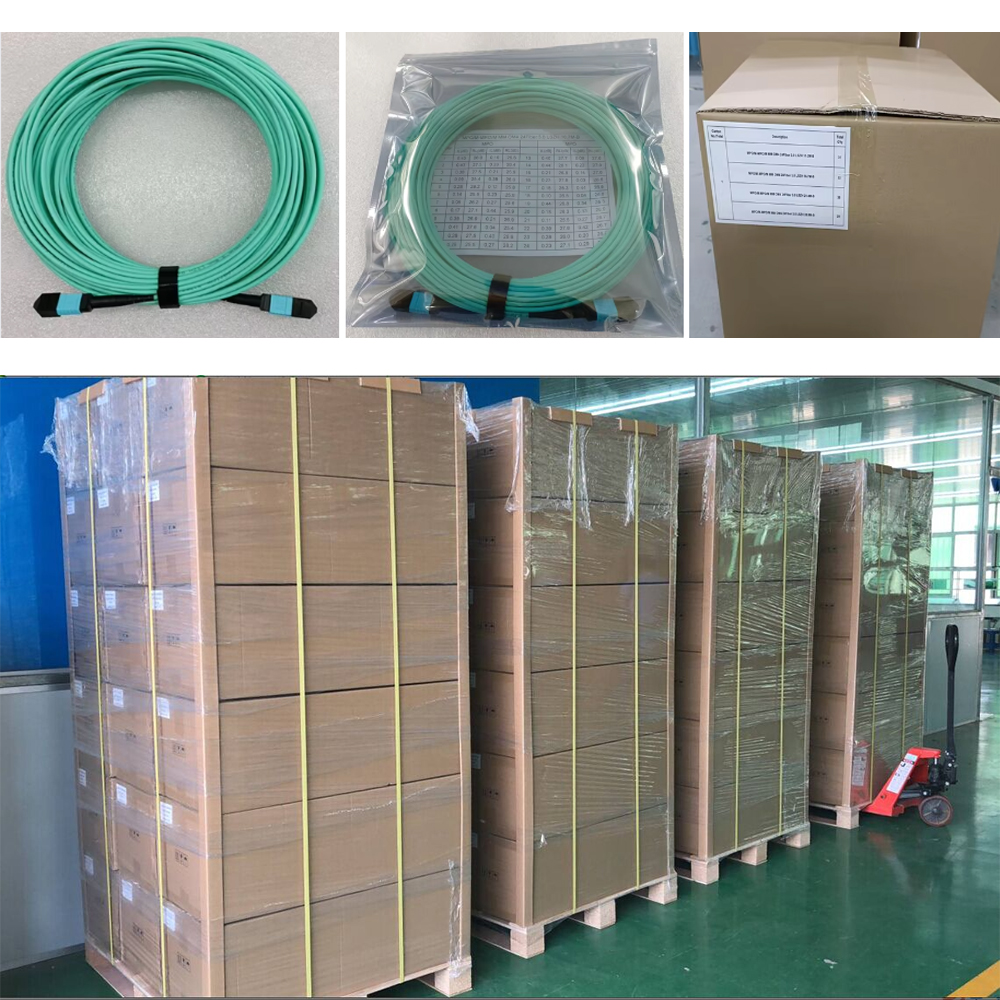

Fast Project Delivery: Support for urgent orders and flexible phased delivery options.
Full Customization: Tailored length, labels, jacket type, and color to fit your rack layout.

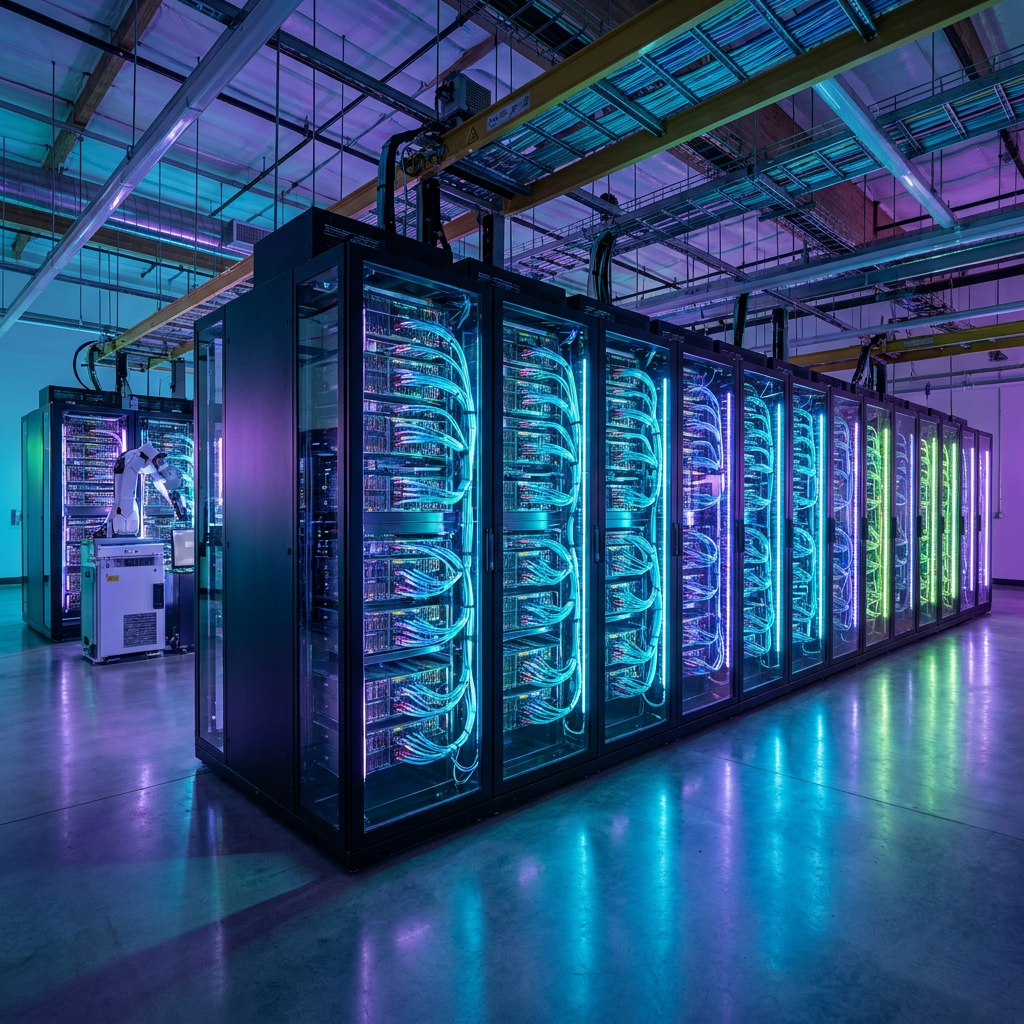

AI Training Clusters: Interconnect for NVIDIA DGX/H100/H200 ultra-low latency links.

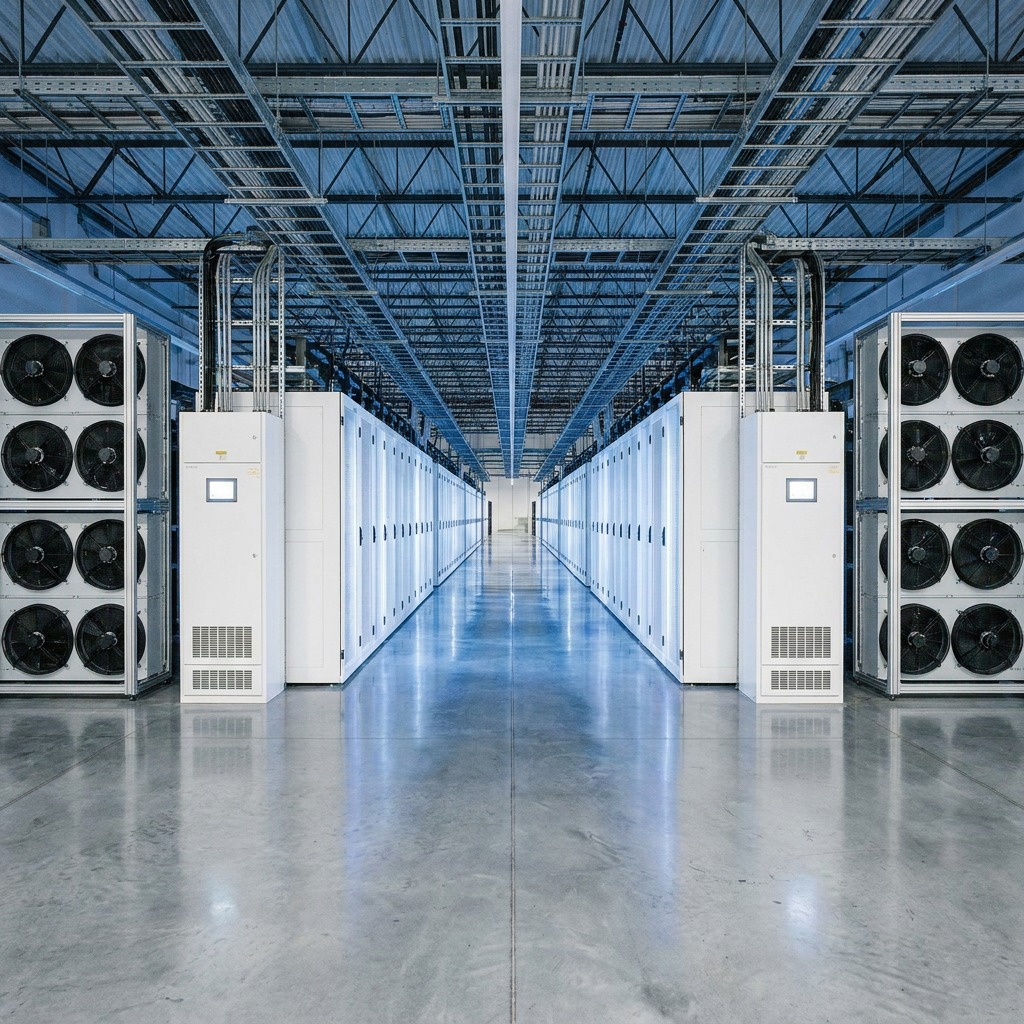

Hyperscale Data Centers: Supports spine-leaf architecture and 400G/800G transceivers.

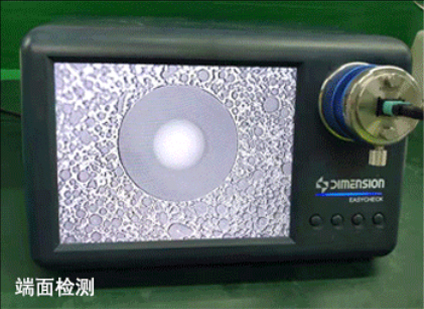

End-face Inspection

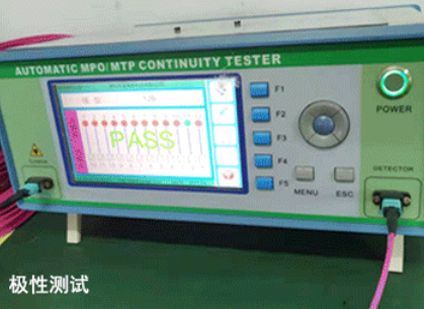

Polarity Test

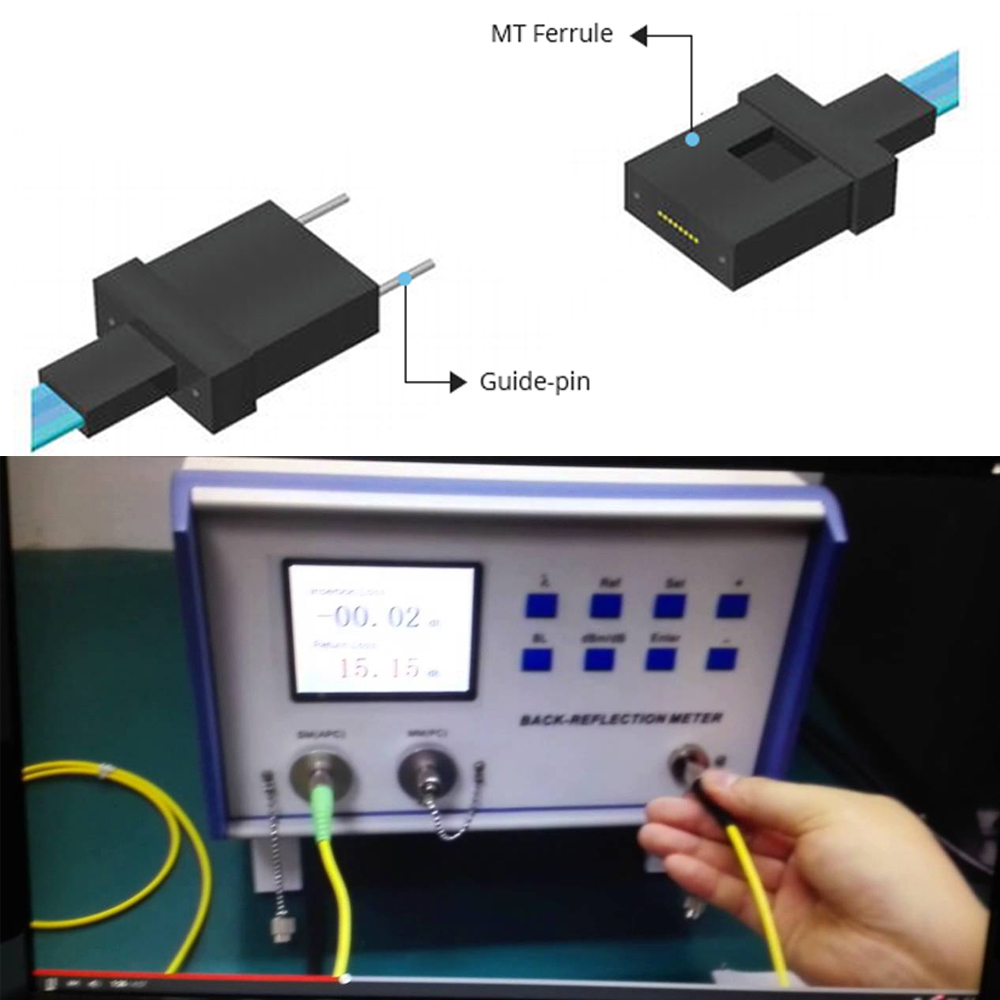

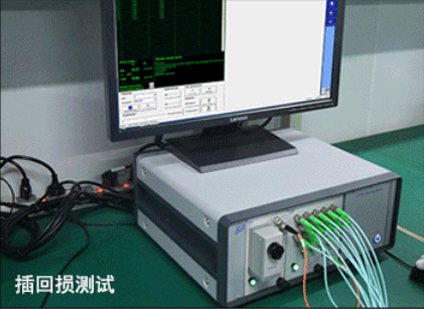

IL/RL Verification
A: Yes. Our 8-core and 12-core OM4/OM5 MPO/MTP cables are fully compatible with 400G QSFP-DD applications, including PSM4 and SRBD configurations. Please specify your transceiver model for a pre-verified match.

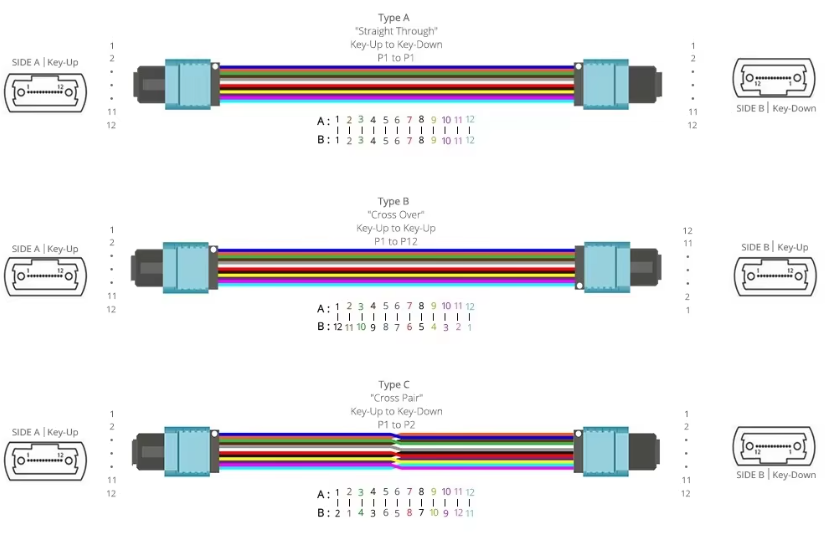

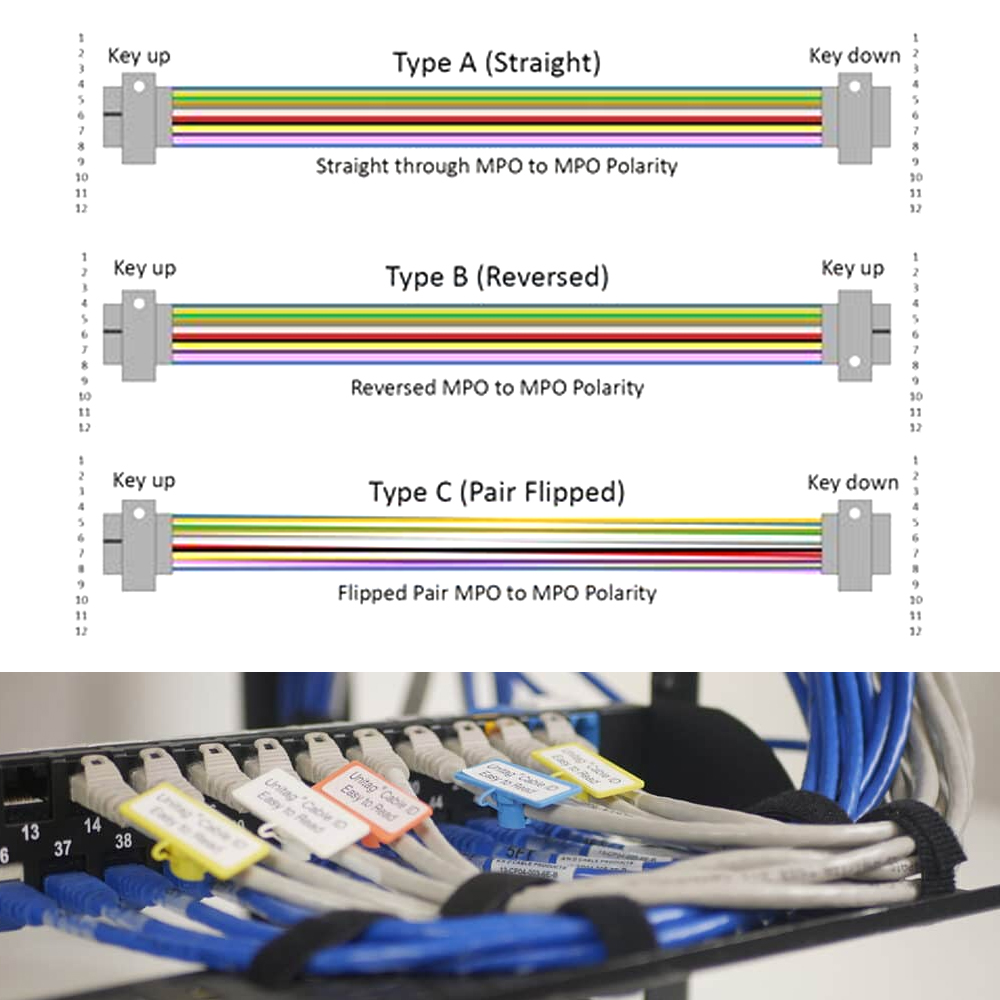

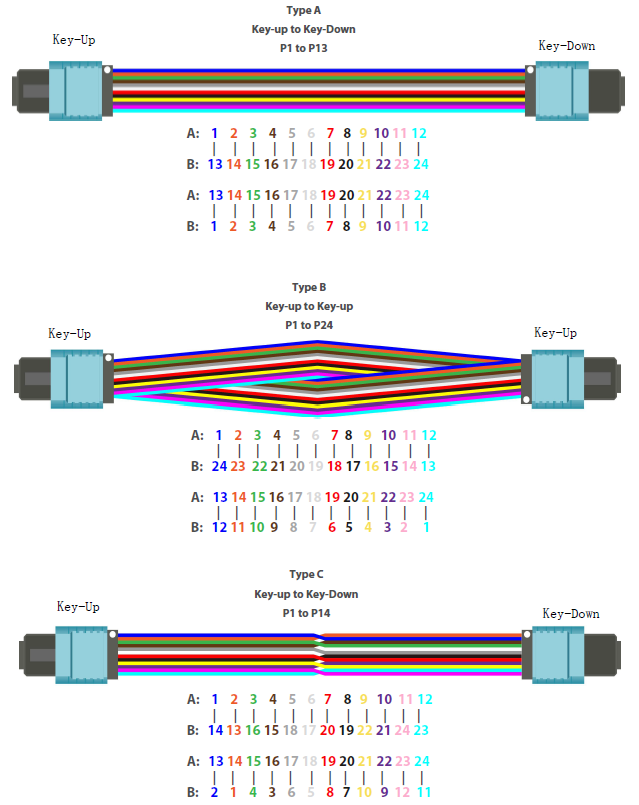

A: We offer Type A (Straight), Type B (Reversed), and Type C (Pair-flipped). Type B is standard for most Cisco systems, while Type A is common for Juniper and Arista. We can recommend the correct polarity based on your switch model.

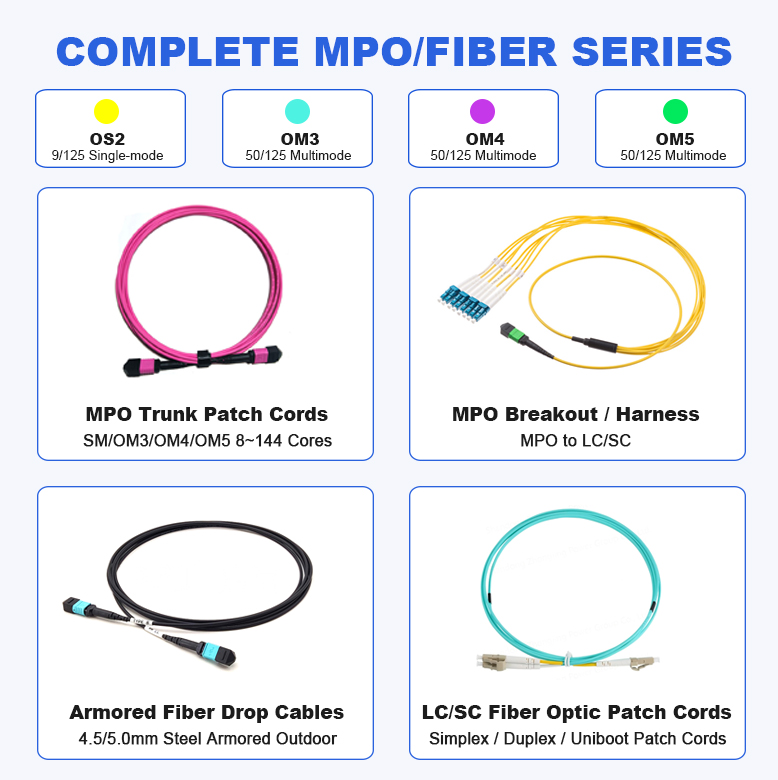

A: Yes. We manufacture lengths from 0.5m to 100m. Common custom combinations include MPO-24 to 2x MPO-12 or MPO-12 to LC duplex breakouts. We also support MTP Elite and SC options.

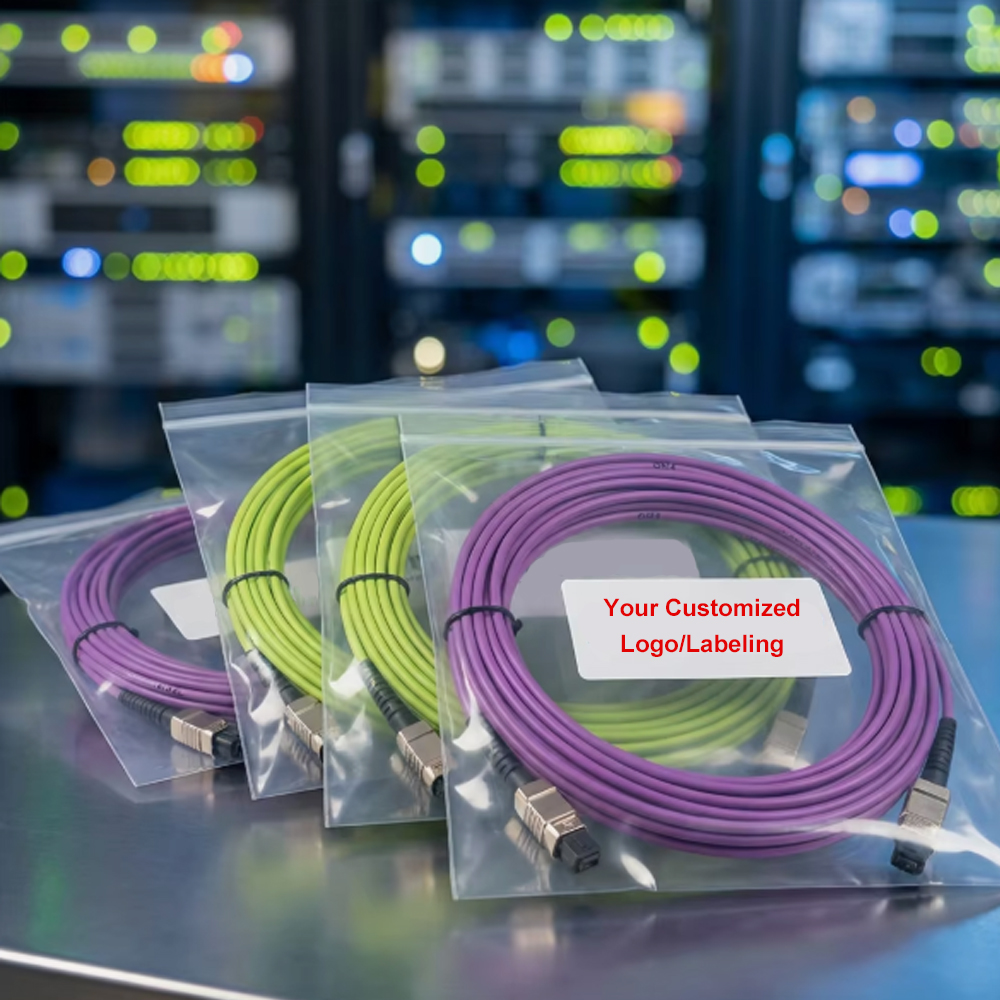

A: Yes, we provide full OEM services including custom printed labels, branded packaging boxes, and specific cable tags tailored to your requirements.

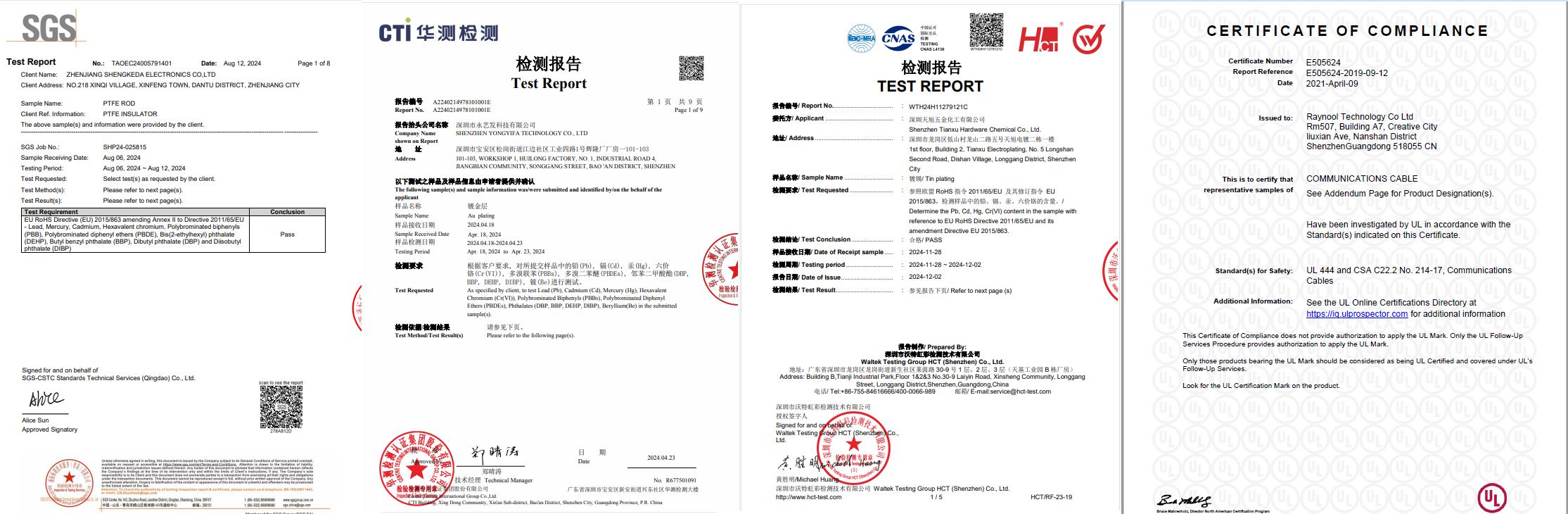

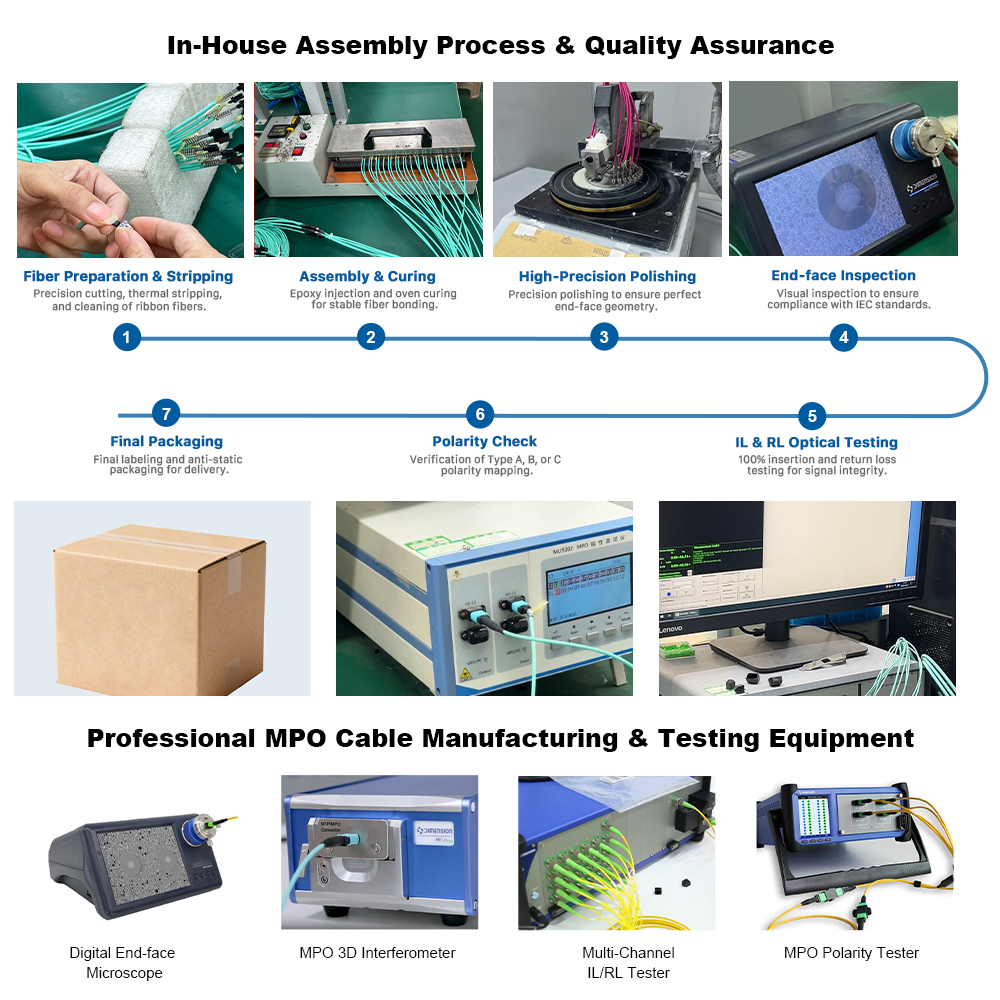

A: Every cable undergoes 100% end-face inspection, insertion loss (IL) testing, return loss (RL) verification, and polarity validation to meet international IEC and TIA standards.
A: We provide LSZH (Low Smoke Zero Halogen) for standard safety, OFNP (Plenum) for high-fire resistance requirements, and Armored jackets for extra mechanical protection.
