Product Description

Outdoor GYTA53 Fiber Optic Cable (12, 24, 48, 72, 144 Cores)
GYTA53 Fiber Optic Cable Overview
◈ Products Description

Armored Loose Tube Double Jacket/Double Armor fiber optic cables are engineered to provide high fiber counts with the flexibility and versatility required for today's most demanding installations. These cables are specifically designed for direct buried environments, featuring fiber counts up to 288 and advanced S-Z strand designs.

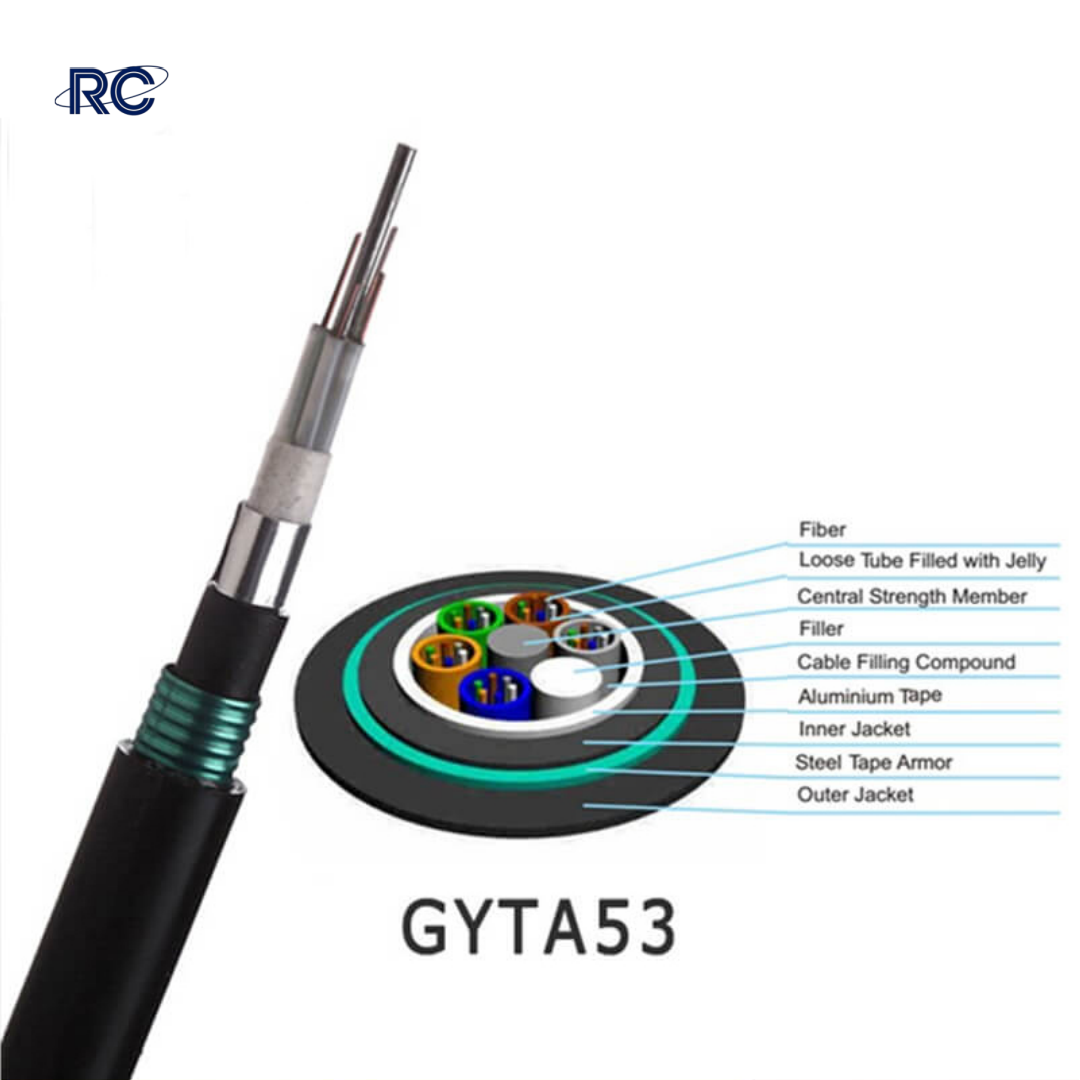

◈ Product Construction
✓ Fiber Count: 2-288 fibers with 250µm colored fiber.
✓ Tube Design: Multi-loose tube gel-filled construction.
✓ Strength Member: Central Steel Wire or Fiber Glass reinforced Yarn (FRP).
✓ Double Armor: Aluminum Tape Armored and Steel Tape Armored layers.
✓ Jacket: Double Jacket - Inner and Outer Black UV and waterproof polyethylene (PE).
◈ Key Features
★ Loose tube gel-filled construction for superior fiber protection against moisture.
★ Double jacket and double armor provide maximum protection from rodent attacks.
★ Exceptional mechanical damage resistance for rugged environments.
★ Full UV and waterproof design for long-term outdoor reliability.
◈ Applications
➤ Direct buried installations.
➤ Underground duct and conduits.
➤ Backbone network infrastructure.
◈ Technical Specifications
Item Sub-Item Parameters
Loose Tube Material PBT
Color All colors display
Filler Color Grey
CSM Material Phosphating steel wire
Inner Armoured Material Aluminum Tape Armored
Inner Jacket Material / Color PE / Black
Outer Armoured Material Steel Tape Armored
Outer Jacket Material / Color PE / Black
Min. Bending Radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Tensile Performance Short term 3000N
Crush Resistance Short term 3000N/100mm
◈ Detailed Images

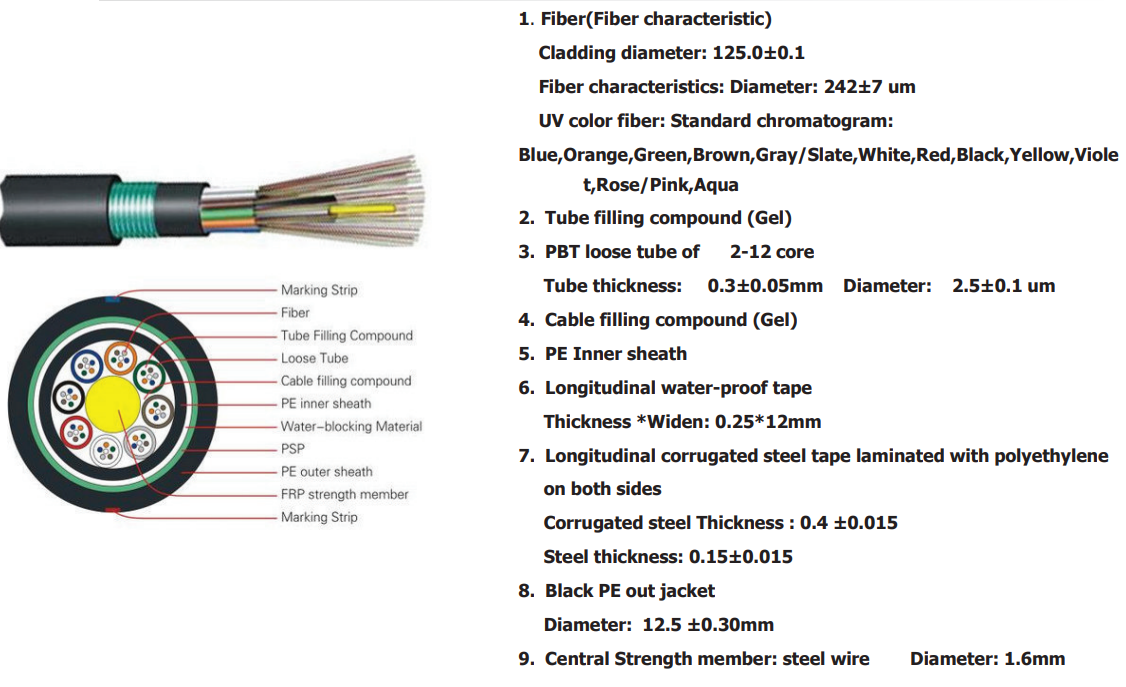

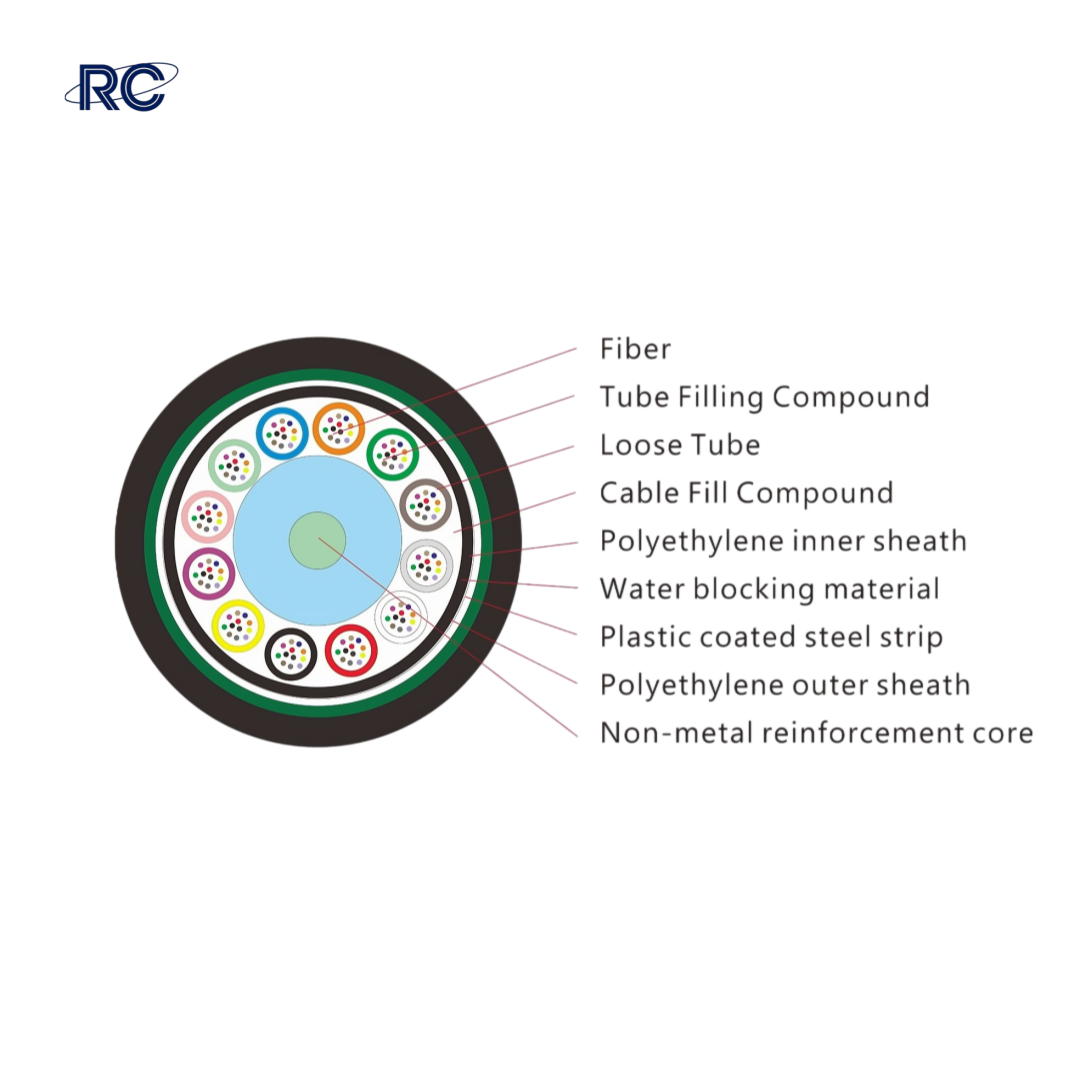

Cable Cross Section Cable Structure Detail
◈ Packaging & Quality

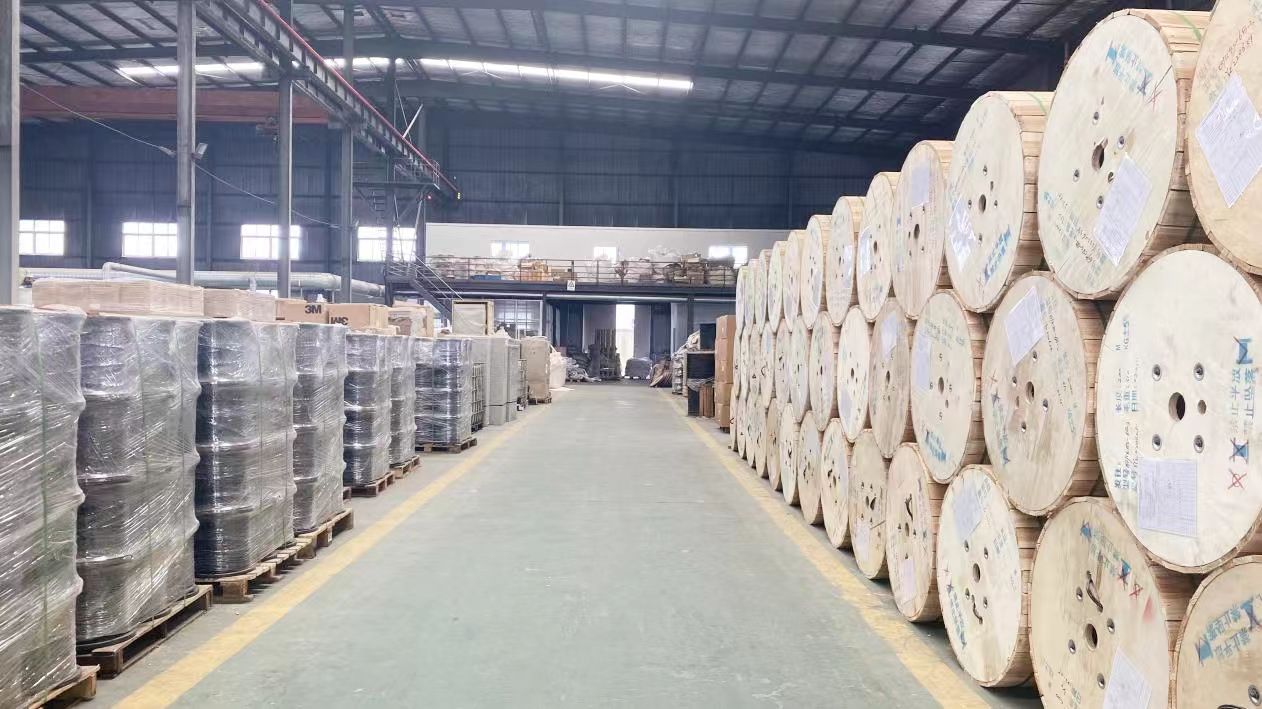

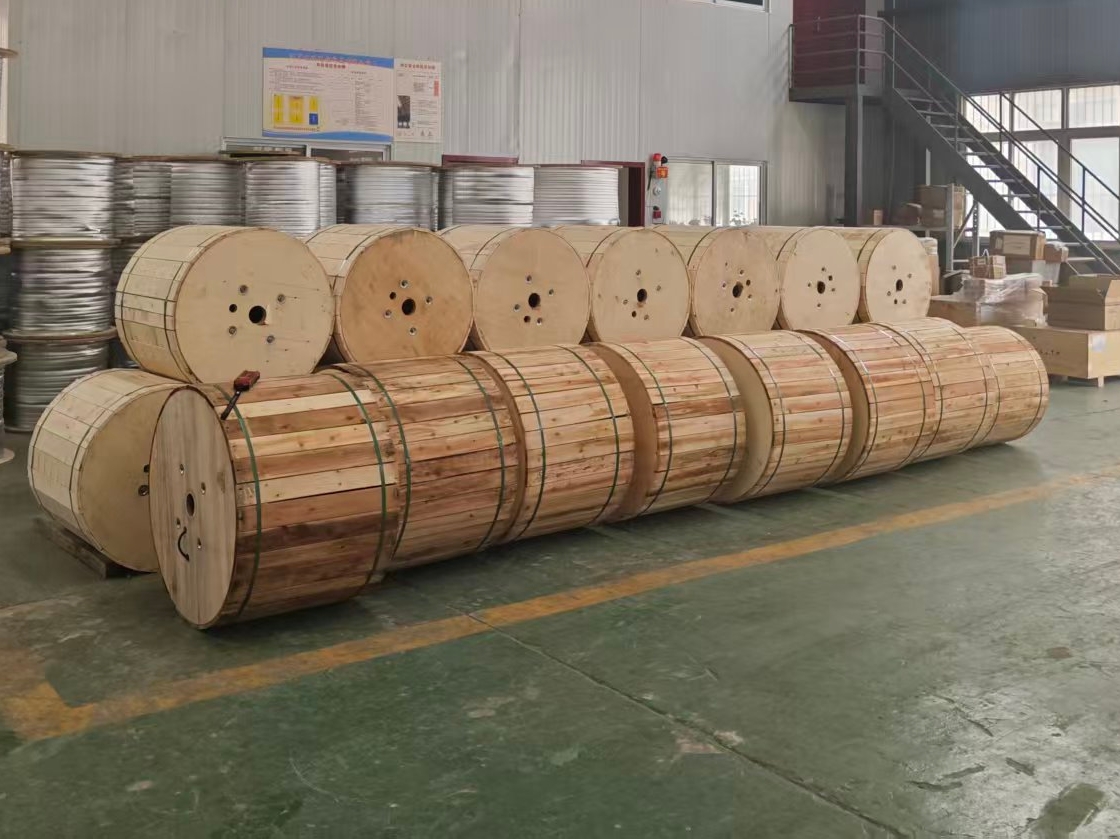

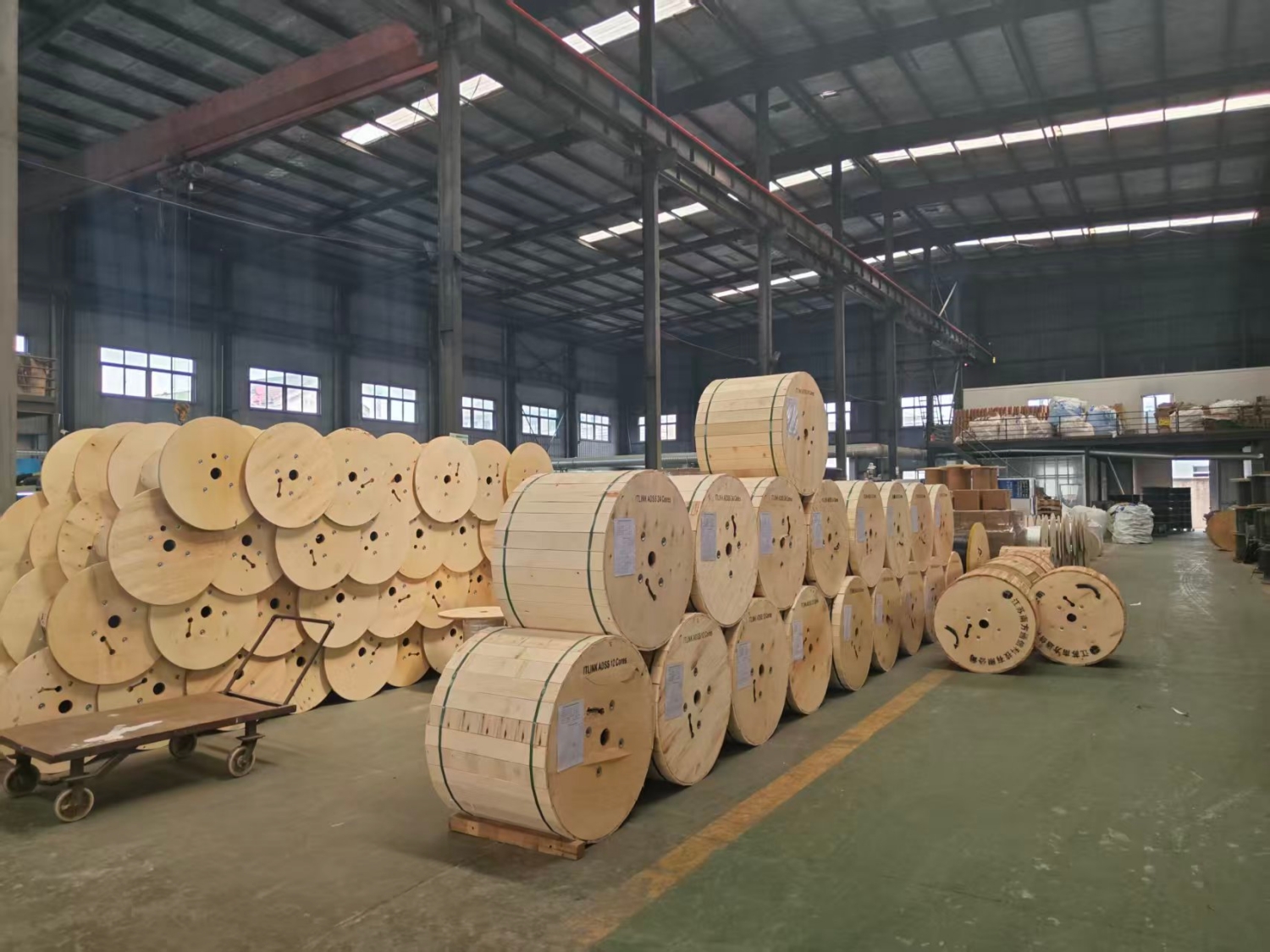

Packaging 1 Packaging 2 Packaging 3 Packaging 4 Certification
◈ Exhibition & Customers
Exhibition 1 Exhibition 2 Exhibition 3 Customer Photo 1 Customer Photo 2 Customer Photo 3
? Frequently Asked Questions
1. What is the primary use of GYTA53 fiber optic cable?
GYTA53 is specifically designed for direct buried and underground duct applications, making it ideal for backbone communications where high mechanical protection is needed.
2. Why does the cable use double armoring?
The combination of Aluminum Tape and Steel Tape (Double Armor) provides exceptional resistance against rodent attacks, moisture, and high-pressure mechanical damage.
3. What fiber counts are available for this cable?
We offer a wide range of fiber counts from 2 cores up to 288 cores, with common outdoor sizes being 12, 24, 48, 72, and 144 cores.
4. Is the cable jacket weather-resistant?
Yes, the outer jacket is made of high-quality Polyethylene (PE) which is both UV-resistant and waterproof, ensuring durability in harsh outdoor environments.
5. What is the bending radius of the GYTA53 cable?
The static bending radius is 10 times the cable diameter, while the dynamic bending radius is 20 times the cable diameter.
6. Can the CSM be customized?
Yes, the Central Strength Member (CSM) can be made from either Phosphating Steel Wire or Fiber Glass Reinforced Yarn (FRP) depending on your installation requirements.
