8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
1 / 5
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable
8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable

8-48 Core Multimode Fiber Optic Cable ADSS Optical Fiber Cable

Customization: Available
Type: Fiber Optic Cable
Wiring Devices: No
Send Inquiry

Product Description

Basic Information
Model NO.
ADSS
Certification
CE, ISO, RoHS, GS
Condition
New
Return Loss
50dB
Insertion Loss
0.3dB
Cores
4-144 Cores
Fiber Mode
ADSS
Operation Temp
-40~+80c
Plugging Times
>1000 Times
Diameter
0.9mm / 2.0mm / 3.0mm
Fiber Optic Cable Header ADSS Optical Cable
ADSS Cable Features
  • Can be installed without shutting off the power.
  • Resistant to high and low temperature cycles, resulting in anti-aging and a longer lifespan.
  • Lightweight and small diameter reduce the load caused by ice and wind, as well as the load on towers.
  • Large span lengths with the longest span exceeding 1000m.
  • Excellent performance in tensile strength and temperature stability.
  • Large number of fiber cores, can be laid with the power line to save resources.
  • Uses high-tensile-strength aramid material to withstand tension and prevent punctures.
  • Designed for a long service lifespan of over 30 years.
Optical Characteristics
Type G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm - - ≤0.30dB/km ≤0.30dB/km
Attenuation @1300nm - - ≤1.0dB/km ≤1.0dB/km
Attenuation @1310nm ≤0.36dB/km ≤0.40dB/km - -
Attenuation @1550nm ≤0.22dB/km ≤0.23dB/km - -
Bandwidth @850nm - - ≥500MHz·km ≥200MHz·km
Bandwidth @1300nm - - ≥1000MHz·km ≥600MHz·km

Available Specifications

PE sheath: Common polyethylene sheath for power lines below 110KV.

AT jacket: Anti-electric mark jacket for power lines above 100KV.

Core Counts: 4 / 8 / 12 / 24 / 48 / 96 / 144

Span Range: 50m to 1000m

Cable Details 1 Cable Details 2

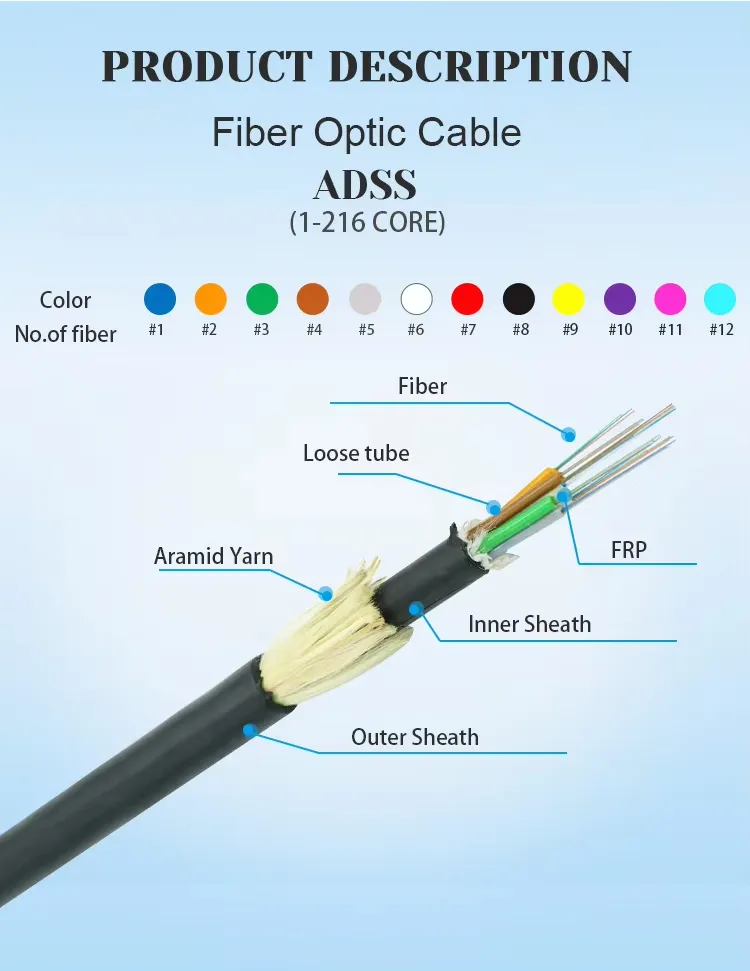

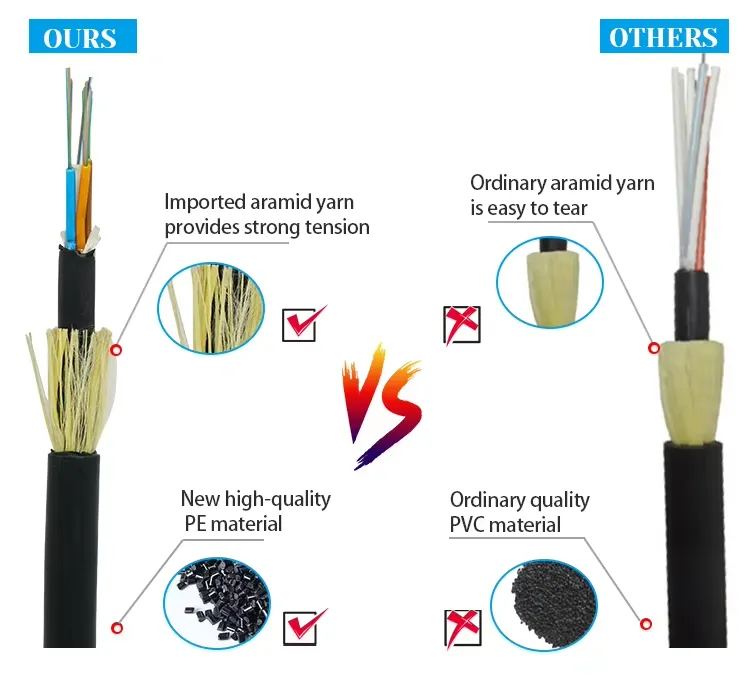

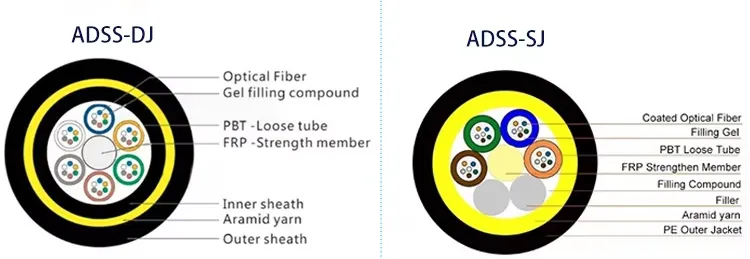

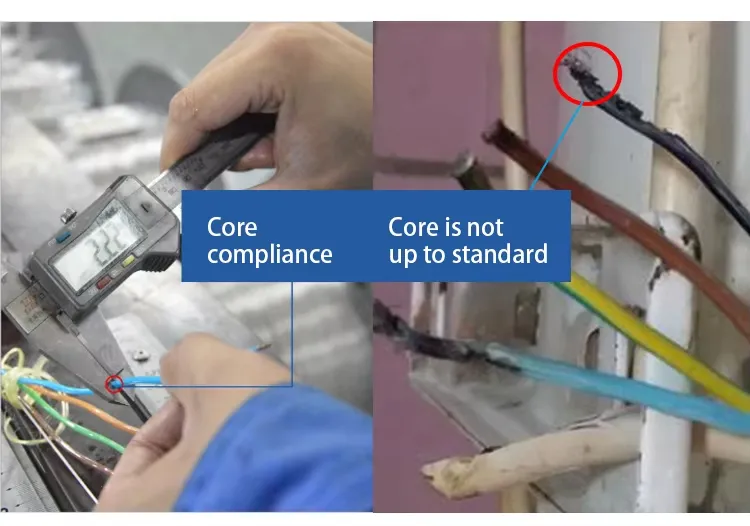

Cable Cross Section Fiber Cores Testing

Custom ADSS Fiber Optic Cable

We provide tailored solutions for specific requirements:

  • • 1 - 288 Core Options
  • • OS1, OS2, OM2, OM3, OM4
  • • G.652, G.657 Standards
  • • PE, PVC, LSZH Outer Jackets
  • • Custom Span & Tensile Strength

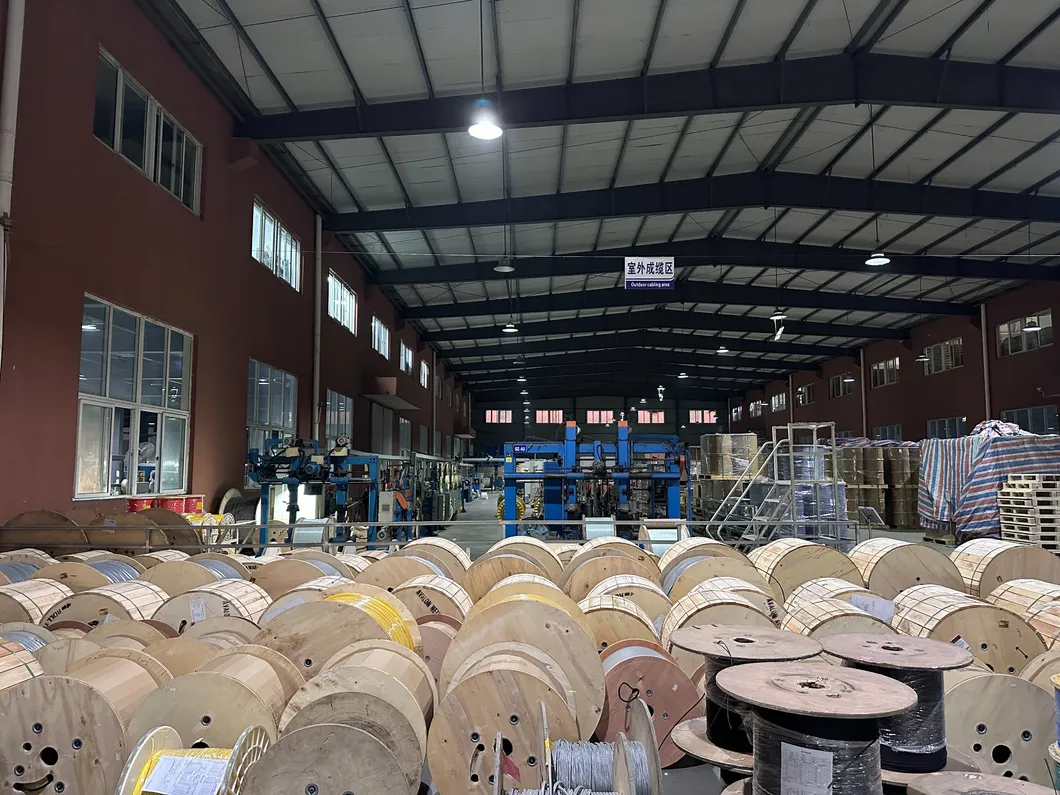

Custom Fiber

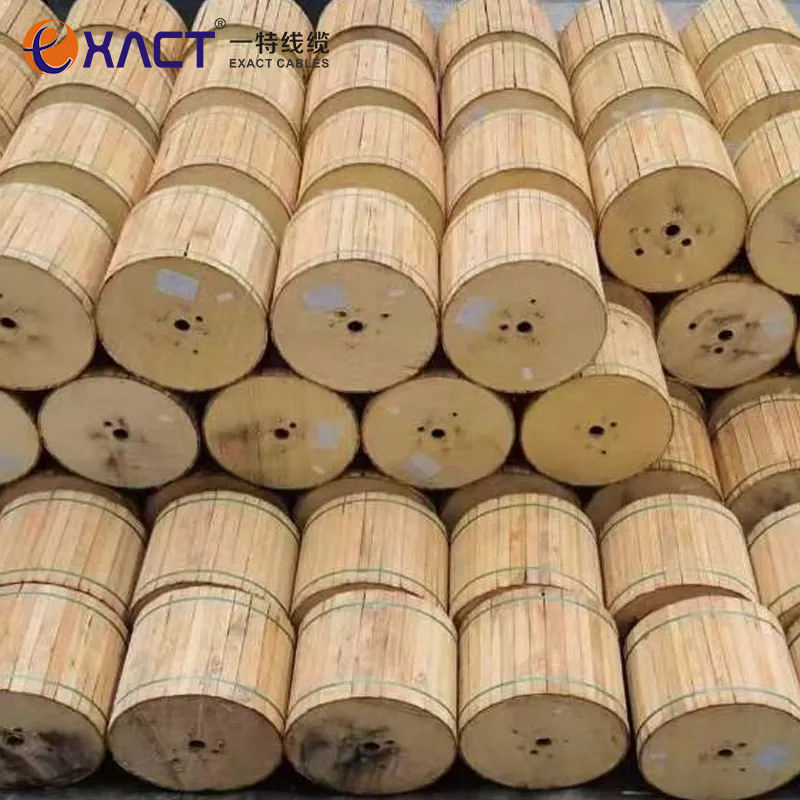

Production Process Cable Drum Quality Control Storage
Frequently Asked Questions
What types of cables are available?
We specialize in Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, and various telecommunication cables.
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ is 10KM per item. Free samples may be available upon request if in stock.
How long is the typical delivery time?
Normally, delivery takes approximately 15 days after the deposit is received, depending on the order quantity.
What are the accepted payment terms?
We accept T/T, L/C, and Western Union. Other payment methods can be discussed through negotiation.
What trade terms do you support?
We support various trade terms including FOB, CFR, CIF, and EXW.
Can ADSS cables be customized?
Yes, we offer custom cores (1-288), different fiber modes (Single mode/Multimode), and various jacket materials like PE, PVC, or LSZH.
