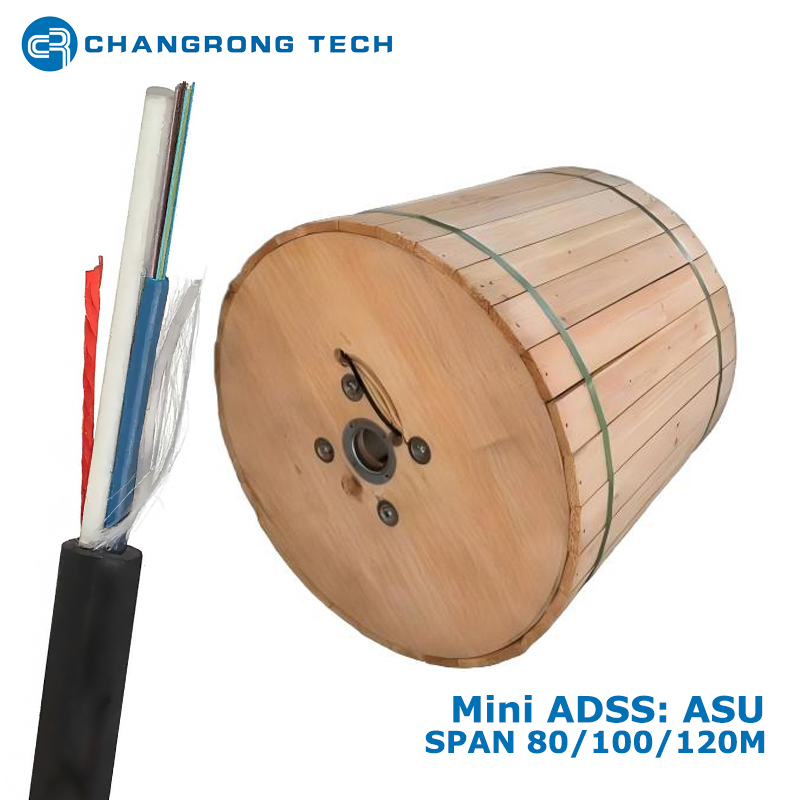

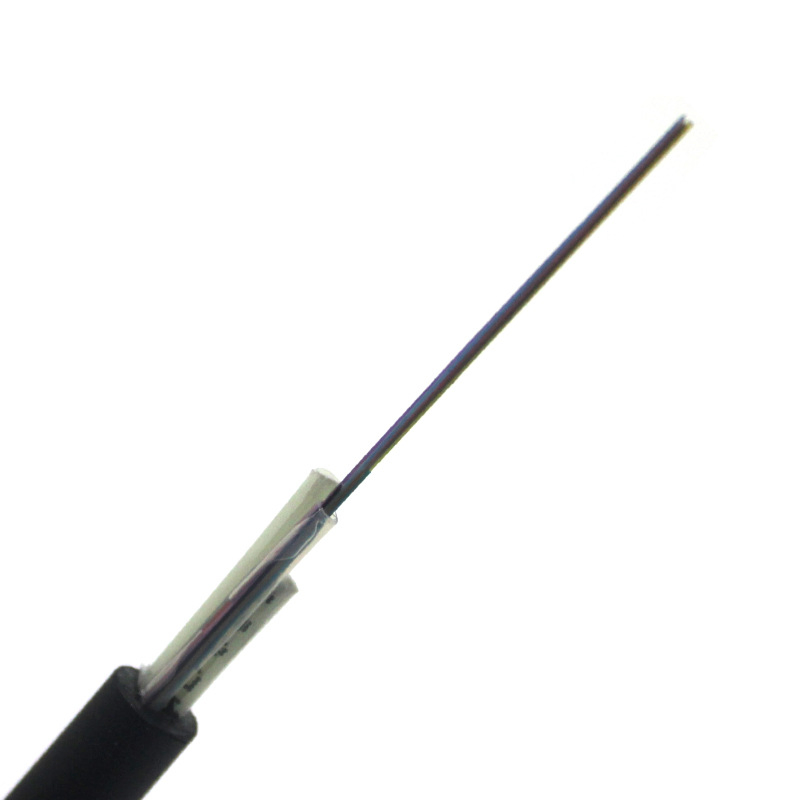

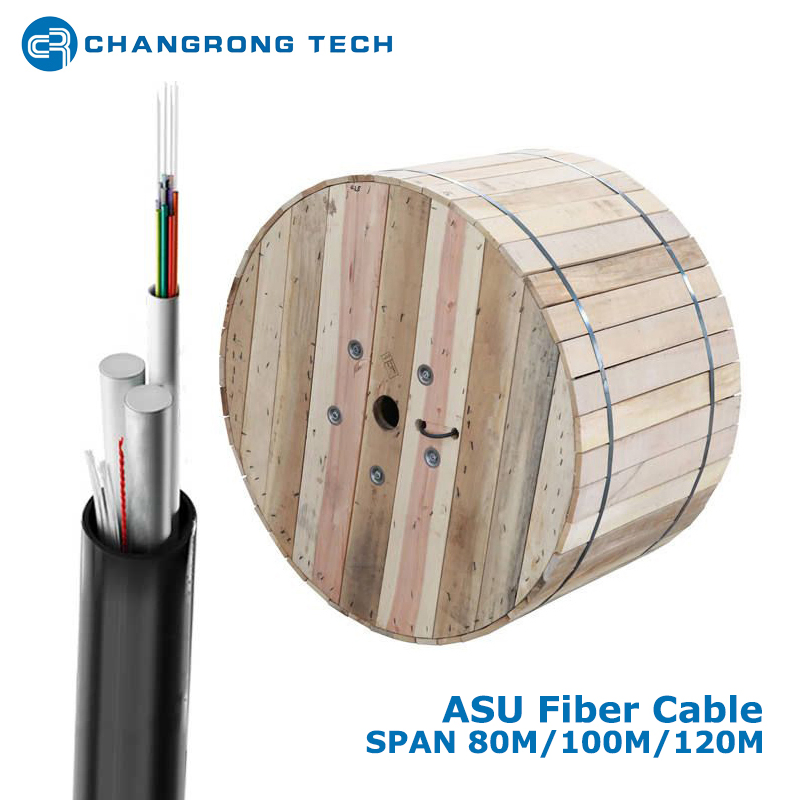

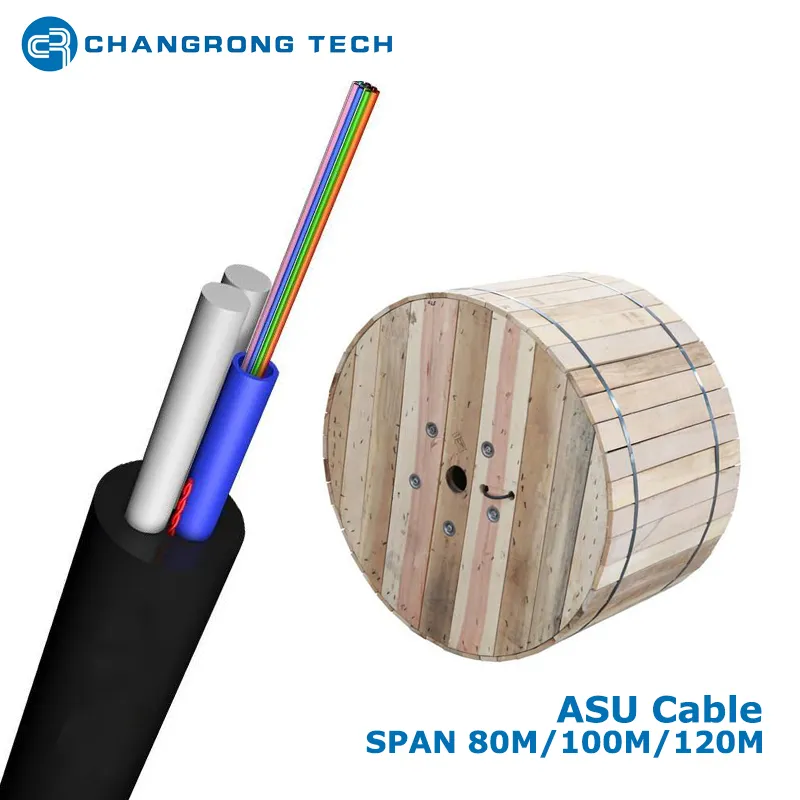

ASU (Aerial Self-supported Uni-tube) is designed for 2-24 core spans of 80m, 100m, and 120m.

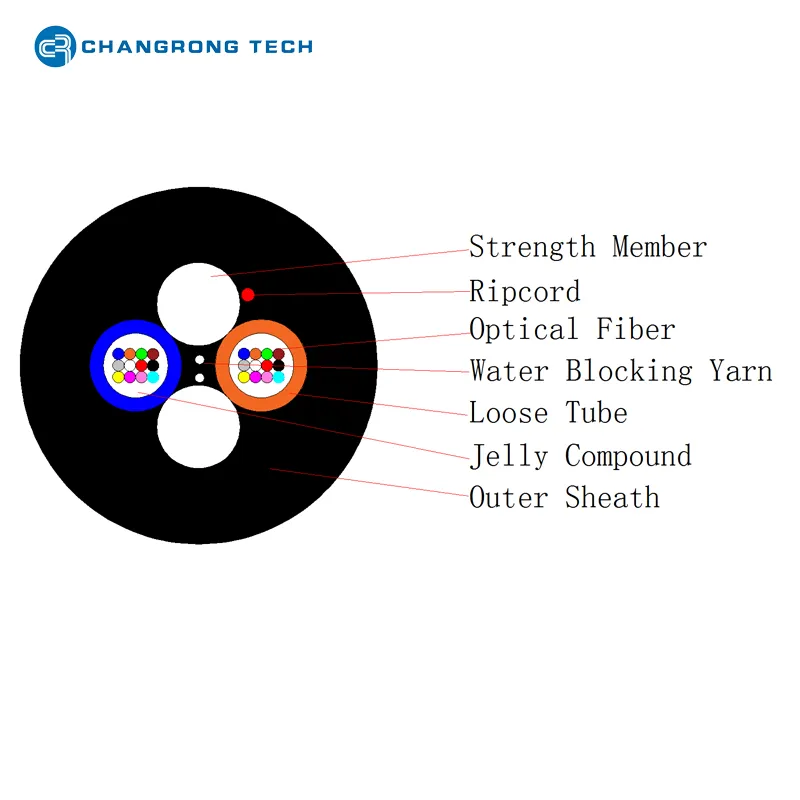

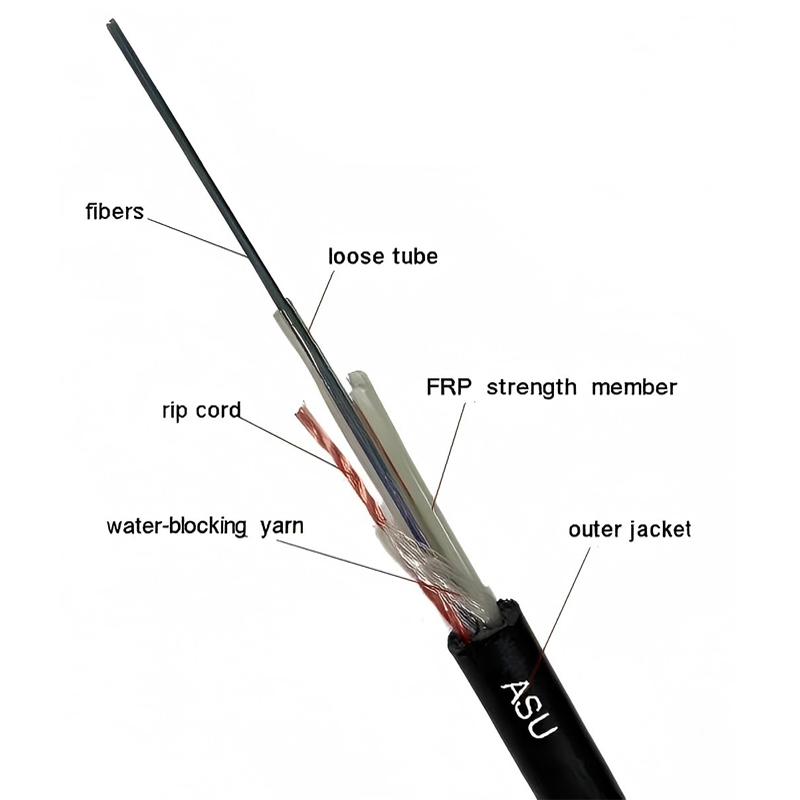

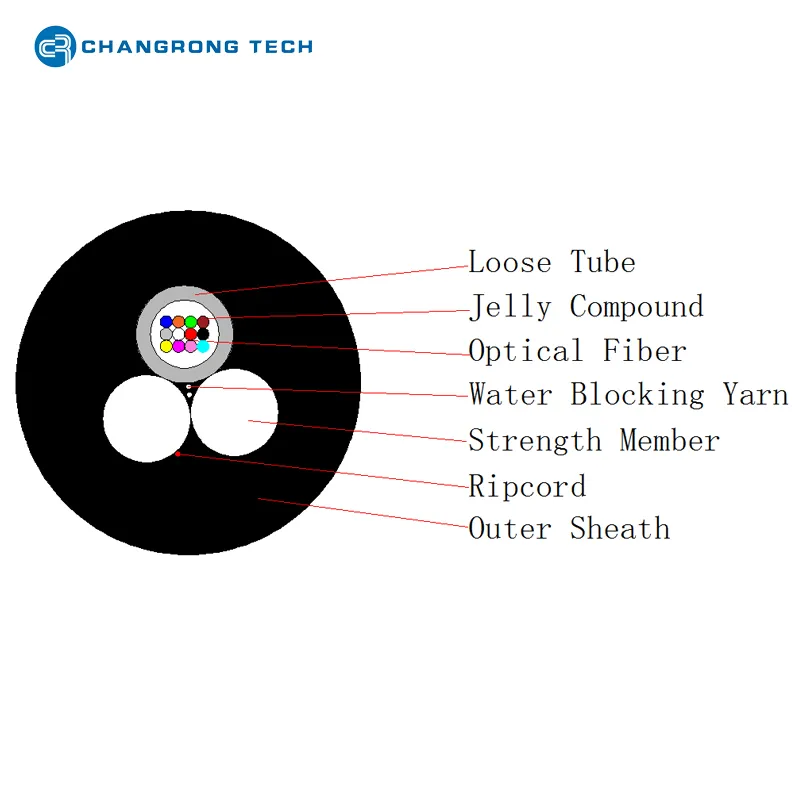

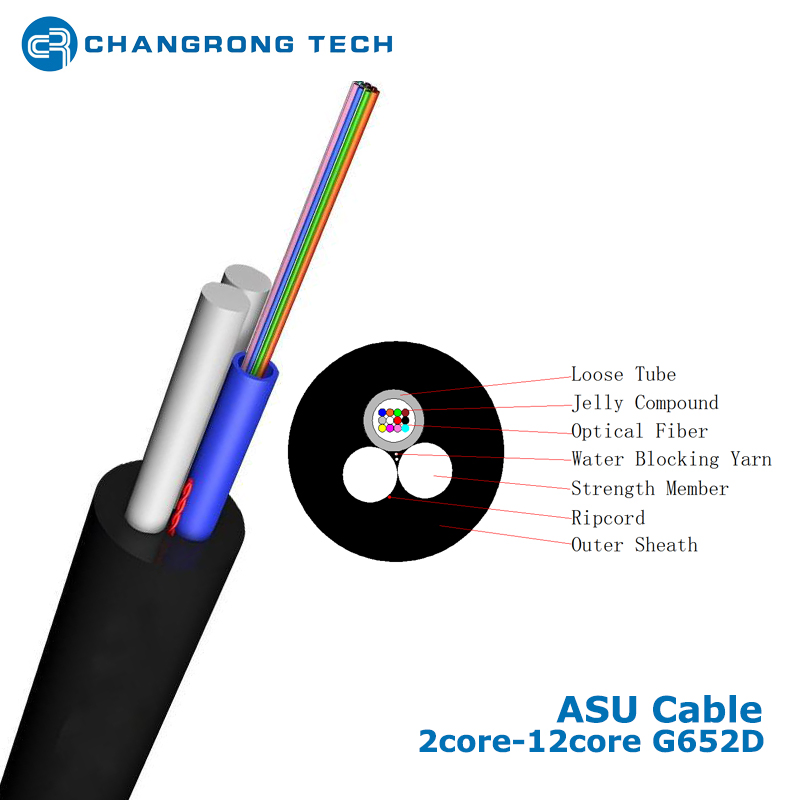

Cable Construction:
| Model | ASU (Mini ADSS) | |||||
|---|---|---|---|---|---|---|
| Fiber Counts | 1-12 | 24 | ||||
| Span | 80 m | 100 m | 120 m | 80 m | 100 m | 120 m |
| Diameter (mm) | 6.6 | 7.2 | 7.6 | 7.0 | 7.7 | 8.2 |
| Weight (Kg/km) | 45 | 50 | 62 | 49 | 57 | 65 |
| Tensile (N) | 1500N | 1800N | 2000N | 1500N | 1800N | 2000N |
| Crush Resistance | 2000N/100mm | |||||
| Temperature (ºC) | -40ºC ~ +70ºC | |||||
ISO 9001, ISO14001, ISO45001 Certified Factory
Laboratory passed CNAS Certification | Products certified by TLC

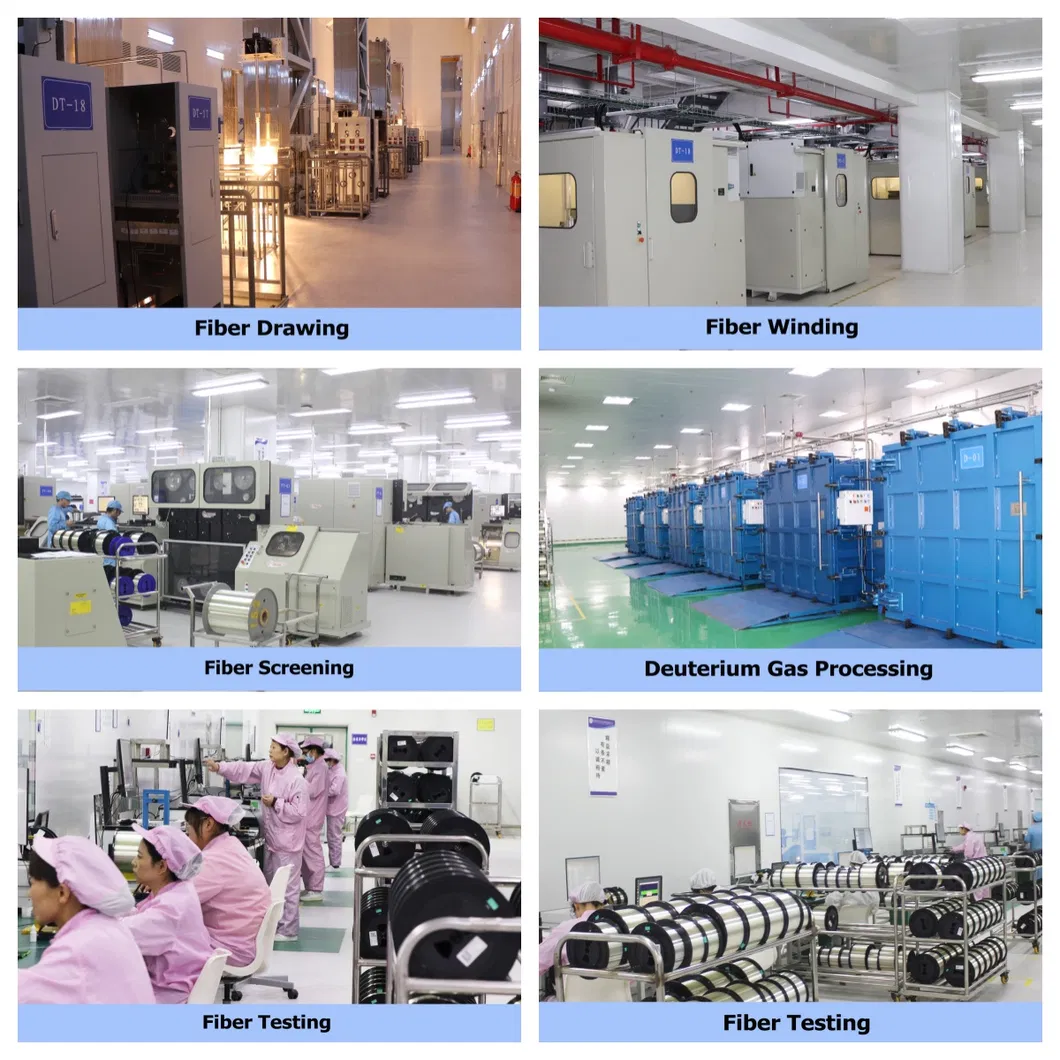

Fiber Workshop

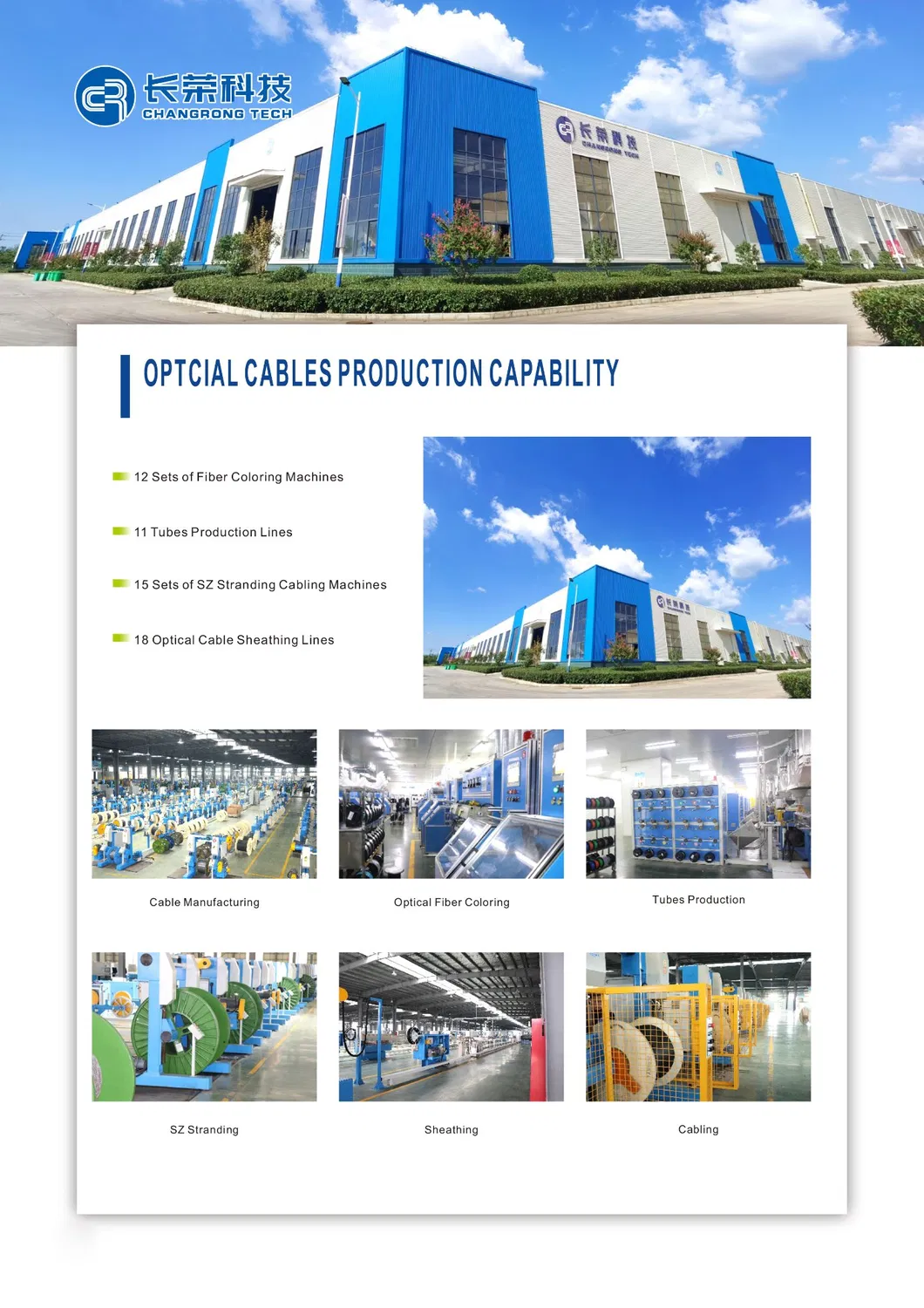

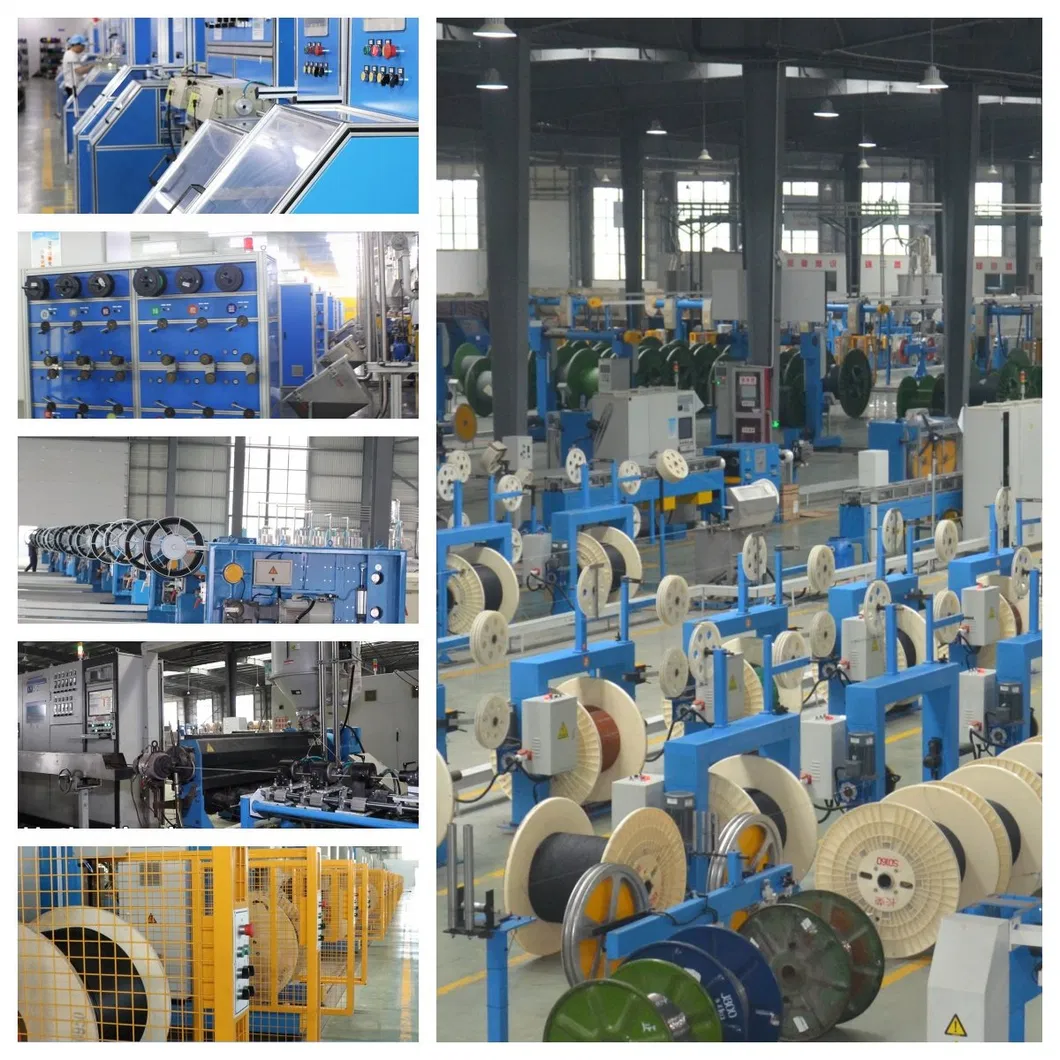

Cable Workshop

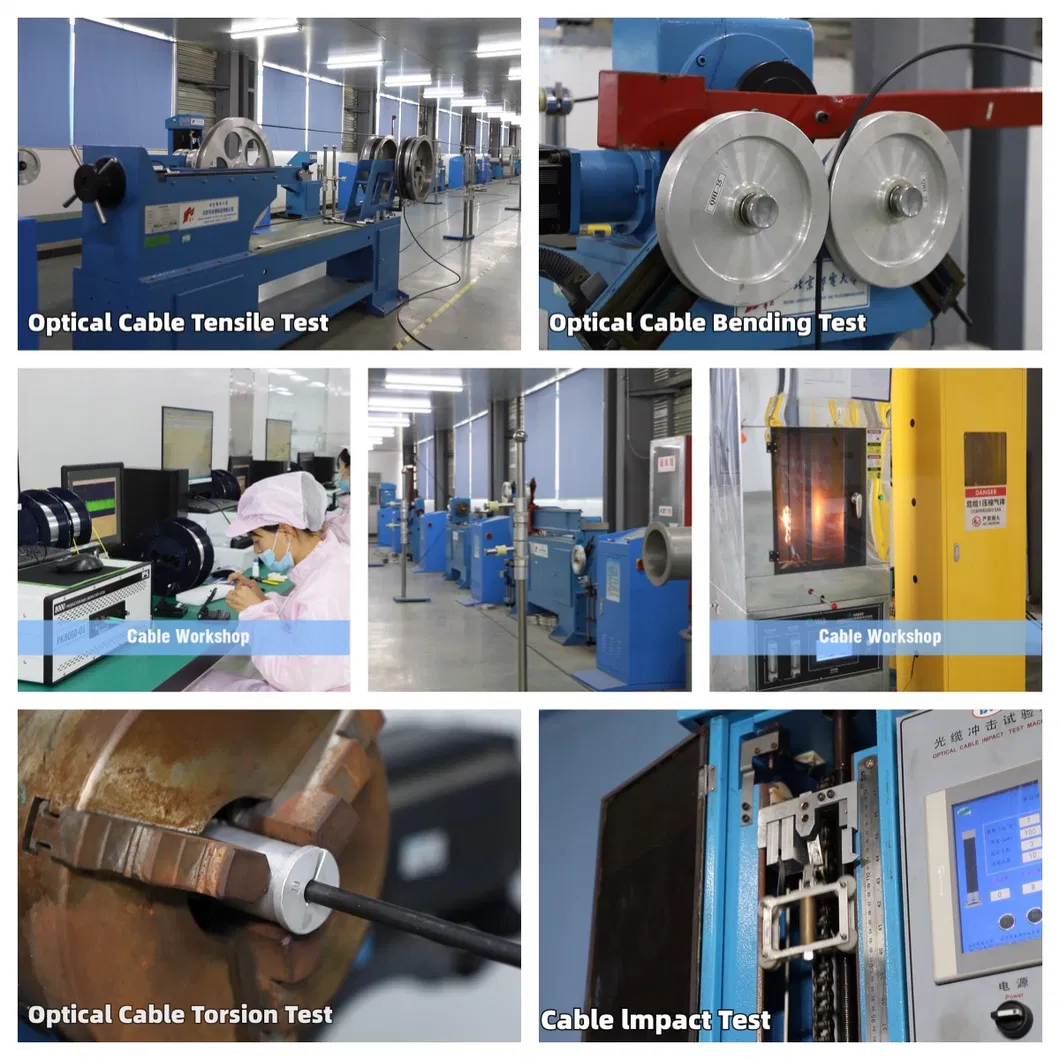

Testing Equipment

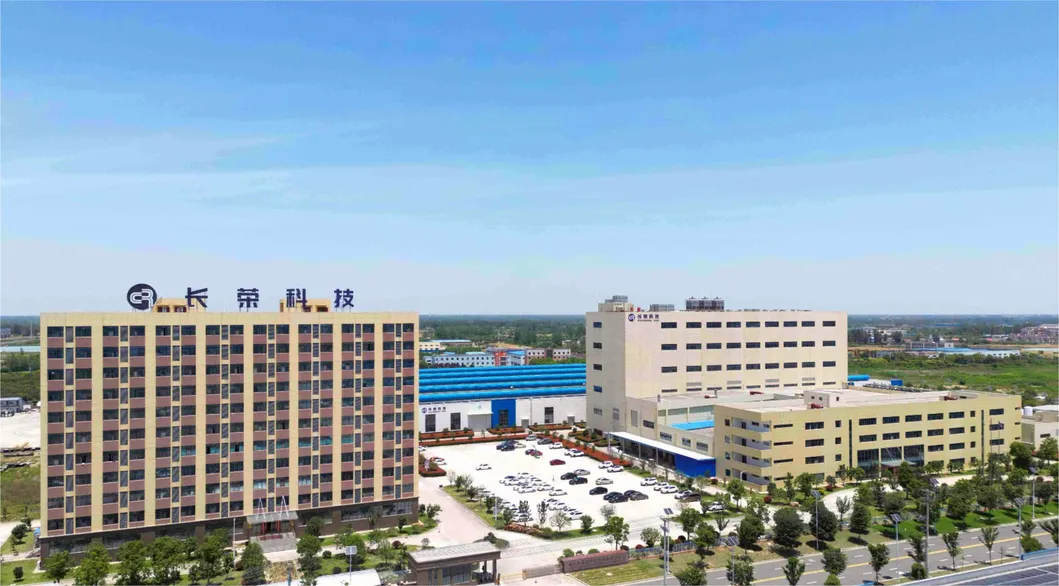

A professional manufacturer established in 2017, covering an area of 230,000 m². We feature 18 cutting-edge fiber drawing lines for single mode fiber production with an annual output of 15 million core kilometers.

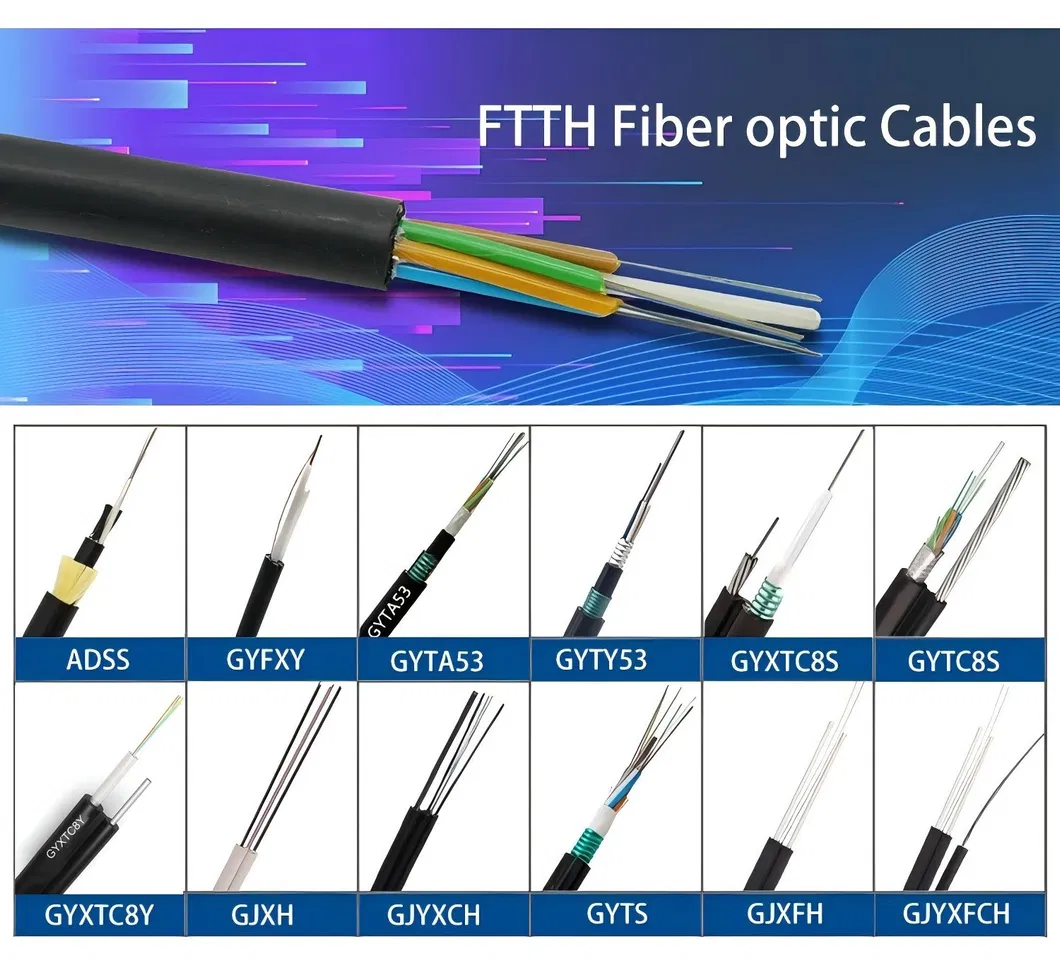

Our product range includes outdoor optical cables like ADSS, ASU, Drop, FIG8, Direct Buried, and Air-blown cables. Our products are widely used in global markets including Latin America, Africa, and Southeast Asia.
