ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
1 / 5
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable
ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable

ADSS Outdoor Optical Aerial Cable Span 100 120 150 Meter Singlemode G.652D 12 24 48 72 144 Cores Fiber Optic Cable

Send Inquiry

Product Description

Products Description
Characteristics:
1. Small cable diameter (adapt for bad climate), light weight, 100m span, low attached load on tower.
2. Non-metal structure, good insulation, anti-thunder.
3. Fine production technology, even force for aramid yarn, with superior stress flexibility.

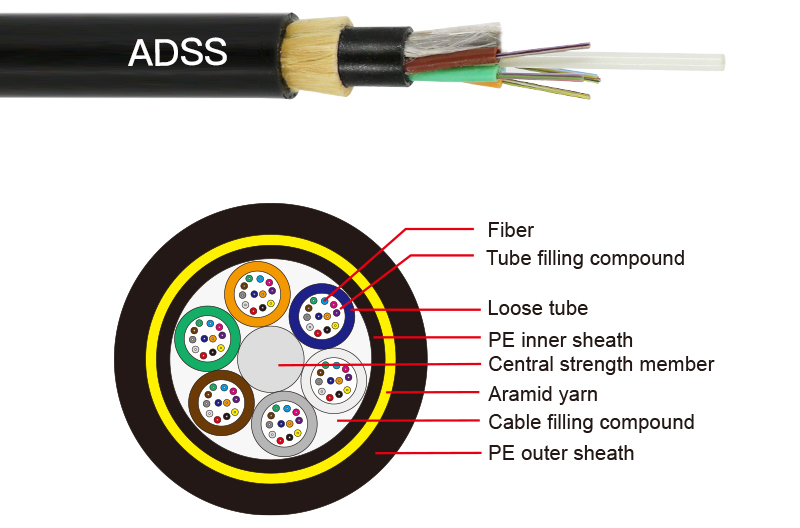

Product Characteristics
Product Parameters
Item Contents Value
Loose Tube Fiber Count 24 48 72 96 144
No. of tubes*fiber per tube 4*6 4*12 6*12 8*12 12*12
Structure Outer Diameter(mm) 2.1 2.5
Optical Characteristics

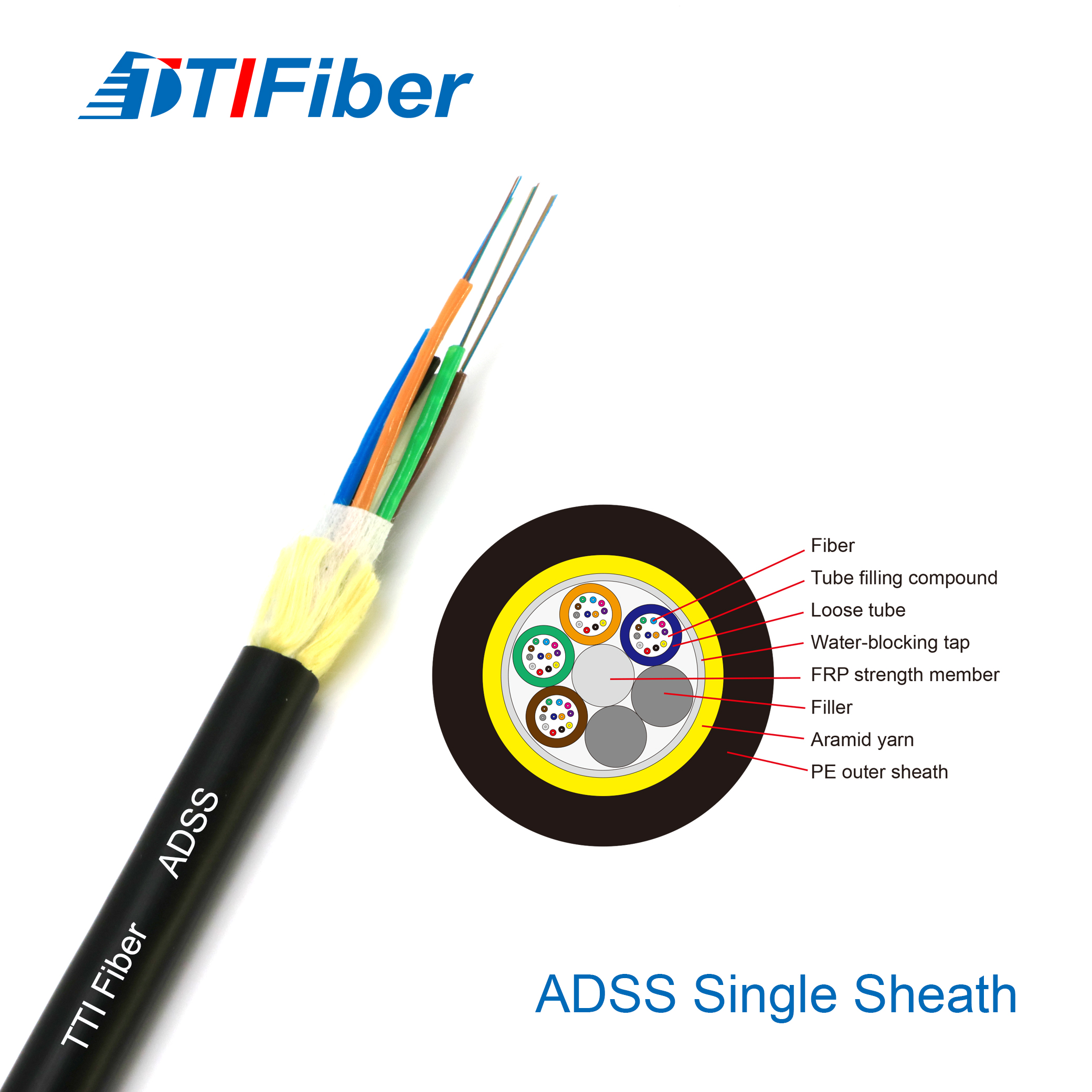

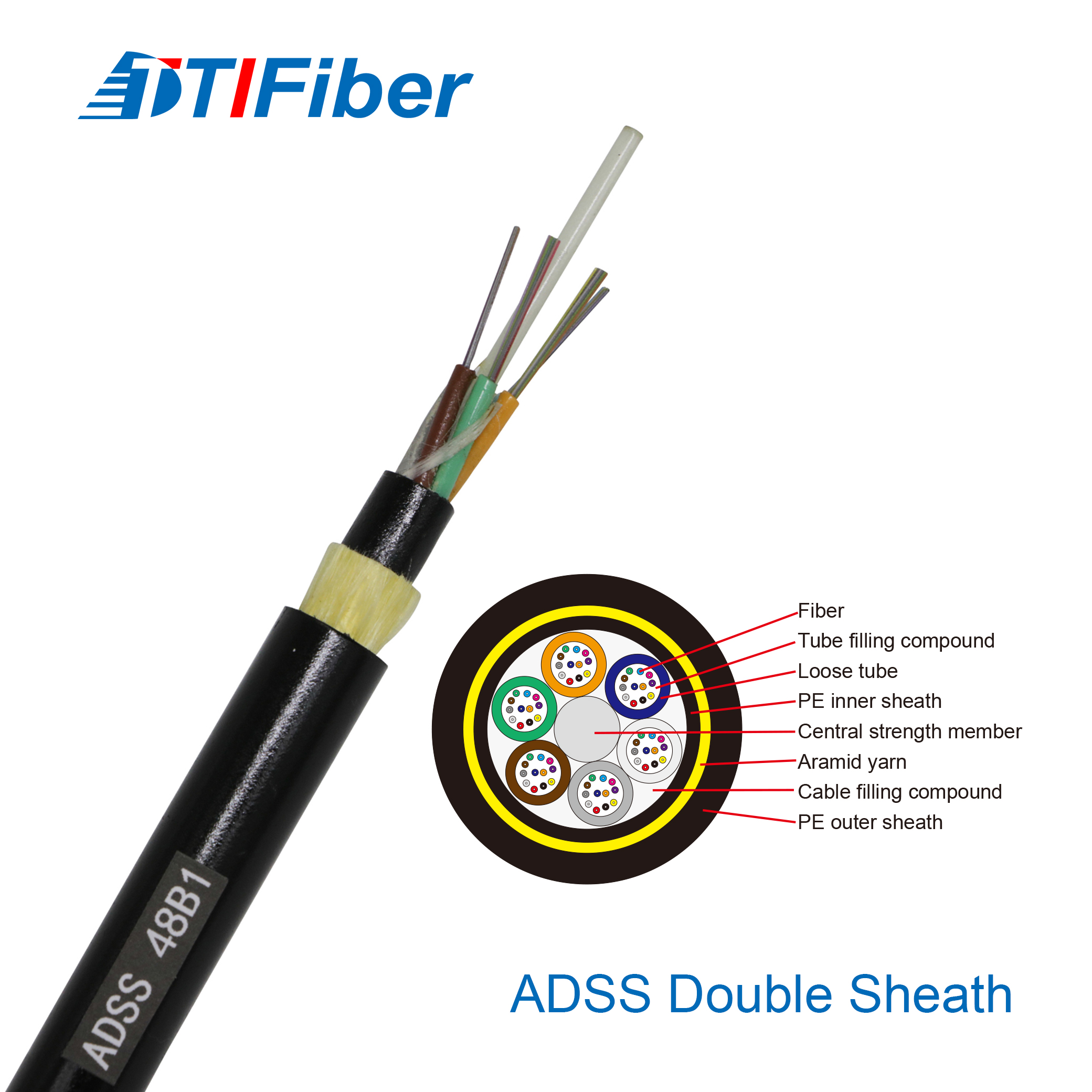

Optical Test 1 Optical Test 2
Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm - - ≤3.0dB/km ≤3.2dB/km
@1300nm - - ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km - -
@1550nm ≤0.22dB/km ≤0.23dB/km - -
Product Diagram & Application

Application:

  • Erect on the same pole with power line in new and old power line.
  • Areas of strong electric field, anti-thunder, etc.
  • Long span communication system.

International Standard:

IEC 60794-1; TIA/EIA604-5; ITU-T G.652D

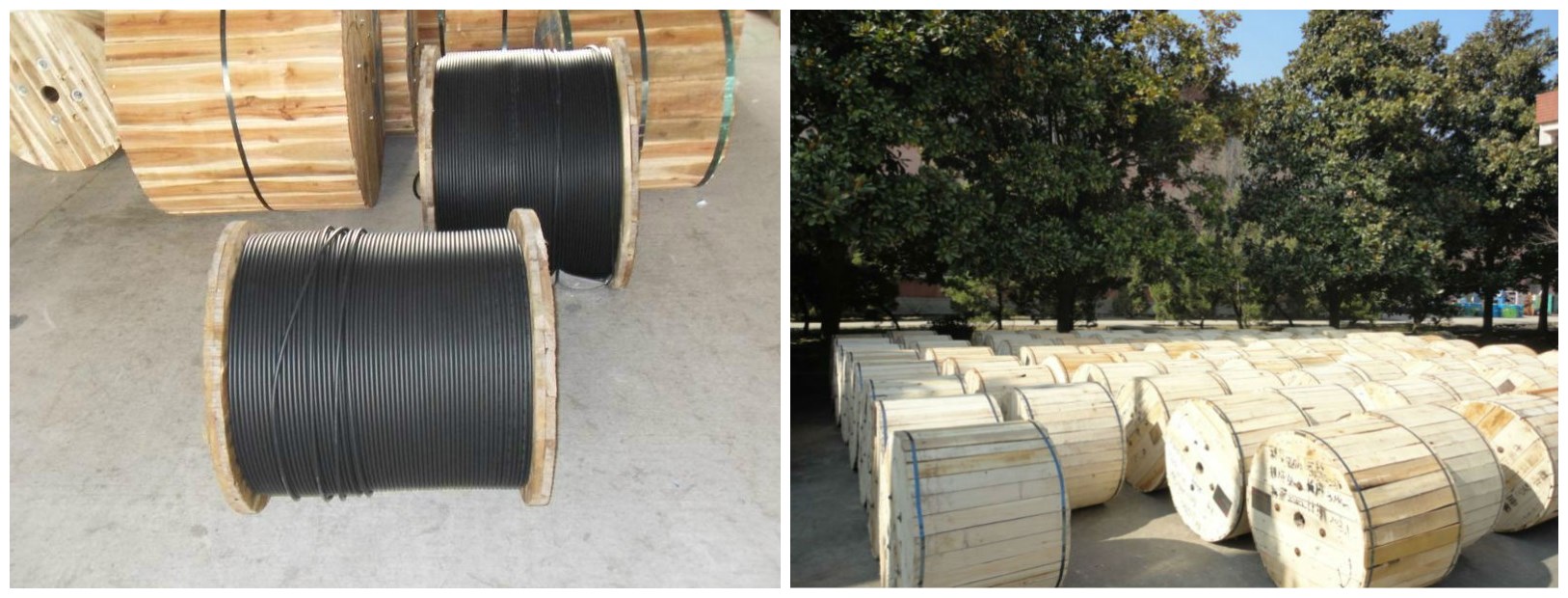

Application Diagram

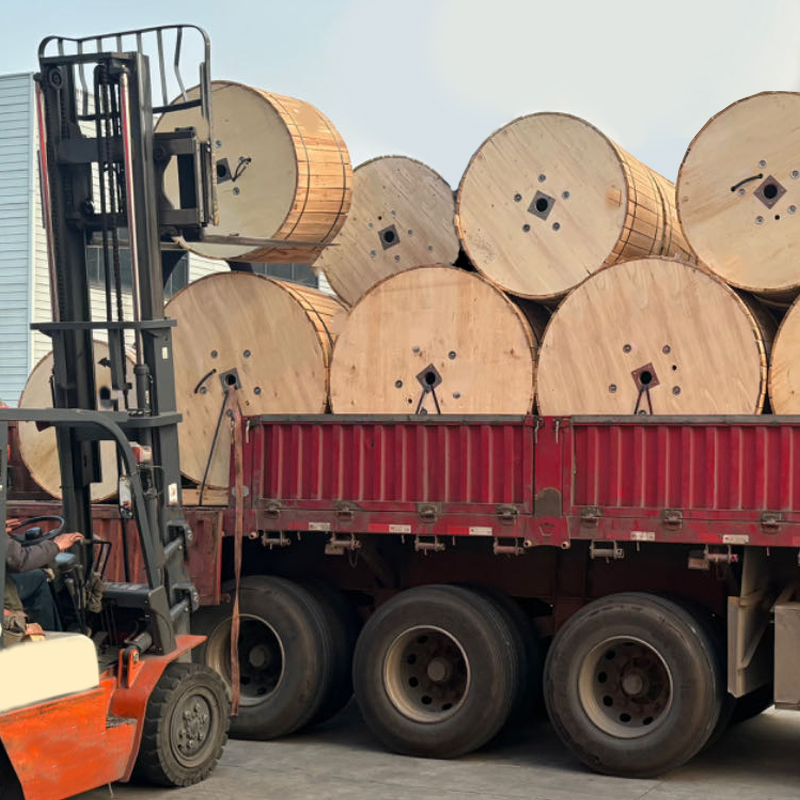

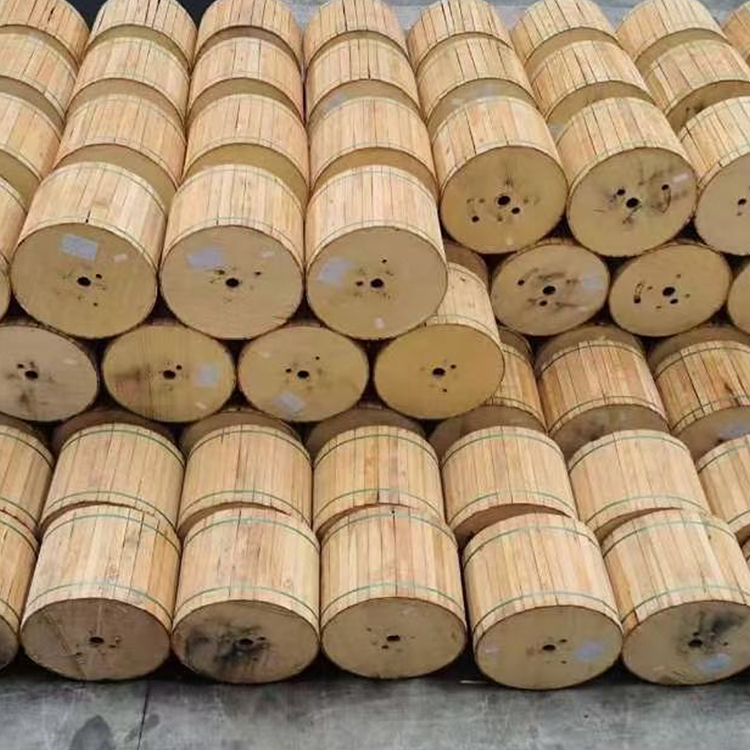

Production Image 1 Production Image 2
Key Features
  • Continuous erection capability with a life expectancy over 30 years.
  • Use of AT sheath for improved tracking resistance.
  • Light weight and small cable diameter to reduce influence from ice and wind.
  • Excellent tensile properties and temperature characteristics.
Manufacturing Excellence

Founded in 2013, our professional manufacturing facility specializes in fiber optic products. The factory covers an area of 12,000 square meters and has obtained ISO 9001, ISO 14001, REACH, RoHS, CE, CPR, and other international certifications.

We offer a wide range of products, including fiber optic cables, patch cords, splitters, and FTTx solutions, providing professional cabling and one-stop OEM & ODM services.

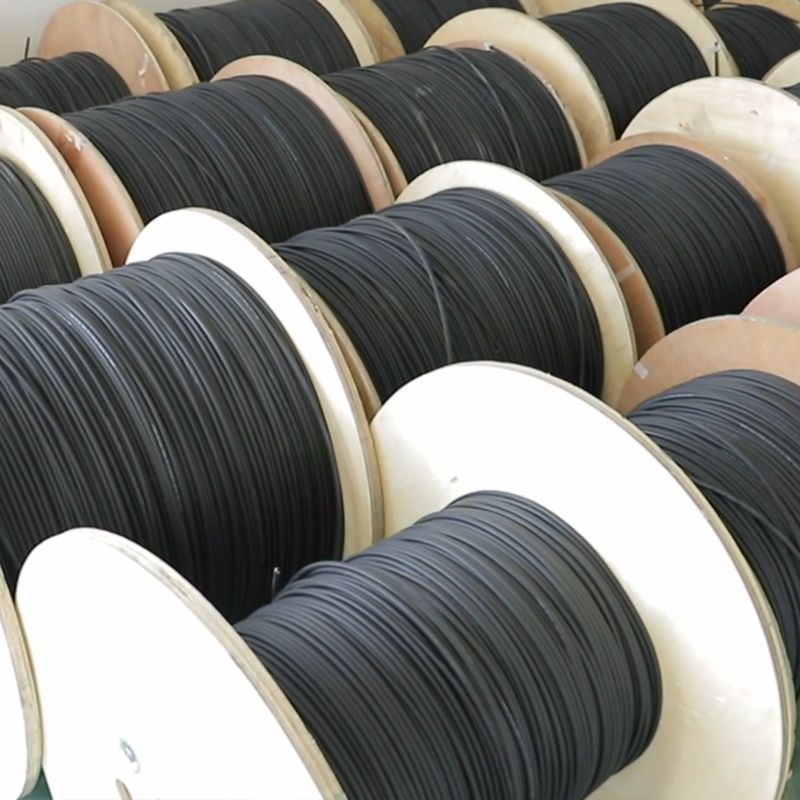

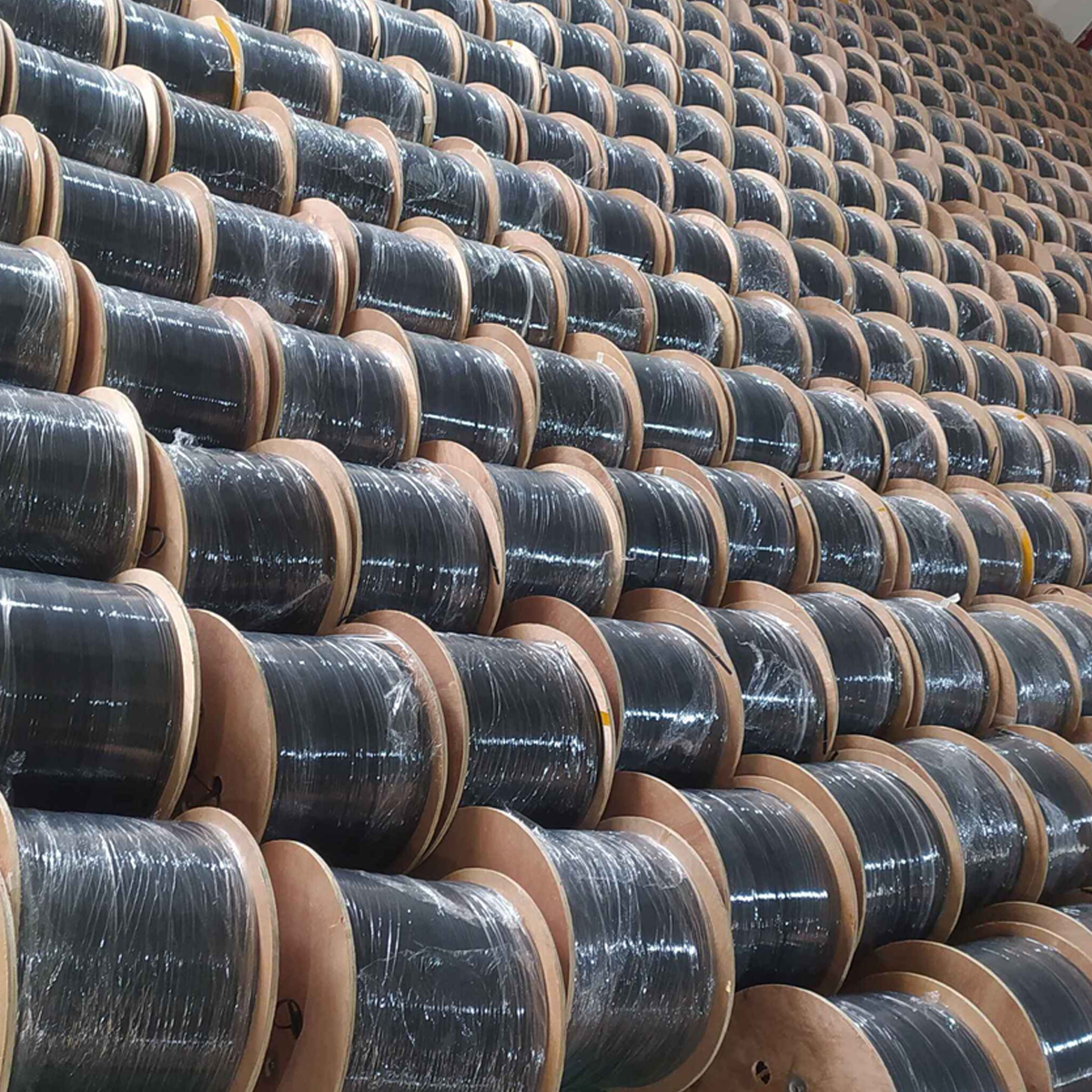

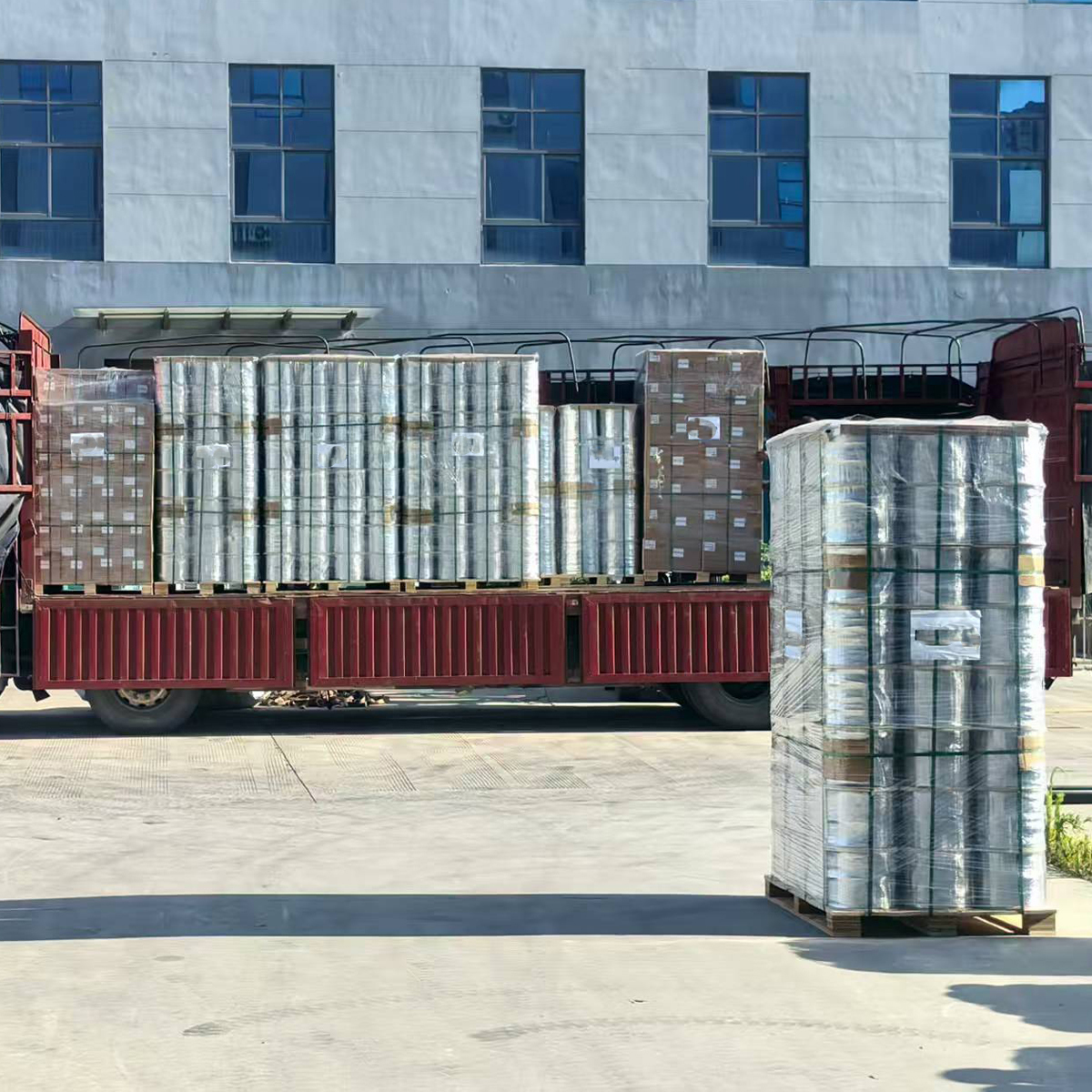

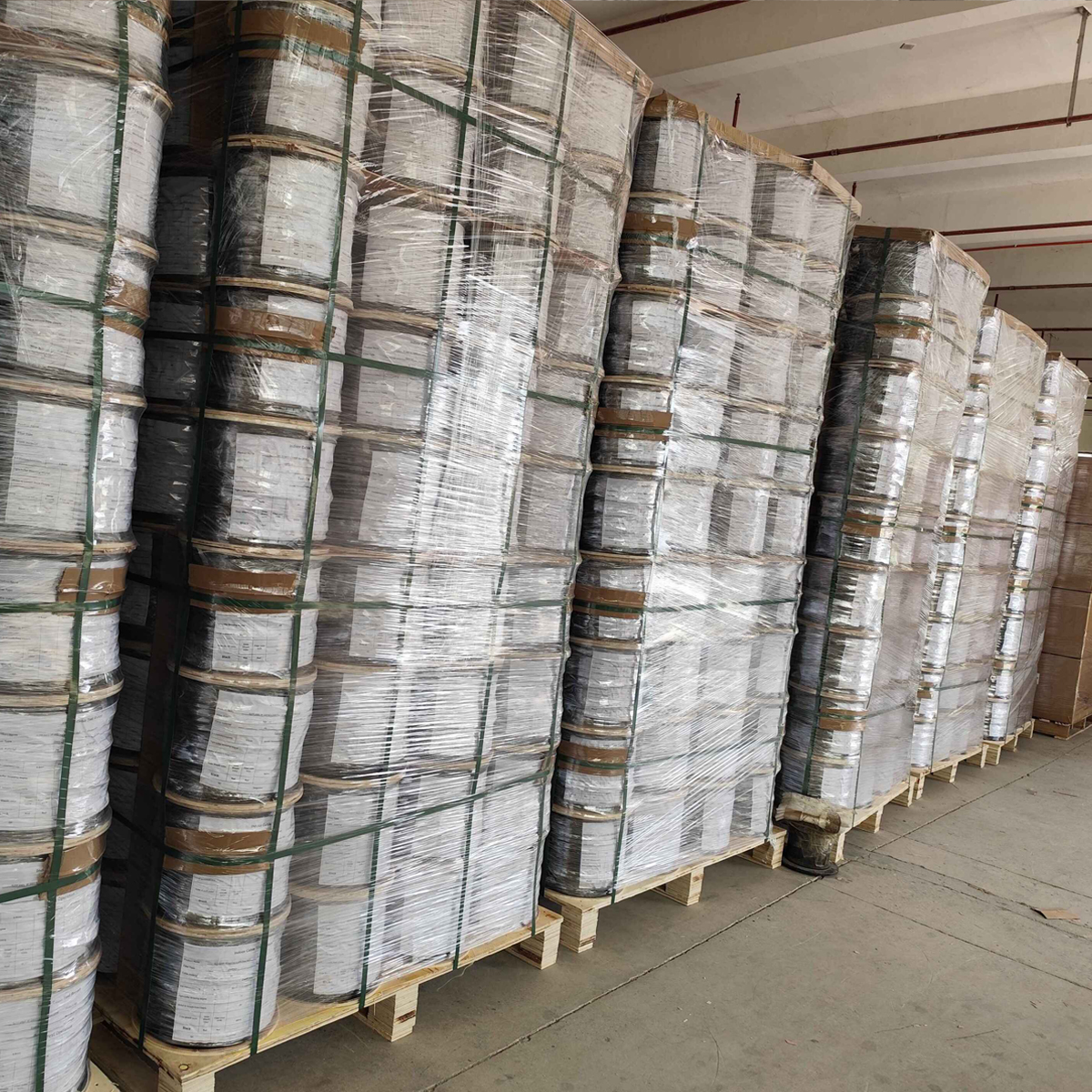

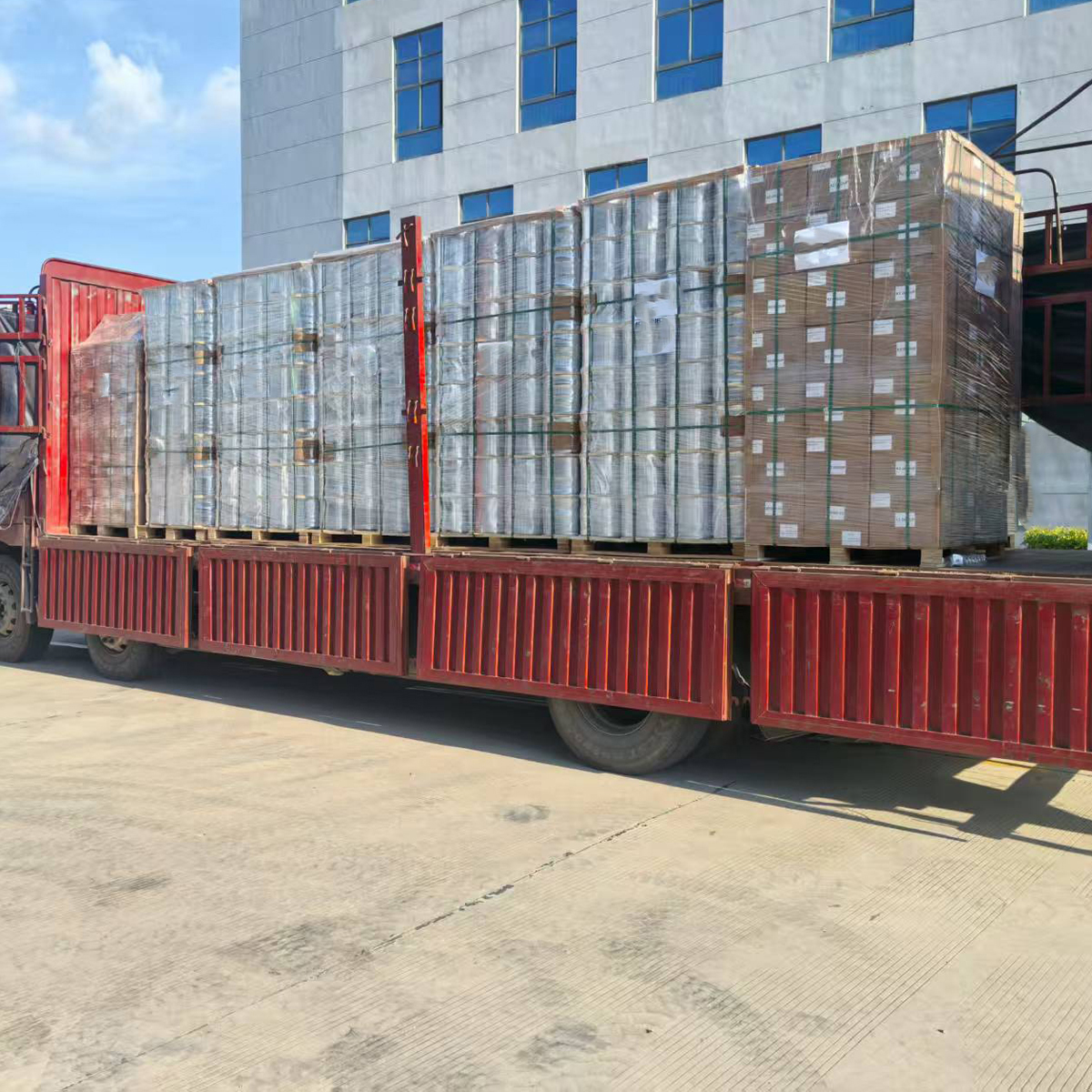

Factory 1 Factory 2 Factory 3 Workshop 1 Workshop 2 Workshop 3

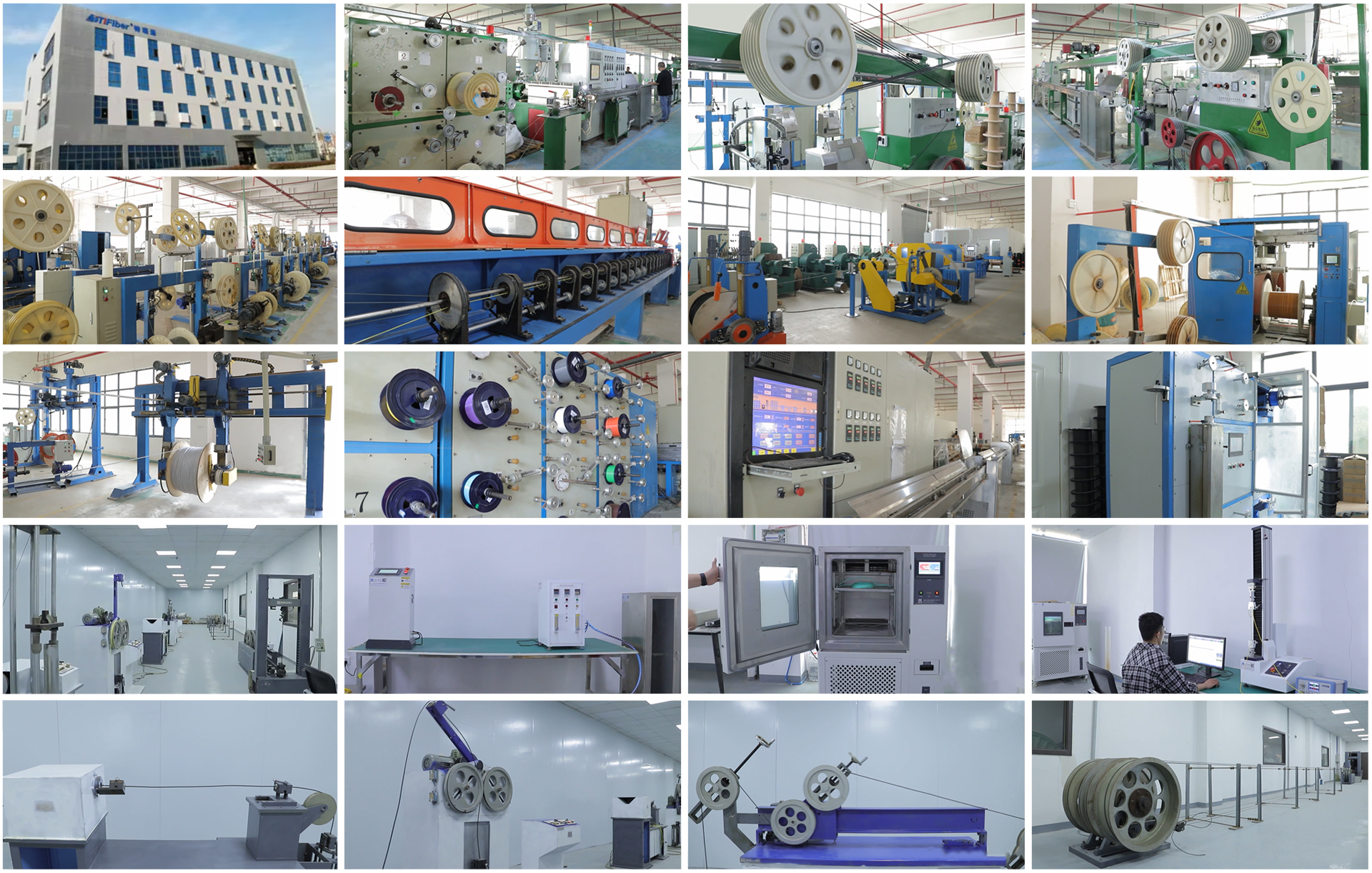

Process Flow
Global Reach & Quality

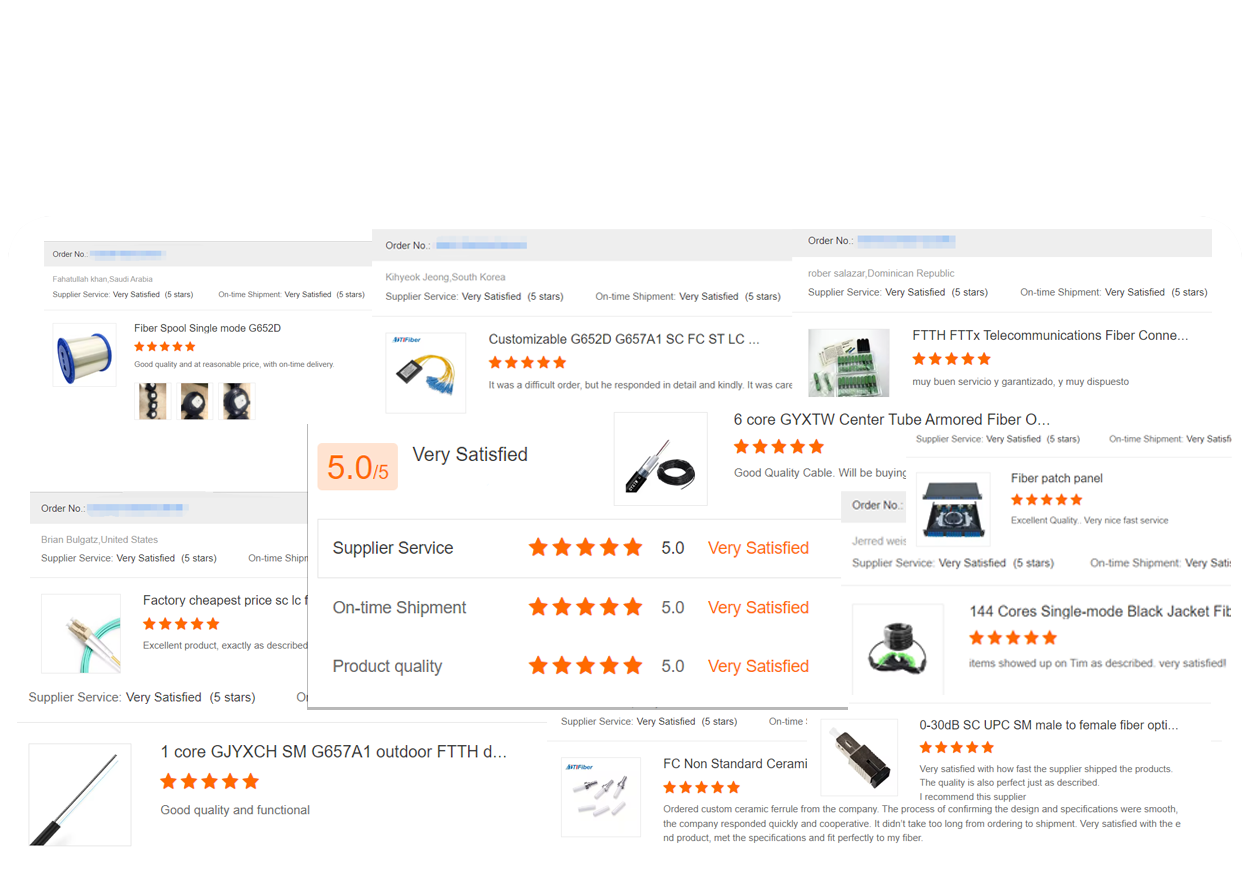

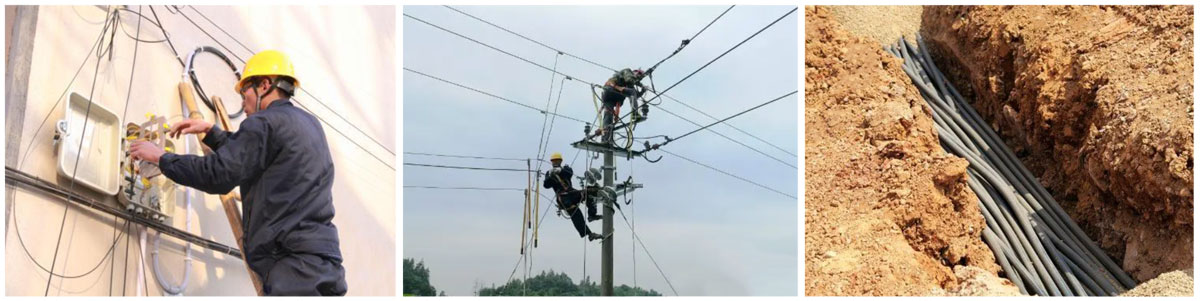

Applications Client Photos Certificates

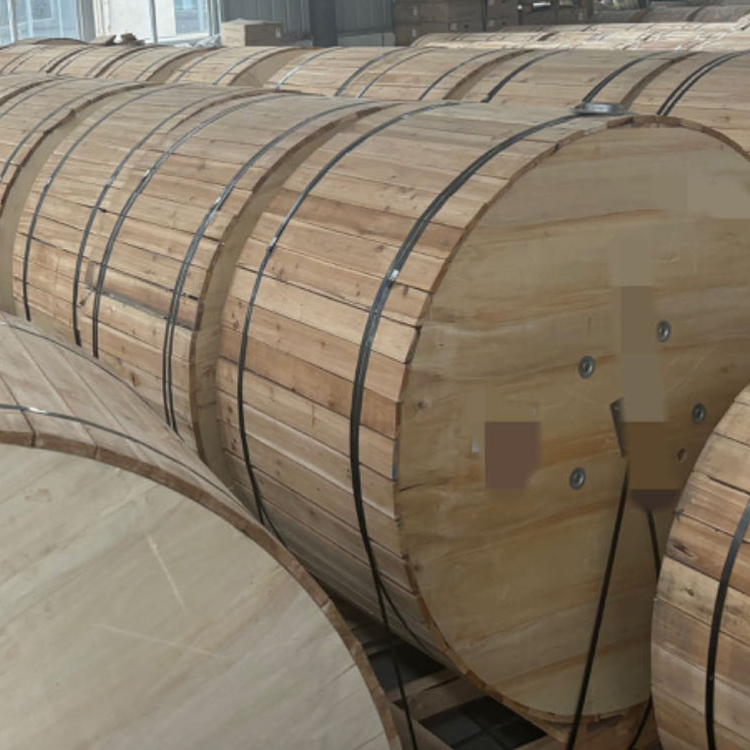

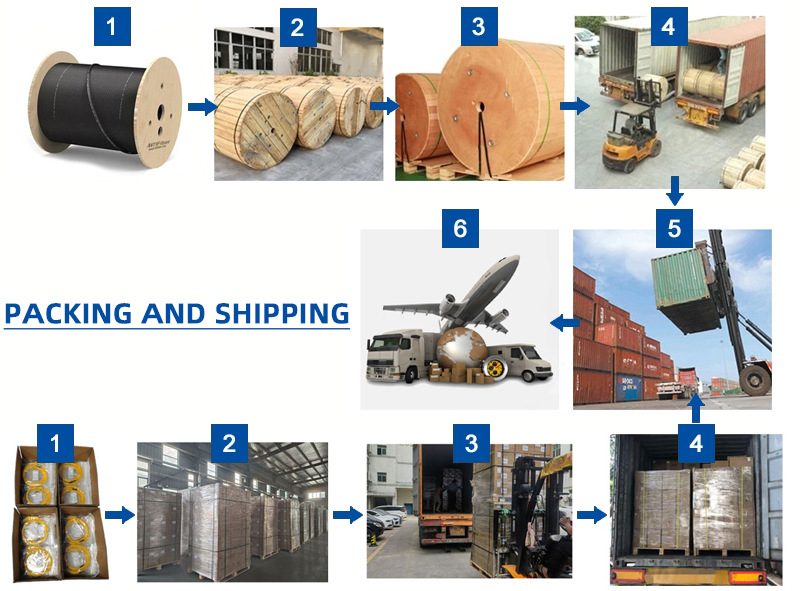

Packaging and Delivery
Why Choose Us?
  • ✓ Cooperate with Global 500 brands on fiber optic products.
  • ✓ Trusted by 30+ marquee clients through long-term partnerships.
  • ✓ Professional team with extensive industry experience.
  • ✓ Free product design and free packaging design available.
  • ✓ 100% on-time delivery supported by delay penalty agreements.
  • ✓ 24/7 full-time service support.
Related Products

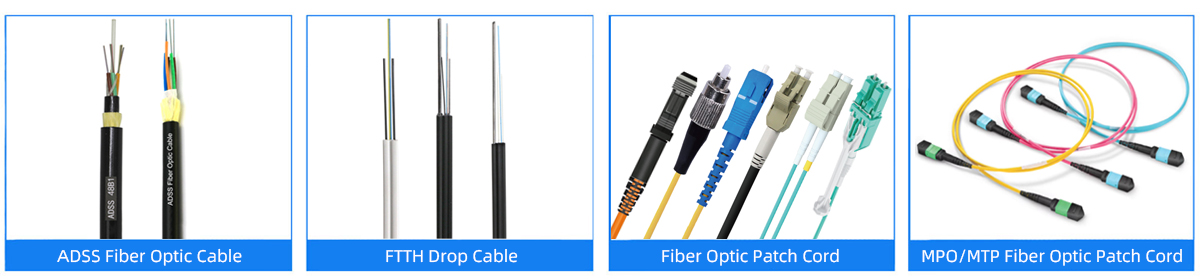

Product Range
Frequently Asked Questions
Q1: What is ADSS fiber optic cable used for? A1: ADSS (All-Dielectric Self-Supporting) cable is primarily used for aerial installations along power transmission lines, as it requires no messenger wire and is non-conductive.
Q2: What are the benefits of the AT (Anti-Tracking) sheath? A2: The AT sheath is designed to resist electrical tracking on the cable surface, which is common in high-voltage environments, ensuring a long service life of over 30 years.
Q3: What is the maximum span for this ADSS cable? A3: This specific design supports a 100m span, making it ideal for standard distribution poles and short-to-medium distance communication links.
Q4: Does the cable contain any metal components? A4: No, it is a non-metal structure. This provides excellent insulation and makes it immune to lightning strikes and electromagnetic interference.
Q5: What international standards do your products meet? A5: Our cables are manufactured according to IEC 60794-1, TIA/EIA604-5, and ITU-T G.652D standards to ensure global compatibility and performance.
Q6: Do you provide OEM/ODM services? A6: Yes, we provide full OEM and ODM services, including customized cable designs, free product branding, and specialized packaging solutions.
