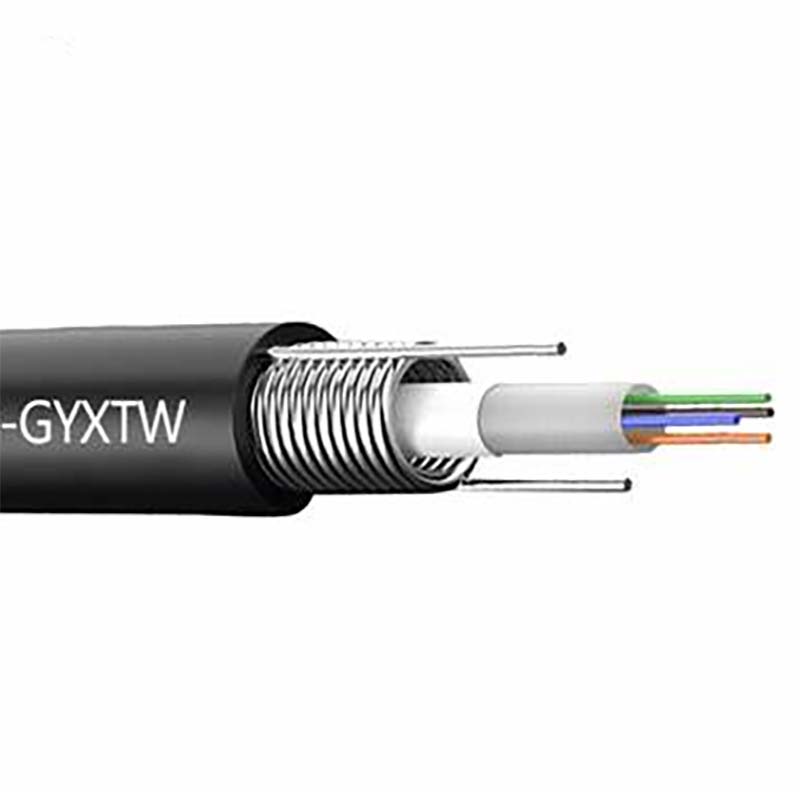

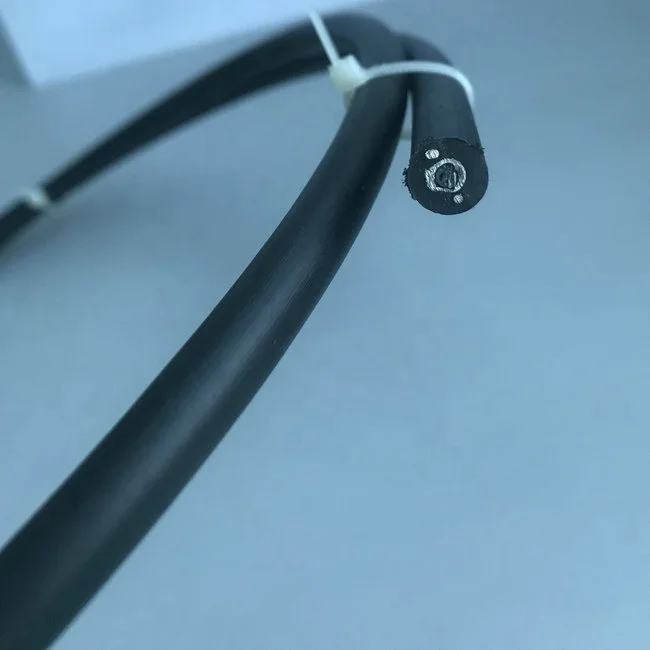

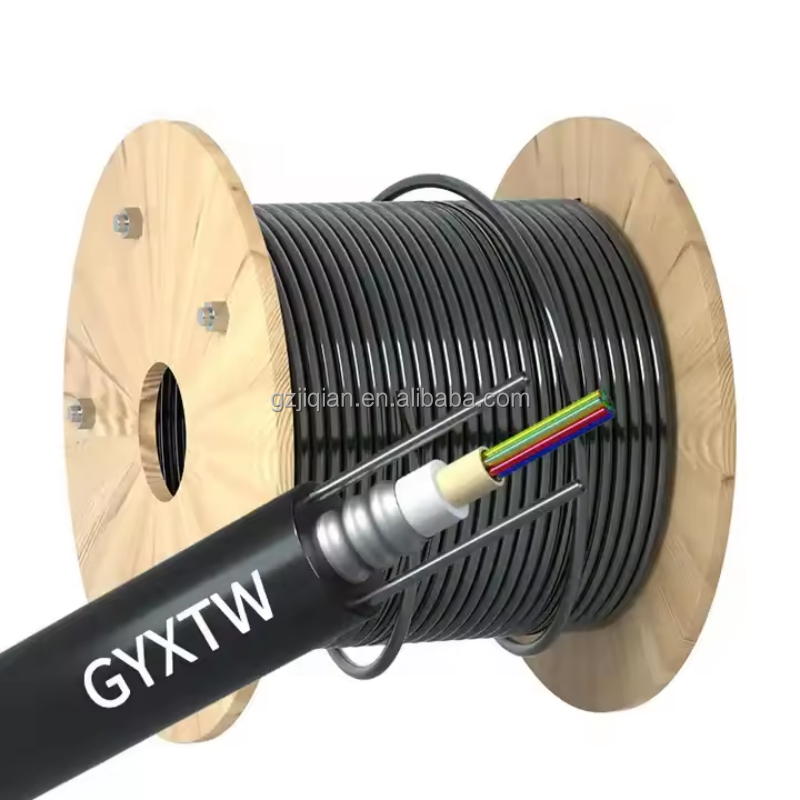

Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
1 / 5
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member
Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member

Armor Fiber Optic Cable GYXTW 2/4/6/8/12/24 Core Singlemode Communication Cable With Steel Wire Strength Member

Send Inquiry

Product Description

Product Description

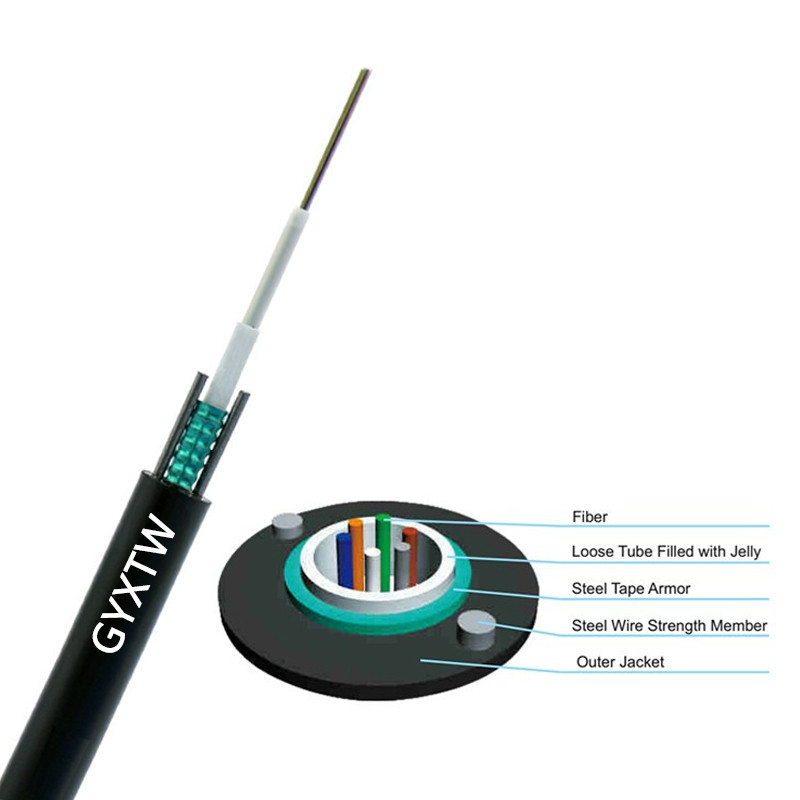

GYXTW Fiber Optic Cable

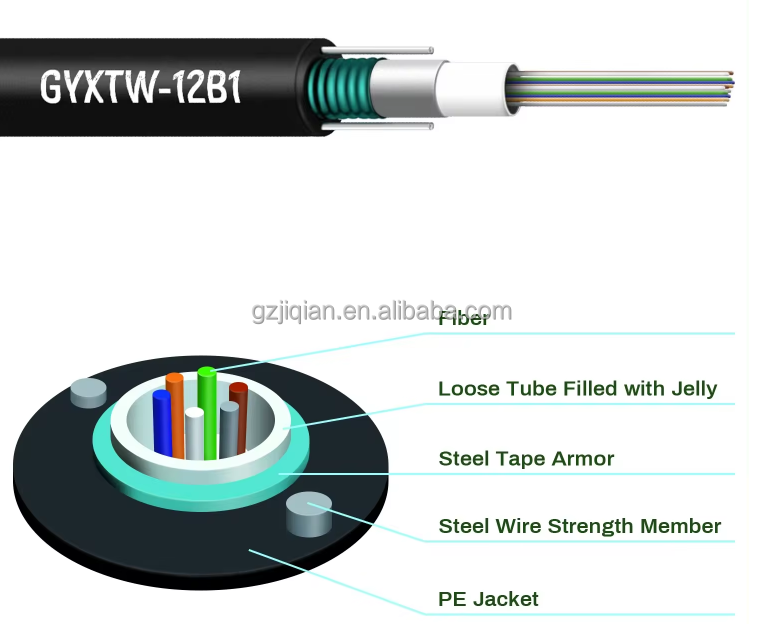

GYXTW Fiber Cable Structure
Cable Structure 1

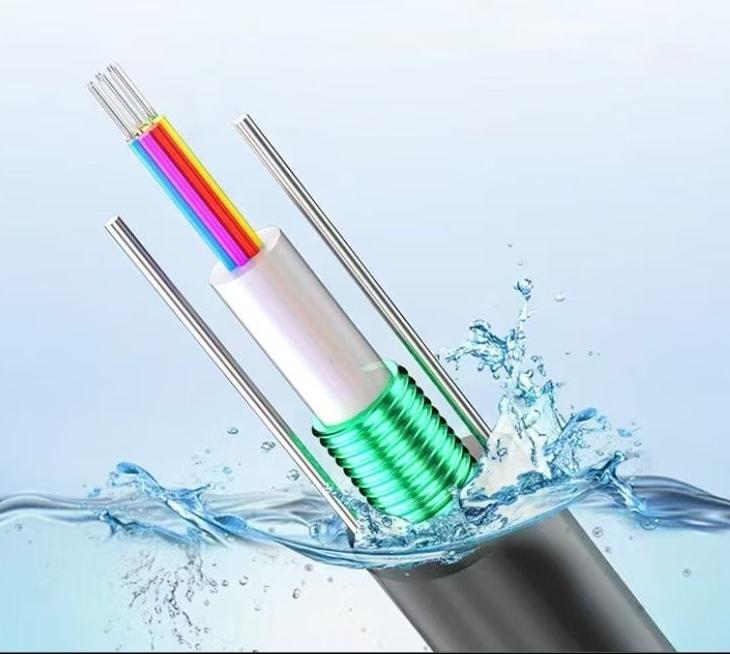

Cable Structure 2

Excellent Watertight Performance

Key Features:
◈ Good mechanical and temperature performance
◈ High strength loose tube that is hydrolysis resistant
◈ Special tube filling compound ensures critical fiber protection
◈ Superior crush resistance and flexibility
◈ PSP enhancing moisture-proof layer
◈ Two parallel steel wires ensure tensile strength
◈ Small diameter, light weight, and easy installation
◈ Storage/Operating Temperature: -40℃ to +70℃
Application:

This type of optical fiber cable is ideal for Overhead, Pipeline, and Duct installations.

Cable Parameters

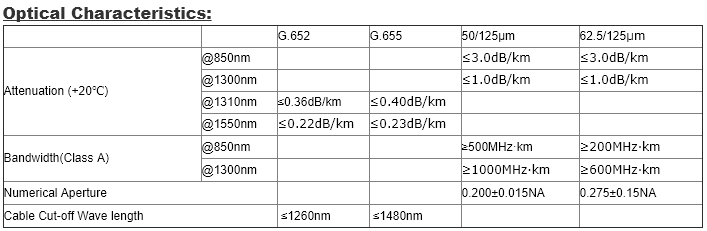

Technical Drawing
Structure and Technical Specifications of GYXTW:
Fiber Count Cable Diameter (mm) Nominal Weight (KGS) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short term Long term Short term Long term
4 - 12 8.0 60 1500 600 1500 600
Detailed Images

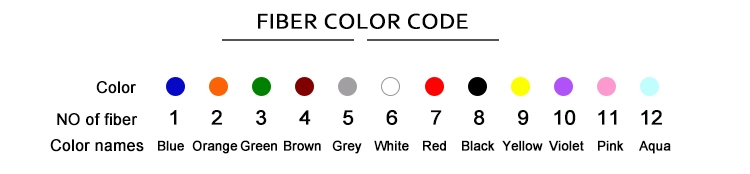

Detail 1

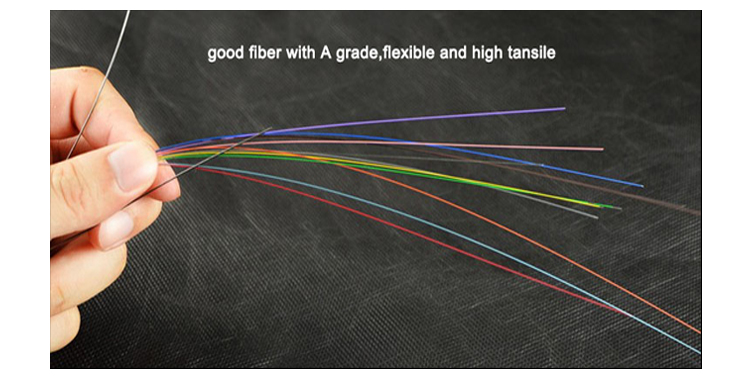

Detail 2

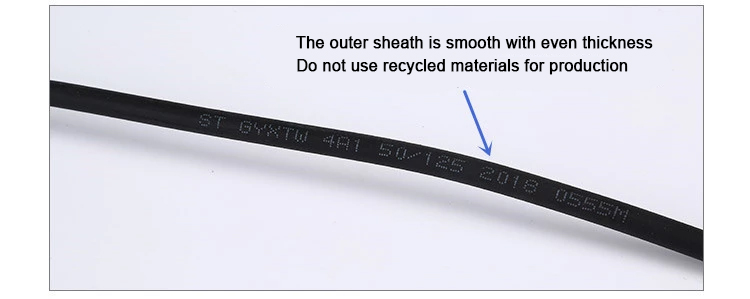

Detail 3

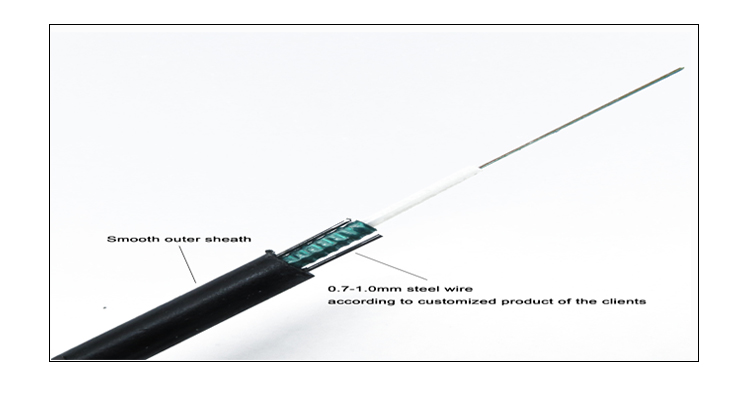

Detail 4
Packaging & Shipping

Keyword: Fiber optic cable price

Packaging Details:
  • Wooden roll options: 1000m/roll, 2000m/roll, 3000m/roll, or customized requirements.
  • Inner packed in fumigated wooden drums, outer covered by polyethylene sheet, and sealed with strong wooden battens.

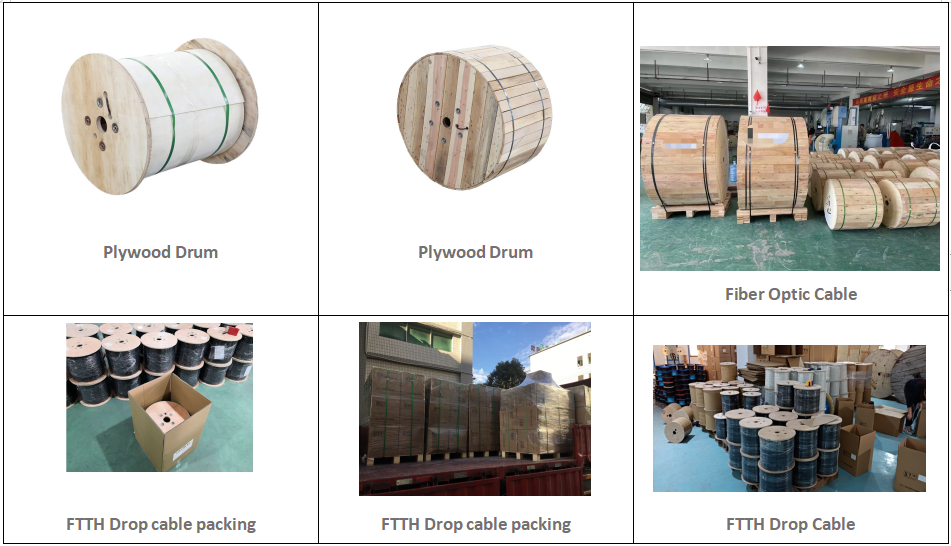

Packaging Process
Production & Quality Control

We operate a specialized high-tech facility focused on scientific research, development, and production of various fiber optic cables ranging from 2 to 288 cores.

Factory View

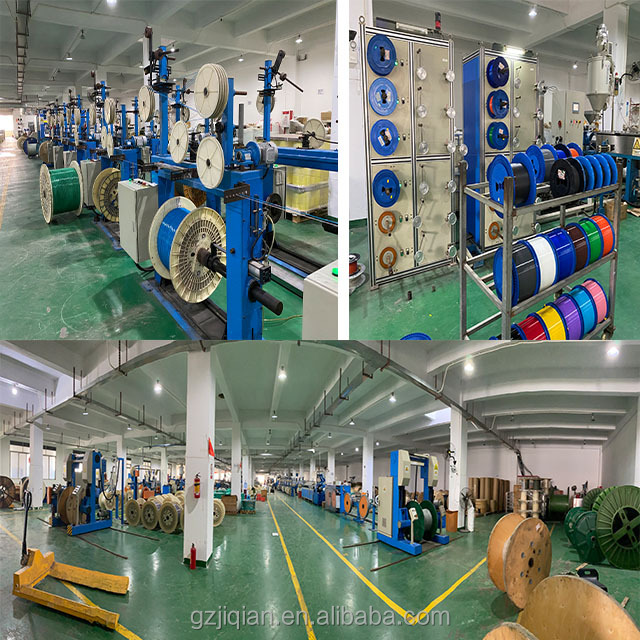

Production Line

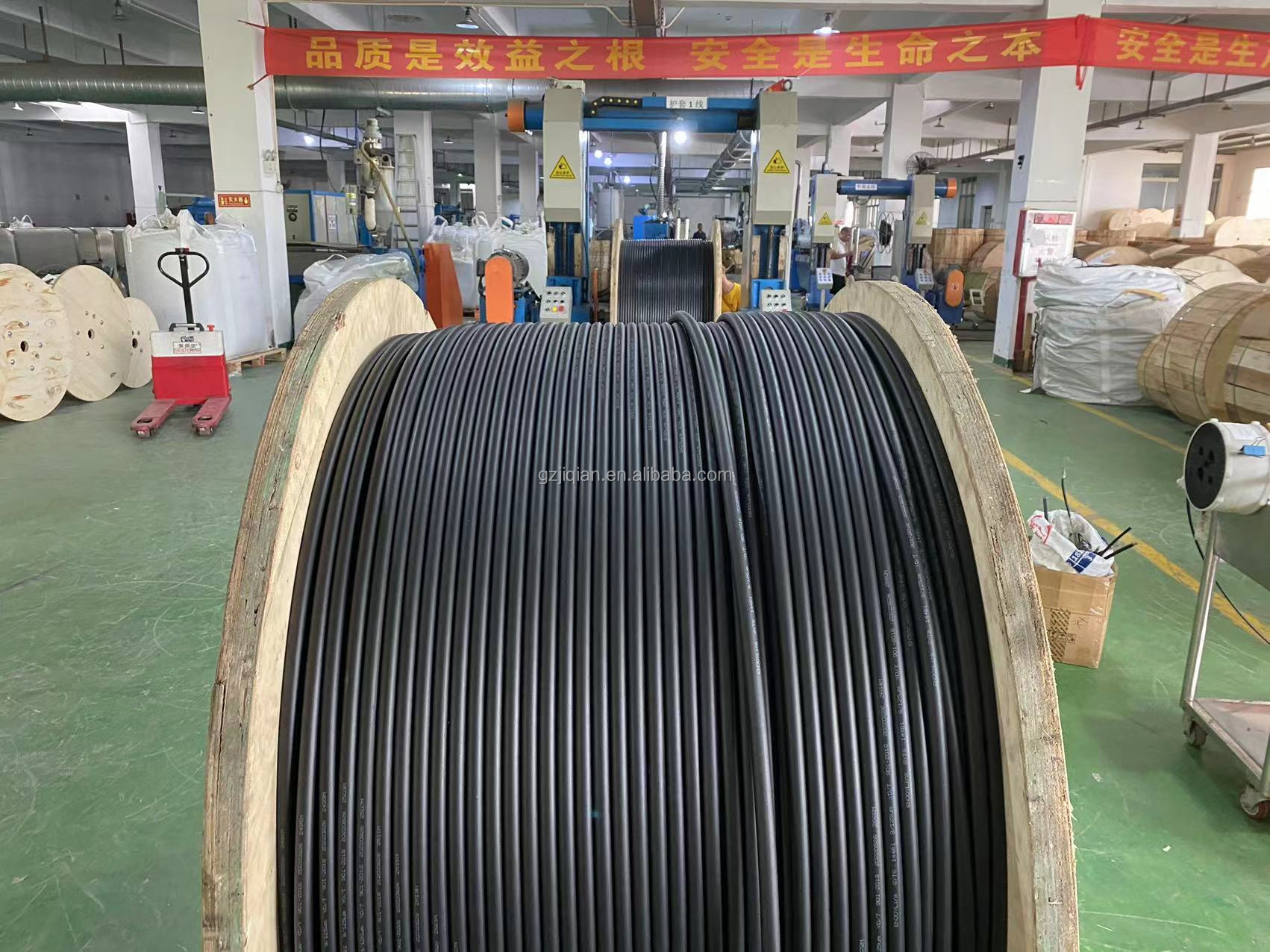

Workshop
Certifications:
Certifications
Frequently Asked Questions
1. Are you a factory or a trading company? We are a factory, allowing us to provide competitive ex-factory pricing and professional quality control.
2. Which brands of fiber do you use? We utilize high-quality fibers from reputable brands such as Corning, YOFC, and Fiberhome.
3. Can you accept small orders? Yes, small orders are available. We support our customers' new projects, recognizing that business often starts with smaller requirements.
4. What is your after-sale service policy? We provide a 15-year warranty and have professional technical personnel available to assist with any issues.
5. What is the typical application for GYXTW cable? GYXTW is specifically designed for communication networks in overhead, pipeline, or duct environments where moisture resistance is critical.
6. How is the cable protected against water? The cable uses a special tube filling compound and moisture-proof PSP (Plastic Steel Polyethylene) to ensure excellent watertight performance.

Thank you for viewing our product details!
