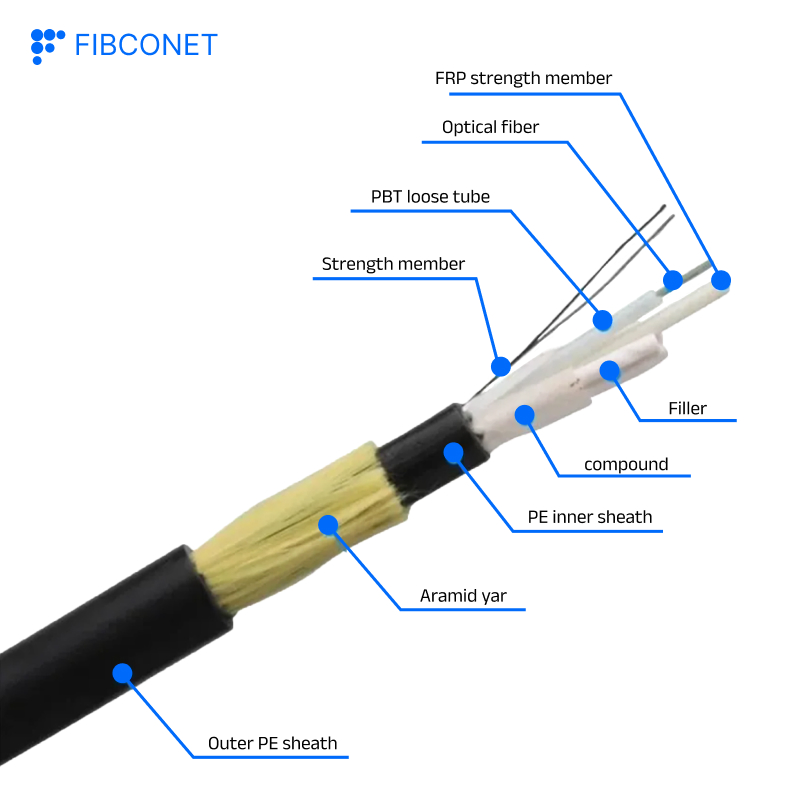

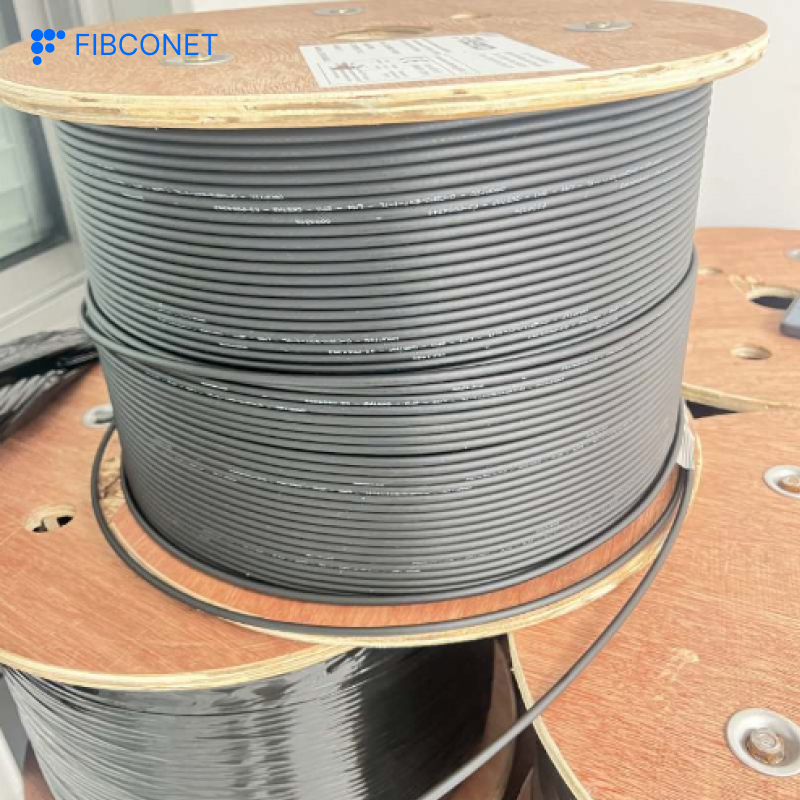

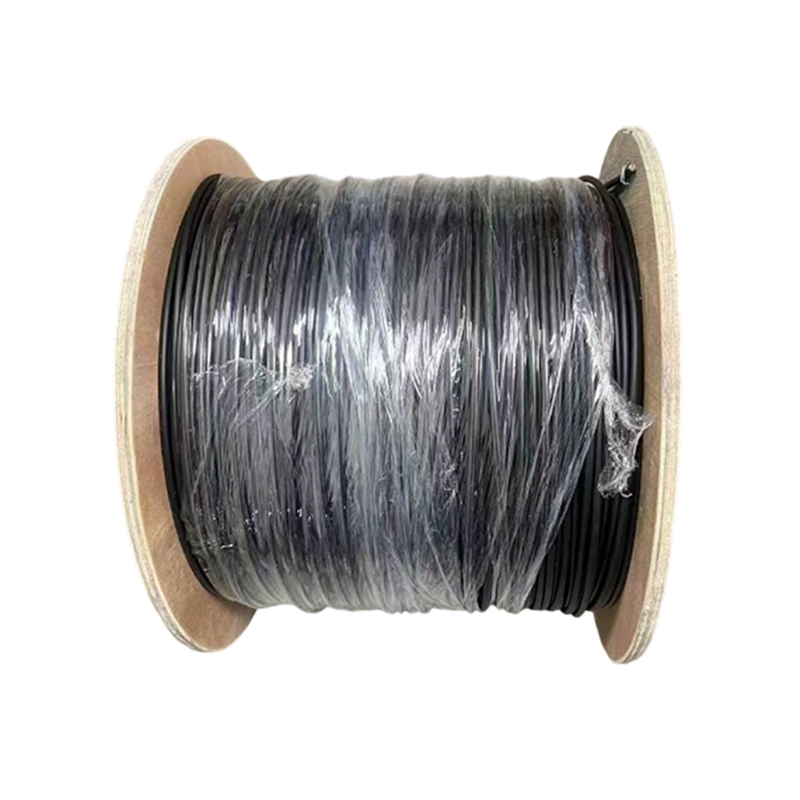

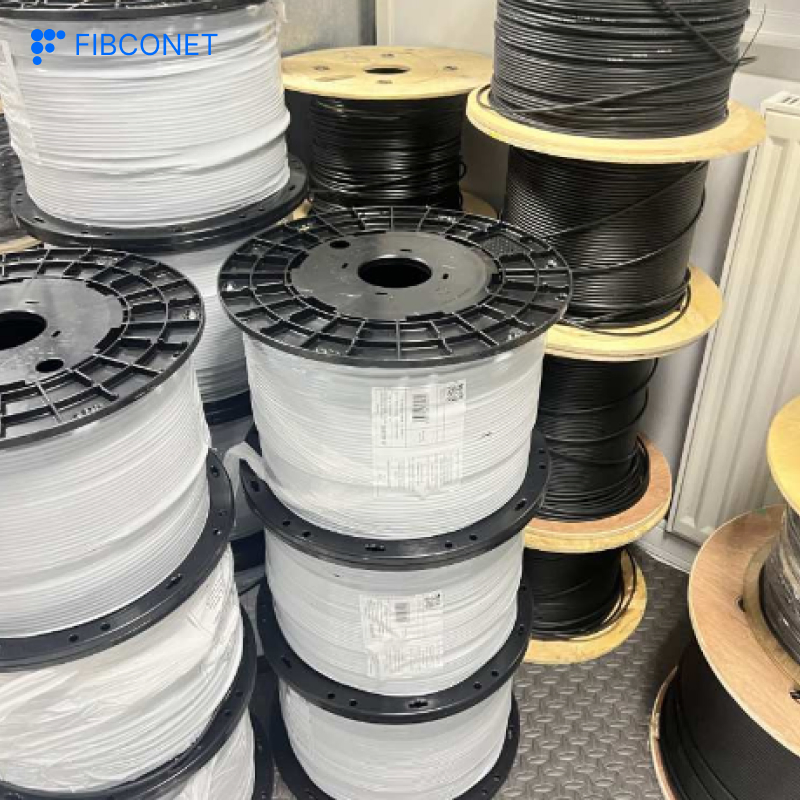

Buried/ADSS/Asu/Undersea/Air Blown/Drop Indoor/Outdoor 50/125 Tight One Core 2/12/24/48/288 Core 12f Armored Fiber Optic Cable

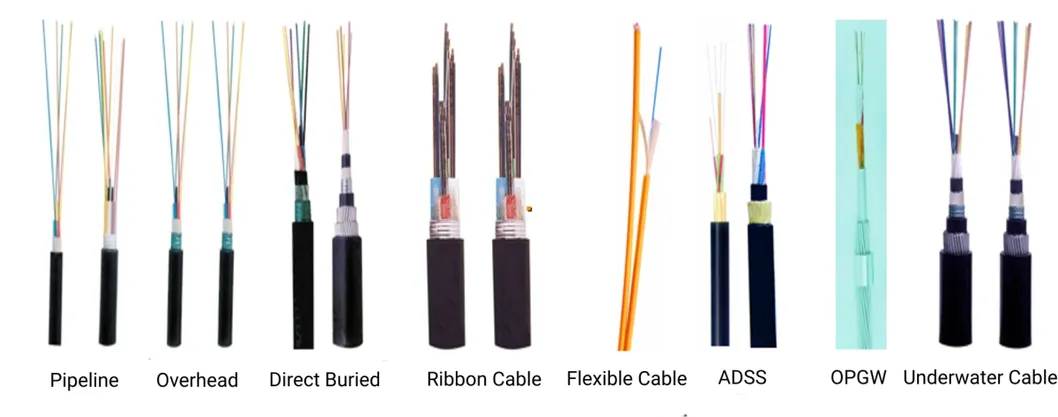

Specializing in fiber optic cable manufacturing, our production range covers drop optical cables, indoor optical cables, and outdoor optical cables. With extensive experience in the industry, we have refined our solutions for different installation systems.
These cables are ideal for FTTx applications and can be used inside buildings to connect individual flats. Designed for versatility, they can run from the bottom to the top of a building, allowing branches to connect to end-user homes at any point. Our cables provide a simple, neat, and commercially viable solution for network upgrades.
| Fiber Style | Unit | SM G652D | SM G657A1 | SM G657A2 | |
|---|---|---|---|---|---|
| Condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | |
| Attenuation | dB/km | ≤0.36/0.23 | ≤0.35/0.21 | ≤0.35/0.21 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 |
| 1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 | |
| Cable Cutoff λcc | nm | ≤1260 | - | - | |
| Cladding Diameter | um | 125.0±0.1 | 124.8±0.1 | 124.8±0.1 | |
| Items | Description |
|---|---|
| Installation Temperature Range | -20 to +60ºC |
| Operation and Transport Temperature | -40 to +70ºC |
| Min Bending Radius (Long Term) | 10D |
| Allowable Tensile Strength (Long Term) | 300N |
| Crush Load (Short Term) | 2200 N/100mm |
