| Characteristic | Item | Test Condition | Single Mode Fiber | Multimode Fiber |
|---|---|---|---|---|
| Optical Property | Insertion Loss (dB) | 1310nm / 1550nm | <0.3dB | - |
| Return Loss (dB) | 1310nm / 1550nm | - | >45dB | |
| Mechanical Test | Vibration Test | 10-60Hz, 1mm full amplitude | △IL<0.2dB | △RL<5dB |
| Tensile Strength | >50N | △IL<0.2dB | △RL<5dB | |
| Environmental Property | High Temperature | +85°C 96hs | △IL<0.2dB | △RL<5dB |
| Cryogenic Test | -40°C, 96hs | △IL<0.2dB | △RL<5dB | |
| Damp Heat Test | +40°C, 90-95%RH, 96hs | △IL<0.2dB | △RL<5dB |

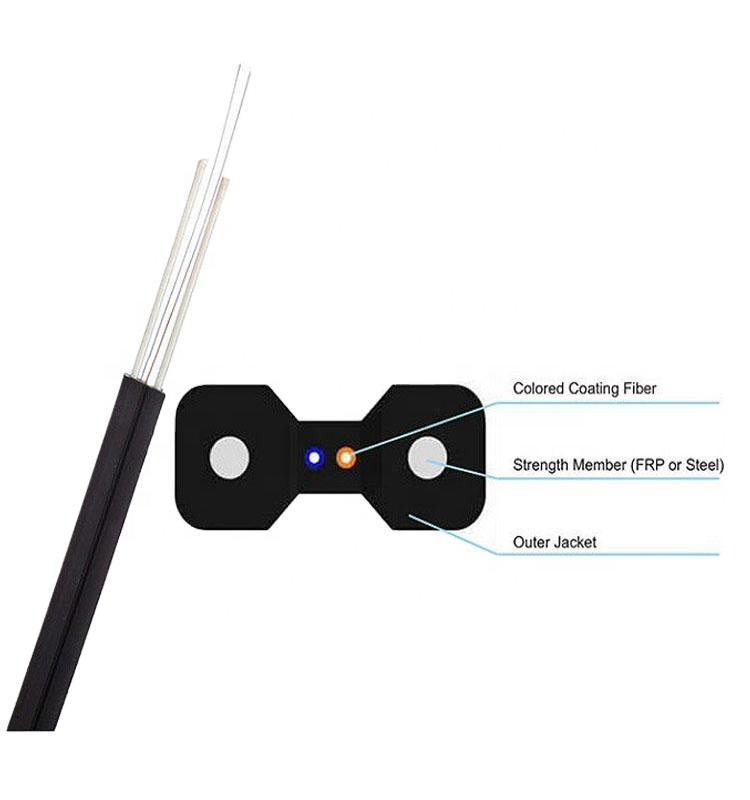

| Cable Dimension | 2.0*3.0mm / 2.0*5.0mm or customer specified |
|---|---|
| Cable Length | 1m, 3m, 5m, 15m, 25m, 30m or customer specified |
| Fiber Type | G652D, G657A1, G657A2, 50/125, 62.5/125, OM3, OM4, OM5 |

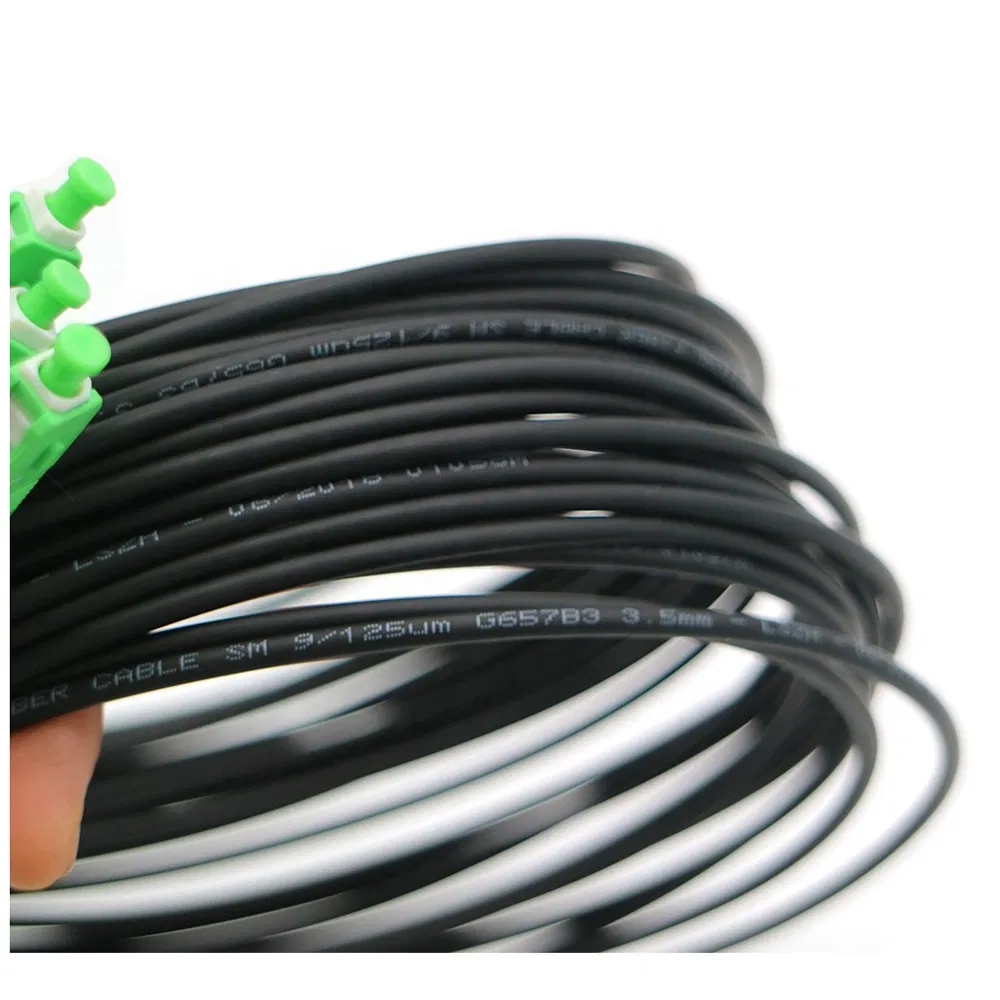

| Outer Jacket | Material: LSZH | Color: Black, White or Customizable |

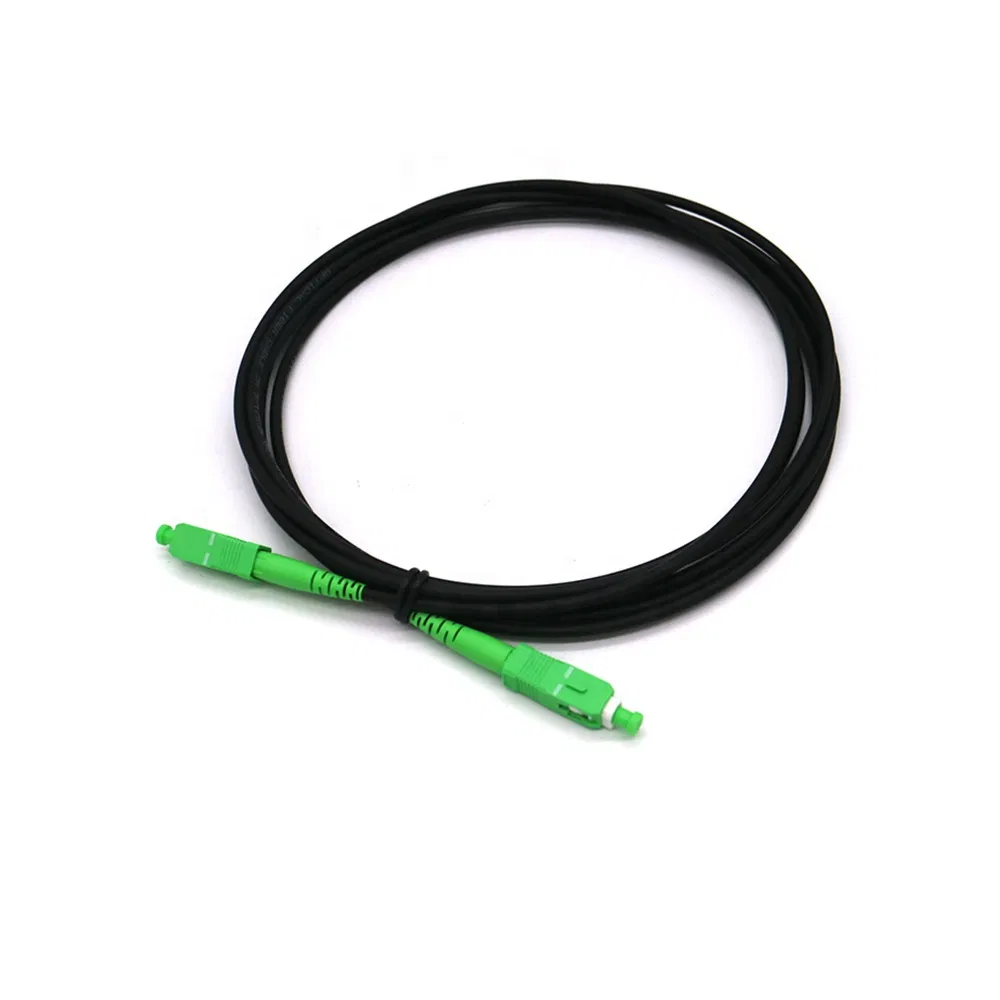

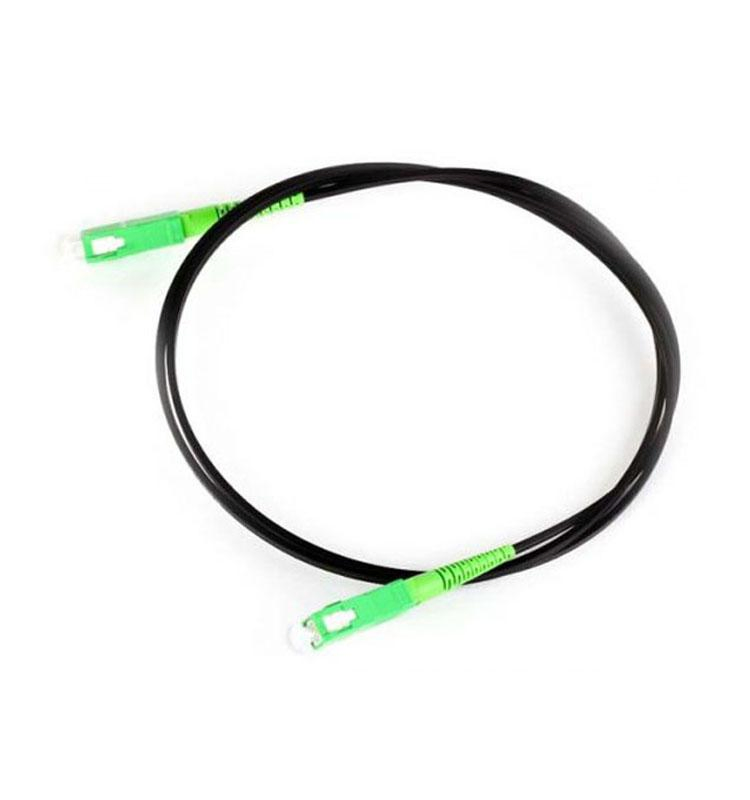

| Connector Options | LC, SC, ST, FC (UPC/APC) |
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |

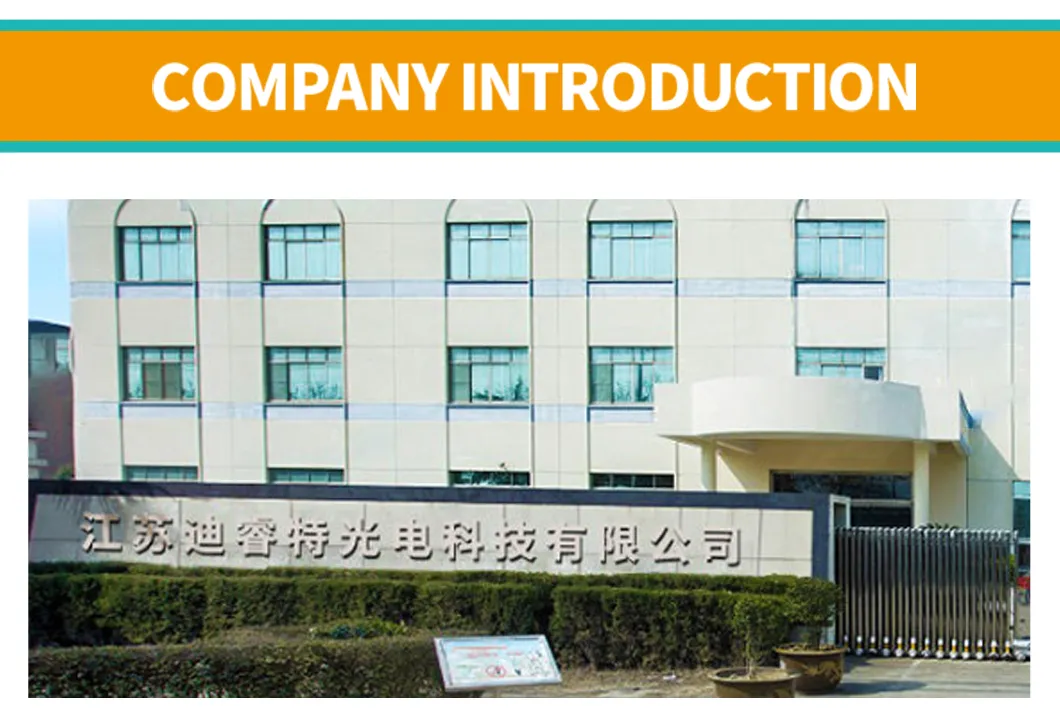

We are a professional optical fiber cable manufacturer equipped with an integrated R&D center, marketing center, and production base. Our facility is committed to providing first-class solutions and OEM services for operation system integrators and integrated wiring providers. Our product range covers indoor and outdoor fiber optic cables, patch cords, PLC splitters, and adapters.

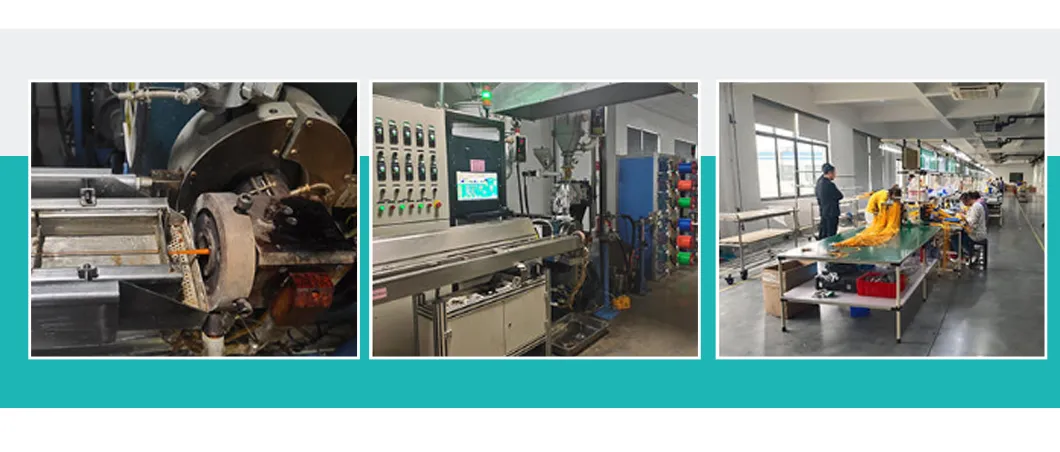

With a workshop area of approximately 5,000 square meters and a dedicated team of over 150 workers, we operate as a high-tech enterprise holding ISO 9001, CE, and RoHS certifications. Our factory maintains strict quality control to ensure the highest standards for global telecommunications, broadband, and network industries.
