Basic Information
Connection Structure
MPO/MTP
Allowed Lateral Pressure
100(N/100mm)
Allowed Tensile Strength
<100N
Certification
RoHS, CE, ISO9001, VDE
Fiber Type
G652D Om1 Om2 Om3 Om4 Om5
Cable Diameter
3.0mm, 4.0mm, 5.0mm, 7.0mm
Outer Jacket Material
LSZH PVC
Insertion Loss
Standard Max. 0.75dB, Low Loss Max 0.35dB
Polarity
Type A, Type B, Type C
Length
1m, 2m, 5m or Customized
Transport Package
Carton Box
Production Capacity
10000 Piece/Week
Product Description

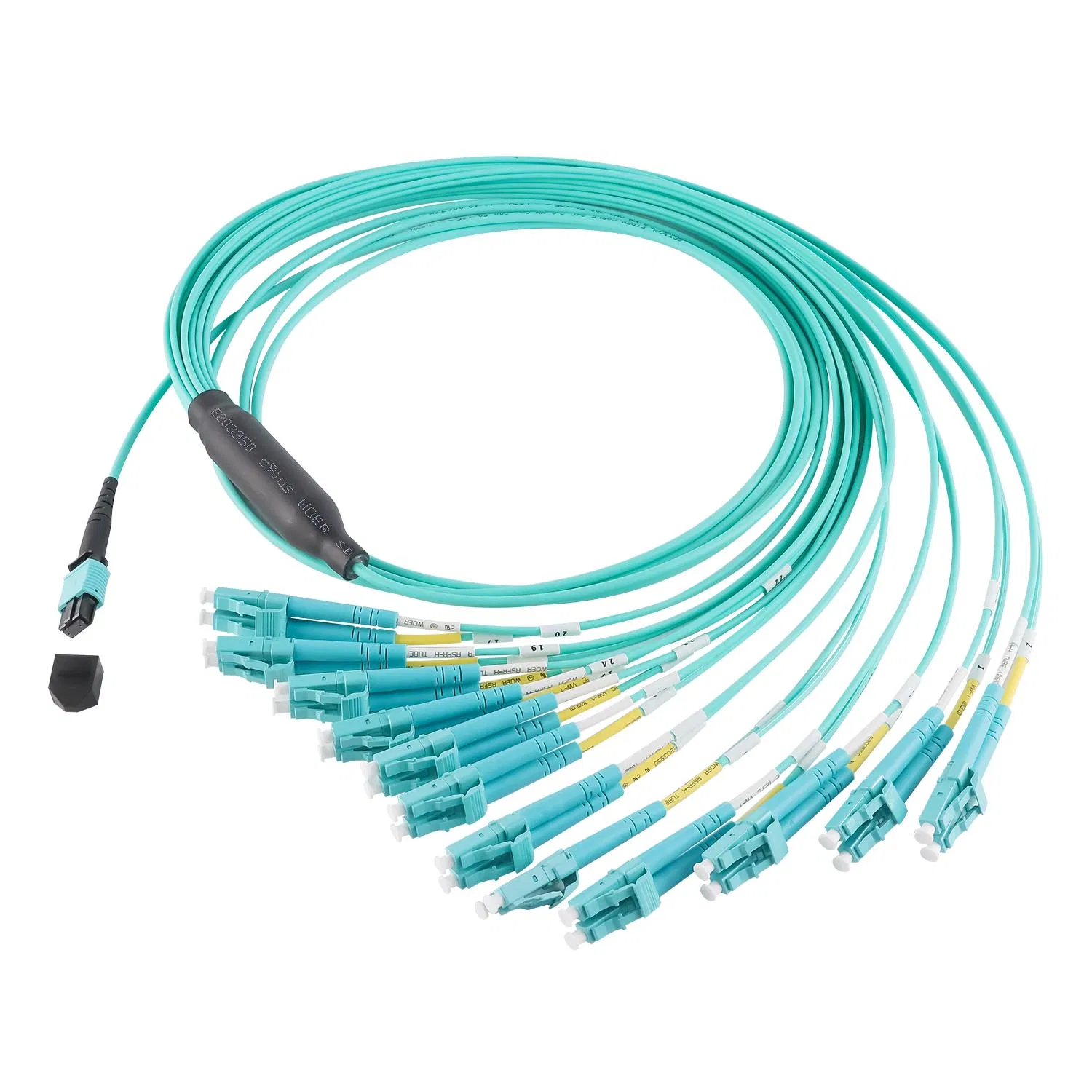

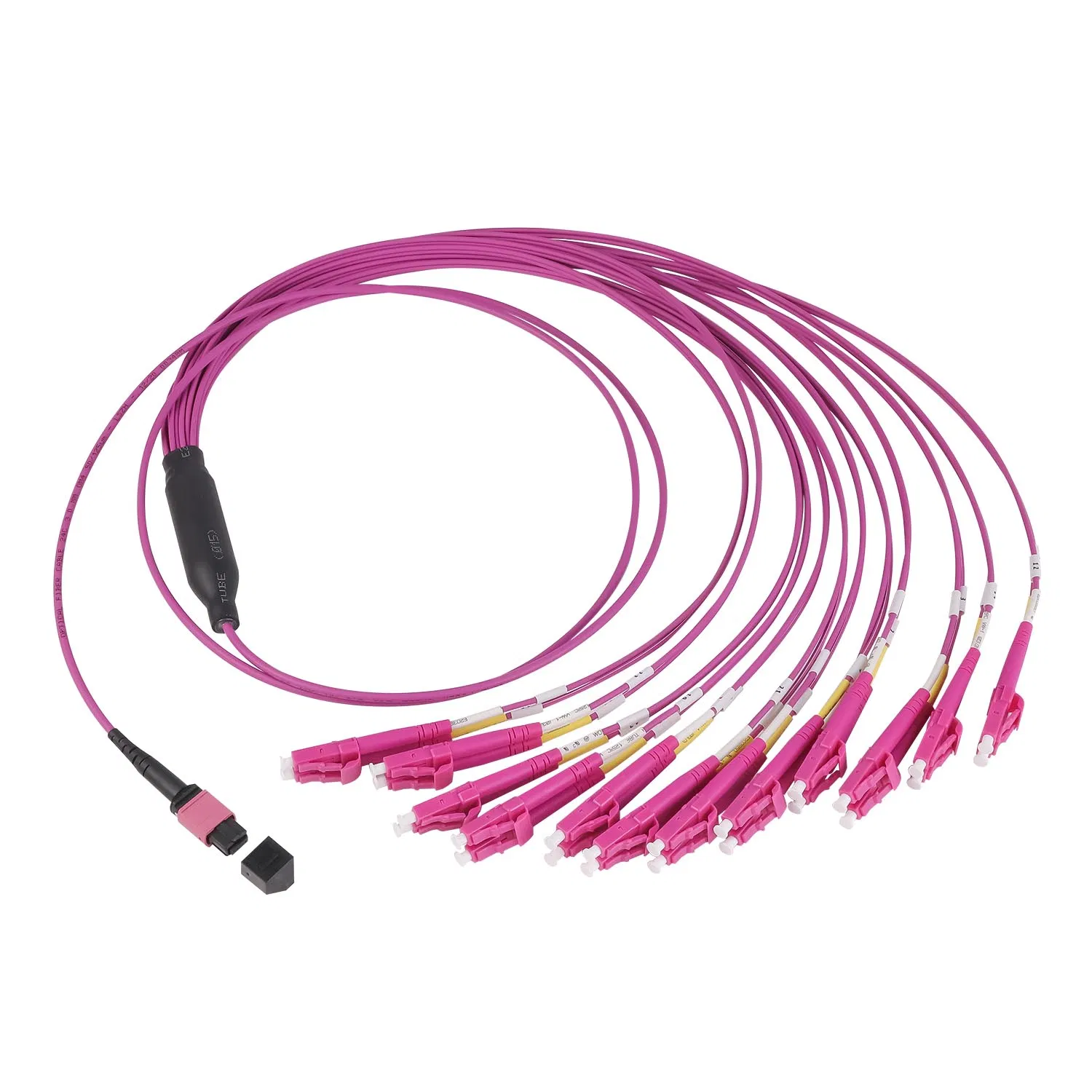

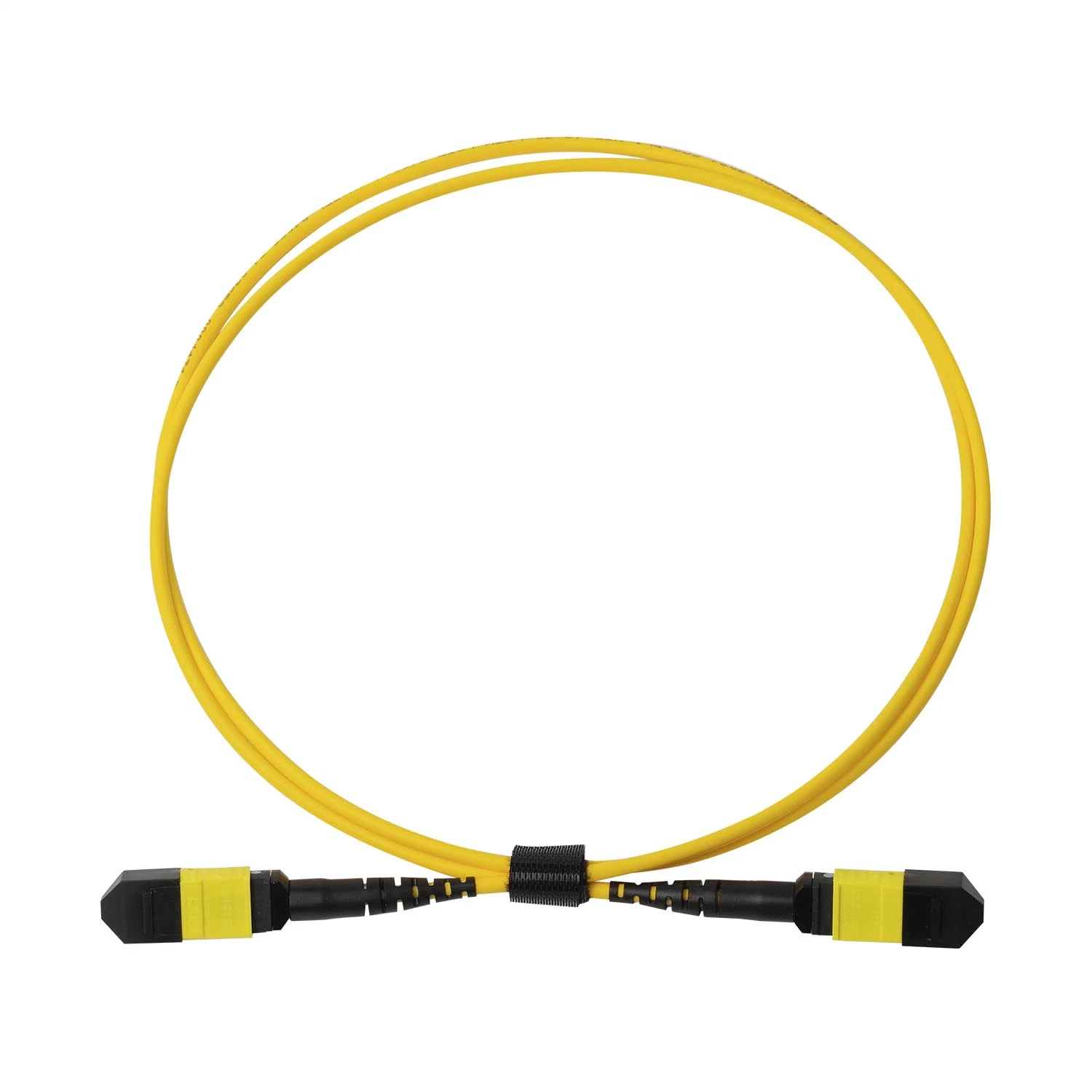

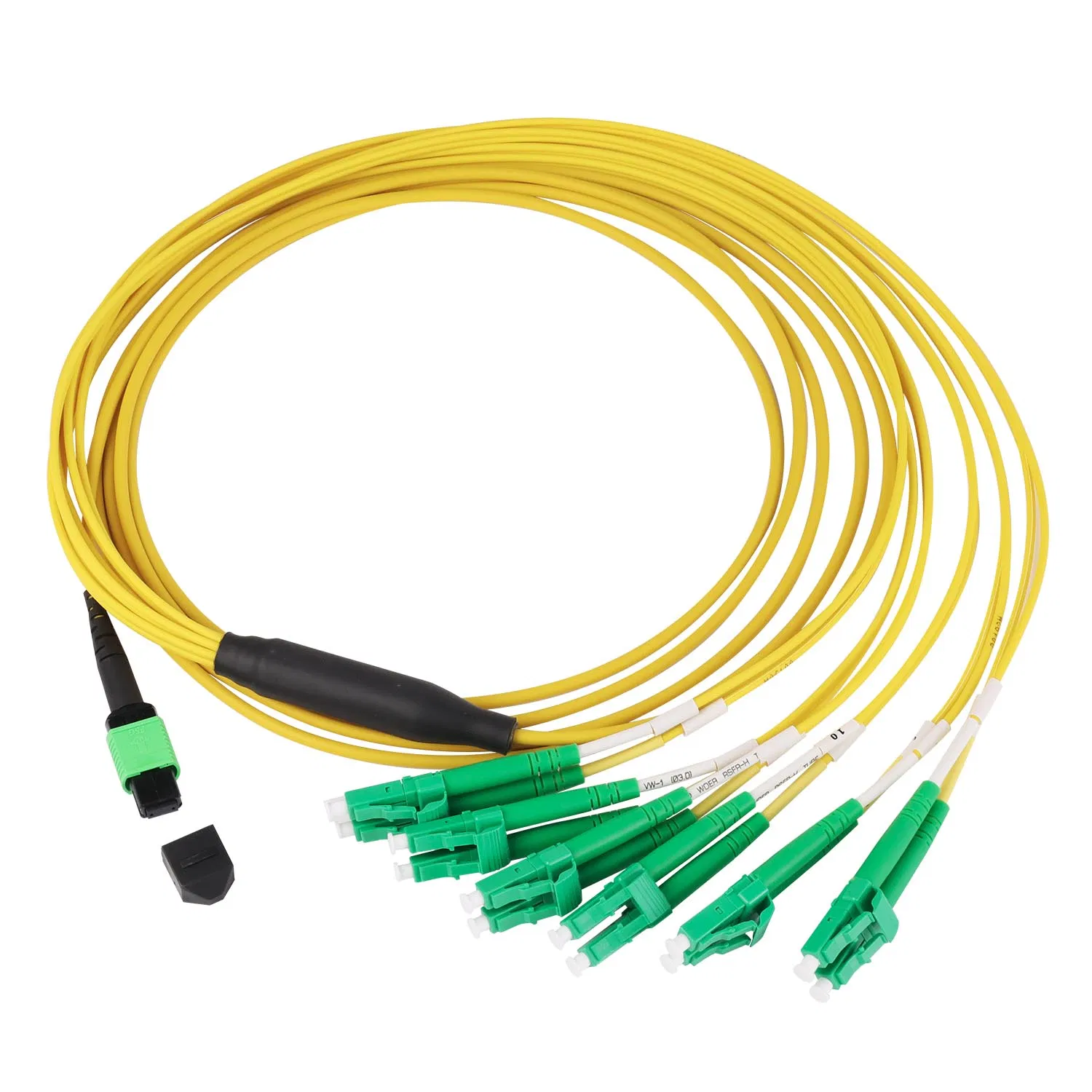

12/24/48/96/144 Core LC/Sc/St/FC MPO/MTP Connector FTTH Indoor Outdoor Armoured Drop LSZH PVC Fiber Optic Optical Patch Cord Pigtail Jumper Wire Cable
🚀 Key Applications
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Optical Switch interframe connections
⭐ Product Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4, 8, 12, 24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Product Specifications
| Connector A |
LC, SC, ST, FC... |
Connector B |
MPO/MTP |
| Fiber Mode |
SM(G652, G655, G657); MM(OM1-OM5) 50/125μm |
Wavelength |
SM: 1310/1550nm; MM: 850/1300nm |
| Polish Type |
PC, UPC and APC |
Min Bend Radius |
7.5mm |
| Insertion Loss |
Standard: ≤0.35/0.7dB; Low Loss: ≤0.2/0.35dB |
Return Loss |
SM: APC:60dB; MM: PC:25dB |
| Attenuation (850nm) |
≤2.3dB/km |
Attenuation (1300nm) |
≤0.6dB/km |
| Jacket OD |
3.0mm |
Cable Jacket |
PVC, LSZH |
| Tensile Load (Inst.) |
100 N |
Tensile Load (Long) |
50 N |
High Quality Ferrule Technology

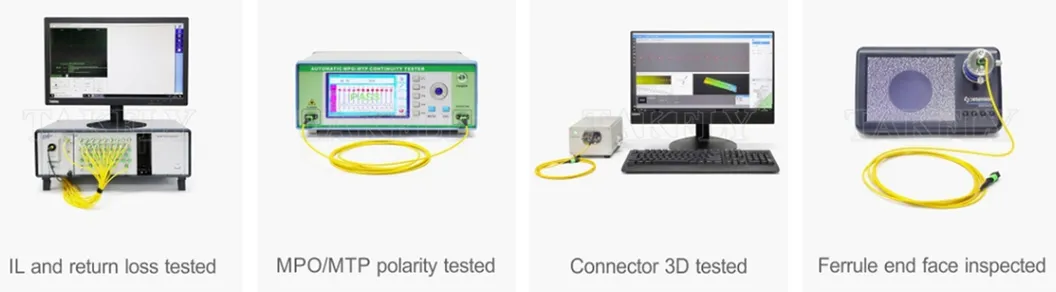

Professional 100% Testing
Full Range of Custom Options
💎 Product Highlights

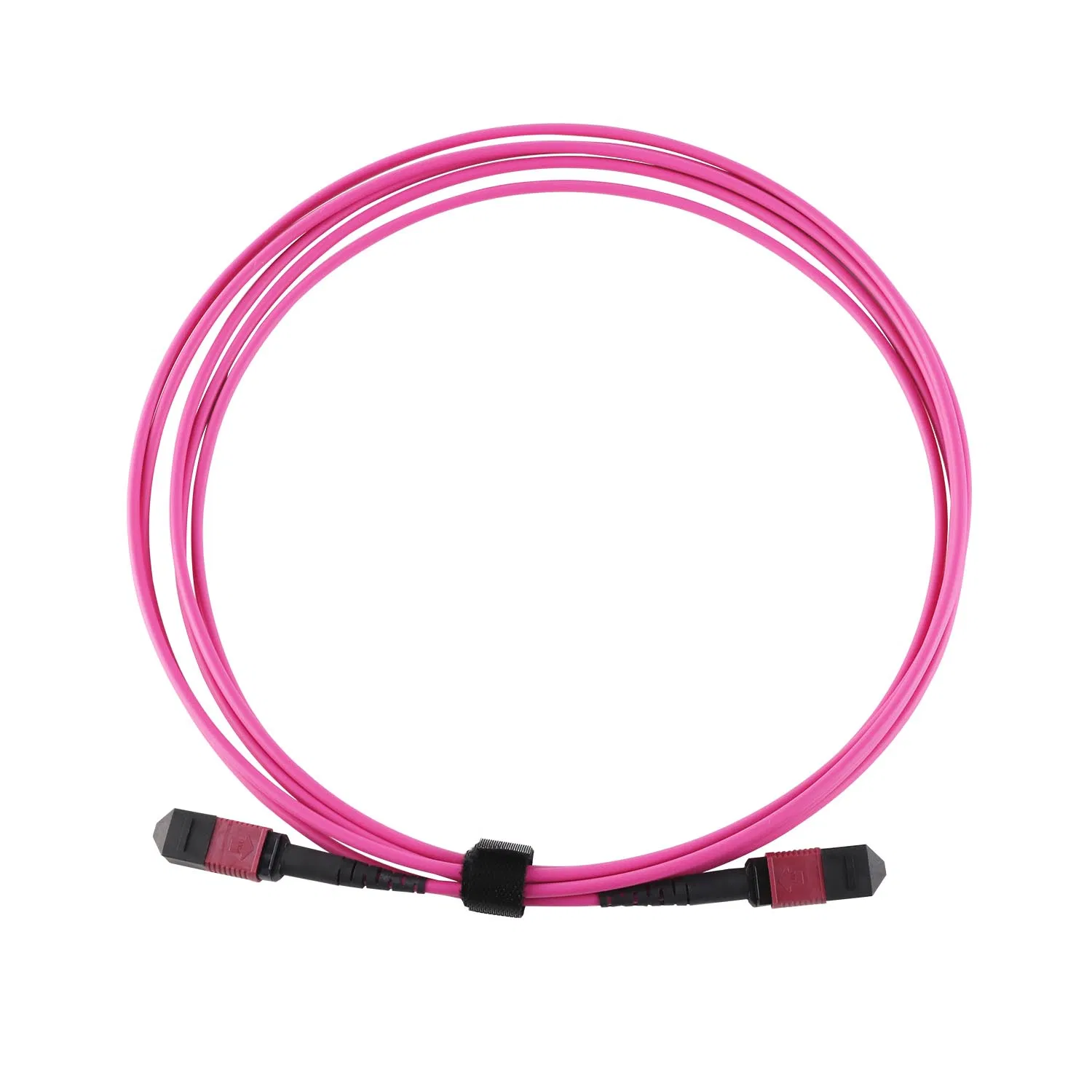

MPO trunk cable is designed for high-density fiber patching in data centers, providing space-saving and reducing cable management troubles. Optimized for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optics direct connection.
- 0.35dB Ultra Low IL: Features high-precision thermoplastic ferrule.
- Corning Clear Curve OM3 Fiber: Designed to withstand tight bends with minimal signal loss.
- Plenum-Rated Outer Jacket: Safe, heat-resistant, and flame-retardant materials.
- 7.5mm Minimum Bend Radius: Improved bend performance for residential or office environments.

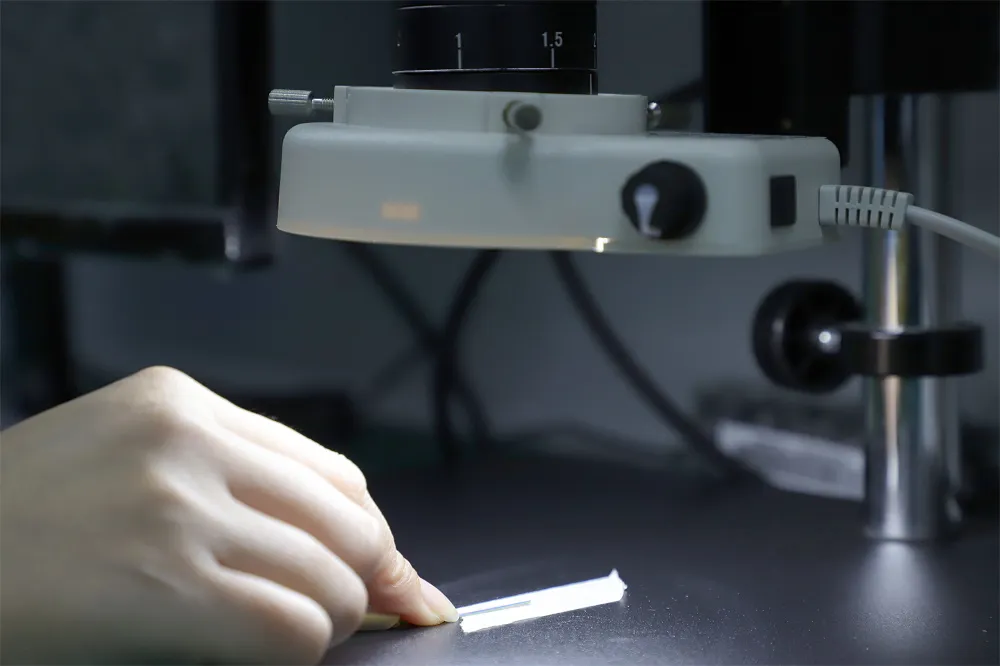

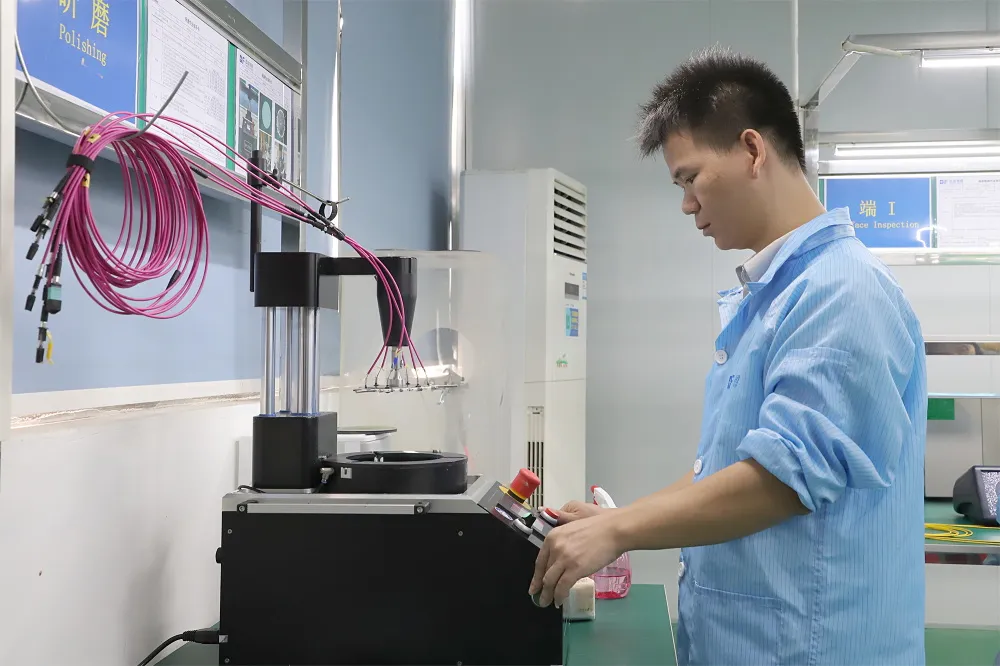

- 3D Interferometer Verified: Polishing process exceeds industry standards for reliable performance.

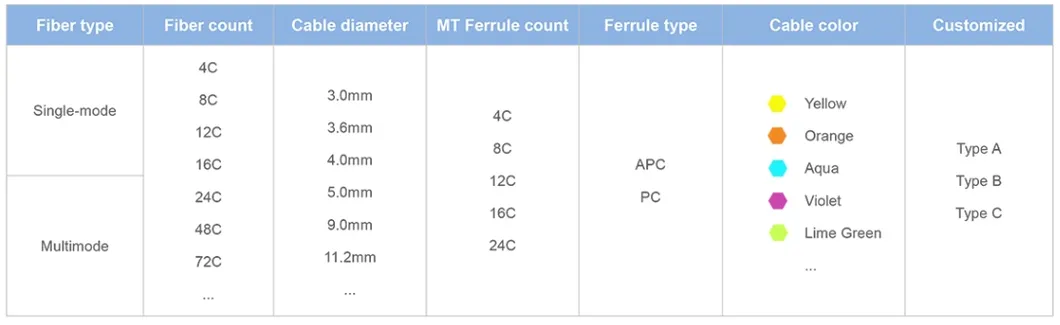

Ordering Guide
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: Single mode (UPC and APC) / Multi-mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (Customizable)
- Coating material: PVC / LSZH
- Fiber count: Simplex / Duplex / 4-144 cores
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3 / OM4 / OM5
- Length: According to requirements
- MPO/MTP Details: Method (Type A/B/C), Male/Female, Fiber count
- Performance: Standard or Low Loss Insertion/Return Loss
- Product Type: Pigtail / Patch Cord / LGX Box / Patch Panel
Our Services
- Order inquiry: Prompt reply and consultation for all clients.
- Order production: Strict monitoring of timelines and delivery schedules.
- Quality Check: Double-checking quantity, packaging, and strength before shipment.
- Tracking: Real-time shipping status tracking and reporting.
- Flexible Shipment: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, etc.
Frequently Asked Questions
What is the difference between MPO and MTP connectors?
MTP is a high-performance MPO connector with multiple engineered enhancements to improve optical and mechanical performance while being fully compliant with all MPO standards.
What insertion loss levels can I expect?
We offer Standard Loss (Max 0.75dB) and Low Loss (Max 0.35dB) versions to meet different data center efficiency requirements.
Are these cables suitable for 40G and 100G applications?
Yes, our MPO/MTP trunk cables are optimized for direct connection with 40G QSFP+ SR4 and 100G QSFP28 SR4 optics.
What fiber types are available for customization?
We provide a full range including Single Mode (G652D, G657A) and Multimode (OM1, OM2, OM3, OM4, OM5) options.

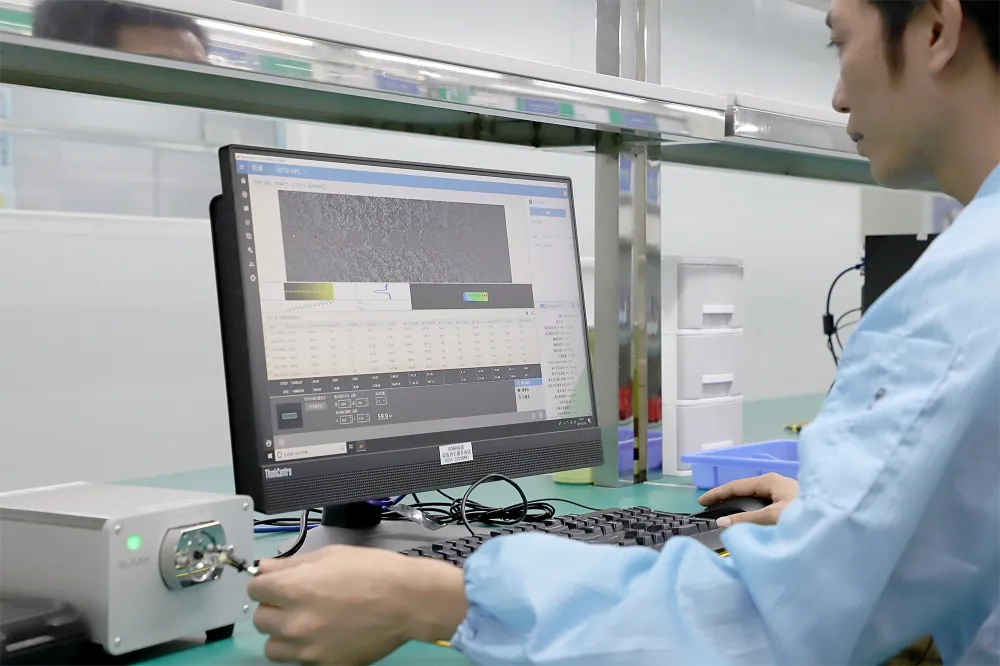

How is the quality of the cables verified?

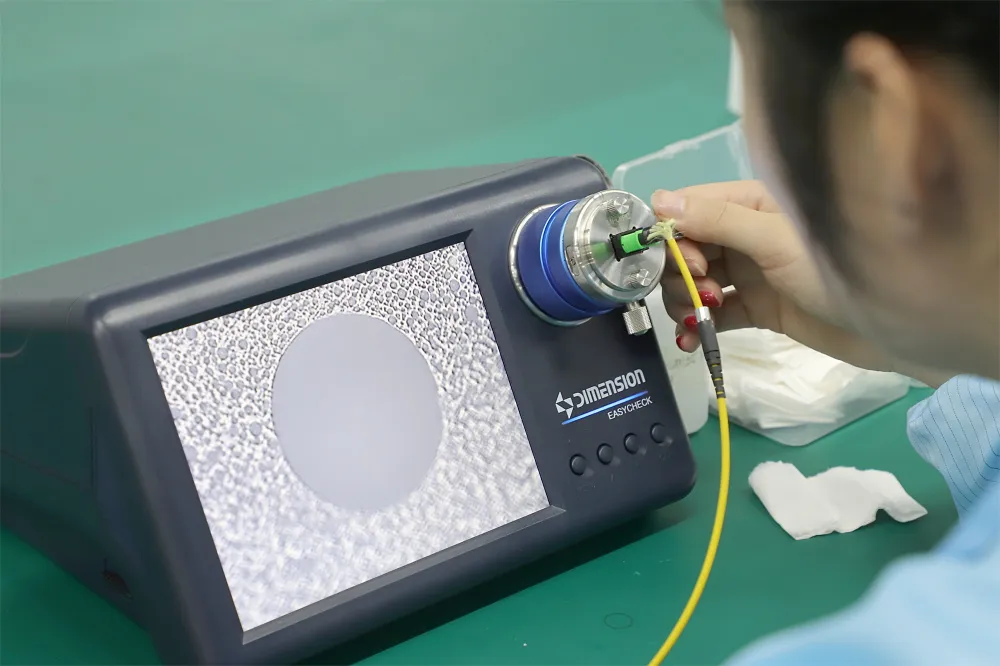

All patch cords undergo 100% testing, including 3D interferometer verification for the polishing process to ensure they exceed industry standards.
Can the cable jacket material be customized?
Yes, we offer PVC, LSZH, and Plenum-rated materials depending on your fire safety and installation requirements.
