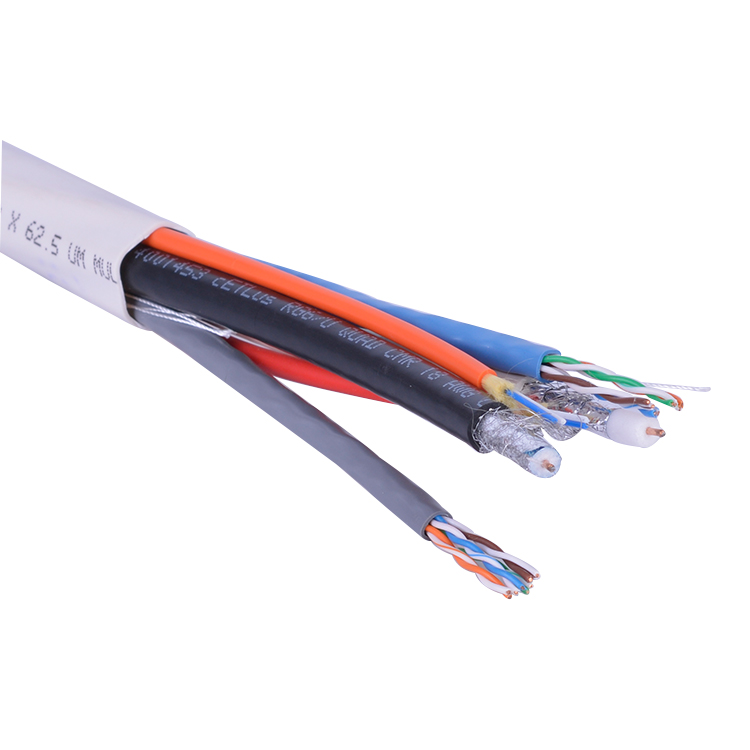

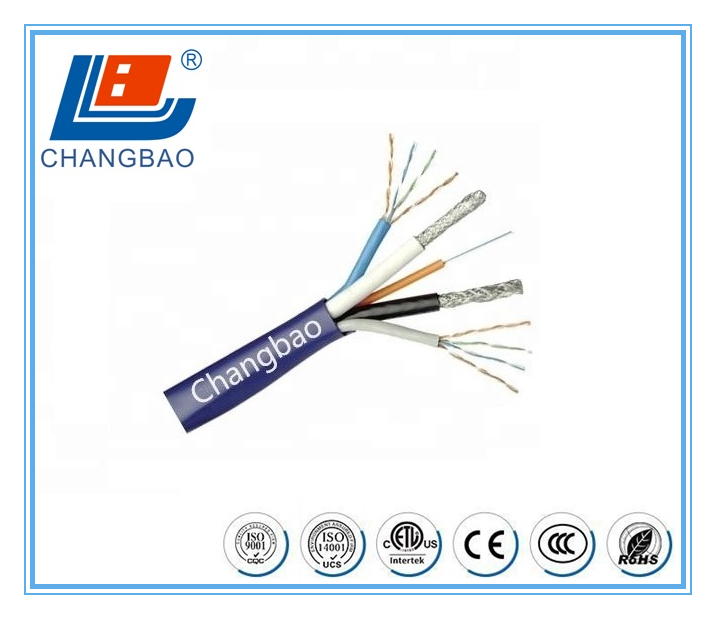

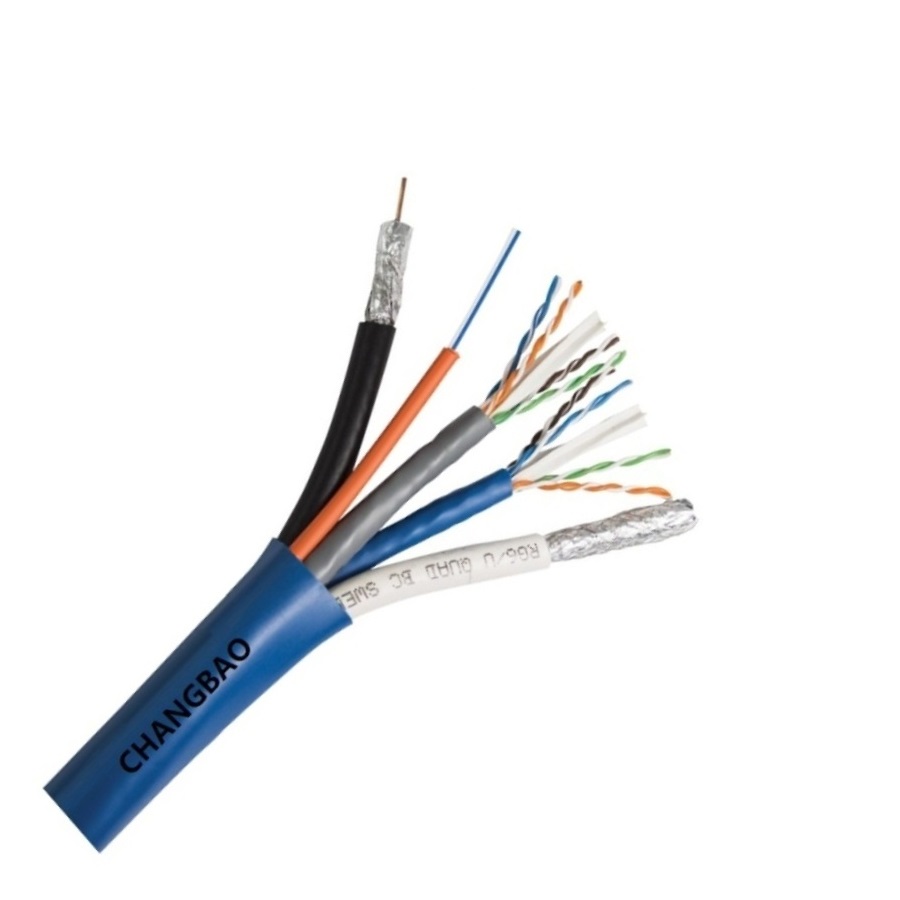

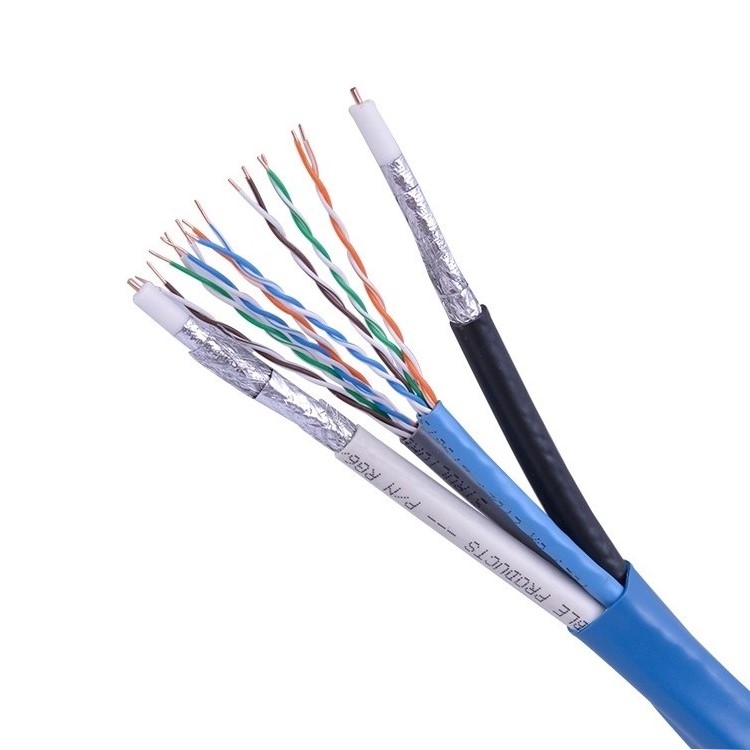

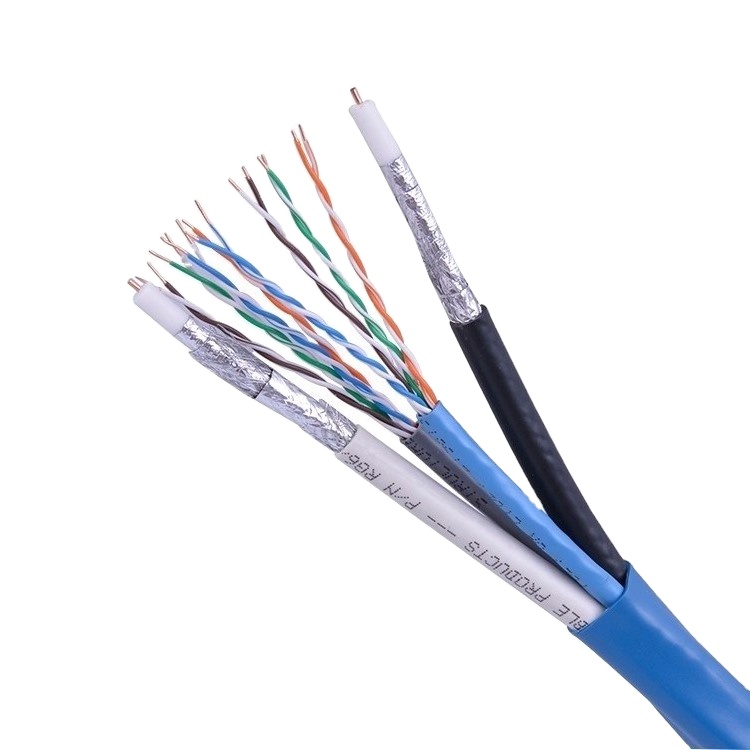

Fiber Optic Bundled Cable featuring 2 RG6 + 2 Cat5e + 2MMF Multi Mode Fiber Composite Hybrid Construction.
Structured Composite cables are designed to support multiple applications. This solution provides a wide combination of cables for CCTV, Data, Audio, Signals, and Power in one single cable, enabling significantly faster installations. Three types of structures are available: In one overall jacket, Siamese (bonded side by side), and Triamese (bonded side by side).

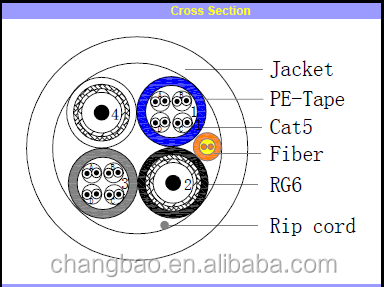

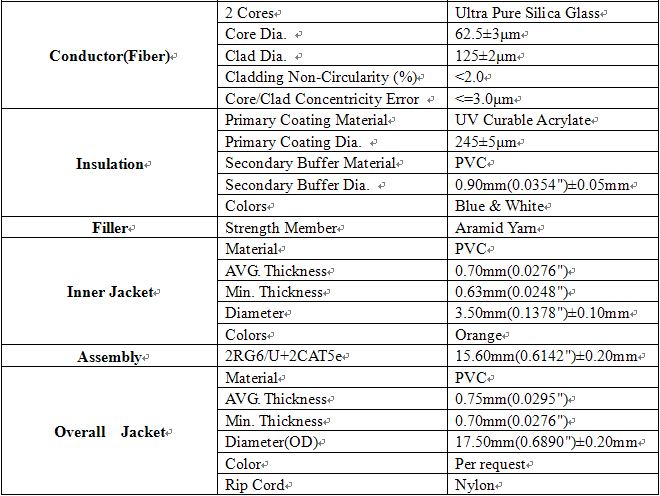

Configuration: 2 Cat5e Networking Cables + 2 RG6 Quad Shields CCTV Coaxial Cables + 2 Multi Mode Fiber Optic Cables HNC-3 Bundle Composite Hybrid Cables.
| Conductor (CAT5E) | Material | Solid BC |
| Size | 24AWG X 4P | |
| Construction | 0.50mm | |
| Insulation (CAT5E) | Material | HDPE |
| Min. Thickness | 0.188mm | |
| AVG. Thickness | 0.205mm | |
| Diameter | 0.91mm | |
| Colors | As required | |
| Inner Jacket (CAT5E) | Material | PVC |
| AVG. Thickness | 0.60mm | |
| Diameter | 5.10±0.10mm | |
| Rip Cord | Nylon | |
| Conductor (RG6) | Material | Solid BC |
| Size | 18AWG X 1C | |
| Construction | 1/1.02mm | |
| Insulation (RG6) | Material | FPE |
| Min. Thickness | 1.60mm | |
| Diameter | 4.60±0.10mm | |
| Colors | Natural | |
| Shield (RG6) | Bonded AL-Foil | Yes |
| Braiding-1 (AL Wire) | Coverage > 60% | |
| Double AL-Foil | Yes | |
| Braiding-2 (AL Wire) | Coverage > 40% |
