20 Years Fiber Optic Cable Manufacturer.
Welcome to visit our factory! Free samples are available upon request.
| Specification | Type | 2-96 Fibers | 98-288 Fibers |
|---|---|---|---|
| Max. Tension (N) | Short-term | 1500 | 3000 |
| Max. Tension (N) | Long-term | 600 | 1000 |
| Max. Crushing Resistance (N/100mm²) | 1000 | ||
| Temperature Range (°C) | -40°C to +70°C | ||
| Min. Bending Radius (mm) | Install | 20D | |
| Min. Bending Radius (mm) | Static | 10D | |
| Type | Wavelength | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|---|
| Attenuation (+20°C) | @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - | |
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | - | - | |
| Bandwidth (Class A) | @850nm | - | - | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | - | - | ≥1000 MHz·km | ≥600 MHz·km | |
| Numerical Aperture | - | - | 0.200±0.015NA | 0.275±0.015NA | |

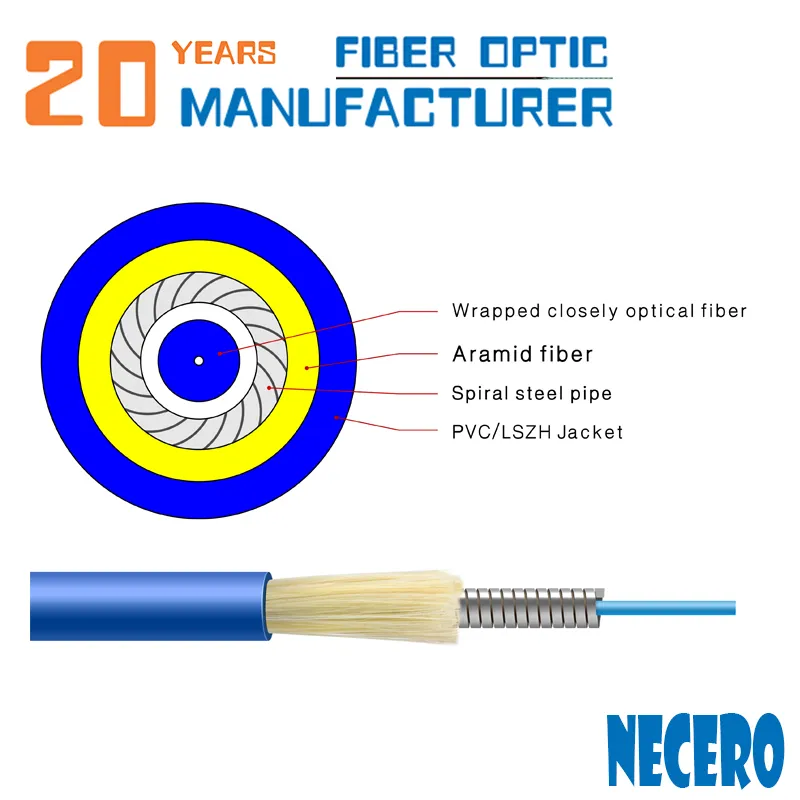

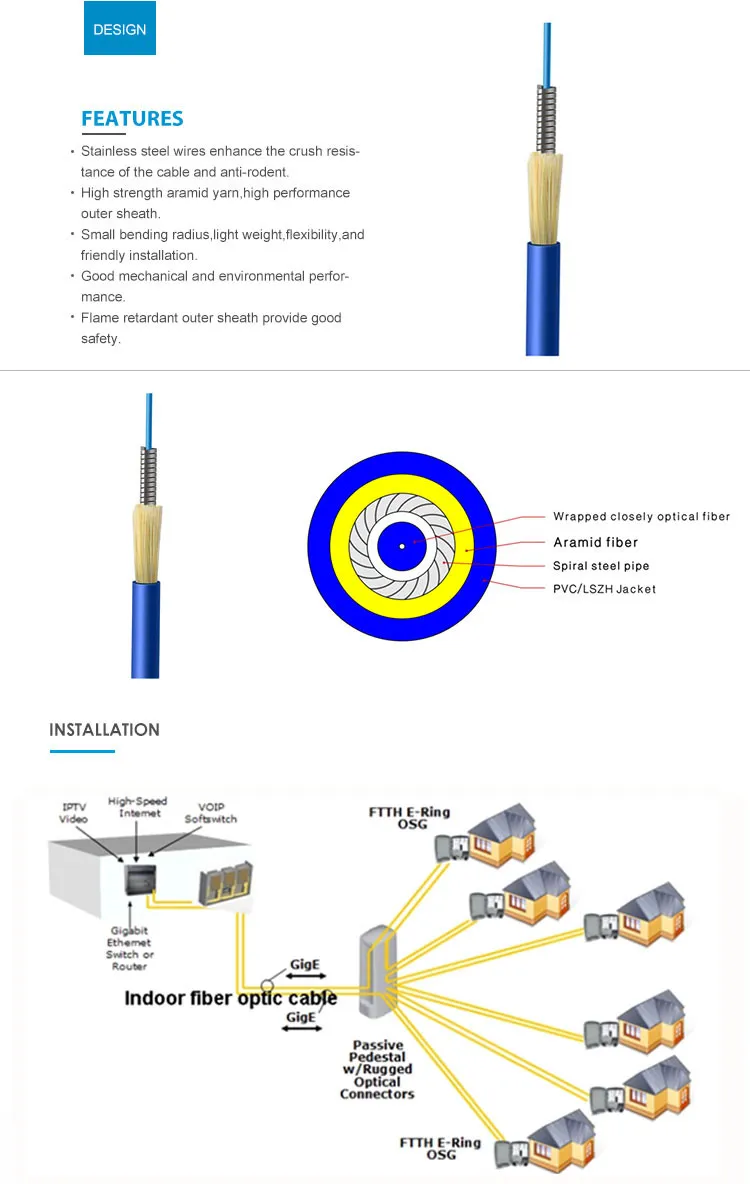

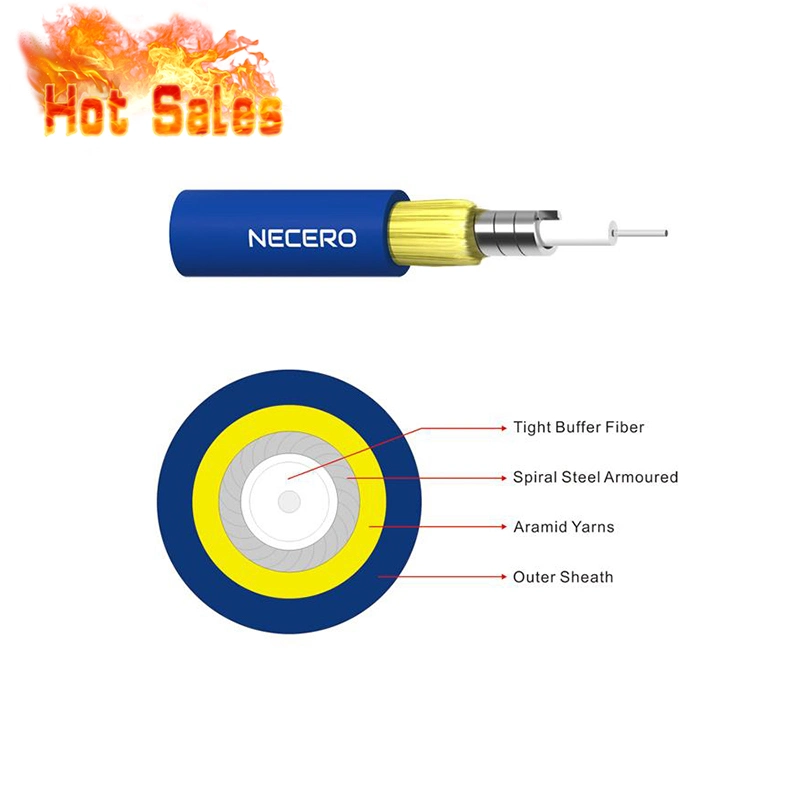

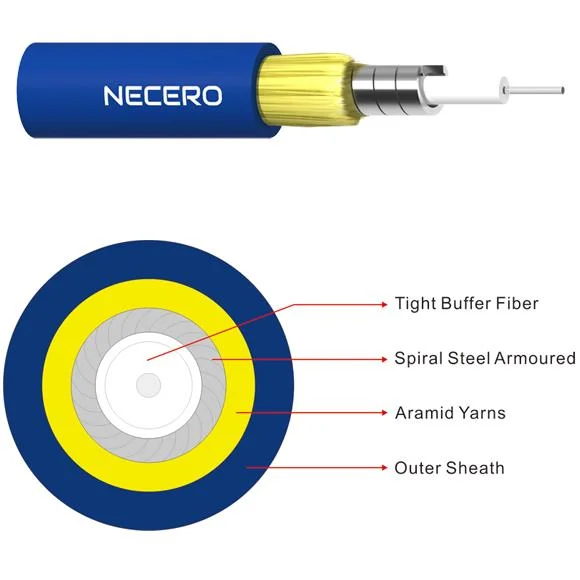

GJSFJV fiber cable, Φ900μm or Φ600μm tight buffer fibers are wrapped in a layer of flat stainless steel wires, followed by a layer of aramid yarn as a strength unit, and finished with a PVC or LSZH sheath.
