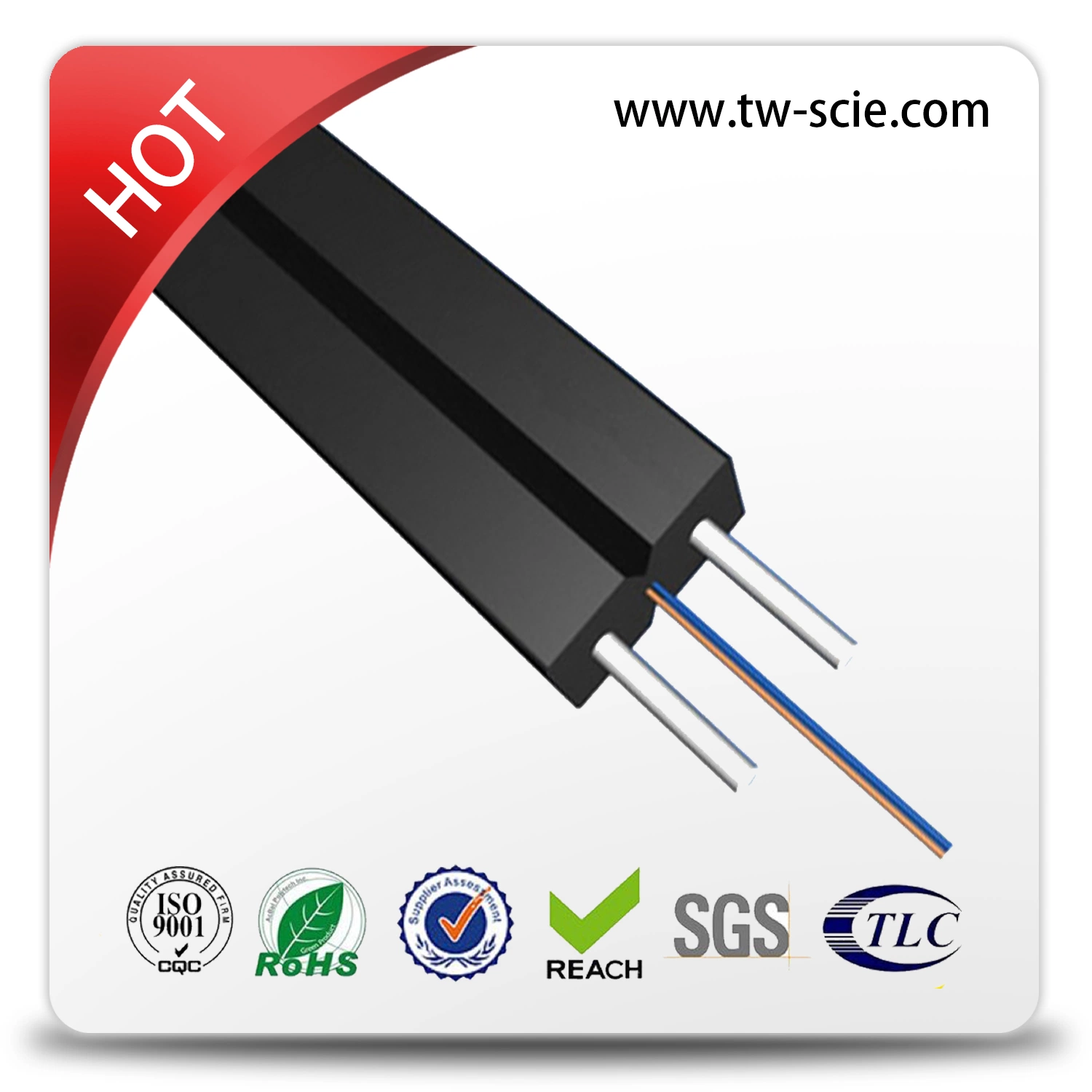

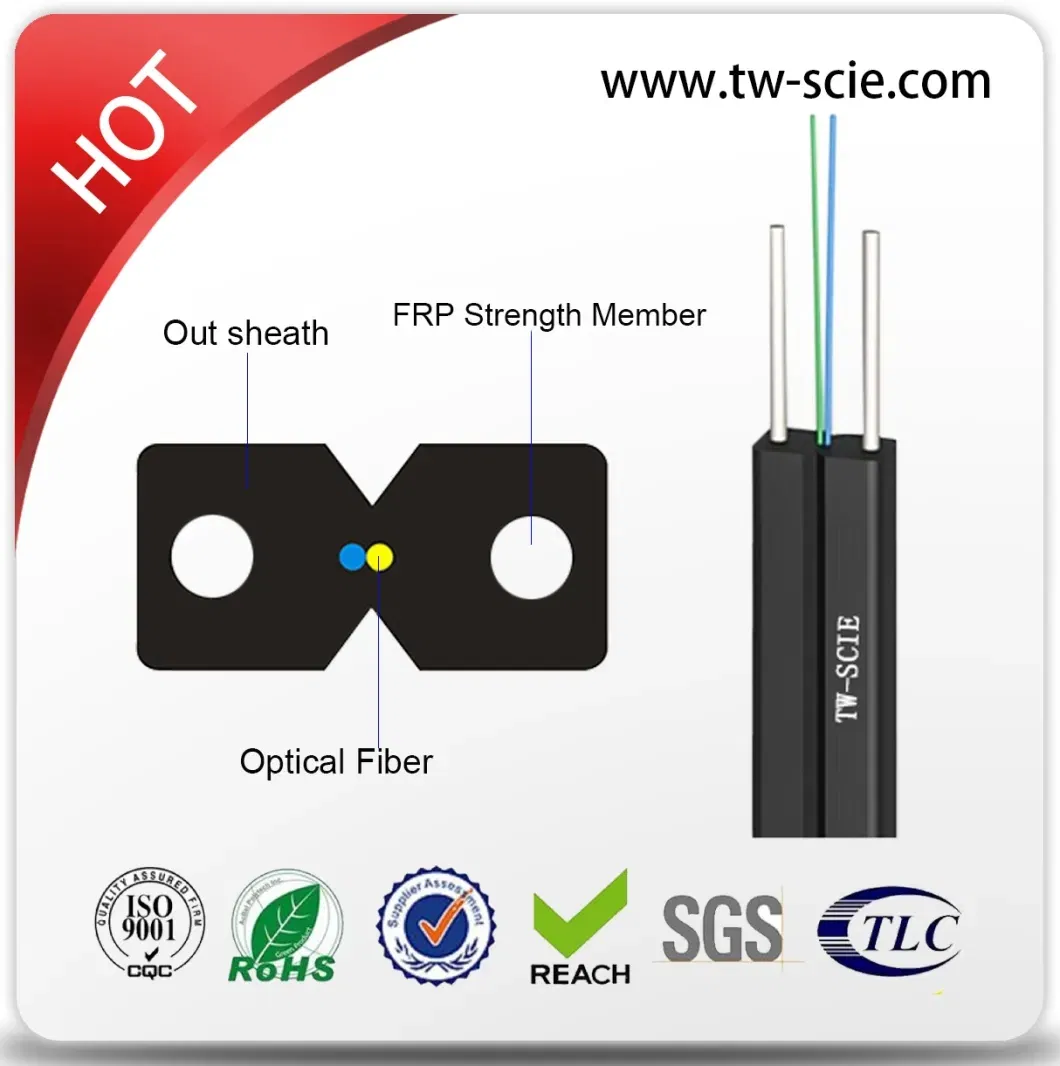

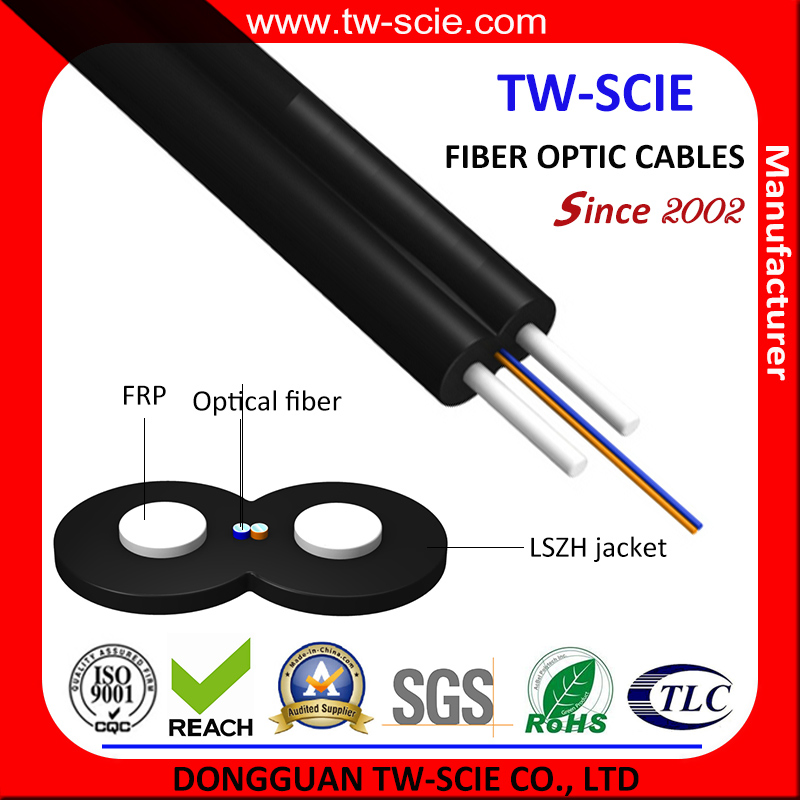

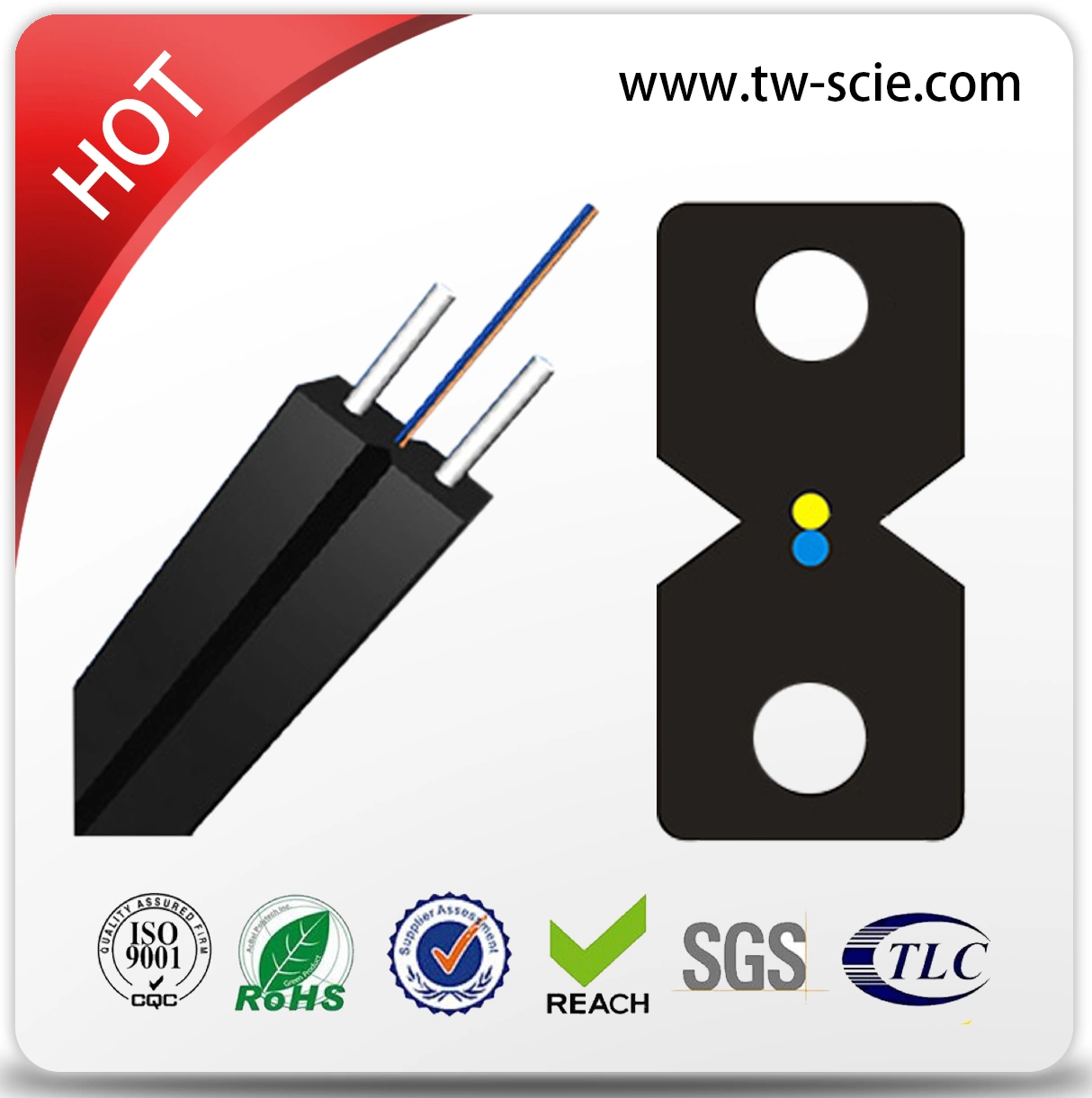

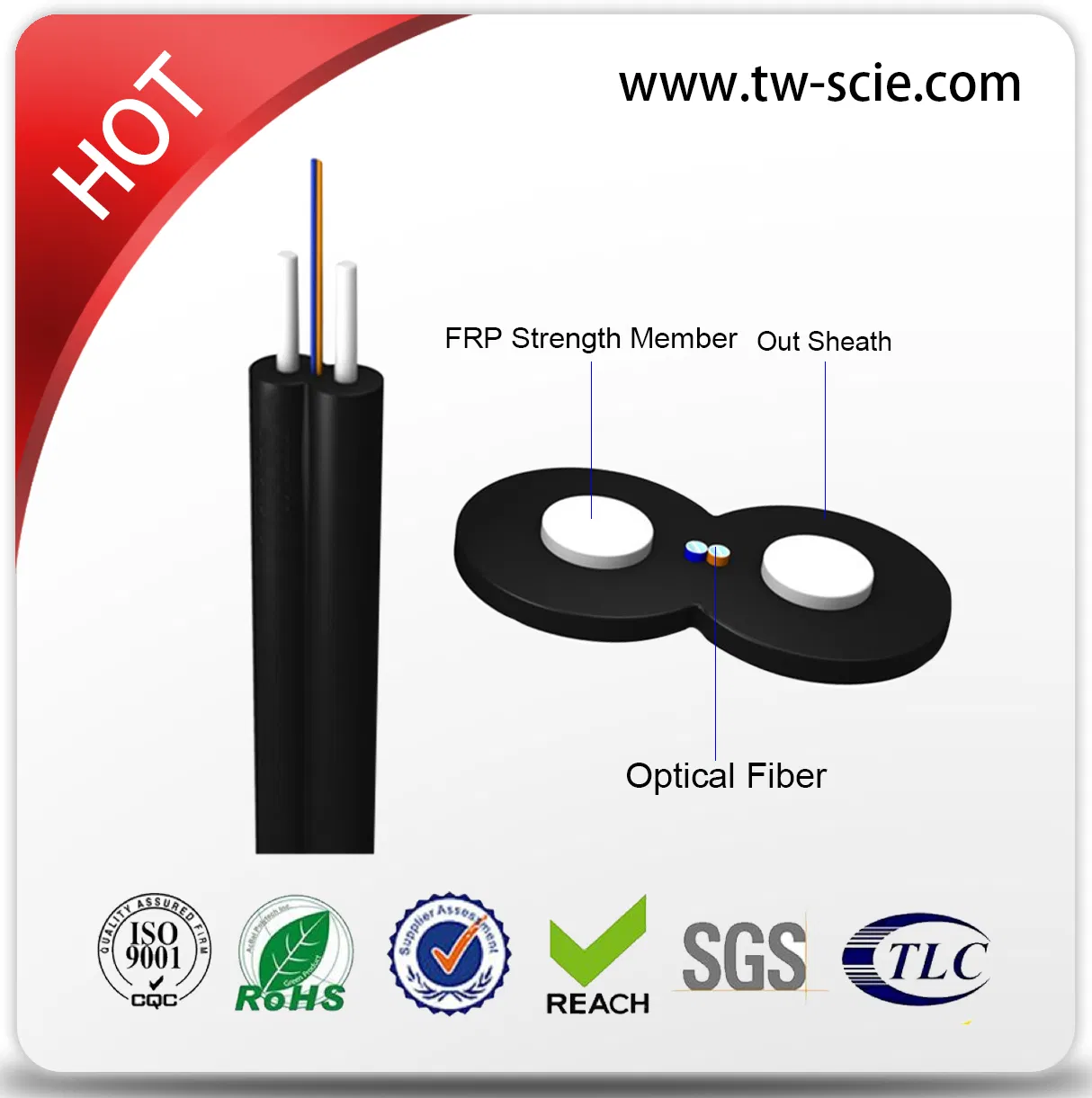

The FTTH drop cable is positioned in the centre. Two parallel fiber reinforced plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).
Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.
| Items | Specifications | ||
|---|---|---|---|
| Fiber Count | 2 | ||
| Colored Coating Fiber | Dimension | 250mm±15μm | |
| Color | Blue, Orange | ||
| Tight buffer | 0.9mm Tight buffer no jelly | ||
| Supporting messenger wire | Dimension | 0.33* 7 | |
| Material | Galvanized steel wire strands | ||
| Strength member | Dimension | 0.45mm±0.10 | |
| Material | FRP (or steel wire) | ||
| Outer Jacket | Material | PVC/LSZH | |
| Color | Black | ||
| Cable Diameter dimensions | 2.0(Height) × 5.3 W ± 0.1 mm(width) | ||
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm / 1550nm) | μm | 9.2±0.4 / 10.4±0.5 |
| 2 | Cladding Diameter | μm | 125±0.5 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) (1310nm / 1550nm) | dB/km | ≤0.36 / ≤0.22 |
| Items | Unit | Specifications |
|---|---|---|
| Tension (Long / Short Term) | N | 500 / 800 |
| Crush (Long / Short Term) | N/100mm | 1000 / 2200 |
| Min. Bend Radius (Dynamic / Static) | mm | 20D / 10D |
| Installation Temperature | ºC | -0ºC to +60ºC |
| Operating Temperature | ºC | -20ºC to +70ºC |
| Storage Temperature | ºC | -20ºC to +70ºC |
Standard Packaging: The FTTH drop cable is rolled by Plastic Reel or wooden drum. Standard 1KM/drum or as per requirement.
Sheath Marking: White hot foil indentation applied at 1-meter intervals including: Product Type, Fiber Type, Fiber Count, Year of manufacture, and Length marking.
Shipping: Professional logistics handling ensures global delivery via experienced shipping agents.
