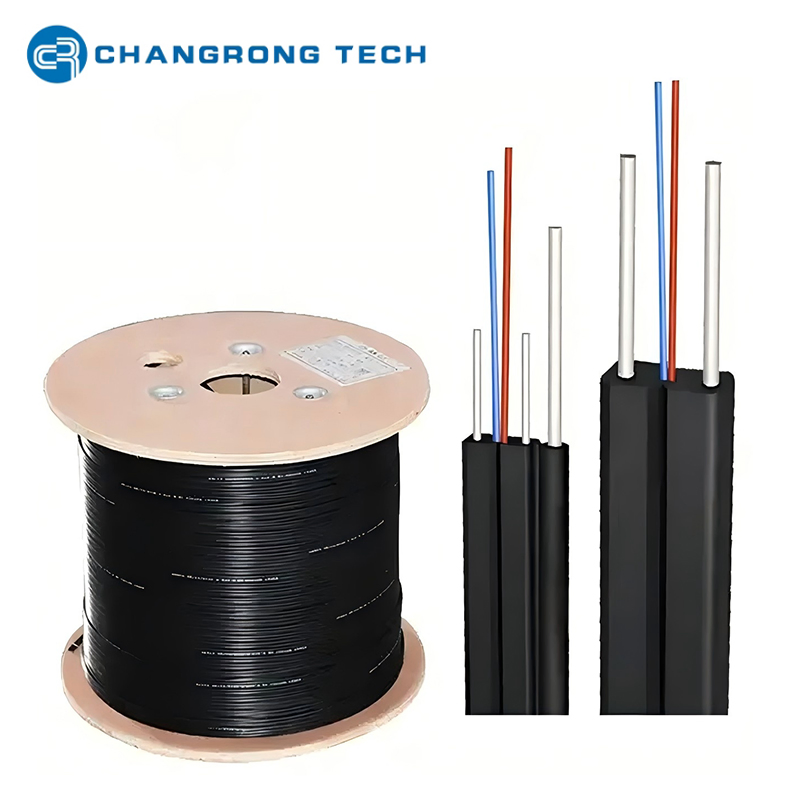

2cores G657A2 1km/Roll Outdoor/Indoor Flat LSZH FTTH Drop Fiber Optic Cable

1 / 5

2cores G657A2 1km/Roll Outdoor/Indoor Flat LSZH FTTH Drop Fiber Optic Cable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GJYXFCH

Material Shape

Flat Wire

Allowed Tensile

100N<1000N

Core Counts

1, 2, 4, 6 Cores

Certification

RoHS, ISO9001

Sheath Material

LSZH

Fiber Type

G657A1, G657A2

Cable Size

2.0*5.0mm

Product Description

Self-supporting FTTH Drop Cable Single Mode G657A1/A2

GJYXFCH/ GJYXCH is a high-performance Aerial Self-supporting Indoor/Outdoor FTTH Drop Fiber Optic Cable designed for modern network transmissions.

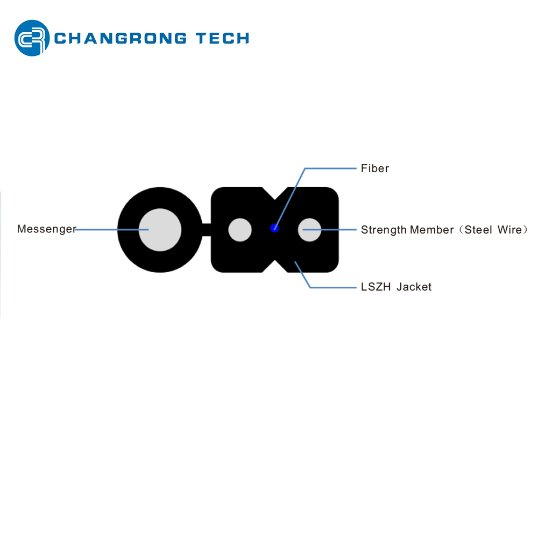

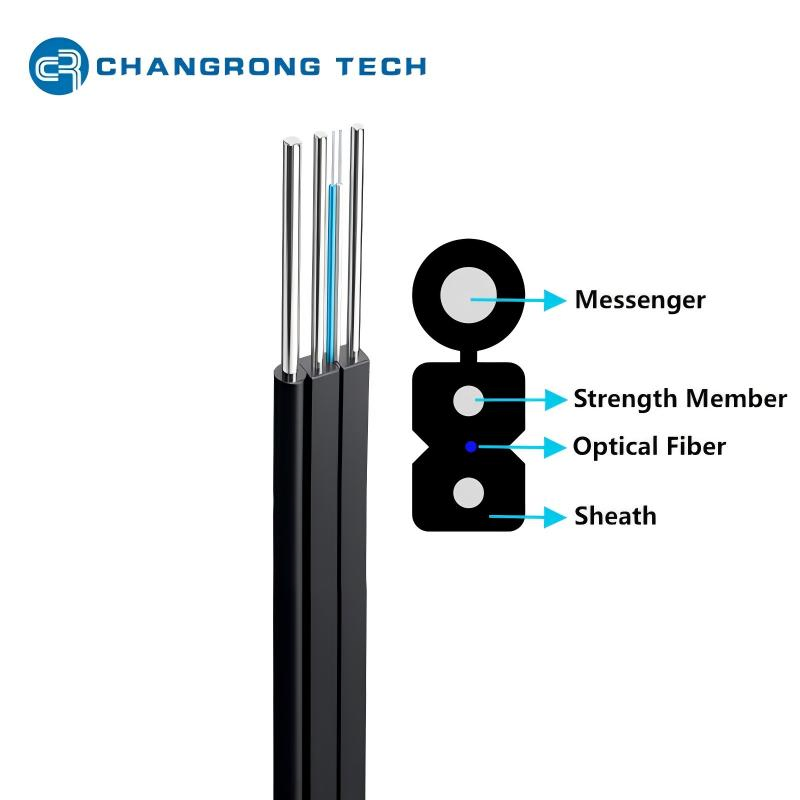

Structure Features:

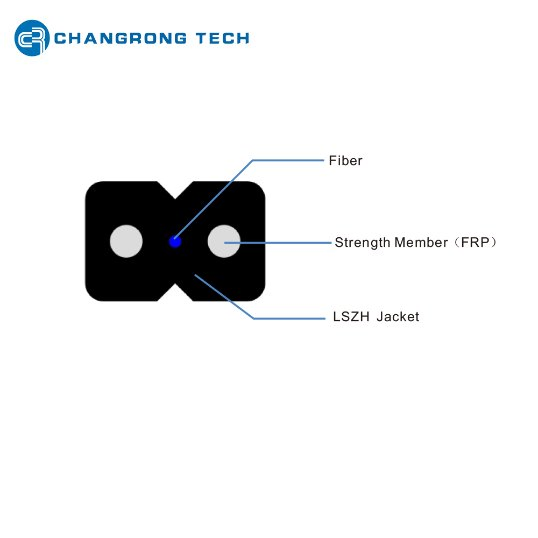

Central optical fiber(s) with 2 parallel strength members (Steel wire or FRP) on both sides.
Additional messenger strength member (steel wire or FRP) for aerial support.

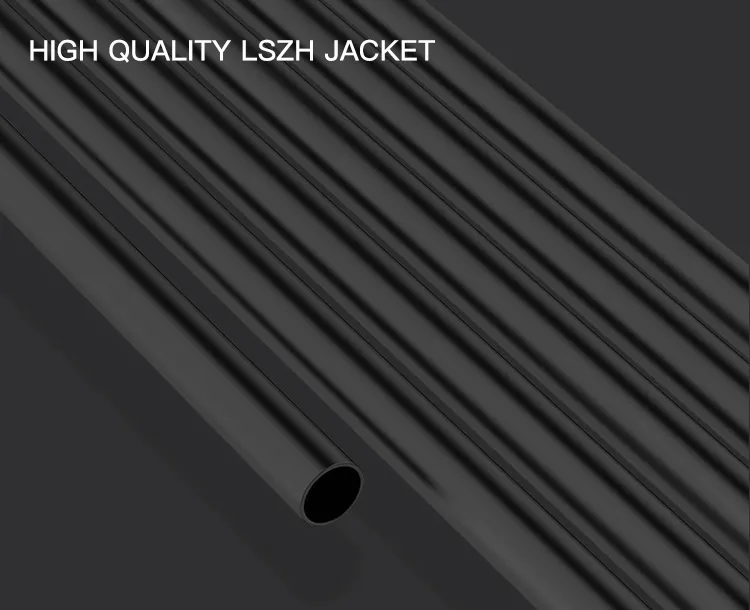

High-quality LSZH (Low Smoke Zero Halogen) outer jacket for environmental safety.

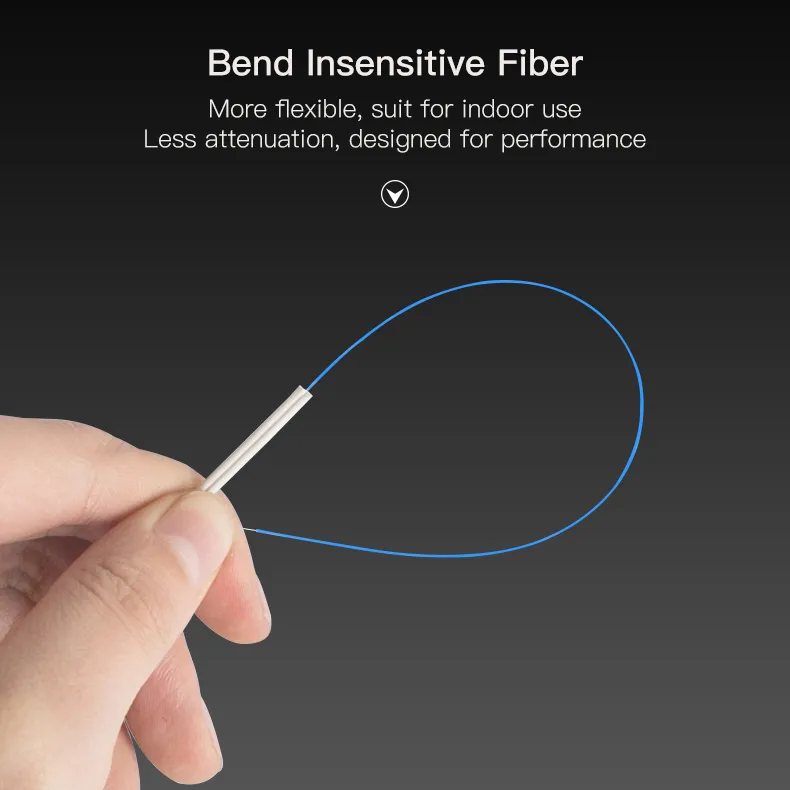

Special bending-insensitive fiber for high bandwidth and excellent communication transmission.
Lightweight and small diameter for high practicability.
Grooved design for easy stripping and splicing, simplifying installation and maintenance.

Model Options:

Model GJYXFCH (FRP Strength Member):

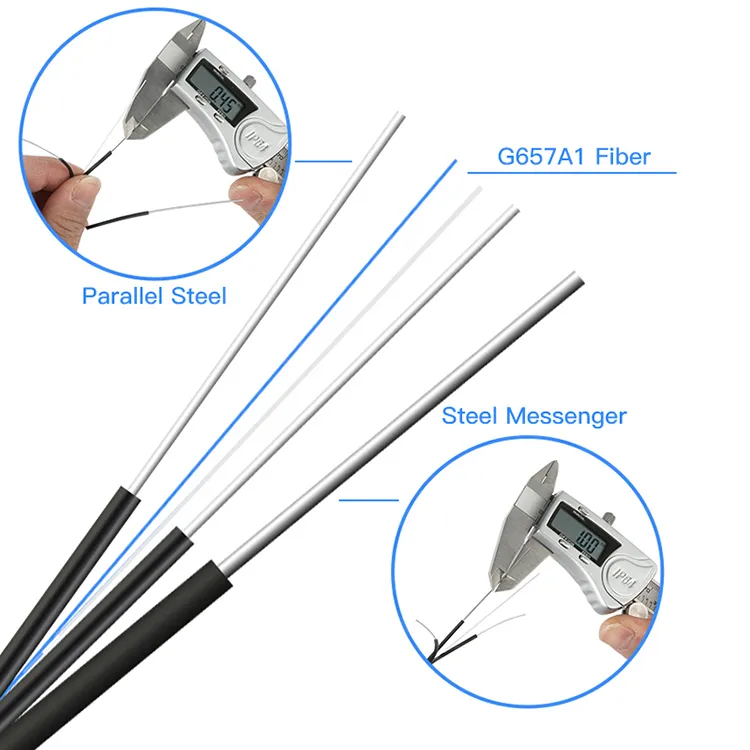

- 1.0mm steel wire messenger + 0.5mm *2 FRP (1 Steel+2 FRP)

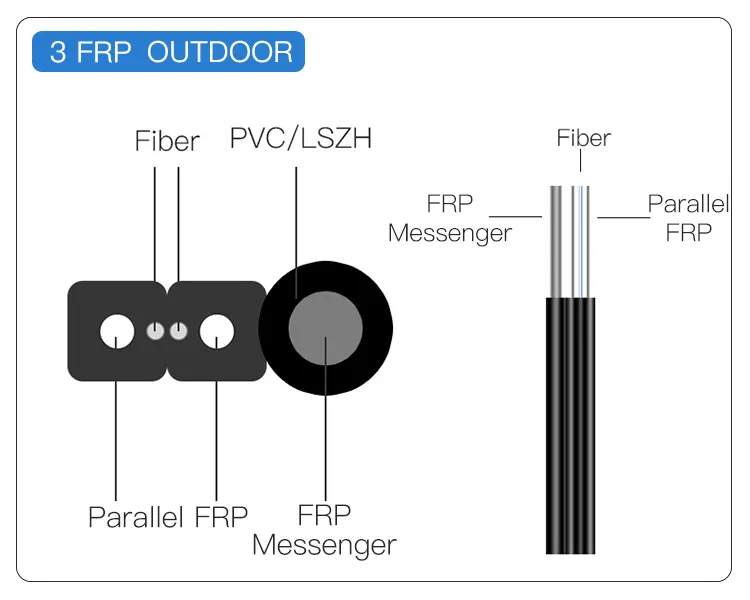

- 1.0mm FRP messenger + 0.5mm *2 FRP (3 FRP)

Model GJYXCH (Steel Wire Strength Member):
- 1.0mm steel wire messenger + 0.4mm/0.45mm *2 Steel Wire (3 Steel)
- 1.0mm FRP messenger + 0.4mm/0.45mm *2 Steel Wire (1 FRP+ 2 Steel Wire)

Product Parameters

Item	Specifications
Fiber Counts	1-4 Cores
Cable Diameter (mm)	2.0 * 5.0
Cable Weight (Kg/km)	18
Fiber Type	G657 Series
Tensile Strength (N)	Long Term: 300 / Short Term: 600
Crush Resistance (N/100mm)	Long Term: 1000 / Short Term: 2200
Bending Radius (mm)	Static: 20D / Dynamic: 40D
Operating Temperature	-20ºC ~ +70ºC

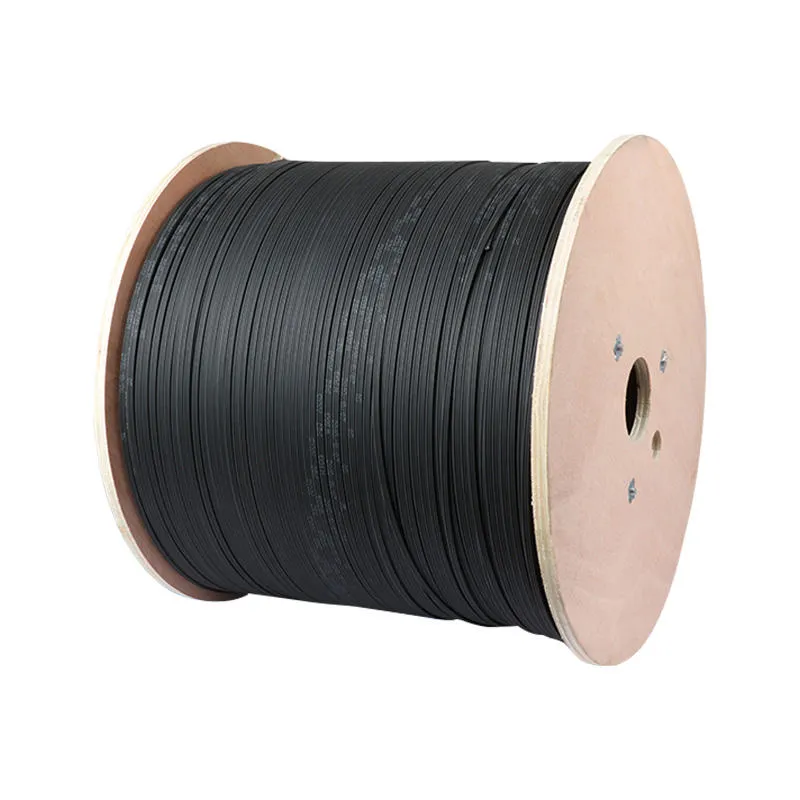

Packaging & Shipping

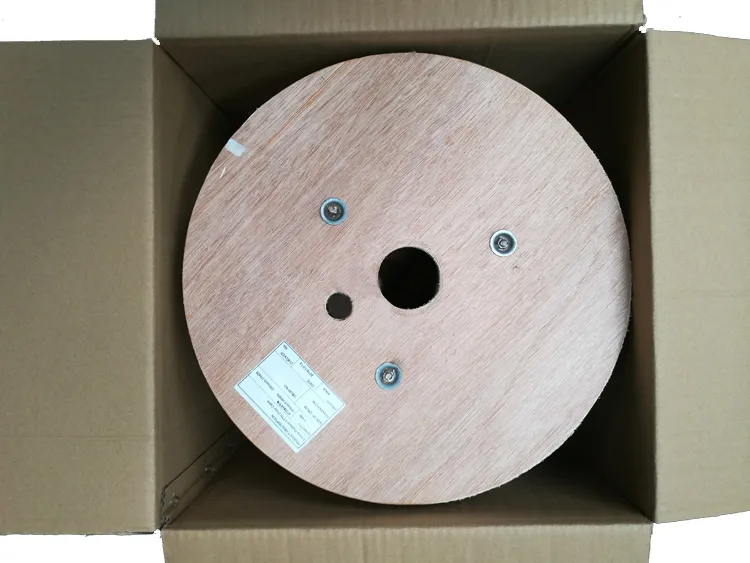

Standard delivery uses Plywood Drums to ensure the safety of the optical fibers during long-distance transportation.

Package Size

32.00cm * 32.00cm * 26.00cm

Gross Weight

21.000kg per drum

Length

1km or 2km per roll

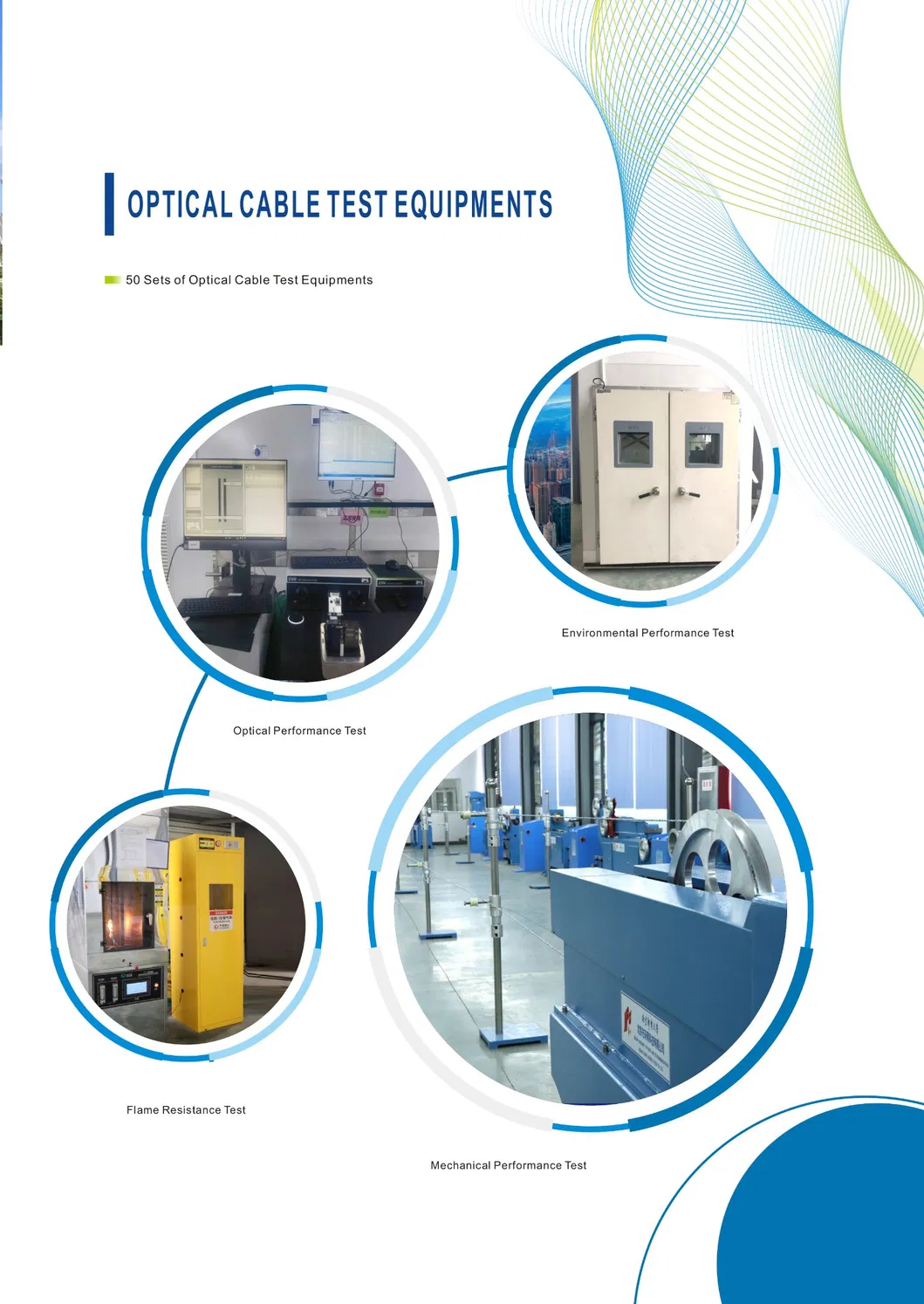

Quality Assurance & Advantages

Frequently Asked Questions

What is the difference between GJYXFCH and GJYXCH models?

GJYXFCH uses FRP (Fiber Reinforced Plastic) as the internal strength members, which is non-metallic and ideal for areas prone to lightning. GJYXCH uses steel wire strength members for higher physical durability.

Why is G657A1/A2 fiber used in FTTH drop cables?

G657 series fibers are bending-insensitive, meaning they can be installed around tight corners in homes or buildings without significant signal loss, making them perfect for FTTH applications.

Is the LSZH jacket mandatory?

LSZH (Low Smoke Zero Halogen) is highly recommended for indoor use as it does not emit toxic fumes when exposed to heat, ensuring better safety for occupants in case of fire.

Can this cable be used for outdoor aerial installation?

Yes, these are self-supporting aerial cables with a dedicated messenger wire (steel or FRP) that allows them to be strung between poles or from a pole to a house.

What are the standard packaging lengths?

The standard lengths are 1km or 2km per plywood drum, which helps in efficient inventory management and reduces splicing needs during long runs.

What is the tensile strength of this cable?

The cable is rated for a short-term tensile strength of 600N and a long-term strength of 300N, ensuring it can withstand typical environmental stresses in aerial deployments.
