Great Quality Steel Tape 48 Core GYTS Steel Tape Armored Outdoor Fiber Optic Cable
Products Description
Fiber Number: 4-288 CORES
Type: Armored Fiber Optic Cable (Single Mode/Multi Mode)
Jacket Sheath: HDPE/LSZH
Armor: PSP (Steel Tape)
Package: 1/2/3/4/5KM per Drum

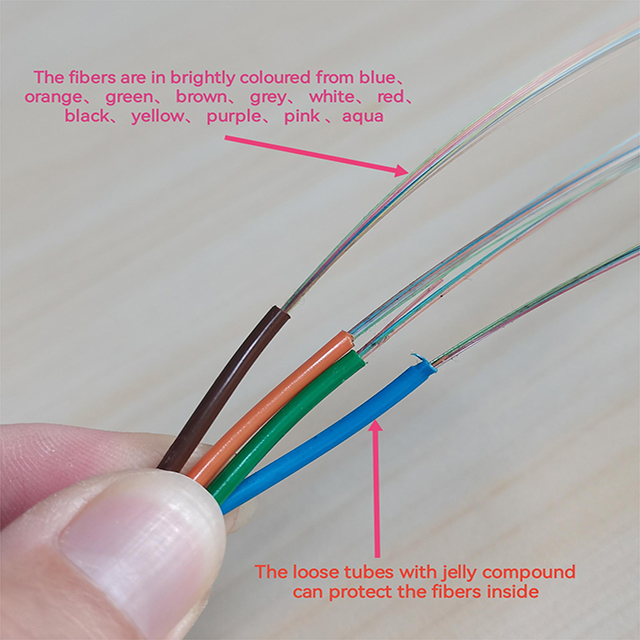

Optical Fiber Color Code
| No. |
1 |
2 |
3 |
4 |
5 |
6 |
| Color |
Blue |
Orange |
Green |
Brown |
Slate |
White |
| No. |
7 |
8 |
9 |
10 |
11 |
12 |
| Color |
Red |
Black |
Yellow |
Purple |
Pink |
Aqua |
Technical Performance (G652D)
| Item |
Unit |
Specification |
| Mode field diameter (1310nm) |
μm |
9.2±0.4 |
| Mode field diameter (1550nm) |
μm |
10.4±0.8 |
| Cladding diameter |
μm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
μm |
≤0.5 |
| Coating diameter |
μm |
245±7 |
| Cable cut-off wavelength |
μm |
≤1260 |
| Attenuation (1310nm) |
dB/KM |
≤0.36 |
| Attenuation (1550nm) |
dB/KM |
≤0.22 |
* Note: Other parameters meet standard ITU-T G.652

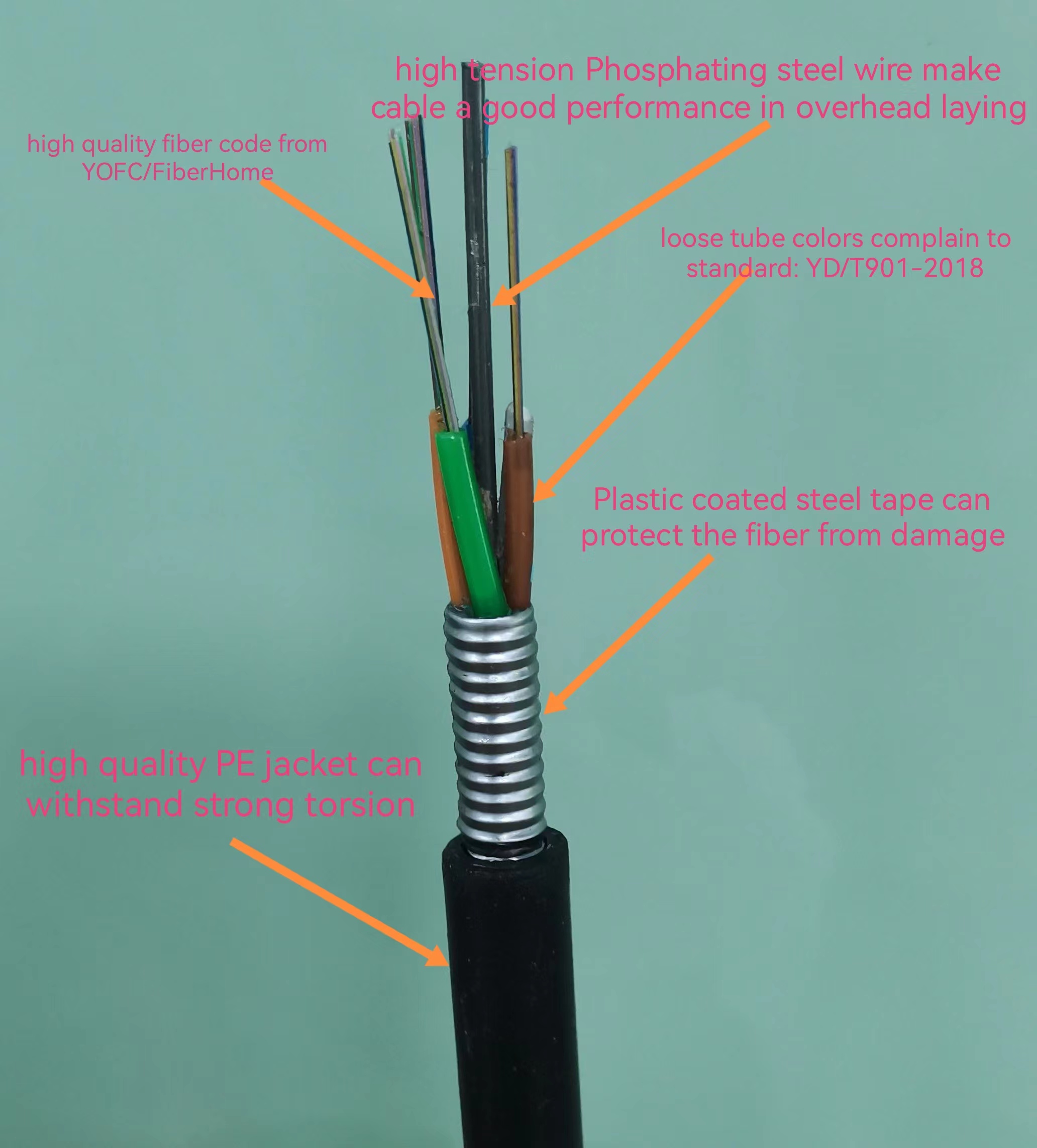

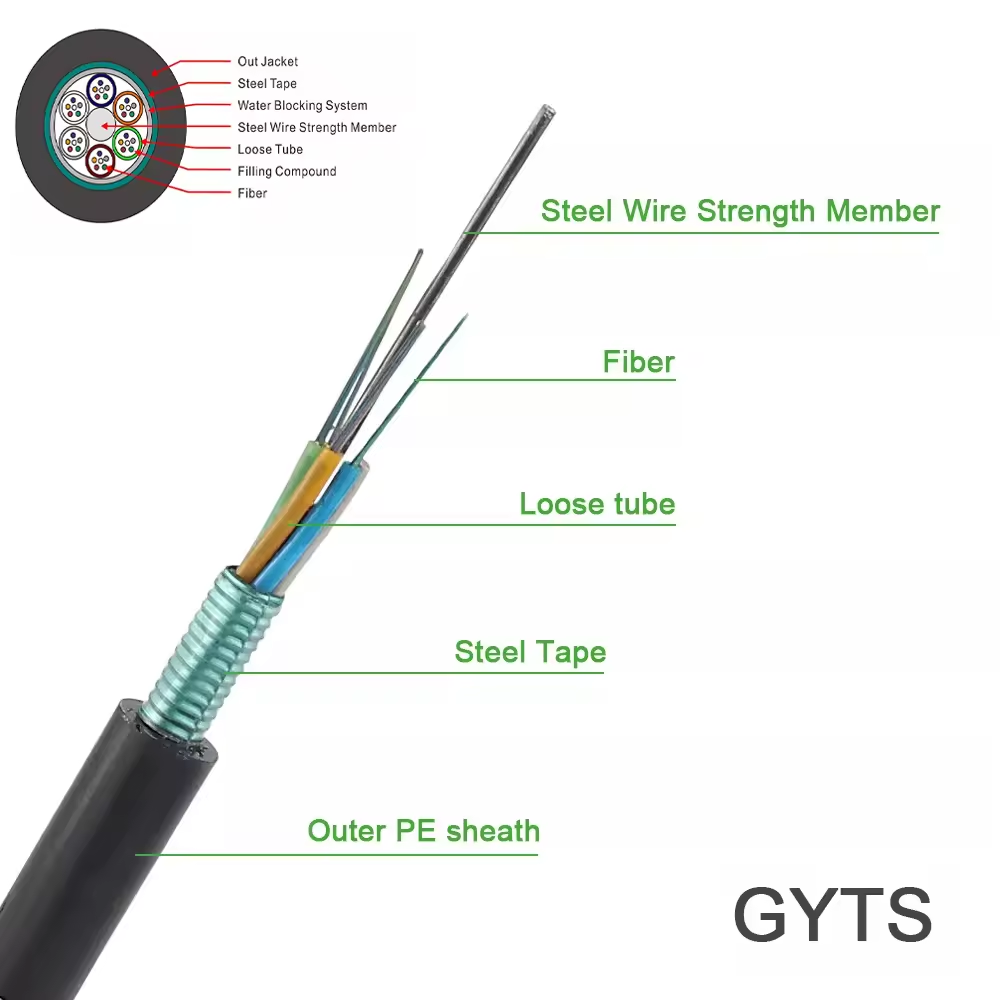

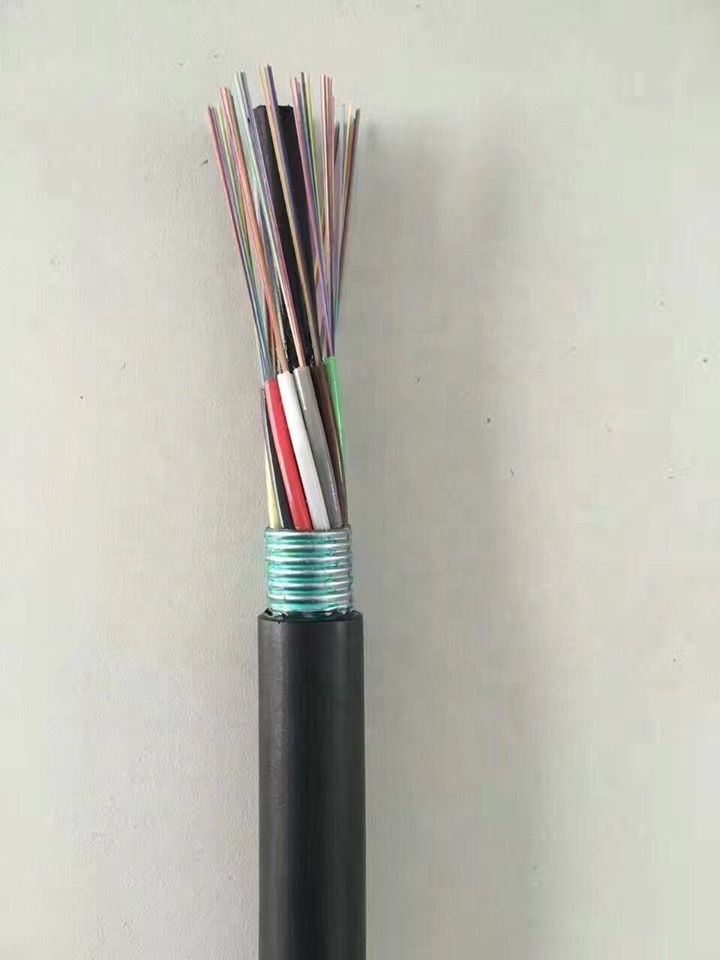

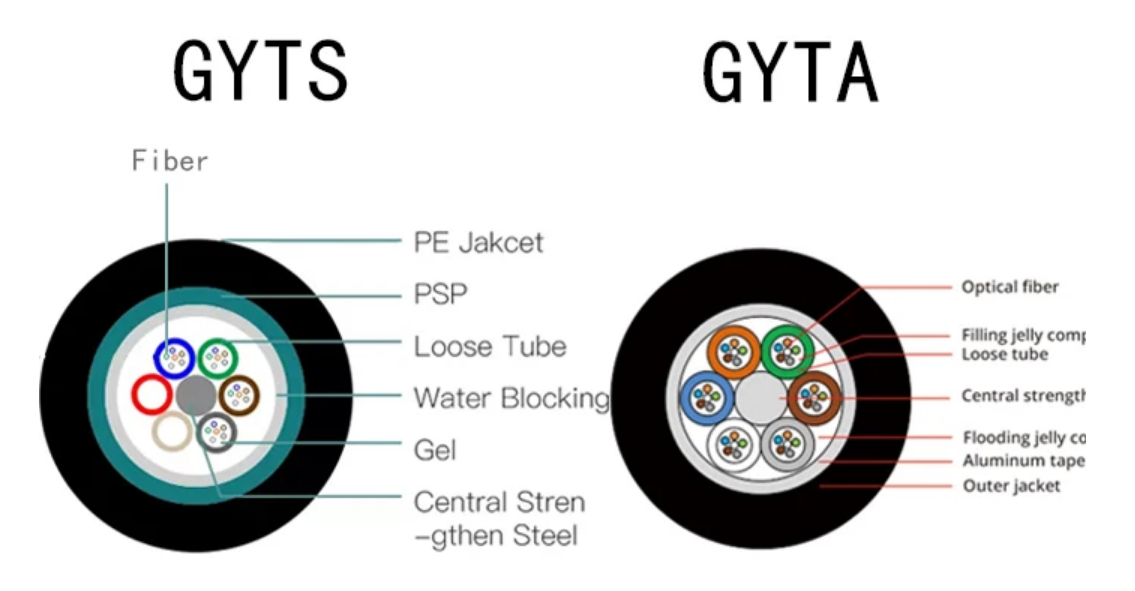

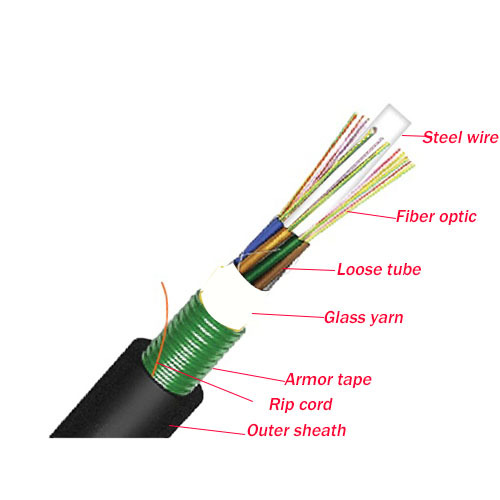

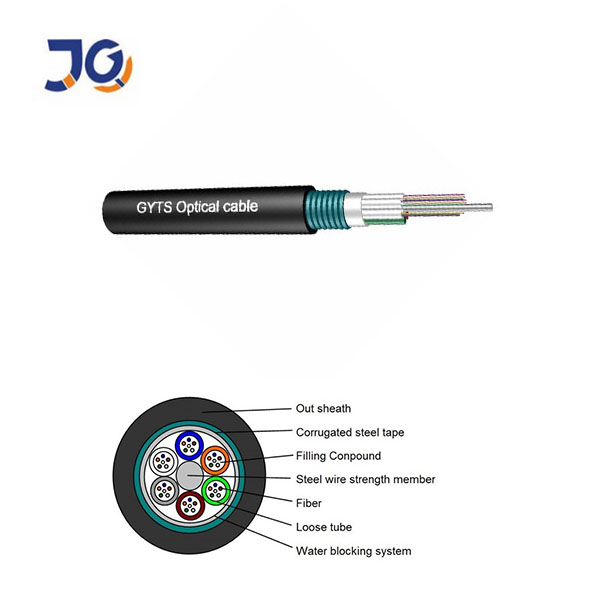

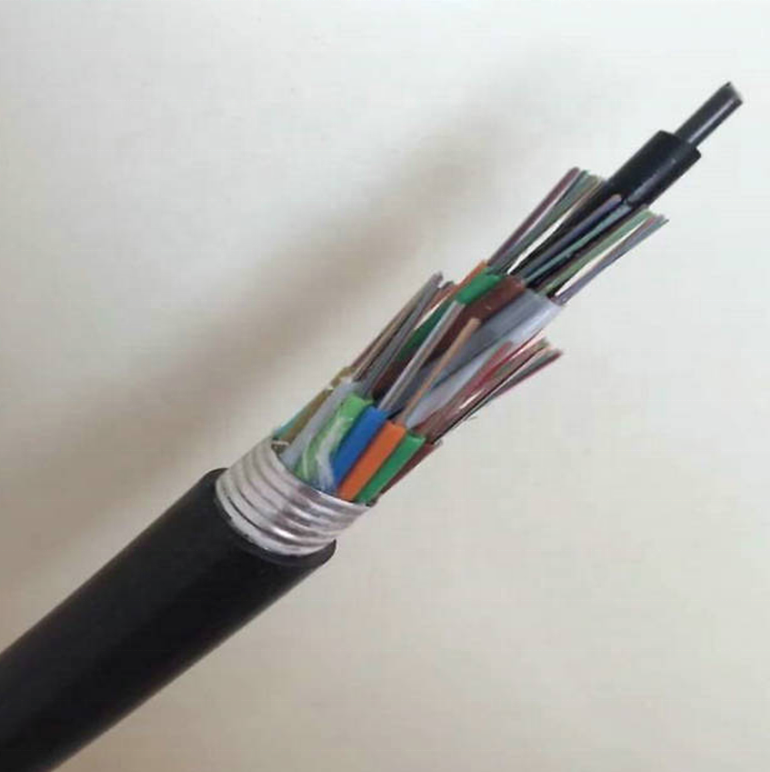

Cable Construction Details
| Jacket Thickness | 1.8 ±0.2mm |
| Strength Member | Steel Wire (2.0mm) |
| Fiber Count | 4~288 Cores |
| Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| Jacket Material | HDPE/PE/LSZH |
| Loose Tube | PBT (2.0±0.1mm) |
| Armored | Phosphating Steel Tape |
| Cable Diameter | 9.0±0.2mm |

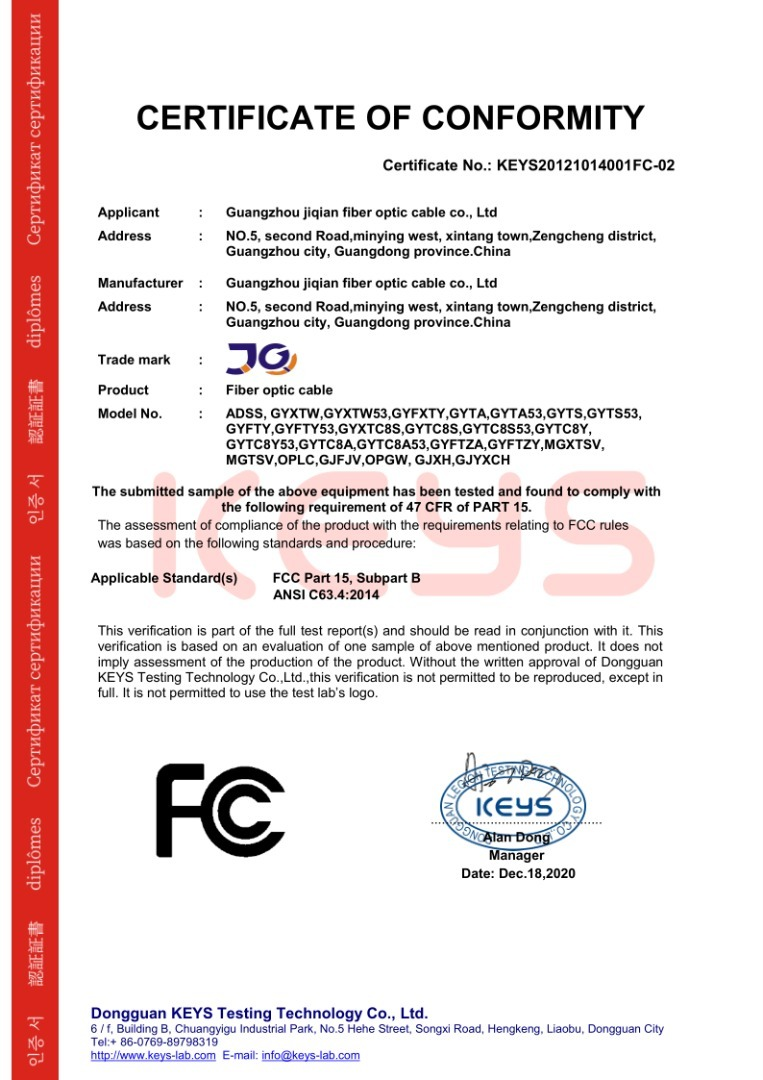

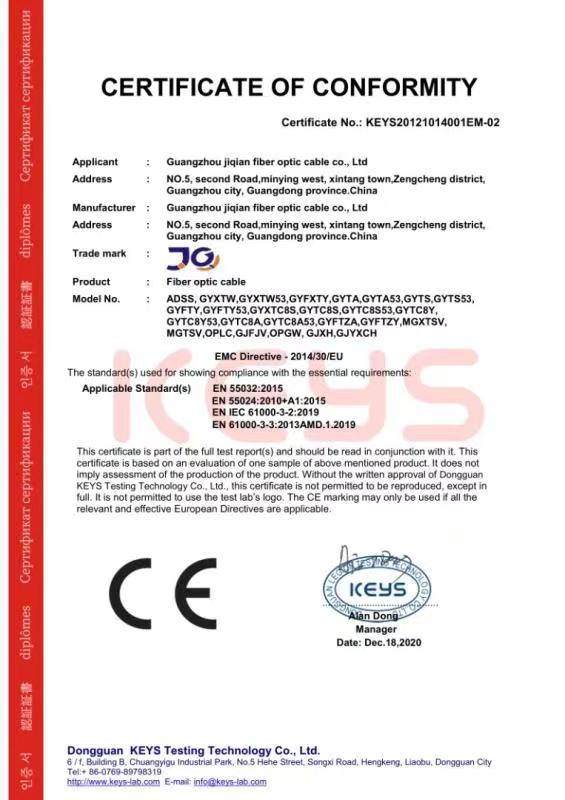

| Certification | CE/ROHS/ISO9001 |
Mechanical & Environmental Characteristics
| Item |
Unit |
Specification |
| Tension (Short term) | N | 2700 |
| Crash (Long time) | N/10cm | 1000 |
| Crash (Short time) | N/10cm | 2000 |
| Min. Bend Radius (Dynamic) | MM | 20D |
| Min. Bend Radius (Static) | MM | 10D |
| Operating Temperature | °C | -40 ~ +60° C |

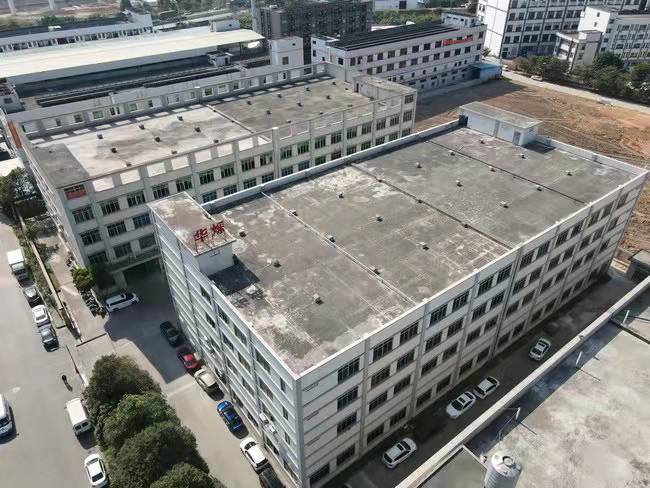

Manufacturing Excellence

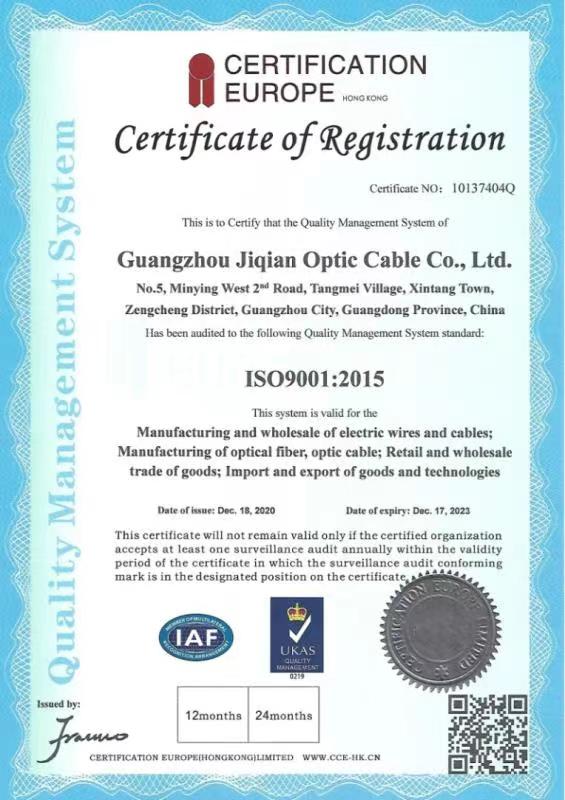

Our facility is a high-tech center integrating manufacturing and trade, covering 5000 square meters. Equipped with advanced optical fiber production and testing equipment, we maintain a complete quality control system including R&D, production, quality inspection, and logistics. Our operations are ISO 9001:2000 certified, ensuring reliable quality for customers worldwide.

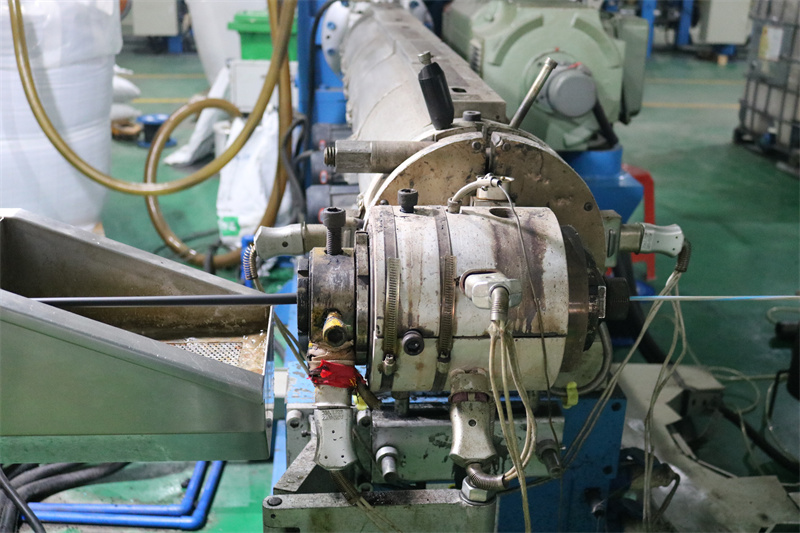

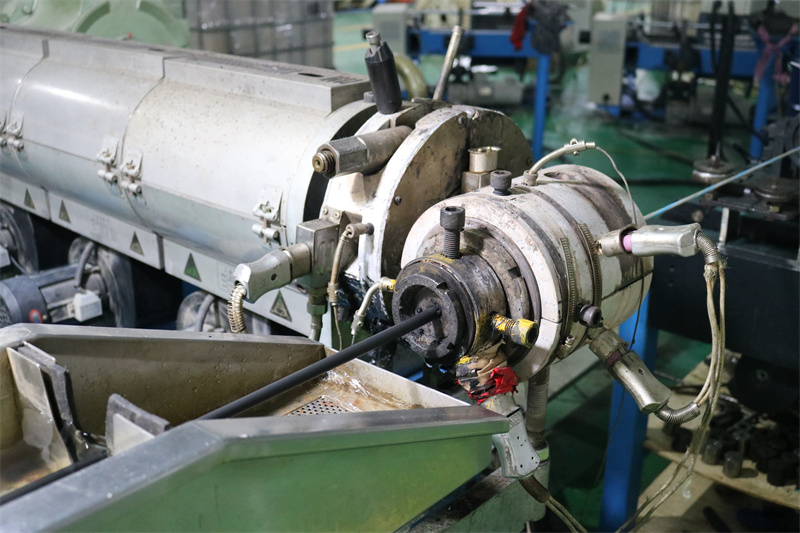

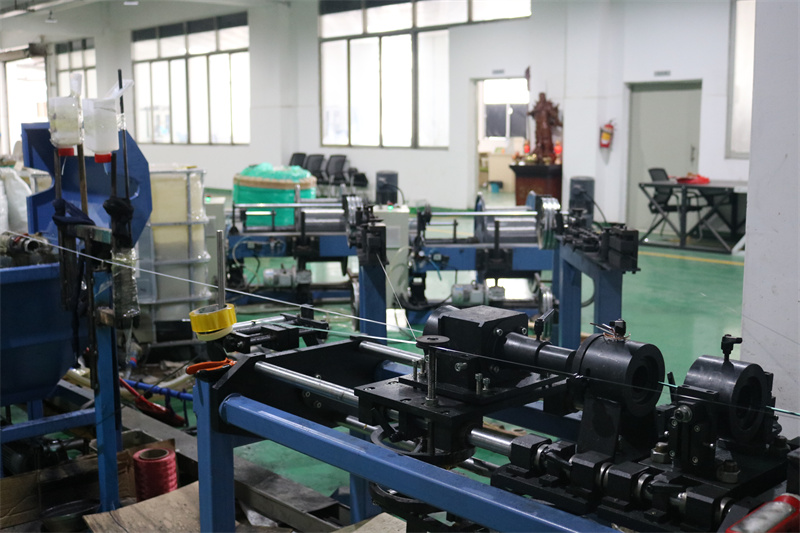

Production Process

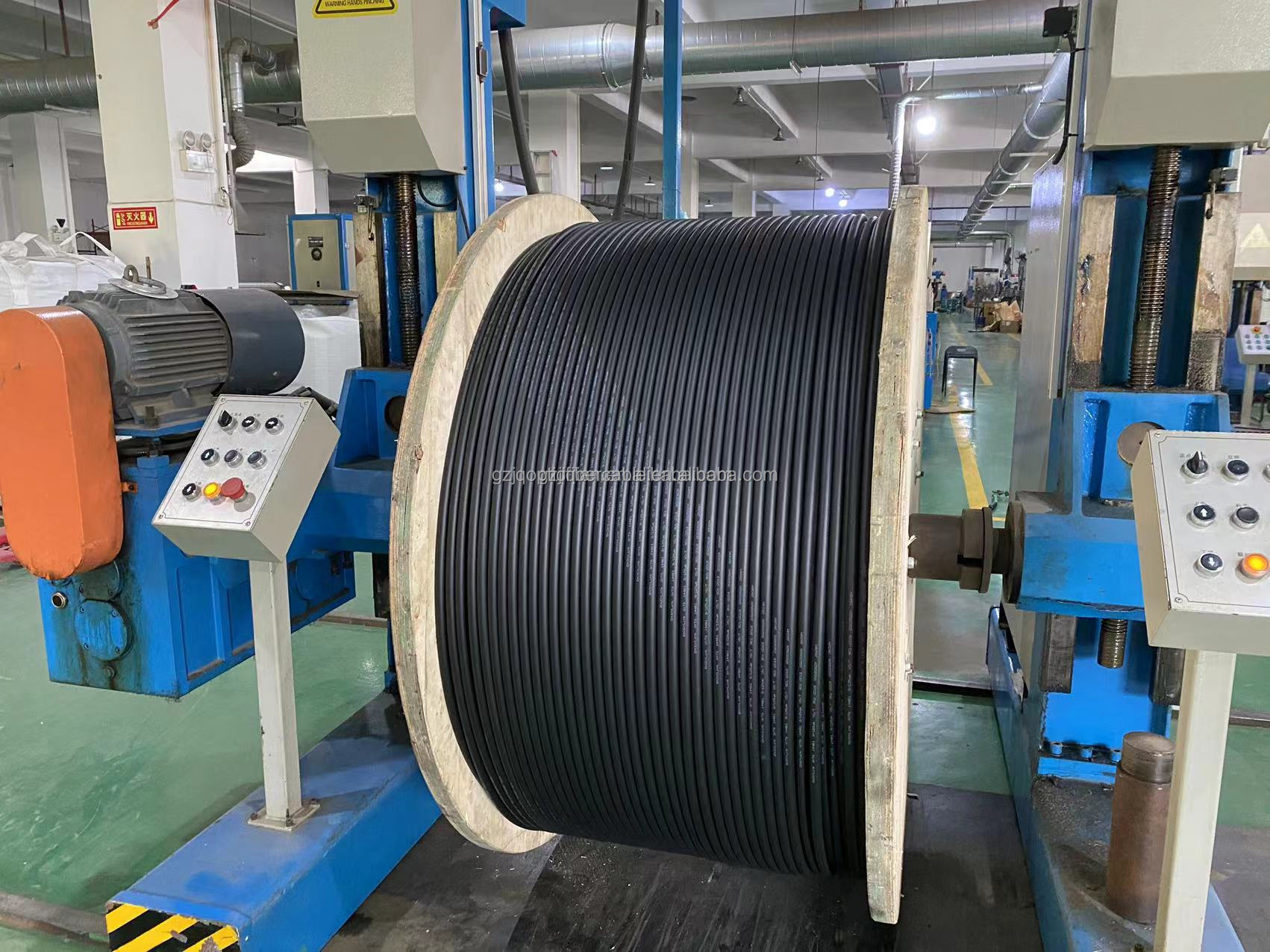

Packaging & Delivery
Delivery Options:
- Large orders: By sea (LCL or FCL)
- Small orders: By sea, air, or express courier (DHL, UPS, TNT, etc.)

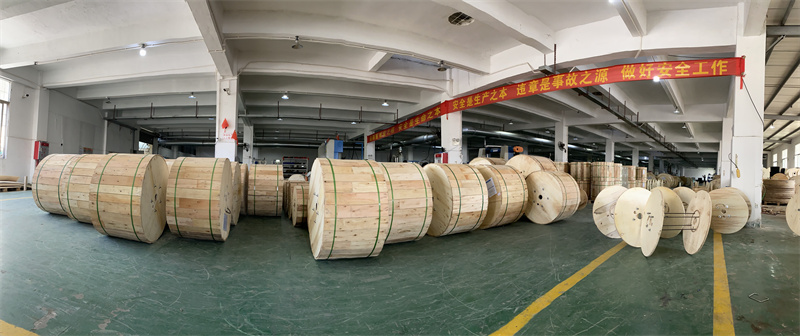

Packaging Details:
Wooden rolls: 1000m/reel, 2000m/reel, 3000m/reel. Custom requirements are supported.
Frequently Asked Questions
How can I get the price?
We usually quote within 24 hours after we get your inquiry (except weekends and holidays). If you are urgent to get the price, please contact us through email or other methods.
Can I buy samples before placing orders?
Yes. Please feel free to contact us for sample inquiries.
What is your lead time?
It depends on the order quantity and season. Usually, we ship within 2-7 days for small quantities and about 15 days for large quantities.
What is your payment term?
T/T, Western Union, Money Gram, and Paypal. This is negotiable.
What is the shipping method?
It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX, etc). Please confirm with us before placing orders.
How do you ensure long-term business relationships?
We maintain excellent quality and competitive pricing to ensure our customers benefit. We respect every customer as a friend and sincerely conduct business with them worldwide.
