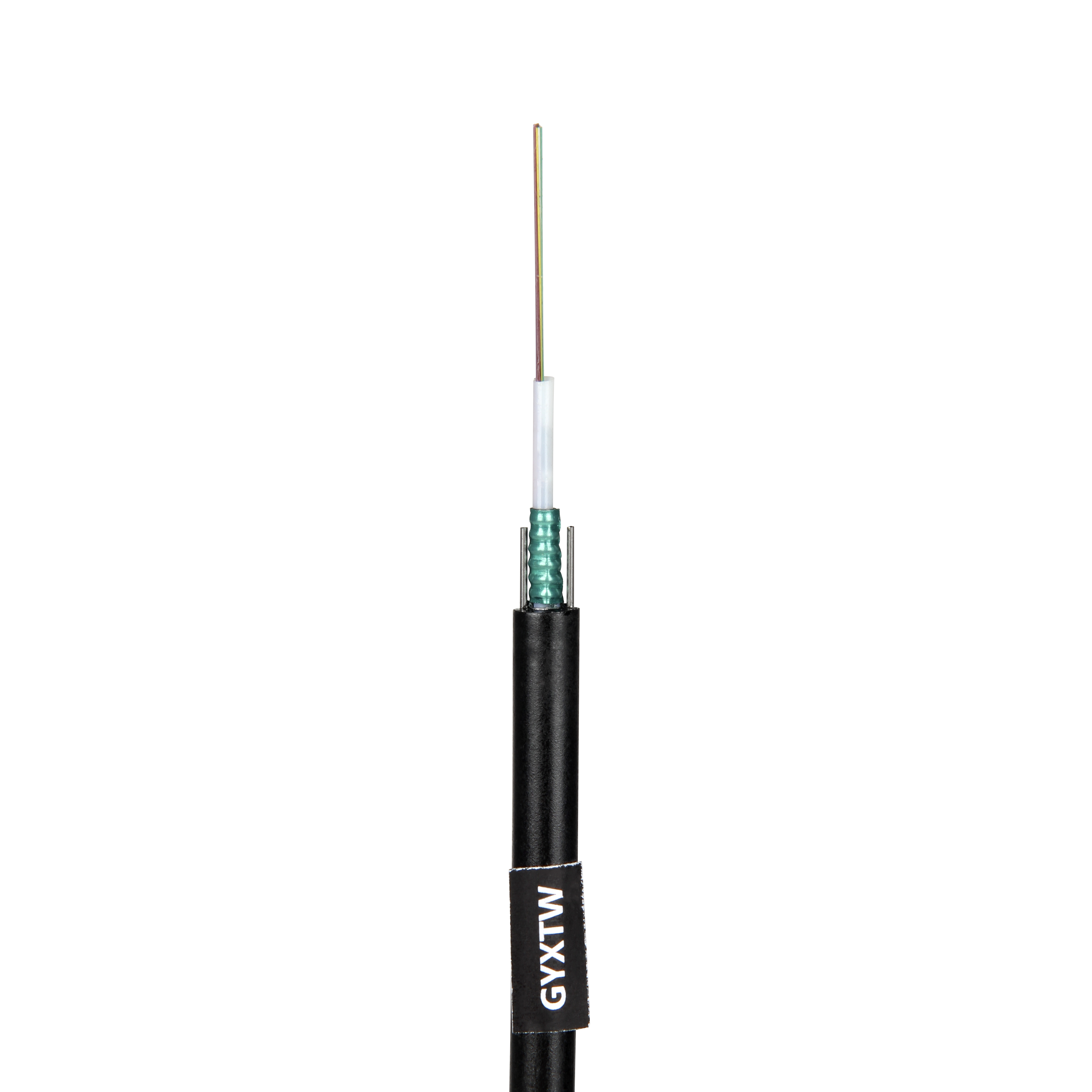

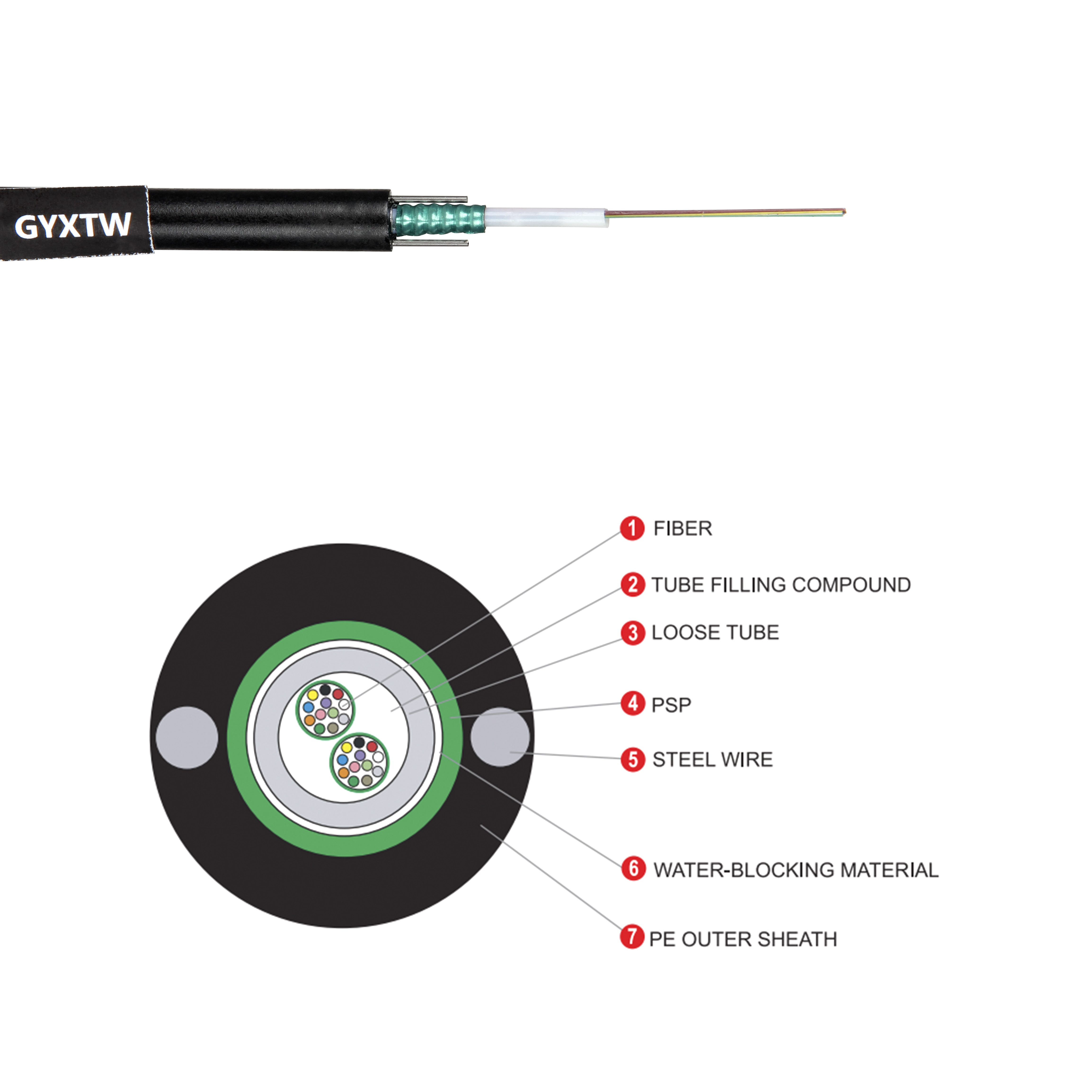

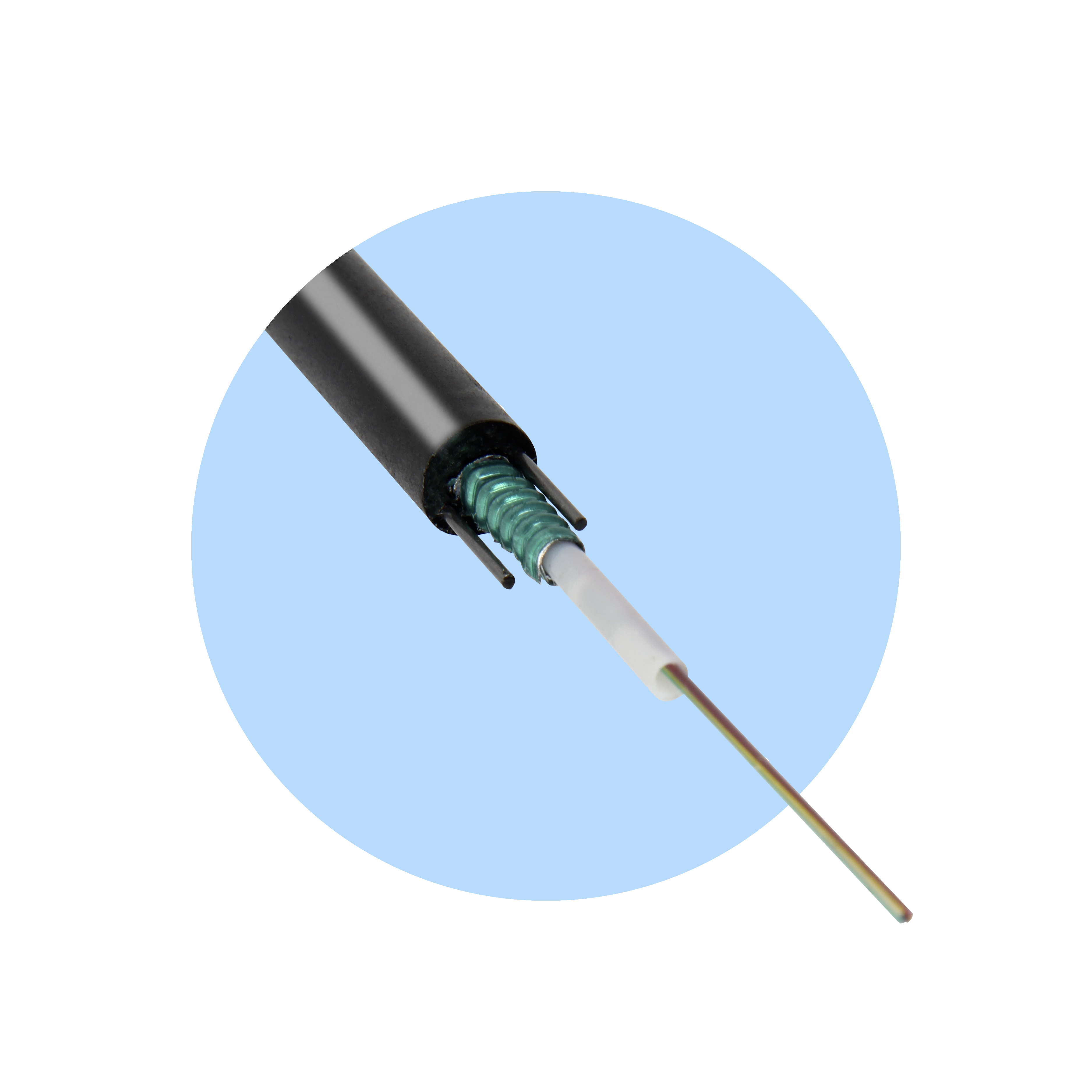

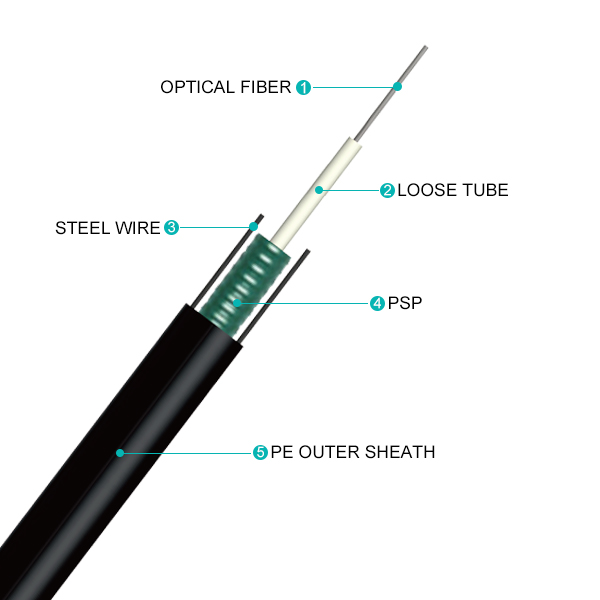

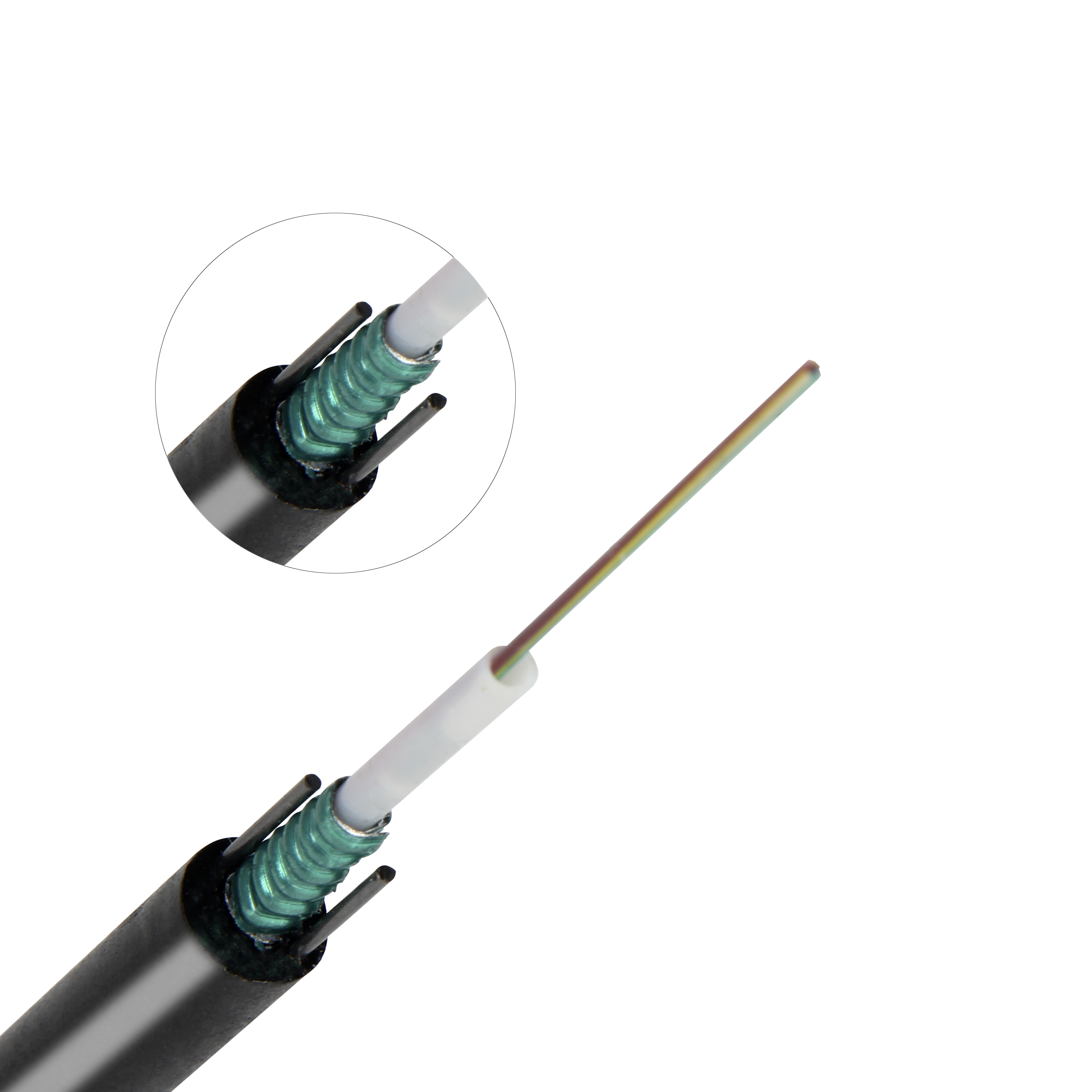

The GYXTW optical fibre cable consists of a central loose tube filled with water-resistant compound. The tube is protected by a layer of corrugated steel tape and two parallel steel wires embedded in the PE sheath to provide excellent crush resistance and tensile strength.

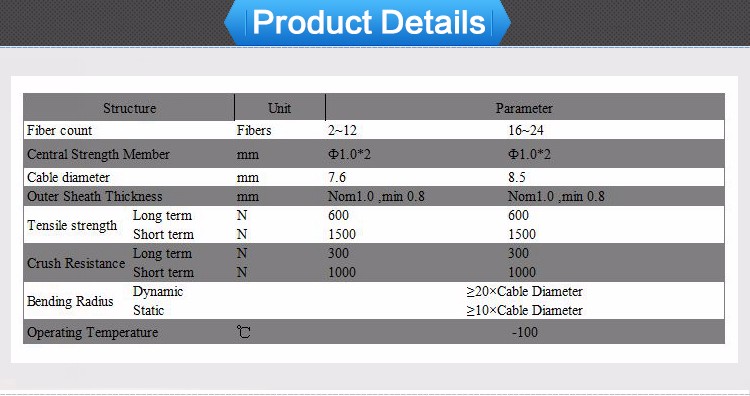

| Part NO | Fiber Count | Tubes | Fillers | Cable OD(mm) | Weight(kg/km) | Tensile Strength (L/S)N | Crush Resistance (L/S)N |
| GYXTM-2~12 | 2~12 | 1 | 0 | 7.6 | 87 | 600/1500 | 300/1000 |
| GYXTM-14~24 | 14~24 | 1 | 0 | 8.5 | 120 | 600/1500 | 300/1000 |
| GYXTM-2~12 | 2~12 | 1 | 0 | 8.8 | 116 | 600/1500 | 300/1000 |
| GYXTM-14~24 | 14~24 | 1 | 0 | 9.6 | 134 | 600/1500 | 300/1000 |
Storage/Operating Temperature: -40℃ to +70℃
Bend Radius (Static/Dynamic): 10D/20D
| Item | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation (+20°C) | @850nm | - | - | - | ≤3.0 dB/km |
| @1300nm | - | - | - | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - | |
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | - | - | |
| Bandwidth | @850nm | - | - | - | ≥500 MHz·km |
| @1300nm | - | - | - | ≥1000 MHz·km | |

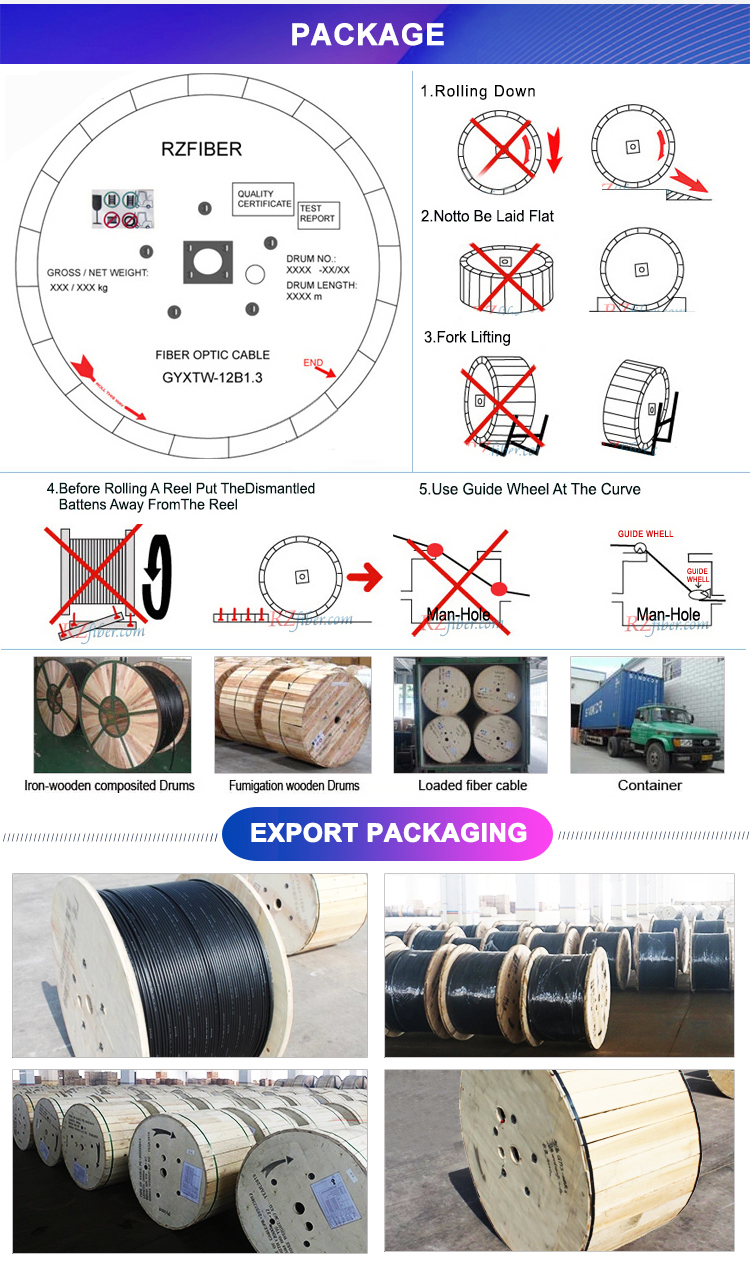

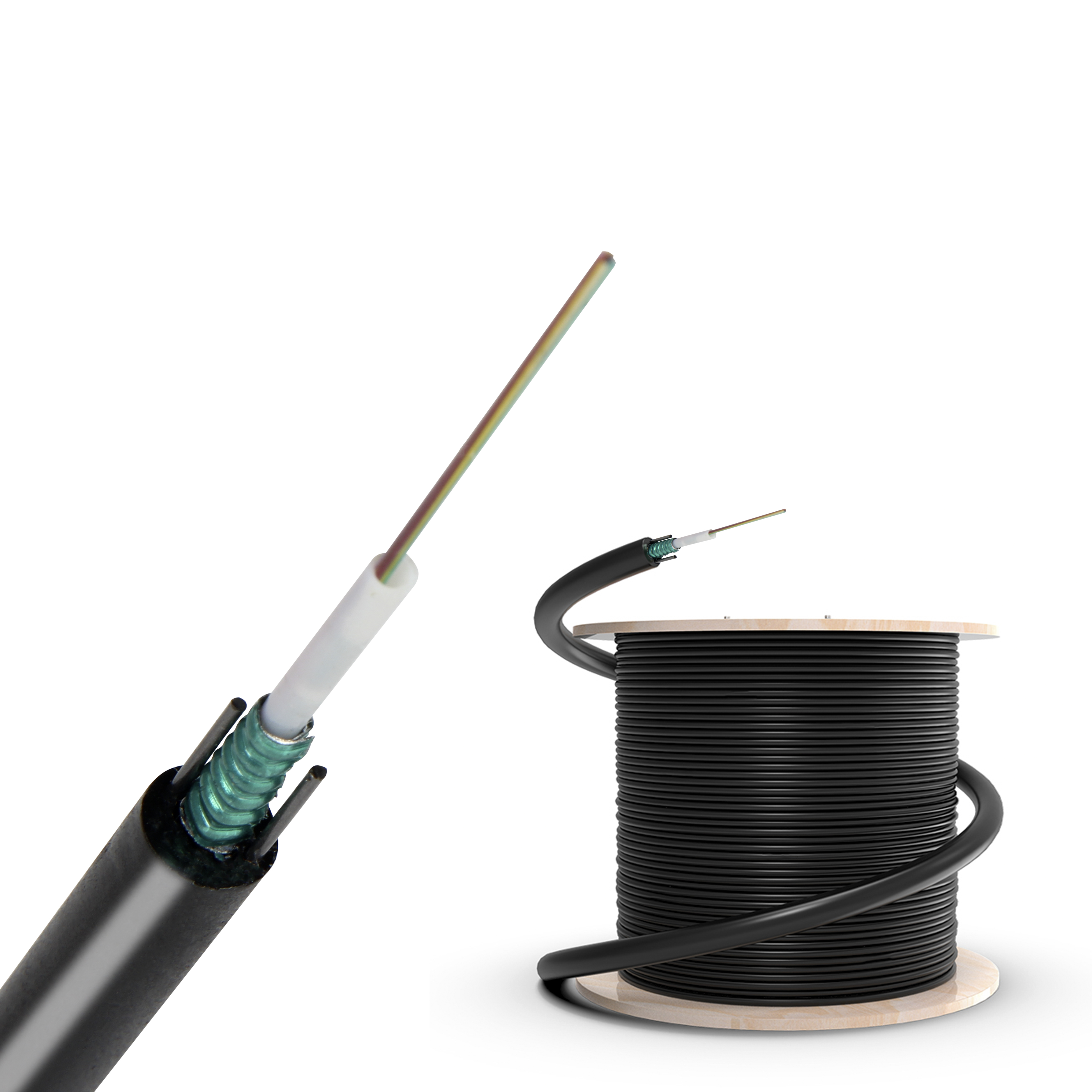

Packaging Detail: Wooden Drum 2 KM/3 KM/4 KM per container.
Delivery: General lead time 15~20 days.
