| Model NO. | Trunk Cable 500 With Messenger |
| Cover Material | PE |
| Type | Cat 5 |
| Material Shape | Hollow Line |
| Conductor Type | Solid |
| Wire Core Material | Bare Copper Wire |
| Certification | CE, ISO, RoHS, CCC |
| Inner Conductor | 10A CCA |
| Outer Conductor | 0.6mm Thickness Seamless Aluminum Tube |
| Messenger | 2.77mm Steel |
| HS Code | 8544200000 |
| Package Size | 98.00cm * 40.00cm * 52.00cm |
| Package Gross Weight | 160.000kg |

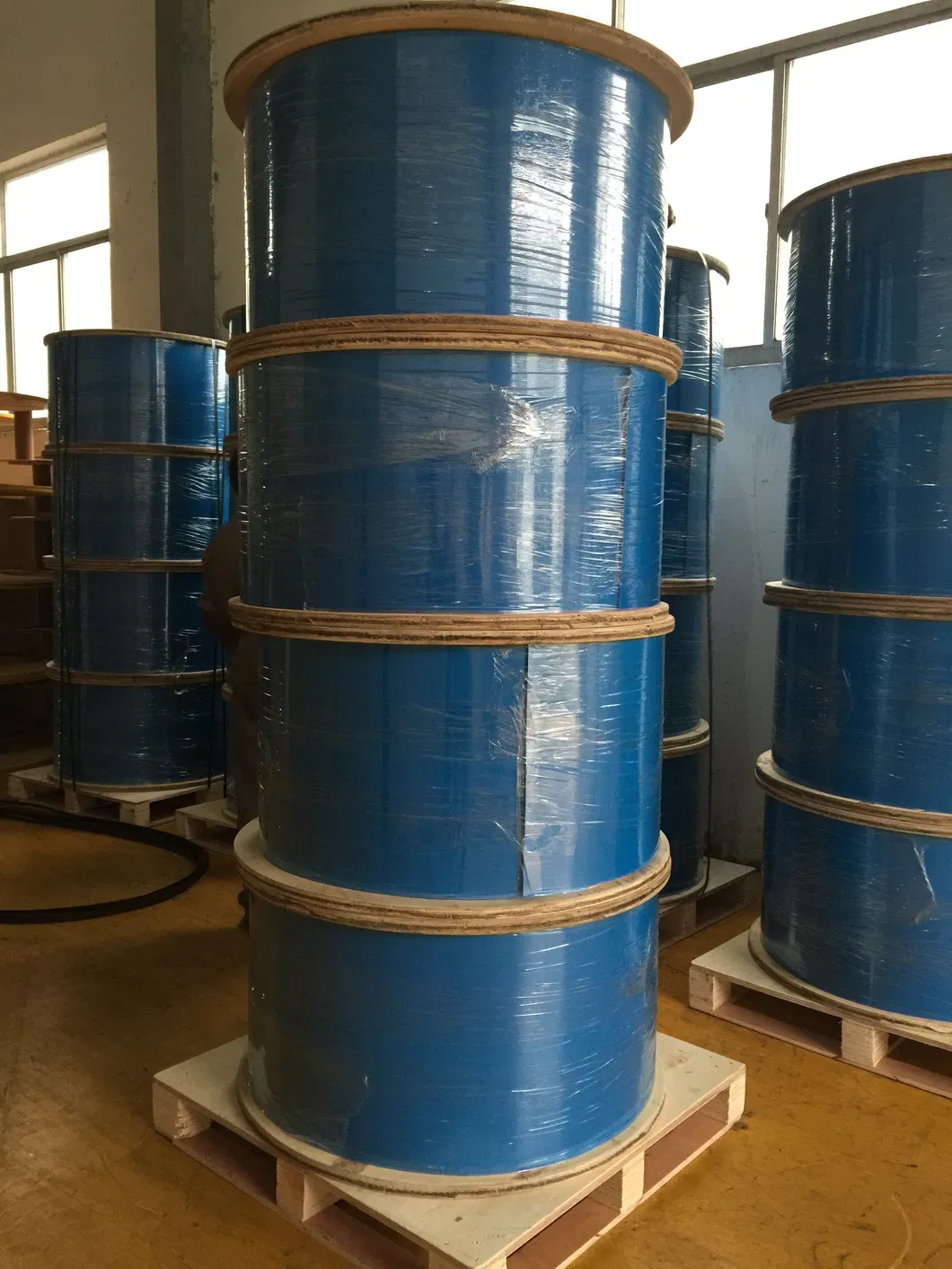

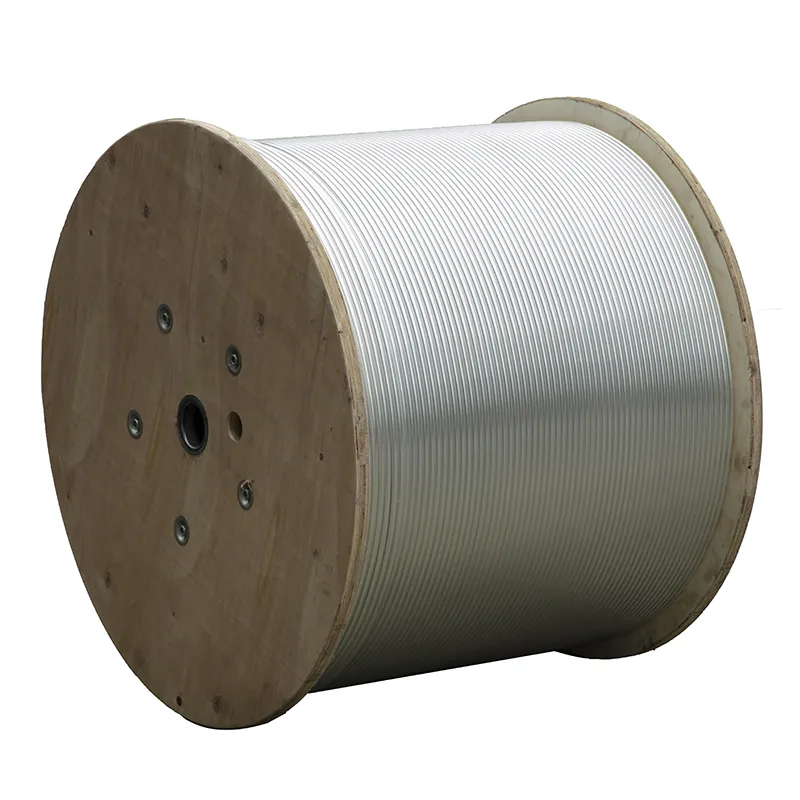

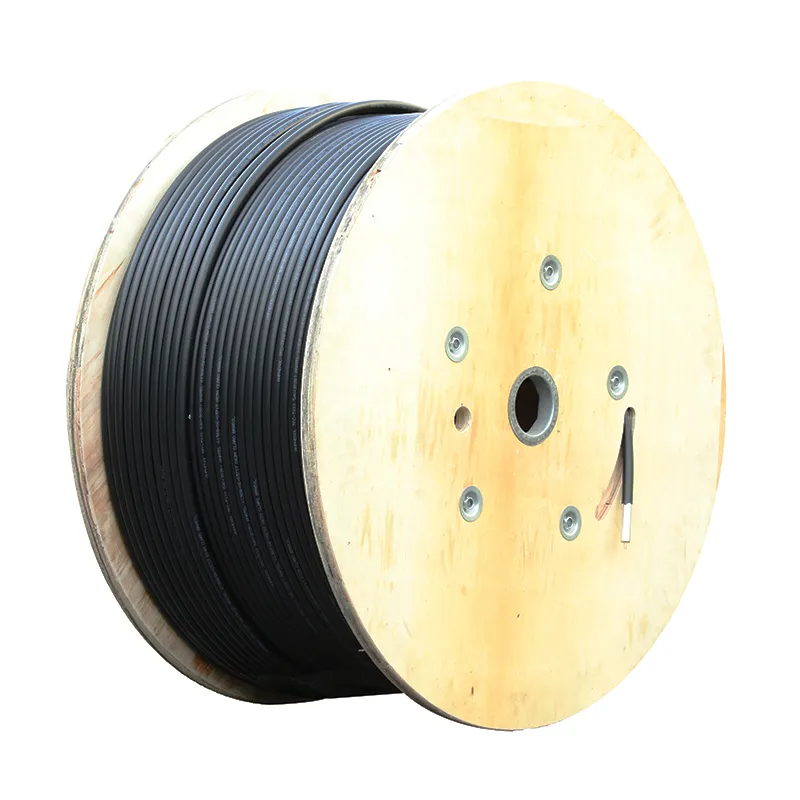

| Length Per Drum | 500/750/1000m |

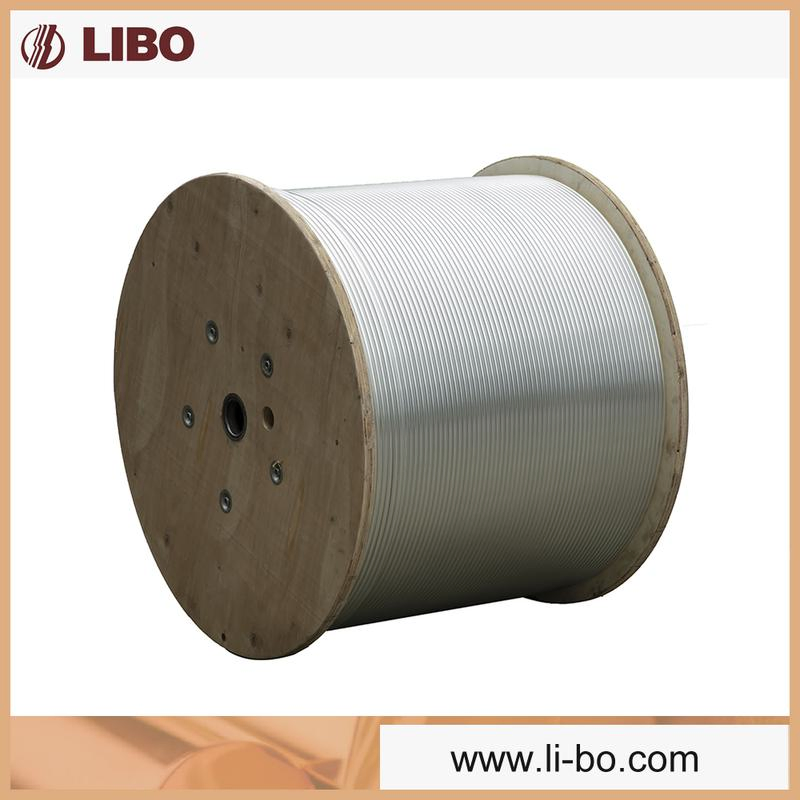

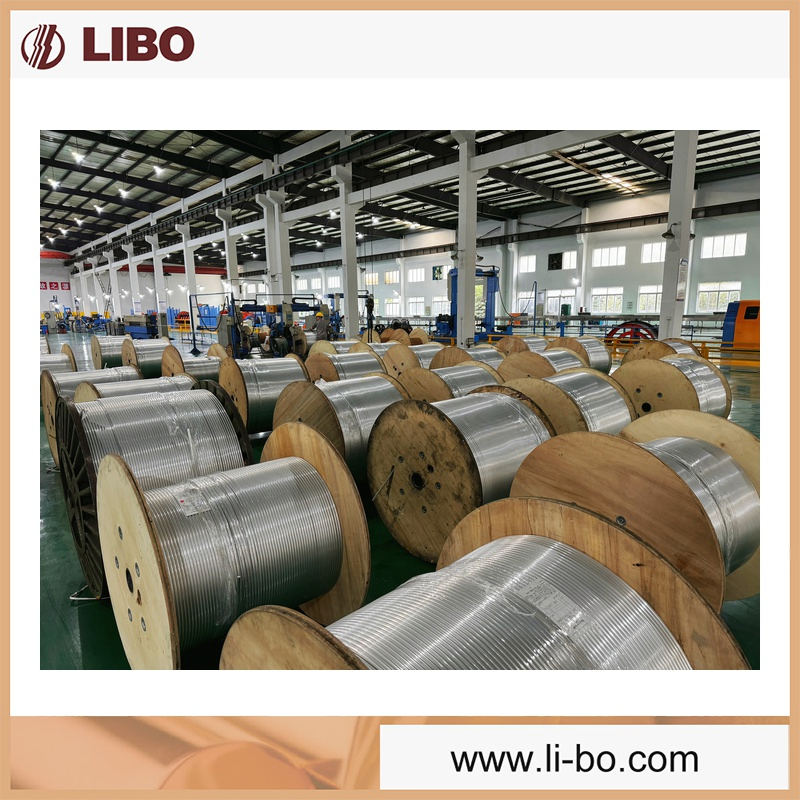

Hardline Cable 500 with Messenger CATV Network Aluminum Tube
Applications: P3 500JCAM109 trunk cables are manufactured with a seamless conforming aluminum outer sheath. Used for main cables of CATV systems, such as base stations and equipment cabinets, offering a cost-effective alternative to traditional corrugated copper coaxial cables.

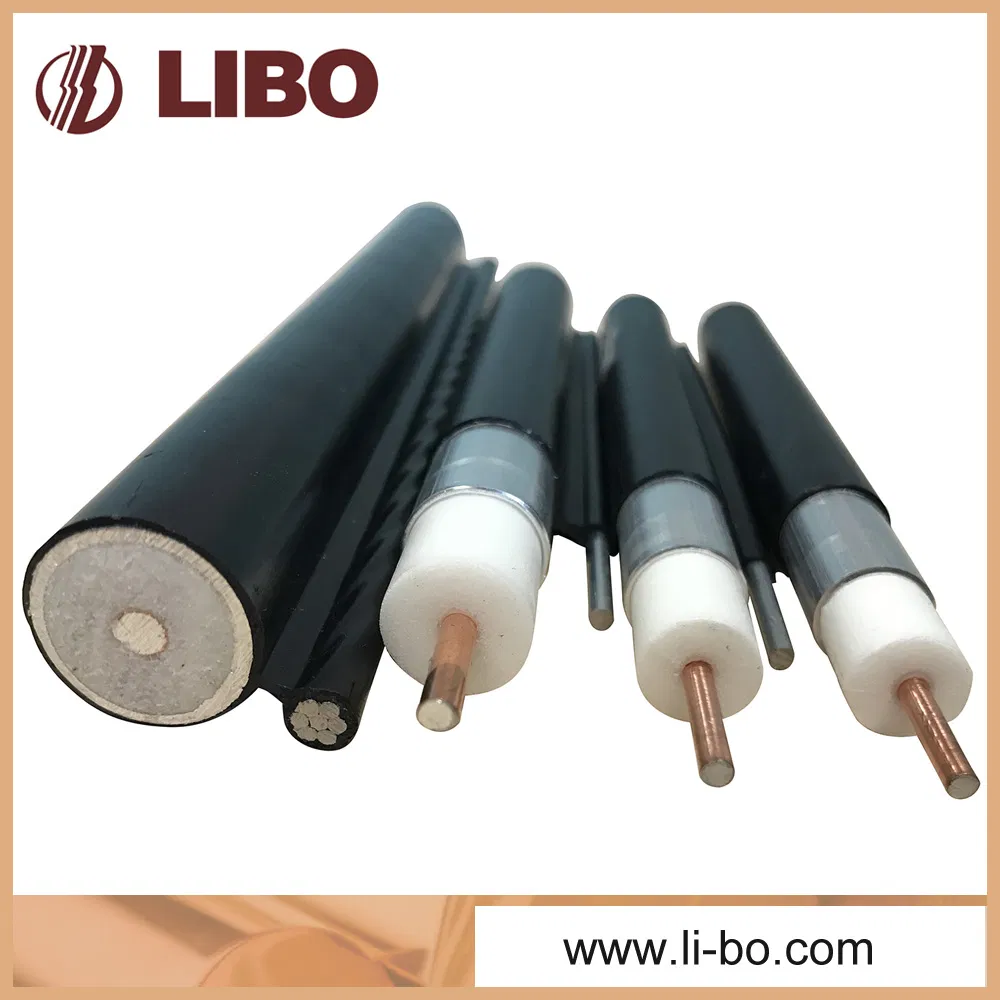

| Center Conductor | Copper clad aluminum (CCA) - 2.77mm |
| Dielectric | Micro-cellular foam PE - 11.43mm |

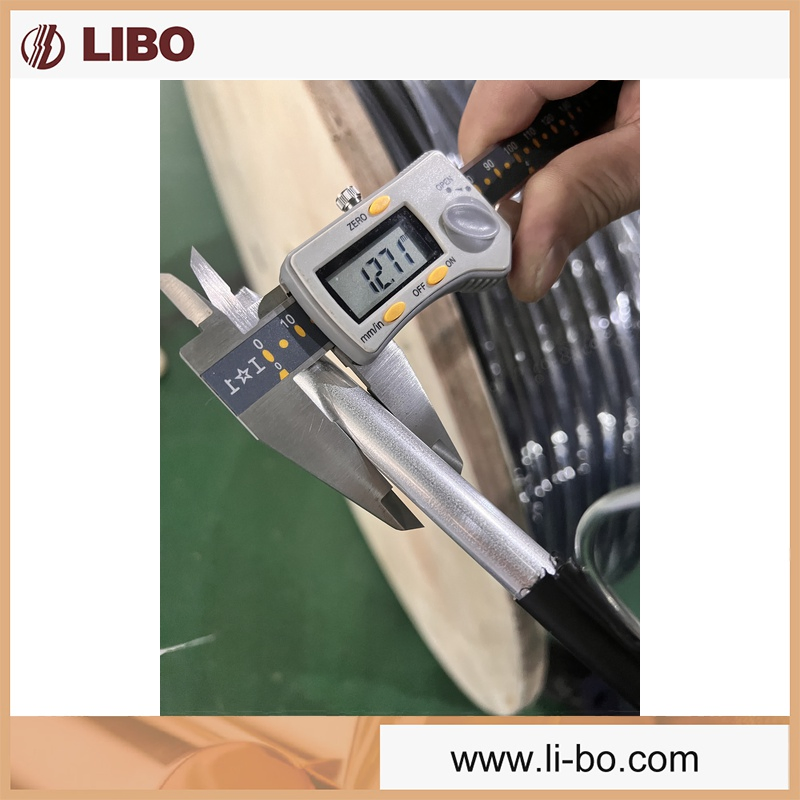

| Outer Conductor | Seamless aluminum tube - 12.70mm |
| Jacket | Medium density PE - 14.22mm |
| Messenger | Steel - 2.77mm (1800lbs breaking strength) |
| Frequency MHZ | Db/100ft. (MAX.) | dB/100 meters (MAX.) |
|---|---|---|
| 5 MHZ | 0.16 | 0.52 |
| 55 MHZ | 0.54 | 1.77 |
| 211 MHZ | 1.09 | 3.58 |
| 450 MHZ | 1.63 | 5.35 |
| 750 MHZ | 2.16 | 7.09 |
| 1000 MHZ | 2.52 | 8.27 |
Competitive Advantage: Outstanding electrical performance ensures signal integrity. Our production and testing procedures strictly follow ISO9000 and ISO14000 requirements. With over 18 years of experience in coaxial cable manufacturing, we maintain stable engineering teams and high-quality standards.
