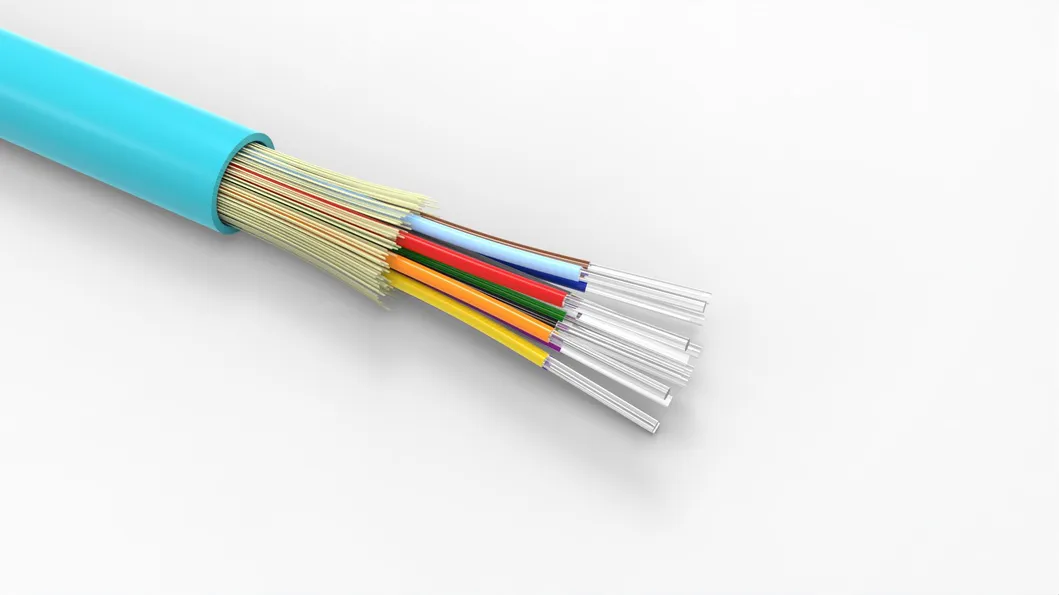

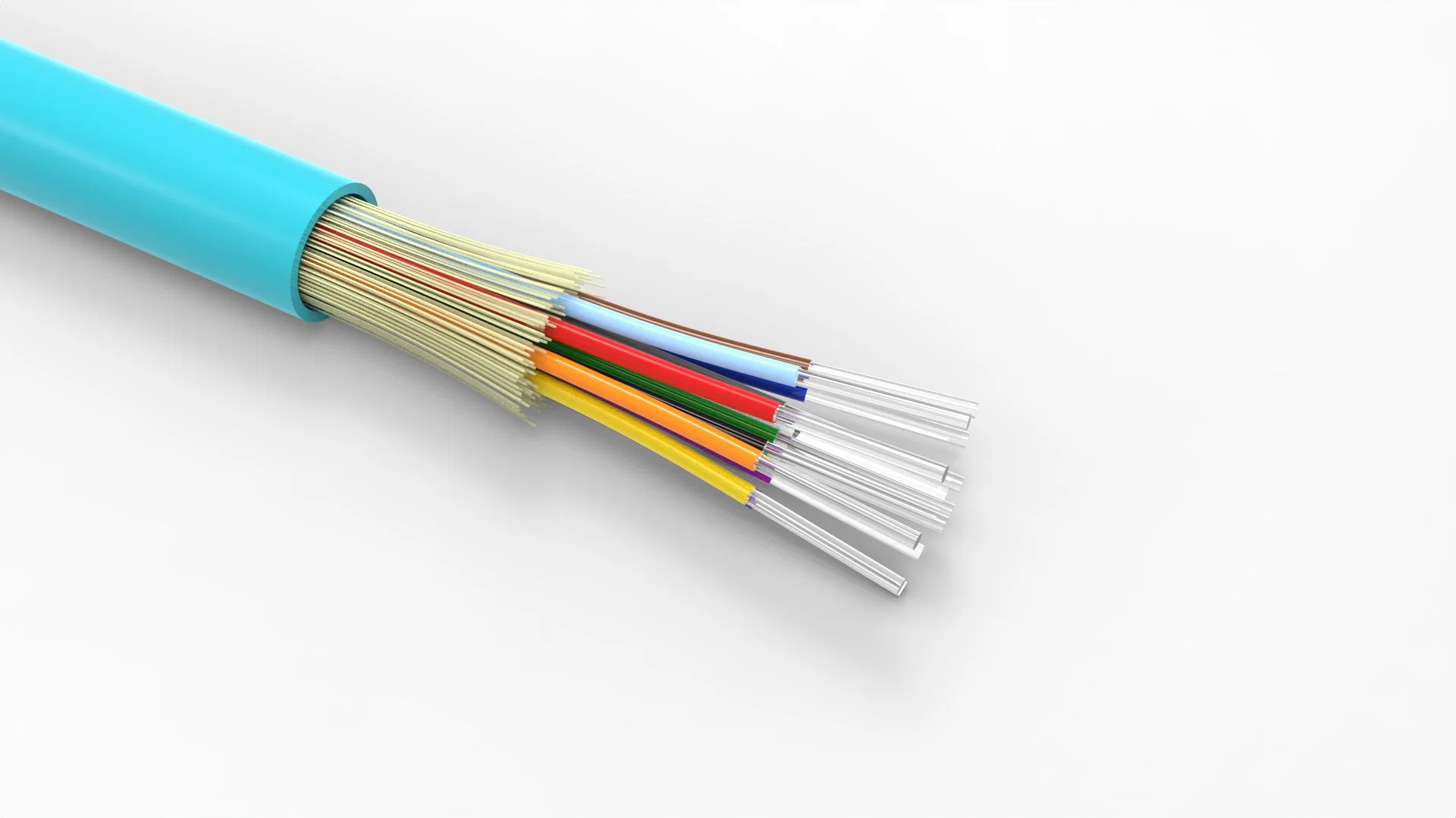

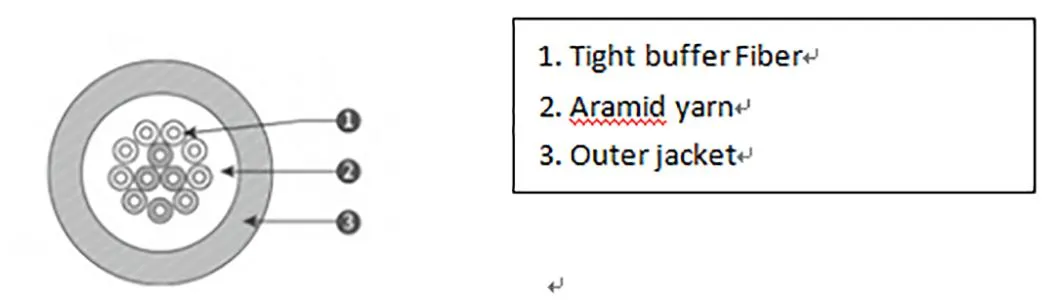

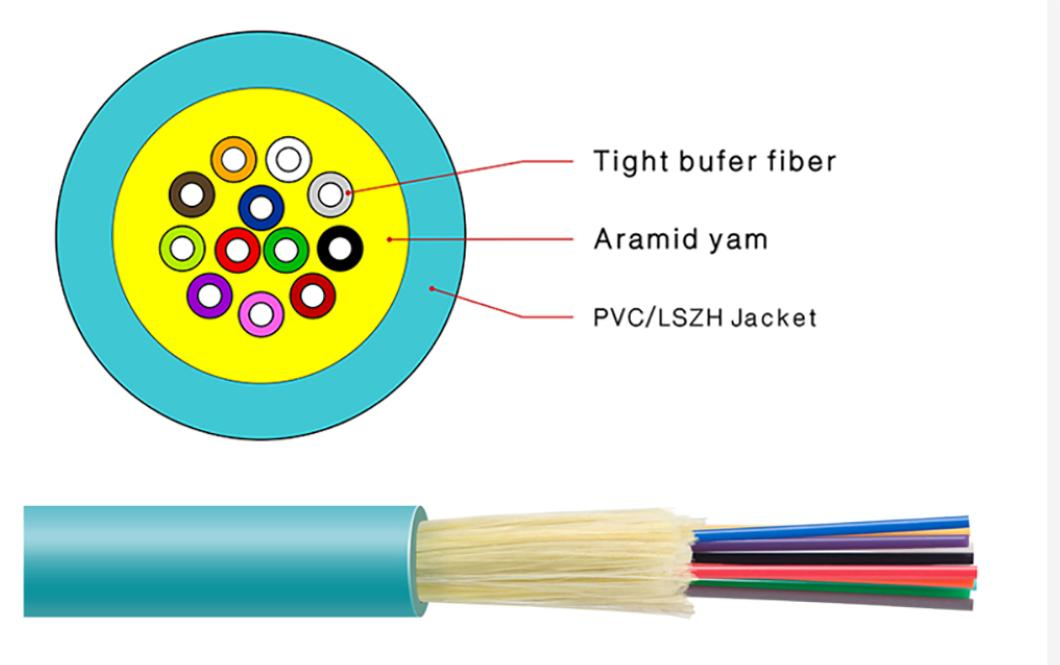

The MPC multi-purpose distribution optical cable utilizes multiple Ψ900μm flame-retardant tight buffer fibers as the primary optical transmission medium. This is reinforced with a layer of aramid fiber to provide superior strength and durability. The outer jacket is available in high-quality PVC or LSZH (Low-smoke, halogen-free, flame-retardant) materials.
| Fiber Qty | Cable Diameter (mm) | Weight (kg/km) | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius (mm) |
|---|---|---|---|---|---|
| 4 | 4.8±0.3 | 16 | 130/440 | 300/1000 | 20D/10D |
| 6 | 5.1±0.3 | 20 | 130/440 | 300/1000 | 20D/10D |
| 12 | 6.2±0.3 | 32 | 130/440 | 300/1000 | 20D/10D |
| 24 | 8.1±0.3 | 53 | 200/660 | 300/1000 | 20D/10D |
Our products are manufactured under strict quality control systems and comply with international standards including ISO 9001, CE, and RoHS.
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
