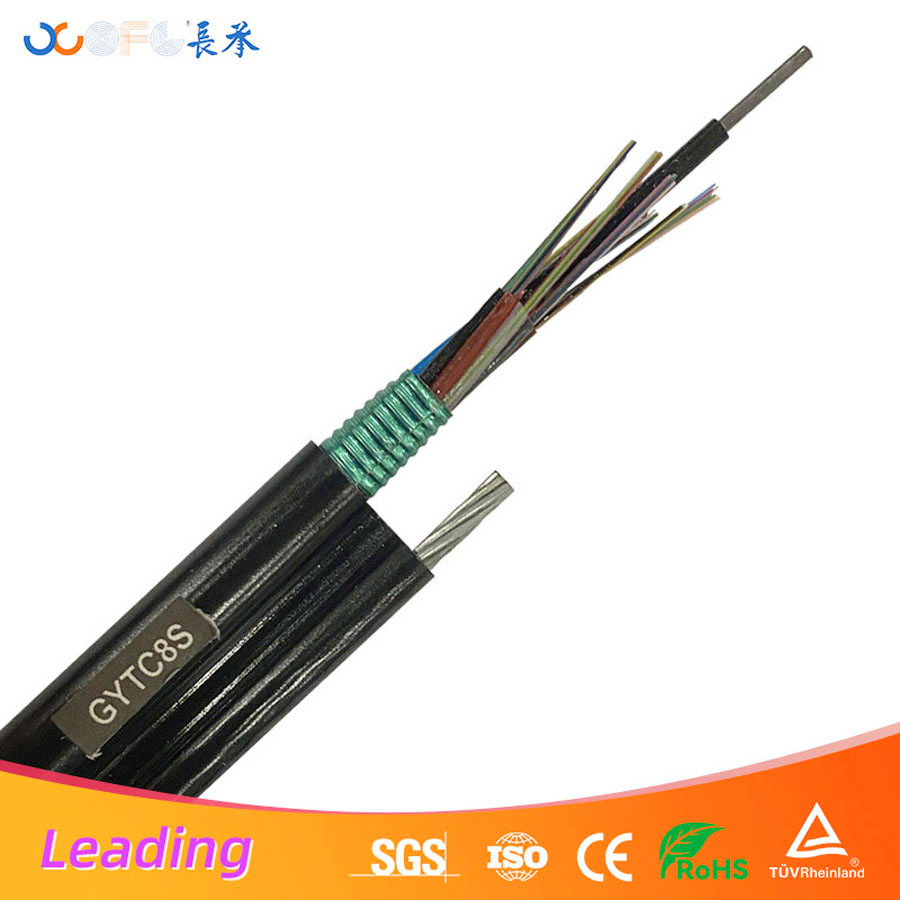

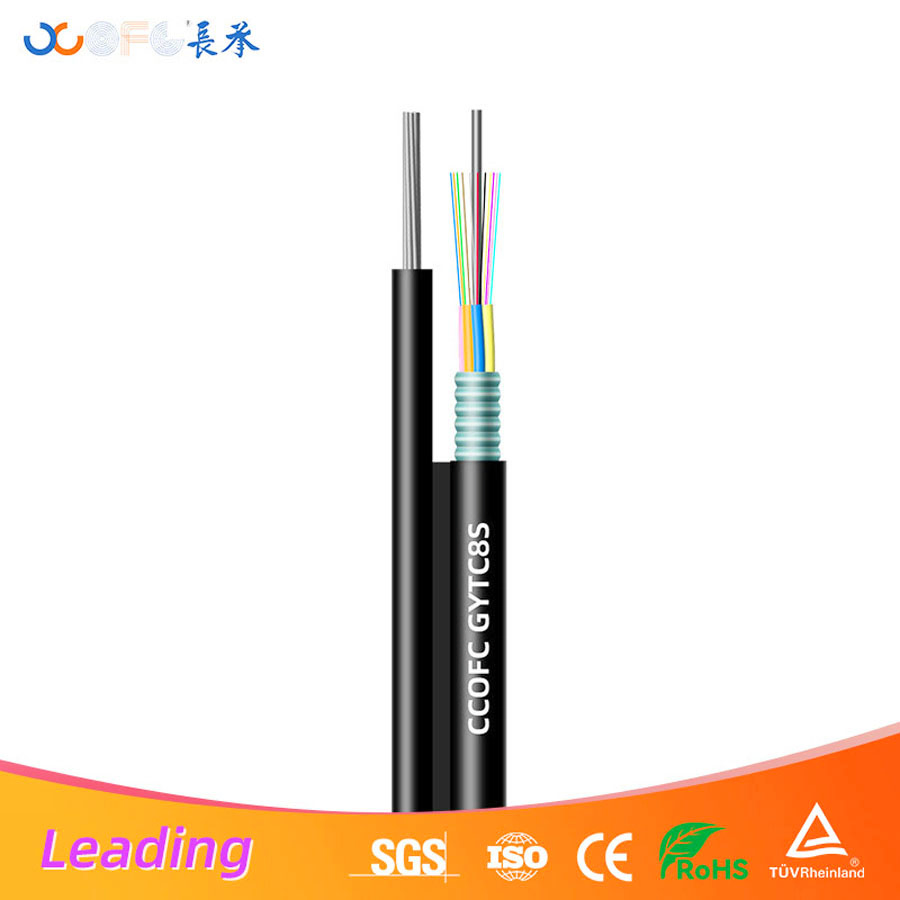

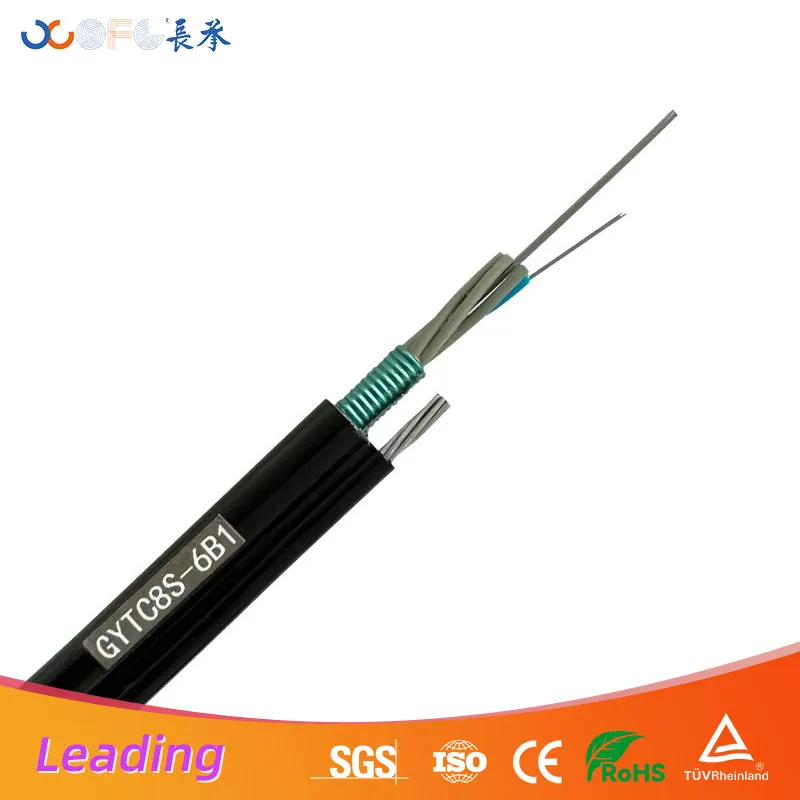

Industrial Grade GYTC8S Outdoor Self-Supporting Fiber Optic Cable

Customization:	Available
Application:	Communication
Type:	Single-mode Fiber

Product Overview

Model NO.

GYTC8S

Material Shape

Round Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

1000N - 10000N

Core Type

Multicore

Certification

RoHS, CE, ISO9001

Sheath Material

PE

Installation

Self-Supporting Aerial

Specification

4-96C

HS Code

8544700000

Product Description

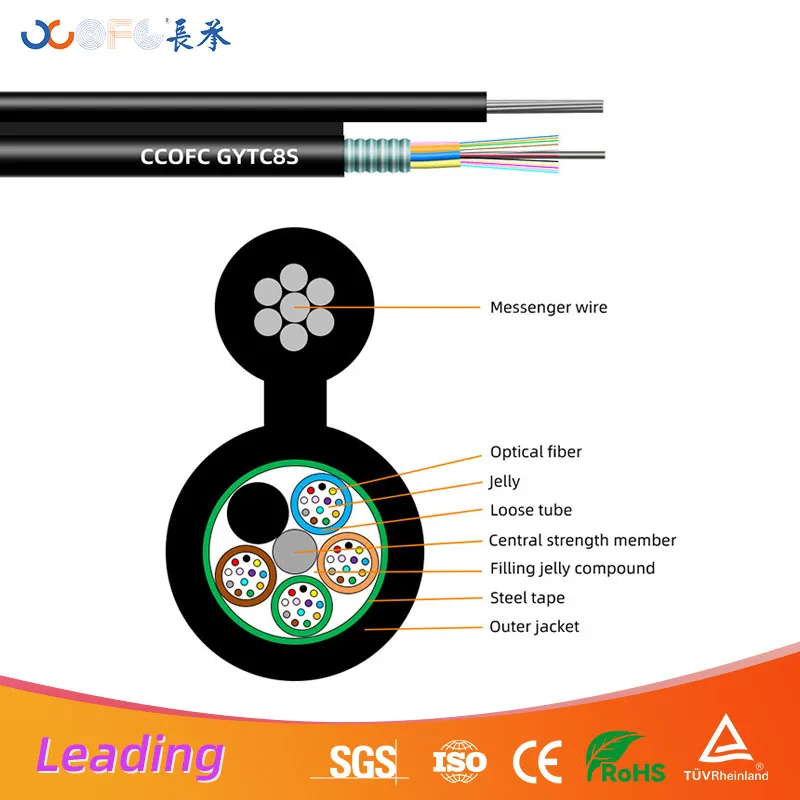

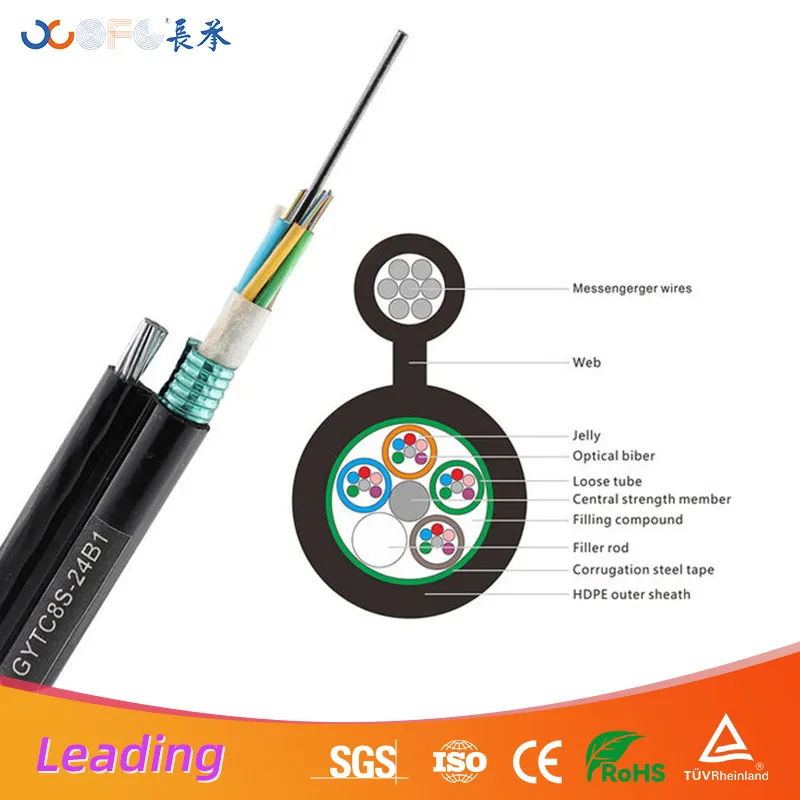

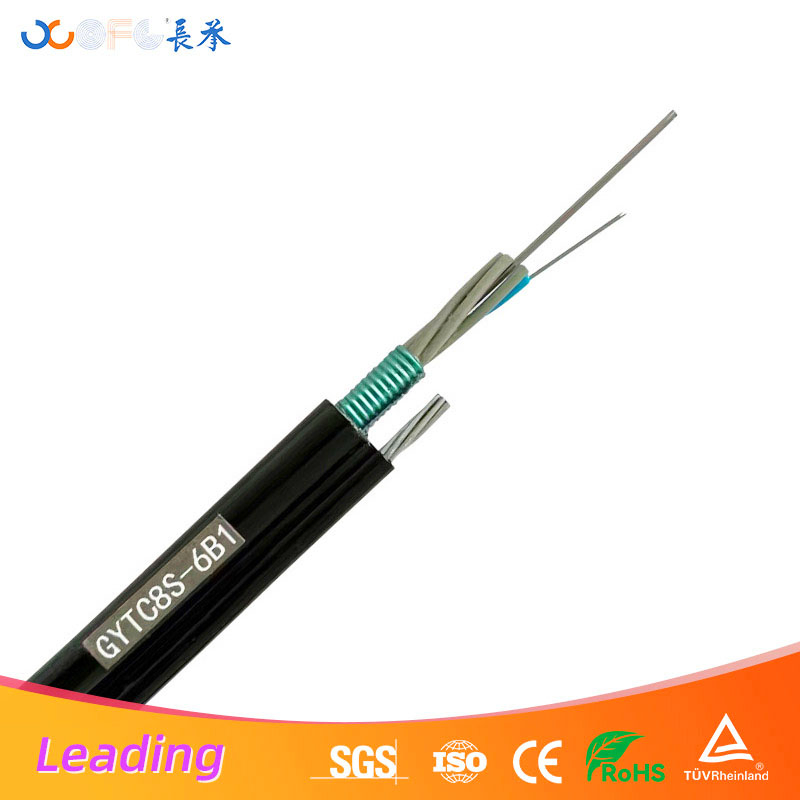

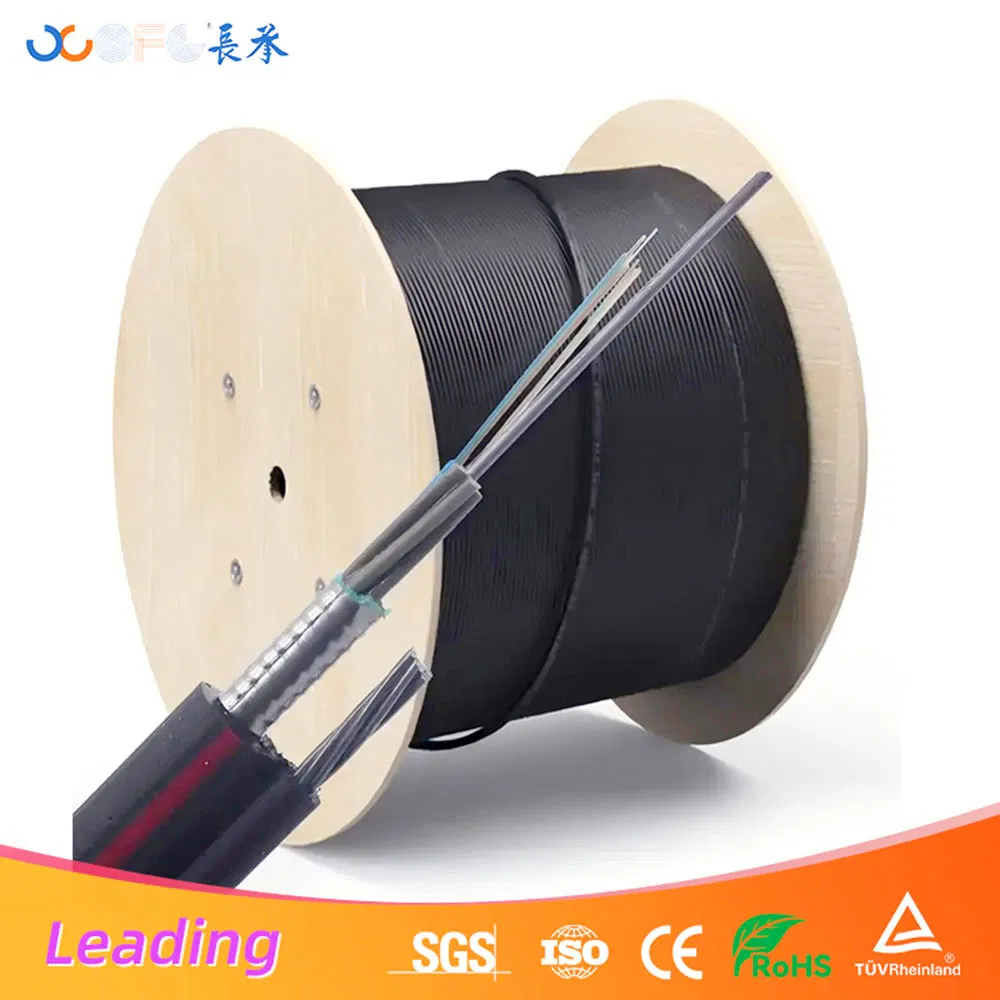

The GYTC8S fibre optic cable is constructed by placing 250µm fibre optic cable into a high modulus material pine tube filled with a waterproof compound. A metal reinforcement core is at the center, with the loose tube and filler rope twisted around it. The core is protected by plastic-coated aluminum tape (APL) or steel tape (PSP) and integrated into a polyethylene figure-8 sheath.

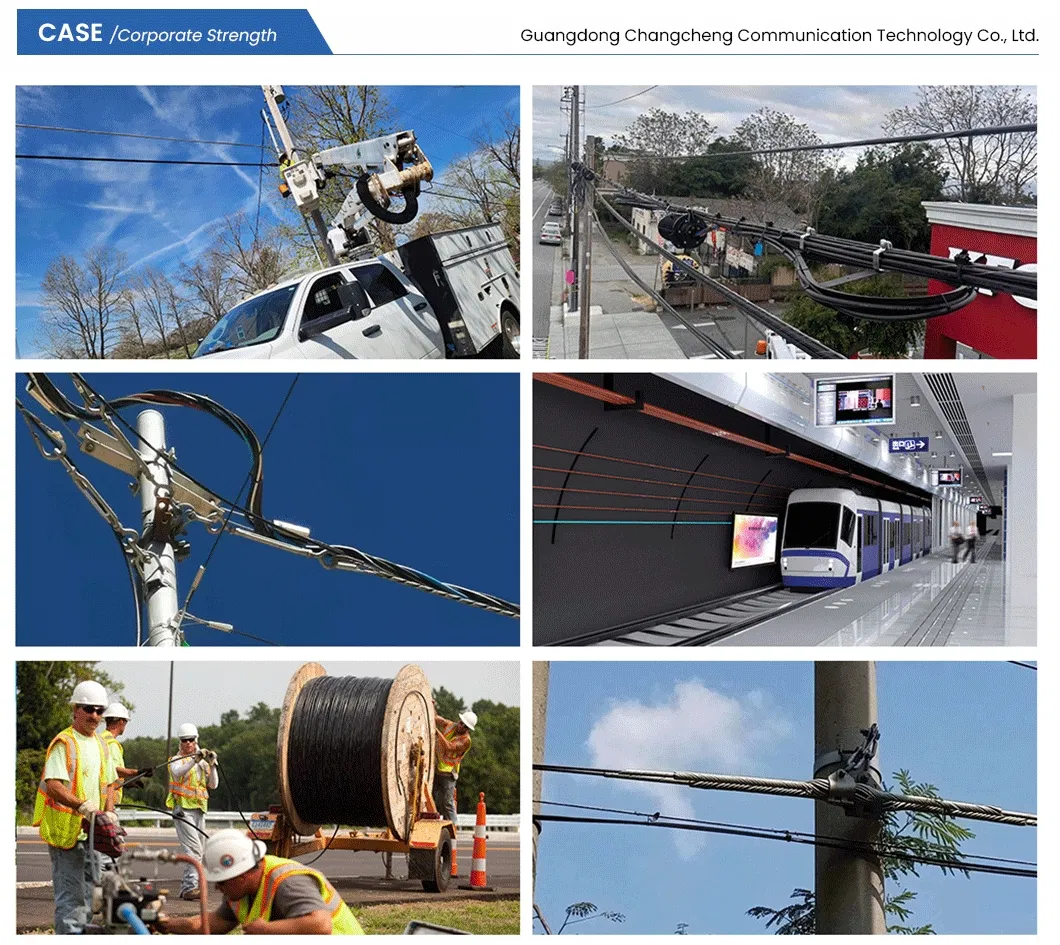

Main Applications

⚡ Power Transmission

Overhead installation along high-voltage power networks.

📶 Utility Comms

Reliable fiber communications alongside electrical infrastructure.

🌉 Long-Span

Ideal for crossing rivers and valleys where traditional cables fail.

🚂 Railway Systems

Suitable for railway communication and electrified rail networks.

🏭 Industrial

High-voltage environments like power stations and petrochemical plants.

🌐 Rural Connectivity

Cost-effective extension of fiber to remote areas using existing lines.

Technical Parameters

Fiber Number	Outer Dia (mm)	Weight (kg/km)	Bending Static (mm)	Bending Dynamic (mm)	Max Tensile (N)
2~20F	10.6x20.8	268	106	212	9000
22~30F	10.9x21.1	272	109	218	9000
32-36F	11.6x21.8	299	116	232	9000
38-72F	13x23.2	329	130	260	9000

Detailed Photos

Product Characteristics

High tensile strength stranded steel wire for efficient self-supporting overhead laying.
Excellent mechanical and temperature performance.
Loose tube material with superior hydrolysis resistance and high strength.
Special oil paste filling ensures critical protection for optical fibers.
Full core water-blocking technology including APL/PSP moisture barriers.

FAQ

What types of optical fiber cables are available?

We offer a wide range including Outdoor/Indoor cables, FTTH Drop cables, and OPGW (Optical Fiber Composite Overhead Ground Wires).

Are your cables certified for international projects?

Yes, all products comply with ISO, IEC, CE, UL, and RoHS standards to ensure industrial-grade quality and safety.

Do you support OEM/ODM customization?

Absolutely. We can customize cable diameter, fiber count, jacket materials, and colors according to your specific project requirements.

What is the typical production lead time?

For standard products, lead time is usually 15-30 days. Custom or high-volume orders will be confirmed based on the production schedule.

What is the warranty policy for these cables?

We provide a comprehensive 15-year warranty covering manufacturing defects for our industrial optical fiber cables.

What payment methods are accepted?

We accept T/T (Bank Transfer), L/C (Letter of Credit) for large orders, and Western Union for samples.
