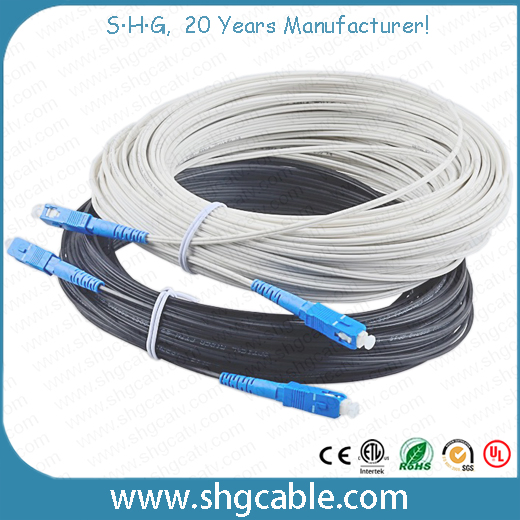

1/2/4 Cores Fibers Flat Indoor All Dielectric FRP/KFRP FTTH Fiber Optic Cable (GJXFH)

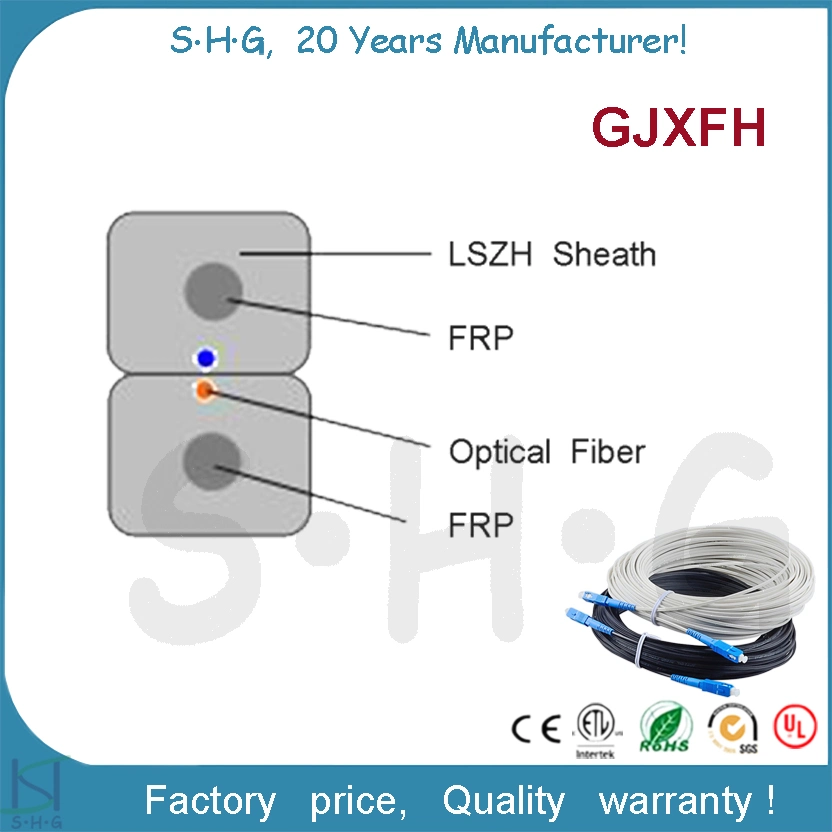

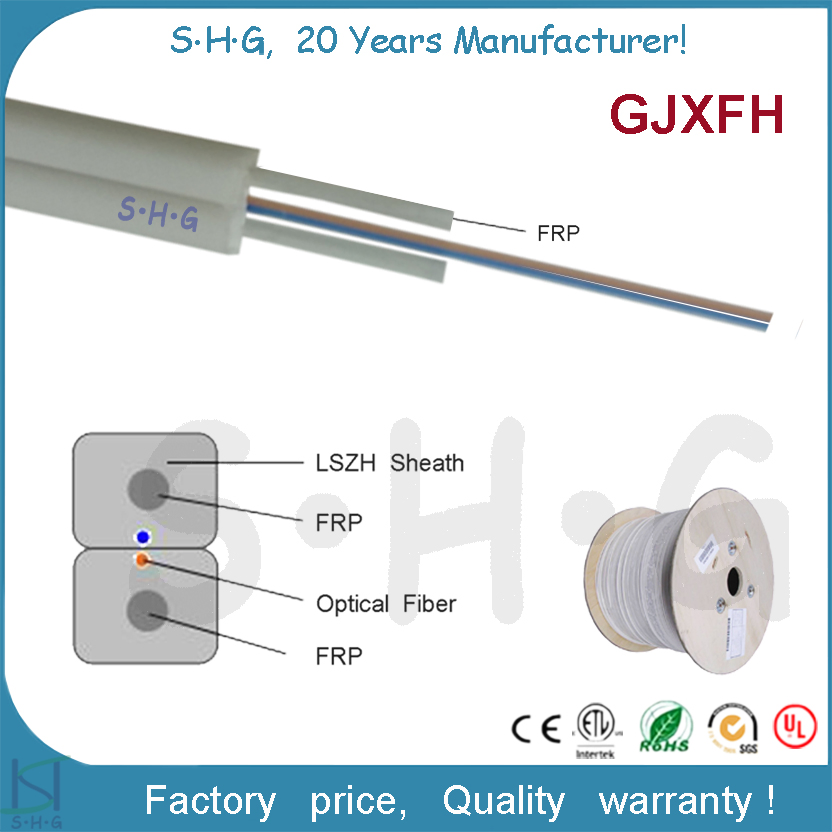

Our flat Butterfly indoor FTTH Fiber Optic Cable utilizes selected top-brand fibers (Corning, YOFC, Fiberhome...). The optical fiber unit is positioned in the center, supported by two parallel Fiber Reinforced Plastics (FRP/KFRP) placed at the sides. The cable is finished with a UV & Flame retardant LSZH sheath.

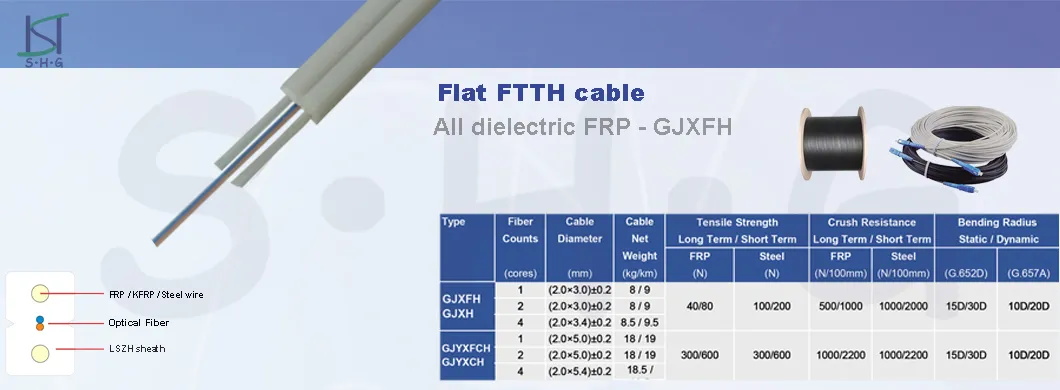

| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (L/S Term) N | Crush Resistance (L/S Term) N/100mm | Bending Radius (Stat/Dyn) mm |
|---|---|---|---|---|---|
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)×(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |

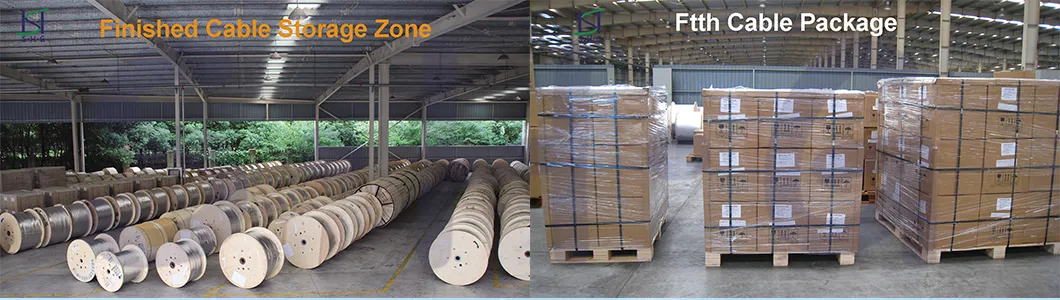

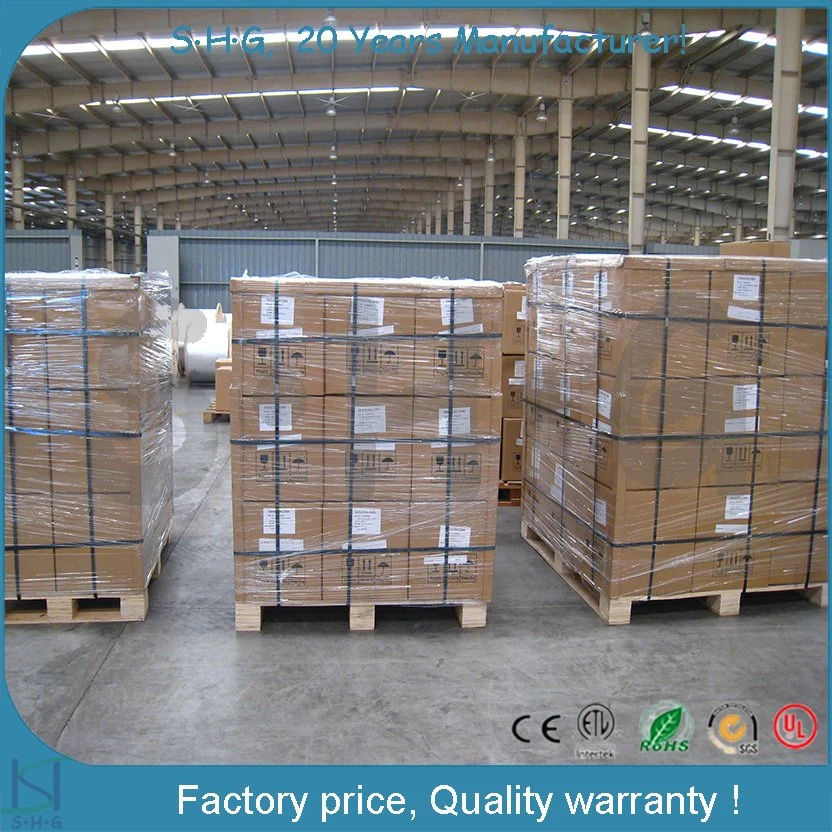

Standard Packing: 1 or 2km/wooden reel, then on pallets. Special packing available upon customer requirements.
