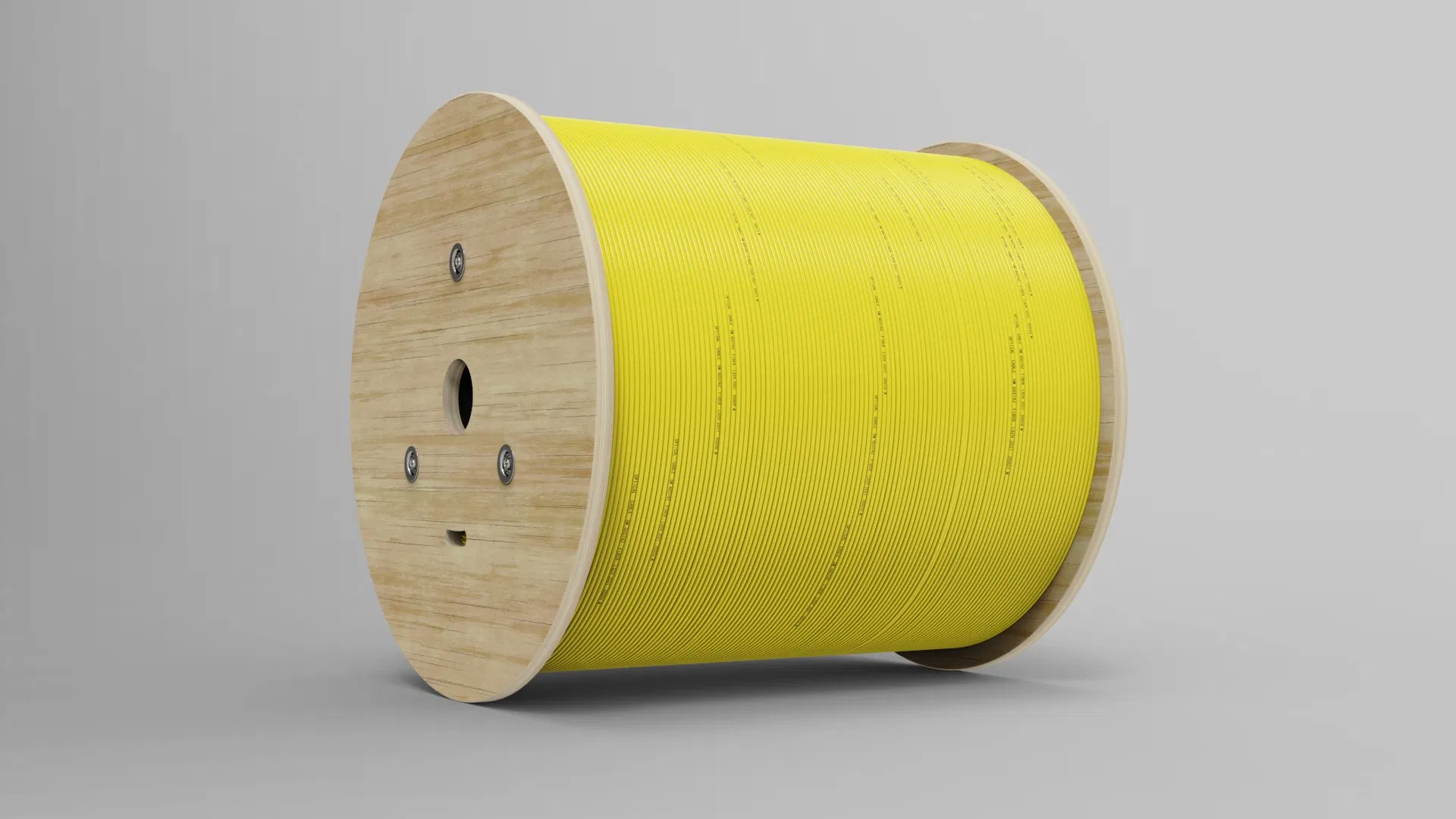

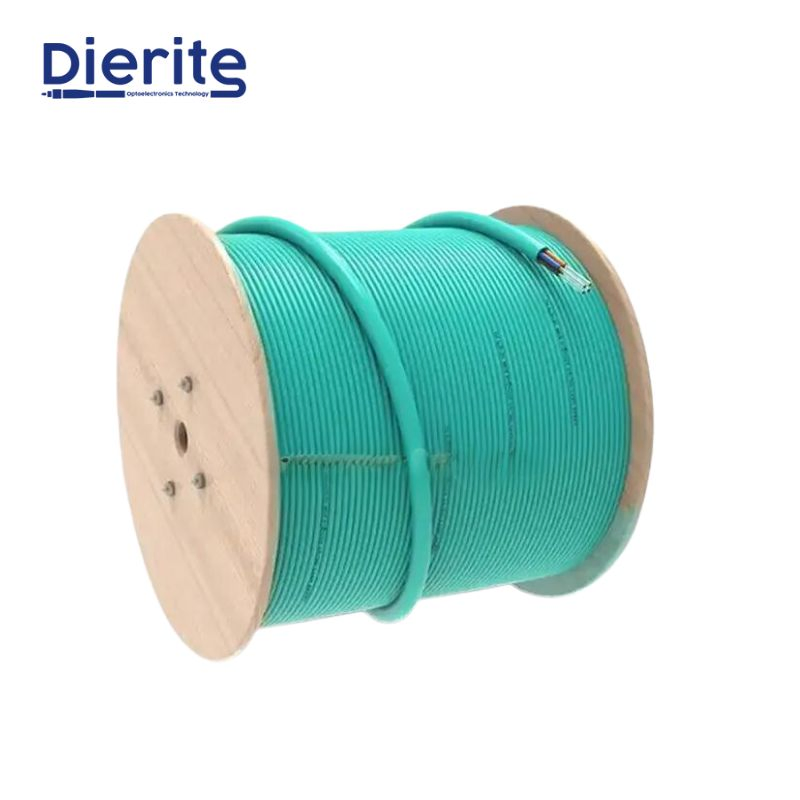

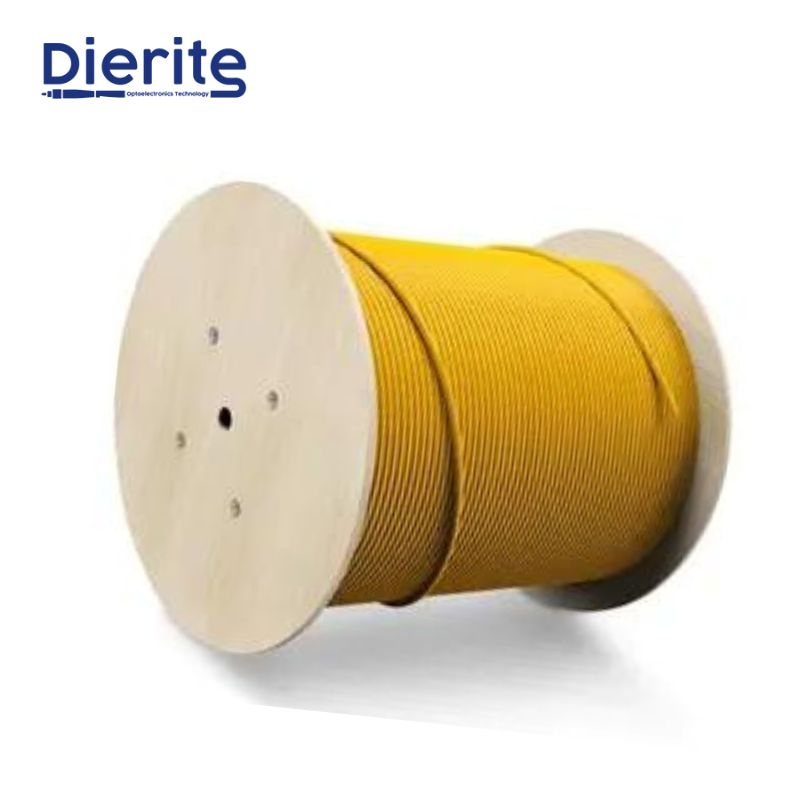

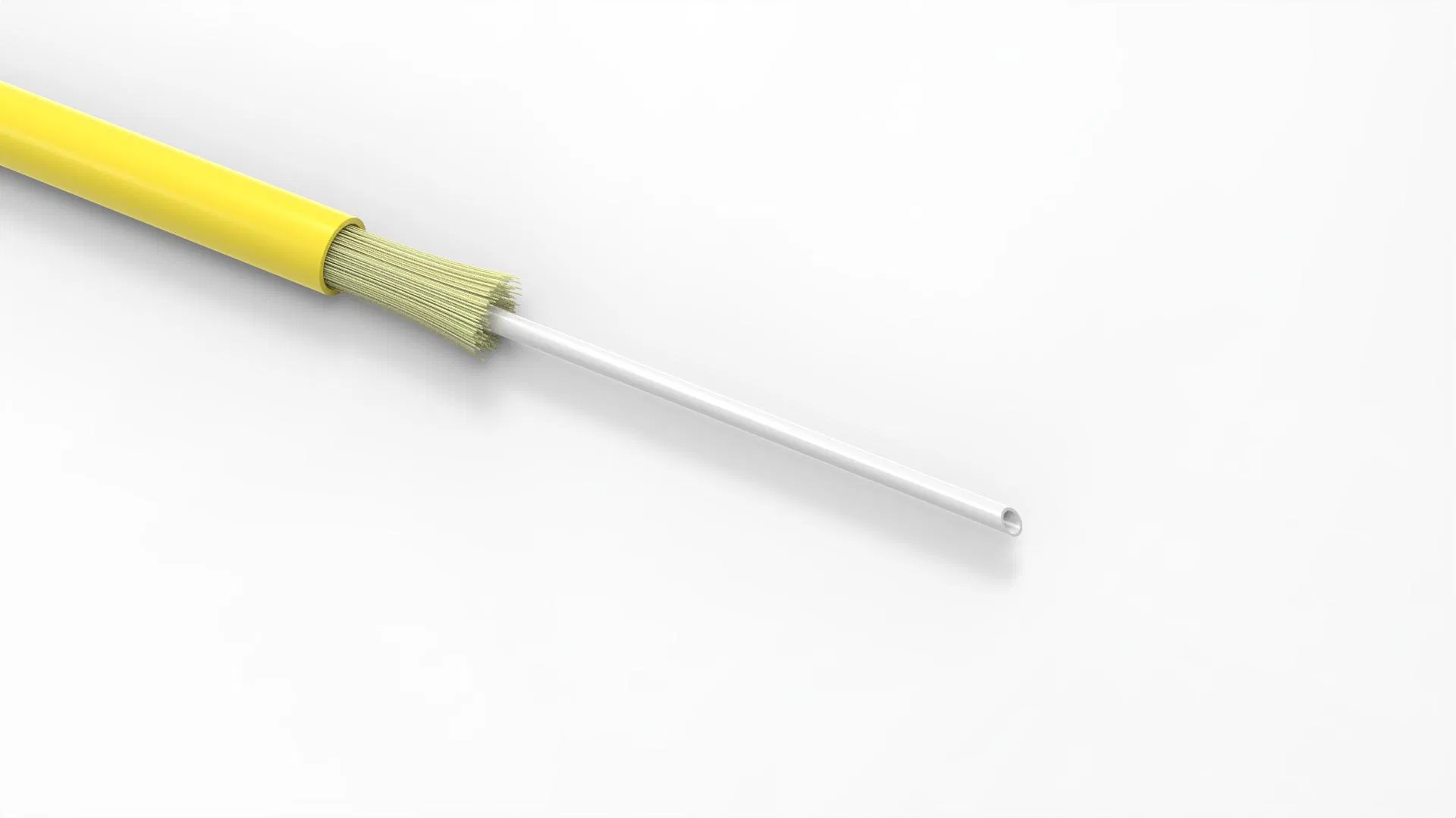

Industrial Hot Sellling Indoor Fiber Optic Cable Loose Tube

1 / 5

Industrial Hot Sellling Indoor Fiber Optic Cable Loose Tube

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

Loose Tube

Material Shape

Round Wire

Allowed Tensile Strength

100N < 1000N

Core

Multicore

Certification

Sheath Material

PVC/LSZH

Temperature

-20--60℃

Fiber Type

G652D, G657A1, G65A2, OM3, OM4, OM5

Transport Package

Wooden-Drum

📊 Product Parameters

Cable type	Cable diameter (mm)	Inner Tube diameter(mm)	Loose tube reference weight(kg/km)	Tensile Strength Long/short (N)	Crush resistance (N/100mm)	Bending Radius (mm)
φ1.6	1.65±0.05	0.7±0.05	2.4	40/80	100/500	60/30
φ2.0	1.95±0.05	0.9±0.05	3.2	60/100	100/500	60/30
φ3.0	2.85±0.05	0.9±0.05	6.2	60/100	100/500	60/30

🔍 Product Description

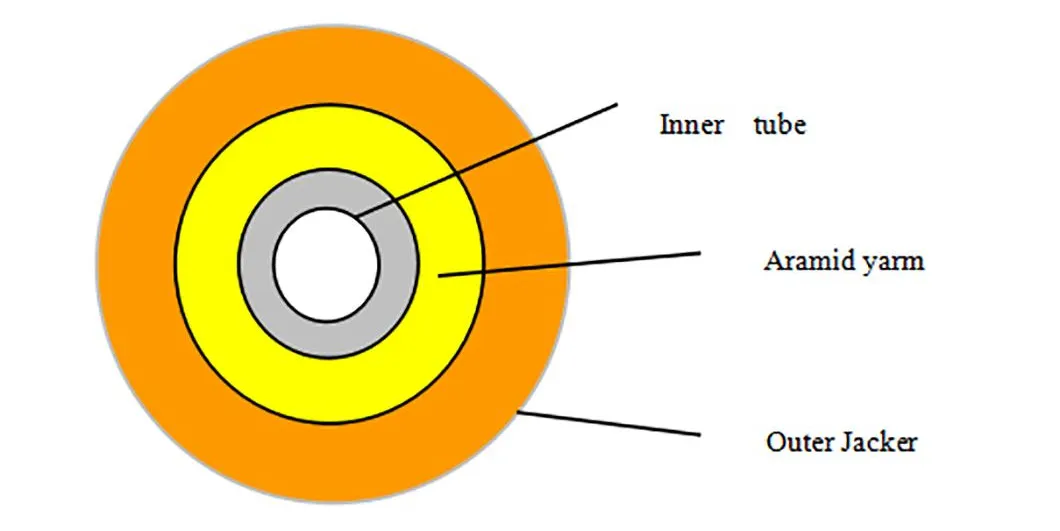

Our loose tube is constructed with a hollow inner tube and a layer of aramid fiber used as the force strengthening unit. The outer jacket is extruded with high-quality PVC or LSZH (Low-smoke, halogen-free, flame-retardant) material to ensure safety and durability.

Key Features

The hollow inner tube features a uniform outer diameter for smooth fiber penetration performance.
Aramid fiber reinforcement provides the cable with excellent tensile performance.
Outer materials offer corrosion resistance, waterproof properties, UV resistance, and flame retardancy.

📝 Ordering Information

Inner tube material	V-PVC, Z-LSZH, H-Hytrel, N-Nylo, F-PVDF
Outer jacket material	V-PVC, Z-LSZH
Standard Operating Temp	-20°C ~ +60°C

Color Code (Chromatogram)

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

🚀 Application

Ideal for indoor fiber optic cable assemblies.
Perfect for active and passive optical device pigtails and connections.
Suitable for high-speed data communication transmission.

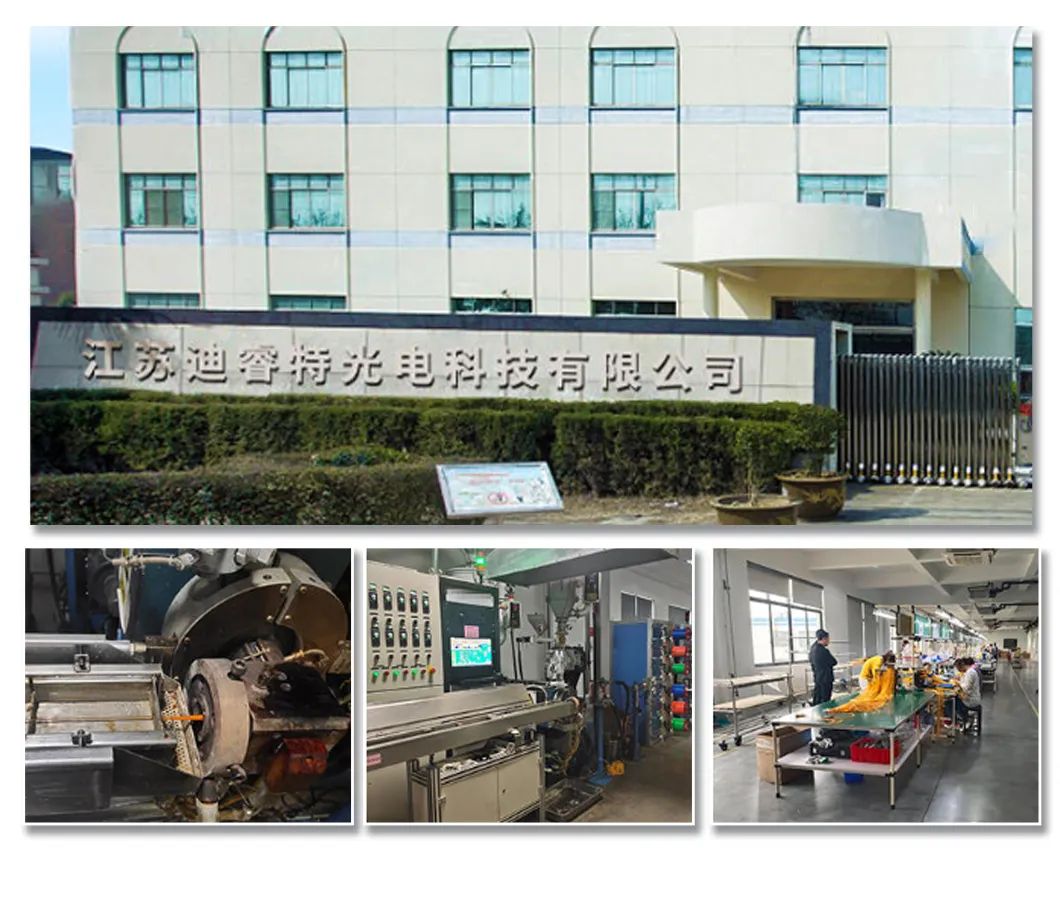

🏭 Manufacturing Excellence

Equipped with a dedicated R&D center and production base, our facility spans 5,000 square meters with over 150 skilled workers. We operate under ISO 9001 standards and hold CE and RoHS certifications. Our products are widely utilized in telecommunications, broadband, and network industries across Asia, North America, South America, and Europe.

❓ Frequently Asked Questions

1. What fiber types are available for this indoor cable? The cable supports a wide range of fiber types, including G652D, G657A1, G657A2 single-mode fibers, and OM3, OM4, OM5 multi-mode fibers.

2. Can the outer jacket material be customized for fire safety? Yes, we provide both standard PVC and LSZH (Low Smoke Zero Halogen) options. LSZH is highly recommended for indoor environments where fire safety is a priority.

3. What is the standard operating temperature for these cables? These indoor fiber optic cables are designed to operate reliably within a temperature range of -20°C to +60°C.

4. How is the cable strength reinforced? We use high-quality aramid fiber as a reinforcement unit, which provides excellent tensile strength and protects the fiber during installation and use.

5. Does the cable support custom lengths for orders? Yes, delivery lengths can be fully customized according to specific project requirements.

6. What certifications do these cables hold? Our products are manufactured to meet international standards and hold CE and RoHS certifications to ensure quality and environmental compliance.
