Industrial Grade FRP Steel Strength Reinforced Fiber Optic FTTH Drop Cable

1 / 5

Industrial Grade FRP Steel Strength Reinforced Fiber Optic FTTH Drop Cable

Customization:	Available
Application:	Communication, Sensor, Probe
Type:	Single-mode Fiber

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

FTTH Drop Cable / GJXFH

Connection Structure

Custom Made

Material Shape

Flat Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

100N < 1000N

Core

Double Core

Certification

RoHS, CE, ISO9001

Sheath Material

LSZH

Color

Black or White

Installation

Indoor or Outdoor

Package Size

40.00cm * 40.00cm * 45.00cm

Gross Weight

12.000kg

📝

Product Overview

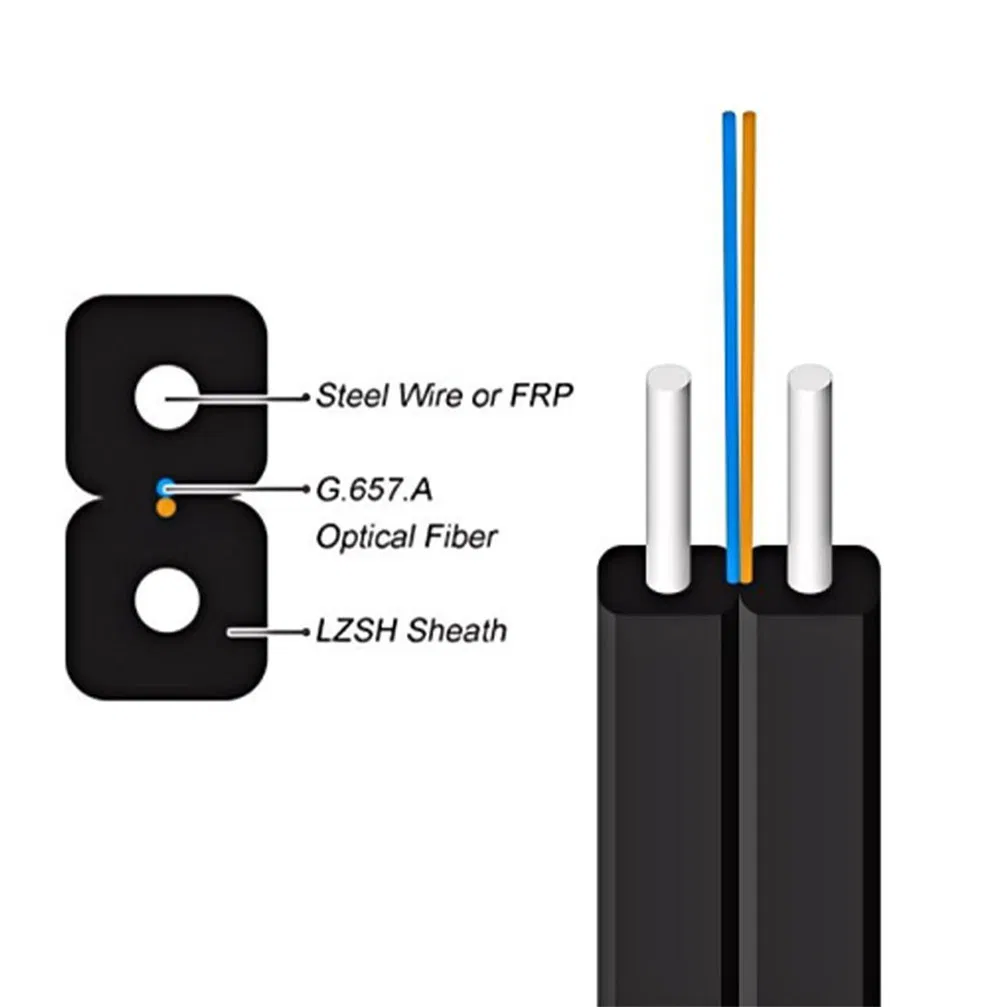

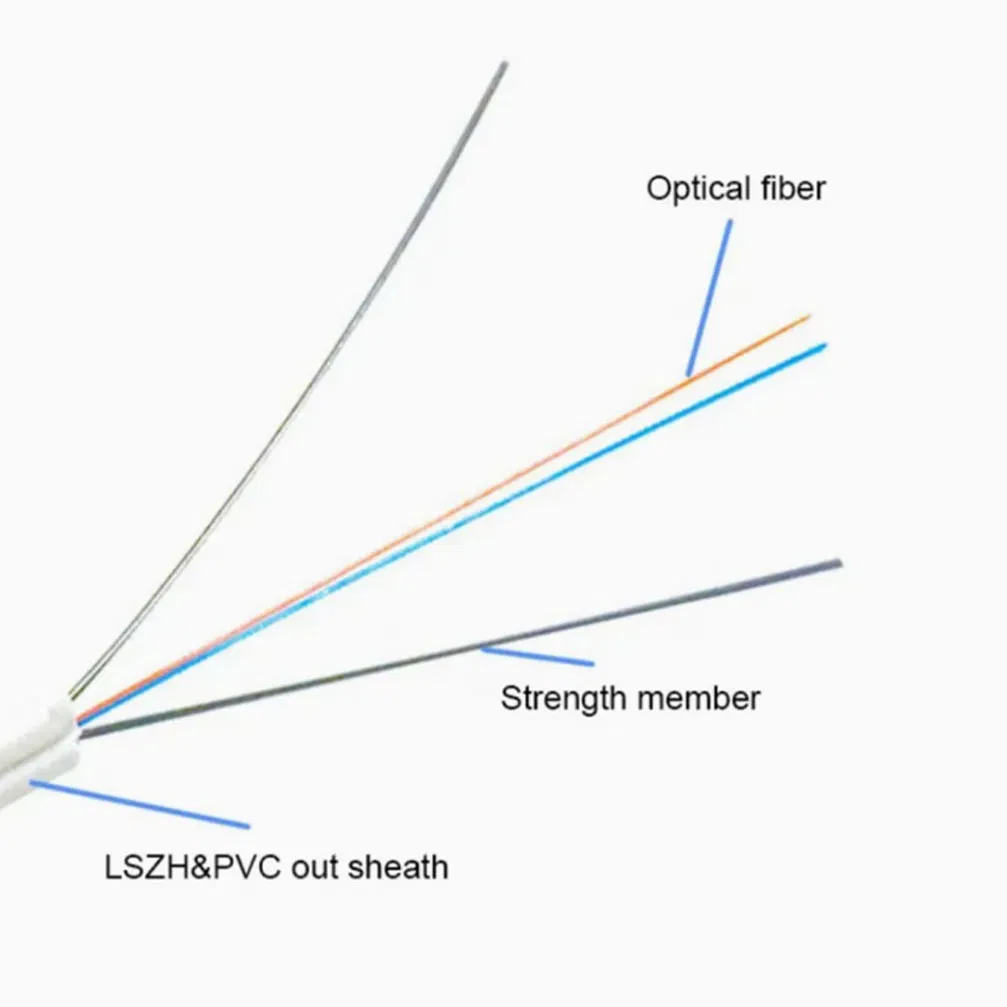

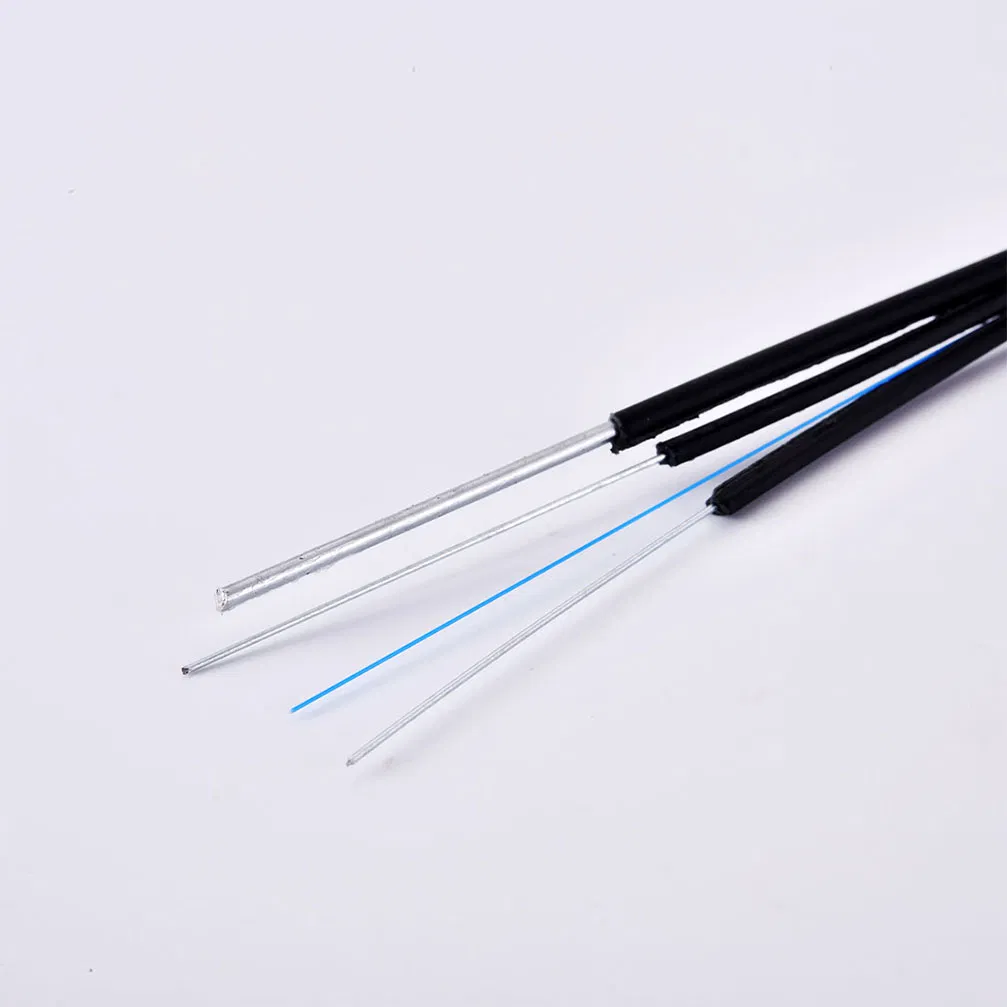

Indoor drop cable GJXH involves placing the fiber optic cable in the center, with two steel reinforcement elements on both sides, and extruding a low smoke halogen-free flame-retardant sheath to form the cable.

⚙️

Technical Parameters

Items	Descriptions
Optical Fiber	Fiber count	1
Optical Fiber	Color	Blue
Strength Member	Material	Steel wire
Strength Member	Diameter	0.4mm
Messenger wire	Material	Wire, glued
Messenger wire	Diameter	1.0*1.1mm
Sheath	Material	LSZH, Black, conventional friction
Cable Diameter	5.0(±0.2)mm * 2.0(±0.1)mm
Cable Weight	Net weight	≈44Kg/2Km
Tensile performance	Short-term	600N
Tensile performance	Long-term	300N
Crush resistance	Short-term	2200N
Crush resistance	Long-term	1000N

🔍

Visual Display

❓

Frequently Asked Questions

What are the primary materials used in this FTTH drop cable?

The cable features high-quality optical fibers at the center, supported by two steel reinforcement elements for strength, and a Low Smoke Zero Halogen (LSZH) flame-retardant outer sheath.

Is this cable suitable for outdoor installations?

Yes, the design of this GJXFH/FTTH drop cable makes it versatile for both indoor and outdoor environments.

What certifications does the product hold?

The cable is manufactured according to international standards and holds RoHS, CE, and ISO9001 certifications to ensure quality and safety.

What is the tensile strength of the cable?

The short-term tensile strength is rated at 600N, while the long-term tensile strength is 300N, providing excellent mechanical protection.

Can the cable withstand lateral pressure?

Yes, it has a high crush resistance with a short-term rating of 2200N and a long-term rating of 1000N, protecting the internal fibers from damage.

What is the standard color and packaging for this product?

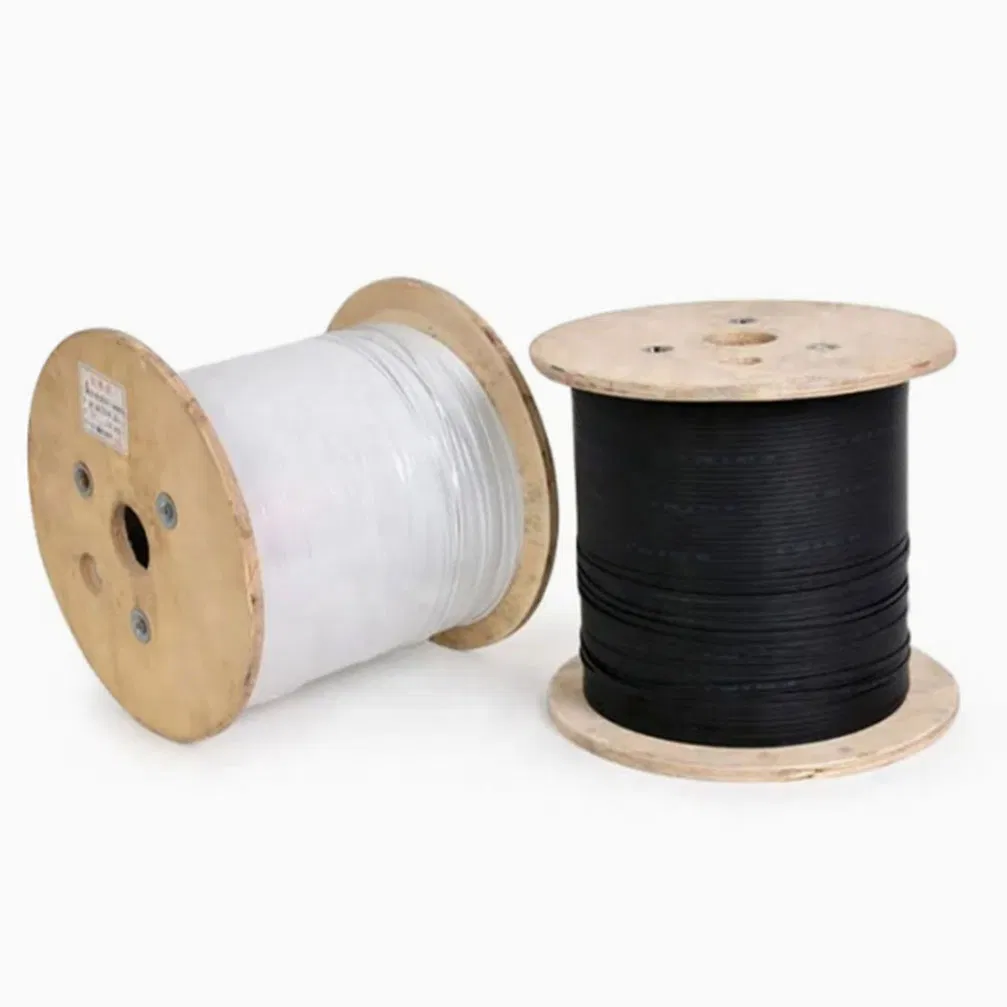

The standard colors are black or white. It is typically packaged in 2km per drum or according to specific customer requirements.
