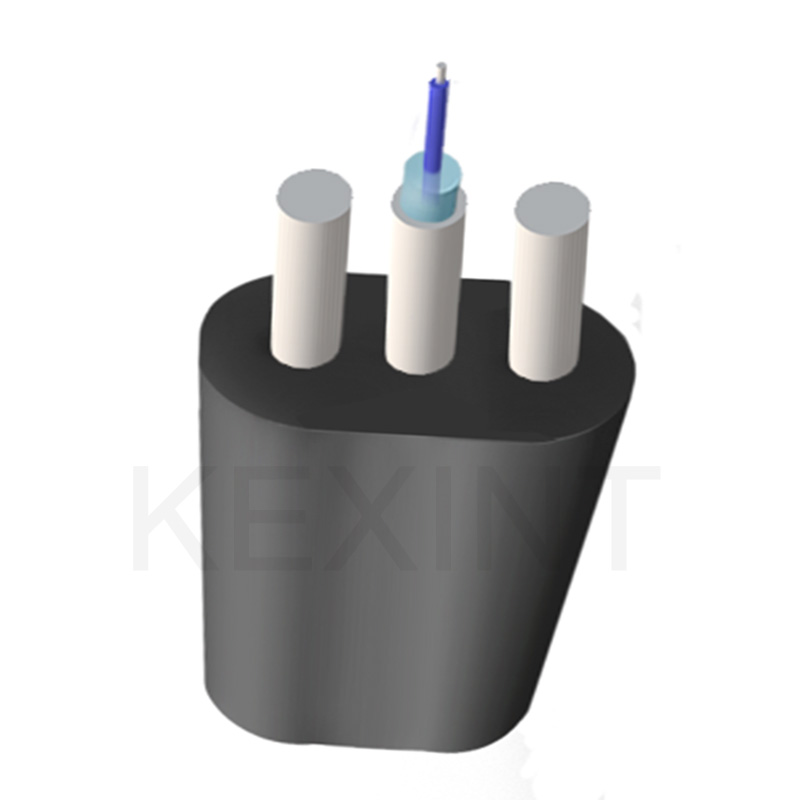

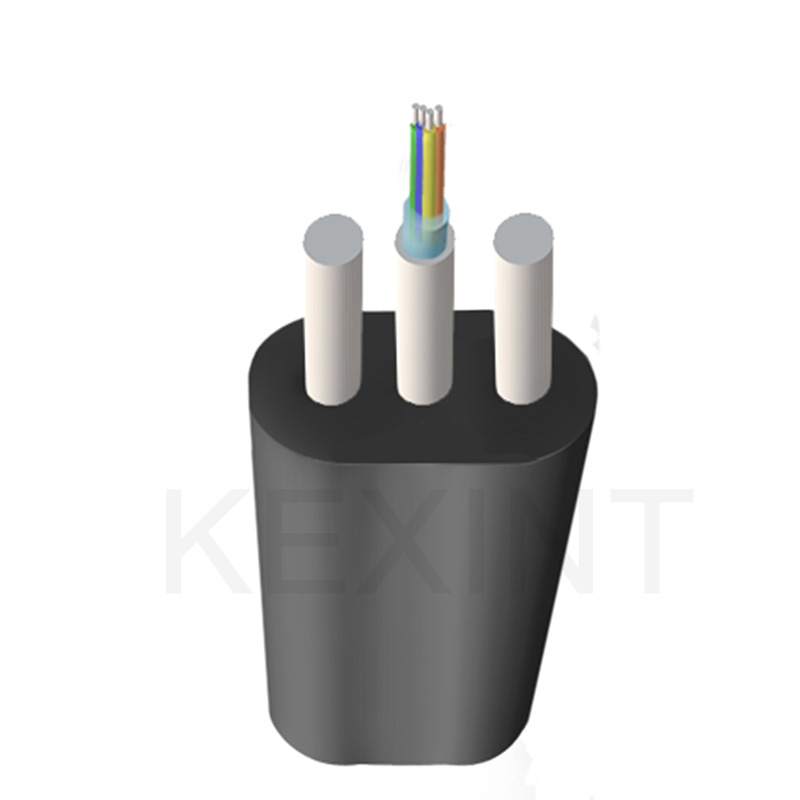

This kind of dielectric cables offer the ease of installation of standard flat cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables can offer exceptional crush resistance. Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.
Key Characteristics
✓ Small size, Low cost.
✓ The fiber counts is up to 24 fibers.
✓ Uni-tube gel-filled construction for superior fiber protection.
✓ Two parallel FRP wire and overall glass yarn to enhance tensile resistant.
✓ Protect cable from mechanical damage.
✓ Designed for use with inexpensive attachment hardware.
✓ Self-supported no messenger needed.
✓ Anti-UV characteristics meet the requirements of relevant standards.
✓ Big capacity data transmission.
✓ Meet various requirements of market and clients.
Specification
Item
Value
Model Number
GYFBY
Type
Fiber Optic Cable
Number of Conductors
≥ 10
Fiber Count
2-24 Cores
Fiber Type
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Sheath Color
Black
Jacket Material
PE
Strength Member
FRP
Packing
Wooden Drum
Installation Tensile
8kN
Certification
ISO9001/CE
Storage/Operating Temperature
-40 to +70 °C

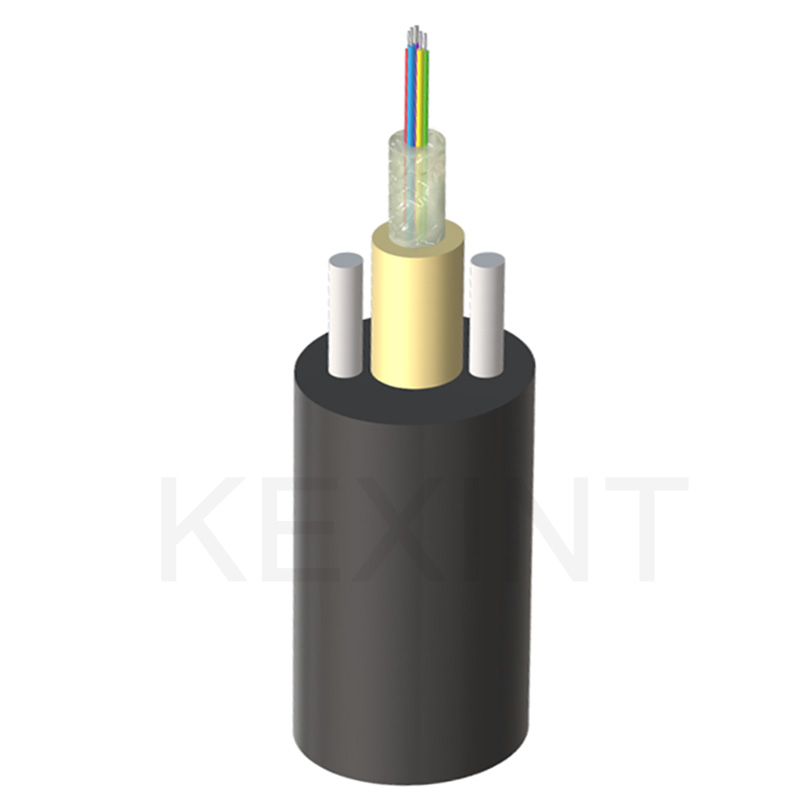

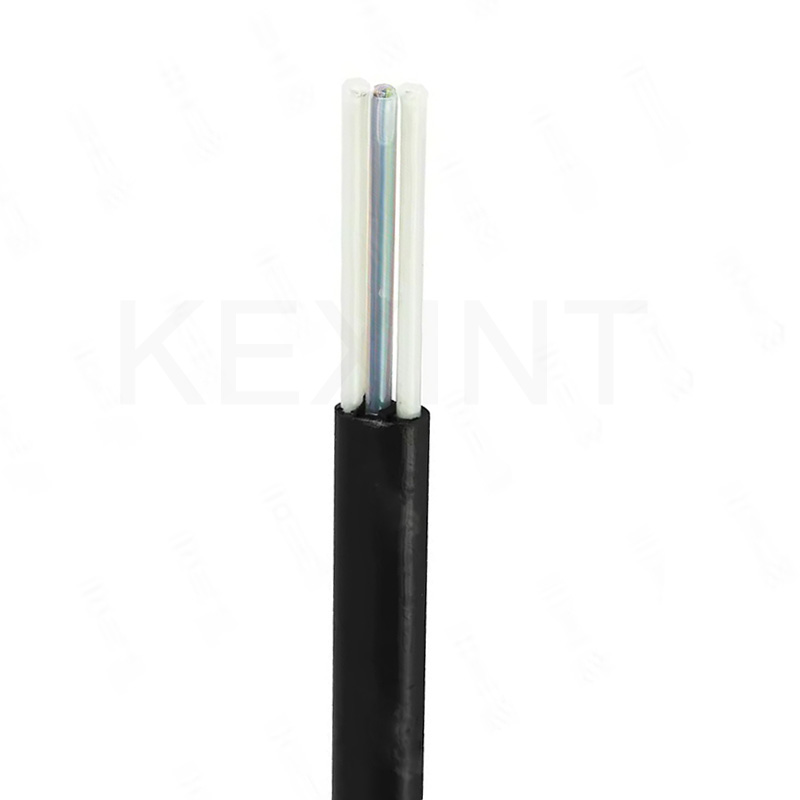

Product Display
Frequently Asked Questions
Q1: What is the main application for the Uni-Tube Aerial Drop cable?
It is specifically designed for Fiber to the Subscriber (FTTH) applications, ideally suited for self-supporting aerial drop installations and conduit builds.
Q2: Why is the "All Dielectric" feature important?
The dielectric design uses non-conductive materials, which eliminates the need for bonding or grounding, making installation safer and easier near electrical lines.
Q3: How many fibers can this cable accommodate?
This cable supports a fiber count ranging from 2 up to 24 cores, depending on your specific requirements.
Q4: What provides the tensile strength for this cable?

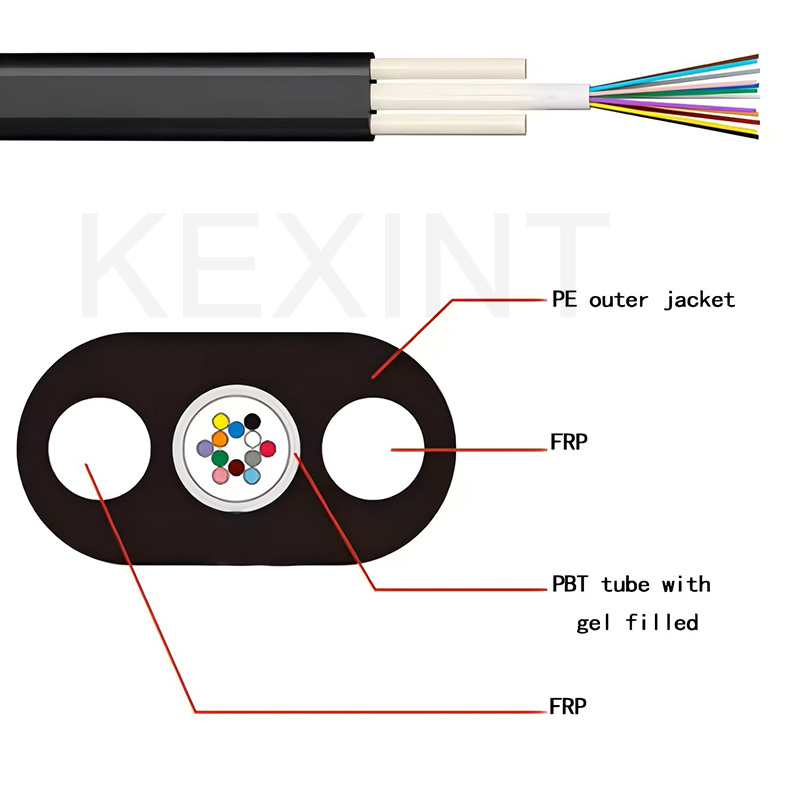

The cable features two parallel FRP (Fiber Reinforced Plastic) wires and overall glass yarn to enhance tensile resistance and protect the fiber from mechanical damage.
Q5: Is the cable jacket resistant to outdoor elements?
Yes, the cable is protected by a PE jacket with anti-UV characteristics, ensuring durability and performance in harsh outdoor environments.
Q6: What is the operating temperature range for this cable?
The cable is designed to operate reliably in temperatures ranging from -40 °C to +70 °C.
