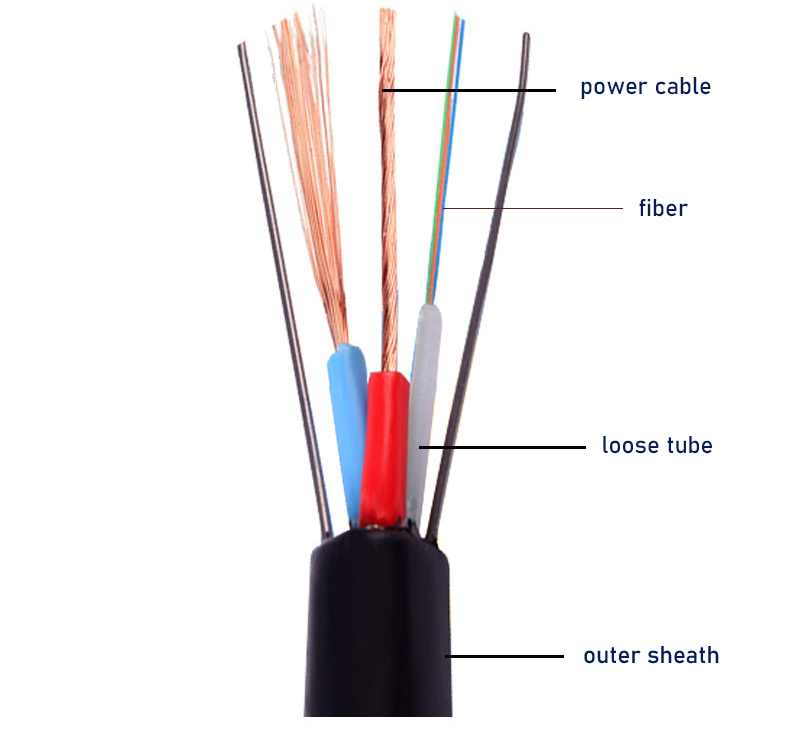

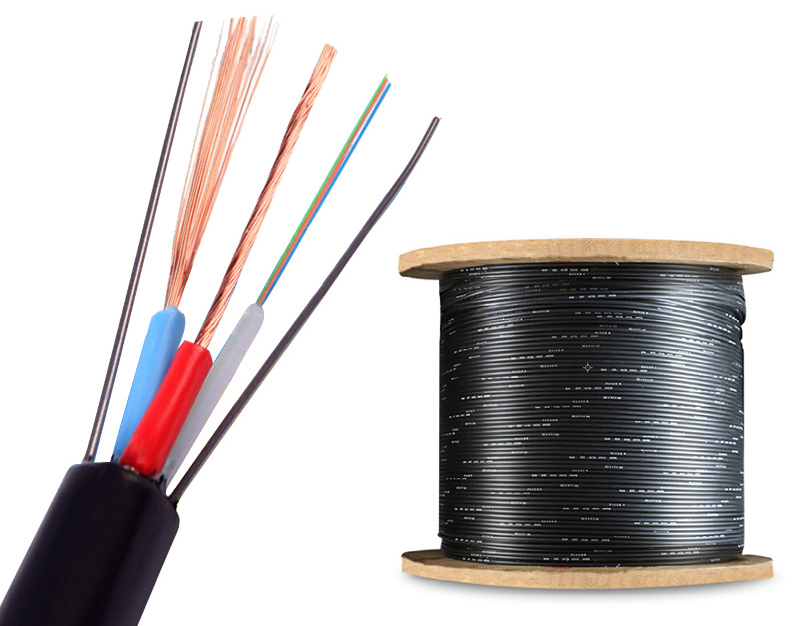

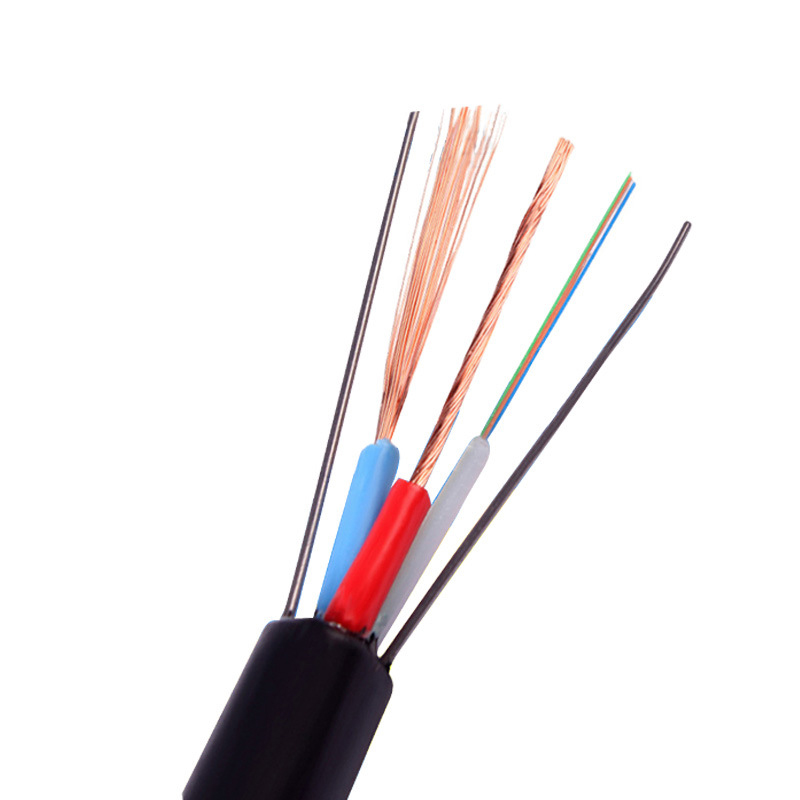

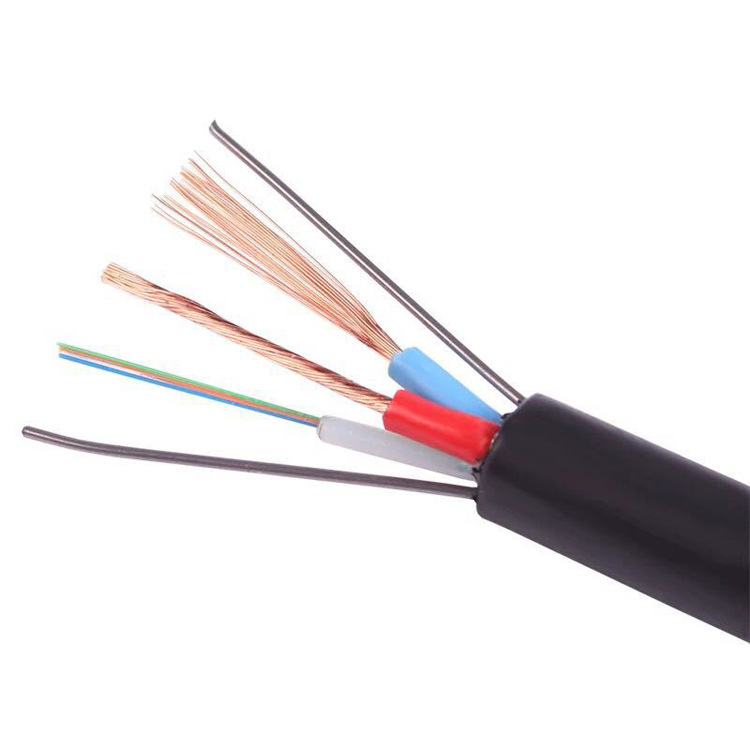

Customized Outdoor Optical Fiber + Power cable (24, 48, 96 Core) Hybrid Power Fiber Optical Cable designed for modern telecommunication infrastructure.
Photoelectric design for simultaneous power and signal transmission with centralized monitoring.
Enhanced power supply management with reduced coordination and maintenance needs.
Lower procurement and construction costs compared to separate installations.
Ideal for BBU-RRU connections in DC remote power systems. Suitable for duct and overhead installation.
| Product Name | OEM Optoelectronic Composite Cable Hybrid Power Fiber Optical Cable |
|---|---|
| Fiber Count | 2-288 Fibers (Customizable) |

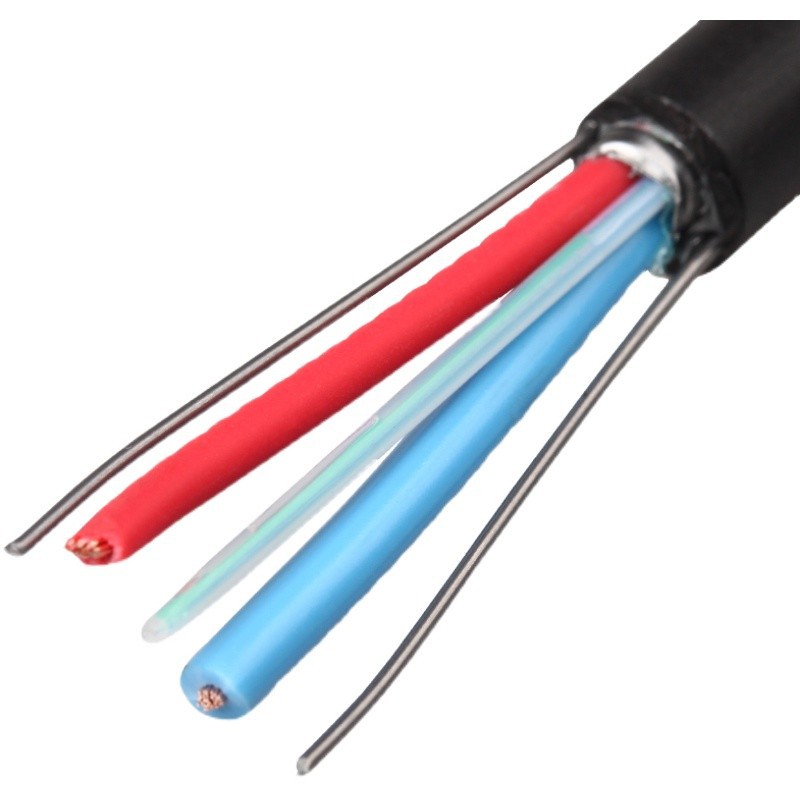

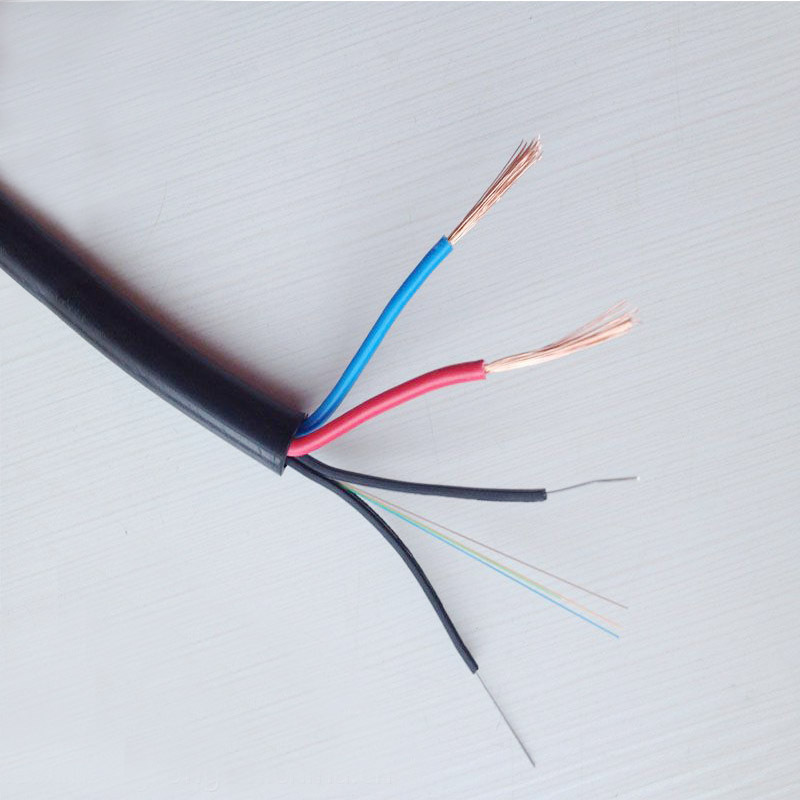

| Construction | Fiber + Power Cable |
| Fiber Type | Singlemode G.652D / G.657A1 |
| Outer Jacket | PE, PVC, LSZH (Customizable) |
| Application | Overhead, Aerial, Duct, High-voltage Area |
| Operation Temp | -40℃ to +70℃ |
| Item | Unit | Specification |
|---|---|---|
| Mode field diameter (1310nm) | μm | 9.2 ± 0.4 |
| Cladding diameter | μm | 125.0 ± 1 |
| Core/cladding concentricity error | μm | ≤0.5 |
| Coating diameter | μm | 242 ± 7 |
| Attenuation Coefficient (1550nm) | dB/km | ≤0.22 |
