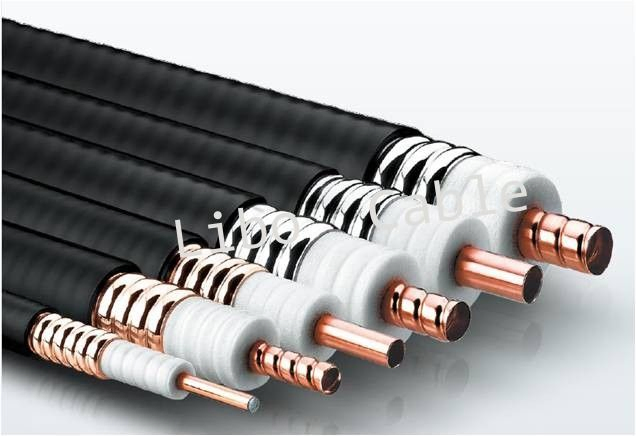

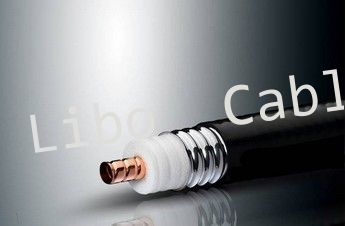

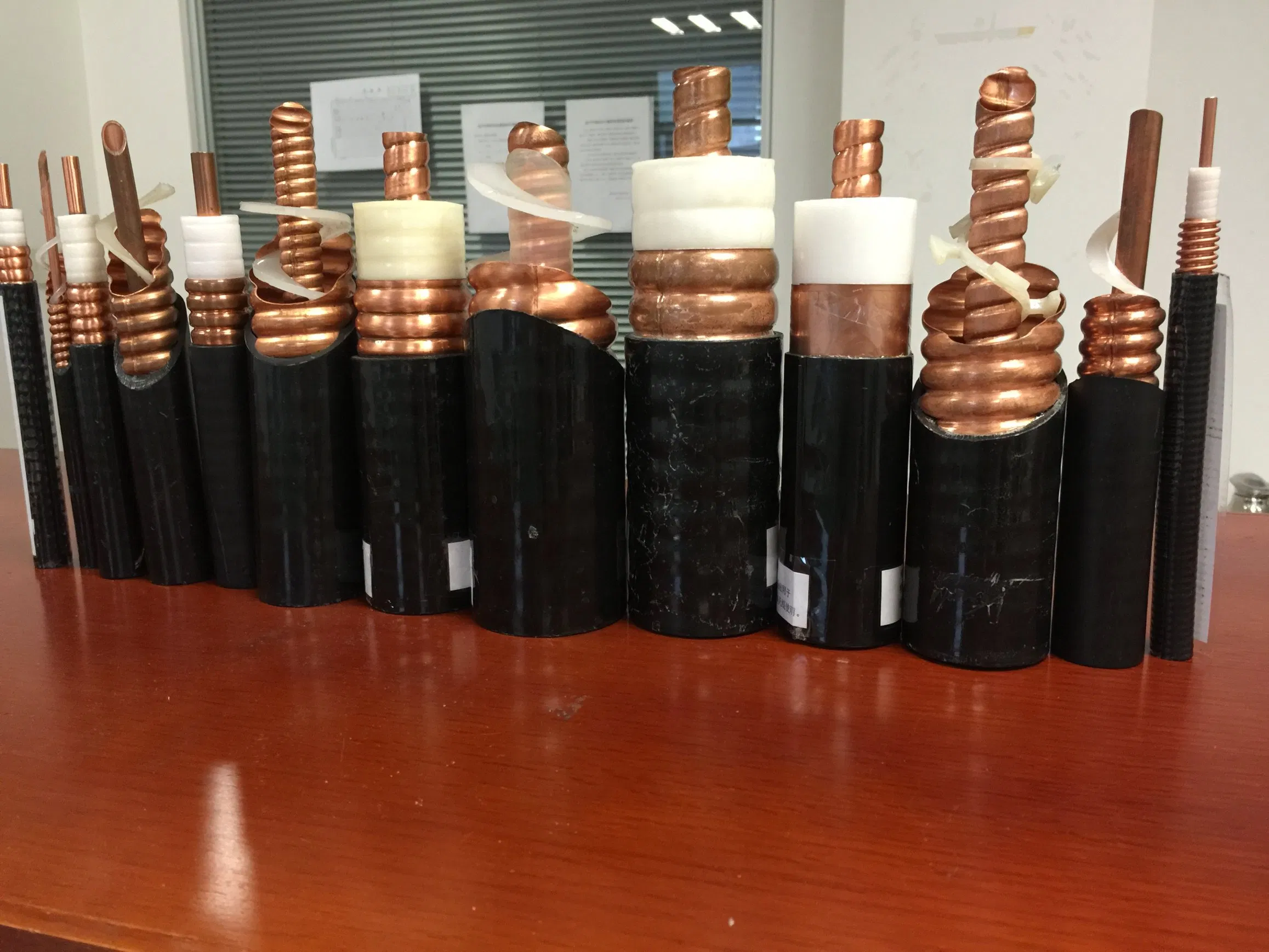

7/8 (50-22) RF Coaxial Cable for Wireless Mobile Communication System

Basic Information

Model NO.

7/8 inches feeder cable

Cover Material

PE or LSZH

Type

RF Cable

Material Shape

Round Wire

Conductor Type

Solid

Wire Core

Bare Copper Wire

Certification

CE, ISO

Inner Conductor

Copper Pipe

Transport

350m/500m/Customized

HS Code

8544200000

Product Description

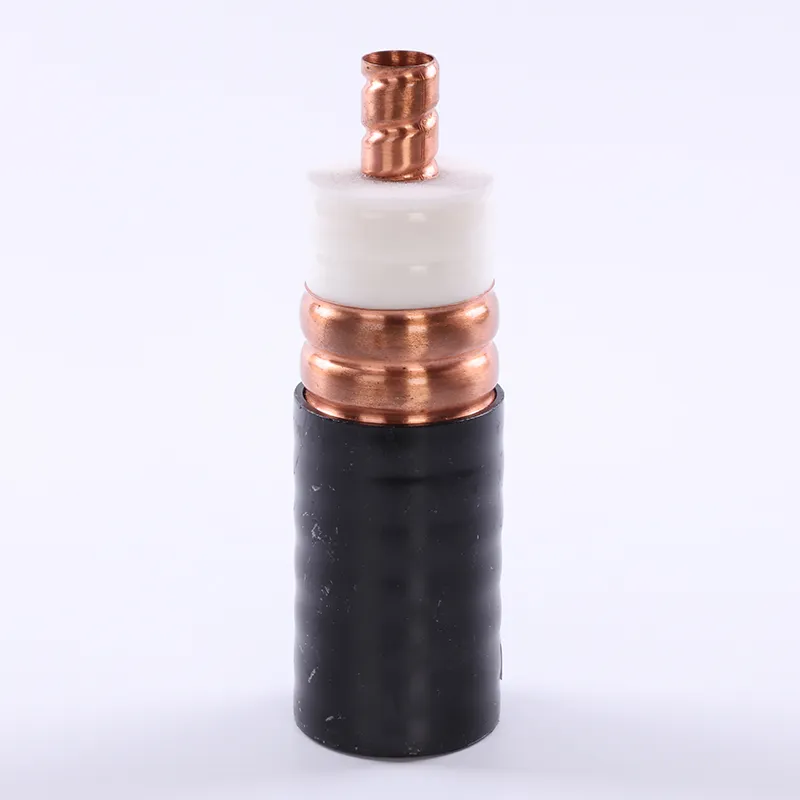

7/8 Inches Feeder Cable

Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also available for inner conductor as different options. Insulation is high physically foaming PE. Outer conductor is corrugated aluminum tape. PE for outer jacket.

★Applications:

Metro stations and tunnels
Wireless In-building solutions
Wireless mobile communication systems
Microwave telecommunication
Military use projects

Technical Specification

Category	Testing Item	Unit	Standard
Inner Conductor	Material	-	Helix wrinkle copper tube
Inner Conductor	Diameter	mm	9.00
Outer Conductor	Material	-	Corrugated aluminum tape welded
Outer Conductor	Diameter	mm	25.10
Jacket	PE or Halogen Free	mm	27.70
Mechanical	Single bending radius	mm	140
Mechanical	Repeated bending radius	mm	270
Electrical	Inner conductor resistance	Ω/km	≤1.65
	Characteristic impedance	Ω	50+/-1
	Capacitance	pF/M	76
	Velocity	%	88
	VSWR (0.01GHz-3GHz)	-	1.20

Manufacturing Excellence

Established in 1994, covering over 340,000 square meters of operating area.
Stable workforce and professional engineering team.
Strict production and testing procedures following ISO9000 and ISO14000.
Over 18 years of specialized experience in coaxial cable manufacturing.
Long-term business partnerships with multi-national cable companies.

Related Products

Frequently Asked Questions

Can I use my own logo or design on the cables?

Yes, customized logos and designs on goods are available to meet your branding requirements.

Is it possible to visit your manufacturing facility?

Certainly, you are welcome to visit our factory at any time with prior notice.

Does your company accept customized specifications?

Yes, we can produce cables based on specific customization requirements that are technically practicable.

What is the typical delivery lead time?

Stocked products are usually ready within one working day. Manufactured items take from several days to several months depending on type and quantity.

How do you handle after-sales service inquiries?

All inquiries are addressed within 24 hours of receipt. We provide active responses to ensure satisfying solutions for every client.

Can you provide samples for product development?

We provide samples for mature technical lines. Special types require technical appraisal. Samples may be free or at cost depending on the type.
