Product Description

Self-Supported Drop Fiber Optic Cable (GJYXCH/GJYXFCH)

Basic Information

Material Shape:Round Wire

Allowed Lateral Pressure:>1000(N/100mm)

Tensile Strength:100N<1000N

Core:Multicore

Certification:CE

Sheath Material:LSZH

Temperature:-20--60℃

Bending Radius:15/30 (Dynamic/Static)

Product Parameters

Fiber Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short term (N)	Crush Resistance (N/100mm)	Bending Radius (mm)
1	(2.0±0.1)x(5.0±0.1)	21	300/600	1000/2200	15/30
2	(2.0±0.1)x(5.0±0.1)	21	300/600	1000/2200	15/30

Optical Characteristics

Fiber Type	Attenuation (dB/km)	Bandwidth (850/1300nm)	10G Ethernet Link	Min Bend Radius (mm)
G657A1	0.36/0.22 (1310/1550nm)	-	-	10
G657A2	0.36/0.22 (1310/1550nm)	-	-	7.5
OM3	3.0/1.0 (850/1300nm)	≥1500/500 MHZ.km	≤300 m	30
OM4	3.0/1.0 (850/1300nm)	≥3500/500 MHZ.km	≤550 m	30

Ordering Information

Fiber count	1-2 cores
Fiber type	G657A1, G657A2, 50/125, 62.5/125, OM3, OM4, OM5
Strength unit type	FRP, Steel wire
Outer jacket	LSZH (Color per request)

Product Profile & Features

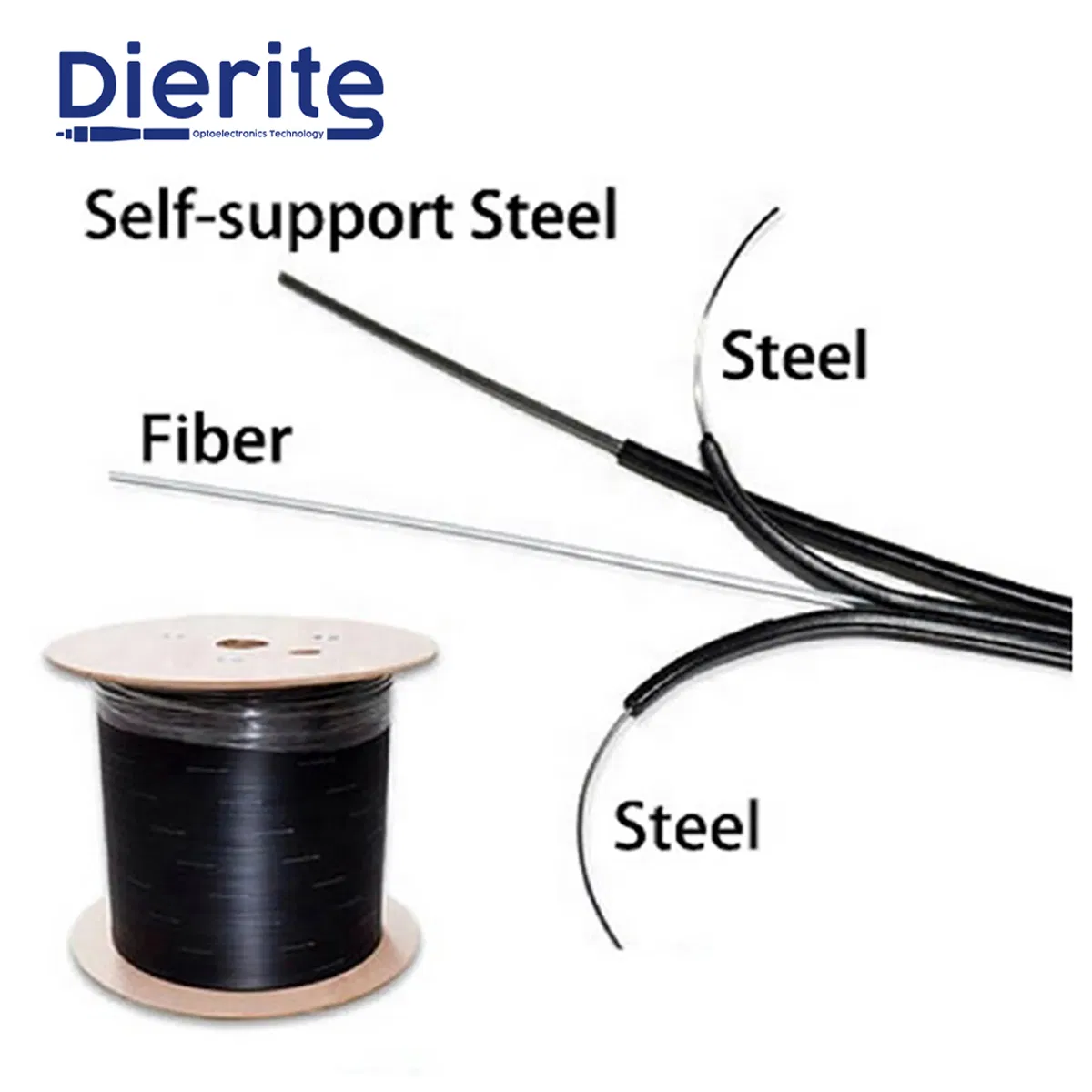

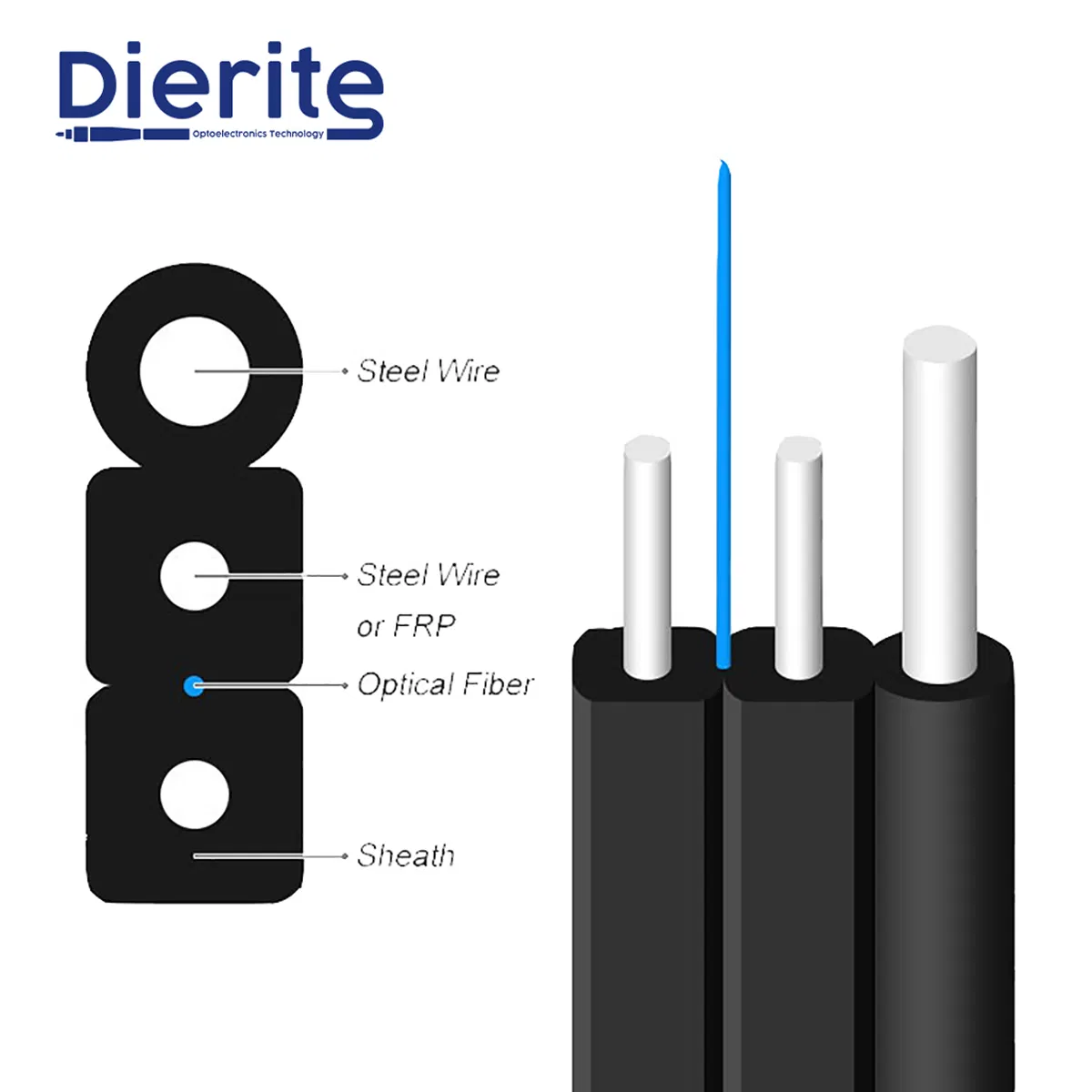

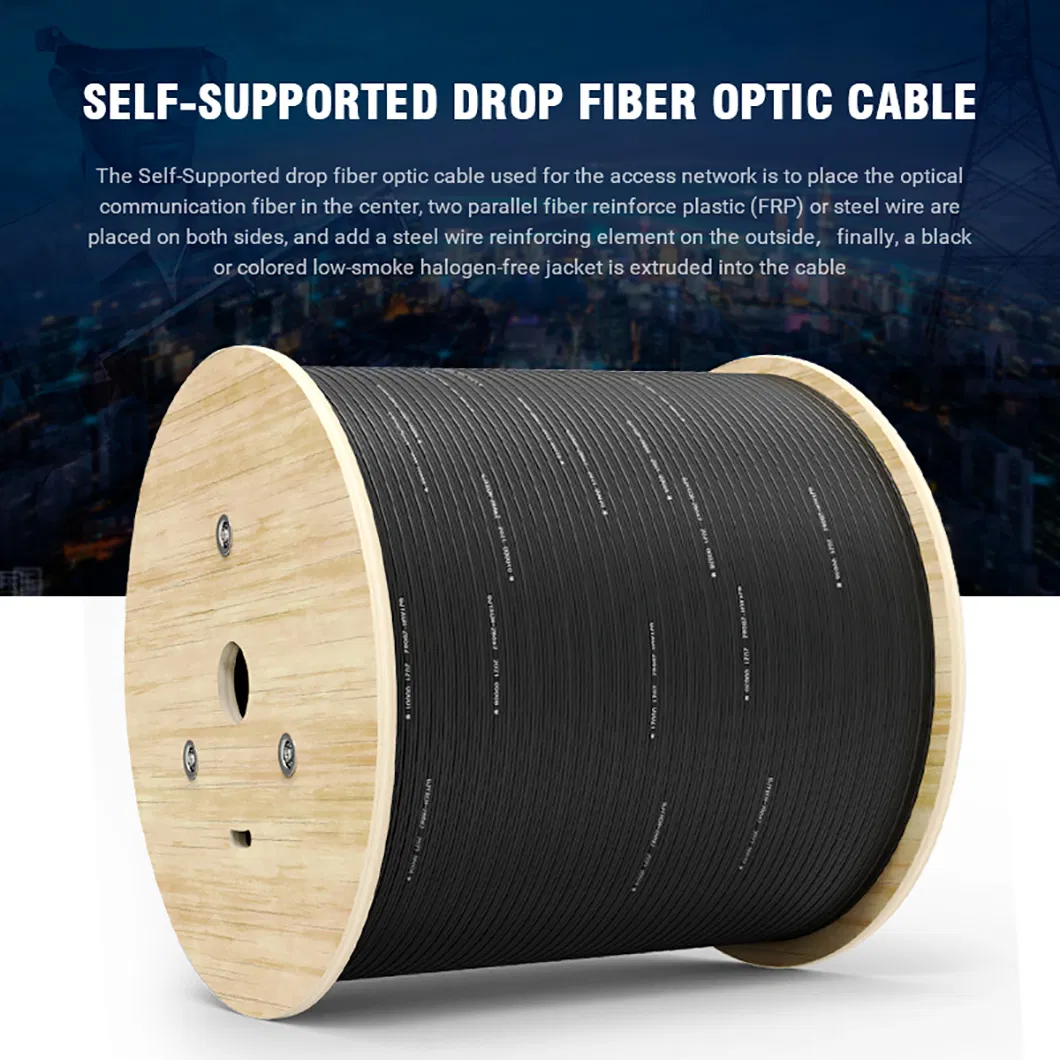

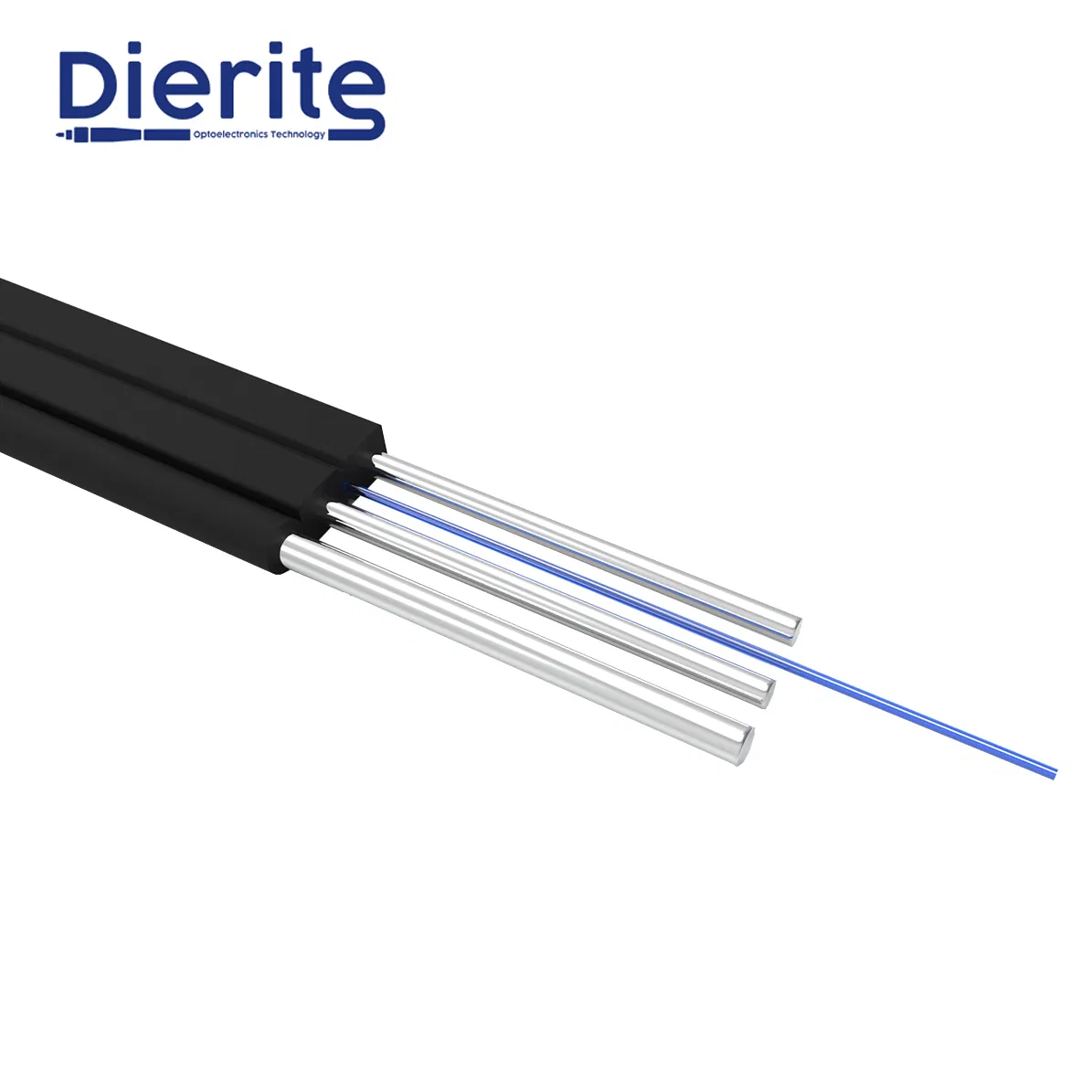

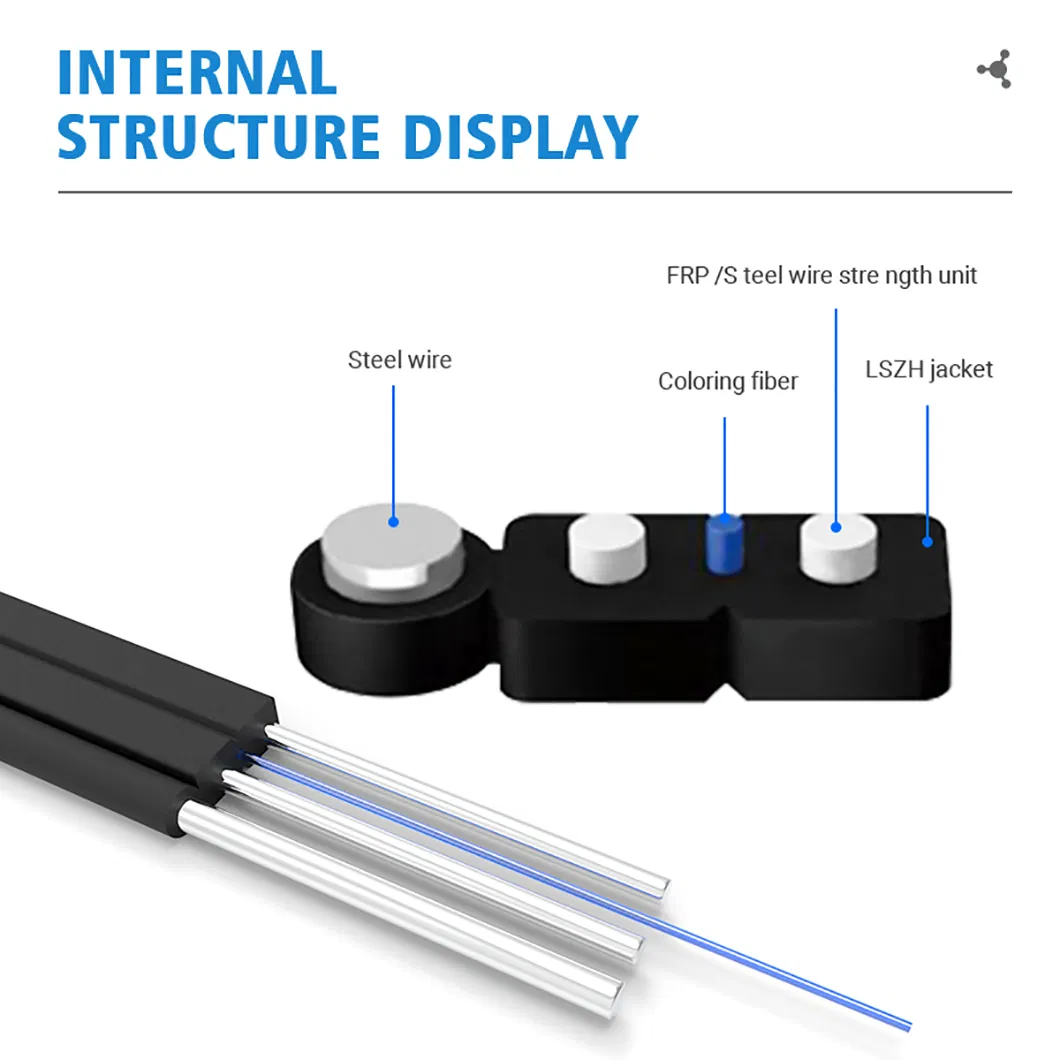

The Self-Supported drop fiber optic cable is designed for access networks, placing the optical fiber in the center with two parallel strength members (FRP or steel wire) on both sides. An additional steel wire reinforcing element is added to the outside before extruding the low-smoke halogen-free (LSZH) jacket.

Special bending resistant fiber provides enhanced network transmission characteristics.
Two parallel strength units ensure excellent crush resistance to protect the fiber.
Additional steel wire element provides superior tensile performance for aerial applications.
Simple structure and light weight for high practicability.
Special groove design allows for easy stripping and simplifies installation.

Application

Packaging & Shipping

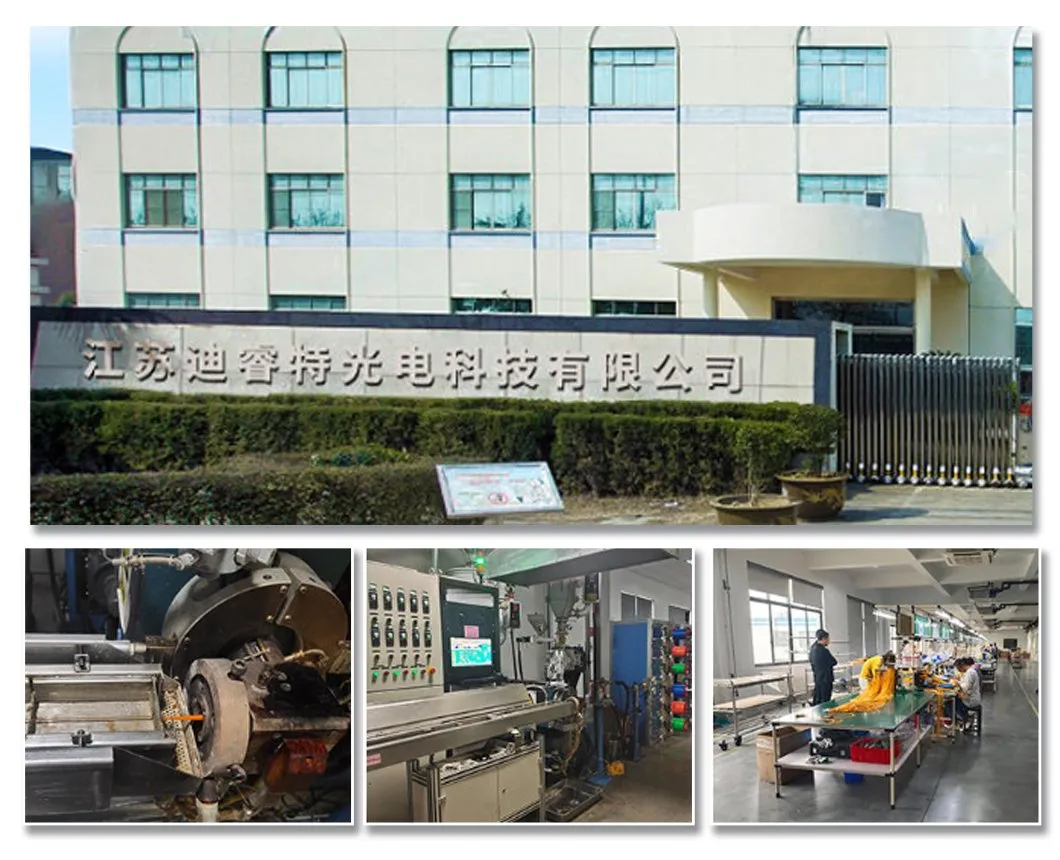

Production & Certifications

Frequently Asked Questions (FAQ)

Q1: What is the main application of the GJYXCH drop cable? A1: It is primarily used for access networks, FTTH (Fiber to the Home), and connecting data centers, especially in self-supporting aerial installations.

Q2: Why does the cable use an LSZH jacket? A2: LSZH (Low Smoke Zero Halogen) material is used to ensure safety during a fire by reducing toxic and corrosive gas emissions, making it suitable for both indoor and outdoor environments.

Q3: Can the strength units be customized? A3: Yes, the cable can be produced with either FRP (Fiber Reinforced Plastic) or steel wire strength members depending on the specific mechanical requirements of the project.

Q4: What is the benefit of the self-supporting steel wire? A4: The external steel wire provides high tensile strength, allowing the cable to be hung between poles without needing an additional messenger wire, which simplifies the installation process.

Q5: How does the bending resistant fiber improve performance? A5: Special bending resistant fibers (like G.657.A1/A2) maintain high-quality signal transmission even when the cable is tightly bent around corners, which is critical in residential FTTH wiring.

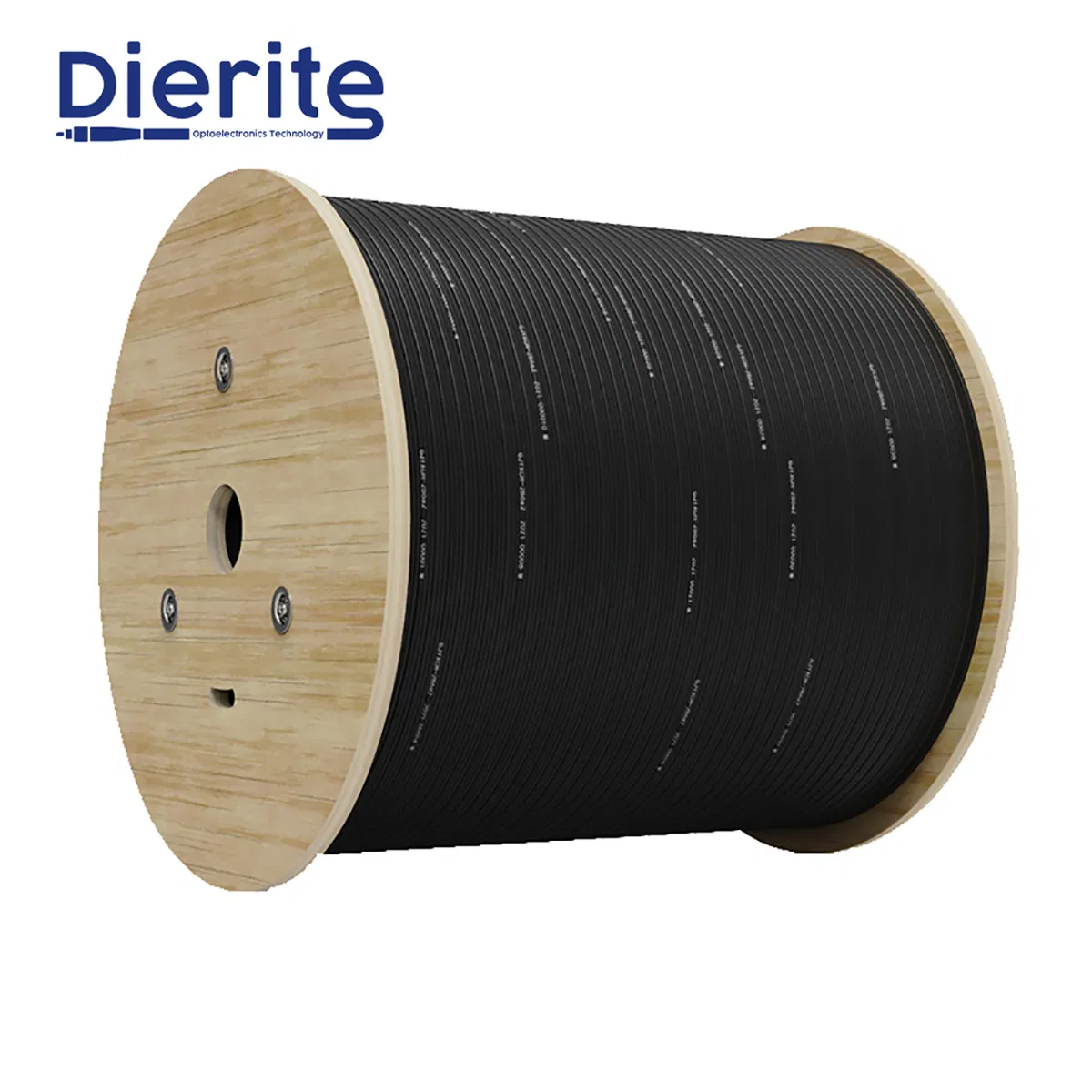

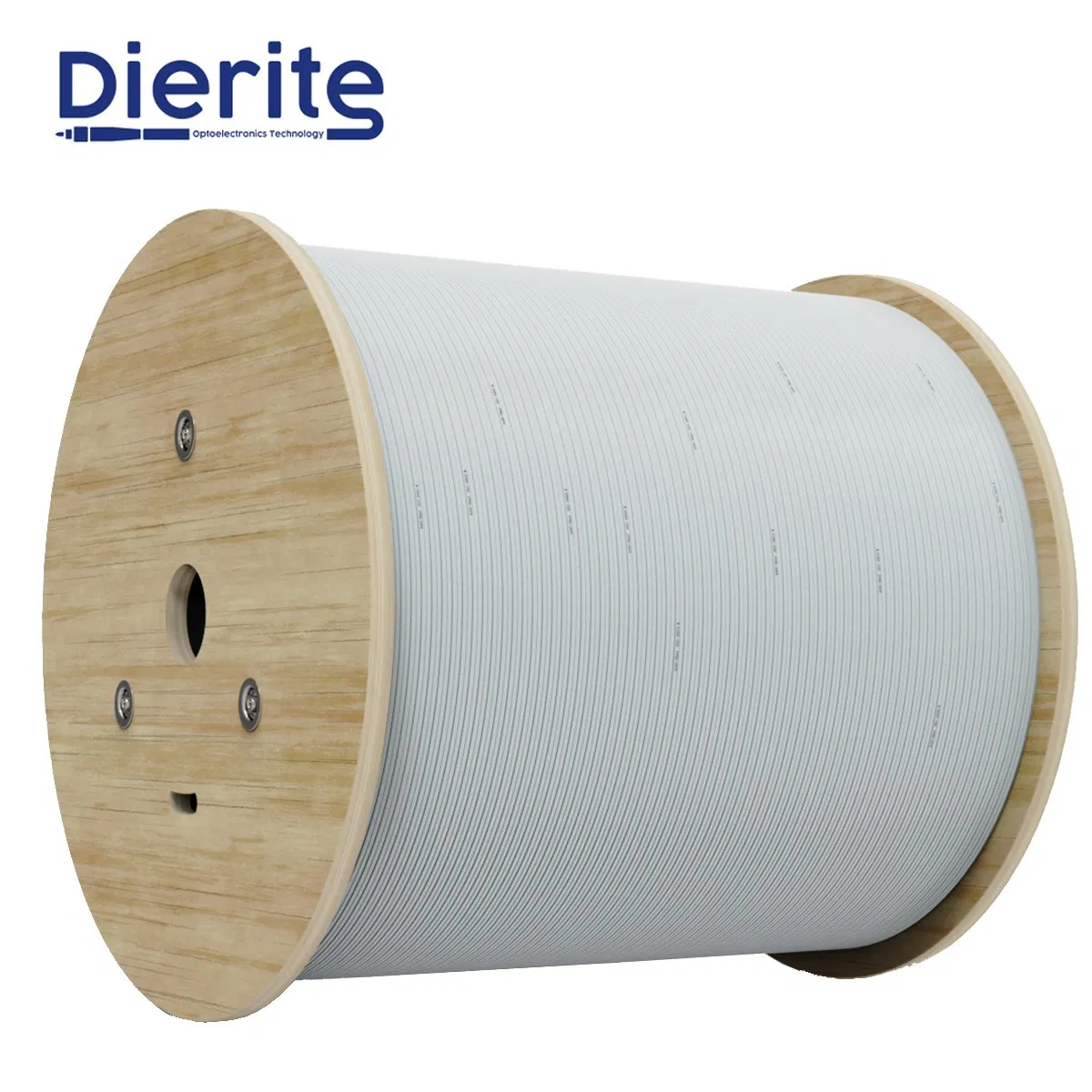

Q6: Is the delivery length of the cable flexible? A6: Yes, the delivery length of the wooden-drum can be customized according to specific customer requirements and installation needs.
