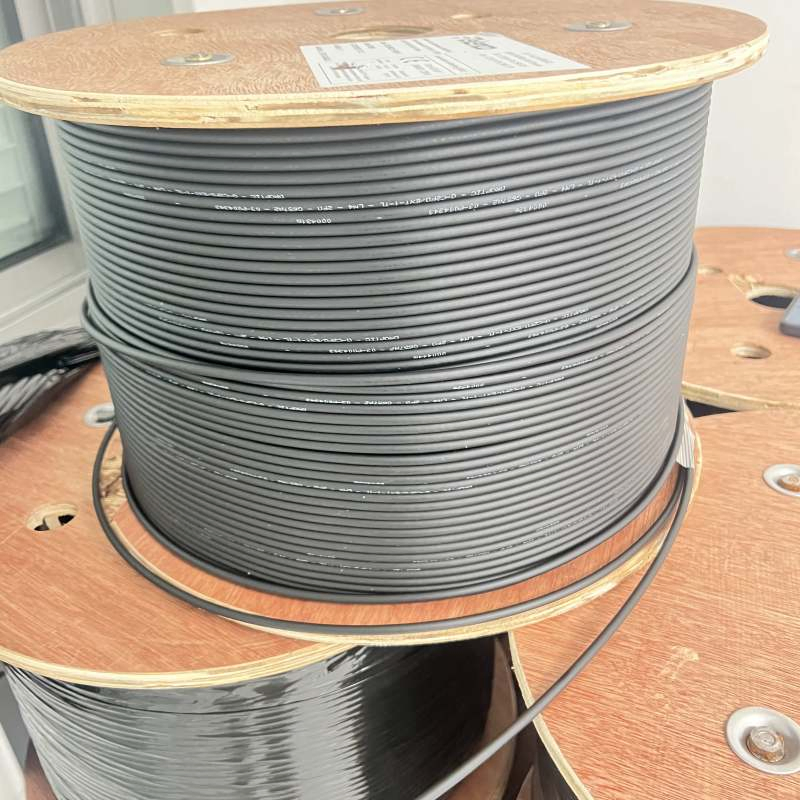

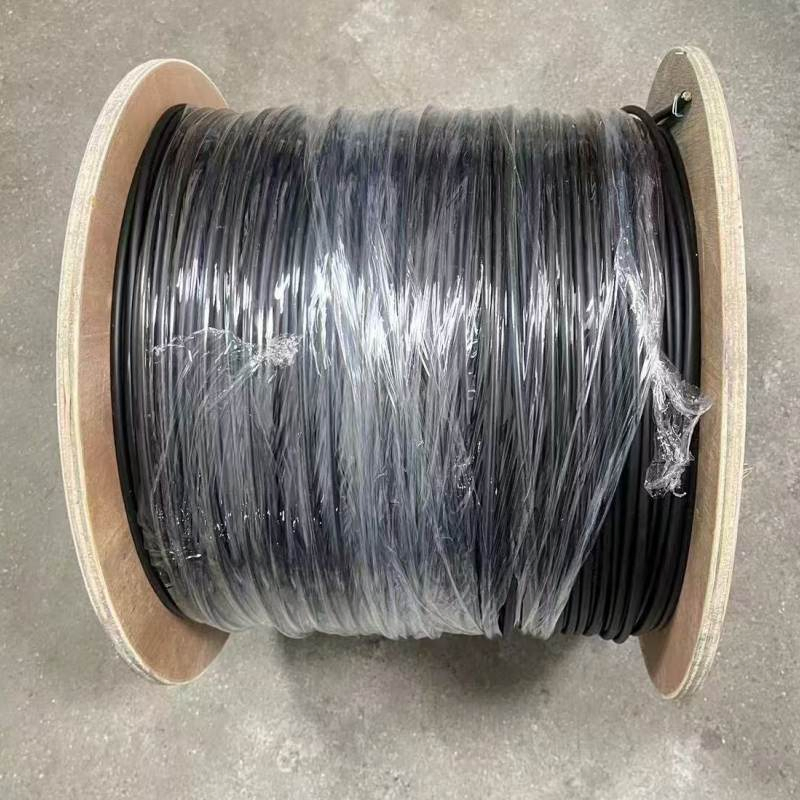

Self Supporting Flat Steel Messenger Wire FRP Indoor 1cores 288cores Outdoor Fiber Optic Cable

1 / 5

Self Supporting Flat Steel Messenger Wire FRP Indoor 1cores 288cores Outdoor Fiber Optic Cable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Material ShapeFlat Wire

Lateral Pressure>1000(N/100mm)

Tensile Strength1000N - 10000N

CoreDouble Core

CertificationRoHS, ISO9001, CCC

Sheath MaterialPVC / LSZH

ApplicationFTTX/FTTH/FTTR/HFC

Fiber TypeG657A2

Production Capacity200 Kilometres/Day

Packaging & Delivery

Package Size50.00cm * 50.00cm * 30.00cm

Gross Weight2.000kg

Product Description

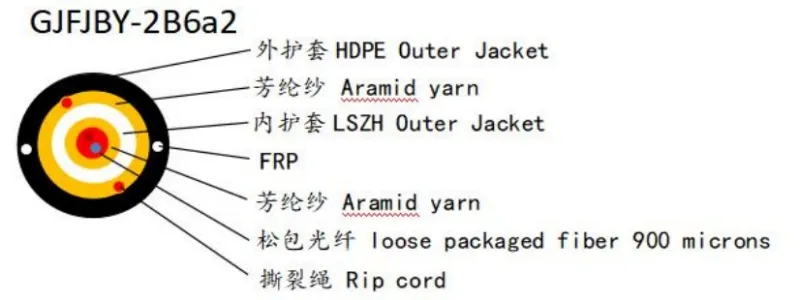

GJFJBY LSZH Indoor/Outdoor G657a2 Armored 2 Core Fiber Optic Cable

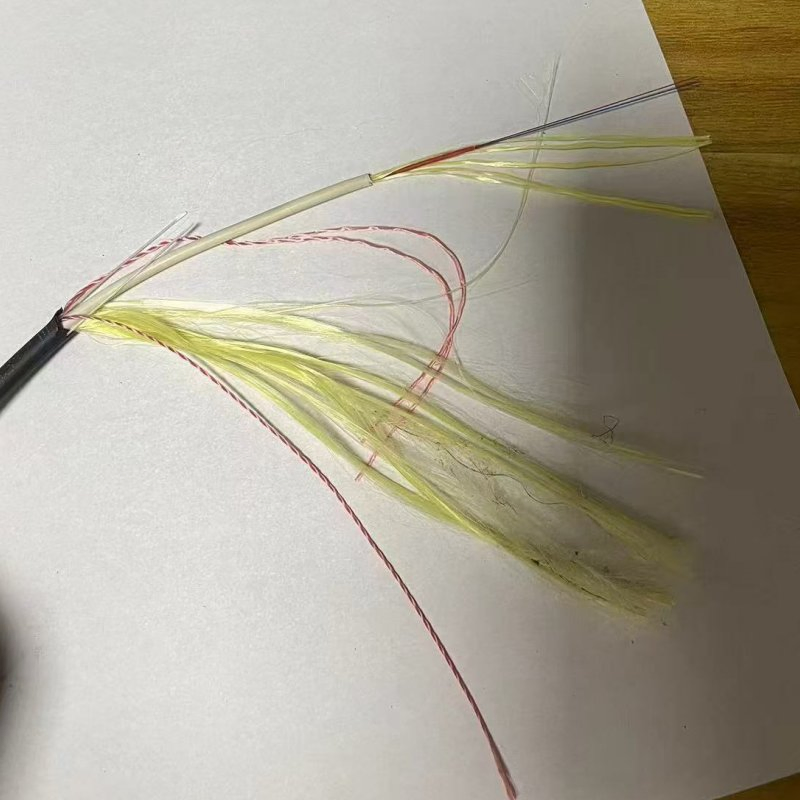

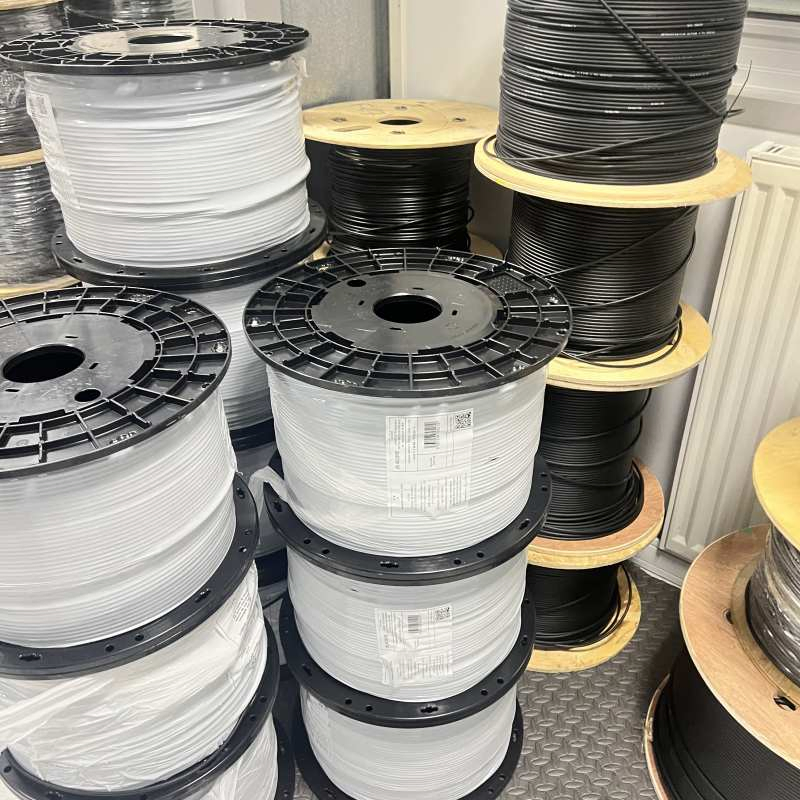

Product Show

Product Parameters

Parameter	Specification
Product Type	GJFJBY-2B6a2
Cable Standard	YD/T 1258.4-2005
Cladding Diameter	125.0±0.7μm
Coating Diameter	245±10μm
Attenuation @ 1310nm	≤ 0.35dB/km
Attenuation @ 1550nm	≤ 0.21dB/km
Zero Dispersion Wavelength	1300~1324nm
Mode Field Diameter @ 1310nm	9.0±0.4μm
No. of Fiber	2
Cable Diameter	5.0±0.2 mm
Long Term Tension	500N
Operating Temperature	-40ºC to +60ºC

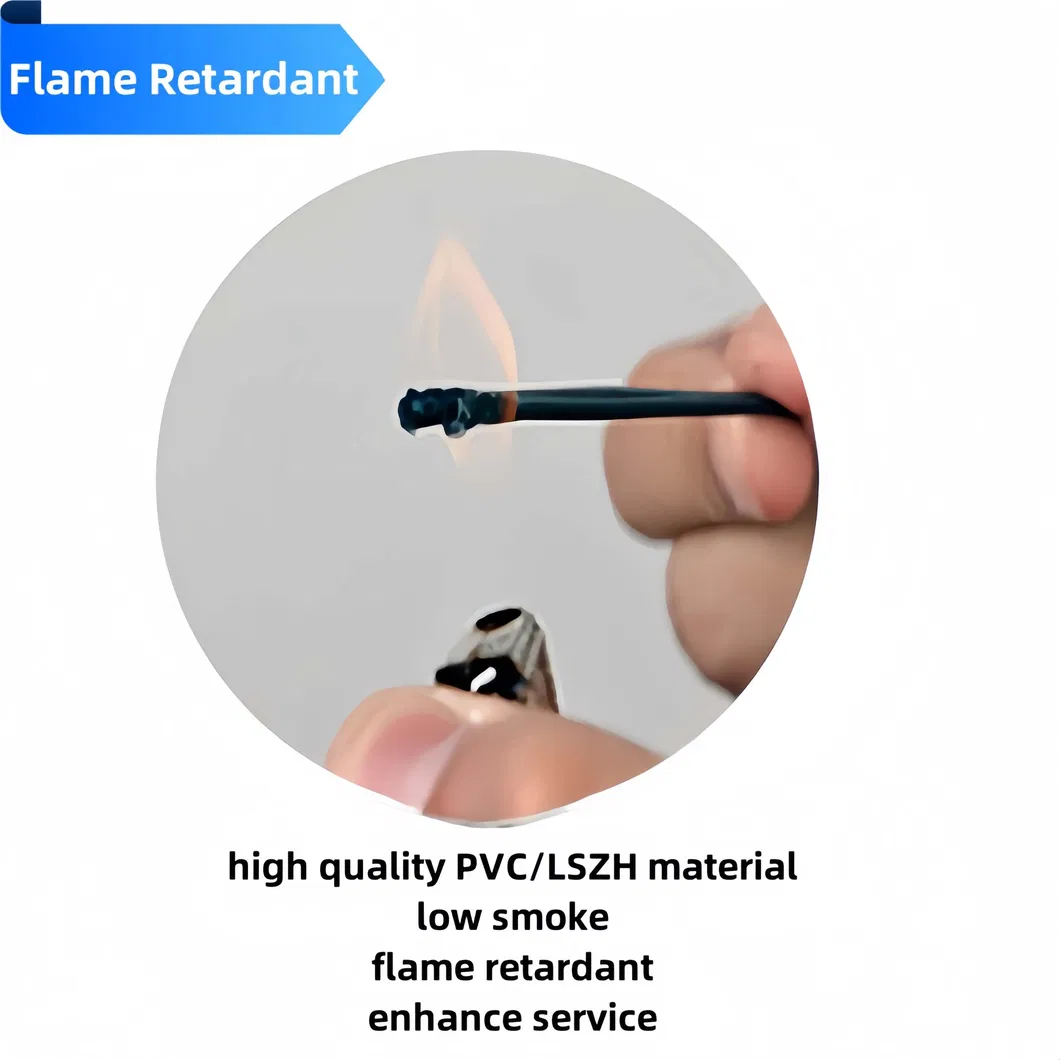

Details and Materials

Related Products

Frequently Asked Questions

Q1: What are the main features of this fiber optic cable? A: The cable features G657A2 fiber cores with armored protection, suitable for both indoor and outdoor environments, and uses LSZH/PVC jacketing for safety and durability.

Q2: Can I request customized printing on the cable jacket? A: Yes, we offer customization options for logos, barcodes, unique QR codes, and serial numbers according to your specific requirements.

Q3: How long does it take to receive samples? A: Stock samples are typically ready in 1 to 3 days. For non-stock or customized samples, the lead time is approximately 7-15 working days.

Q4: What shipping methods are used for delivery? A: We typically use express services such as DHL, UPS, FedEx, TNT, or SF Express. Delivery usually takes between 3 to 7 days depending on your location.

Q5: Is there a minimum order quantity (MOQ)? A: Yes, the MOQ varies depending on the specific product. Please contact our sales team to confirm the details for your desired items.

Q6: Does the product meet international standards? A: Yes, our products are high-quality and designed to meet major standards including RoHS, ISO9001, and CCC certifications.
