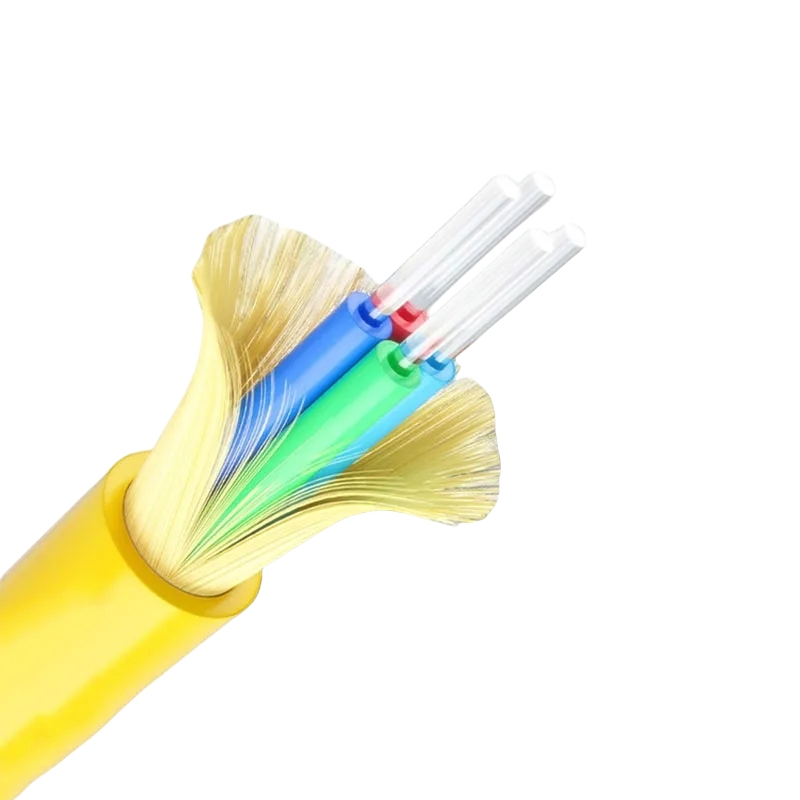

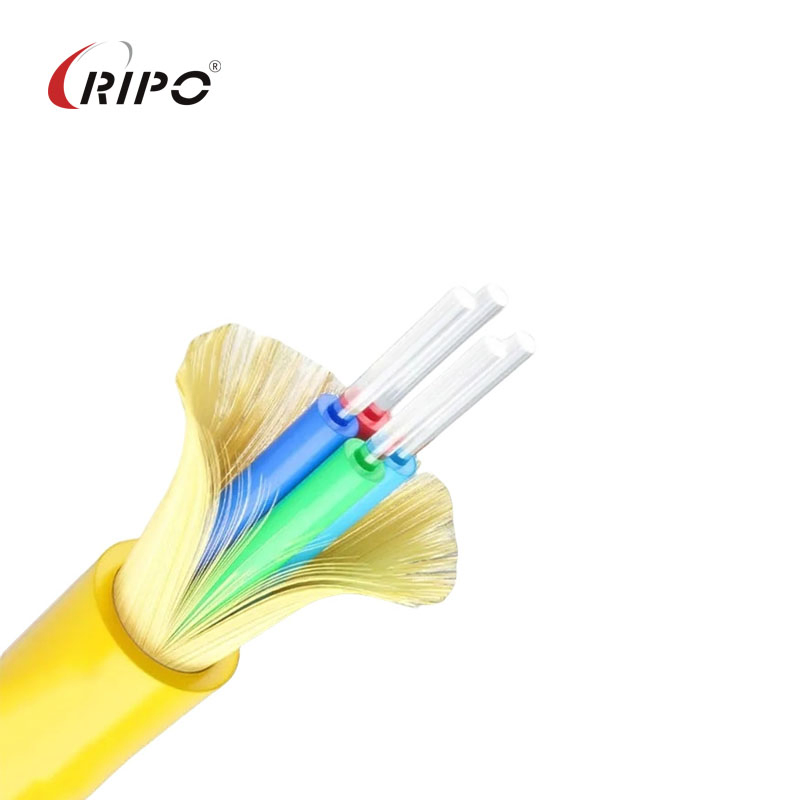

2-144 Core Sm/mm Tight Buffer Distribution Fiber Cable

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
Fiber cable
Connection Structure
SC
Material Shape
Round Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N<10000N
Core
Double Core
Certification
RoHS, CE, ISO9001, CCC
Sheath Material
PE or LSZH
MOQ
100 Meters
Conductor
Tinned Copper
Insulation
XLPE PE PVC
Specification
4x50mm2
Product Description

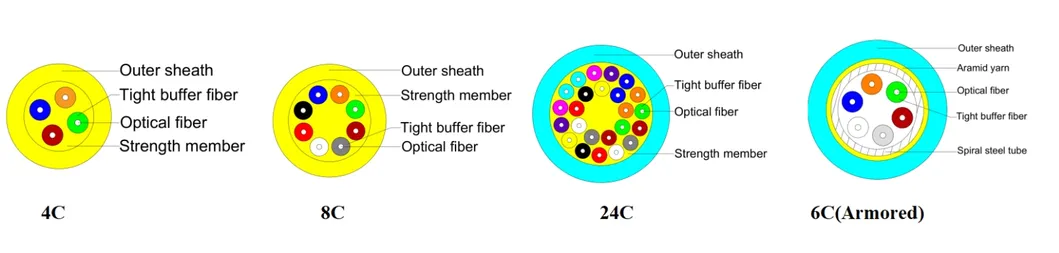

Fiber Cable Banner
Technical Parameters
Cable Code Diameter(mm) Weight(kg/km) Tensile(N) Crush(N/100mm) Bending(mm)
GJBFJH/V-4C7.0±0.243-44130/440300/100010D/20D
GJBFJH/V-6C8.0±0.262-64200/660300/100010D/20D
GJBFJH/V-12C12.2±0.3146-150200/660300/100010D/20D
GJBFJH/V-24C13.8±0.3182-185400/1320300/100010D/20D
Single Mode Characteristics
Category G652D G657A1 G657A2
Attenuation (Typical)0.36/0.22 dB/km0.36/0.22 dB/km0.36/0.22 dB/km
MFD (@1310nm)9.2±0.4μm8.8±0.4μm8.8±0.4μm
Min bending Radius16mm10mm7.5mm
Detailed Photos
Detailed Photo 1

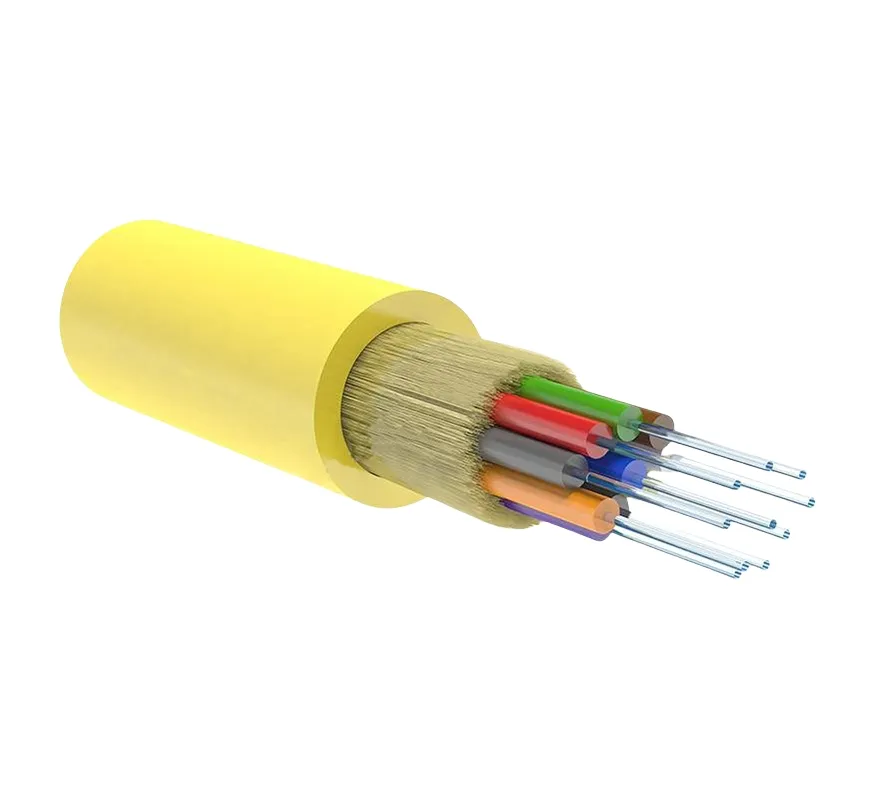

Detailed Photo 2
Detailed Photo 3
Detailed Photo 4
Detailed Photo 5

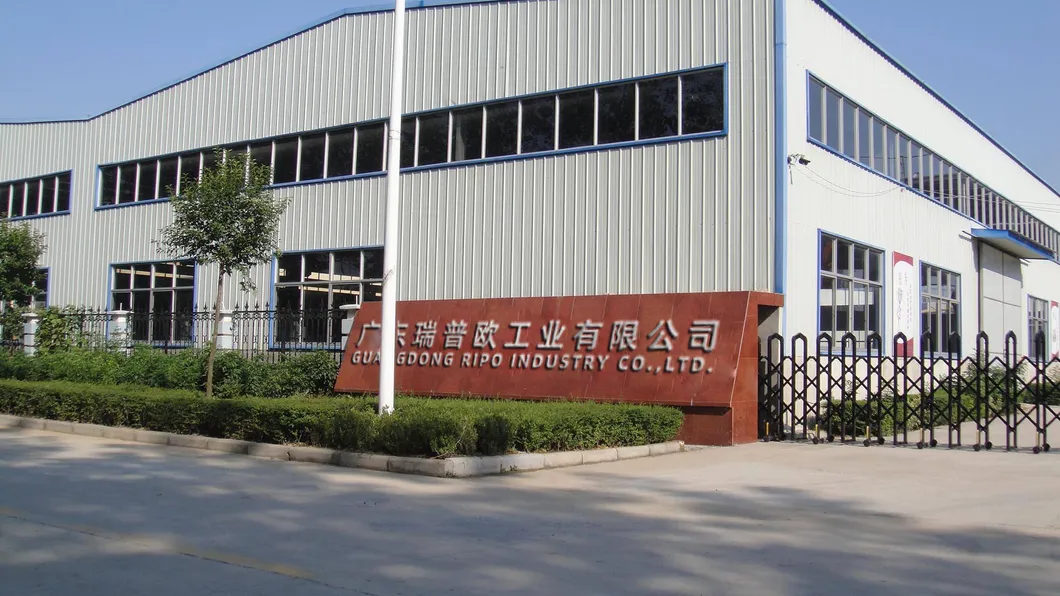

Detailed Photo 6

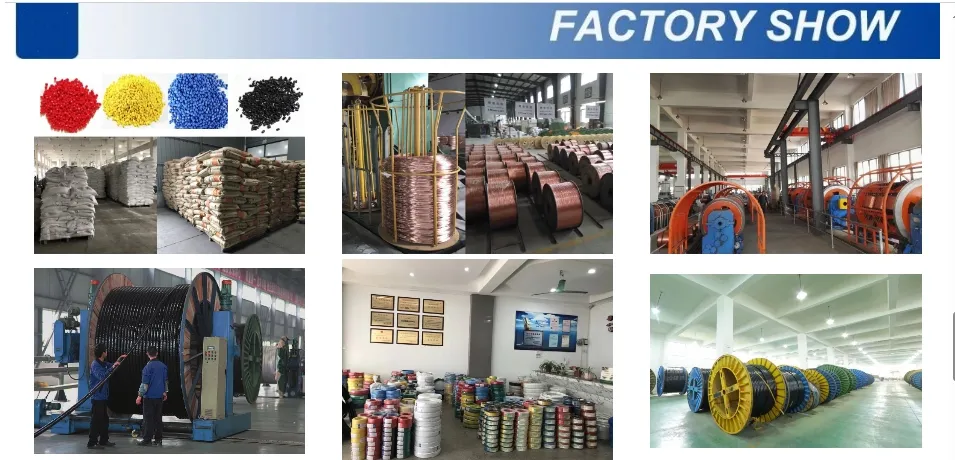

Detailed Photo 7

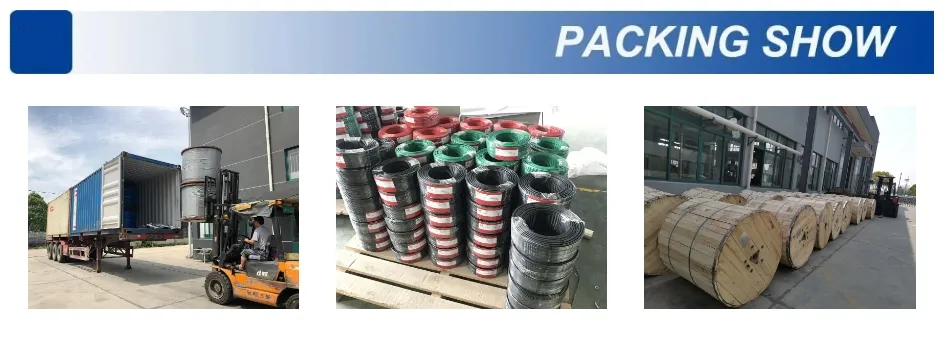

Detailed Photo 8
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional factory specializing in the production of high-quality fiber cables and related machinery.
What types of cables and machinery do you produce?
Our main production includes drawing machine series, extrusion lines, various cabling machines, coiling and packing machines, and complete LAN cable plants.
How do you ensure product quality?
We adhere to the principle of "Quality first, customers foremost," with strict quality control processes implemented from the initial material selection to final testing.
Can I get a sample of your products?
Yes, we provide free samples for quality verification. Only the freight cost is charged to the customer.
What is the minimum order quantity (MOQ)?
Our standard MOQ for fiber cable products is 100 meters, though this may vary depending on specific customization requirements.
Do you support OEM or ODM requests?
Yes, we accept both OEM and ODM orders to meet specific technical parameters and customer requirements.
