4-48 Core Om3 Muti Purpose LSZH PVC Hatrel Break-out Distribution Indoor FTTH Fiber Optical Cable

1 / 5

4-48 Core Om3 Muti Purpose LSZH PVC Hatrel Break-out Distribution Indoor FTTH Fiber Optical Cable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BOC

Connection Structure

Material Shape

Round Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

1000N<10000N

Core Count

12-288xn

Certification

RoHS, CE, ISO9001

Sheath Material

Working Temperature

-40~+120℃

Bend Radius

7.5mm

Flame-Retardant

LSZH / OFNP

Fiber Level

Class A

Origin

China

HS Code

8544700000

Product Description

Multi-purpose Optical Cable

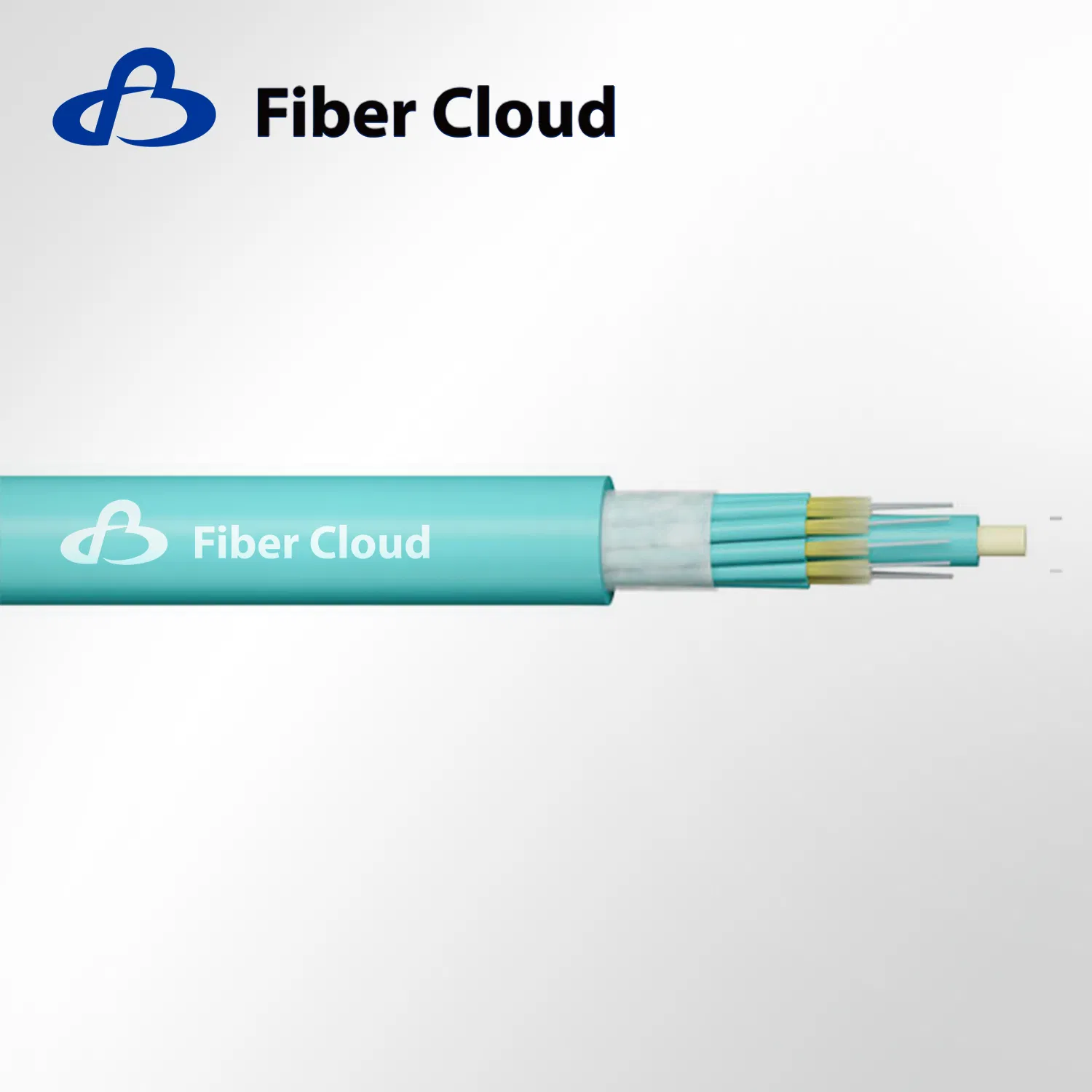

4-48 Core OM3 Break-out Distribution Indoor Fiber Optical Cable

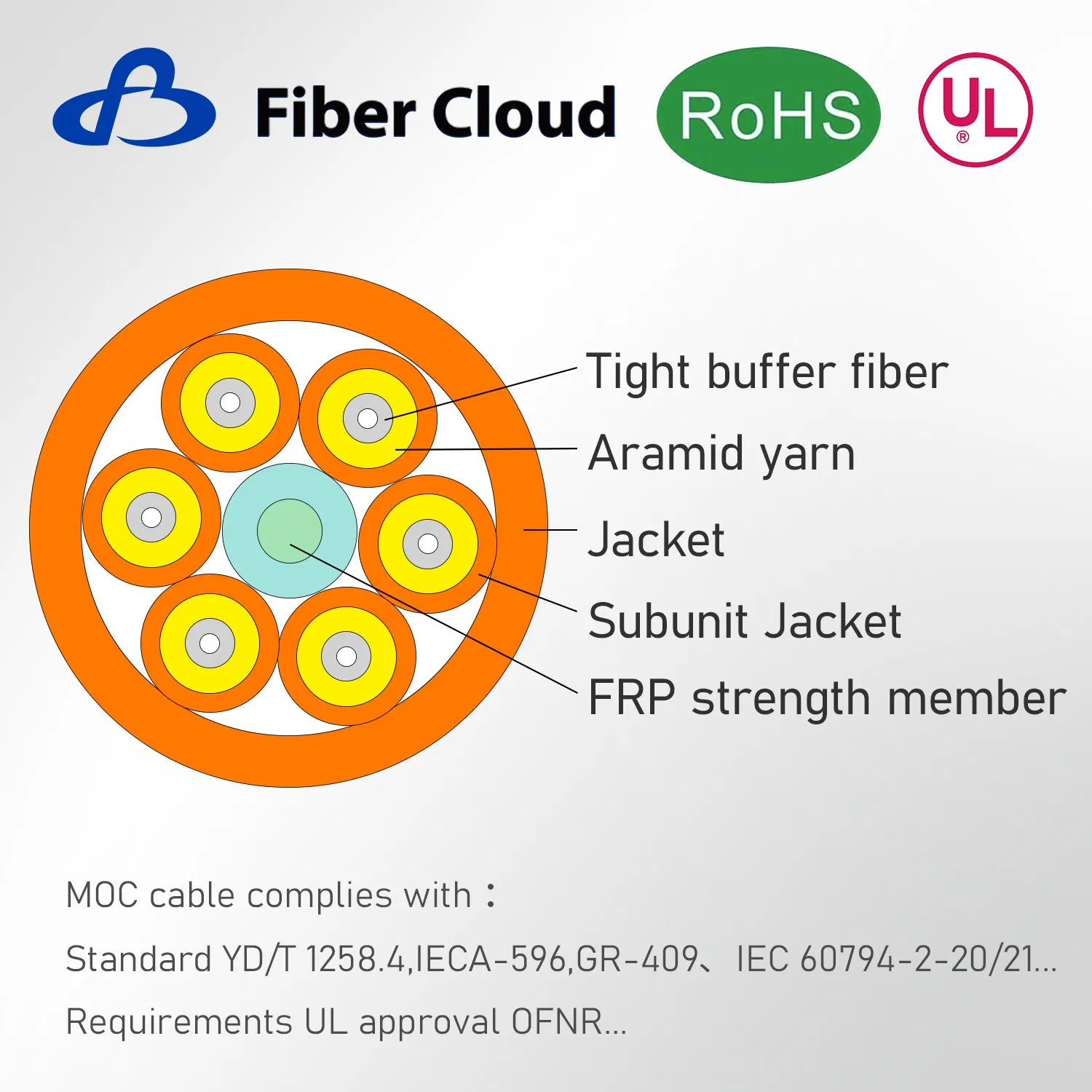

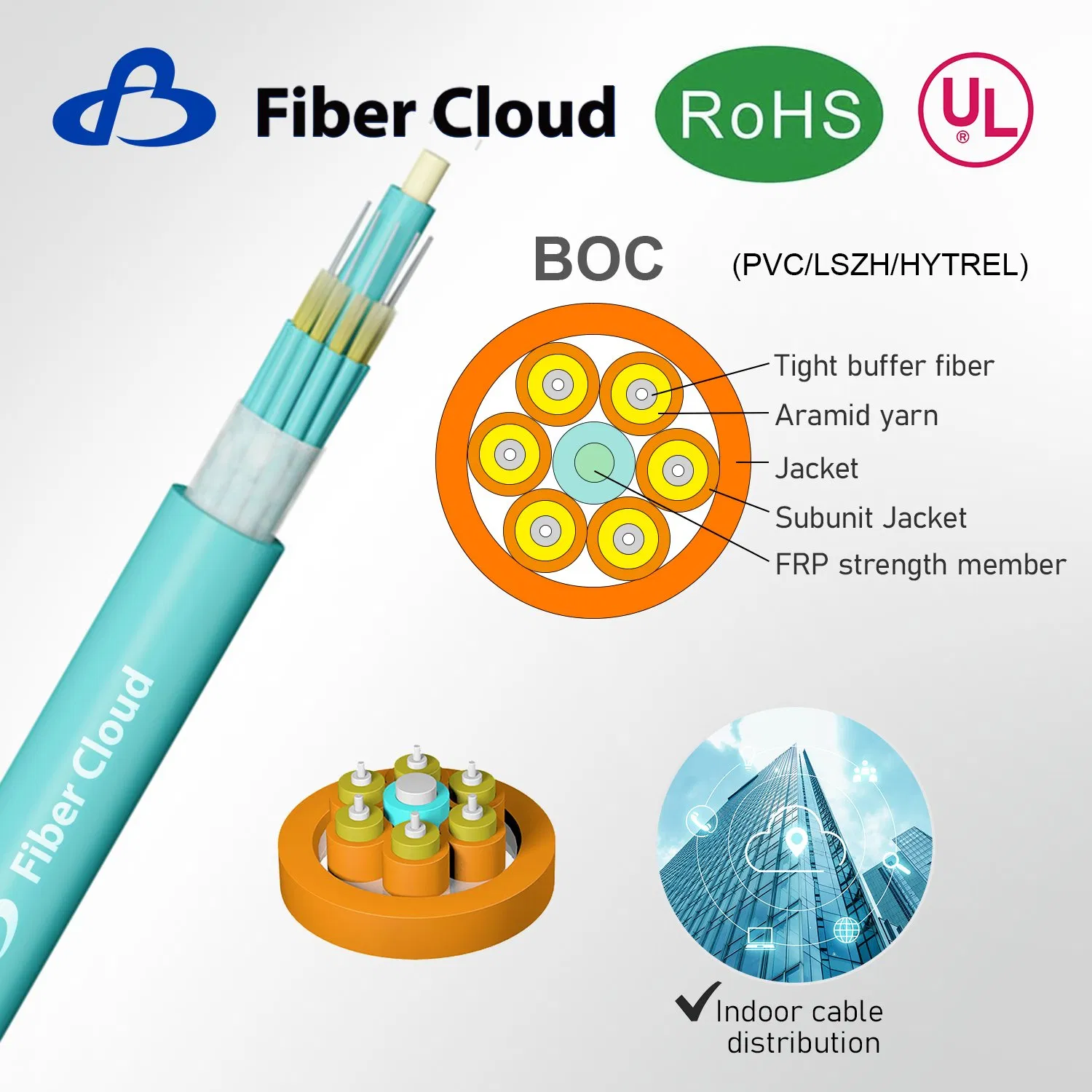

The BOC multi-purpose optical cable utilizes single-core optical cable subunits (Φ900µm tight-buffered fiber, aramid reinforcement) twisted around a non-metallic central strength member. The outer jacket is made of high-quality PVC or Low-Smoke Zero-Halogen (LSZH) material, ensuring flame retardancy and environmental safety.

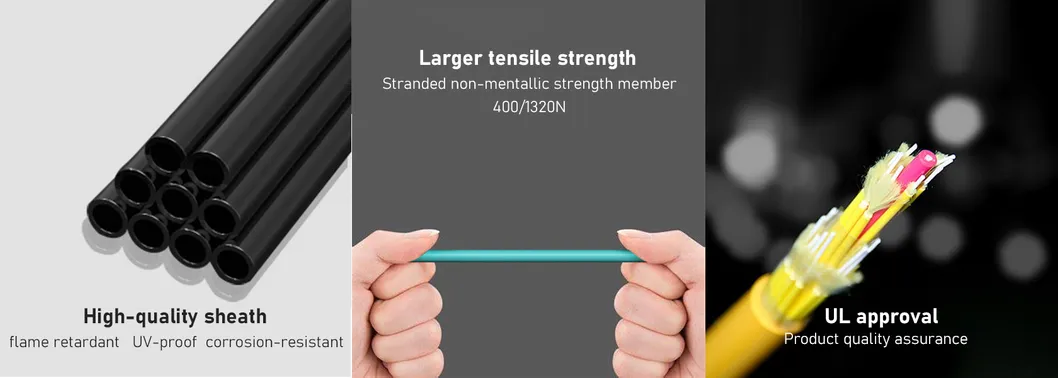

Layer-stranded structure with non-metallic central strengthening for high pulling force.
Corrosion-resistant, waterproof, UV-proof, and flame-retardant outer materials.
Aramid reinforcement elements provide excellent tensile properties.

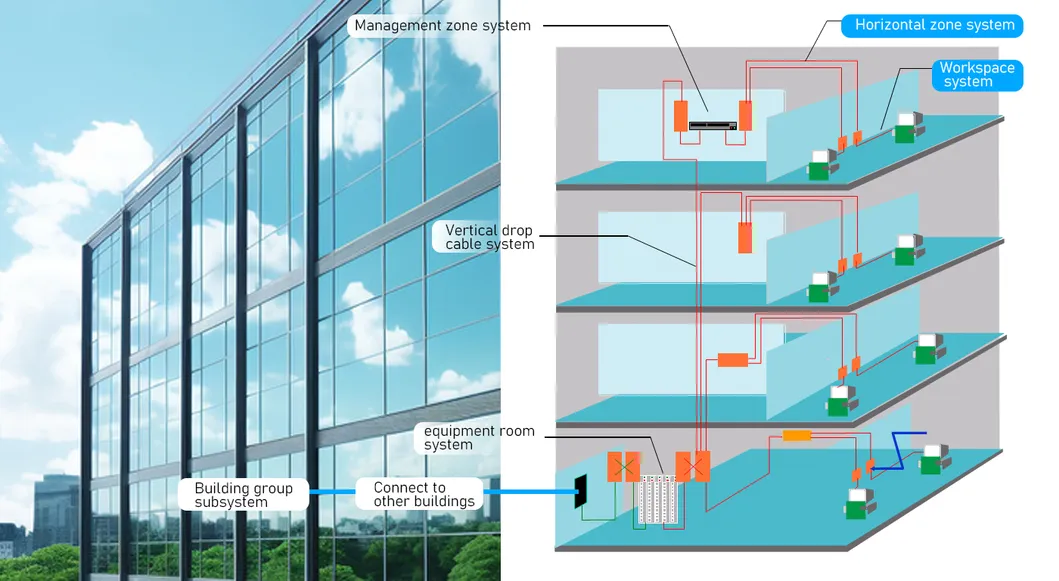

Ideal for indoor integrated wiring and building backbone cabling.

Technical Parameters

Cable Code	Diameter (mm)	PVC Weight (kg/km)	LSZH Weight (kg/km)	Tensile (N) L/S	Crush (N/100mm)	Bending Radius
BOC-04Xn	7.4±0.5	50	56	130/440	300/1000	20D/10D
BOC-08Xn	9.8±0.5	91	101	200/660	300/1000	20D/10D
BOC-12Xn	12.4±0.5	140	155	200/660	300/1000	20D/10D
BOC-24Xn	14.4±0.5	181	201	400/1320	300/1000	20D/10D
BOC-48Xn	19±0.5	280	344	400/1320	300/1000	20D/10D

Certifications & Delivery

Package Size

1500cm * 1000cm * 1000cm

Gross Weight

600.000kg

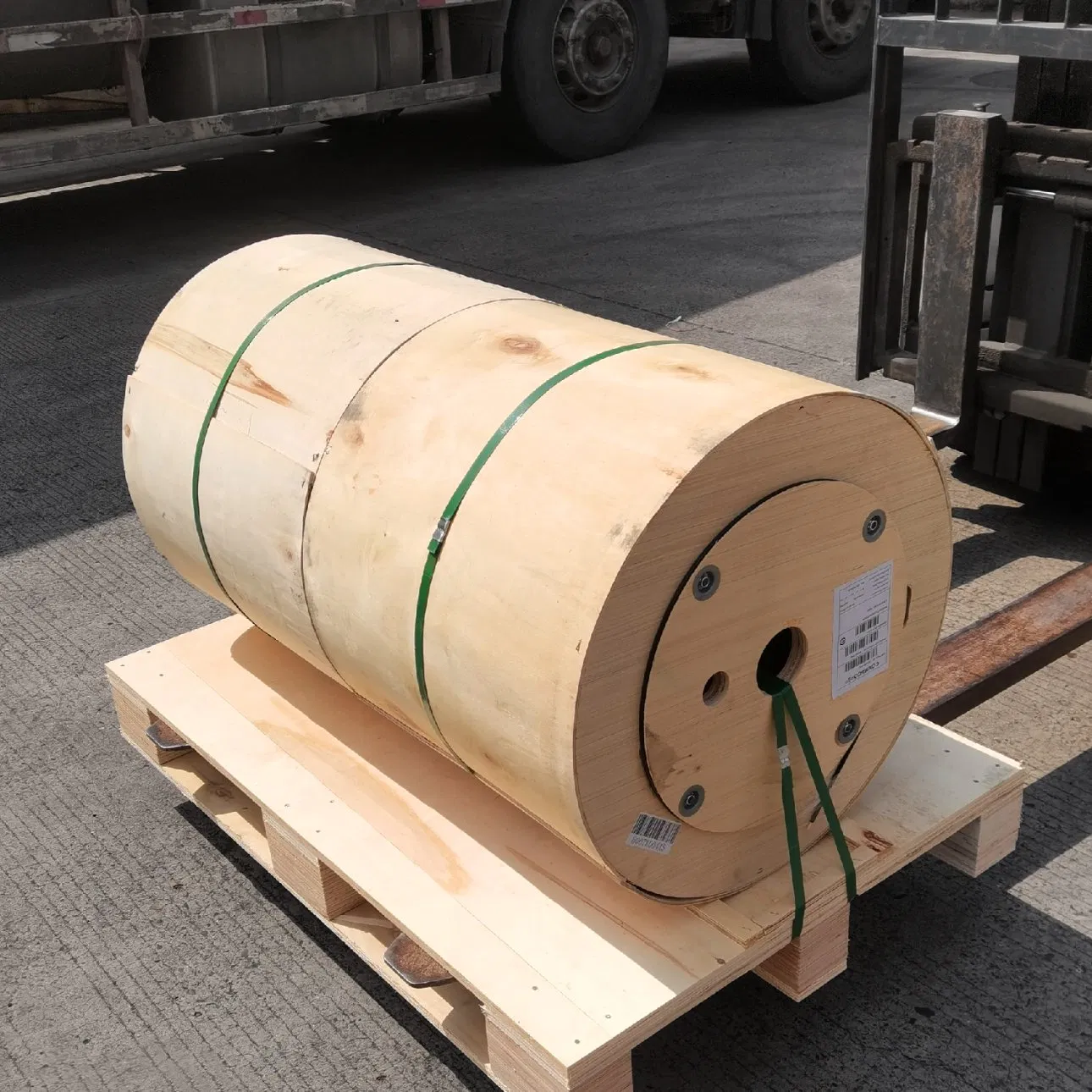

Package Type

Reclaimed Wood Pallets

Our Services

Customer solutions provided in days, not weeks.
Professional inquiry response within 24 hours.
Cost-effective solutions to help expand your business.
Over 10 years of professional experience in the fiber optic field.
One-stop comprehensive service for all cabling needs.

Frequently Asked Questions

Q1: How do you guarantee delivery time?

We have established a professional procedure system from production to delivery. Additionally, penalty clauses for delays can be regulated in contracts.

Q2: What is your best price for this fiber cable?

Our quotes are based on product quality and estimated quantity. We consistently offer the most competitive matching price.

Q3: Can I print our own logo on the cable?

Yes, we provide customization options. Please send your logo requirements to us for processing.

Q4: Do you provide OEM/ODM services?

Yes, we can provide full OEM and ODM services. Please share the details of your specific technical requirements.

Q5: How do you handle product quality issues?

Products are manufactured under a strict quality control system with a defective rate under 0.2%. We conduct strict inspections and issue test reports before shipment.

Q6: Why should we choose your company for cooperation?

We offer first-class production lines, a high production capacity for on-time delivery, competitive pricing, and a professional team for one-stop service.
