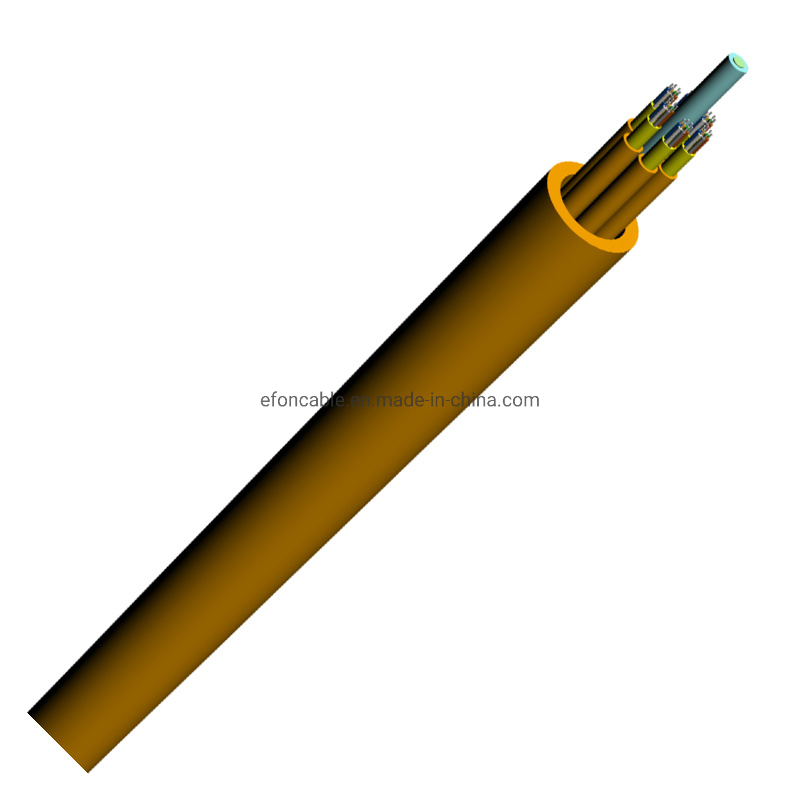

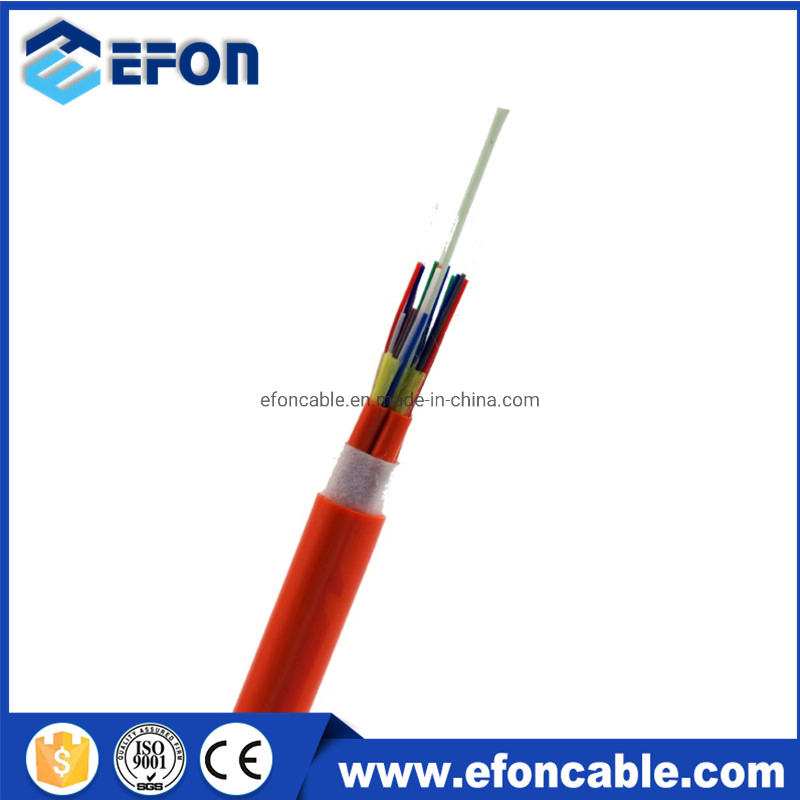

Indoor FTTH Multi Tube Distribution Fiber Optic Cables

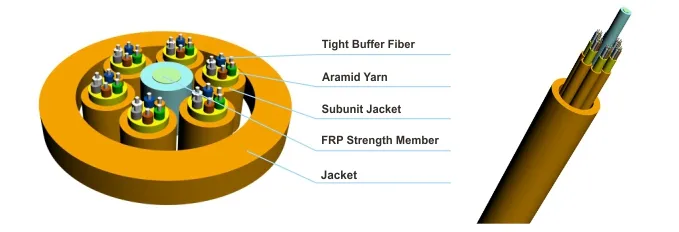

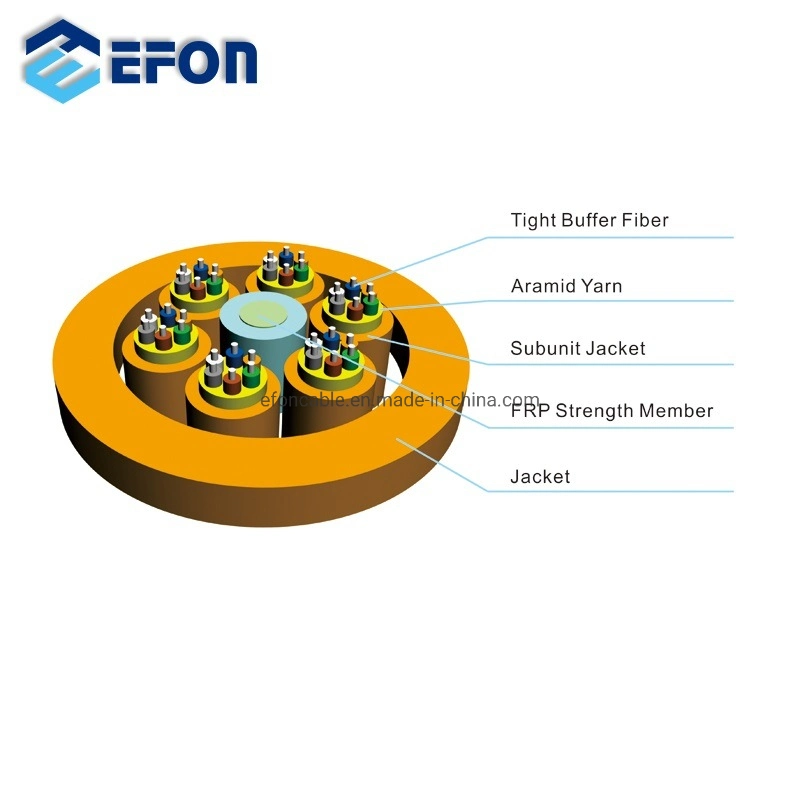

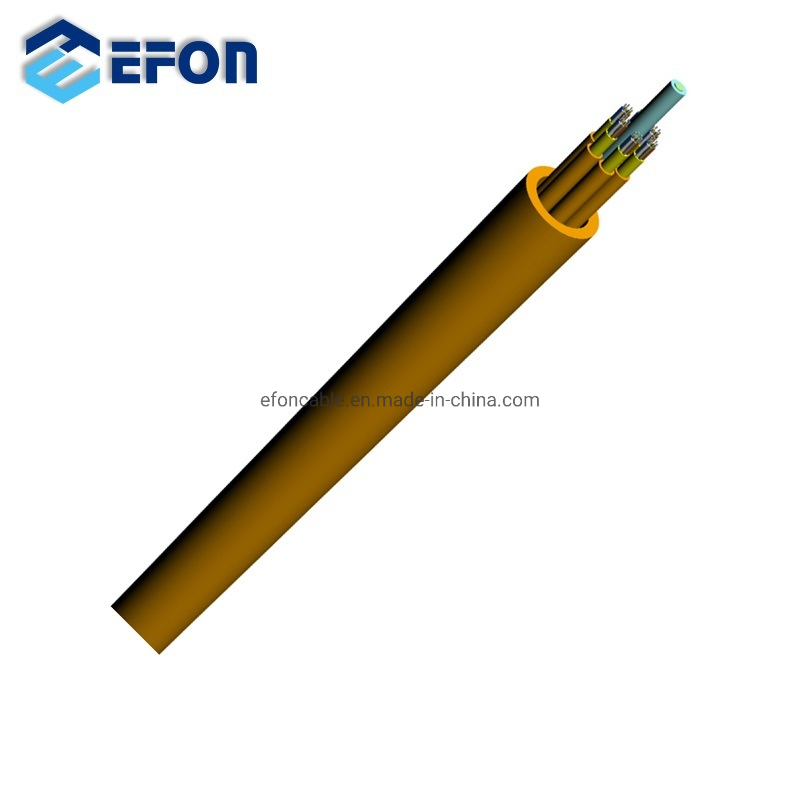

MPC Multi-Purpose Distribution cable use multi-fiber subunits (Φ900µm tight buffer fiber, aramid yarn as strength member). A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Key Components
| Fiber Type | Attenuation (1310/1550nm) | Attenuation (850/1300nm) | Bandwidth (850/1300nm) | Min Bending Radius |
|---|---|---|---|---|
| G652D | 0.36/0.22 dB/km | - | - | 16 mm |
| G657A1 | 0.36/0.22 dB/km | - | - | 10 mm |
| G657A2 | 0.36/0.22 dB/km | - | - | 7.5 mm |
| OM3 | - | 3.0/1.0 dB/km | ≥1500/500 MHZ.km | 30 mm |
| OM4 | - | 3.0/1.0 dB/km | ≥3500/500 MHZ.km | 30 mm |
| Core Count | Diameter (mm) | Weight (kg/km) | Tensile (Short/Long) | Crush (Short/Long) |
|---|---|---|---|---|
| 24 | 12.3±0.5 | 117-124 | 660N / 200N | 1000N / 300N |
| 48 | 14.8±0.5 | 161-170 | 1320N / 400N | 1000N / 300N |
| 96 | 20.7±0.5 | 351-366 | 1320N / 400N | 1000N / 300N |
| 144 | 24.8±0.5 | 443-451 | 1320N / 400N | 1000N / 300N |
