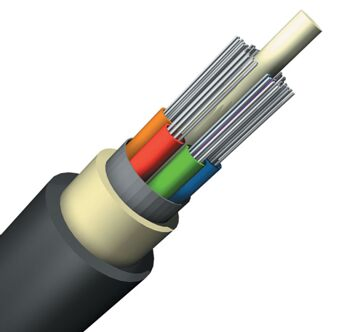

6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
1 / 5
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I
6core Fiber Optical Loose Tube Cable I

6core Fiber Optical Loose Tube Cable I

Customization: Available
Application: Communication, Used as Access Building Cable
Type: mm/Sm
Send Inquiry

Product Description

Basic Information
Model NO.
Loose Tube Cable
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Multicore
Certification
RoHS, ISO9001, IEC, Tlc, Reach, SGS
Brand
OEM
Jacket Color
Black
Transport Package
Carton
Specification
7.5(mm)
Origin
China
Production Capacity
10000km/Month
Product Description

Loose Tube Cable I

Fiber Optical Loose Tube Cable
Cable Details 1
Cable Details 2
Cable Details 3

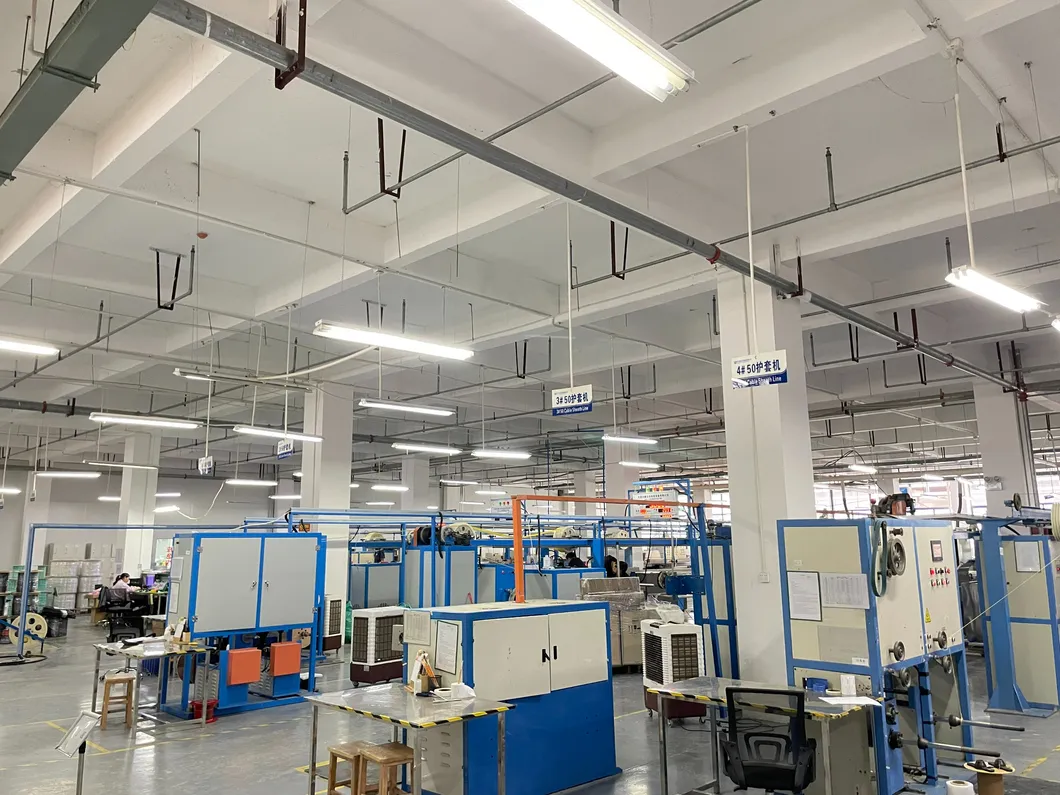

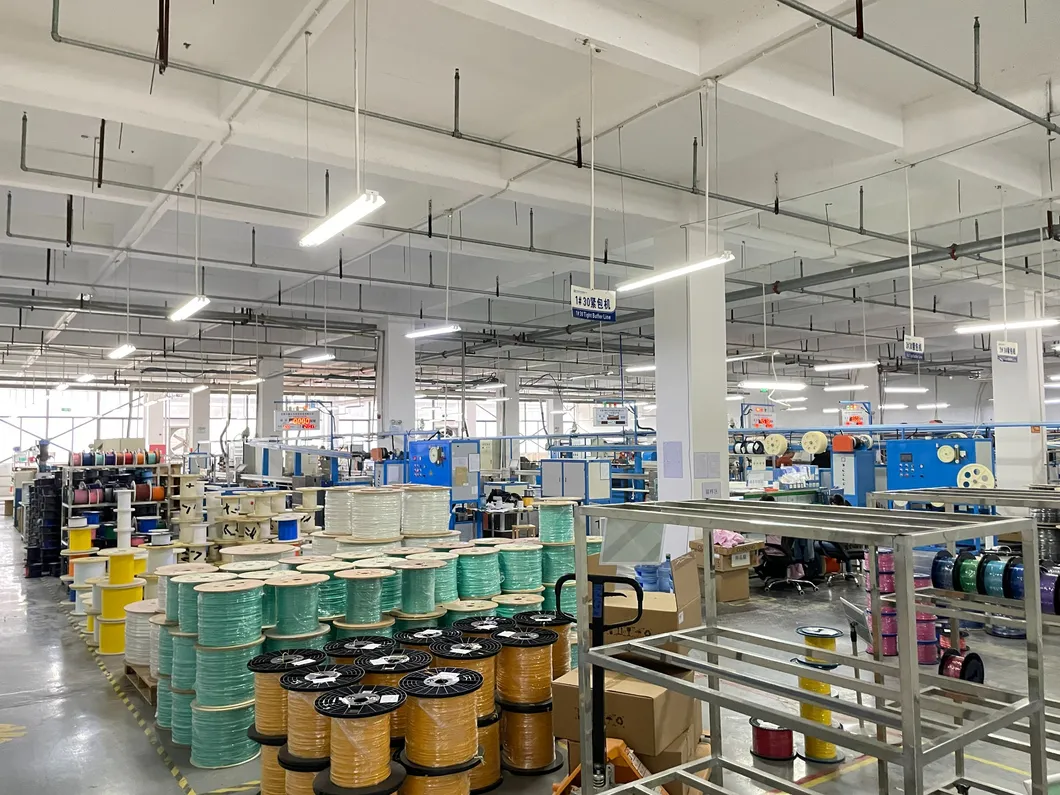

Production View 1
Production View 2

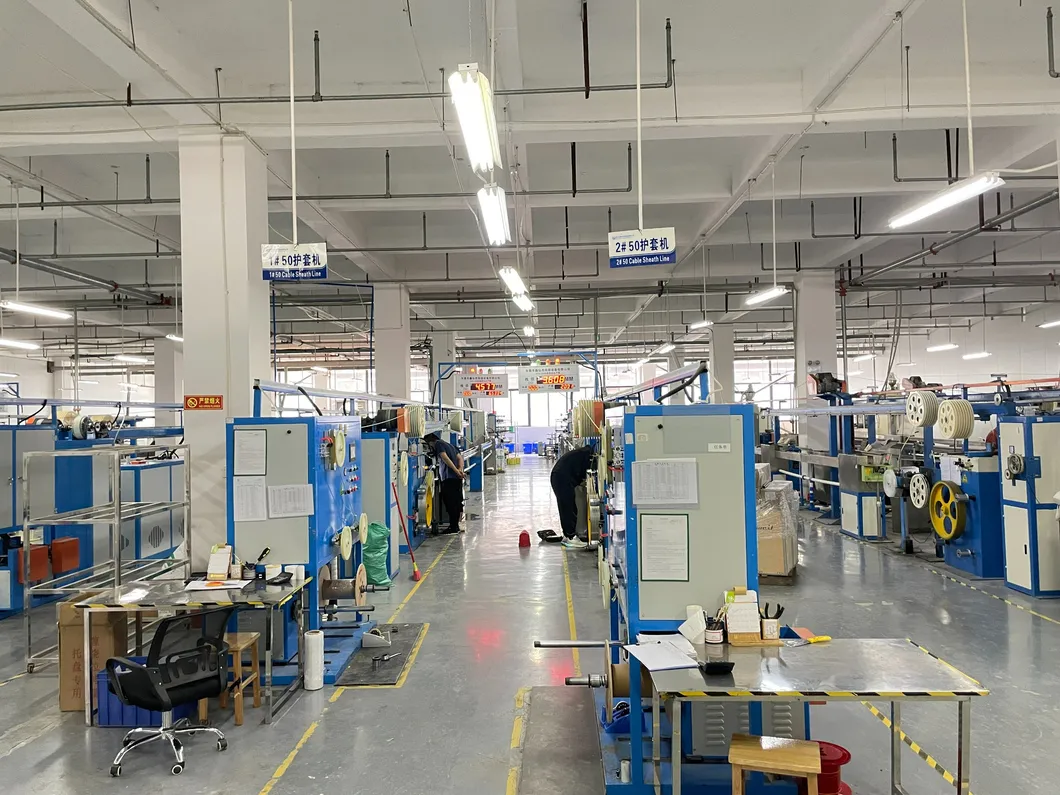

Production View 3

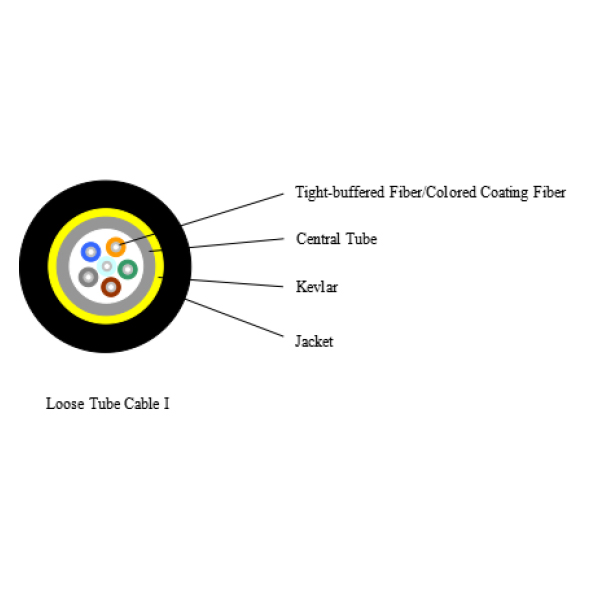

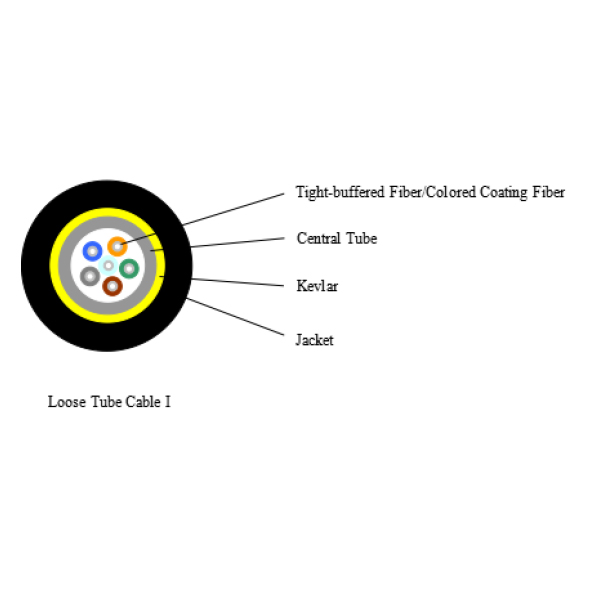

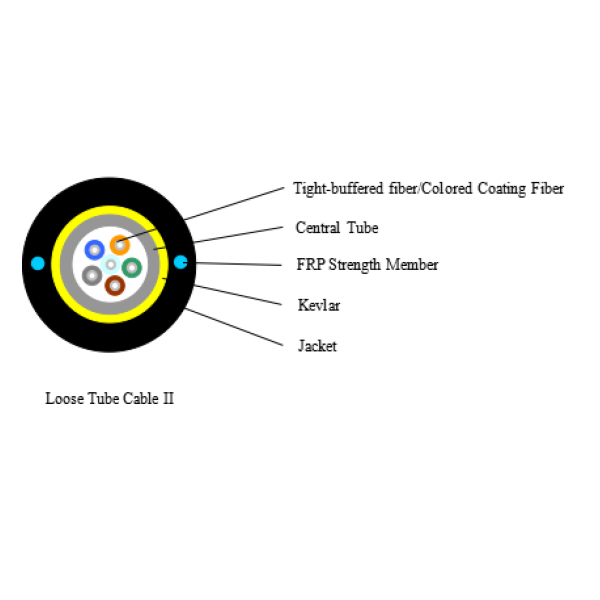

Cross Section 1
Cross Section 2

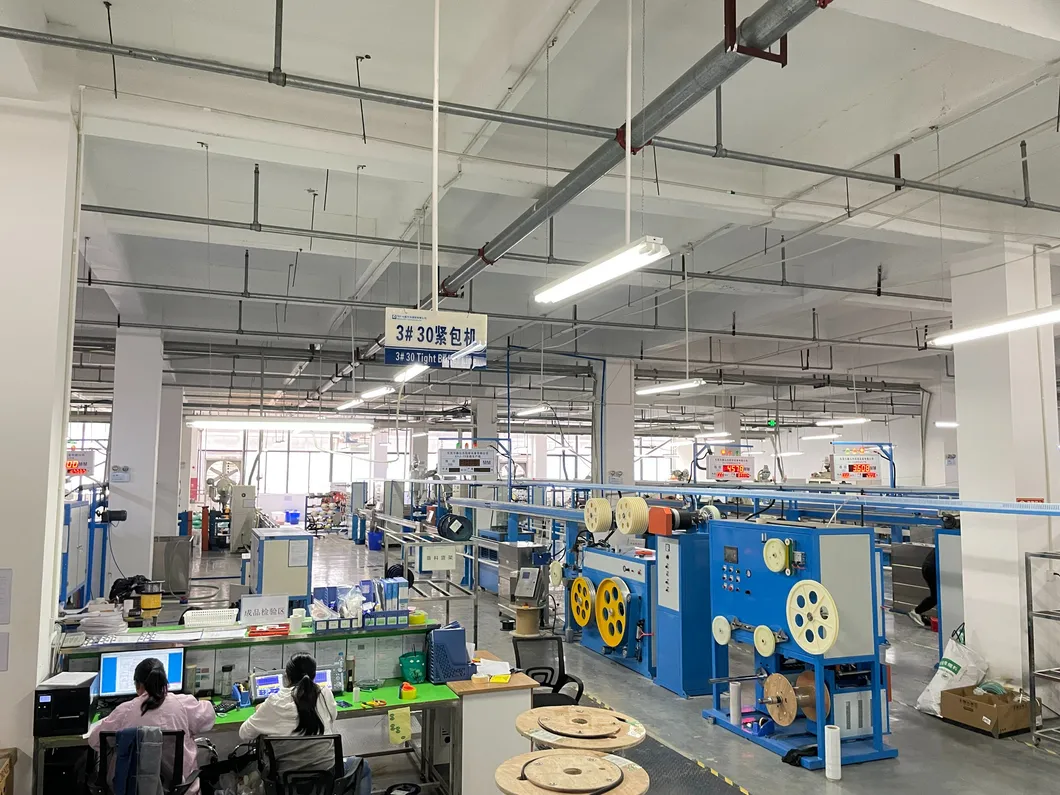

Cross Section 3
Key Features
  • Good mechanical and environmental characteristics;
  • Flame retardant characteristics meet the requirements of relevant standards;
  • The mechanical characteristics of jacket meet the requirements of relevant standards;
  • Soft, flexible, easy to lay and splice, and with big capacity data transmission;
  • Meet various requirements of market and clients.
Applications
  • Used as access building cable.
  • Used in wireless base station (BS) horizontal and vertical cabling.
Technical Specifications
Fiber Count Cable Dimension (mm) Cable Weight (kg/km) Tensile Strength (N) Crush Resistance (N/100mm) Min. Bend Radius (mm) Temp Range (ºC)
Long Term Short Term Long Term Short Term Dynamic Static
27.043.5200660500100020D10D-20~+60
47.245.32006605001000
67.553.12006605001000
88.562.52006605001000
129.275.02006605001000
Our Service & Quality Assurance

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

Quality is guaranteed by scientific management assisted by professional personnel, advanced testing equipment, and an efficient ERP system under strict guidance. From material examination to final inspection, we care for every detail to exceed customer expectations.

We operate business in a transparent and honest manner, ensuring our associates and business partners share in our collective success.

Frequently Asked Questions
What is the operating temperature range for this loose tube cable?
The cable is designed to operate reliably within a temperature range of -20ºC to +60ºC.
Is the cable jacket flame retardant?
Yes, the flame retardant characteristics of the jacket meet the requirements of all relevant industry standards.
What are the primary applications for this fiber optic cable?
It is primarily used as an access building cable and for both horizontal and vertical cabling in wireless base stations (BS).
What is the maximum fiber count available for this specification?
Based on our standard specifications, we offer fiber counts ranging from 2 up to 12 cores.
What is the minimum bend radius required during installation?
The dynamic bend radius is 20 times the cable diameter (20D), and the static bend radius is 10 times the cable diameter (10D).
Does the product comply with international environmental standards?
Yes, our cables are certified with RoHS, Reach, and ISO9001, ensuring compliance with global environmental and quality standards.
