New Arrivals GYTA53 Armored Stranded Loose Tube Fiber Cable

📋

Basic Information

Model NO.

GYTA53

Material Shape

Round Wire

Lateral Pressure

1000/3000 (N/100mm)

Tensile Strength

100n < 1000n < 10000n

Core Count

2-288 Fibers

Certification

ISO9001

Sheath Material

Double PE Sheath

Strength Member

Steel Wire

Armor Type

Corrugated Steel Tape

Specification

Direct Buried Cable

🔍

Product Description

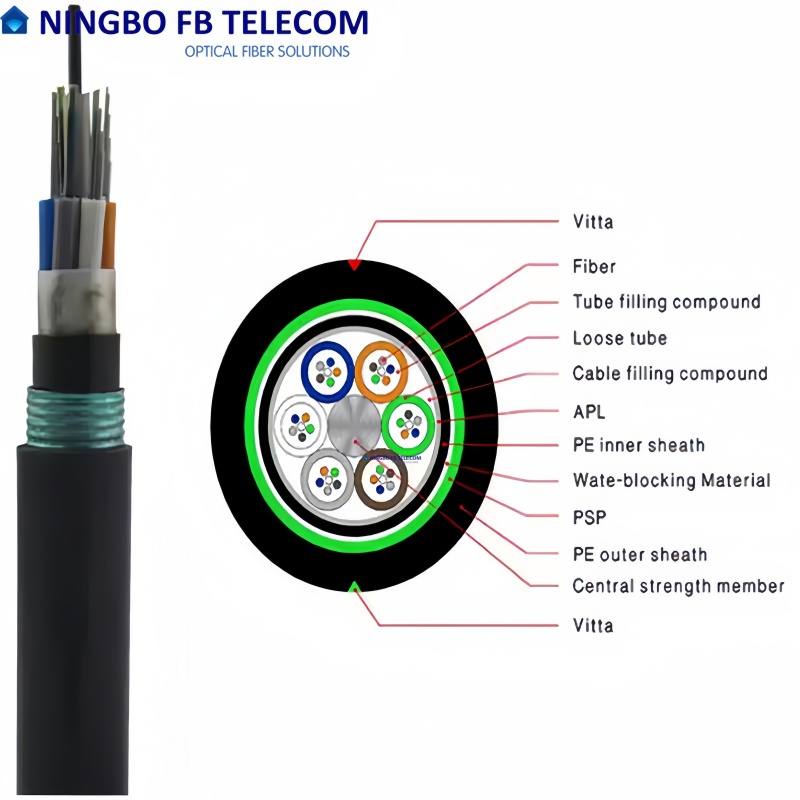

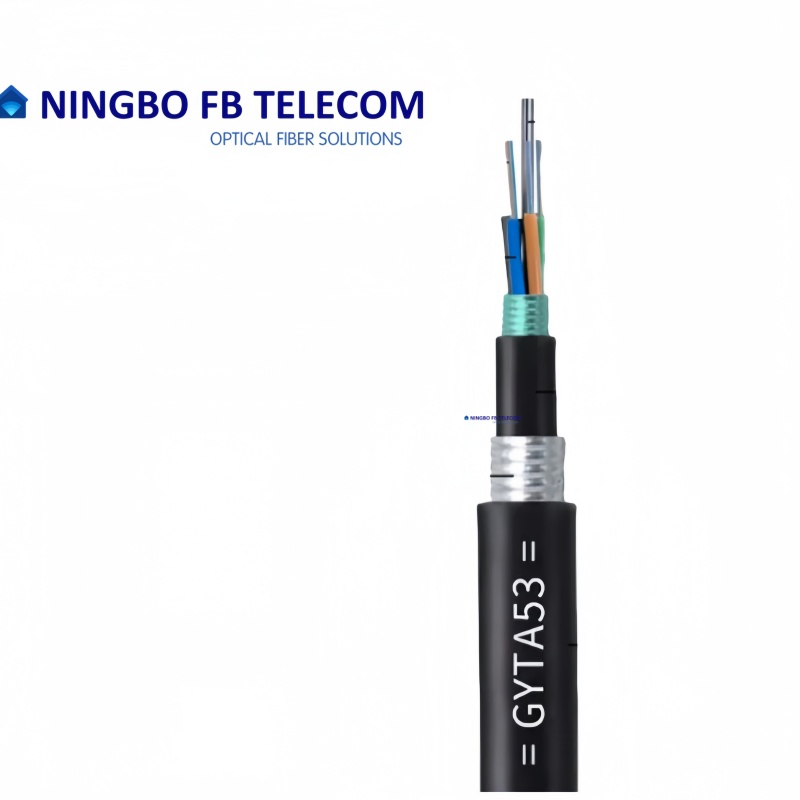

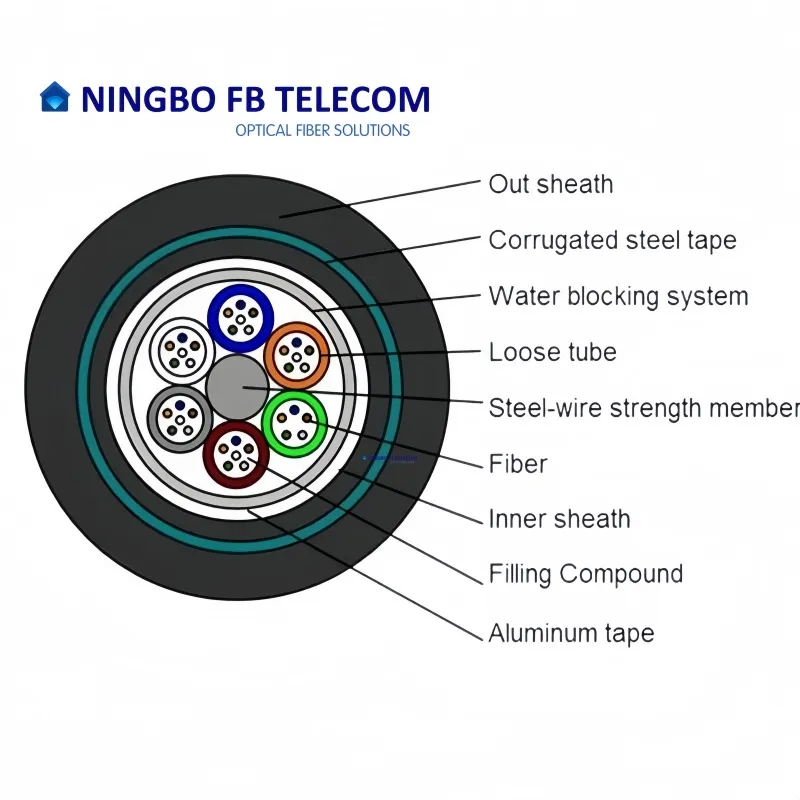

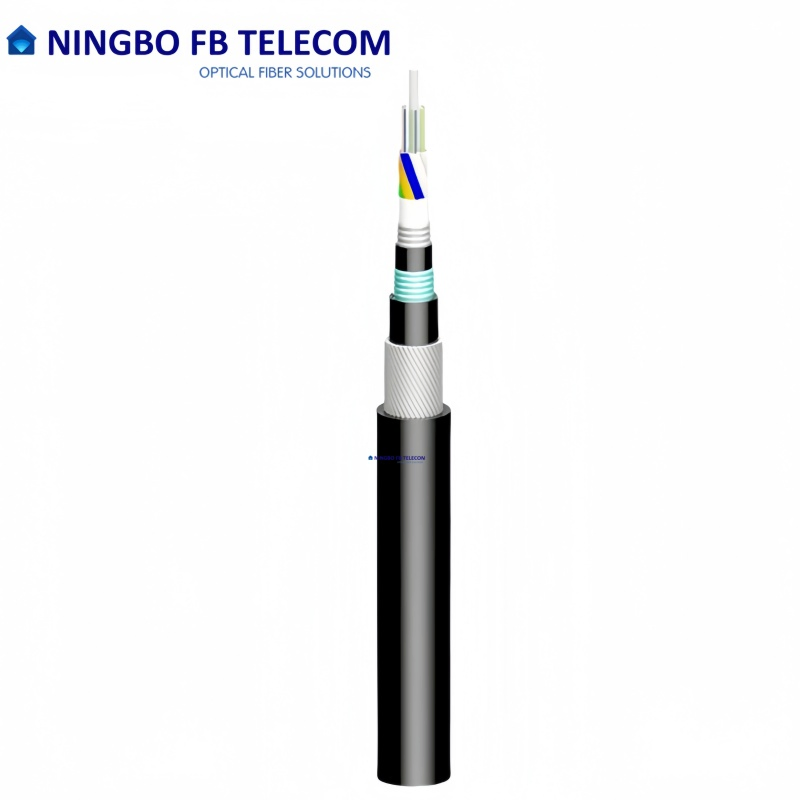

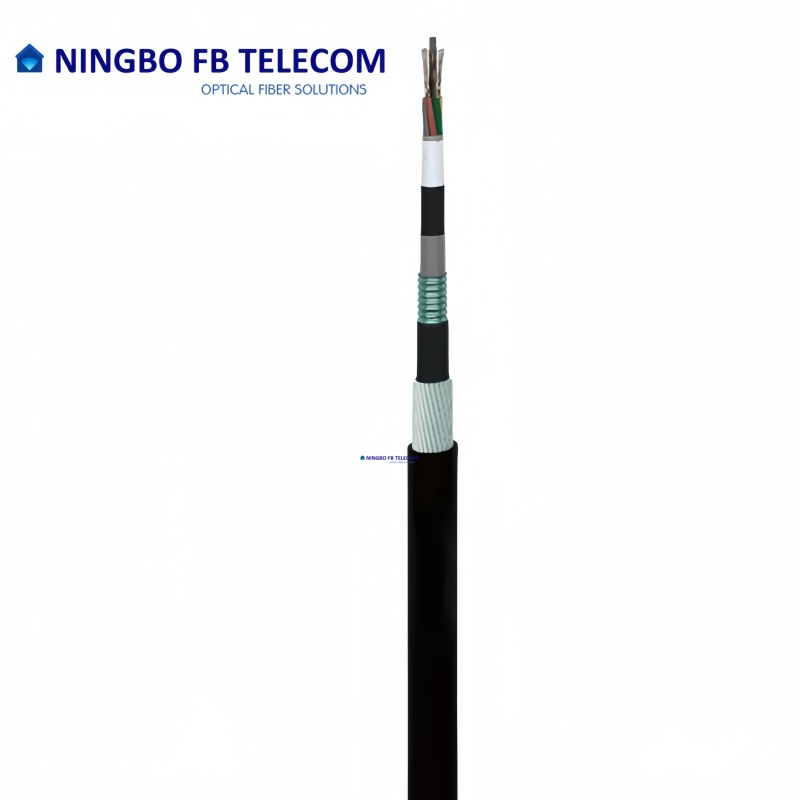

New Arrivals GYTA53 Armored Stranded Loose Tube Fiber Cable

The 250um bare fibers are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling gel.
Central strengths member with PE sheath for high count cable.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
An Aluminum Polyethylene Laminate (APL) is applied around the cable core with filling compound to protect from water ingress.
Cable core is covered with a thin PE inner sheath.
PSP is longitudinally applied over the inner sheath, completed with a PE outer sheath.

⚙️

Technical Parameters

Cable Type	GYTA53
Optical Fiber Counts	2-288
Fiber Color Code	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber Types	Single-mode and Multimode
Cable Construction	S-Z Stranded loose tube
Strength Member	Steel wire
Armor Layer	Corrugated steel tape
Operating Temperature	-40ºC to +70ºC
Tensile Strength	Short term 3000N / Long term 1000N
Crush Resistance	Short term 3000N/100mm / Long term 1000N/100mm

* Note: Parameters are typical values and can be designed according to specific requirements.

🖼️

Product Visuals

🏢

Manufacturing & Logistics

We are a high-tech enterprise focused as a reliable partner to offer solutions and suitable products for optical networks. We specialize in cabling, designing, and manufacturing of Optical Distribution Networks (ODN) and Optical Testing instruments. With extensive vendor experience, we combine installation, inspection, and manufacturing expertise to offer first-in-class solutions.

❓

Frequently Asked Questions

1. What is the primary use of GYTA53 fiber optic cable?

GYTA53 is specifically designed for direct buried applications, offering strong mechanical protection and moisture resistance thanks to its corrugated steel tape armor and double PE sheath.

2. How is the cable protected against water ingress?

It utilizes a combination of water-resistant filling gel in the loose tubes, a central strength member, and an Aluminum Polyethylene Laminate (APL) moisture barrier.

3. What fiber counts are available for this model?

We offer GYTA53 cables with fiber counts ranging from 2 up to 288 fibers, supporting both single-mode and multimode types.

4. Can the cable withstand extreme outdoor temperatures?

Yes, the cable is engineered to operate reliably in temperatures ranging from -40ºC to +70ºC, making it suitable for various climates.

5. What quality guarantees are provided?

We follow strict ISO9001 standards. Every order undergoes a pre-production sample check and a final inspection before shipment to ensure quality.

6. Are customized specifications available?

Yes, we can design the cable specifications, including fiber count, sheath options, and strength members, according to the customer's specific technical requirements.
