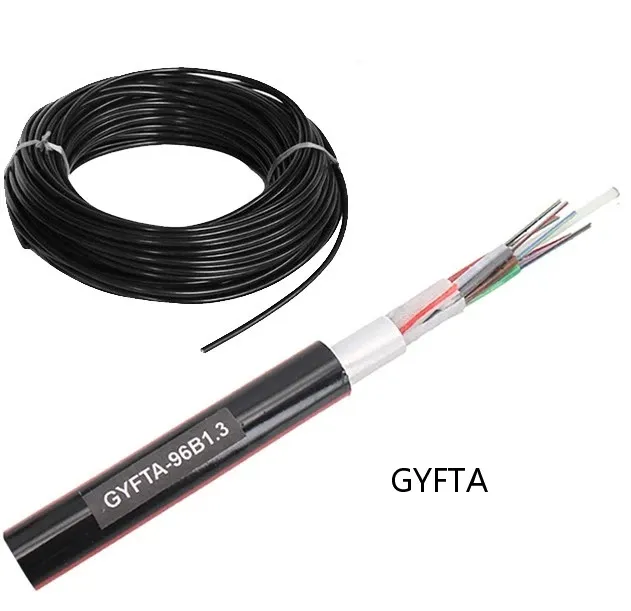

GYFTA APL IEC 60794-1 Non-armoured Loose Tube Fiber Optic Cable

1 / 5

GYFTA APL IEC 60794-1 Non-armoured Loose Tube Fiber Optic Cable

Send Inquiry

Product Description

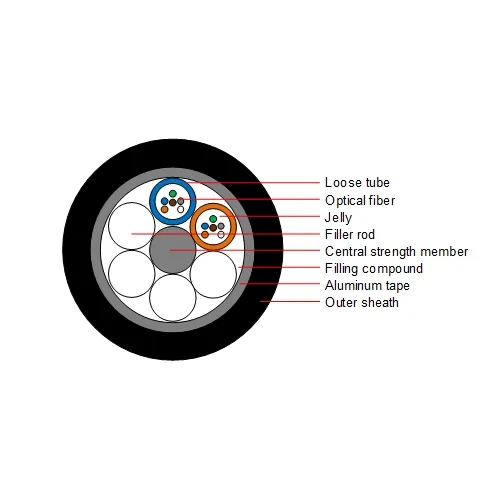

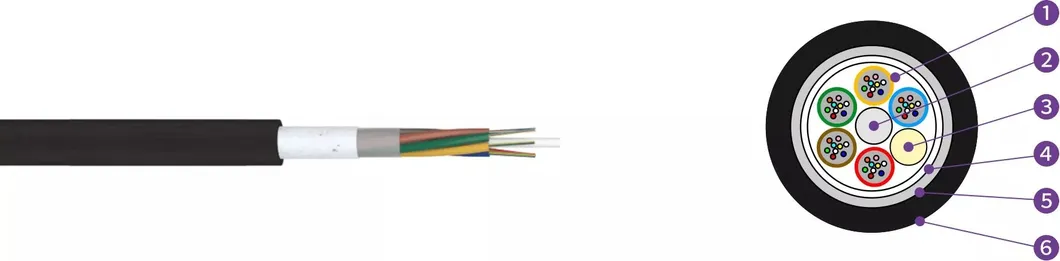

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastics (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.

Key Features

✓ Good mechanical and temperature performance

✓ High strength loose tube that is hydrolysis resistant

✓ Special tube filling compound ensure a critical protection of fiber

✓ Specially designed compact structure prevents loose tubes from shrinking

✓ PE sheath protects cable from ultraviolet radiation

✓ APL moisture barrier for enhanced protection

Watertight Security Measures

Single Fiber Reinforced Plastic as the central strength member.
Loose tube filling compound.
100% cable core filling.

Optical Characteristics

Type		G.652A	G.655A	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm	-	-	≤3.0dB/km	≤3.0dB/km
	@1300nm	-	-	≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km	-	-
	@1550nm	≤0.22dB/km	≤0.23dB/km	-	-
Bandwidth (Class A)	@850nm	-	-	≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm	-	-	≥1000MHz·km	≥600MHz·km
Numerical Aperture		-	-	0.200±0.015NA	0.275±0.015NA

Technical Parameters

Model	Fiber Count	Tubes/Fillers	Cable OD (mm)	Weight (kg/km)	Tensile (L/S Term)	Crush (L/S Term)	Bending Radius
1147	2~6	1/5	11.4	108	400/1000	300/1000	10/20D
1152	32~36	6/0	11.4	108	400/1000	300/1000	10/20D
1158	2~6	1/7	12.8	140	1000/3000	300/1000	10/20D
1166	50~60	5/3	14.8	176	1000/3000	300/1000	10/20D

Quality Policy

Our manufacturing processes are dedicated to meeting customer requirements effectively and profitably. We are committed to:

Maintaining the ISO 9001 Quality Management System.
Continual review and improvement of system effectiveness.
Providing all necessary resources for quality cable production.
Creating a safe and technologically advanced working environment.
Respecting the environment in which we operate.
Ongoing training and communication for all employees.

Frequently Asked Questions

Q1: What types of cables are available in your production line? A: We specialize in fire alarm cables, alarm/security cables, speaker cables, coaxial cables, data cables, HDMI, telecommunication cables, and power cables, along with accessories like connectors and tools.

Q2: What is the Minimum Order Quantity (MOQ) and can I get samples? A: Our standard MOQ is 10KM per item. Free samples can be provided if available in stock, with the freight cost covered by the customer.

Q3: What is the typical delivery time for an order? A: Normally, the delivery time is approximately 15 days after receiving the deposit, depending on the specific order quantity.

Q4: What payment and trade terms do you accept? A: We accept T/T, L/C, and Western Union. Common trade terms include FOB, CFR, CIF, and EXW.

Q5: How do you ensure the watertight integrity of the fiber cables? A: We use a non-metallic FRP central strength member, loose tube filling compounds, and a 100% cable core filling process to ensure maximum moisture protection.

Q6: Are the cables resistant to outdoor elements? A: Yes, our cables feature a high-quality PE sheath that protects the internal structure from ultraviolet (UV) radiation and temperature fluctuations.
