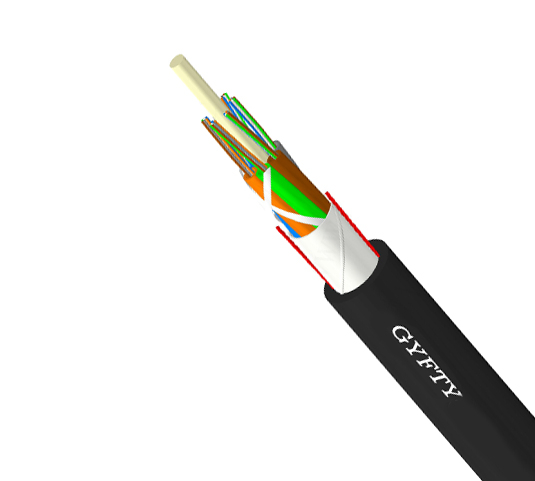

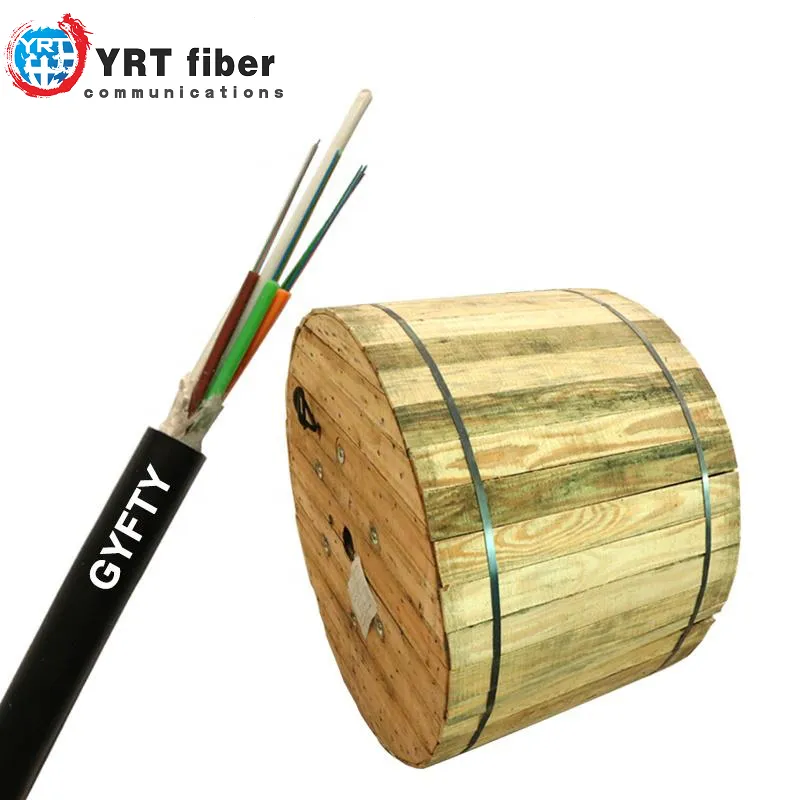

Outdoor Non-Metallic Strength Member Loose Tube Optical Fiber Cable GYFTY

1 / 5

Outdoor Non-Metallic Strength Member Loose Tube Optical Fiber Cable GYFTY

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Single Mode

Material Shape

Round Wire

Core Count

2~288 Cores

Certification

RoHS, CE, ISO9001, CCC, SGS

Sheath Material

Operating Temp

-20℃ ~ +60℃

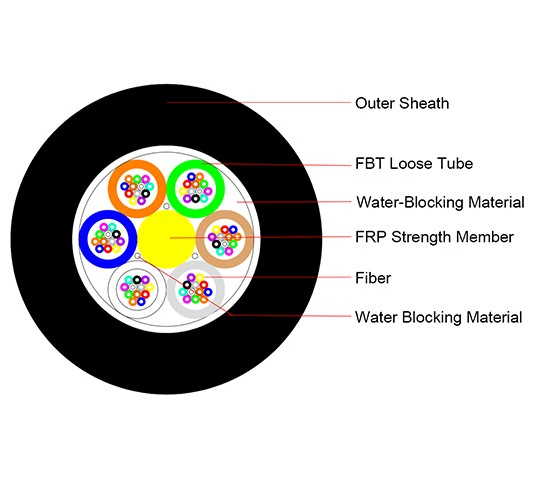

Cable Structure

Loose Tube

HS Code

8544700000

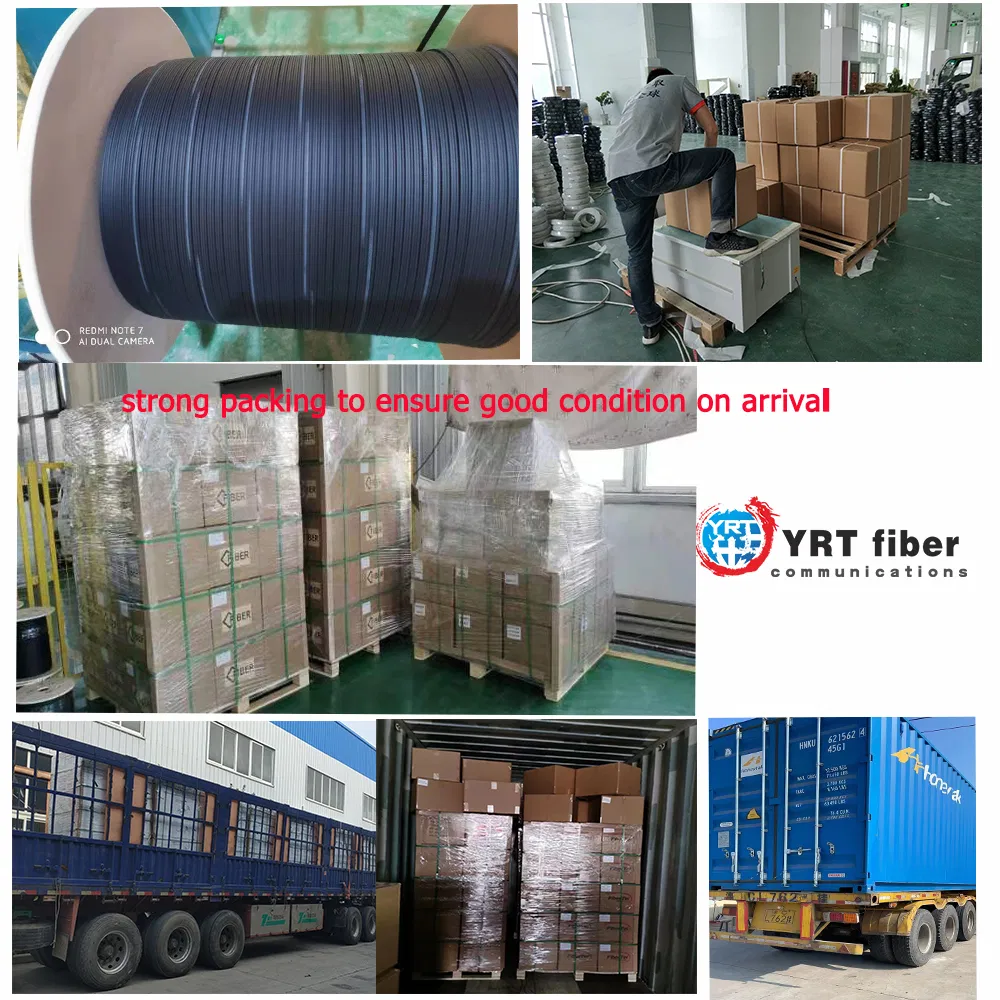

Packaging & Delivery

Package Size

80.00cm * 80.00cm * 80.00cm

Gross Weight

200.000kg

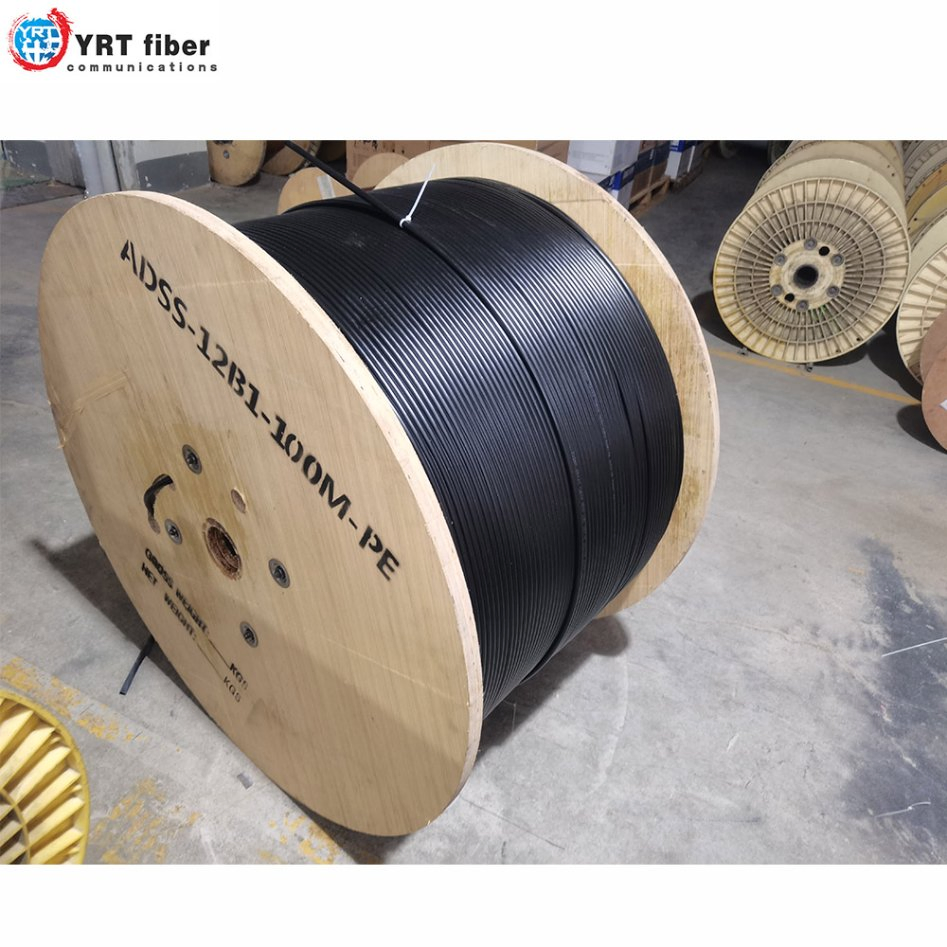

Transport Package

Wooden Drum

Product Characteristics

Low insertion loss and high return loss.
Excellent mechanical endurance for long-term use.
High credibility and environmental stability.
Good repeatability and exchangeability.
100% Inspection: Insertion, Return Loss, End Face, and Interference.

Key Features

Installation possible without shutting off the power.
Light weight and small diameter to reduce loads from ice, wind, and towers.
Large span lengths, with a maximum span exceeding 1000m.
Excellent tensile strength and temperature performance.
Long service life, designed for over 30 years.

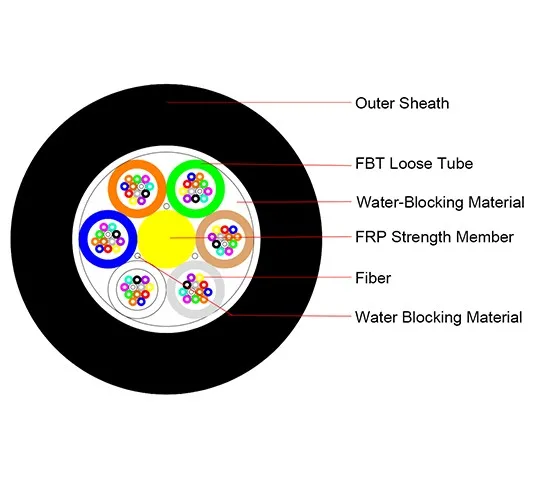

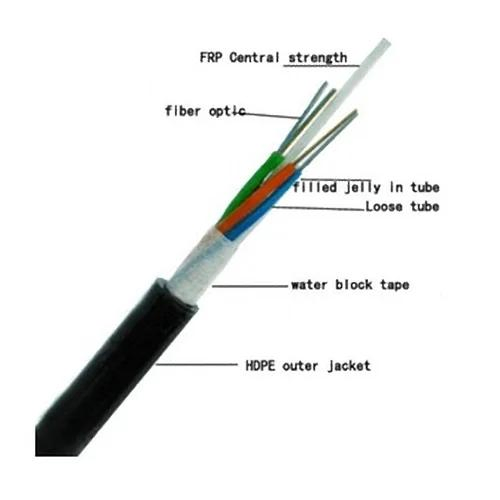

Detailed Photos

Technical Parameters

Model	Fiber Count	Tube	Weight (kg/km)	Tensile Strength (L/S term) N	Crush Resistance N/100mm	Bending Radius (S/D)
GYFTY-2~36F	2~36	6	88	600/1500	300/1000	10D/20D
GYFTY-38~72F	38~72	6	112	600/1500	300/1000	10D/20D
GYFTY-74~96F	74~96	8	155	600/1500	300/1000	10D/20D
GYFTY-98~120F	98~120	10	185	600/1500	300/1000	10D/20D

Applications

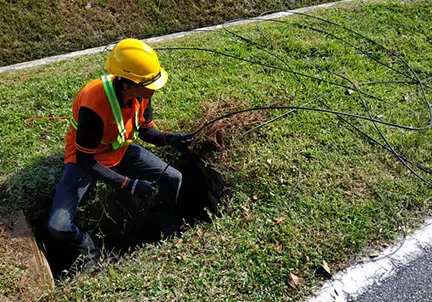

Duct

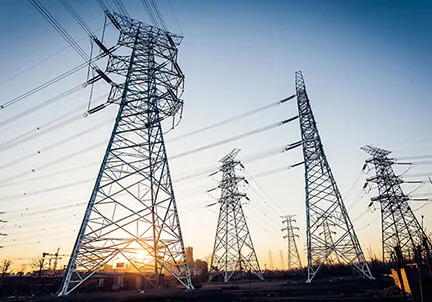

Aerial

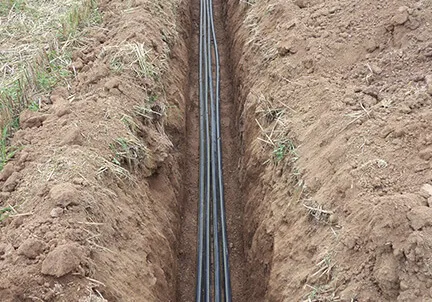

Direct Buried

About Our Production

As a professional manufacturer of fiber optic products, we specialize in a wide range of indoor and outdoor fiber optic cables, patch cords, FTTH drop cables, connectors, and PLC splitters. We are dedicated to maintaining industry standards through continuous investment in quality control.

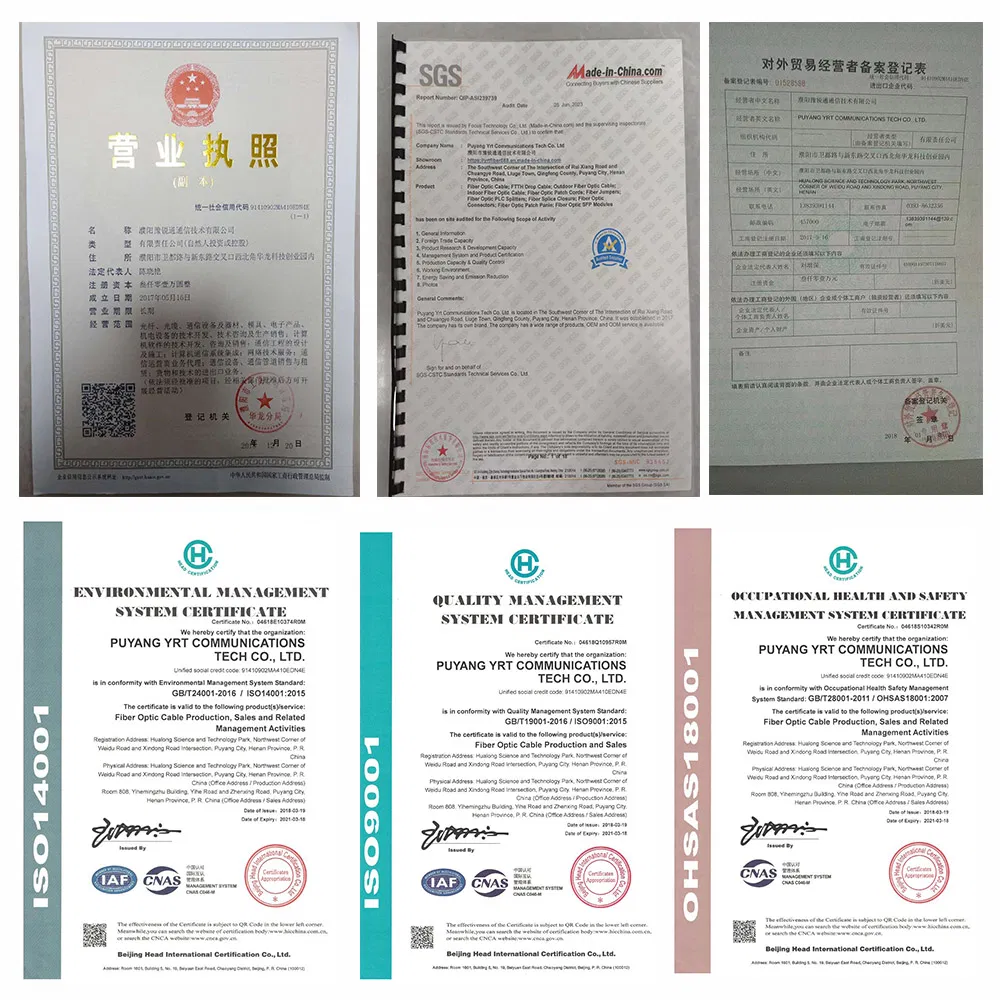

With high-quality raw materials, advanced manufacturing equipment, and skilled engineers, we ensure every product provides excellent performance and reliability. Our management processes comply with ISO9001, ISO14001, and SGS certifications to guarantee global quality satisfaction.

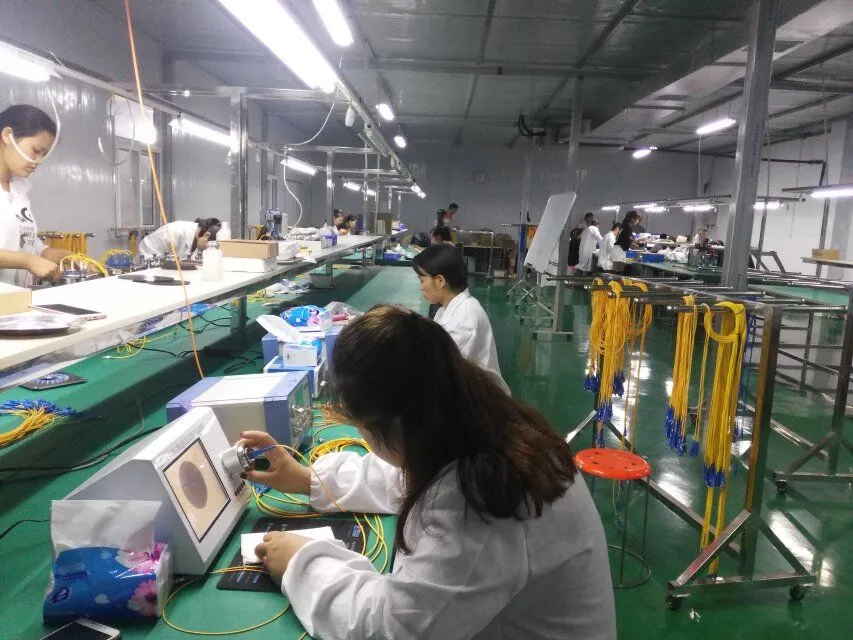

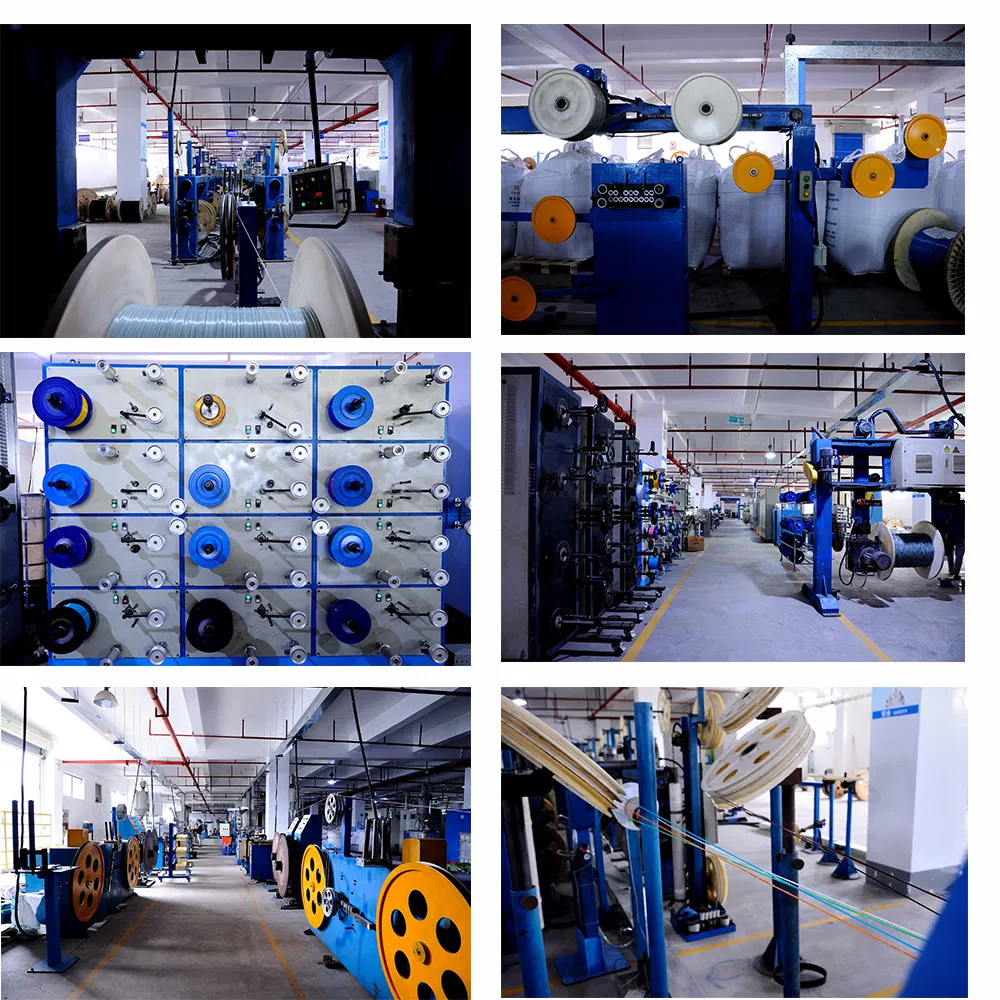

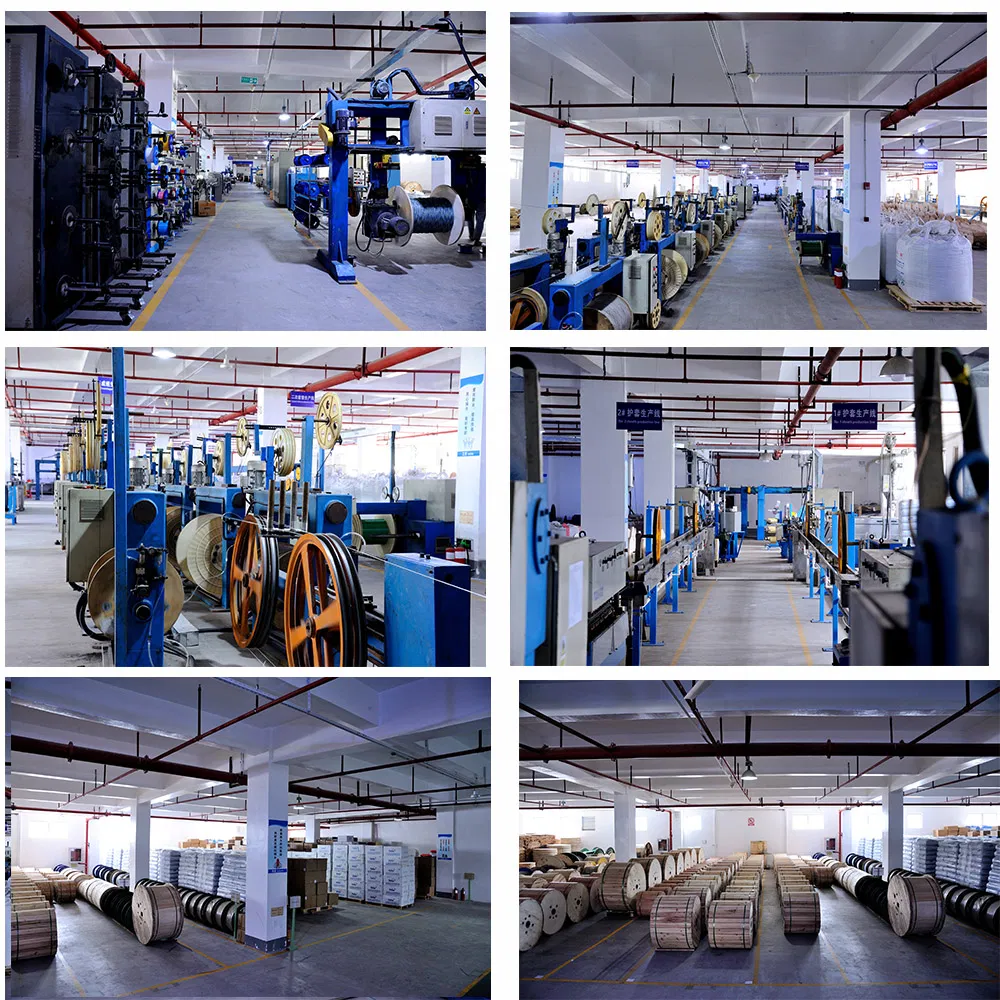

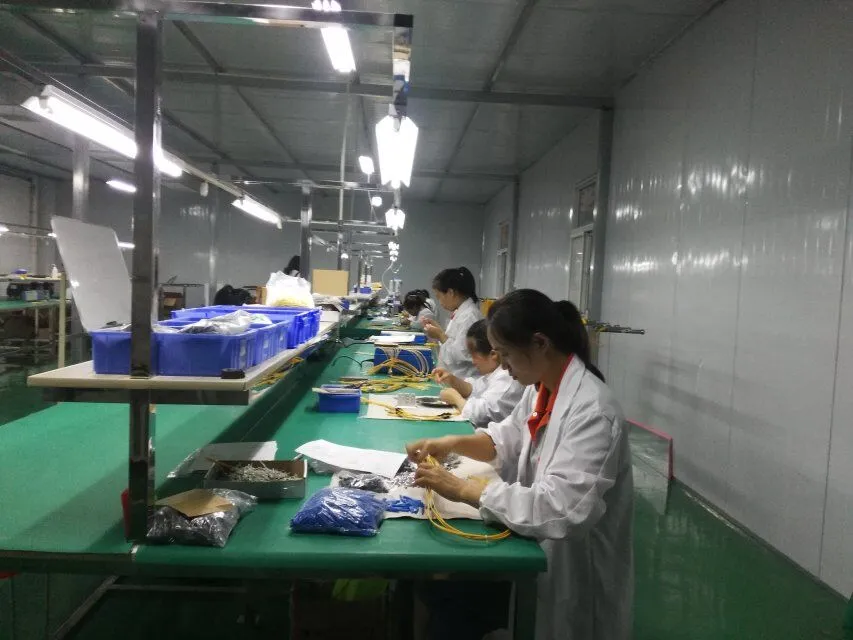

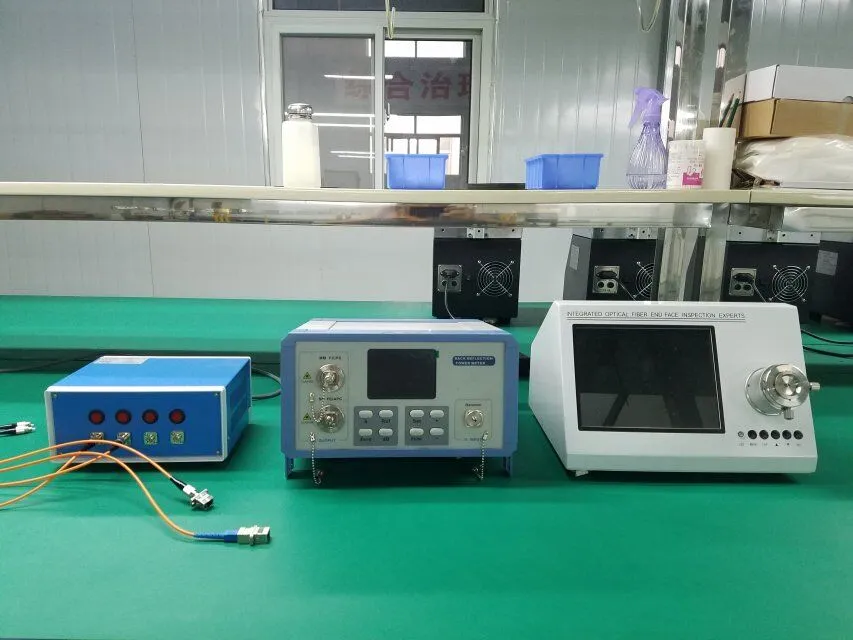

Factory & Exhibition
