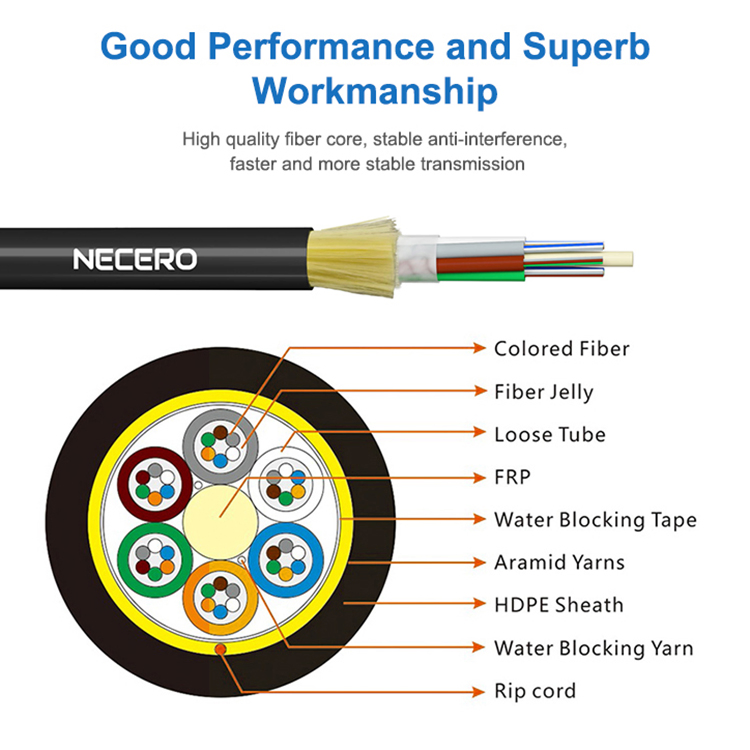

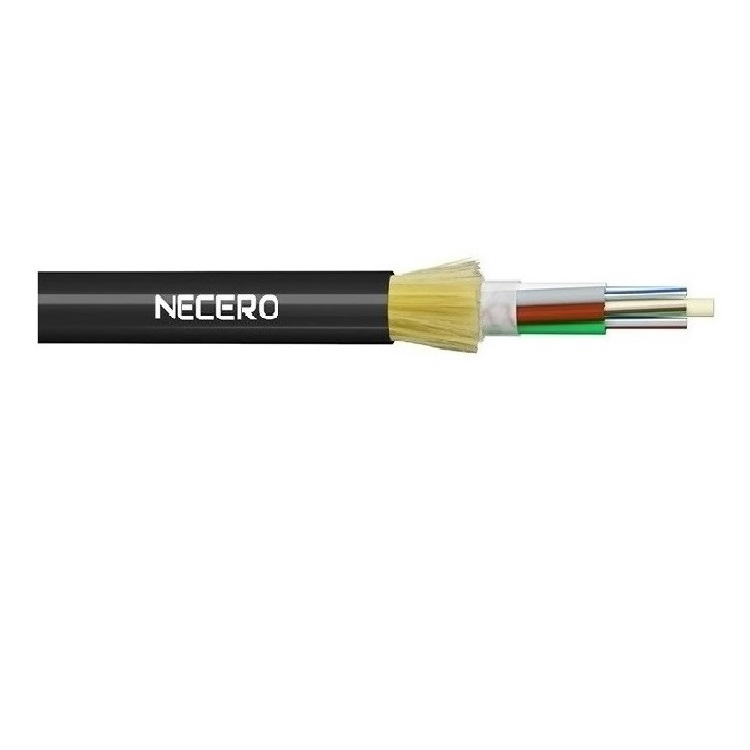

48 core anti-tracking optical fiber
| Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km |
| Attenuation @1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km |
| Attenuation @1310nm | ≤0.36 dB/km | ≤0.36 dB/km | - | - |
| Attenuation @1550nm | ≤0.22 dB/km | ≤0.22 dB/km | - | - |
| Bandwidth @850nm | - | - | ≥500 MHz·km | ≥200 MHz·km |
| Bandwidth @1300nm | - | - | ≥500 MHz·km | ≥500 MHz·km |
| Diameter (mm) | PE Weight (kg/km) | AT Weight (kg/km) | Max Tension (kN) | Breaking Tenacity (kN) | Modulus (kN/mm2) |
|---|---|---|---|---|---|
| 9.8 | 121 | 130 | 1.5 | 10 | 7.6 |
| 10.2 | 129 | 138 | 2.1 | 14 | 8.1 |
| 13.1 | 132 | 143 | 2.8 | 19 | 9.13 |
| 15.6 | 189 | 207 | 3.8 | 26 | 11.2 |
