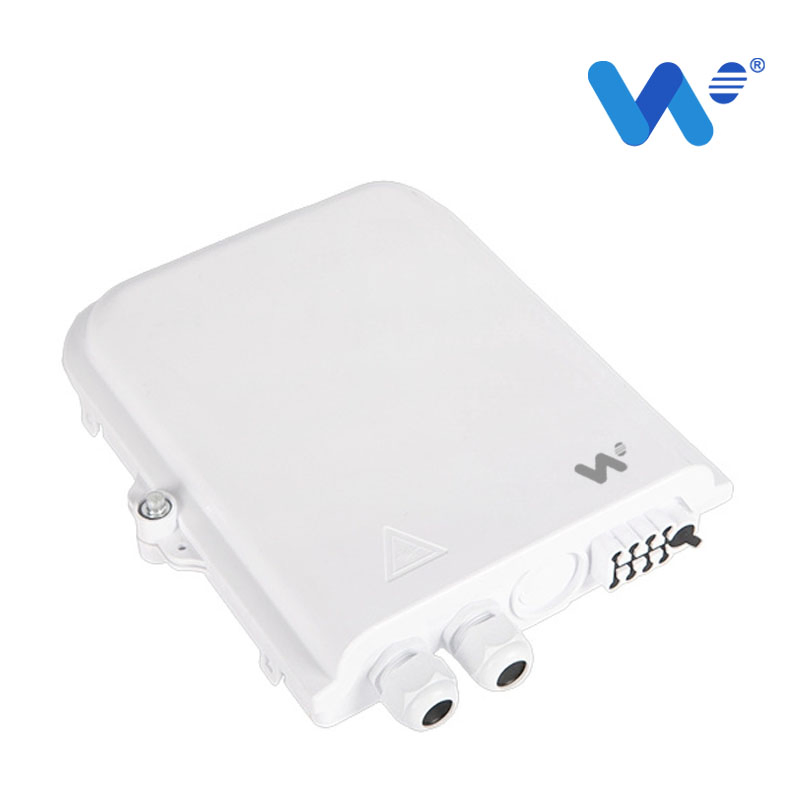

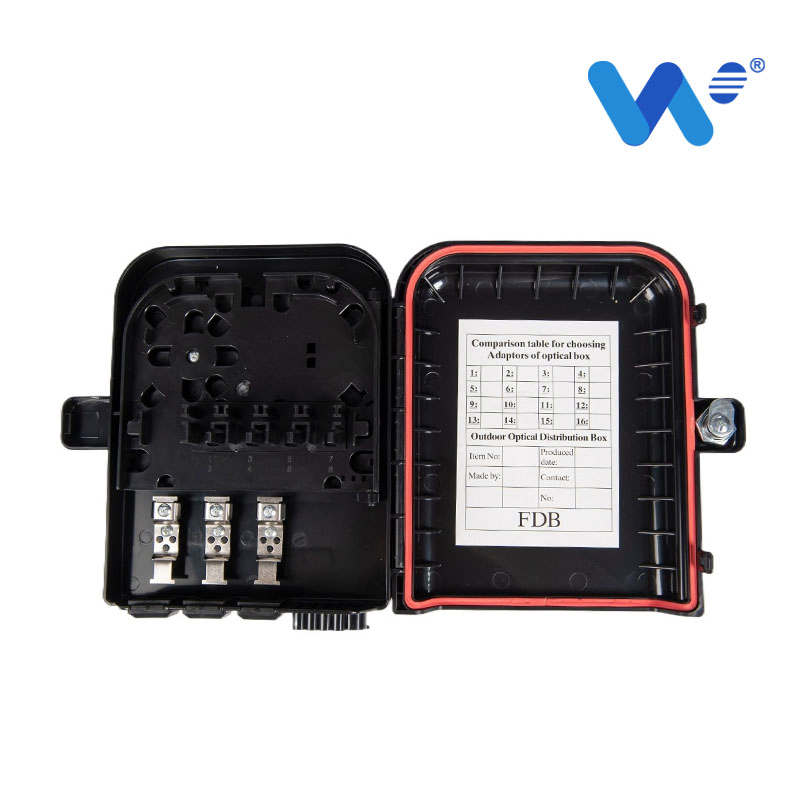

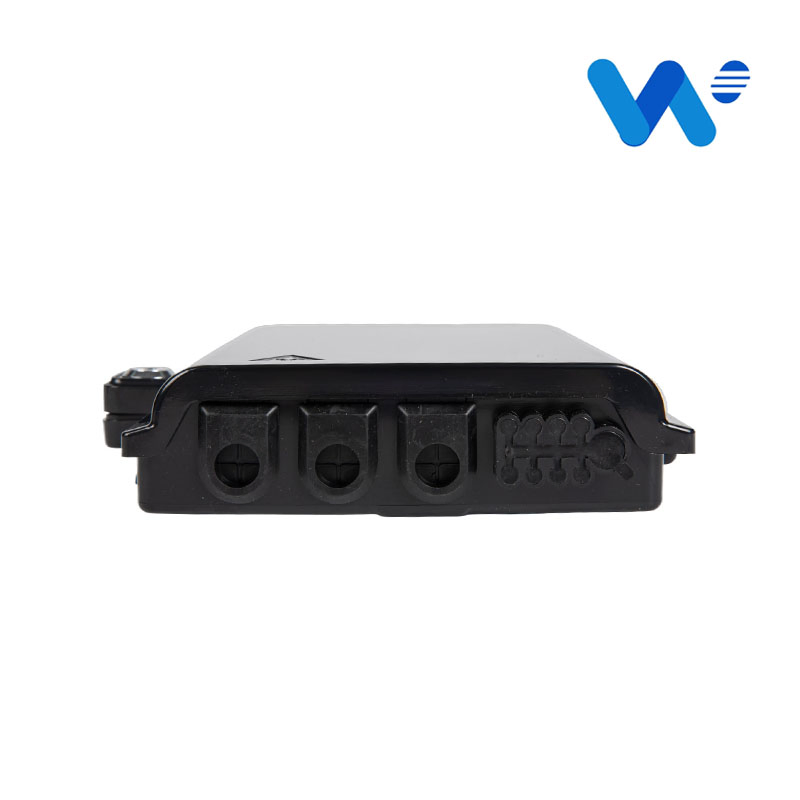

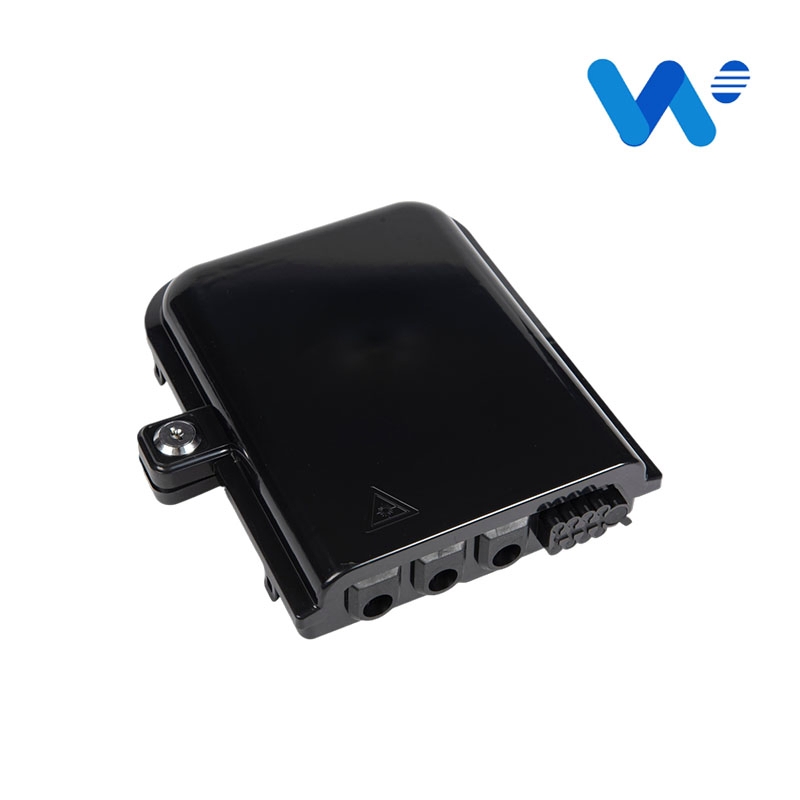

FTTH 8 Cores Fiber Optic Distribution Box for The Feeder Cable (W-G307-8core with lock)

1 / 5

FTTH 8 Cores Fiber Optic Distribution Box for The Feeder Cable (W-G307-8core with lock)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

W-G307-8core with lock

Certification

RoHS

Condition

New

Material

Strengthen ABS

Max Capacity

Splice 8 Fibers (1 tray, 8 core/Tray)

PLC Splitter

1PCS of 1X8

Number of Adaptor

8 PCS of SC (Max)

Weight

0.55kg

Dimensions (mm)

230*195*55

HS Code

8536700000

Description

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Key Features

Total enclosed structure for maximum protection.
Material: ABS, wet-proof, water-proof, dust-proof, anti-aging.
Integrated clamping for feeder and drop cable, splicing, and distribution.
Path-optimized routing for cables, pigtails, and patch cords.
Cassette type SC adaptor installation for easy maintenance.
Flip-up distribution panel with cup-joint feeder cable placement.
Versatile installation: Wall-mounted or pole-mounted.
Suitable for both indoor and outdoor FTTX applications.

Technical Configuration

Material	Size (ABC mm)	Max Capacity	PLC Splitter	Adaptors	Ports
Strengthen ABS	23019555	8 Fibers (1 Tray)	1x8 PLC Splitter	8 pcs SC (Max)	2 in 8 out & 3 in 8 out

Standard Accessories

Screws (4mm*40mm): 4pcs
Expansion bolts (M6): 4pcs
Cable ties (3mm*10mm): 6pcs
Heat-shrink sleeves (60mm): 16pcs
Locking Key: 1pcs
Hoop rings: 3pcs

Product Gallery

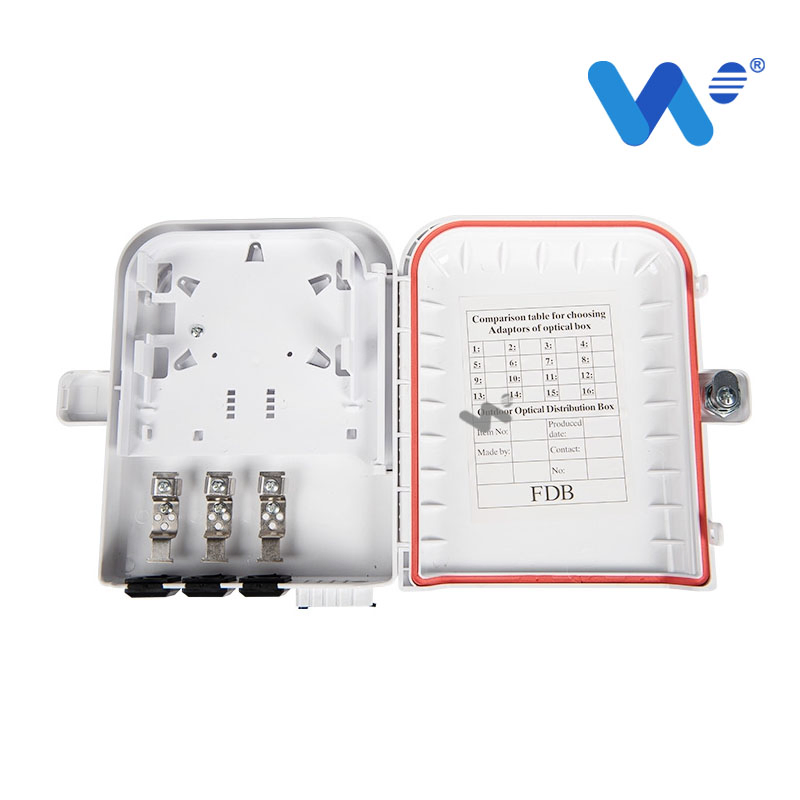

Fiber Optic Distribution Box Internal View

Fiber Optic Distribution Box Splice Tray

Fiber Optic Distribution Box Port Details

Fiber Optic Distribution Box Installation View

Frequently Asked Questions

Q1: What is the main function of this distribution box? A: It serves as a termination point for connecting feeder cables with drop cables in FTTX network systems, integrating splicing, splitting, and storage.

Q2: Can this box be used outdoors? A: Yes, it is made of wet-proof, water-proof, and dust-proof ABS material with an IP65 rating, making it suitable for both indoor and outdoor use.

Q3: What is the maximum fiber capacity? A: The box can accommodate a maximum splice capacity of 8 fibers using one splice tray.

Q4: Does it support PLC splitters? A: Yes, it is designed to hold one 1x8 PLC splitter and up to 8 SC simplex adaptors.

Q5: How can this box be installed? A: It supports two main installation methods: wall-mounted or pole-mounted, providing flexibility for different site requirements.

Q6: Is the distribution panel easy to maintain? A: Yes, the distribution panel can be flipped up, allowing for easy access and cup-joint feeder cable placement for maintenance and installation.
